2007 MERCEDES-BENZ GL450 Owner's Manual

224 Controls in detail
Climate control
Deactivating
Press button0 or, depending on
vehicle production date, button|
(
page 218) once more.
The indicator lamp on the button goes
out. Defrosting is turned off.
The previous settings are in effect
again. The air conditioning compressor
remains switched on.Windshield fogged on the outside
Switch the windshield wipers on
(
page 64).
Press button0 or, depending on
vehicle production date, button|
(
page 218).
The indicator lamp on the button
comes on.
The climate control switches automatically
to the following functions:

most efficient blower speed and
heating power, depending on outside
temperature

air flows onto the windshield and the
door windows (side air vents must be
open)

the air conditioning compressor
switches on at outside temperatures
above approximately 41°F (5°C) for
air-dryingIf the automatic air distribution is switched
off:
Press air distribution button9 ora
(
page 218).
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside (e.g. before driving
through a tunnel). This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.
iThe air conditioning compressor remains on
even if the indicator lamp in button0 or, de-
pending on vehicle production date, button|
goes out. This helps to prevent the windshield
from fogging.
iTo switch off, you can also press
button´ orU (
page 218).
iKeep this setting selected only until the
windshield is clear again.
Warning!G
Fogged windows impair visibility,
endangering you and others. If the windows
begin to fog on the inside, switching off the
air recirculation mode immediately should
clear interior window fogging. If interior win-
dow fogging persists, make sure the air
conditioning (
page 218) is activated, or
press button0 or, depending on vehicle
production date, button|.


225 Controls in detail
Climate control
Activating
Press button: (page 218).
The indicator lamp on the button
comes on.DeactivatingPress button:.
The indicator lamp on the button goes
out.Air recirculation mode with conve-
nience closing and opening feature
iThe air recirculation mode is activated auto-
matically at high outside temperatures.
The indicator lamp on button: is not lit when
the air recirculation mode is switched on auto-
matically.
A quantity outside air is added after
approximately 30 minutes.
If you have turned off the air conditioning
(
page 226) or the outside temperature is
below 41°F (5°C), the air recirculation mode will
not switch on automatically.
iTo cool the interior as fast as possible, the
climate control automatically switches to air
recirculation. The indicator lamp on button:
is not lit when the air recirculation mode has
been switched on automatically.
iThe air recirculation mode is deactivated
automatically

after 5 minutes if the outside temperature is
below approximately 41°F (5°C)

after 5 minutes if the air conditioning and
air-drying is turned off

after 30 minutes if the outside temperature
is above approximately 41°F (5°C)
Warning!G
Never operate the windows and tilt/sliding
sunroof* if there is the possibility of anyone
being harmed by the opening or closing pro-
cedure.
When using the air recirculation mode with
convenience closing feature, should the up-
ward movement of a window be blocked by
some obstruction including but not limited
to arms, hands, fingers, etc., the automatic
reversal feature will not operate.
In case the procedure causes potential
danger:
Vehicles with or without tilt/sliding sun-
roof*: The closing of the windows can be im-
mediately halted by pressing or pulling the
respective window switch. The closing of the
tilt/sliding sunroof* can be immediately
halted by moving the switch for the tilt/slid-
ing sunroof* in any direction.


226 Controls in detail
Climate control
Convenience closing
Press button: for approximately
2 seconds.
The windows and/or tilt/sliding sun-
roof* will close. You can release
button: once the closing proce-
dure has begun. The windows and
tilt/sliding sunroof* continue closing
until they are fully closed. The indicator
lamp on the button comes on. The air
recirculation mode is activated.Convenience opening
Press button: for approximately
2 seconds.
The windows and/or tilt/sliding sun-
roof* will return to their previous posi-
tions. You can release button:
once the opening procedure has be-
gun. The windows and tilt/sliding sun-
roof* continue opening until they have
reached their previous positions. The
indicator lamp on the button goes out.
The air recirculation mode is deactivat-
ed.
Air conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.
In addition, the air conditioning dehumidi-
fies the interior air at outside temperatures
above 41°F (5° C) and helps prevent
window fogging.The closing of the windows and the
tilt/sliding sunroof* can be reversed by
again pressing and holding the :button.
iA window or the tilt/sliding sunroof* will
only return to its previous position if it has not
been moved to another position using the re-
spective window switch or tilt/sliding sunroof*
switch after it was closed with button:.
iCondensation may drip out from underneath
the vehicle. This is normal and not an indication
of a malfunction.
Warning!G
If you turn off the cooling function, the
interior air is not dried. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.


227 Controls in detail
Climate control
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the climate
control system. The air in the vehicle will
then no longer be cooled or dehumidified.
Press button9 (page 218).
The indicator lamp on the button goes
out.
Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.
Press button9 (page 218) again.
The indicator lamp on the button
comes on.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
Residual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.Activating
Switch off the ignition (page 42).
Press button9 (page 218).
The indicator lamp on the button
comes on.
Deactivating
Press button9 (page 218).
The indicator lamp on the button goes
out.
!If the air conditioning cannot be turned on
again, this indicates that the air conditioning is
losing refrigerant. The compressor has turned
off.
Have the air conditioning checked at the nearest
authorized Mercedes-Benz Light Truck Center.
iHow long the system will provide heating
depends on

the coolant temperature

the battery voltage
Regardless of the temperature and air volume
set on the climate control panel, the interior tem-
perature is set to 72°F (22°C) and the blower
runs on low speed to protect the vehicle battery.
iThe residual heat is automatically turned off:

when the ignition is switched on

after about 30 minutes

if the coolant temperature is too low

if the battery voltage drops

228 Controls in detail
Climate control
Rear climate control*
The control panel is located on the rear of
the front center console.
Activating rear climate control
Press buttonU.
The indicator lamp on the button
comes on. The air volume and air distri-
bution are adjusted automatically.Deactivating rear climate control
Press button´.
The indicator lamp on the button
comes on.
The cooling function switches off after
a short delay.iThe rear climate control panel is only
available if your vehicle is equipped with seat
heating* for the rear seats or Rear Audio fea-
ture* (see separate COMAND System operating
instructions).
1Left rear center air vent, adjustable
2Right rear center air vent, adjustable
3Rear climate control on
(automatic mode)
4Air distribution (directs air through
the center air vents)
5Air distribution (directs air through
the footwells and side air vents)
6Rear air conditioning off
iThe climate control must be switched on
(
page 229).
iThe temperature is adjusted according to
the settings for the front passenger side made
on the front climate control panel (
page 221).
iSwitch off the rear climate control for im-
proved cooling or heating output in the front pas-
senger compartment.
You can also switch off the rear climate control
from the front passenger compartment
(
page 229).

229 Controls in detail
Climate control
Operating from the front
Deactivating
Press button: on the front climate
control panel (
page 218).
The indicator lamp on the button
comes on.
Reactivating
Press button: on the front climate
control panel (
page 218).
The indicator lamp on the button goes
out. The rear climate control is adjust-
ed automatically.Adjusting air distribution
Use the air distribution controls4 or5
to adjust the air distribution for the rear
passenger compartment.
The following symbols are found on the
controls:
Adjusting manually
Press the desired air distribution
control4 or5.
The indicator lamp in the Ubutton
goes out.Adjusting automatically
Press buttonU (page 228).
The indicator lamp on the button
comes on. The air distribution is adjust-
ed automatically.
Adjusting air volume
The air volume for the rear zone corre-
sponds to the air volume settings for the
front passenger side. You can switch off
the air supply for the rear zone.
You can switch off the supplied amount of
air volume.
Press button´ (page 228).
The indicator lamp on the button
comes on.
SymbolFunction
ZDirects air to the center air
vents
YDirects air to the footwells and
the side air vents

230 Controls in detail

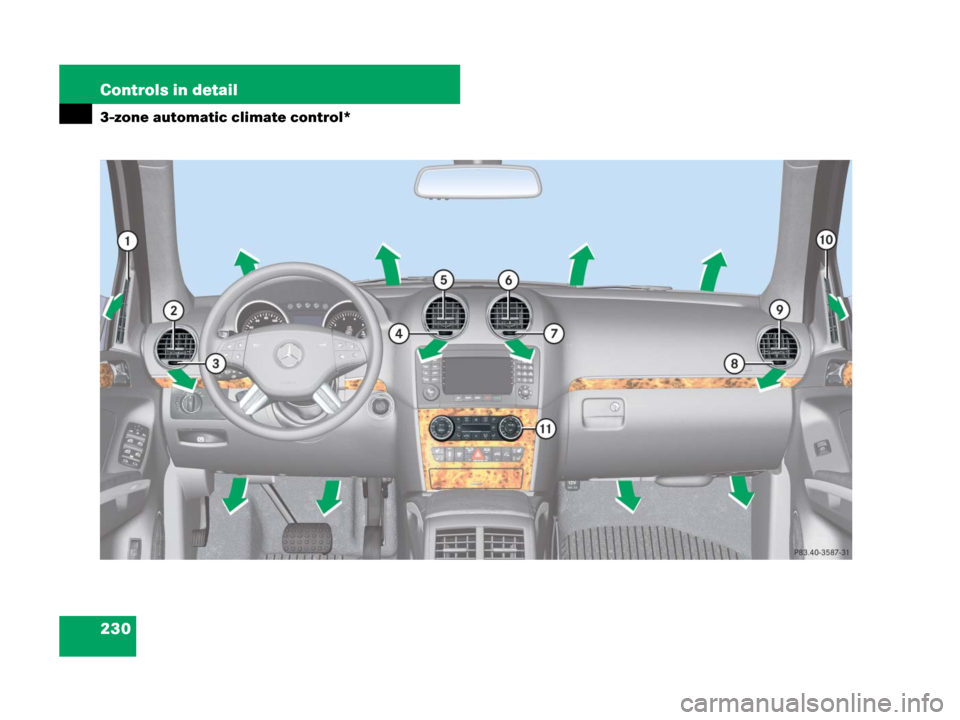

3-zone automatic climate control*

231 Controls in detail
3-zone automatic climate control*
1Driver’s door air vent, fixed
2Left side air vent, adjustable
3Thumbwheel for air volume control
for left side and door air vent
4Thumbwheel for air volume control
for left center air vent
5Left center air vent, adjustable
6Right center air vent, adjustable
7Thumbwheel for air volume control
for right center air vent
8Thumbwheel for air volume control
for right side and door air vent
9Right side air vent, adjustable
aFront passenger door air vent, fixed
bAutomatic climate control panel
iFor draft-free ventilation, move the sliders
for center air vents and side air vents to the
middle position.
