2007 MERCEDES-BENZ GL450 Owner's Manual

120 Controls in detail
Locking and unlocking

If the SmartKey with KEYLESS-GO is
removed from the vehicle (e.g. if a
passenger exits the vehicle with the
SmartKey with KEYLESS-GO)

when pressing the KEYLESS-GO
start/stop button or trying to lock
the vehicle with the look button on
an outside door handle the mes-
sage
Key not detected appears in
the multifunction display

with the engine running, the mes-
sage
Key not detected appears in
the multifunction display while
driving off.
Find the SmartKey with KEYLESS-GO or
change its present location immediate-
ly (e.g. place it on the front passenger
seat or insert it in shirt pocket).

Remember that the engine can be
started by anyone with a SmartKey
with KEYLESS-GO that is left inside the
vehicle.
Possibility 1 (One SmartKey with
KEYLESS-GO in the vehicle, one
SmartKey with KEYLESS-GO outside
the vehicle):
If you leave the SmartKey with
KEYLESS-GO behind when exiting and
locking the vehicle, no message
appears in the multifunction display.
Possibility 2 (One SmartKey with
KEYLESS-GO in the vehicle, no
SmartKey with KEYLESS-GO outside
the vehicle):
When exiting and trying to lock the
vehicle, the message
Key detected in
vehicle
will appear in the multifunction
display. The vehicle will not be locked.Factory setting
Global unlocking
Grasp an outside door handle.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and rearm the anti-theft alarm system
within approximately 40 seconds of
unlocking if

neither a door nor the tailgate is
opened

the central locking switch is not
activated
iThe vehicle could be inadvertently unlocked
if the SmartKey with KEYLESS-GO is within 3 ft
(1 m) of the vehicle and

an outside door handle is splashed with
water
or

you attempt to clean an outside door handle

121 Controls in detail
Locking and unlocking
Global locking
Press the lock button on an outside
door handle (
page 72).
With the tailgate and all doors closed,
the turn signal lamps flash three times.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey with
KEYLESS-GO so when you grasp the
driver’s door handle only the driver’s door
and the fuel filler flap unlocks.
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds
until battery check lamp5
(
page 117) flashes twice.
The SmartKey with KEYLESS-GO will
then function as follows:Unlocking driver’s door and fuel filler
flap
Grasp the driver’s outside door handle.
All turn signal lamps flash once. The
locking knob in the driver’s door moves
up. The anti-theft alarm system is dis-
armed.
Global unlocking
Grasp any outside door handle other
than the driver’s outside door handle.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.Global locking
Press the lock button on an outside
door handle (
page 72).
All turn signal lamps flash three times.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.
Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds
until battery check lamp5
(
page 117) flashes twice.

122 Controls in detail
Locking and unlocking
Checking the batteries in the SmartKey
or SmartKey with KEYLESS-GO*
Press button‹orŒ.
The battery check lamp (
page 114)
or (
page 117) comes on briefly to in-
dicate that the SmartKey or SmartKey
with KEYLESS-GO batteries are in
order.Loss of the SmartKey or SmartKey with
KEYLESS-GO*
If you lose your SmartKey, SmartKey with
KEYLESS-GO or mechanical key, you
should do the following:
Have the SmartKey or SmartKey with
KEYLESS-GO deactivated by an
authorized Mercedes-Benz Light Truck
Center.
Report the loss of the SmartKey,
SmartKey with KEYLESS-GO or the
mechanical key immediately to your
car insurance company.
Have the mechanical lock replaced if
necessary.
Your authorized Mercedes-Benz Light
Truck Center will be glad to supply you
with a replacement.
Opening the doors from the inside
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.
1Locking knob
2Inside door handle
iIf the battery check lamp does not come on
briefly during check, the SmartKey or SmartKey
with KEYLESS-GO batteries are discharged.
Replace the batteries (
page 506).
You can obtain the required batteries at any
authorized Mercedes-Benz Light Truck Center.
iIf the batteries are checked within signal
range of the vehicle, pressing the
button‹orŒ will lock or unlock the
vehicle accordingly.

123 Controls in detail
Locking and unlocking
Front doors
Pull on inside door handle2 on the
respective front door to open door.
If the door was locked, locking knob1
will move up.
Rear doors
Pull up locking knob1 on the respec-
tive rear door to unlock door.
Pull on inside door handle2 on the re-
spective rear door to open door.
Tailgate/Power tailgate*
A minimum height clearance of
7.4 ft (2.25 m) is required to open the
tailgate.iIf the vehicle has previously been locked
from the outside with the SmartKey or
KEYLESS-GO*, opening a door from the inside
will trigger the anti-theft alarm system.
To cancel the alarm, do one of the following:
With the SmartKey

Insert the SmartKey in the starter switch.

Press theŒ or ‹button on the
SmartKey.
With KEYLESS-GO*

Grasp an outside door handle.

Press the KEYLESS-GO* start/stop button
(
page 43).
The SmartKey with KEYLESS-GO* must be
inside the vehicle.
Warning!G
Make sure the tailgate is closed when the
engine is running and while driving. Among
other dangers deadly carbon monoxide (CO)
gases may enter vehicle interior resulting in
unconsciousness and death.
!The tailgate swings open upwards automat-
ically. Always make sure there is sufficient over-
head clearance.

124 Controls in detail
Locking and unlocking
Tailgate
Opening the tailgate from the outside
The handle is located above the rear
license plate recess.
Pull on the handle.
The tailgate opens slightly.
Pull tailgate upwards to open.Opening the tailgate from the inside
You can unlock the tailgate from the
third-row seats and then open it manually.
The handle is located on the right of the
tailgate’s window trim.
1Handle
2Push
3Lift
Push handle1 in direction of
arrow2 and hold it there.
Lift handle1 in direction of arrow3.
The tailgate is released and can be
opened manually.
iVehicles without KEYLESS-GO*:
The vehicle must be unlocked (
page 40).
Vehicles with KEYLESS-GO*:
When opening the tailgate, the vehicle is globally
unlocked.iIf you do not open the tailgate within a few
seconds, the tailgate lock will automatically
engage again. Additionally, the tailgate will
relock automatically, if the vehicle was locked
when the tailgate was released from the inside.
If the tailgate lock does not engage automatically
and, if applicable, the tailgate does not relock
after a few seconds, you have to close the tail-
gate manually (
page 125).

125 Controls in detail
Locking and unlocking
Closing the tailgate from the outside
1Handle
Lower tailgate by pulling firmly on
handle1.
Close tailgate with hands placed flat on
it.
Once the tailgate touches the latch, the
tailgate will pull itself shut automatical-
ly.Power tailgate*
In vehicles with power tailgate, you can

open and close the tailgate from the
inside and the outside electrically

limit the opening height of the tailgate

interrupt the opening/closing proce-
dure at any time by

pressing or pulling the
door-mounted remote tailgate
switch (
page 126)

pressing the Šbutton on the
SmartKey (
page 114) or
SmartKey with KEYLESS-GO*
(
page 117)

pressing the tailgate closing switch
(
page 128)

pressing the tailgate
closing/locking switch (vehicles
with KEYLESS-GO*) (
page 128)
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the cargo
compartment opening when closing the
tailgate. Be especially careful when small
children are around.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.
iTo prevent an inadvertent lockout, do not
place the SmartKey in the cargo compartment.
Vehicles with KEYLESS-GO*: To prevent a
possible inadvertent lockout, the tailgate will
open automatically if a SmartKey with
KEYLESS-GO is recognized inside the vehicle.
iIf the vehicle was previously centrally locked
with the SmartKey or KEYLESS-GO*, the tailgate
will lock automatically after closing it. The turn
signals flash three times to confirm locking.
!The tailgate swings open upwards automat-
ically. Always make sure there is sufficient over-
head clearance.

126 Controls in detail
Locking and unlocking
Opening the tailgate from the outside
You can unlock and open the tailgate
simultaneously from the outside when the
vehicle is at a standstill.
Press and hold buttonŠ on the
SmartKey or SmartKey with
KEYLESS-GO* until the tailgate unlocks
and opens.
While the tailgate is opening, an
acoustic signal sounds.
or
Vehicles with KEYLESS-GO*:
Pull on the handle (
page 124).
The entire vehicle is unlocked and the
tailgate opens. While the tailgate is
opening, an acoustic signal sounds.Opening the tailgate from the inside
You can unlock and open the tailgate si-
multaneously from the driver’s seat when
the vehicle is at a standstill.The switch is located on the door control
panel.
1Remote tailgate switch with indicator
lampPull remote tailgate switch1 until
tailgate begins to open.
The tailgate opens. The indicator lamp
in the remote tailgate switch comes on
and remains lit until the tailgate is
closed. While the tailgate is opening, an
acoustic signal sounds.
Warning!G
Maintain sight of the area around the rear of
the vehicle while operating the tailgate with
the door-mounted remote tailgate switch or
with the Šbutton on the SmartKey or
SmartKey with KEYLESS-GO*. Monitor the
opening procedure carefully to make sure
no one is in danger of being injured.
To interrupt the opening procedure, press or
pull the door-mounted remote tailgate
switch or press the Šbutton on the
SmartKey or SmartKey with KEYLESS-GO*.

127 Controls in detail
Locking and unlocking

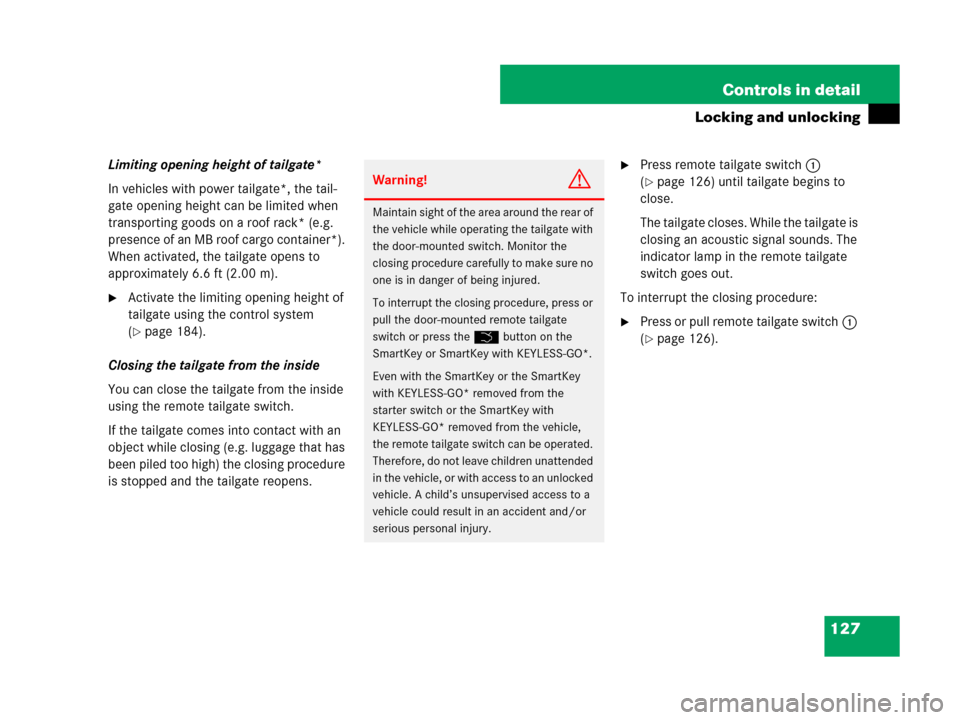

Limiting opening height of tailgate*
In vehicles with power tailgate*, the tail-
gate opening height can be limited when
transporting goods on a roof rack* (e.g.
presence of an MB roof cargo container*).
When activated, the tailgate opens to
approximately 6.6 ft (2.00 m).
Activate the limiting opening height of
tailgate using the control system
(
page 184).
Closing the tailgate from the inside
You can close the tailgate from the inside
using the remote tailgate switch.
If the tailgate comes into contact with an
object while closing (e.g. luggage that has
been piled too high) the closing procedure
is stopped and the tailgate reopens.
Press remote tailgate switch1
(
page 126) until tailgate begins to
close.
The tailgate closes. While the tailgate is
closing an acoustic signal sounds. The
indicator lamp in the remote tailgate
switch goes out.
To interrupt the closing procedure:
Press or pull remote tailgate switch1
(
page 126).
Warning!G
Maintain sight of the area around the rear of
the vehicle while operating the tailgate with
the door-mounted switch. Monitor the
closing procedure carefully to make sure no
one is in danger of being injured.
To interrupt the closing procedure, press or
pull the door-mounted remote tailgate
switch or press the Šbutton on the
SmartKey or SmartKey with KEYLESS-GO*.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the remote tailgate switch can be operated.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. A child’s unsupervised access to a
vehicle could result in an accident and/or
serious personal injury.
