2007 MERCEDES-BENZ GL450 Owner's Manual

256 Controls in detail
Power tilt/sliding sunroof*
Reinsert the fuse in the main box.
Switch on the ignition (page 42).
Press and hold the sunroof switch in
the direction of arrow3 (
page 254)
until the tilt/sliding sunroof is fully
raised at the rear.
Hold the sunroof switch in the direction
of arrow3 for approximately
1 second.
Open the tilt/sliding sunroof using the
Express-open feature (
page 255).
If the tilt/sliding sunroof opens
completely, it is synchronized.
If the tilt/sliding sunroof does not open
completely:
Repeat the above steps.


257 Controls in detail
Driving systems
Driving systems
The driving systems of your vehicle are
described on the following pages:

Cruise control (page 257) and
Distronic* (
page 262), with which
the vehicle can maintain a preset
speed.

Distance warning function*
(
page 274) is only available with
Distronic*, which warns of stationary
obstacle or slower moving vehicles that
you are closing in on too quickly.

Downhill Speed Regulation (DSR)
(
page 275), which supports you
when you are driving downhill.

Off-road driving program (page 279)
(vehicles without enhanced off-road
package*), which supports you when
you are driving off-road.

Air suspension package
There are two components available.

Vehicle level control (page 281),
which controls the vehicle level.

Adaptive Damping System (ADS)*
(
page 280), which adjusts the
vehicle suspension characteristics.

Parktronic* (page 290) and rear view
camera* (
page 295), which serve as
a parking aid.
For information on the ABS, BAS, EBP,
ESP
®, and 4-ETS, see “Driving safety sys-
tems” (
page 103).
Cruise control
The cruise control automatically maintains
the speed you set for your vehicle.
The use of cruise control is recommended
for driving at a constant speed for extend-
ed periods of time. You can set or resume
cruise control at any speed above
20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column (
page 24).
iThe cruise control should not be activated
during off-road driving.

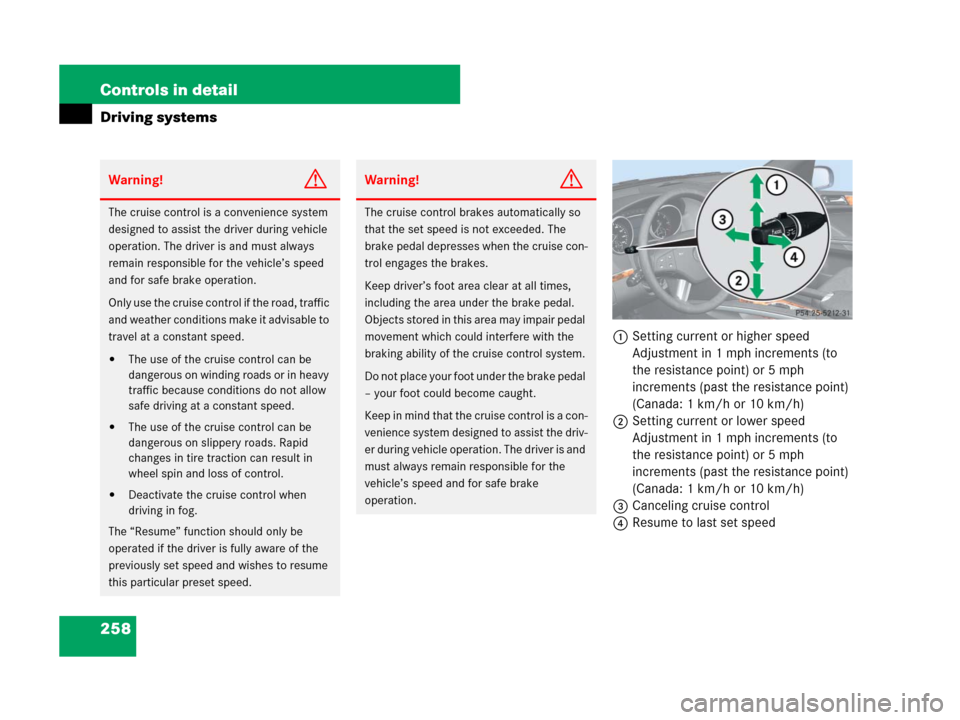

258 Controls in detail
Driving systems
1Setting current or higher speed
Adjustment in 1 mph increments (to
the resistance point) or 5 mph
increments (past the resistance point)
(Canada: 1 km/h or 10 km/h)
2Setting current or lower speed
Adjustment in 1 mph increments (to
the resistance point) or 5 mph
increments (past the resistance point)
(Canada: 1 km/h or 10 km/h)
3Canceling cruise control
4Resume to last set speed
Warning!G
The cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must always
remain responsible for the vehicle’s speed
and for safe brake operation.
Only use the cruise control if the road, traffic
and weather conditions make it advisable to
travel at a constant speed.

The use of the cruise control can be
dangerous on winding roads or in heavy
traffic because conditions do not allow
safe driving at a constant speed.

The use of the cruise control can be
dangerous on slippery roads. Rapid
changes in tire traction can result in
wheel spin and loss of control.

Deactivate the cruise control when
driving in fog.
The “Resume” function should only be
operated if the driver is fully aware of the
previously set speed and wishes to resume
this particular preset speed.
Warning!G
The cruise control brakes automatically so
that the set speed is not exceeded. The
brake pedal depresses when the cruise con-
trol engages the brakes.
Keep driver’s foot area clear at all times,
including the area under the brake pedal.
Objects stored in this area may impair pedal
movement which could interfere with the
braking ability of the cruise control system.
Do not place your foot under the brake pedal
– your foot could become caught.
Keep in mind that the cruise control is a con-
venience system designed to assist the driv-
er during vehicle operation. The driver is and
must always remain responsible for the
vehicle’s speed and for safe brake
operation.

259 Controls in detail
Driving systems
Activating cruise control
You can activate the cruise control when
the vehicle speed is above
20 mph (30 km/h).
In the following cases you cannot activate
the cruise control:

when you brake

when you have set the parking brake

when the automatic transmission is set
to positionP, R, or N

if the ESP® is switched off

if the ESP® has switched off due to a
malfunctionSetting current speed
Accelerate or decelerate to the desired
speed.
Briefly lift the cruise control lever in
direction of arrow1 or depress in
direction of arrow2.
The current speed is set.
Remove your foot from the accelerator
pedal.
The cruise control is activated.
The current set speed appears in the
multifunction display for approximately
5 seconds.Canceling cruise control
There are several ways to cancel the cruise
control:
Step on the brake pedal.
The cruise control is canceled. The last
speed set is stored for later use.
or
Briefly push the cruise control lever in
direction of arrow3 (
page 258).
The cruise control is canceled. The last
speed set is stored for later use.
iThe vehicle speed displayed in the speedom-
eter can briefly vary from the speed setting for
the cruise control system.iOn uphill grades, the cruise control may not
be able to maintain the set speed. Once the
grade eases, the set speed will be resumed.
On downhill grades, the cruise control maintains
the set speed by braking with the vehicle’s
braking system. In addition, on longer downhill
grades the automatic transmission will down-
shift automatically.
iThe last stored set speed is deleted when
the engine is turned off.

260 Controls in detail
Driving systems
Setting a higher speed
You can increase the speed in two ways.Adjustment in 1 mph (Canada: 1 km/h)
increments
Briefly lift the cruise control lever up to
the resistance point in direction of
arrow1 (
page 258).
Release the cruise control lever.
The vehicle speed increases in incre-
ments of 1 mph (Canada: 1km/h).
Adjustment in 5 mph
(Canada: 10 km/h) increments
iThe cruise control switches off
automatically when

you step on the brake pedal

you depress the parking brake pedal
The cruise control switches off automatically and
an acoustic warning will sound when

the vehicle speed is below 20 mph
(30 km/h)

the ESP® is in operation

the ESP® is switched off with the ESP®
switch (
page 107)

the ESP® has switched off due to a
malfunction (
page 441)

you set the automatic transmission toN
while driving
Observe additional messages in the
multifunction display that may appear.
!Setting the automatic transmission toN
while driving cancels the cruise control.
However, the automatic transmission should not
be set toN while driving except to coast when
the vehicle is in danger of skidding (e.g. on icy
roads).
iDepressing the accelerator pedal does not
deactivate the cruise control. After a brief accel-
eration (e.g. for passing), the cruise control will
resume the last set speed.
Warning!G
If you increase the set vehicle speed, keep in
mind that it may take a brief moment until
the vehicle has reached the set speed.
Increase the set vehicle speed to a value
that the prevailing road conditions and legal
speed limits permit. Otherwise, sudden and
unexpected acceleration of the vehicle
could cause an accident and/or serious in-
jury to you and others.
iThe set value is increased in 1 mph
(Canada: 1 km/h) increments each time you lift
the cruise control lever up to the resistance
point.
iThe set value is increased in
5 mph (Canada: 10 km/h) increments each time
you lift the cruise control lever past the
resistance point.

261 Controls in detail
Driving systems
Briefly lift the cruise control lever up
past the resistance point in direction of
arrow1 (
page 258).
Release the cruise control lever.
The vehicle speed increases in incre-
ments of 5 mph (Canada: 10 km/h).
Setting a lower speedYou can reduce the speed in two ways.
Adjustment in 1 mph (Canada: 1 km/h)
increments
Briefly press the cruise control lever
down to the resistance point in direc-
tion of arrow2 (
page 258).
Release the cruise control lever.
The vehicle speed decreases in incre-
ments of 1 mph (Canada: 1 km/h).Adjustment in 5 mph
(Canada: 10 km/h) increments
Briefly press the cruise control lever
down past the resistance point in direc-
tion of arrow2 (
page 258).
Release the cruise control lever.
The vehicle speed decreases in incre-
ments of 5 mph (Canada: 10 km/h).
iThe new speed is set and the vehicle will
accelerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.
Warning!G
If you decrease the set vehicle speed, keep
in mind that it may take a brief moment until
the vehicle has reached the set speed.
Decelerate the set vehicle speed to a value
that the prevailing road conditions and legal
speed limits permit. Otherwise, sudden and
unexpected deceleration of the vehicle
could cause an accident and/or serious in-
jury to you and others.
iWhen you use the cruise control lever to
decelerate, the brake system will automatically
brake the vehicle if the engine’s braking power
does not brake the vehicle sufficiently.
iThe set value is decreased in 1 mph
(Canada: 1 km/h) increments each time you
press the cruise control lever down to the resis-
tance point.
iThe set value is decreased in 5 mph
(Canada: 10 km/h) increments each time you
press the cruise control lever down past the
resistance point.
iThe new speed is set and the vehicle will
decelerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.

262 Controls in detail
Driving systems
Setting to last stored speed
(“Resume” function)
Briefly pull the cruise control lever in di-
rection of arrow4 (
page 258).
The cruise control resumes to the last
set speed, or if no speed is stored, it
will set and store the current speed.
Remove your foot from the accelerator
pedal.
The last set speed appears in the multi-
function display for approximately
5 seconds.
Distronic*
When activated, the Distronic adaptive
cruise control system increases the driving
convenience afforded by the cruise control
while traveling on expressways and other
major roadways.

If the Distronic distance sensor detects
a slower moving vehicle directly ahead,
your vehicle speed will be reduced so
that you follow that vehicle at your
preset following distance.

If there is no vehicle directly ahead of
you, Distronic will function in the same
way as standard cruise control
(
page 257).
Warning!G
The set speed stored in memory should only
be set again if prevailing road conditions
permit. Possible acceleration or decelera-
tion differences arising from returning to the
preset speed could cause an accident
and/or serious injury to you and others.
Warning!G
Distronic is a convenience system. Its speed
adjustment reduction capability is intended
to make cruise control more effective and
usable when traffic speeds vary. It is not
however, intended to, nor does it, replace
the need for extreme care. The responsibili-
ty for the vehicle’s speed, distance to the
preceding vehicle and, most importantly,
brake operation to ensure a safe stopping
distance, always remains with the driver.
Distronic cannot take road and traffic condi-
tions into account.
Complex driving situations are not always
fully recognized by Distronic. This could
result in wrong or missing distance
warnings.

263 Controls in detail
Driving systems
Warning!G
Distronic adaptive cruise control is no
substitute for active driving involvement. It
does not react to pedestrians or on station-
ary objects, nor does it recognize or predict
the lane curvature or the movement of
preceding vehicles.
Distronic can only apply a maximum of 20%
of the vehicle’s braking power.
It is the driver’s responsibility at all times to
be attentive to the road, weather and traffic
conditions. Additionally, the driver must
provide the steering, braking and other
driving inputs necessary to remain in control
of the vehicle.
High-frequency sources such as toll
stations, speed measuring systems etc. can
cause the Distronic system to malfunction.
Warning!G
Distronic requires familiarity with its opera-
tional characteristics. We strongly recom-
mend that you review the following
information carefully before operating the
system.
Warning!G
Distronic cannot take road and traffic condi-
tions into account. Only use Distronic if the
road, weather and traffic conditions make it
advisable to travel at a constant speed.
Warning!G
Use of Distronic can be dangerous on slip-
pery roads. Rapid changes in tire traction
can result in wheel spin and loss of control.
Distronic does not act upon adverse sight
and distance conditions. Do not use
Distronic during conditions of fog, heavy
rain, snow or sleet.
Warning!G
Distronic cannot take weather conditions
into account. Switch off Distronic or do not
switch it on if:

roads are slippery or covered with snow
or ice. The wheels could lose traction
while braking or accelerating, and the
vehicle could skid.

the sensor is dirty or visibility is
diminished due to snow, rain or fog, for
example. The distance control system
functionality could be impaired.
Always pay attention to surrounding traffic
conditions even while Distronic is switched
on. Otherwise, you may not be able to recog-
nize dangerous situations until it is too late.
This could cause an accident in which you
and others could be injured.
