2007 MERCEDES-BENZ GL450 Owner's Manual

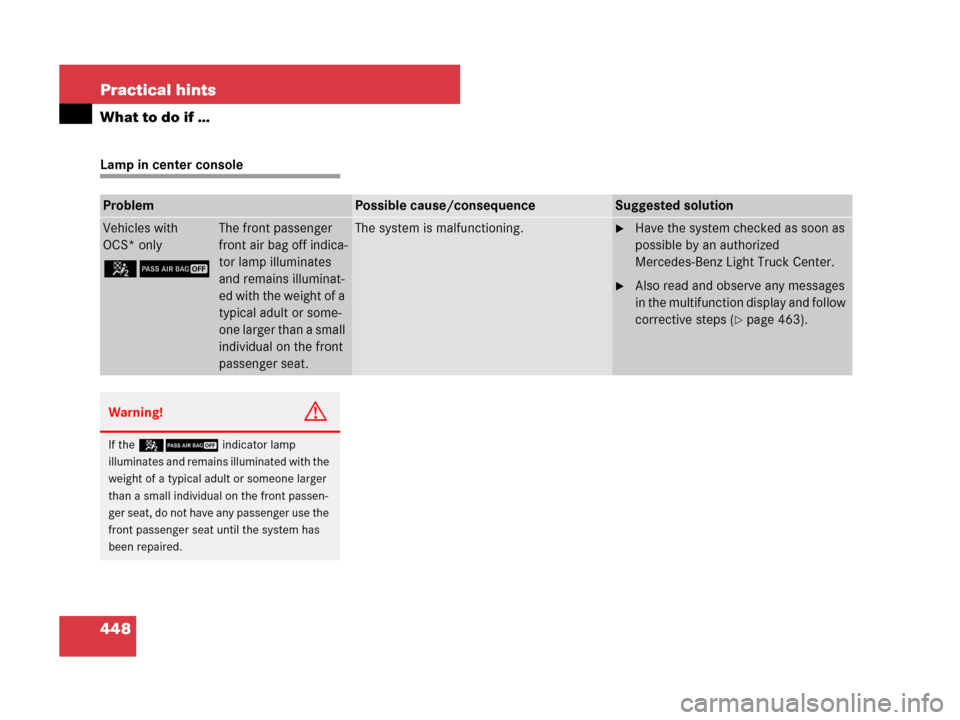

448 Practical hints
What to do if …
Lamp in center console
ProblemPossible cause/consequenceSuggested solution
Vehicles with
OCS* only
59
The front passenger
front air bag off indica-
tor lamp illuminates
and remains illuminat-
ed with the weight of a
typical adult or some-
one larger than a small
individual on the front
passenger seat.The system is malfunctioning.Have the system checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.
Also read and observe any messages
in the multifunction display and follow
corrective steps (
page 463).
Warning!G
If the59indicator lamp
illuminates and remains illuminated with the
weight of a typical adult or someone larger
than a small individual on the front passen-
ger seat, do not have any passenger use the
front passenger seat until the system has
been repaired.

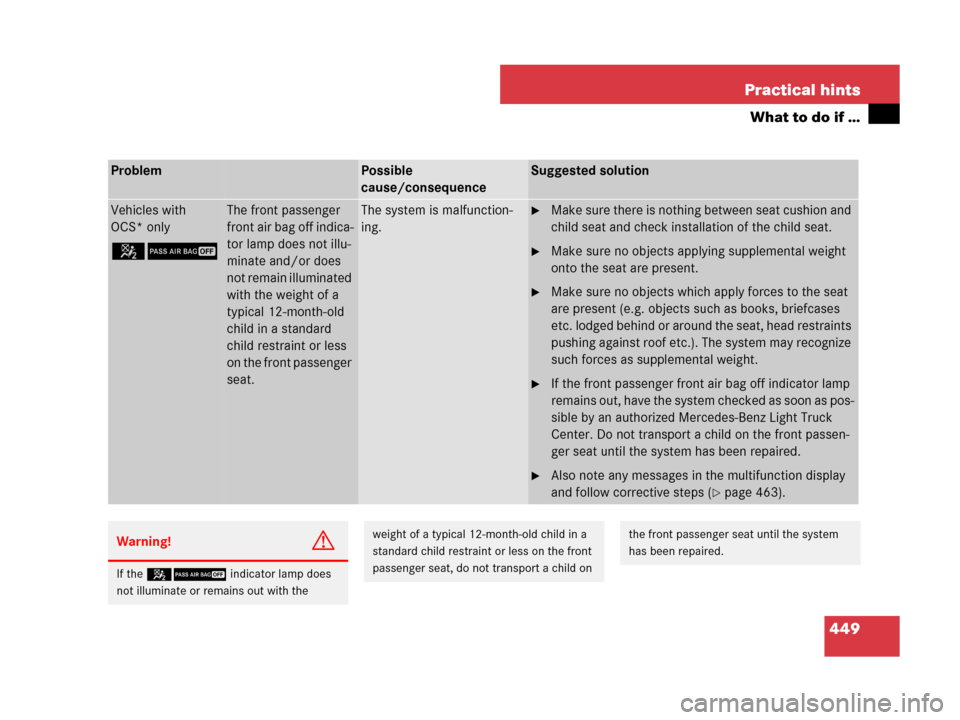

449 Practical hints
What to do if …
ProblemPossible
cause/consequenceSuggested solution
Vehicles with
OCS* only
59
The front passenger
front air bag off indica-
tor lamp does not illu-
minate and/or does
not remain illuminated
with the weight of a
typical 12-month-old
child in a standard
child restraint or less
on the front passenger
seat.The system is malfunction-
ing.Make sure there is nothing between seat cushion and
child seat and check installation of the child seat.
Make sure no objects applying supplemental weight
onto the seat are present.
Make sure no objects which apply forces to the seat
are present (e.g. objects such as books, briefcases
etc. lodged behind or around the seat, head restraints
pushing against roof etc.). The system may recognize
such forces as supplemental weight.
If the front passenger front air bag off indicator lamp
remains out, have the system checked as soon as pos-
sible by an authorized Mercedes-Benz Light Truck
Center. Do not transport a child on the front passen-
ger seat until the system has been repaired.
Also note any messages in the multifunction display
and follow corrective steps (
page 463).
Warning!G
If the59indicator lamp does
not illuminate or remains out with the
weight of a typical 12-month-old child in a
standard child restraint or less on the front
passenger seat, do not transport a child onthe front passenger seat until the system
has been repaired.

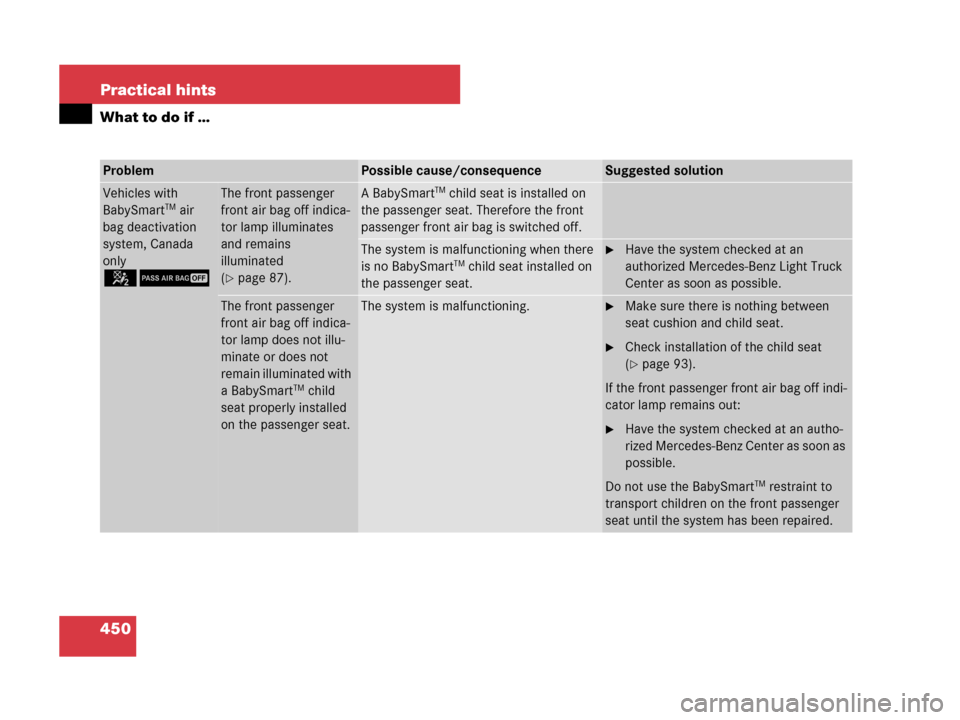

450 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
Vehicles with
BabySmartTM air
bag deactivation
system, Canada
only
59
The front passenger
front air bag off indica-
tor lamp illuminates
and remains
illuminated
(
page 87).
A BabySmartTM child seat is installed on
the passenger seat. Therefore the front
passenger front air bag is switched off.
The system is malfunctioning when there
is no BabySmartTM child seat installed on
the passenger seat.
Have the system checked at an
authorized Mercedes-Benz Light Truck
Center as soon as possible.
The front passenger
front air bag off indica-
tor lamp does not illu-
minate or does not
remain illuminated with
a BabySmart
TM child
seat properly installed
on the passenger seat.
The system is malfunctioning.Make sure there is nothing between
seat cushion and child seat.
Check installation of the child seat
(
page 93).
If the front passenger front air bag off indi-
cator lamp remains out:
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Do not use the BabySmart
TM restraint to
transport children on the front passenger
seat until the system has been repaired.

451 Practical hints
What to do if …
Vehicle status messages in the
multifunction display
Warning and malfunction messages
appear in the multifunction display located
in the instrument cluster.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the vehicle status message
memory menu in the control system
(
page 169) displays both cleared and
uncleared messages.
High-priority messages appear in the
multifunction display in red color.Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (
page 155) or
buttonj,k,ÿ, orè on the
multifunction steering wheel.
Other messages of high priority and mes-
sages of less immediate priority can be
cleared from the multifunction display
using the reset button (
page 155) or
buttonj,k,ÿ, orè on the
multifunction steering wheel. They are
then stored in the vehicle status message
memory (
page 169). Remember that
clearing a message will only make the mes-
sage disappear. Clearing a message will
not correct the condition that caused the
message to appear.
Warning!G
All categories of messages contain
important information which should be
taken note of and, where a malfunction is
indicated, addressed as soon as possible at
an authorized Mercedes-Benz Light Truck
Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.

452 Practical hints
What to do if …
On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may
appear in the multifunction display.
For your convenience the messages are
divided into two sections:

Text messages (page 453)

Symbol messages (page 469)
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
As a result, you will not be able to see infor-
mation about your driving conditions, such
as speed or outside temperature, warn-
ing/indicator lamps, malfunction/warning
messages or the failure of any systems.
Driving characteristics may be impaired.
If you must continue to drive, please do so
with added caution. Visit an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
iSwitching on the ignition causes all
instrument cluster lamps (except high beam
headlamp indicator lamp, and turn signal
indicator lamps unless activated) as well as the
multifunction display to come on. Make sure the
lamps and multifunction display are in working
order before starting your journey.

453 Practical hints
What to do if …
Text messages
Display messagePossible cause/consequencePossible solution
ABSinoperative
See Operator’s ManualThe ABS has detected a malfunction
and has switched off.
The ESP
® and the BAS are also
deactivated.
The brake system is still functioning
normally but without the ABS avail-
able.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Have the system checked at an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
Failure to follow these instructions increases
the risk of accident.
unavailable
See Operator’s ManualThe ABS was deactivated because of
insufficient power supply. The charg-
ing voltage has fallen below 10 volts.
The brake system is still functioning
normally but without the ABS
available.When the voltage is above this value again, the
ABS is operational again and the message in
the multifunction display should disappear.
If the message in the multifunction display
does not disappear:
Have the generator (alternator) and the
battery checked.

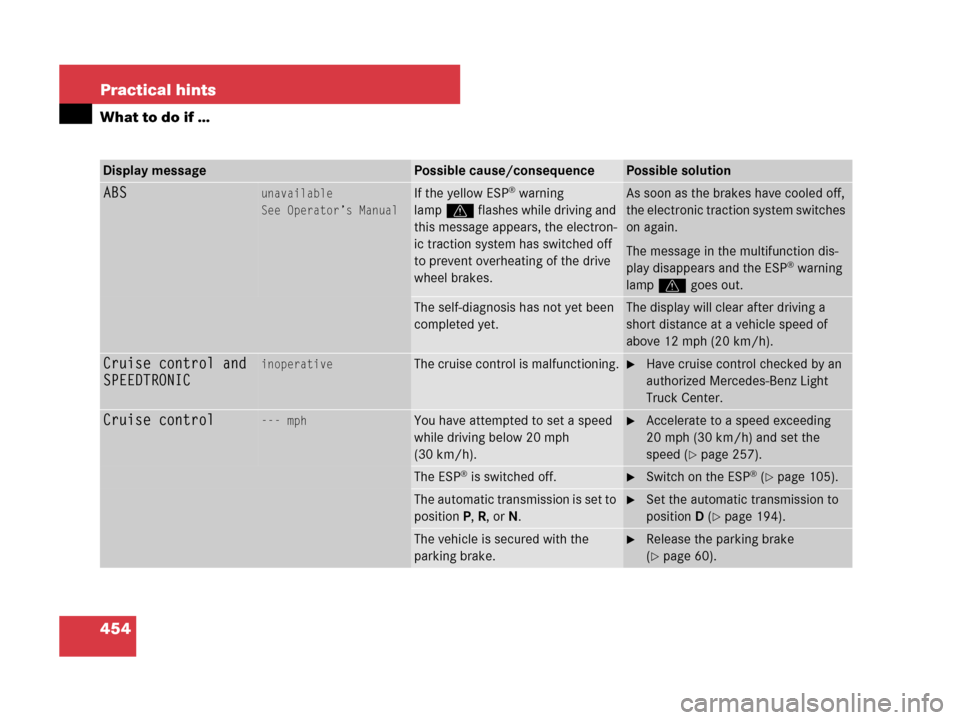

454 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
ABSunavailable
See Operator’s ManualIf the yellow ESP® warning
lampv flashes while driving and
this message appears, the electron-
ic traction system has switched off
to prevent overheating of the drive
wheel brakes.As soon as the brakes have cooled off,
the electronic traction system switches
on again.
The message in the multifunction dis-
play disappears and the ESP
® warning
lampv goes out.
The self-diagnosis has not yet been
completed yet.The display will clear after driving a
short distance at a vehicle speed of
above 12 mph (20 km/h).
Cruise control and
SPEEDTRONICinoperativeThe cruise control is malfunctioning.Have cruise control checked by an
authorized Mercedes-Benz Light
Truck Center.
Cruise control--- mphYou have attempted to set a speed
while driving below 20 mph
(30 km/h).Accelerate to a speed exceeding
20 mph (30 km/h) and set the
speed (
page 257).
The ESP® is switched off.Switch on the ESP® (page 105).
The automatic transmission is set to
positionP, R, orN.Set the automatic transmission to
positionD (
page 194).
The vehicle is secured with the
parking brake.Release the parking brake
(
page 60).

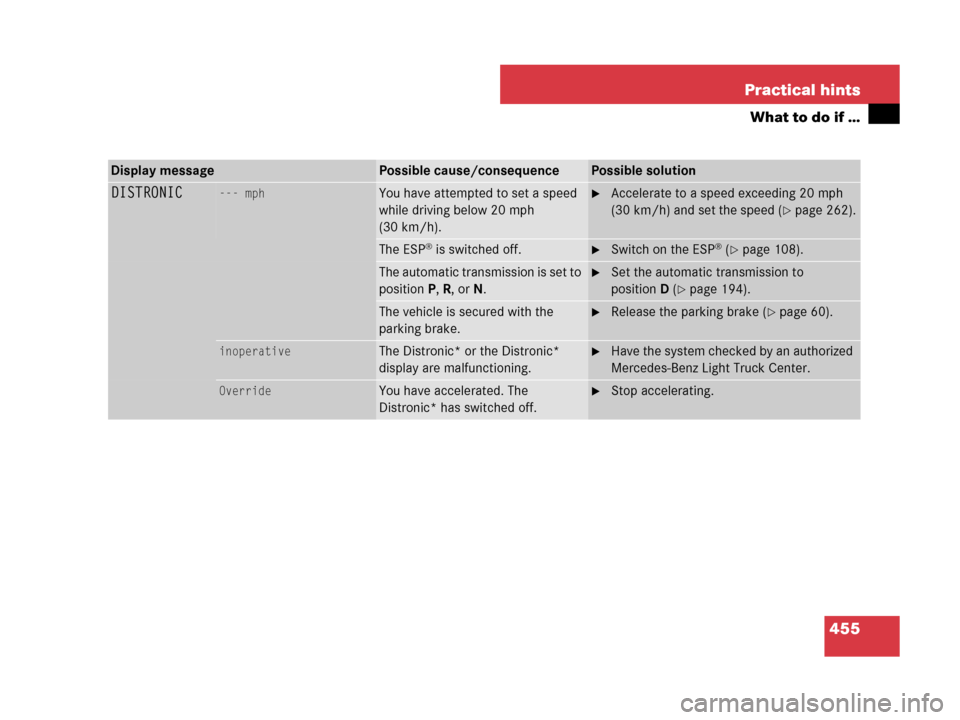

455 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
DISTRONIC--- mphYou have attempted to set a speed
while driving below 20 mph
(30 km/h).Accelerate to a speed exceeding 20 mph
(30 km/h) and set the speed (
page 262).
The ESP® is switched off.Switch on the ESP® (page 108).
The automatic transmission is set to
positionP, R, orN.Set the automatic transmission to
positionD (
page 194).
The vehicle is secured with the
parking brake.Release the parking brake (page 60).
inoperativeThe Distronic* or the Distronic*
display are malfunctioning.Have the system checked by an authorized
Mercedes-Benz Light Truck Center.
OverrideYou have accelerated. The
Distronic* has switched off.Stop accelerating.
