2006 MERCEDES-BENZ ML500 Owner's Manual

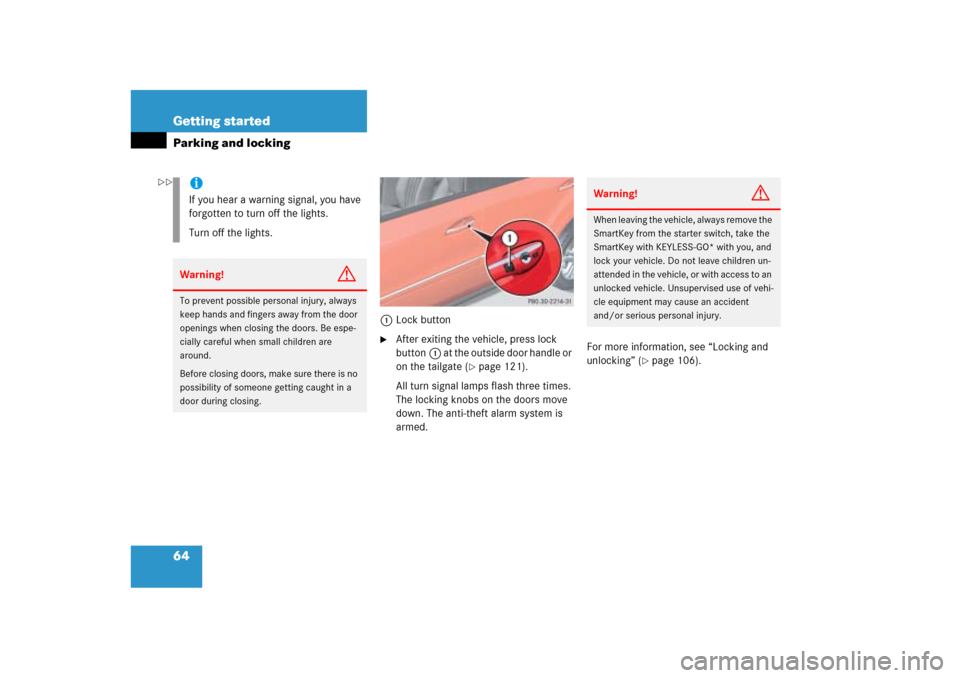

64 Getting startedParking and locking
1Lock button
After exiting the vehicle, press lock
button1 at the outside door handle or
on the tailgate (
page 121).
All turn signal lamps flash three times.
The locking knobs on the doors move
down. The anti-theft alarm system is
armed.For more information, see “Locking and
unlocking” (
page 106).
iIf you hear a warning signal, you have
forgotten to turn off the lights.
Turn off the lights.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

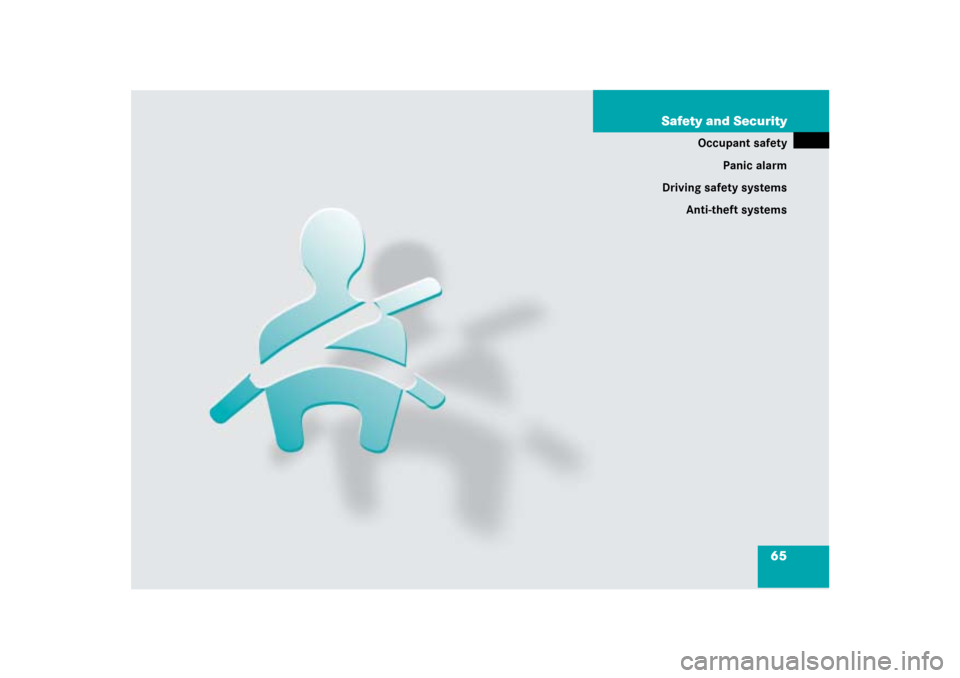

65 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems

66 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.

Seat belts (
page 73)


Child restraints (
page 87)


Lower anchors and tethers for children
(LATCH) (
page 88)
Supplemental Restraint System (SRS) with


Air bags (
page 67)


Air bag control unit (with crash
sensors)


Emergency tensioning device (ETD) for
seat belts (
page 76)Air bag system components with


Front passenger front air bag off
indicator lamp (
page 85)


Front passenger seat with Occupant
Classification System (OCS)
(page 81)
As independent systems, their protective
functions work in conjunction with each
other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The
1
indicator lamp in the instrument
cluster (page 25) comes on when the
ignition is switched on and goes out no lat-
er than a few seconds after the engine has
been started.
The SRS components are in operational
readiness if the
1
indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the
1
indicator lamp:


fails to go out not later than approxi-
mately four seconds after the engine
was started


does not come on at all


comes on after the engine was started
or while driving
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and chil-
dren, see “Children in the vehicle”
(page 78).

67 Safety and Security
Occupant safety
Air bags
Warning!
G
In the event that the 1indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Light Truck Center immedi-
ately to have the system checked; otherwise
the SRS may not deploy when needed in an
accident, which could result in serious or fa-
tal injury, or it might deploy unexpectedly
and unnecessarily which could also result in
injury.
In addition, improper work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Light
Truck Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Light Truck Center or call
our Customer Assistance Center at
1-800-FOR-MERCedes (1-800-367-6372)
for details.
Warning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags), side impacts (side
impact air bags and head protection window
curtain air bags) or rollovers (head protec-
tion window curtain air bags). However, no
system available today can totally eliminate
injuries and fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.

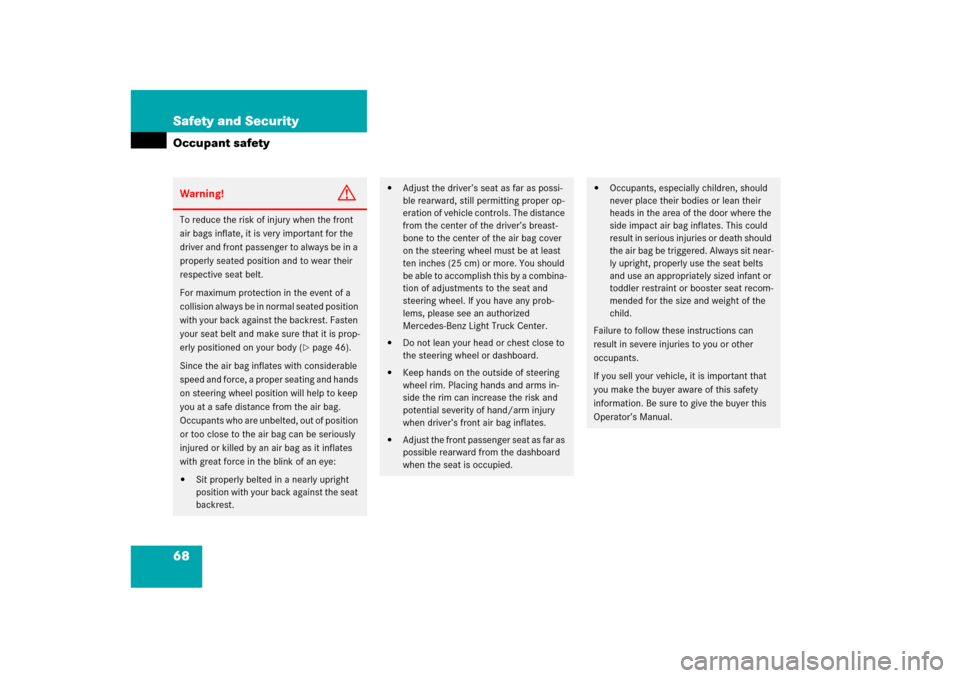

68 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belt.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body (
page 46).
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:


Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
ten inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Light Truck Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
side impact air bag inflates. This could
result in serious injuries or death should
the air bag be triggered. Always sit near-
ly upright, properly use the seat belts
and use an appropriately sized infant or
toddler restraint or booster seat recom-
mended for the size and weight of the
child.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.

69 Safety and Security
Occupant safety
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat.
It should be noted that with respect to both
front and rear side impact air bags there is a
possibility for a side impact air bag related
injury if occupants, especially children, are
not properly seated or restrained when next
to a side impact air bag which needs to de-
ploy rapidly in a side impact in order to do its
job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
side impact air bag inflates. This could
result in serious injuries or death should
the side impact air bag be activated.
(2) Always sit nearly upright, properly use
the seat belts and for children 12 years
old and under, use an appropriately
sized infant or toddler restraint or
booster seat recommended for the size
and weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have the rear door
mounted side impact air bags deactivated,
then deactivation can be accomplished
upon your written request to do so at an
authorized Mercedes-Benz Light Truck
Center at an additional cost.
Please contact your local authorized
Mercedes-Benz Light Truck Center or call
our Customer Assistance Center at
1-800-FOR-MERCedes (1-800-367-6372)
for details.
iAir bags are designed to deploy only in
certain frontal impacts (front air bags),
and in side impacts (side impact and
head protection window curtain air
bags) which exceed preset thresholds,
and in certain rollovers (head protec-
tion window curtain air bags). Only dur-
ing these events will they provide their
supplemental protection.
The driver and passengers should
always wear their seat belts. Otherwise
it is not possible for air bags to provide
their supplemental protection.
In case of other types of impacts and
impacts below air bag deployment
thresholds, air bags will not deploy. The
driver and passenger will then be pro-
tected to the extent possible by a prop-
erly fastened seat belt. A properly
fastened seat belt is also needed to
provide the best possible protection in
a rollover.

70 Safety and SecurityOccupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bag We caution you not to rely on the
presence of the air bags in order to
avoid wearing your seat belt.
It is important to your safety and that of
your passengers that you replace de-
ployed air bags and repair any malfunc-
tioning air bags to make sure the
vehicle will continue to provide supple-
mental crash protection for occupants.Warning!
G


Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Light Truck Center.


Air bags and pyrotechnic emergency
tensioning devices (ETDs) are designed
to function on a one-time-only basis. An
air bag or ETD that is deployed must be
replaced. PRE-SAFE* has electrically op-
erated reversible pre-tensioners in addi-
tion to the pyrotechnic ETDs.


Do not pass belts over sharp edges.
They could tear.


Do not make any modification that could
change the effectiveness of the belts.


Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, front passenger front air bag
cover, outboard sides of the seat back-
rests, door trim panels, or door frame
trims, and installation of additional
electrical/electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).


Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when curtain air bag is deployed.


Air bag system components will be hot
after an air bag has inflated. Do not
touch.

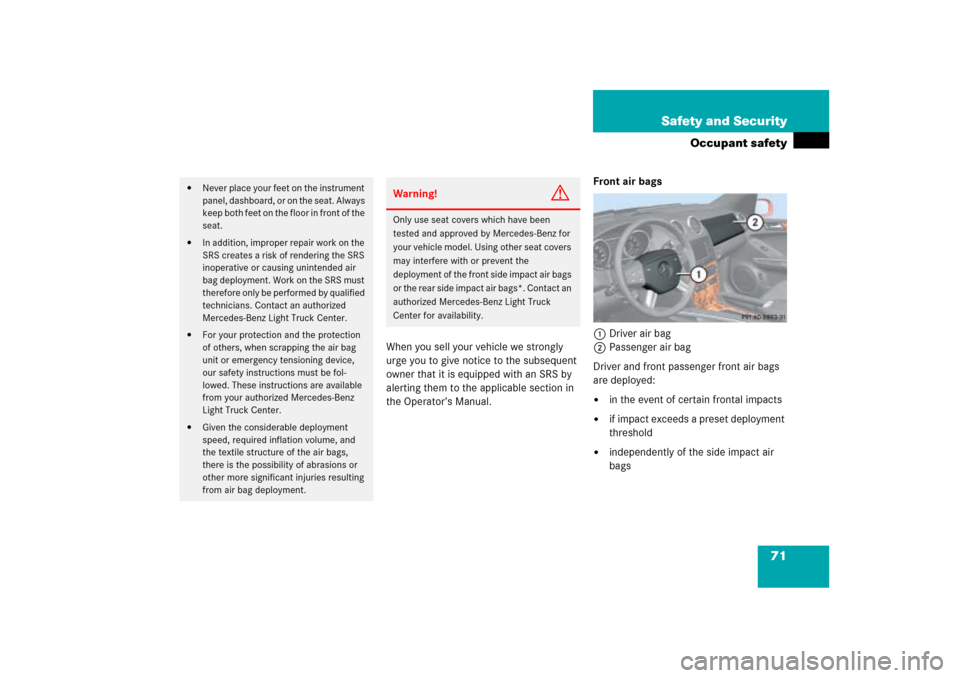

71 Safety and Security
Occupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Front air bags
1Driver air bag
2Passenger air bag
Driver and front passenger front air bags
are deployed:


in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the side impact air
bags


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Light Truck Center.


For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Light Truck Center.


Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other more significant injuries resulting
from air bag deployment.
Warning!
G
Only use seat covers which have been
tested and approved by Mercedes-Benz for
your vehicle model. Using other seat covers
may interfere with or prevent the
deployment of the front side impact air bags
or the rear side impact air bags*. Contact an
authorized Mercedes-Benz Light Truck
Center for availability.
