176 Controls in detailControl system
Press buttonæ orç to switch
function
On or
Off
.
This setting is maintained until the ignition
is switched off.
DSR (Downhill Speed Regulation)
programmed default speed
In the
Downhill Speed Regulation
menu,
you can program the default speed the
DSR is set to when it is activated.
You can program the default speed be-
tween 4 - 10 mph (Canada: 6 - 18 km/h).
The set value is increased in 1 mph
(Canada: 2 km/h) increments.

Pressè orÿ button repeatedly
until the
Vehicle configuration
menu
appears in the multifunction display.

Pressj ork button repeatedly
until the message
DSR Speed
appears
in the display.
The selection marker is on the current
setting.

Pressæ orç button repeatedly
until the desired speed is shown in the
multifunction display.
When DSR is switched on, DSR will use
the programmed default speed to regu-
late the vehicle’s speed.Tow-away alarm on/off
You can switch off the tow-away alarm,
e.g. before towing the vehicle, or when
parking on a surface subject to movement,
such as a ferry or auto train.

Pressè orÿ button repeatedly
until the
Vehicle configuration
menu appears in the display.

Pressj ork button repeatedly
until the message
Tow-away alarm

appears in the display.
iOnce DSR is switched on, you can
adjust the set speed using the cruise
control lever (
page 246).

177 Controls in detail
Control system

Pressæ orç button repeatedly
to switch
On
or
Off
the tow-away
alarm.

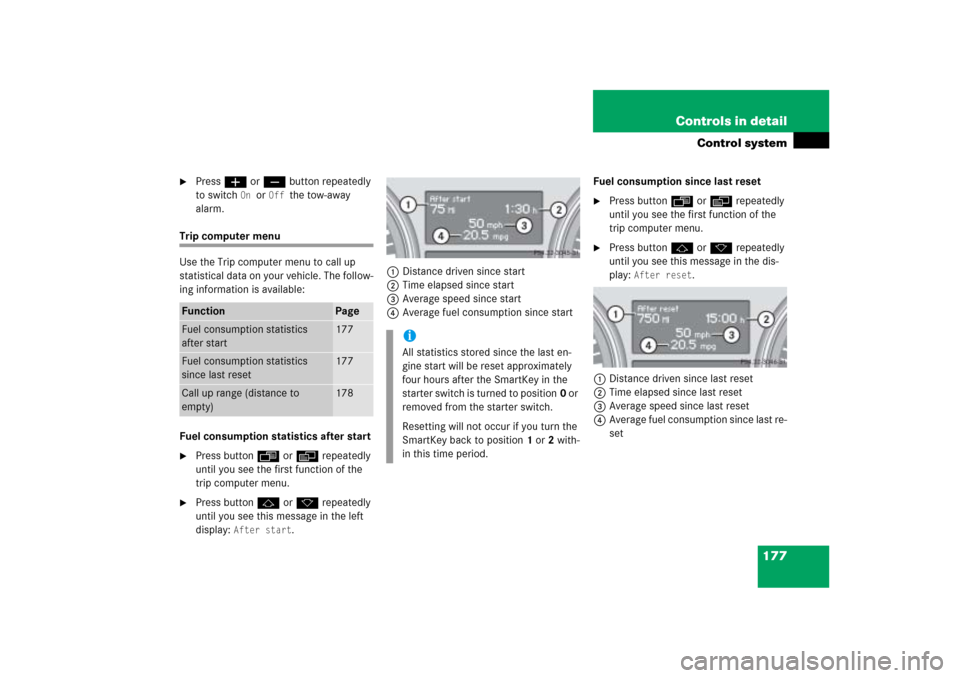

Trip computer menu
Use the Trip computer menu to call up
statistical data on your vehicle. The follow-
ing information is available:
Fuel consumption statistics after start
Press buttonÿ orè repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until you see this message in the left
display:
After start
.1Distance driven since start
2Time elapsed since start
3Average speed since start
4Average fuel consumption since startFuel consumption since last reset

Press buttonÿ orè repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
After reset
.
1Distance driven since last reset
2Time elapsed since last reset
3Average speed since last reset
4Average fuel consumption since last re-
set
Function
Page
Fuel consumption statistics
after start
177
Fuel consumption statistics
since last reset
177
Call up range (distance to
empty)
178
iAll statistics stored since the last en-
gine start will be reset approximately
four hours after the SmartKey in the
starter switch is turned to position0 or
removed from the starter switch.
Resetting will not occur if you turn the
SmartKey back to position1 or2 with-
in this time period.

178 Controls in detailControl systemResetting fuel consumption statistics
Press buttonÿ orè repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset button in the
instrument cluster (
page 24) until
the value is reset to 0.Calling up range (distance to empty)

Press buttonÿ orè repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Range:
In the display you will see the calculat-
ed range based on the current fuel tank
level.
TEL menu*Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road and traffic condi-
tions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.

179 Controls in detail
Control system
You can use the functions in the
TEL
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and Modular
COMAND system.

Press buttonÿ orè on the
steering wheel repeatedly until you see
the
TEL
menu in the display.Which messages will appear in the display
field depends on whether your telephone is
switched on or off:


If the telephone is off, the message in
the multifunction display is:
PHONE OFF
.


If the telephone is on:
The telephone will then search for a
network. During this time the display is
empty.
As soon as the telephone has found a
network,
READY
appears in the display.
This standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the display you will then see the message:

Press buttons.
You have answered the call. In the dis-
play you see the length of the call.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.
iIf you do not wish to accept a call,
press buttont.

180 Controls in detailControl systemEnding a call
Press buttont.
You have ended the call. In the display
you will again see the standby mes-
sage.
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.

Press buttonÿ orè repeatedly
until you see the
TEL
menu in the dis-
play.

Press buttonj ork.
The control system reads the phone
book which is stored in the telephone.
This may take up to four minutes. In the
display you will see the message Please wait
.
When the message
Please wait
disap-
pears, the phone book has been load-
ed.

Press buttonj ork repeatedly
until the desired name appears in the
display.
The stored names are displayed in as-
cending or descending alphabetical or-
der.

Press buttons.
The system dials the selected phone
number.

If the connection is successful and
this feature is supported by your
network provider, the name of the
party (if stored in your phone book)
you called and the duration of the
call will appear in the display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.
iIf you press and holdj ork for
longer than one second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressingt.

181 Controls in detail
Control system
Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.
Press buttonÿ orè repeatedly
until you see the
Tel
menu in the dis-
play.

Press buttons.
In the display you see the first number
in the redial memory.

Press buttonj ork repeatedly
until the desired name appears in the
display.

Press buttons.
The control system dials the selected
phone number.

182 Controls in detailAutomatic transmissionFor more information on driving with an
automatic transmission, see “Automatic
transmission” section (
page 49).
Your vehicle’s transmission adapts its gear
shifting process to your individual driving
style by continually adjusting the shift
points up or down. These shift point adjust-
ments are performed based on current
operating and driving conditions.
If the operating conditions change, the
automatic transmission reacts by
adjusting its shift program.
Gear selector lever
The gear selector lever is located on the
right of the steering column.Gearshift pattern for automatic
transmissionPPark position
RReverse gear
NNeutral
DDrive positionShifting from P to N
Moving the gear selector lever up or down
shifts the automatic transmission out of
park positionP:

Depress the brake pedal and keep it
pressed.

Move gear selector lever up or down to
resistance point to select neutral
positionN.
iDuring the brief warm-up, transmission
upshifting is delayed. This allows the
catalytic converter to heat up more
quickly to operating temperature.
Warning!
G
It is dangerous to shift the transmission out
of park positionP or neutral positionN if the
engine speed is higher than idle speed. If
your foot is not firmly on the brake pedal,
the vehicle could accelerate quickly forward
or reverse. You could lose control of the
vehicle and hit someone or something. Only
shift into gear when the engine is idling
normally and when your right foot is firmly
on the brake pedal.

183 Controls in detail
Automatic transmission
Shifting from N to D or from N to R
Depress the brake pedal and keep it
pressed.

Move gear selector lever up past the
resistance point to select reverse
gearR.
or

Move gear selector lever down past the
resistance point to select drive
positionD.

Release the parking brake.Shifting from P to R

Depress the brake pedal and keep it
pressed.

Move gear selector lever up past the
resistance point to select reverse
gearR.

Release the parking brake.

Release the brake.

Carefully depress the accelerator
pedal.Shifting from P to D

Depress the brake pedal and keep it
pressed.

Move gear selector lever down past the
resistance point to select drive
positionD.

Release the parking brake.

Release the brake.

Carefully depress the accelerator
pedal.
iThe gear selector lever returns to its
original position.
iThe gear selector lever returns to its
original position.
iThe gear selector lever returns to its
original position.
