2006 MERCEDES-BENZ ML500 Owner's Manual

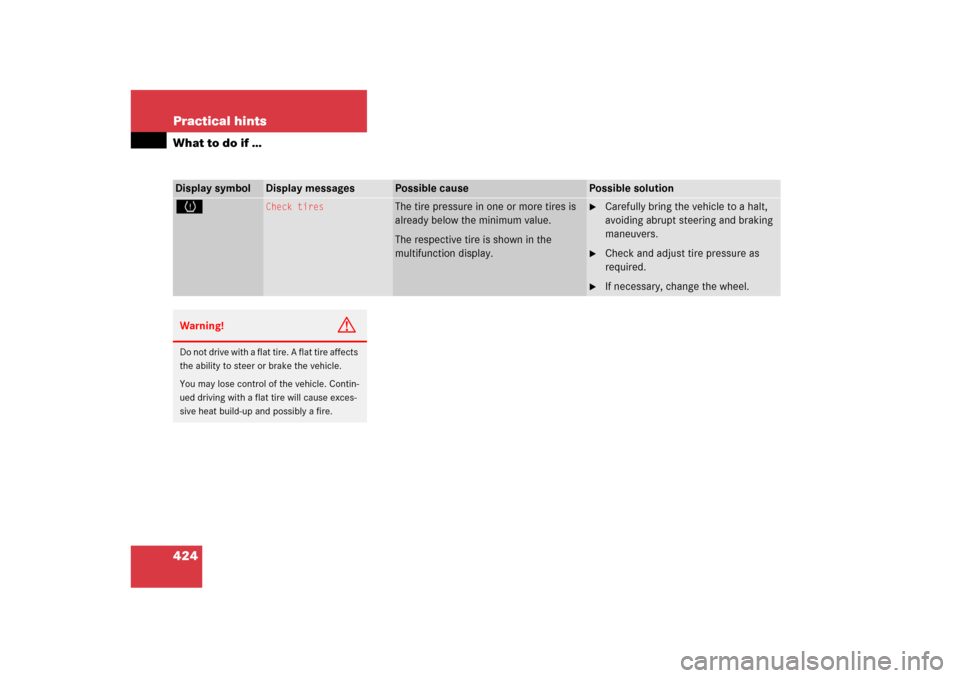

424 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
H
Check tires
The tire pressure in one or more tires is
already below the minimum value.
The respective tire is shown in the
multifunction display.

Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers.

Check and adjust tire pressure as
required.

If necessary, change the wheel.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

425 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
<
Seat belt system
Drive to workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Light Truck Center as soon as possi-
ble.
9
Service memory full
See Operator’s Manual
The maintenance service memory cannot
save any more data.

Have the service memory checked by
an authorized Mercedes-Benz Light
Truck Center.
K
Close
tilt/sliding sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding portion of the
tilt/sliding sunroof* open.

Close the tilt/sliding sunroof*
(page 235).
J
Close
tilt/sliding sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilt portion of the
tilt/sliding sunroof* open.

Close the tilt/sliding sunroof*
(page 235).

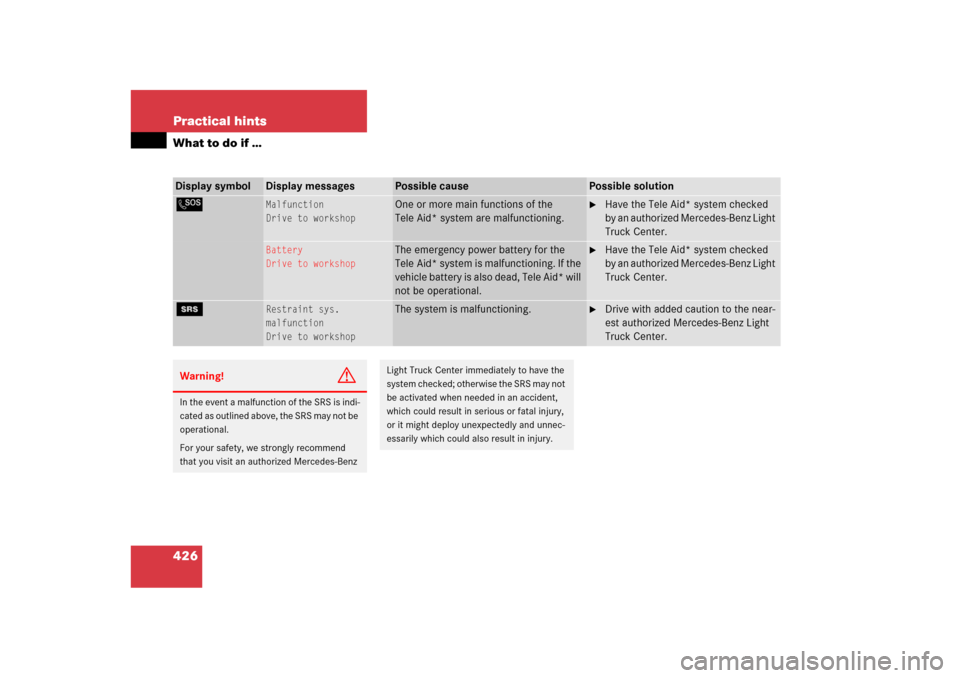

426 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
L
Malfunction
Drive to workshop
One or more main functions of the
Tele Aid* system are malfunctioning.

Have the Tele Aid* system checked
by an authorized Mercedes-Benz Light
Truck Center.
Battery
Drive to workshop
The emergency power battery for the
Tele Aid* system is malfunctioning. If the
vehicle battery is also dead, Tele Aid* will
not be operational.

Have the Tele Aid* system checked
by an authorized Mercedes-Benz Light
Truck Center.
1
Restraint sys.
malfunction
Drive to workshop
The system is malfunctioning.

Drive with added caution to the near-
est authorized Mercedes-Benz Light
Truck Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Light Truck Center immediately to have the
system checked; otherwise the SRS may not
be activated when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.

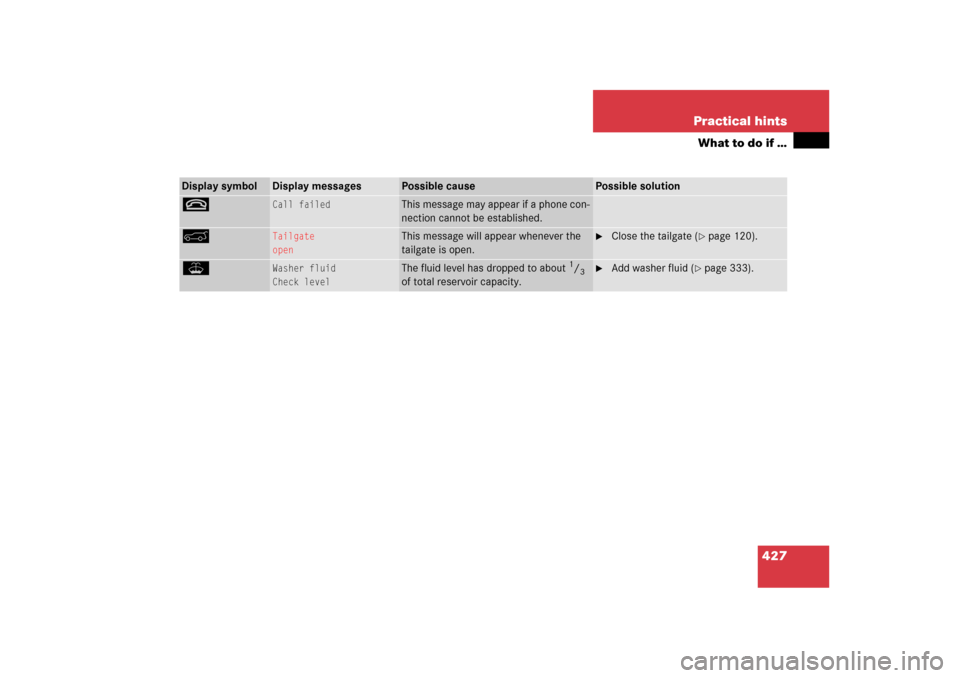

427 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
t
Call failed
This message may appear if a phone con-
nection cannot be established.
&
Tailgate
open
This message will appear whenever the
tailgate is open.

Close the tailgate (
page 120).
W
Washer fluid
Check level
The fluid level has dropped to about
1/3
of total reservoir capacity.
Add washer fluid (
page 333).

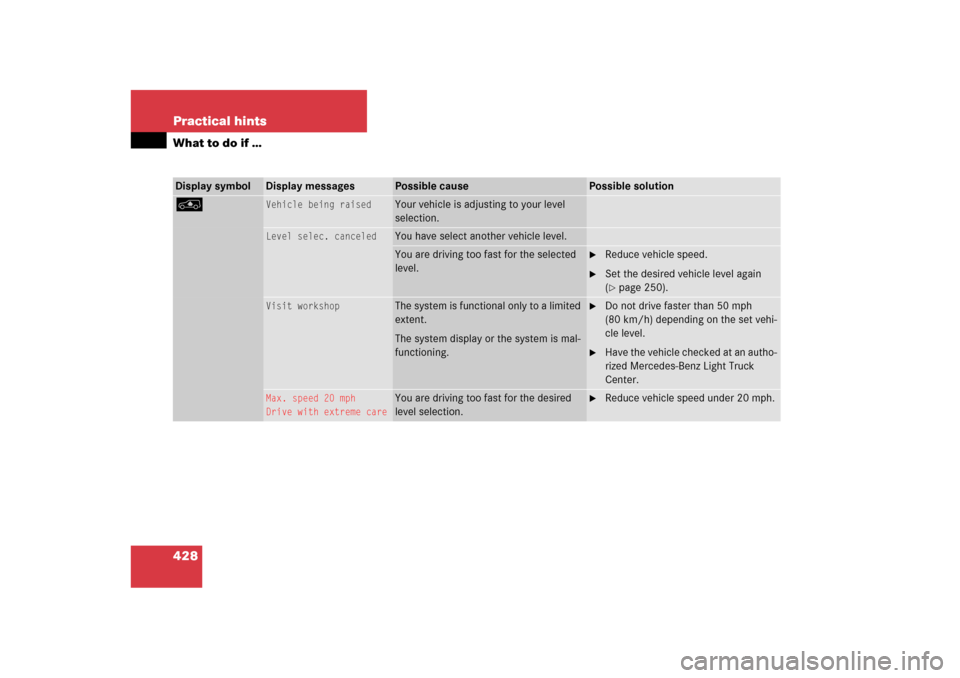

428 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
>
Vehicle being raised
Your vehicle is adjusting to your level
selection.
Level selec. canceled
You have select another vehicle level.You are driving too fast for the selected
level.

Reduce vehicle speed.

Set the desired vehicle level again
(page 250).
Visit workshop
The system is functional only to a limited
extent.
The system display or the system is mal-
functioning.

Do not drive faster than 50 mph
(80 km/h) depending on the set vehi-
cle level.

Have the vehicle checked at an autho-
rized Mercedes-Benz Light Truck
Center.
Max. speed 20 mph
Drive with extreme care
You are driving too fast for the desired
level selection.

Reduce vehicle speed under 20 mph.

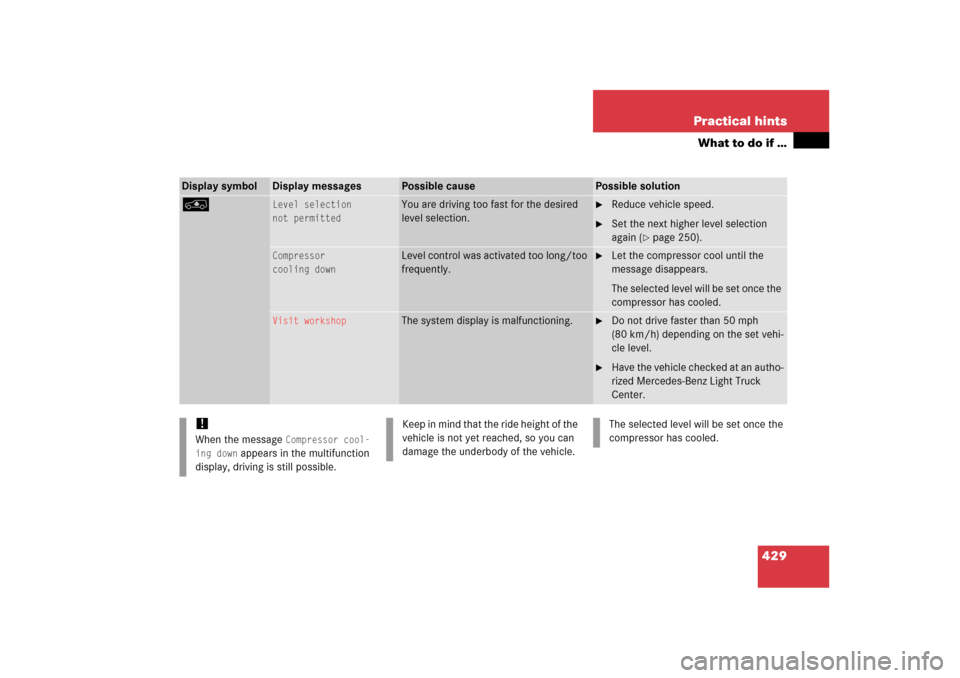

429 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
>
Level selection
not permitted
You are driving too fast for the desired
level selection.

Reduce vehicle speed.

Set the next higher level selection
again (
page 250).
Compressor
cooling down
Level control was activated too long/too
frequently.

Let the compressor cool until the
message disappears.
The selected level will be set once the
compressor has cooled.

Visit workshop
The system display is malfunctioning.

Do not drive faster than 50 mph
(80 km/h) depending on the set vehi-
cle level.

Have the vehicle checked at an autho-
rized Mercedes-Benz Light Truck
Center.
!When the message
Compressor cool-
ing down
appears in the multifunction
display, driving is still possible.
Keep in mind that the ride height of the
vehicle is not yet reached, so you can
damage the underbody of the vehicle.
The selected level will be set once the
compressor has cooled.

430 Practical hintsWhere will I find ...?First aid kit
The first aid kit is located on the driver’s
side in the cargo compartment behind the
cover.
1Handle
Turn handles1 90°.

Fold down the cover.
The first aid kit can be removed.
Vehicle tool kit
The vehicle tool kit is stored under the
cargo compartment floor.
The vehicle tool kit includes:

Towing eye bolt


Wheel wrench


Alignment bolt


Vehicle jack


Fuse chart


Spare fuses


Fuse extractor


Collapsible wheel chock1Handle
2Cargo compartment floor

Open the tailgate (
page 118).

Pull handle1.

Lift the cargo compartment floor2
and engage the elastic strap (located
below the floor handle) in the upper
edge of the cargo compartment.

Remove Minispare wheel
(page 433).
You can then access the vehicle tool
kit.
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.

431 Practical hints
Where will I find ...?
Trunk area shown with spare wheel
removed1Wheel bolt wrench with screwdriver
2Vehicle jack
3Collapsible wheel chock
4Spare fuses, fuse chart, fuse extractor
5Towing eye bolt
6Alignment bolt
7Wheel bolts for 17" light alloy rims or
Minispare wheel1Wheel bolt wrench
2Screwdriver
3Interchangeable slot
Screwdriver2 is placed inside the handle
of wheelbolt wrench1.Vehicle jack
iVehicles with scissors-type jack see
separate instructions.
!To prevent damage, always disengage
the elastic strap and lower the cargo
compartment floor (
page 430) be-
fore closing the tailgate.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface.
Make sure that the jack arm is fully seated
in the jack take-up bracket. Always lower
the vehicle onto sufficient capacity jack-
stands before working under the vehicle.
