2006 MERCEDES-BENZ ML500 Owner's Manual

488 Technical dataRims and tiresRims and tires
ML 350
ML 350*
ML 500
ML 350 (Sport Package*)
ML 500 (Sport Package*)
Rims (light alloy)
7.5 J x 17 H2
8J x18 H2
8J x19 H2
Wheel offset
2.20 in (56 mm)
2.36 in (60 mm)
2.36 in (60 mm)
Summer tires
1
1Radial-ply tires
-
-
255/50 R19 103W
All-season tires
1
235/65 R17 104H M+S
255/55 R18 105H M+S
not available at time of
printing
3
Winter tires
1,23
2Not available as factory equipment.3Data not available at time of printing; please contact an authorized Mercedes-Benz Light Truck Center.
235/65 R17 104H M+S.
255/55 R18 105H M+S
.
not available at time of
printing
3
All-terrain tires*
1,2
-
255/55 R18 105H M+S
-

489 Technical data
Rims and tires
Minispare wheel
ML 350
ML 500
Rim
4.0B x 18 H2
Wheel offset
1.58 in (40 mm)
Tire
T 155/90-18 113M
1
1Must not be used with snow chains.!Please compare the recommended tire
inflation pressure for your vehicle with
the tire inflation pressure on the yellow
label located on the Minispare wheel
rim.
If the tire inflation pressure on the
yellow label on the Minispare wheel rim
differs from the values given in this
Operator’s Manual, inflate the tire to
the recommended tire inflation pres-
sure given on the yellow label on the
Minispare wheel rim.
iPlease note that the tire inflation
pressure of the Minispare tire differs
from the tire inflation pressure of the
road tires.
Inflate the Minispare tire to approxi-
mately 61 psi (4.2 bar).

490 Technical dataElectrical systemModel
ML 350
ML 500
Generator (alternator)
14 V/180 A
14 V/180 A
Starter motor
12 V/1.4 kW
12 V/1.7 kW
Battery
12 V/70 Ah
12 V/95 Ah
Spark plugs
NGK PLKR 6A
NGK PFR 5R-11
Electrode gap
0.031 in (0.8 mm)
0.039 in (1.0 mm)
Tightening torque
15 – 22 lb-ft (20 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)

491 Technical data
Main Dimensions
Main Dimensions
Model
ML 350, ML 500
Overall vehicle length
188.5 in (4788 mm)
Vehicle width (exterior rear view mirrors folded out)
83.7 in (2127 mm)
Vehicle width (exterior rear view mirrors folded in)
76.0 in (1930 mm)
Overall vehicle height (vehicle with steel suspension)
71.5 in (1815 mm)
Overall vehicle height, depending on set vehicle level
(vehicle with air suspension package*)
69.8 in-73.0 in (1774 mm-1854 mm)
Wheelbase
114.8 in (2915 mm)
Track, front
64.0 in (1627 mm)
Track, rear
64.1 in (1629 mm)
Ground clearance (vehicle with steel suspension)
8.3 in (210 mm)
Ground clearance, depending on set vehicle level (vehicle
with air suspension package*)
7.1 in-10.3 in (181 mm-261 mm)
Turning radius
39 ft (11.6 m)

492 Technical dataWeightsRoof load max.
220 lb (100 kg)

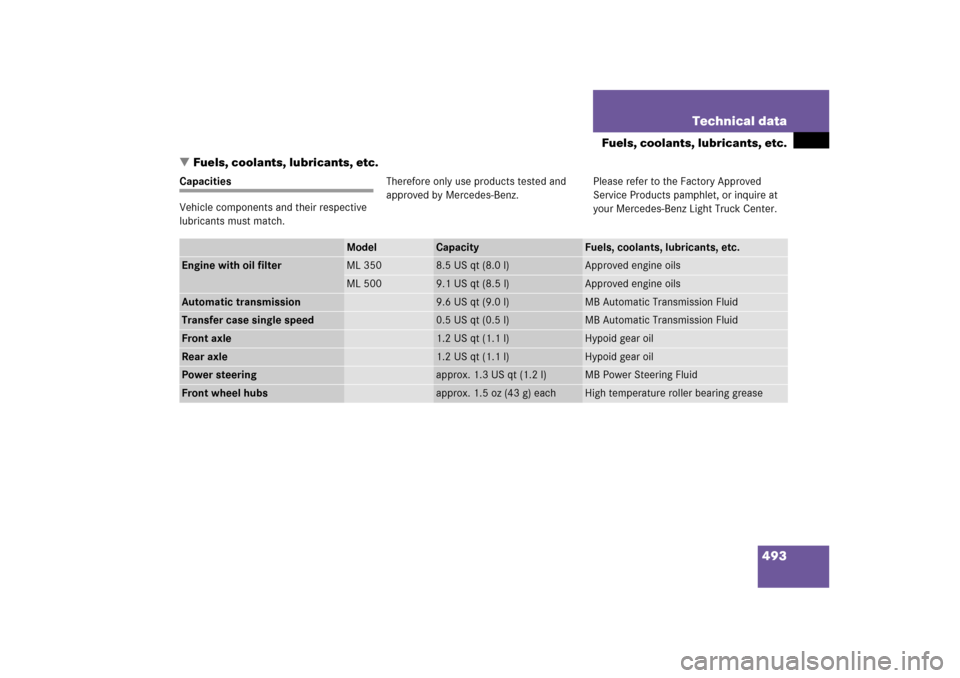

493 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match.Therefore only use products tested and
approved by Mercedes-Benz.Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your Mercedes-Benz Light Truck Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
ML 350
8.5 US qt (8.0 l)
Approved engine oils
ML 500
9.1 US qt (8.5 l)
Approved engine oils
Automatic transmission
9.6 US qt (9.0 l)
MB Automatic Transmission Fluid
Transfer case single speed
0.5 US qt (0.5 l)
MB Automatic Transmission Fluid
Front axle
1.2 US qt (1.1 l)
Hypoid gear oil
Rear axle
1.2 US qt (1.1 l)
Hypoid gear oil
Power steering
approx. 1.3 US qt (1.2 l)
MB Power Steering Fluid
Front wheel hubs
approx. 1.5 oz (43 g) each
High temperature roller bearing grease

494 Technical dataFuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Cooling system
ML 350
approx. 10.2 US qt (9.5 l)
MB Anticorrosion/Antifreeze
ML 500
approx. 10.7 US qt (10.0 l)
MB Anticorrosion/Antifreeze
Fuel Tank
including a reserve of
ML 350, ML 500
25.0 US gal (95.0 l)
approx. 3.5 US gal (13.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)
Air conditioning system
R-134a refrigerant and special PAG lubricant oil
(never R-12)
Windshield washer and
headlamp cleaning*
system
8.1 US qt (7.7 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available
premixed windshield washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios (page 500).

495 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters re-
quired for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory
Approved Service Products pamphlet, or
contact an authorized Mercedes-Benz
Light Truck Center.
Using engine oils and oil filters of specifica-
tion other than those expressly required
for the Maintenance System
(U.S. vehicles) or FSS (Canada vehicles), or
changing of oil and oil filter at change inter-
vals longer than those called for by the
Maintenance System (U.S. vehicles) or
FSS (Canada vehicles) will result in engine
damage not covered by the
Mercedes-Benz Limited Warranty.Please follow Maintenance System
(U.S. vehicles) or FSS (Canada vehicles)
recommendations for scheduled oil chang-
es. Failure to do so could result in engine
damage not covered by the
Mercedes-Benz Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
ing system.
Never use R-12 (CFC) or mineral-based lu-
bricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere.
Only brake fluid approved by
Mercedes-Benz is recommended. Your
authorized Mercedes-Benz Light Truck
Center will provide you with additional in-
formation.Warning!
G
Under extremely strenuous operating condi-
tions, this moisture content can lead to the
formation of bubbles in the system, thus re-
ducing the system’s efficiency.
Therefore, the brake fluid must be replaced
every two years, preferably in the spring.
