2006 MERCEDES-BENZ ML500 Owner's Manual

152 Controls in detailControl systemIt is helpful to think of the menus, and the
functions within each menu, as being ar-
ranged in a circular pattern.

If you press buttonè orÿ re-
peatedly, you will pass through each
menu one after the other.


If you press buttonk orj re-
peatedly, you will pass through each
function display, one after the other, in
the current menu.In the
Settings...
menu, instead of
functions you will find a number of
submenus for calling up and changing
settings. For instructions on using these
submenus, see “Settings menu”
(
page 161).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.The menus are described on the following
pages.

153 Controls in detail
Control system

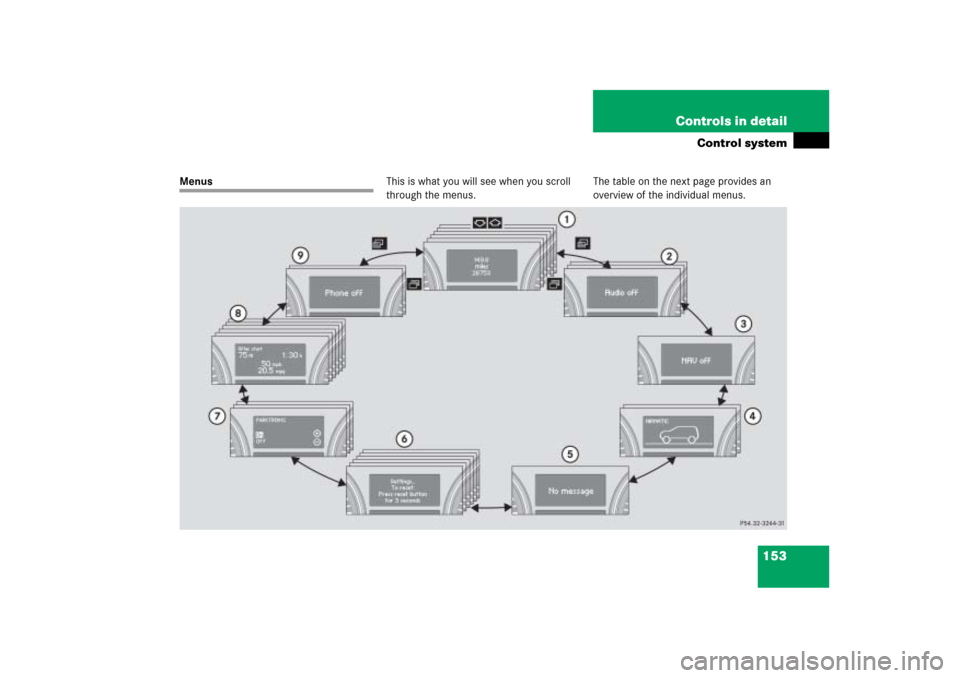

MenusThis is what you will see when you scroll
through the menus.The table on the next page provides an
overview of the individual menus.

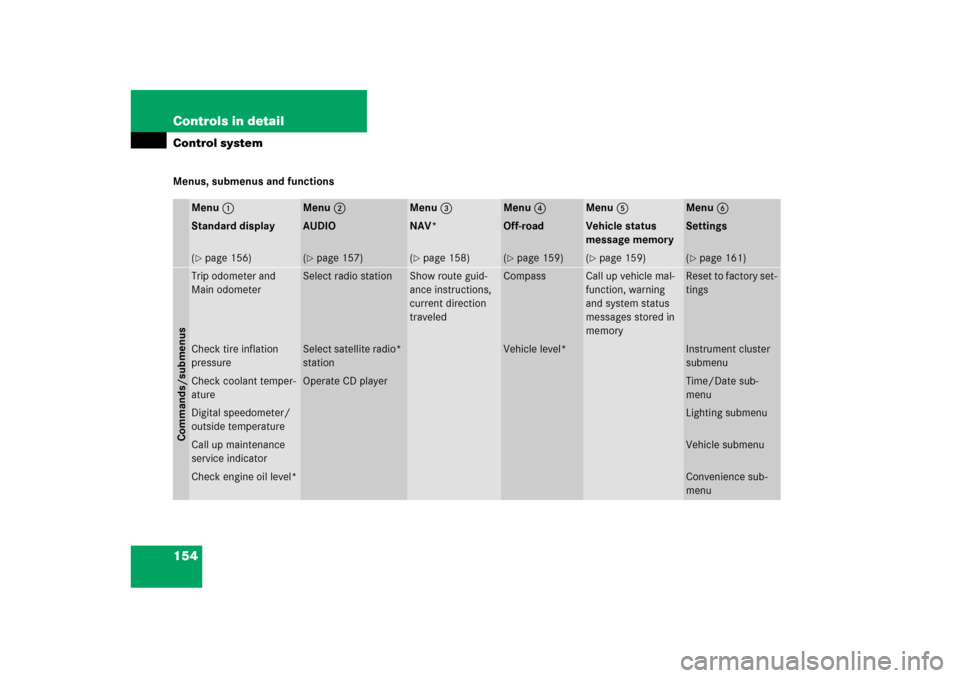

154 Controls in detailControl systemMenus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Menu6
Standard display
AUDIO
NAV*
Off-road
Vehicle status
message memory
Settings
(page 156)
(page 157)
(page 158)
(page 159)
(page 159)
(page 161)
Commands/submenusTrip odometer and
Main odometer
Select radio station
Show route guid-
ance instructions,
current direction
traveled
Compass
Call up vehicle mal-
function, warning
and system status
messages stored in
memory
Reset to factory set-
tings
Check tire inflation
pressure
Select satellite radio*
station
Vehicle level*
Instrument cluster
submenu
Check coolant temper-
ature
Operate CD player
Time/Date sub-
menu
Digital speedometer/
outside temperature
Lighting submenu
Call up maintenance
service indicator
Vehicle submenu
Check engine oil level*
Convenience sub-
menu

155 Controls in detail
Control system

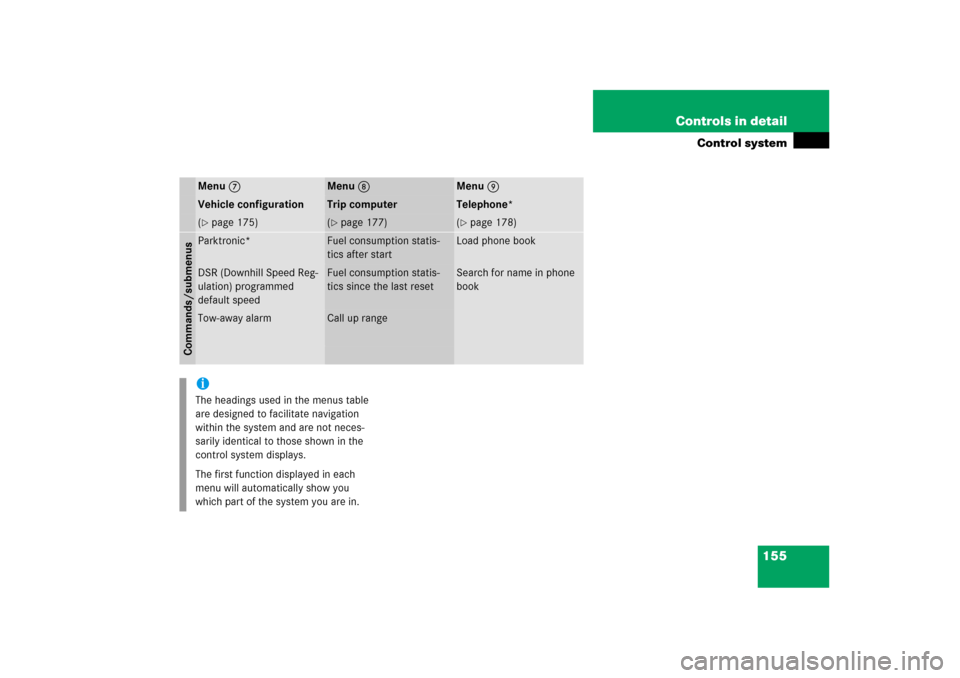

Menu7
Menu8
Menu9
Vehicle configuration
Trip computer
Telephone*
(page 175)
(page 177)
(page 178)
Commands/submenusParktronic*
Fuel consumption statis-
tics after start
Load phone book
DSR (Downhill Speed Reg-
ulation) programmed
default speed
Fuel consumption statis-
tics since the last reset
Search for name in phone
book
Tow-away alarm
Call up range
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.

156 Controls in detailControl systemStandard display menu
In basic mode, the multifunction display
shows the trip odometer and the main
odometer. This is known as the standard
display.
1Trip odometer
2Main odometer
In case you see another display, press
buttonè orÿ repeatedly until the
standard display appears.
Press buttonk orj to select
the functions in the standard display
menu.The following functions are available:
Call up digital speedometer

Press buttonk orj until the
digital speedometer or the outside
temperature appears in the multifunc-
tion display.
To select whether the digital speedometer
or the outside temperature is shown in the
multifunction display, see “Selecting dis-
play (speed display or outside tempera-
ture) for status display” (
page 165).Call up coolant temperature display

Press buttonk orj repeatedly
until the coolant temperature appears
in the multifunction display.
Function
Page
Check engine oil level (ML 500)
328
Call up maintenance service
indicator
371
Call up digital speedometer
156
Call up coolant temperature
display
156
Check tire inflation pressure
347
iDuring severe operating conditions,
e.g. stop-and-go traffic, the coolant
temperature may rise close to 248°F
(120°C).!The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by
the Mercedes-Benz Limited Warranty.

157 Controls in detail
Control system
AUDIO menu
The functions in the
AUDIO
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO OFF
is shown in the
display.
The following functions are available:Select radio station

Turn on the Modular COMAND System
and select radio. Refer to separate
Modular COMAND System operating
instructions.

Press buttonè orÿ repeatedly
until you see the currently tuned sta-
tion in the multifunction display.
1Waveband setting
2Station frequency

Press buttonk orj repeatedly
until the desired station is found.Select satellite radio station* (USA
only)
The satellite radio is treated as a radio ap-
plication.

Select satellite radio with the corre-
sponding key on the Modular COMAND
System.
1SAT mode and preset number
2Channel name or number
Function
Page
Select radio station
157
Select satellite radio station*
(USA only)
157
Operate CD player
158
iYou can only store new stations using
the corresponding feature on the radio,
see separate Modular COMAND
System operating instructions.
You can also operate the radio in the
usual manner.


158 Controls in detailControl system
Press buttonk orj repeatedly
until the desired channel is found.Operate the CD player

Turn on the Modular COMAND System
and press AUDIO on the COMAND
headunit until you see the CD soft keys
for CD operation. Refer to separate
Modular COMAND System operating
instructions.

Press buttonè orÿ repeatedly
until you see the display for the CD
currently being played in the multifunc-
tion display.
1Current CD (for CD changer*)
2Current track

Press buttonk orj repeatedly
until the desired track is selected.
NAV* menu
The
NAV
menu contains the functions
needed to operate your navigation system.

Press buttonè orÿ repeatedly
until you see the navigation display in
the multifunction display:


If the Modular COMAND System is
switched off, the message
NAV off
is
shown in the display.


With the Modular COMAND System
switched on but route guidance not
activated, the direction of travel and, if
available, the name of the street cur-
rently traveled on appear in the multi-
function display.
iFeature description is based on prelim-
inary information available at time of
printing.
Additional optional satellite radio
equipment and a subscription to satel-
lite radio service provider are required
for satellite radio operation. At time of
printing, no date for the availability of
optional equipment required for satel-
lite radio operation had been set. Con-
tact an authorized Mercedes-Benz
Light Truck Center for details and avail-
ability for your vehicle.
For more information, refer to separate
Modular COMAND System operating
instructions.
iTo select a CD from the magazine,
press a number on the Modular
COMAND system key pad located in
the center console.


159 Controls in detail
Control system


With the Modular COMAND system
switched on and route guidance acti-
vated, the direction of travel and
maneuver instructions appear in the
multifunction display.
Please refer to the COMAND manual for in-
structions on how to activate the route
guidance system.
Off-road menu
Use the
Off-road
menu to display the
settings for Air suspension* and compass.

Press buttonè orÿ repeatedly
until you see one of the following mes-
sages in the multifunction display (de-
pending on vehicle configuration):
Compass
Example Vehicle level* settings
Press buttonk orj repeatedly
until the desired setting is found.
Vehicle status message memory menu
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the
system. Such messages appear in the mul-
tifunction display and are based on condi-
tions or system status the vehicle’s system
has recorded.Warning!
G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Light Truck Center to address the malfunc-
tion and warning messages.
