2006 MERCEDES-BENZ ML500 Owner's Manual

104 Safety and SecurityAnti-theft systemsCanceling tow-away alarm
To cancel the alarm after it has been
triggered:
With the SmartKey
Insert the SmartKey in the starter
switch.
or

Press theŒ or ‹button on the
SmartKey.With KEYLESS-GO*

Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or

Press the KEYLESS-GO start/stop
button.
The SmartKey with KEYLESS-GO must
be inside the vehicle.

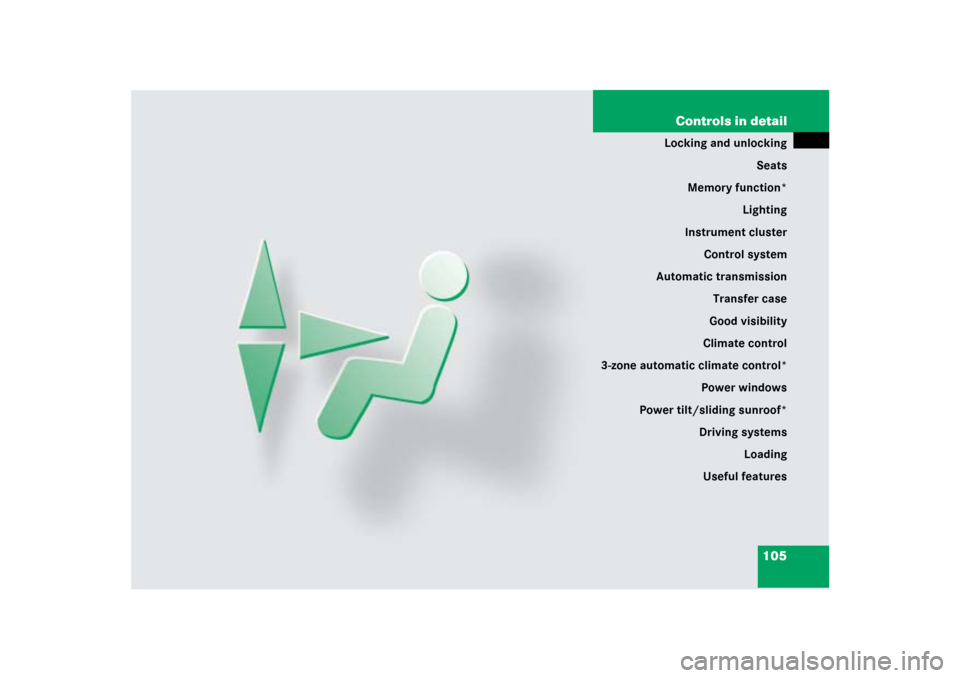

105 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Control system
Automatic transmission
Transfer case
Good visibility
Climate control
3-zone automatic climate control*
Power windows
Power tilt/sliding sunroof*
Driving systems
Loading
Useful features

106 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.Locking and unlocking
For more information on locking and un-
locking, see “Getting started” (
page 31)
and (
page 62).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a differ-
ent color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors


the tailgate


the fuel filler flap
SmartKey with remote control1‹Lock button
2ŠUnlock button* for tailgate
3Locking tab for mechanical key
4ŒUnlock button
5Battery check lamp
6ÂPanic button (
page 91)

107 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious personal injury.!To prevent possible malfunction, avoid
exposing the SmartKey to high levels of
electromagnetic radiation.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iYou can also open and close the power
windows (
page 230) and tilt/sliding
sunroof* (page 235) using the
SmartKey.

108 Controls in detailLocking and unlockingFactory setting
Global unlocking
Press buttonŒ.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and reactivate the anti-theft alarm system
within approximately 40 seconds of un-
locking if:


neither door nor tailgate is opened


the SmartKey is not inserted in the
starter switch


the central locking switch is not acti-
vatedGlobal locking

Press button‹.
All turn signal lamps flash three times.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that
pressingŒ only unlocks the driver’s
door and the fuel filler flap.

Press and hold buttonsŒ and‹
simultaneously for about five seconds
until battery check lamp5 flashes
twice.
The SmartKey will then function as fol-
lows:Unlocking driver’s door and fuel filler
flap

Press buttonΠonce.
All turn signal lamps flash once. The
locking knob in the driver’s door moves
up. The anti-theft alarm system is
disarmed.
Global unlocking

Press buttonΠtwice.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is
disarmed.
Global locking

Press button‹.
All turn signal lamps flash three times.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.

109 Controls in detail
Locking and unlocking
Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about six seconds
until battery check lamp5 flashes
twice.Checking the batteries

Press button‹orŒ.
Battery check lamp5 comes on
briefly to indicate that the SmartKey
batteries are in order.Unlocking and opening the tailgate
(Vehicles with tailgate opening/closing
system*)
You can unlock and open the tailgate sep-
arately.
A minimum height clearance of 7 ft
(2.15 m) is required to open the tailgate.

Press and hold buttonŠ on the
SmartKey until the tailgate unlocks and
begins to open.
!If you cannot lock or unlock the vehicle
with the SmartKey, then either the bat-
teries in the SmartKey are discharged,
the SmartKey is malfunctioning or the
vehicle battery is drained.

Check the batteries in the
SmartKey and replace them if
necessary (
page 440).


Use the mechanical key to unlock
the driver’s door (
page 436).


Use the mechanical key to lock the
driver’s door (
page 436).


Have the vehicle battery and the
battery connections checked.
If the SmartKey is malfunctioning, con-
tact an authorized Mercedes-Benz
Light Truck Center.
iIf battery check lamp5 does not
come on briefly during check, then the
SmartKey batteries are discharged.
Replace the batteries (
page 440).
You can obtain the required batteries
at any authorized Mercedes-Benz Light
Truck Center.
iIf the batteries are checked within
signal range of the vehicle, pressing the
button‹orŒ will lock or un-
lock the vehicle accordingly.
!The tailgate swings open upwards auto-
matically. Always make sure there is
sufficient overhead clearance.
To stop the opening procedure, press
buttonŠ on the SmartKey. The tail-
gate stops moving.iIf the vehicle was previously centrally
locked, the tailgate will lock automati-
cally when closed. The turn signals will
flash three times to confirm locking.

110 Controls in detailLocking and unlockingLoss of SmartKey or mechanical key
If you lose a SmartKey or mechanical key,
you should do the following:
Have the SmartKey deactivated by an
authorized Mercedes-Benz Light Truck
Center.

Report the loss of the SmartKey or the
mechanical key immediately to your
car insurance company.

If necessary, have the mechanical lock
replaced.
Your authorized Mercedes-Benz Light
Truck Center will be glad to supply you
with a replacement.
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote control and a removable
mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys with
KEYLESS-GO are a different color to help
distinguish each SmartKey with
KEYLESS-GO unit.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked when you grasp a door handle
for locking or unlocking.
If the SmartKey with KEYLESS-GO is valid,
your vehicle unlocks:

the doors


the tailgate


the fuel filler flap
SmartKey with KEYLESS-GO*1‹ Lock button
2Š Unlock button* for tailgate
3Mechanical key
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 91)

111 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.!To prevent possible malfunction, avoid
exposing the SmartKey with
KEYLESS-GO to high levels of electro-
magnetic radiation.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iYou can also open and close the power
windows (
page 230) and tilt/sliding
sunroof* (page 235) using the
SmartKey with KEYLESS-GO*.
