48 Getting startedDriving
With a smooth motion, pull the belt
from the belt outlet.

Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.

Push latch plate1 into buckle2 until
it clicks (
page 47).

If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Seat belt height adjustment
1Release button

Press release button1 and move the
seat belt height adjuster upward or
downward.
Proper use of seat belts


Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm. For this purpose, you can adjust
the height of the belt outlet
(page 48).


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly up-
right position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a
person and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer’s instructions.


Check your seat belt periodically
during travel to make sure that it is
properly positioned.


Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing.

49 Getting started
Driving

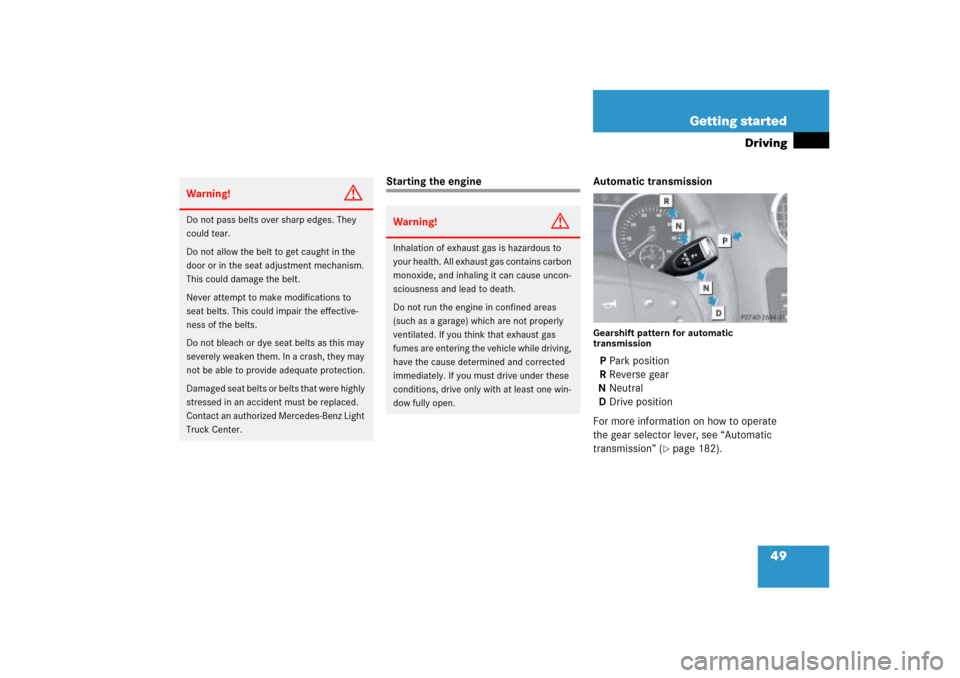

Starting the engine Automatic transmission
Gearshift pattern for automatic
transmissionPPark position
RReverse gear
NNeutral
DDrive position
For more information on how to operate
the gear selector lever, see “Automatic
transmission” (
page 182).
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz Light
Truck Center.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one win-
dow fully open.

50 Getting startedDrivingStarting with the SmartKey
Make sure the automatic transmission
is set toP.
The transmission gear positionP
appears in the multifunction display.

Do not depress accelerator.

Turn the SmartKey in the starter switch
to position3 (
page 34) and hold until
the engine starts.
For information on turning off the engine
with the SmartKey, see “Turning off en-
gine” (
page 62).Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button in the
starter switch.
The SmartKey with KEYLESS-GO must be
located in the vehicle.
KEYLESS-GO start/stop button1USA only
2Canada only
Make sure the KEYLESS-GO start/stop
button1 is inserted in the starter
switch (
page 35).

Make sure the automatic transmission
is set toP.

Depress the brake pedal during the
starting procedure. Do not depress ac-
celerator.
iYou can also use the “touch-start”
function. Turn the SmartKey to
position3 and release it again immedi-
ately. The engine then starts automati-
cally.
Warning!
G
As long as the SmartKey with KEYLESS-GO
is in your vehicle, the vehicle can be started.
Therefore, never leave children unattended
in the vehicle, as they could otherwise acci-
dentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle.

51 Getting started
Driving

Press KEYLESS-GO start/stop
button1 once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.
For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 63).Starting difficulties
If the engine does not start as described,
carry out the following steps:

If you are starting the engine with the
SmartKey, turn SmartKey in starter
switch to position0 and repeat starting
procedure.

If you are starting the engine with
KEYLESS-GO*: Close any doors that
may be open to allow for better
detection of the SmartKey with
KEYLESS-GO*.
Or:

Remove KEYLESS-GO* start/stop but-
ton from starter switch.

Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO*.

Repeat the starting procedure
(page 49). Remember that extended
starting attempts can drain the battery.

Get a jump start (
page 470).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Light Truck Center.
iIf you wish to start the engine using the
SmartKey instead of the KEYLESS-GO
feature, remove the KEYLESS-GO*
start/stop button from starter switch
(page 35).

52 Getting startedDrivingParking brake
1Parking brake pedal
2Release handle

Release the parking brake pedal1 by
pulling on release handle2.
The warning lamp; (USA only) or
!(Canada only) in the instrument
cluster goes out.
Driving
Depress the brake pedal.
The gear selector lever can now be
used.

Shift automatic transmission toD orR
(page 182).

Release the brake pedal.

Carefully depress the accelerator
pedal.
Once the vehicle is in motion, the auto-
matic central locking system engages
and the locking knobs drop down.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Children could release the
parking brake, which could result in an acci-
dent and/or serious injury.
iWait for the gear selection process to
complete before setting the vehicle in
motion.
iShifting from gear positionP to
positionR, N, orD is only possible with
the brake pedal depressed. Without the
brake pedal depressed, the gear selec-
tor lever can be moved, but the parking
pawl remains engaged, not allowing
shifting to occur.iThe automatic door lock feature can be
deactivated (
page 172).
iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.

53 Getting started
Driving
After a cold start, the automatic transmis-
sion shifts at a higher engine revolution.
This allows the catalytic converter to reach
its operating temperature earlier.For more information, see “Driving instruc-
tions” (
page 299).
For information on off-road driving, see
“Off-road driving” (
page 306).
!If you hear a warning signal and the
message
Release parking brake
appears in the multifunction display
when driving off, you have forgotten to
release the parking brake.
Release the parking brake.Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
Warning!
G
It is dangerous to shift the automatic trans-
mission out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.!Shift automatic transmission to
positionPorR only when the vehicle is
stopped in order to avoid damaging the
transmission.!Do not run cold engine at high engine
speeds. Running a cold engine at high
engine speeds may shorten the service
life of the engine.
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.

54 Getting startedDrivingSwitching on headlamps
For more information on headlamps, see
“Lighting” (
page 138).
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
Exterior lamp switch1Off
2Low beam headlamps on
Turn exterior lamp switch toB.High beam
The combination switch is located on the
left of the steering column.
Combination switch1High beam
2High beam flasher
Push the combination switch in
direction of arrow1.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 25).
For more information on headlamps, see
“Combination switch” (
page 142).
Turn signals
The combination switch is on the left of the
steering column.Combination switch1Turn signals, right
2Turn signals, left
Press combination switch in direction
of arrow1 or2.
The corresponding turn signal indicator
lampL orK in the instrument
cluster flashes.

55 Getting started
Driving
The combination switch resets automati-
cally after major steering wheel move-
ments.
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
Wiping with windshield washer fluid
2Switching on windshield wipers
Switch on the ignition (
page 34).Switching on windshield wipers

Turn the combination switch to the
desired position depending on the in-
tensity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speed
iTo signal minor directional changes,
move combination switch to point of
resistance and release. The turn signal
flashes three times.
iVehicles with rain sensor*:
Intermittent wiping interval is depen-
dent on wetness of windshield. Pauses
between wipes are automatically con-
trolled by the rain sensor.
