2006 MERCEDES-BENZ ML500 Owner's Manual

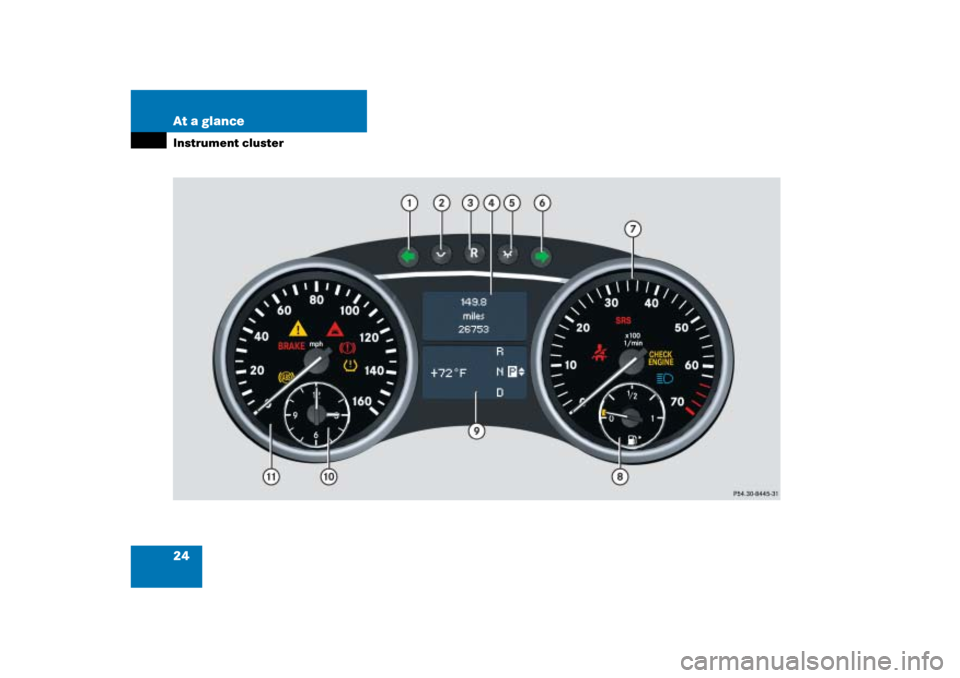

24 At a glanceInstrument cluster

25 At a glance
Instrument cluster
Item
Page
1
LLeft turn signal
indicator lamp
2
To dim instrument cluster
illumination
148
3
Reset button for:Adjusting instrument cluster
illumination
148
4
Multifunction display with:Trip odometer
150
Main odometer
150
5
To brighten instrument clus-
ter illumination
148
6
KRight turn signal
indicator lamp
7
Tachometer with: 388
Item
Page
1Supplemental
Restraint System
(SRS) indicator lamp
390
?Engine malfunction
indicator lamp,
USA only
385
±Engine malfunction
indicator lamp,
Canada only
385
AHigh beam headlamp
indicator
54
8
Fuel gauge with:Fuel tank reserve warning
lamp
388
9
Multifunction display
with:Outside temperature display
150
Gear position indicator
185
Item
Page
a
Clock
b
Speedometer with:-Antilock Brake Sys-
tem (ABS) indicator
lamp
382
;Brake warning lamp,
USA only
383
3Brake warning lamp,
Canada only
383
vESP
® warning lamp
387
lDistance warning
lamp
Warning lamp without
function. It illuminates when
the ignition is on. It should
go out when the engine is
running.HCombination low tire
pressure/TPMS mal-
function telltale*
391

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display
150
Operating control system
151
2
Telephone*:
Press buttonsto take a call, or
to dial a calltto end a call, or
to reject an incoming
call
3
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
Item
Page
4
Moving within a menu:
Press buttonjfor next displaykfor previous display
5
Menu systems:
Press buttonèfor next menuÿfor previous menu

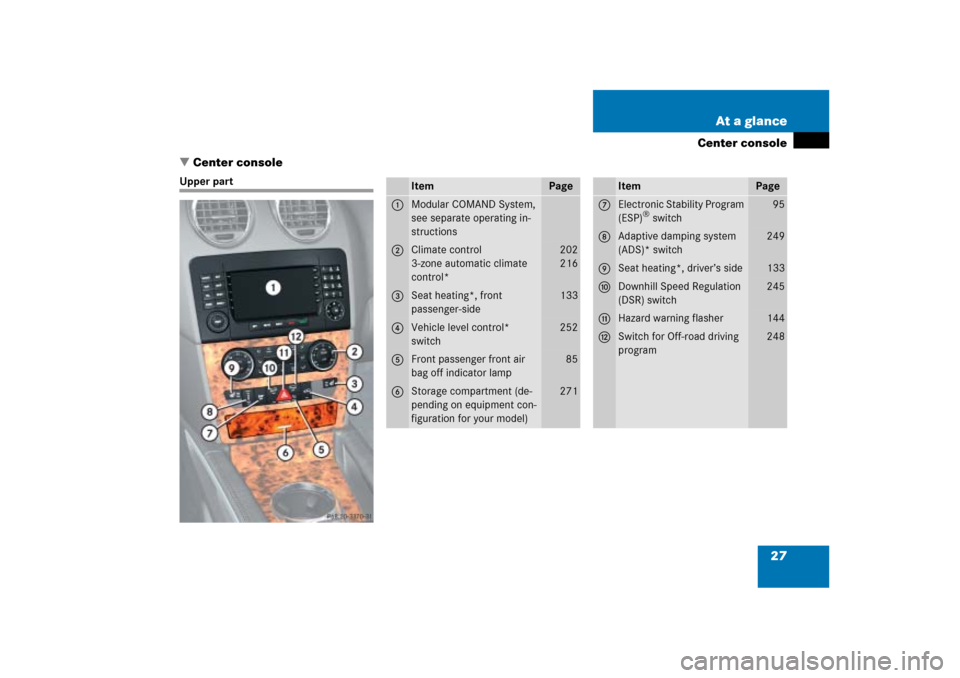

27 At a glance
Center console
Center console
Upper part
Item
Page
1
Modular COMAND System,
see separate operating in-
structions
2
Climate control
3-zone automatic climate
control*
202
216
3
Seat heating*, front
passenger-side
133
4
Vehicle level control*
switch
252
5
Front passenger front air
bag off indicator lamp
85
6
Storage compartment (de-
pending on equipment con-
figuration for your model)
271
Item
Page
7
Electronic Stability Program
(ESP)
® switch
95
8
Adaptive damping system
(ADS)* switch
249
9
Seat heating*, driver’s side
133
a
Downhill Speed Regulation
(DSR) switch
245
b
Hazard warning flasher
144
c
Switch for Off-road driving
program
248

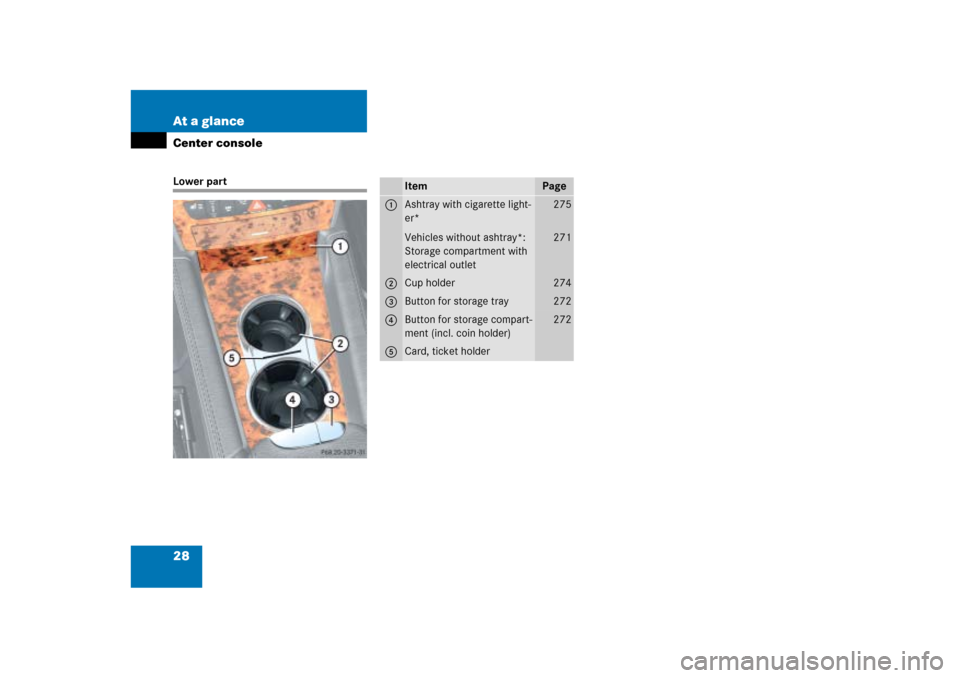

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray with cigarette light-
er*
Vehicles without ashtray*:
Storage compartment with
electrical outlet
275
271
2
Cup holder
274
3
Button for storage tray
272
4
Button for storage compart-
ment (incl. coin holder)
272
5
Card, ticket holder

29 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Left reading lamp on/off
145
2
Cargo compartment lighting
on/off
147
3
Automatic interior lighting
145
4
Front interior lighting on/off
146
5
Right reading lamp on/off
147
6
Front right interior lamp
7
Tilt/sliding sunroof* switch
235
8
Tele Aid* (emergency call
system) button
280
9
Garage door opener
289
a
Rear view mirror
194
Item
Page
b
Right reading lamp
146
c
Vehicles with telephone*
installed:
Hands-free microphone for
Tele Aid* (emergency call
system) and telephone*
d
Left reading lamp
e
Vehicles without
telephone* installed:
Hands-free microphone for
Tele Aid* (emergency call
system)
f
Front left interior lamp

30 At a glanceDoor control panel
Item
Page
1
Door handle
2
Central unlocking switch
Central locking switch
126
126
3
Exterior rear view mirror ad-
justment
Power folding exterior mir-
rors, switch for manual acti-
vation
44
197
4
Switches for opening/clos-
ing front and rear side win-
dows, rear window override
switch
230
5
Remote tailgate release
switch, Tailgate
opening/closing system*
118

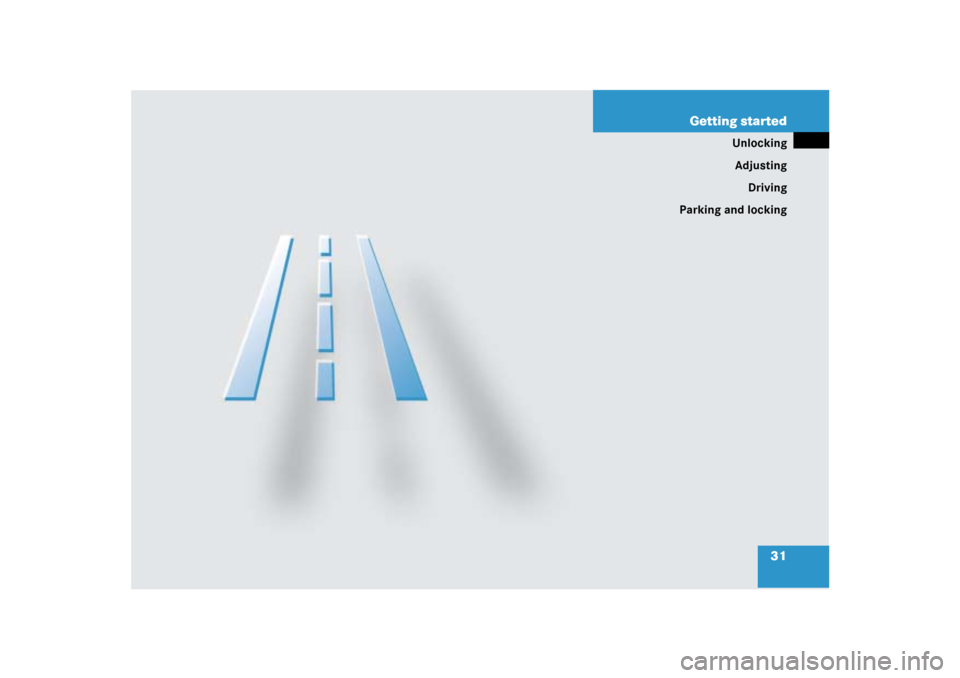

31 Getting started
Unlocking
Adjusting
Driving
Parking and locking
