2006 MERCEDES-BENZ ML500 Owner's Manual

232 Controls in detailPower windowsFully opening the windows
(Express-open)
Press switch1 to4 past the resis-
tance point and release.
The corresponding window opens com-
pletely.
Fully closing the windows
(Express-close)

Pull switch1 to4 past the resis-
tance point and release.
The corresponding window closes com-
pletely.
Stopping windows during
Express-operation

Press or pull respective power window
switch again.
Synchronizing power windows
The power window must be resynchro-
nized each time

after the battery has been
disconnected


if the power windows cannot be fully
opened (Express-open) or closed
(Express-close)
Synchronizing

Close all doors.

Switch on the ignition (
page 34).

Pull and hold the power window
switches1 to4 until the side win-
dows are completely closed.
With the side windows completely
closed, hold the switches for approxi-
mately three seconds.
The power windows are synchronized.
Warning!
G
Driver’s door only:
If within five seconds switch is again pulled
past the resistance point and released, the
automatic reversal will not operate.
!If the upward movement of the window
is blocked during the closing proce-
dure, the window will stop and open
slightly.
Remove the obstruction, pull the re-
spective power window switch again
past the resistance point and release.
If the window still does not close when
there is no obstruction, then pull and
hold the respective power window
switch. The side window will then close
without the obstruction sensor func-
tion.

233 Controls in detail
Power windows
Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the side windows


opening the tilt/sliding sunroof*

Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s door handle. The SmartKey or
SmartKey with KEYLESS-GO* must be
in close proximity to the driver’s door
handle.

Press and hold buttonΠuntil the
windows and the tilt/sliding sunroof*
have reached the desired position.

Release buttonΠto interrupt
procedure.

234 Controls in detailPower windowsConvenience closing feature
When you lock the vehicle, you can close
the windows and tilt/sliding sunroof*
simultaneously.
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle
(page 233). The SmartKey or
SmartKey with KEYLESS-GO* must be
in close proximity to the driver’s door
handle.

Press and hold button‹ until the
windows and tilt/sliding sunroof* are
completely closed.

Release button‹ to interrupt pro-
cedure.Vehicles with KEYLESS-GO*:

Press and hold the lock button on an
outside door handle (
page 64) until
the side windows and the tilt/sliding
sunroof* are completely closed.

Release the lock button at the outside
door handle to interrupt procedure.
Warning!
G
When closing the windows and the
tilt/sliding sunroof*, make sure that there is
no danger of anyone being harmed by the
closing procedure.
If potential danger exists, proceed as fol-
lows:

Release button‹ to stop the closing
procedure. To open, press and hold
buttonŒ. To continue the closing
procedure after making sure that there
is no danger of anyone being harmed by
the closing procedure, press and hold
button‹.
Vehicles with KEYLESS-GO*:


Release the lock button (
page 64) on
exterior driver’s door handle to stop the
closing procedure.


Pull on the exterior driver’s door handle
and hold firmly. The side windows and
the tilt/sliding sunroof* will open for as
long as the door handle is held but the
door not opened.

235 Controls in detail
Power tilt/sliding sunroof*
Power tilt/sliding sunroof*
Opening and closing the power tilt/sliding sunroof
The tilt/sliding sunroof is opened and
closed electrically. The switch for the
tilt/sliding sunroof is on the overhead
control panel.
Sunroof switch1Push back to slide sunroof open
2Push forward to slide sunroof closed
3Push up to raise sunroof at rear
4Pull down to lower sunroof at rearWith the sunroof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
sunroof open, the screen will also retract.

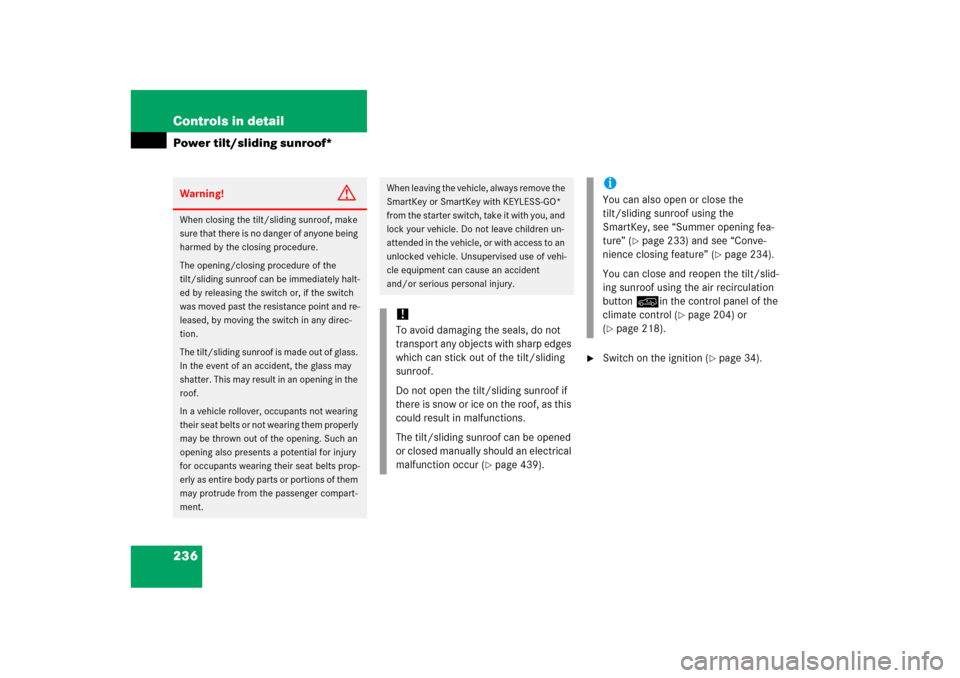

236 Controls in detailPower tilt/sliding sunroof*

Switch on the ignition (
page 34).
Warning!
G
When closing the tilt/sliding sunroof, make
sure that there is no danger of anyone being
harmed by the closing procedure.
The opening/closing procedure of the
tilt/sliding sunroof can be immediately halt-
ed by releasing the switch or, if the switch
was moved past the resistance point and re-
leased, by moving the switch in any direc-
tion.
The tilt/sliding sunroof is made out of glass.
In the event of an accident, the glass may
shatter. This may result in an opening in the
roof.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury
for occupants wearing their seat belts prop-
erly as entire body parts or portions of them
may protrude from the passenger compart-
ment.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the tilt/sliding
sunroof.
Do not open the tilt/sliding sunroof if
there is snow or ice on the roof, as this
could result in malfunctions.
The tilt/sliding sunroof can be opened
or closed manually should an electrical
malfunction occur (
page 439).
iYou can also open or close the
tilt/sliding sunroof using the
SmartKey, see “Summer opening fea-
ture” (
page 233) and see “Conve-
nience closing feature” (
page 234).
You can close and reopen the tilt/slid-
ing sunroof using the air recirculation
button:in the control panel of the
climate control (
page 204) or
(
page 218).

237 Controls in detail
Power tilt/sliding sunroof*
Opening and closing the power
tilt/sliding sunroof
To open, close, raise, or lower the
tilt/sliding sunroof, move the sunroof
switch to the resistance point in the
required direction of arrows1to4.
Release the sunroof switch when the
tilt/sliding sunroof has reached the de-
sired position.
Fully opening (Express-open) and
closing (Express-close) the power
tilt/sliding sunroof

To open or close the tilt/sliding sun-
roof, move the sunroof switch past the
resistance point in the direction of
arrow1to2 and release.
The tilt/sliding sunroof opens or closes
completely.Stopping the power tilt/sliding sunroof
during Express-open

Move the sunroof switch in any direc-
tion.
The movement of the tilt/sliding sun-
roof stops.
Synchronizing the power tilt/sliding
sunroof
The tilt/sliding sunroof must be
synchronized each time

after the battery has been
disconnected or discharged


after the tilt/sliding sunroof has been
closed manually (
page 439)


after a malfunction


the tilt/sliding sunroof does not open
smoothly

Switch on the ignition (
page 34).

Press and hold the sunroof switch in
the direction of arrow1 (
page 235)
until the tilt/sliding sunroof is fully
raised at the rear.
Keep holding the sunroof switch in the
direction of arrow1 for approximately
one second.

Check the Express-open feature
(page 237).
If the tilt/sliding sunroof opens
completely, the tilt/sliding sunroof is
synchronized. Otherwise repeat the
above steps.
iIf the movement of the tilt/sliding sun-
roof is blocked during the closing pro-
cedure, the tilt/sliding sunroof will
stop and reopen slightly.

238 Controls in detailDriving systemsThe driving systems of your vehicle are de-
scribed on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed.


Downhill Speed Regulation (DSR),
which supports you when you are
driving downhill.


Off-road driving program, which
supports you when you are driving
off-road.


Air suspension package* which adjusts
the vehicle suspension characteristics
automatically and controls the vehicle
level.


Parktronic*, which serves as a parking
aid.
For information on the ABS, BAS, EBB,
ESP®, and 4-ETS driving systems, see
“Driving safety systems” (
page 93).
Cruise control
The cruise control automatically maintains
the speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set or resume
cruise control at any speed above
20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column (
page 22).
iThe cruise control should not be acti-
vated during off-road driving.
Warning!
G
The cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must remain at
all times responsible for the vehicle speed
and for safe brake operation.
Only use the cruise control if the road,
traffic, and weather conditions make it ad-
visable to travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate the cruise control when driv-
ing in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

239 Controls in detail
Driving systems

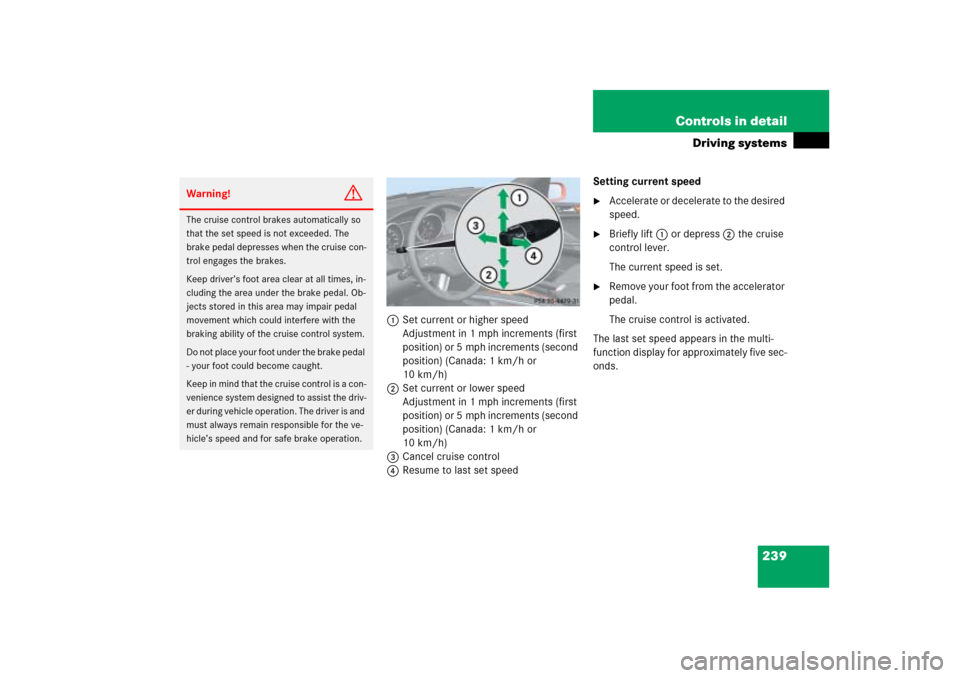

1Set current or higher speed
Adjustment in 1 mph increments (first
position) or 5 mph increments (second
position) (Canada: 1 km/h or
10 km/h)
2Set current or lower speed
Adjustment in 1 mph increments (first
position) or 5 mph increments (second
position) (Canada: 1 km/h or
10 km/h)
3Cancel cruise control
4Resume to last set speedSetting current speed

Accelerate or decelerate to the desired
speed.

Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
The cruise control is activated.
The last set speed appears in the multi-
function display for approximately five sec-
onds.
Warning!
G
The cruise control brakes automatically so
that the set speed is not exceeded. The
brake pedal depresses when the cruise con-
trol engages the brakes.
Keep driver’s foot area clear at all times, in-
cluding the area under the brake pedal. Ob-
jects stored in this area may impair pedal
movement which could interfere with the
braking ability of the cruise control system.
Do not place your foot under the brake pedal
- your foot could become caught.
Keep in mind that the cruise control is a con-
venience system designed to assist the driv-
er during vehicle operation. The driver is and
must always remain responsible for the ve-
hicle’s speed and for safe brake operation.
