2006 MERCEDES-BENZ ML500 Owner's Manual

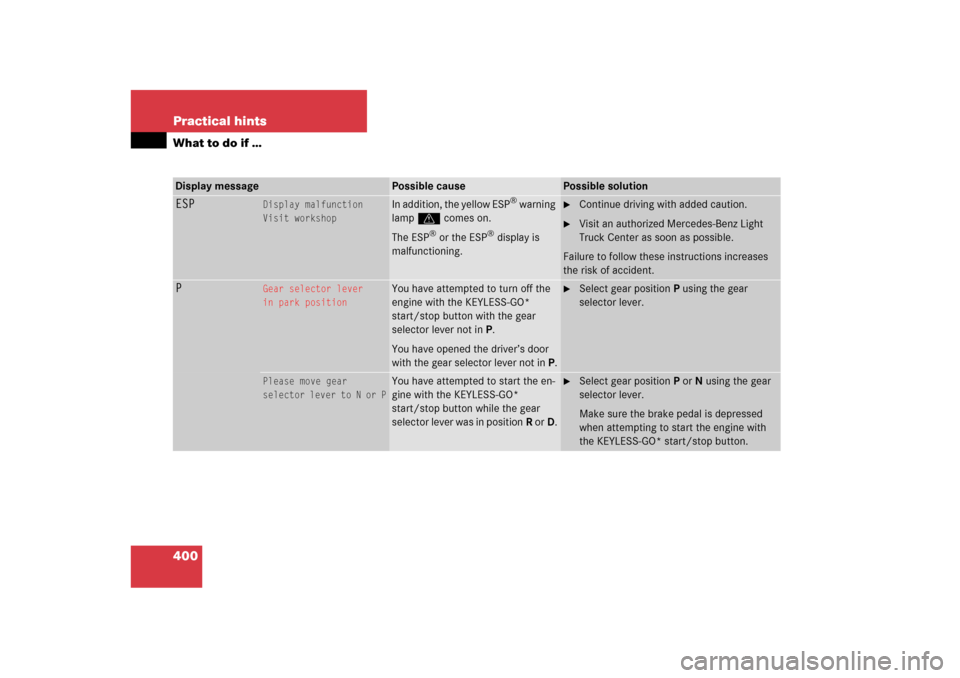

400 Practical hintsWhat to do if …Display message
Possible cause
Possible solution
ESP
Display malfunction
Visit workshop
In addition, the yellow ESP
® warning
lampv comes on.
The ESP
® or the ESP
® display is
malfunctioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz Light
Truck Center as soon as possible.
Failure to follow these instructions increases
the risk of accident.
P
Gear selector lever
in park position
You have attempted to turn off the
engine with the KEYLESS-GO*
start/stop button with the gear
selector lever not inP.
You have opened the driver’s door
with the gear selector lever not inP.

Select gear positionP using the gear
selector lever.
Please move gear
selector lever to N or P
You have attempted to start the en-
gine with the KEYLESS-GO*
start/stop button while the gear
selector lever was in positionR orD.

Select gear positionP orN using the gear
selector lever.
Make sure the brake pedal is depressed
when attempting to start the engine with
the KEYLESS-GO* start/stop button.

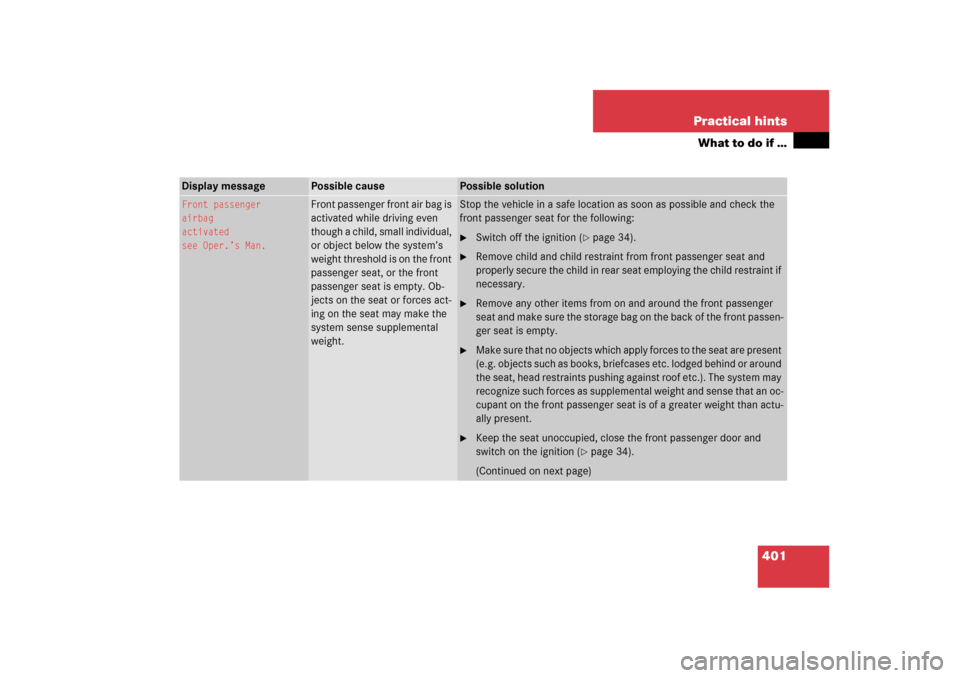

401 Practical hints
What to do if …
Display message
Possible cause
Possible solution
Front passenger
airbag
activated
see Oper.’s Man.
Front passenger front air bag is
activated while driving even
though a child, small individual,
or object below the system’s
weight threshold is on the front
passenger seat, or the front
passenger seat is empty. Ob-
jects on the seat or forces act-
ing on the seat may make the
system sense supplemental
weight.
Stop the vehicle in a safe location as soon as possible and check the
front passenger seat for the following:
Switch off the ignition (
page 34).

Remove child and child restraint from front passenger seat and
properly secure the child in rear seat employing the child restraint if
necessary.

Remove any other items from on and around the front passenger
seat and make sure the storage bag on the back of the front passen-
ger seat is empty.

Make sure that no objects which apply forces to the seat are present
(e.g. objects such as books, briefcases etc. lodged behind or around
the seat, head restraints pushing against roof etc.). The system may
recognize such forces as supplemental weight and sense that an oc-
cupant on the front passenger seat is of a greater weight than actu-
ally present.

Keep the seat unoccupied, close the front passenger door and
switch on the ignition (
page 34).
(Continued on next page)

402 Practical hintsWhat to do if …Display message
Possible cause
Possible solution
Front passenger
airbag
activated
see Oper.’s Man.
Monitor the 59indicator lamp on the center console (
page 27) and the
multifunction display in the instrument cluster (
page 24) for the following:
With the seat unoccupied and the ignition turned on,


the 59indicator lamp on the center console should illuminate and
remain illuminated, indicating that the OCS (
page 81) has deactivated the
air bag.


the message
Front passenger airbag activated see Oper.’s Man.
or the
message
Front passenger airbag deactivated see Oper.’s Man.
should
not appear in the multifunction display at any time the seat is unoccupied.
Wait at last 60 seconds for the system to complete the necessary check cy-
cles and to make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS (
page 81),
the 59indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the
system checked as soon as possible by an authorized Mercedes-Benz Light
Truck Center.
Warning!
G
If the 59indicator lamp remains
out even after performing the above correc-
tive steps, do not have any children 12 years
old and under and other small individuals
use the front passenger seat until the
system has been repaired.

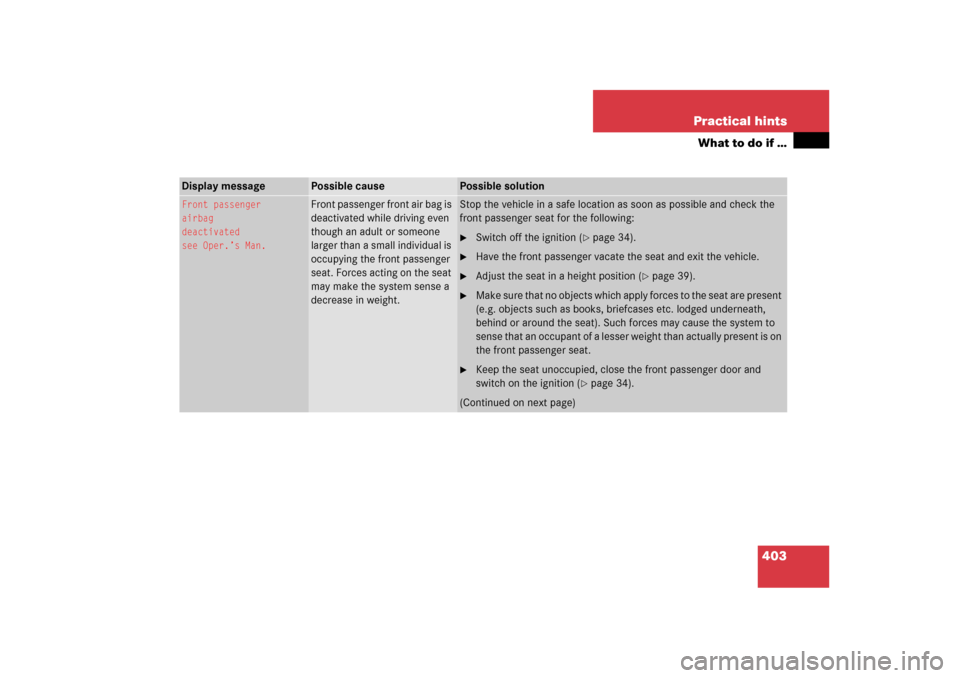

403 Practical hints
What to do if …
Display message
Possible cause
Possible solution
Front passenger
airbag
deactivated
see Oper.’s Man.
Front passenger front air bag is
deactivated while driving even
though an adult or someone
larger than a small individual is
occupying the front passenger
seat. Forces acting on the seat
may make the system sense a
decrease in weight.
Stop the vehicle in a safe location as soon as possible and check the
front passenger seat for the following:
Switch off the ignition (
page 34).

Have the front passenger vacate the seat and exit the vehicle.

Adjust the seat in a height position (
page 39).

Make sure that no objects which apply forces to the seat are present
(e.g. objects such as books, briefcases etc. lodged underneath,
behind or around the seat). Such forces may cause the system to
sense that an occupant of a lesser weight than actually present is on
the front passenger seat.

Keep the seat unoccupied, close the front passenger door and
switch on the ignition (
page 34).
(Continued on next page)

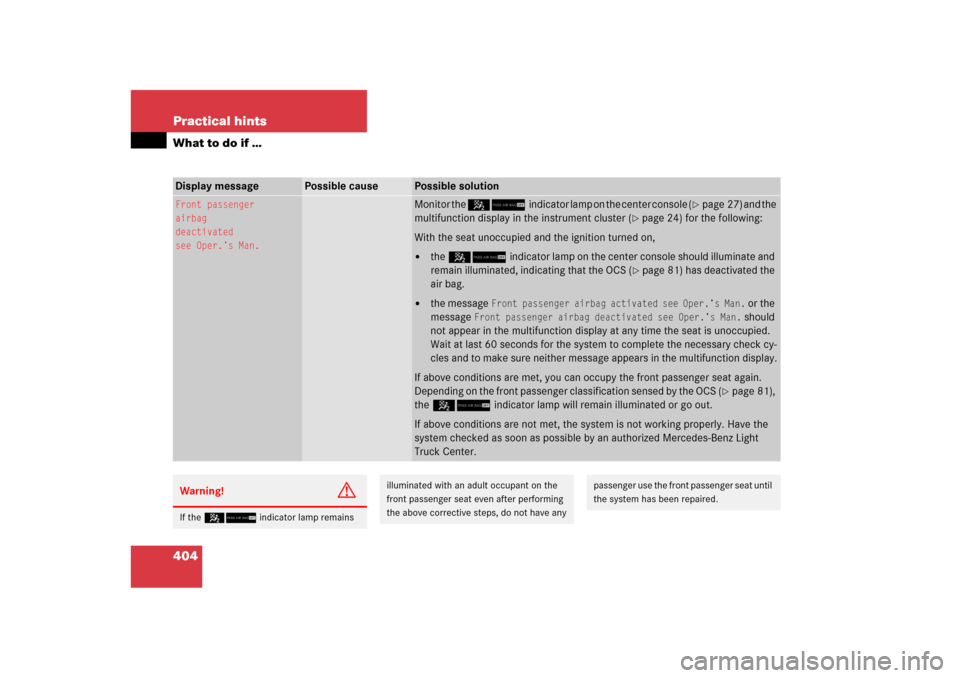

404 Practical hintsWhat to do if …Display message
Possible cause
Possible solution
Front passenger
airbag
deactivated
see Oper.’s Man.
Monitor the 59indicator lamp on the center console (
page 27) and the
multifunction display in the instrument cluster (
page 24) for the following:
With the seat unoccupied and the ignition turned on,


the 59indicator lamp on the center console should illuminate and
remain illuminated, indicating that the OCS (
page 81) has deactivated the
air bag.


the message
Front passenger airbag activated see Oper.’s Man.
or the
message
Front passenger airbag deactivated see Oper.’s Man.
should
not appear in the multifunction display at any time the seat is unoccupied.
Wait at last 60 seconds for the system to complete the necessary check cy-
cles and to make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS (
page 81),
the59indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the
system checked as soon as possible by an authorized Mercedes-Benz Light
Truck Center.
Warning!
G
If the 59indicator lamp remains
illuminated with an adult occupant on the
front passenger seat even after performing
the above corrective steps, do not have any
passenger use the front passenger seat until
the system has been repaired.

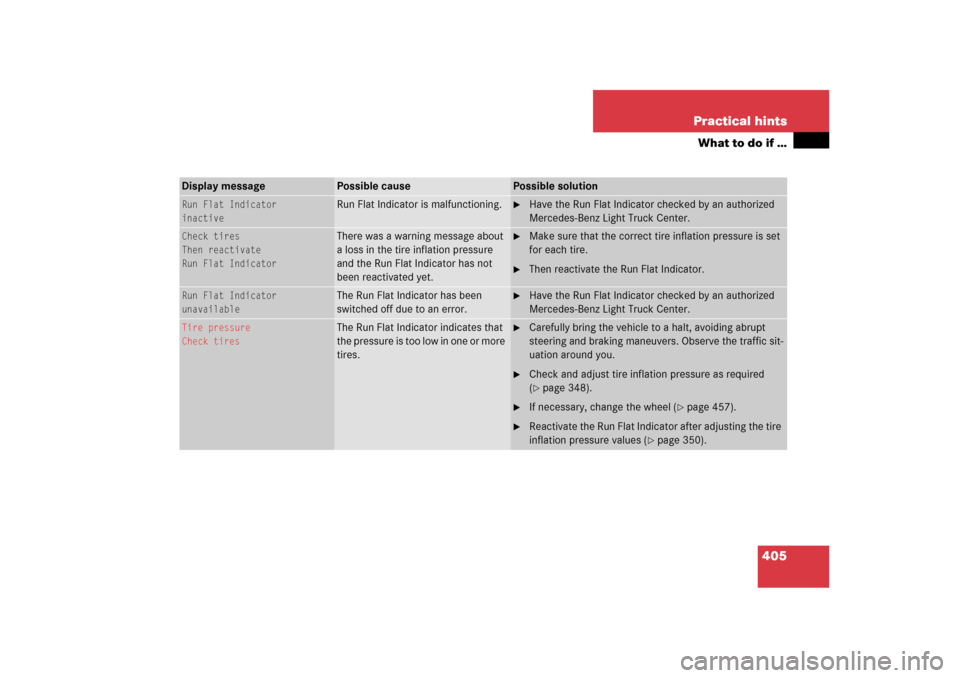

405 Practical hints
What to do if …
Display message
Possible cause
Possible solution
Run Flat Indicator
inactive
Run Flat Indicator is malfunctioning.

Have the Run Flat Indicator checked by an authorized
Mercedes-Benz Light Truck Center.
Check tires
Then reactivate
Run Flat Indicator
There was a warning message about
a loss in the tire inflation pressure
and the Run Flat Indicator has not
been reactivated yet.

Make sure that the correct tire inflation pressure is set
for each tire.

Then reactivate the Run Flat Indicator.
Run Flat Indicator
unavailable
The Run Flat Indicator has been
switched off due to an error.

Have the Run Flat Indicator checked by an authorized
Mercedes-Benz Light Truck Center.
Tire pressure
Check tires
The Run Flat Indicator indicates that
the pressure is too low in one or more
tires.

Carefully bring the vehicle to a halt, avoiding abrupt
steering and braking maneuvers. Observe the traffic sit-
uation around you.

Check and adjust tire inflation pressure as required
(page 348).

If necessary, change the wheel (
page 457).

Reactivate the Run Flat Indicator after adjusting the tire
inflation pressure values (
page 350).

406 Practical hintsWhat to do if …Display message
Possible cause
Possible solution
Tire pressure display

appears after driving
several minutes
The tire inflation pressure is being checked.

Drive the vehicle for a few minutes.
Tire pressure monitor
inoperative
The Advanced TPMS* is malfunctioning.

Have the Advanced TPMS* checked by an autho-
rized Mercedes-Benz Light Truck Center.
Tire pres. monitor
inoperative
No wheel sensors
There are wheels without wheel sensors
mounted (e.g. winter tires).

Have the Advanced TPMS* checked by an autho-
rized Mercedes-Benz Light Truck Center.

Have the wheel sensors install by an authorized
Mercedes-Benz Light Truck Center.
Tire pres. monitor
Wheel sensor missing
One or more sensors defect (e.g. battery in
one or more wheel sensor is empty).
One or more wheels without wheel sensors
mounted (e.g. spare tire).

Have the Advanced TPMS* checked by an autho-
rized Mercedes-Benz Light Truck Center.

Have the wheel sensors install by an authorized
Mercedes-Benz Light Truck Center.
The tire pressure for the respective tire is not shown
in the multifunction display.
Tire pres. monitor
temporarily
unavailable
The Advanced TPMS* is unable to monitor
the tire pressure due to

a nearby radio interference source.


excessive wheel sensor temperatures.

As soon as the causes of the malfunction have been
removed, the Advanced TPMS* automatically be-
comes active again after a few minutes driving.

407 Practical hints
What to do if …
Symbol messagesDisplay symbol
Display messages
Possible cause
Possible solution
#
Undervoltage
Switch off consumers
The battery has insufficient volt-
age.

Turn off unnecessary electrical
consumers.
malfunction
Visit workshop
The battery was charged with a
battery charger or jump started.

Have the battery checked at a service
station.
Battery/Alternator
Stop vehicle
The battery is no longer charg-
ing.
Possible causes:

alternator malfunctioning


broken poly-V-belt
Do not forget that the brake sys-
tem requires electrical energy
and may be operating with re-
stricted capability. Considerably
greater brake pedal force is
required and the stopping dis-
tance is increased.

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise the
engine will overheat due to an inoperative
water pump which may result in damage
to the engine. Notify an authorized
Mercedes-Benz Light Truck Center.
If it is intact:

Drive immediately to the nearest autho-
rized Mercedes-Benz Light Truck Center.
Adjust driving to be consistent with re-
duced braking responsiveness.
