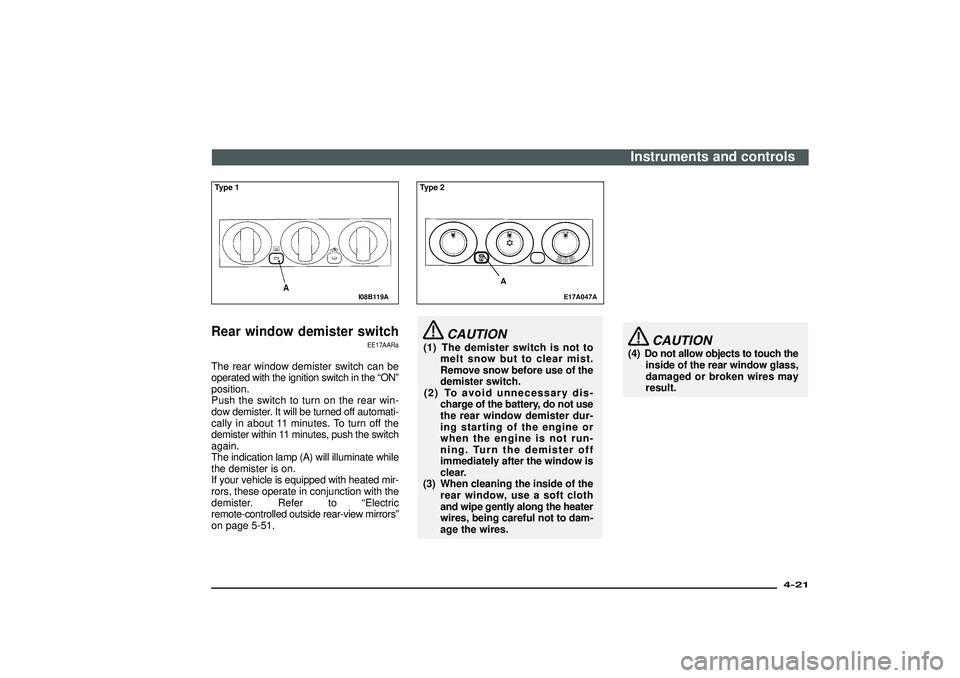

2003 MITSUBISHI SHOGUN Owner's Manual (in English)

I08B119A
Type 1Rear window demister switch
EE17AARa
The rear window demister switch can be
operated with the ignition switch in the“ON”
position.
Push the switch to turn on the rear win-
dow demister. It will be turned off automati-
cally in about 11 minutes. To turn off the
demister within 11 minutes, push the switch
again.
The indication lamp (A) will illuminate while
the demister is on.
If your vehicle is equipped with heated mir-
rors, these operate in conjunction with the
demister. Refer to“Electric
remote-controlled outside rear-view mirrors”
on page 5-51.
E17A047A
Type 2
A
CAUTION
(1) The demister switch is not to
melt snow but to clear mist.
Remove snow before use of the
demister switch.
(2) To avoid unnecessary dis-
charge of the battery, do not use
the rear window demister dur-
ing starting of the engine or
when the engine is not run-
ning. Turn the demister off
immediately after the window is
clear.
(3) When cleaning the inside of the
rear window, use a soft cloth
and wipe gently along the heater
wires, being careful not to dam-
age the wires.
CAUTION
(4) Do not allow objects to touch the
inside of the rear window glass,
damaged or broken wires may
result.Instruments and controls
4-21
Div:
Out put date:

E08A017A
Front fog lamp switch*
EE08A-Vb
The front fog lamp can be operated when
the headlamps or tail lamps turn on. Push
the switch to turn on the front fog lamps,
and push the switch again to turn them off.
The indication lamp in the instrument clus-
ter will illuminate while the front fog lamps
are on.NOTE
(1) The front fog lamps are automatically
turned off when the headlamps and tail
lamps turn off.
To turn on the front fog lamps again,
push the switch again when the head-
lamps or tail lamps turn on.
(2) In case of vehicles with Daytime Run-
ning Lamp, the front fog lamps can be
operated even if the lamp switch is set
to the“
”(OFF) position, because
the low beam of the headlamps, tail
lamps, etc. illuminate when the igni-
tion key is at the“ON”position.
E08B048A
Type 1Rear fog lamp switch
EE08BAIa
The rear fog lamp can be operated when
the headlamps or front fog lamps ( if so
equipped ) turn on.
Push the switch to turn on the rear fog
lamp, and push the switch again to turn it
off.
The indication lamp in the instrument clus-
ter will illuminate while the rear fog lamp is
on.
Instruments and controls
4-22Div:
Out put date:

E08B049A
Type 2NOTE
(1) The rear fog lamp is automatically
turned off when the headlamps and
front fog lamps (if so equipped) turned
off.
To turn on the rear fog lamp again,
push the switch again when the head-
lamps or front fog lamps (if so
equipped) turn on.
(2) In case of vehicles with Daytime Run-
ning Lamp, the front fog lamp can be
operated even if the lamp switch is set
to the“
”(OFF) position, because
the low beam of the headlamps, tail
lamps, etc. illuminate when the igni-
tion key is at the“ON”position.
(3) The rear fog lamp is installed only on
the driver’s side.
E15A043A
LHDRheostat (meter illumination
control)
EE15A-Ma
The rheostat can only be adjusted while the
lamp switch is“
”or“
”.
Turn the dial to adjust the meter illumina-
tion to the desired brightness.
1- To increase brightness
2- To reduce brightness
E15A045A
RHDInstruments and controls
4-23
Div:
Out put date:

E20A005A
Wiper deicer switch*
EE20A-Da
The wiper deicer switch can be operated
with the ignition switch in the“ON”posi-
tion.
When the front wipers have frozen to the
windscreen at the parked positions, turn-
ing on this switch will heat the wind-
screen to make the wipers operable. Press
the switch and the deicer will operate and
turn on the indication lamp (A).
NOTE
The switch is automatically turned off after
operating for approximately 15 minutes. To
turn off the switch while it is operating,
press the switch again.
E23A006A
Horn switch
EE23A-Ac
When the ignition switch is in the“ON”or
“ACC”position, pressing the“
”mark on
the steering wheel, causes the horn to
sound.
E19A099A
Room lamps
EE19AAI
Room lamp1(OFF) -The lamp goes out.
2(
) -[Vehicles without
keyless entry system]
The lamp illuminates when a
door or the backdoor is opened
and goes out when all doors are
closed.
Instruments and controls
4-24Div:
Out put date:

[Vehicles with
keyless entry system]
The room lamp goes on when a
door or the backdoor is opened.
When all doors are closed, the
room lamp is illuminated and
dimmed gradually for 30 sec-
onds and then goes out.
However, the lamp goes out
immediately without being
dimmed in case of the
followings:
•The ignition switch is turned
“ON”.
•All doors are locked using the
key mechanism of the front
doors/backdoor, the lock knob
of the driver’s door, or the
remote control switch of the
keyless entry system.
NOTE
If the ignition key is removed
with the doors closed, the lamp
is dimmed gradually for 30 sec-
onds and then goes out.
3(ON) - The lamp illuminates.
E19A111A
Personal lampsPush the switch (A) to turn on the lamp.
Push it again to turn it off.
NOTE
If you leave the lamps on without running
the engine, you will run down the battery.
Before you leave the vehicle, make sure
that all the lamps are off.
E09D001A
Rear personal lamp
EE09D-L
Instruments and controls
4-25
Div:
Out put date:

E09D003A
1( ON ) -The lamp illuminates.
2(OFF) -The lamp goes out.
3(
) -The lamp illuminates when a
door is opened and goes out
when the door is closed.
NOTE
(1) On 5-door models, the lamp illumi-
nates when a rear door is opened and
goes out when the door is closed.
(2) If you leave the lamp on without run-
ning the engine, you will run down the
battery. Before you leave the vehicle,
make sure that the lamp is off.
E19A115A
Luggage compartment lamp
EE09BAA
1(OFF) -The lamp goes out.
2(
) -The lamp illuminates when the
backdoor is opened and goes
out when the backdoor is closed.
3( ON ) -The lamp illuminates.
NOTE
If you leave the lamp on without running the
engine, you will run down the battery.
Before you leave the vehicle, make sure
that the lamp is off.
Instruments and controls
4-26Div:
Out put date:

D92A013D
Multi centre display*
ED92A-N
When the ignition switch is in the“ACC”position, the outside tem-
perature and clock are displayed in the multi centre display. When
the ignition switch is in the“ON”position, the average fuel con-
sumption is displayed besides outside temperature and digital
clock.
If your vehicle is equipped with an automatic air conditioning sys-
tem, set temperature, blower speed and air flow are displayed.
(Refer to“Automatic air conditioning”on page 6-43.)
A-Road surface freeze warning symbol
B-Outside temperature* / Set temperature*
C-Blower speed*
D-Air flow*
E-Average fuel consumption*
1/ Date*
2
F-Digital clock
G-DISP button (For vehicles with a MITSUBISHI genuine audio)
H-Display brightness / display unit selection button
*1: Average fuel consumption:
For petrol-powered vehicles without MITSUBISHI genuine
audio, only average fuel consumption is displayed.
For petrol-powered vehicles with MITSUBISHI genuine audio,
driving range and average speed can be displayed besides
average fuel consumption by pushing the DISP button in the
audio unit.
*2: Date - For diesel-powered vehicles
Instruments and controls
4-27
Div:
Out put date:

NOTE
(1) The display unit (ex. km or mile) and
brightness can be changed as desired.
(Refer to“Display brightness
adjustment/Display unit selection”on
page 4-35.) When the system cannot
provide a definite value for average fuel
consumption/driving range/average
speed, it is displayed as“
”.
(2) The figure of the display varies accord-
ing to the conditions under which a
vehicle is travelling (road conditions, the
manner in which the vehicle is being
driven, etc.).
Observe display for reference because
the figure of the display may differ from
the actual figure.
D92K003A
Outside temperature
ED92K-E
This value (A) shows the outside tempera-
ture of the vehicle.
NOTE
(1) The outside temperature can be dis-
played from -40°Cto50°C.
(2) The outside temperature displayed may
differ from the actual temperature on
account of surrounding conditions, driv-
ing conditions, etc.
(3) If the temperature outside the vehicle
is below -40°C or over 50°C, an error
message will be displayed (-40°C, 50
°C).
D92K002A
If the outside air temperature drops below
approx 3°C, the alarm sounds and the road
surface freeze warning symbol (B) flashes
for about 10 seconds.
CAUTION
There is a danger the road might be
frozen even when the symbol (A) is
not illuminated, so please take care
when driving.
Instruments and controls
4-28Div:
Out put date:
