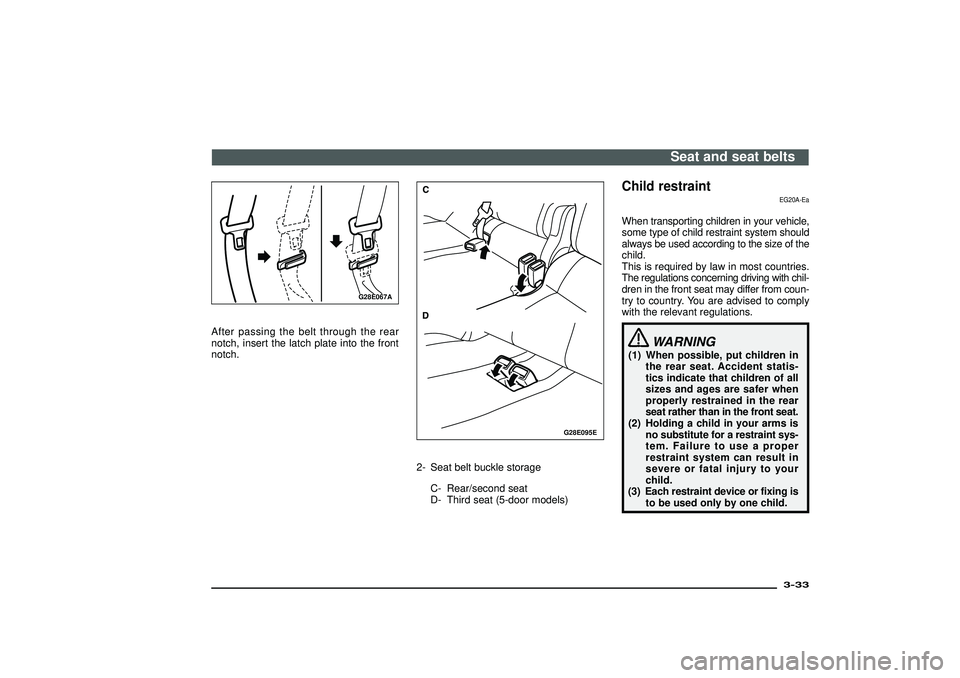

After passing the belt through the rear
notch, insert the latch plate into the front
notch.
G28E095E
2- Seat belt buckle storage
C- Rear/second seat
D- Third seat (5-door models)
Child restraint
EG20A-Ea
When transporting children in your vehicle,
some type of child restraint system should
always be used according to the size of the
child.
This is required by law in most countries.
The regulations concerning driving with chil-
dren in the front seat may differ from coun-
try to country. You are advised to comply
with the relevant regulations.
WARNING
(1) When possible, put children in
the rear seat. Accident statis-
tics indicate that children of all
sizes and ages are safer when
properly restrained in the rear
seat rather than in the front seat.
(2) Holding a child in your arms is
no substitute for a restraint sys-
tem. Failure to use a proper
restraint system can result in
severe or fatal injury to your
child.
(3) Each restraint device or fixing is
to be used only by one child.
Seat and seat belts
3-33
Div:
Out put date:

G28G267A
Caution for installing the child
restraint on vehicle with front pas-
senger air bagThe label shown here is attached on
vehicles with front passenger air bag.
If this label is attached, never install the
rear-facing child restraint on the front pas-
senger’s seat.
G28G 436A
WARNING
(1) Extreme Hazard!
REAR-FACING CHILD
RESTRAINTS must NOT be used
in the front passenger seat as it
places an infant too close to the
passenger air bag. The force of
an inflating air bag could kill or
cause serious injuries to the
child. Rear-facing child restraints
must only be used in the rear
seat (3-door models)/second
seat (5-door models).
G28G 439A
WARNING
(2) FRONT-FACING CHILD
RESTRAINTS should be used in
the rear seat (3-door models)/
second seat (5-door models)
whenever possible; if used in the
front seat, adjust the seat to the
fully backward position.
Seat and seat belts
3-34Div:
Out put date:

G28B005A

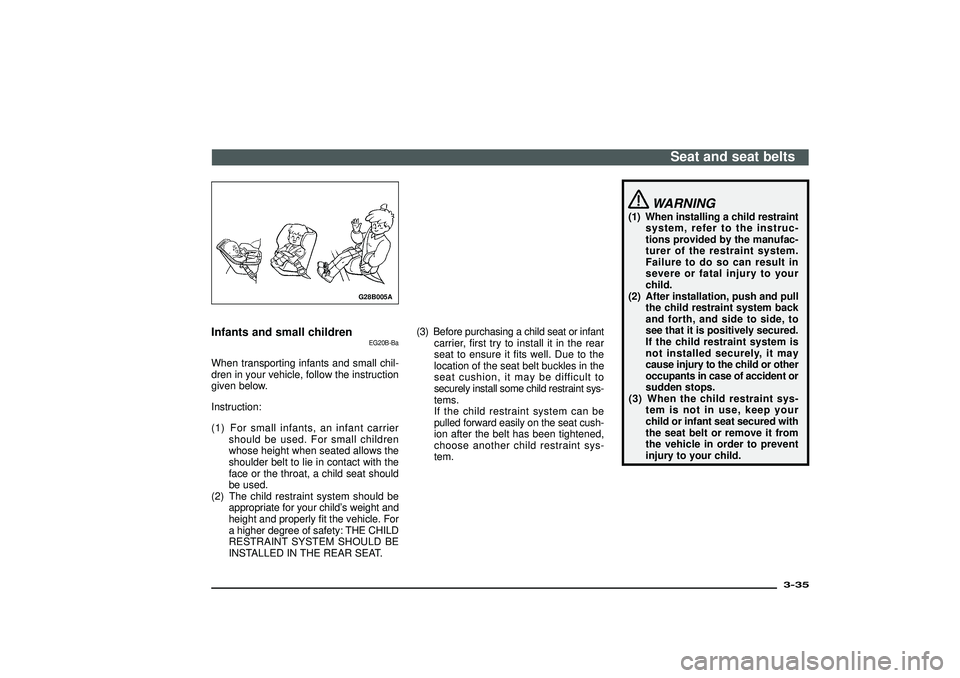

Infants and small children
EG20B-Ba
When transporting infants and small chil-
dren in your vehicle, follow the instruction
given below.
Instruction:
(1) For small infants, an infant carrier
should be used. For small children
whose height when seated allows the
shoulder belt to lie in contact with the
face or the throat, a child seat should
be used.
(2) The child restraint system should be
appropriate for your child’s weight and
height and properly fit the vehicle. For
a higher degree of safety: THE CHILD
RESTRAINT SYSTEM SHOULD BE
INSTALLED IN THE REAR SEAT.(3) Before purchasing a child seat or infant
carrier, first try to install it in the rear
seat to ensure it fits well. Due to the
location of the seat belt buckles in the
seat cushion, it may be difficult to
securely install some child restraint sys-
tems.
If the child restraint system can be
pulled forward easily on the seat cush-
ion after the belt has been tightened,
choose another child restraint sys-
tem.
WARNING
(1) When installing a child restraint
system, refer to the instruc-
tions provided by the manufac-
turer of the restraint system.
Failure to do so can result in
severe or fatal injury to your
child.
(2) After installation, push and pull
the child restraint system back
and forth, and side to side, to
see that it is positively secured.
If the child restraint system is
not installed securely, it may
cause injury to the child or other
occupants in case of accident or
sudden stops.
(3) When the child restraint sys-
tem is not in use, keep your
child or infant seat secured with
the seat belt or remove it from
the vehicle in order to prevent
injury to your child.
Seat and seat belts
3-35
Div:
Out put date:

Suitability for various seating positions
EG20COIa
3-door models
Mass GroupSeating position
Front Passenger Rear Outboard Rear Centre
With Air Bag Without Air Bag Left side Right side
0- - Up to 10 kg (0-9 months) UF U, L*
1
U, L*
1
L*1
U, L *
1
0+ - Up to 13 kg (0-2 years) UF U U X U
I - 9 to 18 kg (9 months-4 years) UF U U, L*
2
L*2
U, L*
2
II & III - 15 to 36 kg (4-12 years) UF, L*
3
U, L*
3
U, L*
3
L*3
U, L*
3
Key of letters to be inserted in the above table:
U - Suitable for “universal” category restraints approved for use in this mass group.
UF - Suitable for forward-facing “universal” category restraints approved for use in this mass group.
L - Suitable for particular child restraints (MITSUBISHI genuine parts).
B - Built-in restraint approved for this mass group.
X - Seat position not suitable for children in this mass group.
L (Genuine part information)
Genuine parts No. ECE No.
*1 MZ311097 E1-03301063
*2 MZ312745 E1-03301136
*3 MZ311099 E1-03301061
NOTE
There is no applicable MITSUBISHI Genuine Parts to the Mass Group “0+-Up to 13 kg (0-2 years)”.
MITSUBISH IMO TO R S Europ eB. V. reserve sth e righ tto change swithou tan yprio rannouncement.
For detail information, please consult your authorized MITSUBISHI dealer.
Seat and seat belts
3-36Div:
Out put date:

5-door models
Mass GroupSeating position
Front Passenger Rear OutboardIntermediate Outboard
Intermediate
Centre
With Air Bag Without Air Bag Left side Right side
0- - Up to 10 kg (0-9 months) UF U, L*
1
L*1
U, L*
1
L*1
U, L *
1
0+ - Up to 13 kg (0-2 years) UF U X U X U
I - 9 to 18 kg (9 months-4 years) UF U L*
2
U, L*
2
L*2
U, L *
2
II & III - 15 to 36 kg (4-12 years) UF, L*
3
U, L*
3
L*3
U, L*
3
L*3
U, L*
3
Key of letters to be inserted in the above table:
U - Suitable for “universal” category restraints approved for use in this mass group.
UF - Suitable for forward-facing “universal” category restraints approved for use in this mass group.
L - Suitable for particular child restraints (MITSUBISHI genuine parts).
B - Built-in restraint approved for this mass group.
X - Seat position not suitable for children in this mass group.
L (Genuine part information)
Genuine parts No. ECE No.
*1 MZ311097 E1-03301063
*2 MZ312745 E1-03301136
*3 MZ311099 E1-03301061
NOTE
There is no applicable MITSUBISHI Genuine Parts to the Mass Group “0+-Up to 13 kg (0-2 years)”.
MITSUBISH IMO TO R S Europ eB. V. reserve sth e righ tto change swithou tan yprio rannouncement.
For detail information, please consult your authorized MITSUBISHI dealer.
Seat and seat belts
3-37
Div:
Out put date:

G18C045A
3-door modelsInstalling a child restraint system to
a 3-point type seat belt (with
emergency/automatic locking
mechanism)
EG20D-C
The 3-point type seat belts at the above
illustrated seat positions can be con-
verted from normal emergency locking
retractor (ELR) mode to automatic lock-
ing retractor (ALR) mode. It must be so
converted, when installing a child restraint
system.
G18C069A
5-door modelsInstallation:1. Place the child restraint system in the
rear (3-door models)/second (5-door
models) seating position as shown in
the illustration.
G18C054A
2. Route the belt through the child restraint
according to the child restraint system
manufacturer’s instructions, then insert
the latch plate into the buckle.
Seat and seat belts
3-38Div:
Out put date:

G18C055A

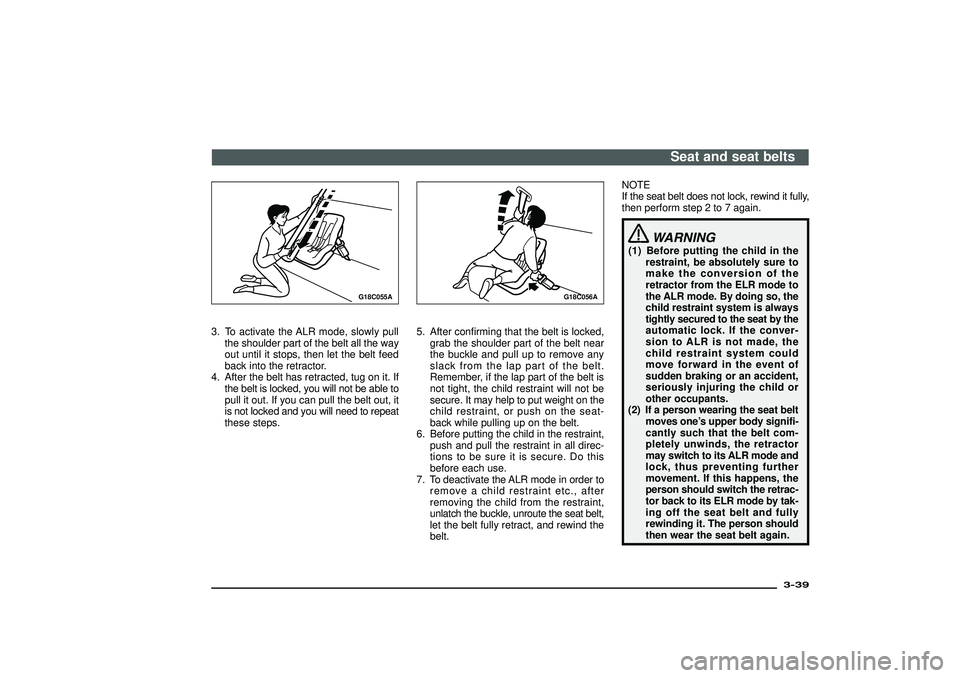

3. To activate the ALR mode, slowly pullthe shoulder part of the belt all the way
out until it stops, then let the belt feed
back into the retractor.
4. After the belt has retracted, tug on it. If the belt is locked, you will not be able to
pull it out. If you can pull the belt out, it
is not locked and you will need to repeat
these steps.
G18C056A
5. After confirming that the belt is locked,grab the shoulder part of the belt near
the buckle and pull up to remove any
slack from the lap part of the belt.
Remember, if the lap part of the belt is
not tight, the child restraint will not be
secure. It may help to put weight on the
child restraint, or push on the seat-
back while pulling up on the belt.
6. Before putting the child in the restraint, push and pull the restraint in all direc-
tions to be sure it is secure. Do this
before each use.
7. To deactivate the ALR mode in order to remove a child restraint etc., after
removing the child from the restraint,
unlatch the buckle, unroute the seat belt,
let the belt fully retract, and rewind the
belt. NOTE
I
f th e sea tbel tdoe sno tlock ,rewin dit full y,
then perform step 2 to 7 again.
WARNING
(1) Before putting the child in the restraint, be absolutely sure to
make the conversion of the
retractor from the ELR mode to
the ALR mode. By doing so, the
child restraint system is always
tightly secured to the seat by the
automatic lock. If the conver-
sion to ALR is not made, the
child restraint system could
move forward in the event of
sudden braking or an accident,
seriously injuring the child or
other occupants.
(2) If a person wearing the seat belt moves one ’s upper body signifi-
cantly such that the belt com-
pletely unwinds, the retractor
may switch to its ALR mode and
lock, thus preventing further
movement. If this happens, the
person should switch the retrac-
tor back to its ELR mode by tak-
ing off the seat belt and fully
rewinding it. The person should
then wear the seat belt again.
Seat and seat belts
3-39
Div:
Out put date:

G18C052A
3-door modelsInstalling a child restraint system to
a 3-point type seat belt (with emer-
gency locking mechanism)
EG20E-E
For safety, you are advised to install the
child restraint system using a 3-point type
seat belt with emergency/automatic lock-
ing mechanism. If you cannot avoid install-
ing it using another type of seat belt, follow
the instructions given below.
Installation:
1. Fasten the seat belt to secure the child
restraint system. Make sure you hear a
“click”when you insert the latch plate in
the buckle.
G18C053A
5-door models2. Remove all slack of a lap belt by pull-
ing the webbing through the belt’s
adjustment feature.
3-point type seat belt requires no length
adjustment, remove all slack by using
the locking clip.
3. Push and pull the child restraint in all
directions to be sure it is secure.
G28B059A
CAUTION
For some type of child restraint, the
locking clip (A) should be used to
help avoid personal injury during a
collision or sudden manoeuver.
It must be fitted and used in accor-
dance with the child restraint manu-
facturer’s instructions.
The locking clip must be removed
when the child restraint is removed.
Seat and seat belts
3-40Div:
