2003 MITSUBISHI SHOGUN Owner's Manual (in English)

D92A061A
2. Press the selection button for“
”or
“
”to get the desired declination.
Pressing“
”or“
”for more than
1 second makes the value change rap-
idly.
D92A062A
3. When the declination adjustment has
been completed, press the“SET”func-
tion button.
NOTE
For safety, these operations can only be
carried out when the vehicle is moving at
less than 3 km/h (2 mph).
D92K032A
Date and time
ED92N-Da
The date and time display shows the time
(A) and the date (B).Instruments and controls
4-53
Div:
Out put date:

D92K033A
When the screen is set to a display other
than the date-time display, only the time (A)
is displayed in the top-left corner.
Instruments and controls
4-54Div:
Out put date:

Adjusting the date and timeFollowing modes are available for clock adjustment:
•MITSUBISHI genuine audio:
“Auto mode” and “Manual mode”
• Non genuine audio:
“Manual mode” only
The selected mode is shown on the audio display.
“CT” displayed: Auto mode
“CT” not displayed: Manual mode
For manual time adjustment, please refer to “Manual mode ”below.
Auto mode
(MITSUBISHI genuine audio only)The automatic adjustment mode can set the local time automati-
cally by using the signal from the local RDS stations. In this mode,
“CT” (A) (Clock Time: sent with the RDS signal) is shown in the
audio display.
Instruments and controls
4-55
Div:
Out put date:
G15B093D

D92A053A
Manual modeThe manual adjustment mode is also avail-
able in case the“Auto”mode shows the
incorrect time when the adjacent local RDS
stations are located in a different time zone.
CAUTION
Only adjust the date and time when
stationary in an area where parking
and stopping are permitted.
NOTE
For safety, the date and time can only be
adjusted at speeds of less than 3 km/h
(2 mph).
For manual time adjustment, use the pro-
cedure below :
1. Press the“ADJ”button.
D92K021A
2. Press the“CLOCK”function button.
D92K022A
3. To change the month, day, year, hour,
minute and second readings, press the
“SELECT”function button. Each time
the“SELECT”function button is
pressed, the item to be adjusted will
switch between“hour”,“minute”,
“second”,“day”,“month”, and“year”.
Pressing the“SELECT”function but-
ton for more than 1 second will put it into
fast forward mode.
When“second”has been chosen, the
monitor display will automatically go to
0 seconds.
Instruments and controls
4-56Div:
Out put date:

D92K019A
4. Press the“ ”or “
”function button to
change to the desired number. Press-
ing “ ”or “
”function button for more
than 1 second, makes the value change
rapidly.
D92K020A
5. When the clock has been adjusted, press the “SET” function button.
NOTE
Disconnecting the battery terminal causes
the memory to be erased. If it has been dis-
connected, readjust the date and time by
following the procedure given in (1) through
(5).
Air conditioning
ED92K-Fa
When the fan speed dial and the ventila-
tor dial are set to “AUT ”, setting the tem-
perature control knob will produce
automatic selection of the ventilators
(excluding
and
) and automatic
adjustment of the air conditioner and out-
side air introduction.
This part of the manual concerns dis-
plays. To find out how best to use the air
ventilators, the switches and the air con-
ditioning, refer to “Automatic air
conditioning” on page 6-43.
Instruments and controls
4-57
Div:
Out put date:

D92K023A
This displays the current status of the air
conditioning. Even when this mode is not
selected with the“DISP”function button, it
will automatically be chosen whenever the
air conditioning is operated.
1- Blower speed indicator
2- Air selection indicator (Recirculation of
inside air/incoming air from outside)
3- Air flow indicator
NOTE
When this mode has been displayed auto-
matically after operation of the air condi-
tioning, the display will revert to its previous
display after about 10 seconds if no fur-
ther adjustments are made.
D92K024A
1. Blower speed indicator
This shows the level of the air flow by the
number of bar lines.
A- High blower speed
B- Low blower speed
D92K025A
2. Air selection indicator (Recirculation
of inside air/Incoming air from outside)
This indicates whether the air condition-
ing is taking in air from outside, or just recir-
culating air inside the passenger
compartment.
A- Outside position
B- Recirculation position
Instruments and controls
4-58Div:
Out put date:

D92K026A

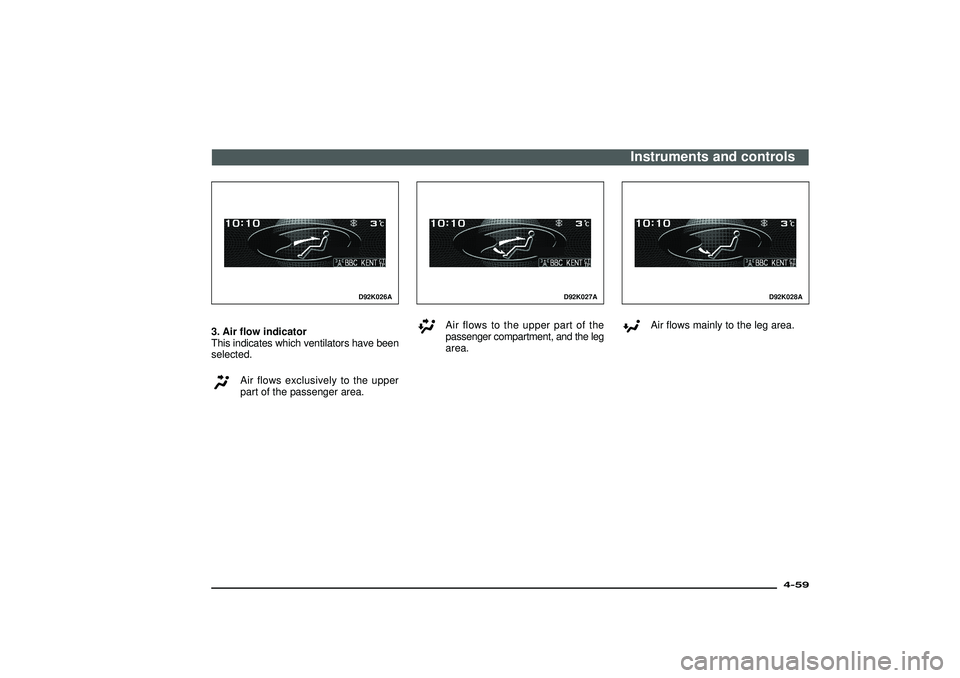

3. Air flow indicator
This indicates which ventilators have been
selected.
Air flows exclusively to the upper
part of the passenger area.
D92K027A
Air flows to the upper part of the
passenger compartment, and the leg
area.
D92K028A
Air flows mainly to the leg area.
Instruments and controls
4-59
Div:
Out put date:

D92K029A
Air flows to the leg area, and wind-
shield and door windows.
D92K030A
Air flows exclusively to the wind-
shield and door windows.
D92K031A
4. Set temperature display
This displays the desired set tempera-
ture.
5. Front demister indicator
This illuminates when the ventilator is
switched to“
”(demister).
6. Rear window demister indicator
This illuminates when the rear window
defogger switch is set to ON. For an expla-
nation of the rear window demister switch,
please read the explanation in the own-
er’s manual.
7. AUTO mode indicator
This illuminates when the air conditioning
is working in automatic mode (when both
the blower switch and the mode selection
dial are switched to“AUTO”).
Instruments and controls
