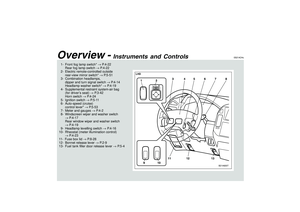

Overview -
Instruments and Controls
EB21AOHc
B21A600T
LHD
1- Front fog lamp switch*→P.4-22
Rear fog lamp switch→P.4-22
2- Electric remote-controlled outside
rear-view mirror switch*→P.5-51
3- Combination headlamps,
dipper and turn signal switch→P.4-14
Headlamp washer switch*→P.4-19

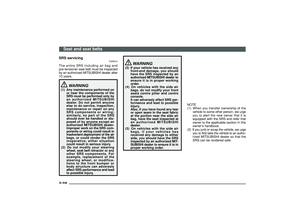

4- Supplemental restraint system-air bag
(for driver’s seat)→P.3-42
Horn switch→P.4-24
5- Ignition switch→P.5-11
6- Auto-speed (cruise)
control lever*→P.5-53
7- Meter and gauges→P.4-2
8- Windscreen wiper and washer switch
→P.4-17
Rear window wiper and washer switch
→P.4-19
9- Headlamp levelling switch→P.4-16
10- Rheostat (meter illumination control)
→P.4-23
11- Fuse box lid→P.8-28
12- Bonnet release lever→P.2-9
13- Fuel tank filler door release lever→P.5-4Div:
Out put date:

Instruments and Controls
B21A601T
LHD
14- Parking brake lever→P.5-42
15- Audio*→P.6-2, 6-17
16- Hazard warning flasher switch→P.4-20
17- Multi centre display*→P.4-27
18- RV meter*→P.4-40
19- Rear window demister switch→P.4-21
20- Front heater/Manual air conditioning*
→P.6-36

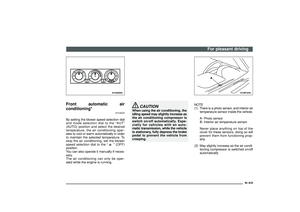

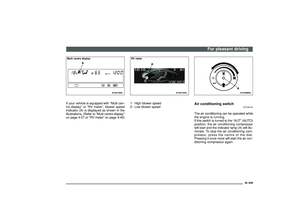

Front automatic air conditioning*
→P.6-43
21- Ventilators→P.6-35
22- Supplemental restraint system-air bag*
(for front passenger’s seat)→P.3-42

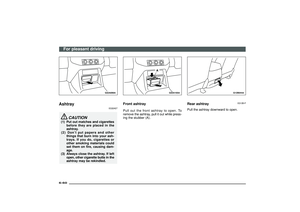

23- Ashtray (for front seats)→P.6-60
24- Cigarette lighter→P.6-59
25- Heated seat switch*→P.3-10

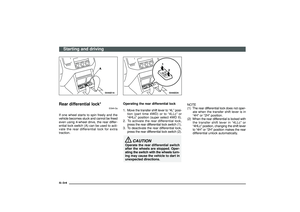

26- Rear differential lock switch*→P.5-34
Active stability control switch*
→P.5-58
27- Wiper deicer switch*→P.4-24
28- Main switch for rear heater*/
Rear air conditioning*
(for front seats)→P.6-53
29- Rear heater* /Rear air conditioning*
→P.6-52
30- Ashtray (for rear seats)→P.6-60
31- Centre console box→P.6-64
Accessory socket*→P.6-61
32- Cup tray (for front seats)→P.6-65
33- Gearshift or selector lever
→P.5-15, 5-17

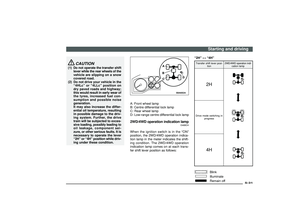

34- Transfer shift lever→P.5-24, 5-28
Div:
Out put date:

Instruments and Controls
EB21AOIc
B21A602T
RHD
1- Combination headlamps,
dipper and turn signal switch→P.4-14
Headlamp washer switch*→P.4-19
2- Meter and gauges→P.4-2
3- Ignition switch→P.5-11
4- Supplemental restraint system-air bag
(for driver’s seat)→P.3-42
Horn switch→P.4-24
5- Windscreen wiper and washer switch
→P.4-17
Rear window wiper and washer switch
→P.4-19
6- Electric remote-controlled outside
rear-view mirror switch→P.5-51
7- Front fog lamp switch*→P.4-22
Rear fog lamp switch→P.4-22
8- Fuel tank filler door release lever→P.5-4
9- Bonnet release lever→P.2-9
10- Headlamp levelling switch→P.4-16
11- Rheostat (meter illumination control)
→P.4-23
12- Fuse box lid→P.8-28
13- Auto-speed (cruise)
control lever*→P.5-53Div:
Out put date:

Instruments and Controls
B21A571T
RHD
14- Supplemental restraint system-air bag
(for front passenger’s seat)→P.3-42
15- Front heater/Manual air conditioning*
→P.6-36
Front automatic air conditioning*
→P.6-43
16- Rear window demister switch→P.4-21
17- Multi centre display*→P.4-27
18- RV meter*→P.4-40
19- Hazard warning flasher switch→P.4-20
20- Audio*→P.6-2, 6-17
21- Ventilators→P.6-35
22- Parking brake lever→P.5-42
23- Ashtray (for front seats)→P.6-60
24- Cigarette lighter→P.6-59
25- Heated seat switch*→P.3-10
26- Rear differential lock switch*→P.5-34
Active stability control switch*
→P.5-58
27- Wiper deicer switch*→P.4-24
28- Main switch for rear heater*/
Rear air conditioning*
(for front seats)→P.6-53
29- Transfer shift lever→P.5-24, 5-28
30- Gearshift or selector lever
→P.5-15, 5-17
31- Cup tray (for front seats)→P.6-65
32- Centre console box→P.6-64
Accessory socket*→P.6-61
33- Ashtray (for rear seats)→P.6-60
34- Rear heater* /Rear air conditioning*
→P.6-52
Div:
Out put date:

Interior
EB21BOHb
B21B501T
LHD
1- Head restraints→P.3-28
2- Luggage compartment lamp
→P.4-26, 8-35, 8-43
3- Roof ventilators→P.6-36

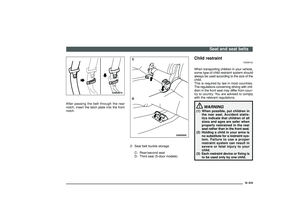

4- Seat belts→P.3-30
5- Rear personal lamps→P.4-25, 8-35, 8-43
6- Adjustable seat belt anchor (for front seats)
→P.3-32

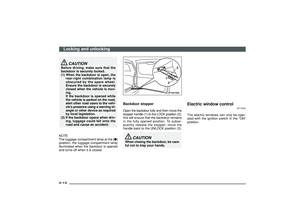

7- Electric window control→P.2-12
8- Lock switch→P.2-14
9- Sunroof switch*→P.2-15
10- Room lamp→P.4-24, 8-35, 8-43
Personal lamps→P.4-25, 8-35, 8-43
11- Inside rear-view mirror→P.5-50
12- Sun visor→P.6-56
13- Vanity mirror*→P.6-58

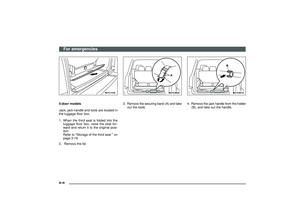

14- Jack (5-door models)→P.8-6
15- Tools (5-door models)→P.8-4
16- Jack handle (5-door models)→P.8-6
17- Luggage floor box→P.6-66
18- Cup tray (for third seat)→P.6-66
19- Arm rest/Cup tray (for rear/second seat)
→P.3-13, 6-65
20- Supplemental restraint system-side air bag*
(for front seats)→P.3-42

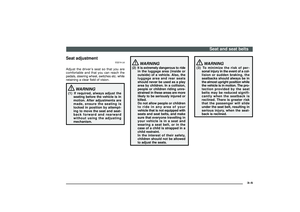

21- Seat→P.3-2
22- Glove box→P.6-63
23- Upper glove box→P.6-63Div:
Out put date:

Interior
EB21BOIb
B21B502T
RHD
1- Vanity mirror→P.6-58
2- Sun visor→P.6-56
3- Inside rear-view mirror→P.5-50
4- Room lamp→P.4-24, 8-35, 8-43
Personal lamps→P.4-25, 8-35, 8-43
5- Sunroof switch*→P.2-15
6- Lock switch→P.2-14
7- Electric window control→P.2-12
8- Adjustable seat belt anchor (for front seats)
→P.3-32
9- Rear personal lamps→P.4-25, 8-35, 8-43
10- Roof ventilators→P.6-36
11- Seat belts→P.3-30
12- Head restraints→P.3-28
13- Luggage compartment lamp
→P.4-26, 8-35, 8-43
14- Upper glove box→P.6-63
15- Glove box→P.6-63
16- Seat→P.3-2
17- Supplemental restraint system
-side air bag* (for front seats)→P.3-42
18- Arm rest/Cup tray
(for rear/second seat)→P.3-13, 6-65
19- Cup tray (for third seat)→P.6-66
20- Luggage floor box*→P.6-66
21- Jack (5-door models)→P.8-6
22- Jack handle (5-door models)→P.8-6
23- Tools (5-door models)→P.8-4
Div:
Out put date:

Luggage area
EB21BOW
B21B474T
1- Accessory socket→P.6-61
2- Rear shelf*→P.6-69
3- Jack (3-door models)→P.8-6
4- Jack handle (3-door models)→P.8-6
5- Tools (3-door models)→P.8-4
6- Net→P.3-19, 6-67
7- Rear window washer fluid container
→P.9-12
8- Luggage hooks*→P.6-68
9- Tonneau cover rails*→P.6-68
10- Side box*→P.6-67
A- 3-door models
B- 5-door modelsDiv:
