1993 CADILLAC SEVILLE Owners Manual

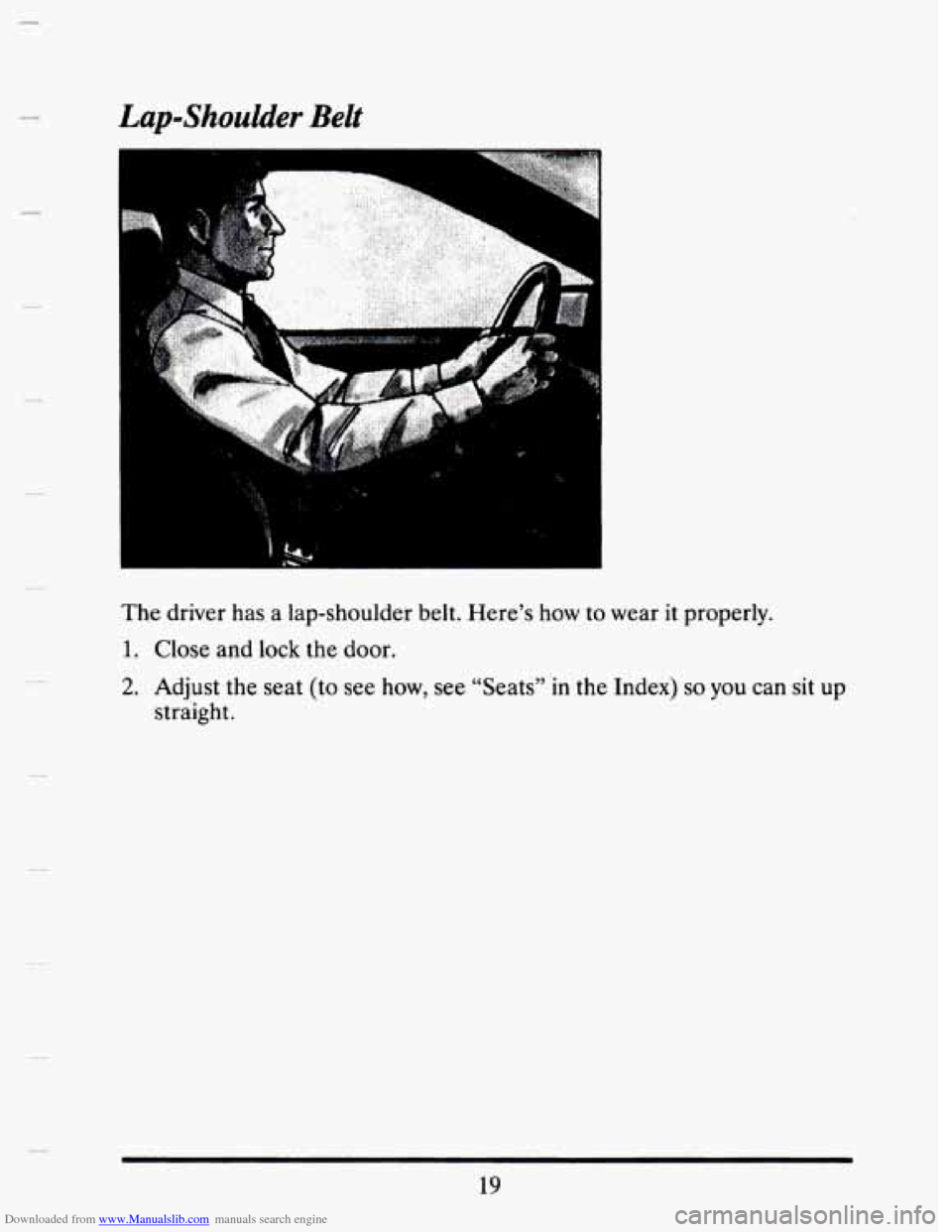

Downloaded from www.Manualslib.com manuals search engine Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here’s how to wear it properly.
1. Close and lock the door.
2. Adjust the seat (to see how, see “Seats” in the Index) so you can sit up
straight.
19

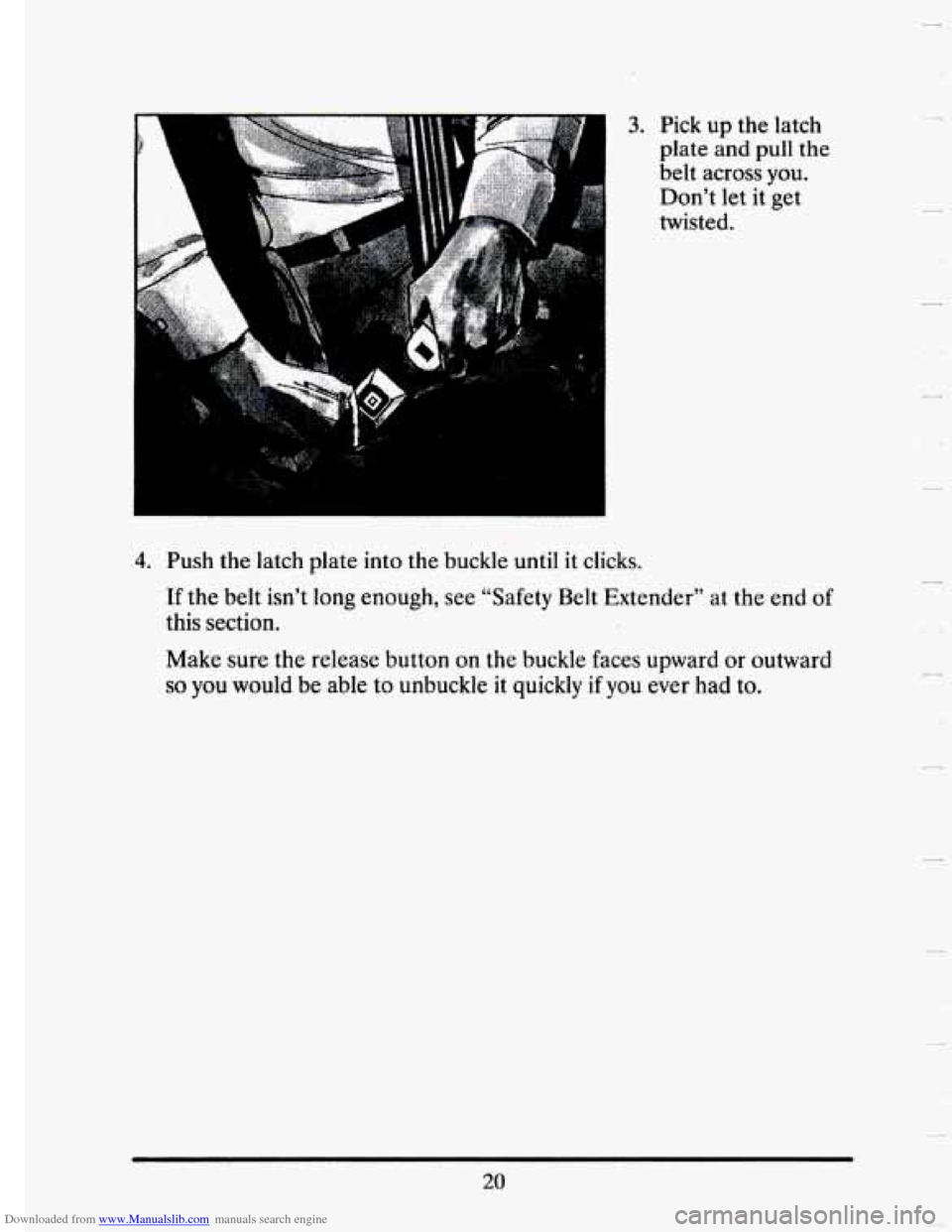

Downloaded from www.Manualslib.com manuals search engine 3. Pick up the latch
plate and pull the
belt across you.
Don’t let it get
twisted.
4. Push the latch plate into the buckle until it clicks.
If the belt isn’t long enough, see “Safety Belt Extender” at the end
of
this section.
Make sure the release button on the buckle faces upward or outward
so you would be able to unbuckle it quickly if you ever had to.
20
u

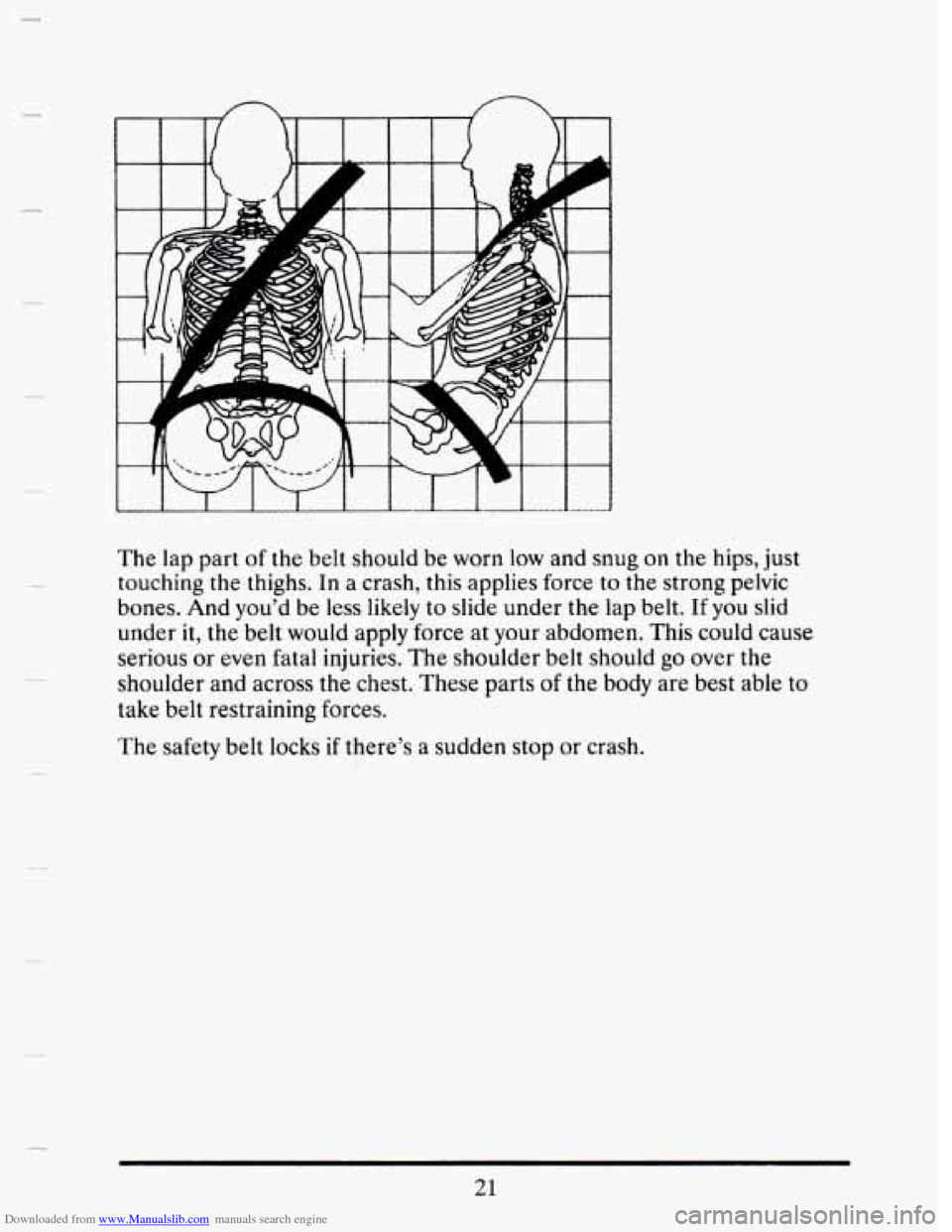

Downloaded from www.Manualslib.com manuals search engine The lap part of the belt should be worn low and snug on the hips, just
touching the thighs. In a crash, this applies force to
the strong pelvic
bones. And you’d be less likely
to slide under the lap belt. If you slid
under it, the belt would apply force at your abdomen.
This could cause
serious or even fatal injuries. The shoulder belt should
go over the
shoulder and across the chest. These parts
of the body are best able to
take belt restraining forces.
The safety belt locks if there’s a sudden stop or crash.
21

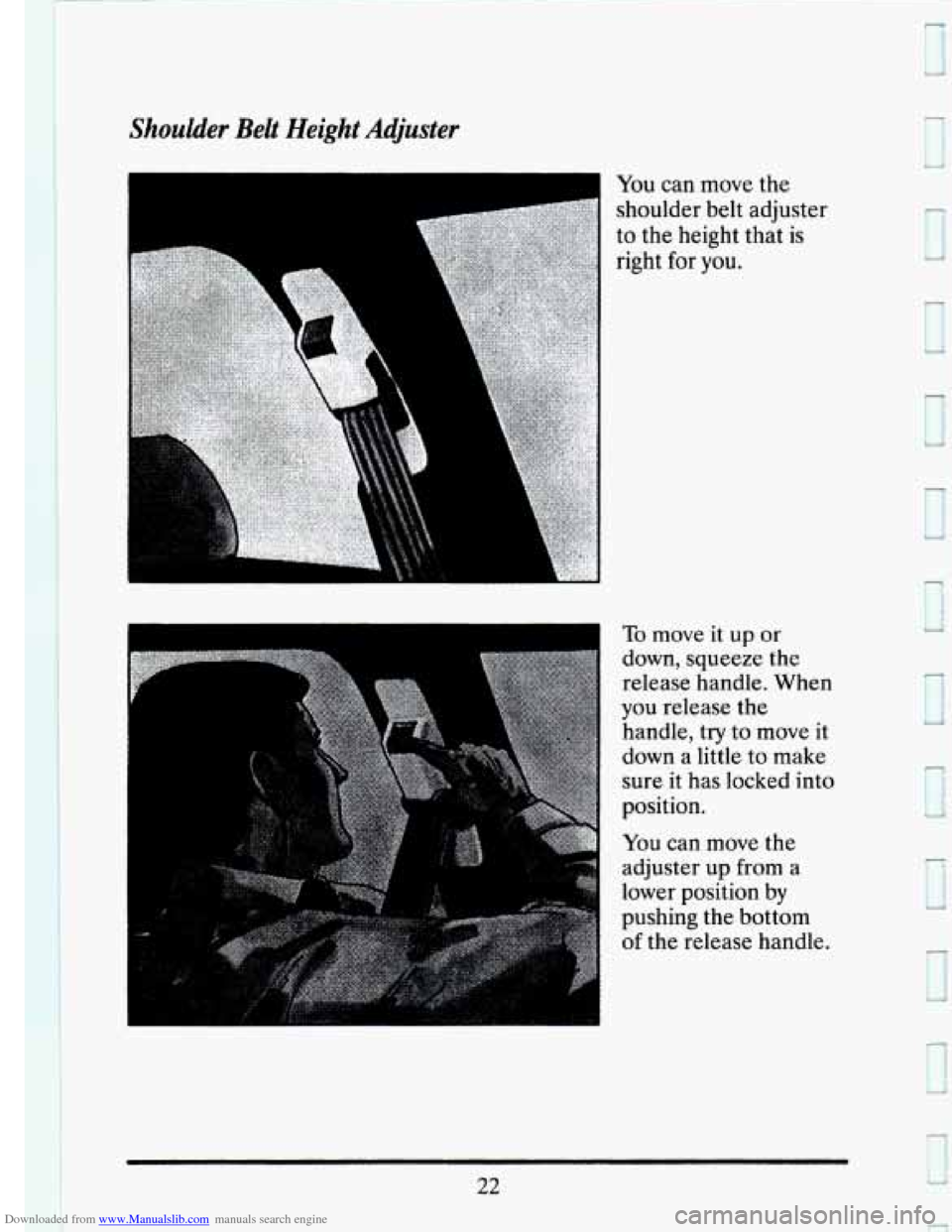

Downloaded from www.Manualslib.com manuals search engine Shoulder Belt Height Adjuster
You can move the
shoulder belt adjuster
to the height that is
right for
you.
To move it up or
down, squeeze the
release handle. When
you release the
handle, try to
move it
down
a little to make
sure it has locked into
position.
You can move the
adjuster up from a
lower position by
pushing the bottom
of the release handle.
22

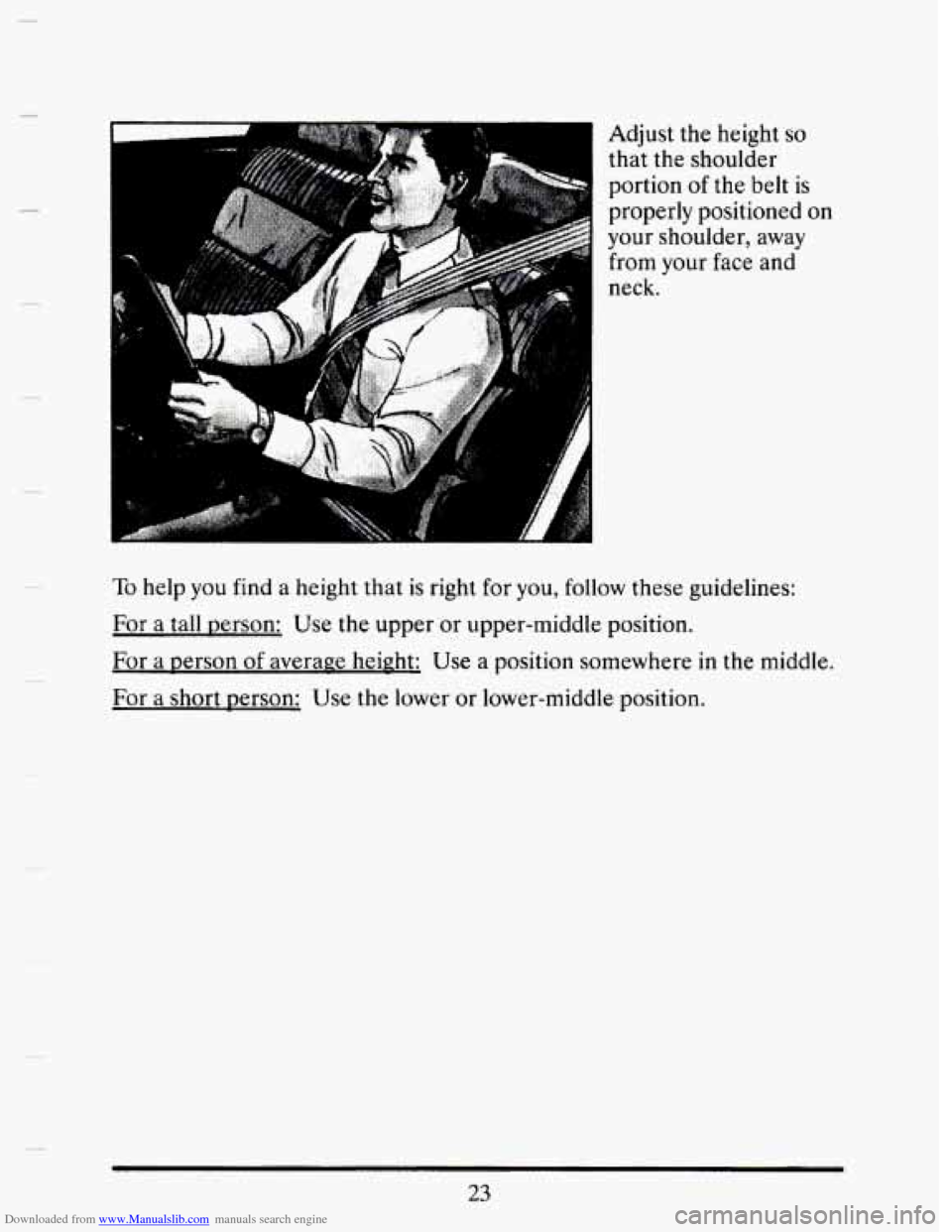

Downloaded from www.Manualslib.com manuals search engine Adjust the height so
that the shoulder portion
of the belt is
properly positioned on
your shoulder, away
from your face and
neck.
To help you find a height that is right for you, follow these guidelines:
For a tall person: Use the upper or upper-middle position.
For
a person of average height: Use a position somewhere in the middle.
For a short person: Use the lower or lower-middle position.
23

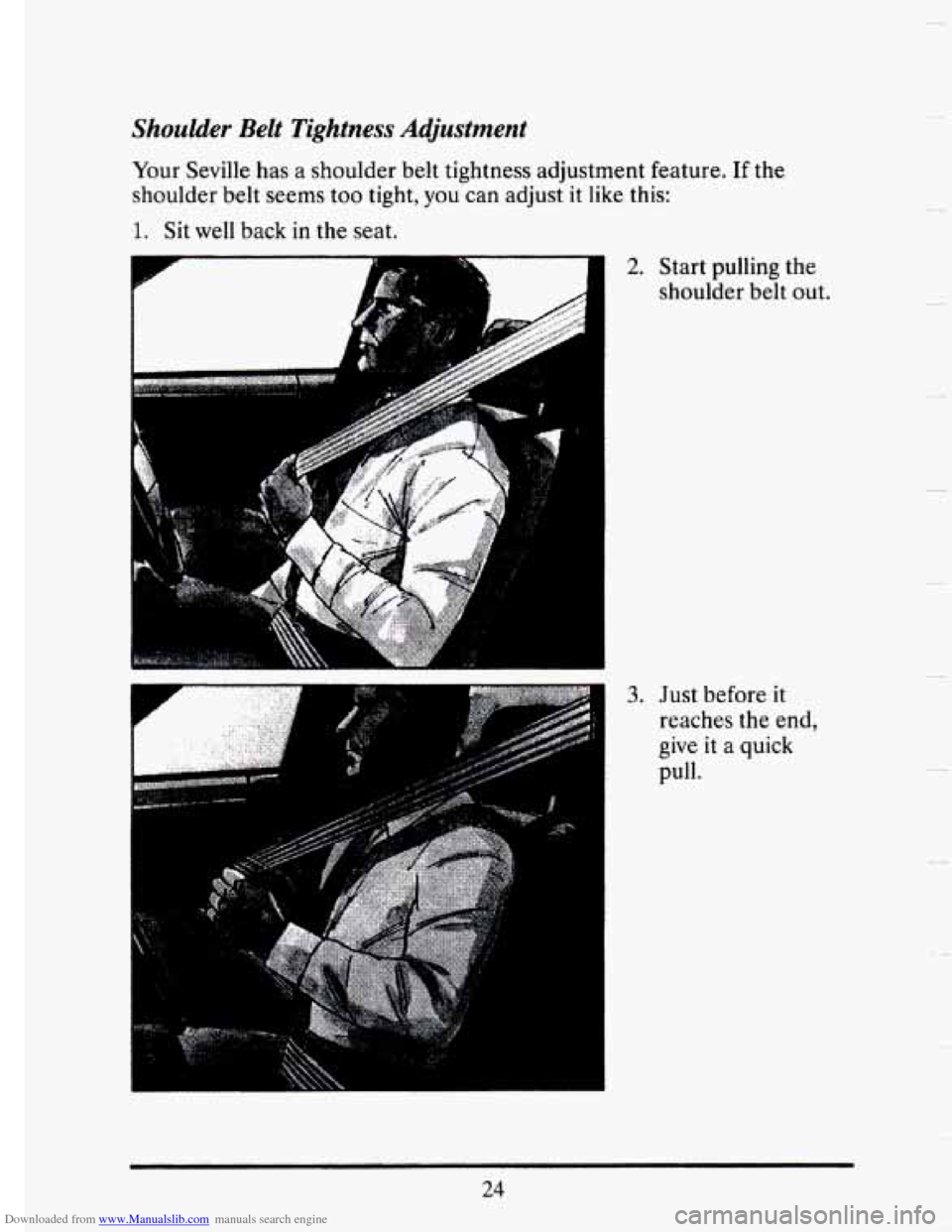

Downloaded from www.Manualslib.com manuals search engine Shoulder Belt Tightness Adjustment
Your Seville has a shoulder belt tightness adjustment feature. If the
shoulder belt seems too tight,
you can adjust it like this:
1. Sit well back in the seat.
J
2. Start pulling the
shoulder belt
out.
3. Just before it
reaches the end,
give it a quick
pull.
24

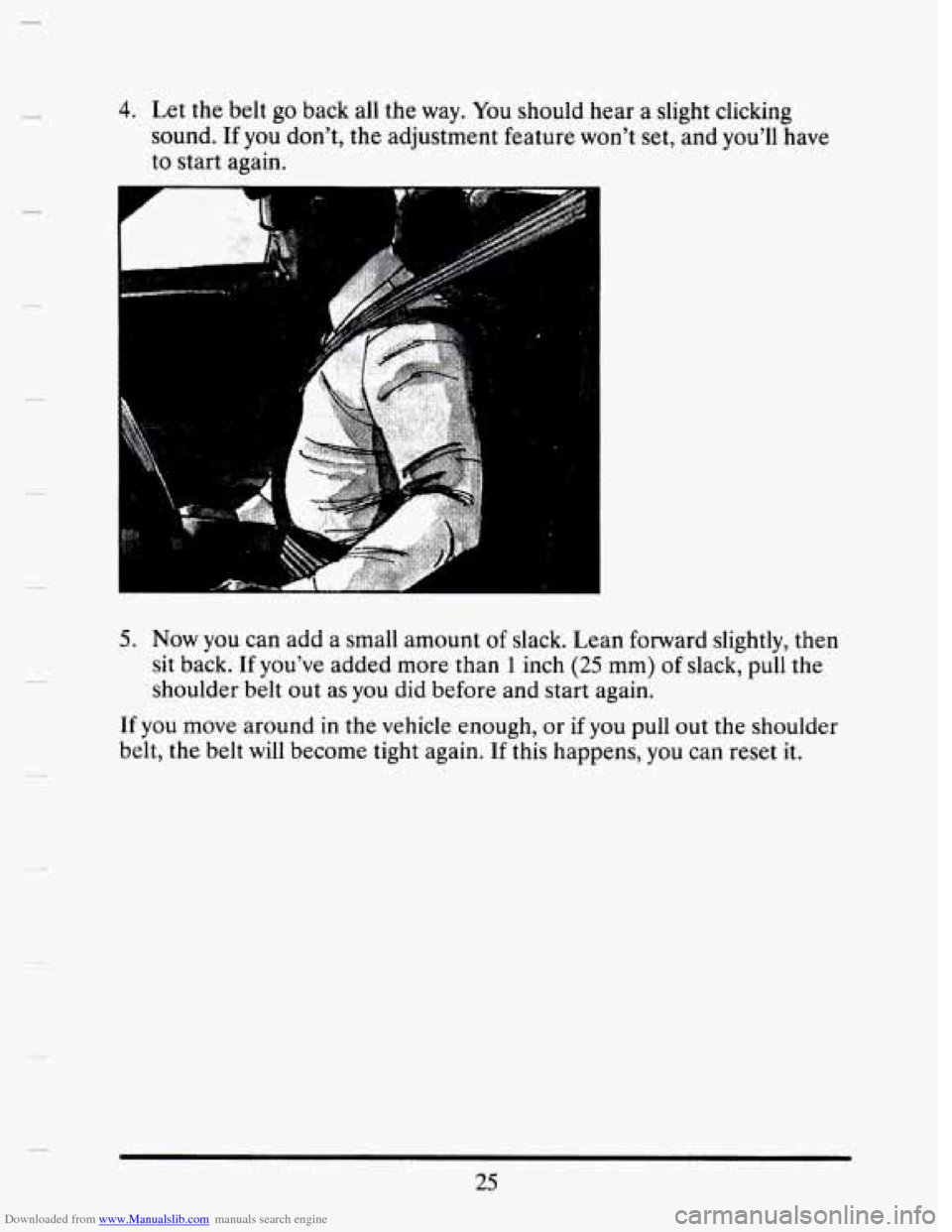

Downloaded from www.Manualslib.com manuals search engine 4. Let the belt go back all the way. You should hear a slight clicking
sound.
If you don’t, the adjustment feature won’t set, and you’ll have
to start again.
5. Now you can add a small amount of slack. Lean forward slightly, then
sit back. If
you’ve added more than 1 inch (25 mm) of slack, pull the
shoulder belt out
as you did before and start again.
If
you move around in the vehicle enough, or if you pull out the shoulder
belt, the belt
will become tight again. If this happens, you can reset it.
25

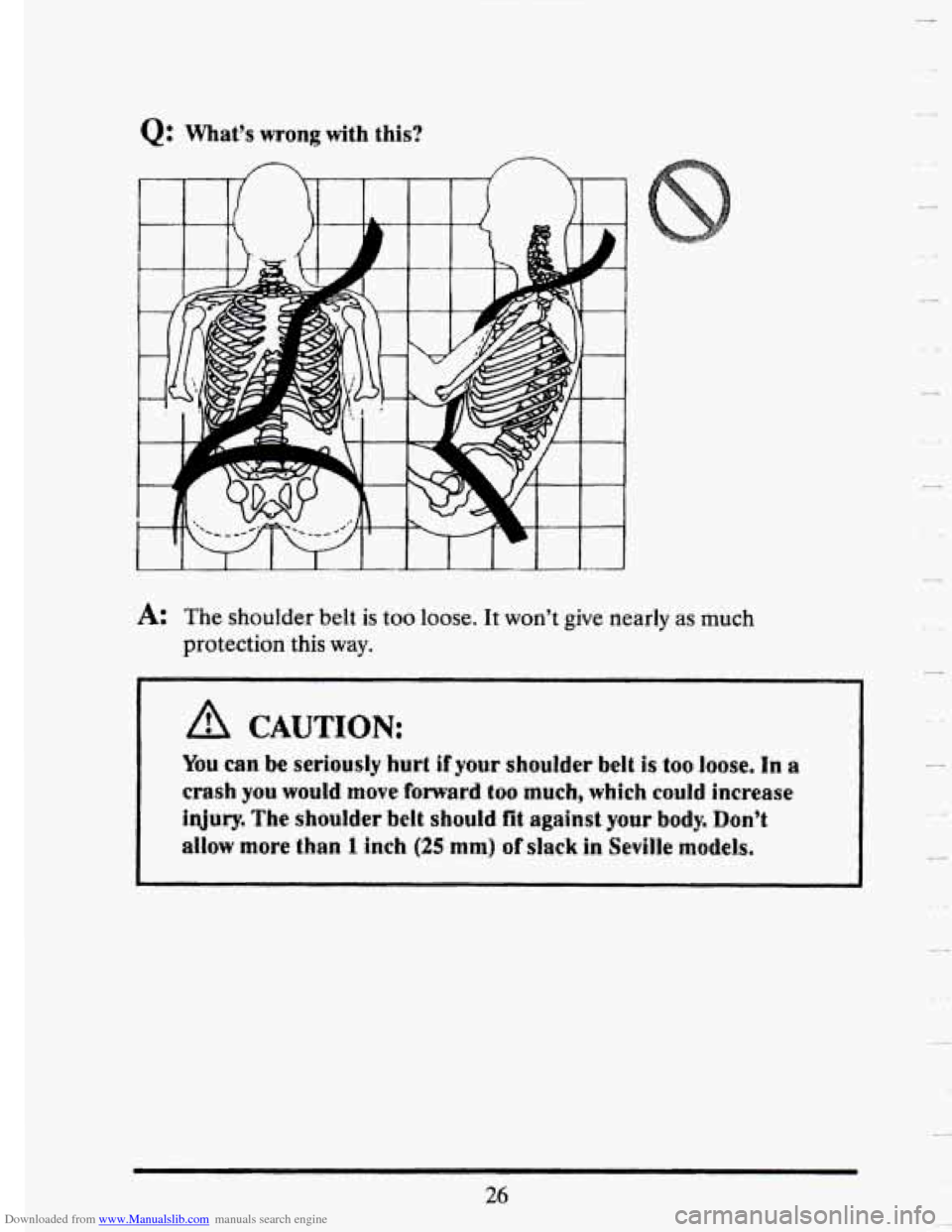

Downloaded from www.Manualslib.com manuals search engine Q: What’s wrong with this?
1
A: The shoulder belt is too loose. It won’t give nearly as much
protection this
way.
A CAUTION:
You can be seriously hurt if your shoulder belt Is too loose, In 8
crash you would move forward tu0 much, which could increase
idury, The shoulder belt should fit against your body. Don’t
allow more than 1. inch (25 mm) of slack in Seville models.
26
