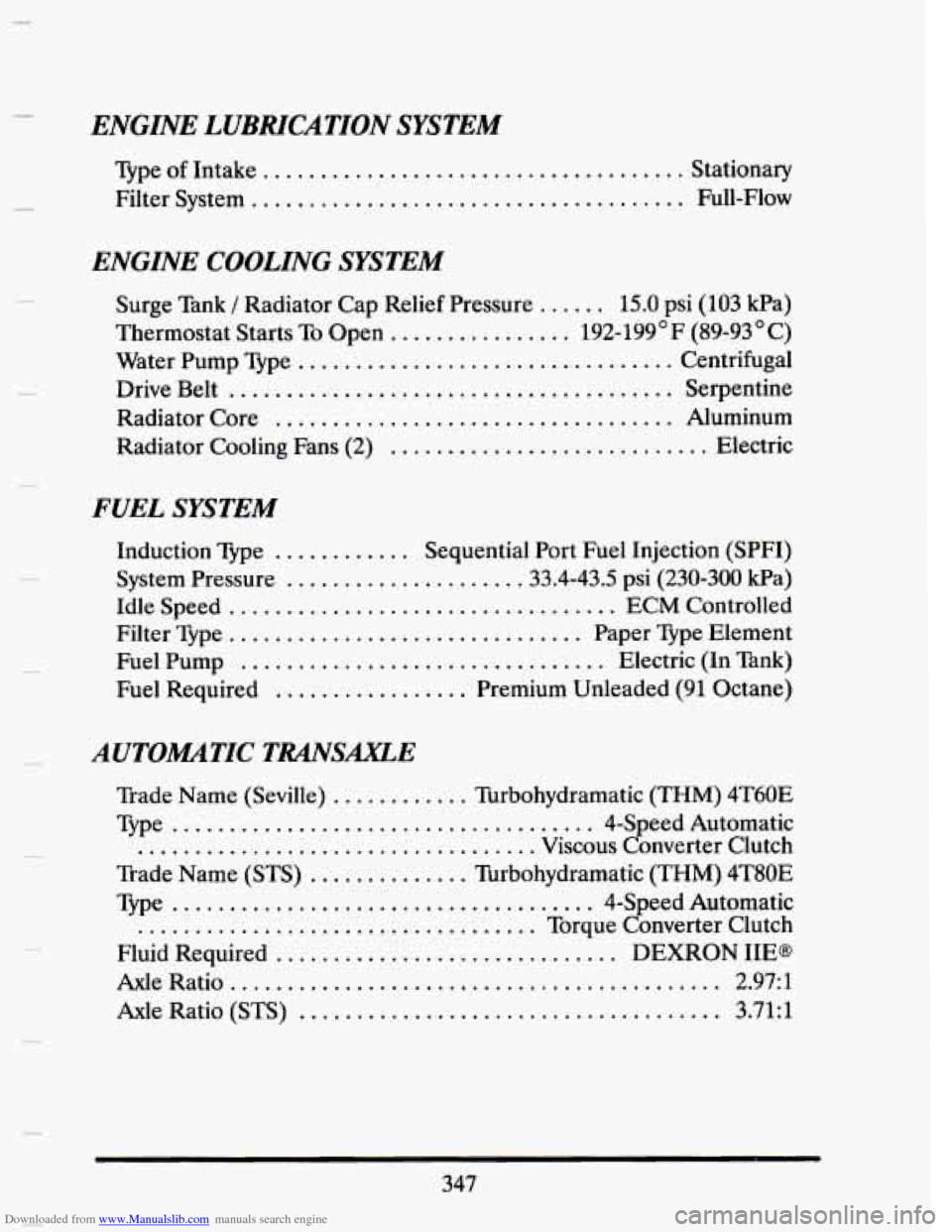

Downloaded from www.Manualslib.com manuals search engine ENGINE LUBRICATION SYSTEM
Type of Intake ..................................... Stationary
Filter System
...................................... Full-Flow
ENGINE COOLING SYSTEM
Surge Tank / Radiator Cap Relief Pressure ...... 15.0 psi (103 kPa)
Thermostat Starts To Open
................ 192-199°F (89-93OC)
Water Pump Type
................................. Centrifugal
Drive Belt
....................................... Serpentine
Radiator Core
................................... Aluminum
Radiator Cooling Fans
(2) ............................ Electric
FUEL SYSTEM
Induction Type ............ Sequential Port Fuel Injection (SPFI)
System Pressure
.................... -33.4-43.5 psi (230-300 kPa)
Idle Speed
.................................. ECM Controlled
Filter Type
............................... Paper Type Element
Fuel Pump
................................ Electric (In Tank)
Fuel Required
................. Premium Unleaded (91 Octane)
AUTOlMATIC TRANSAXLE
Trade Name (Seville) ............ Turbohydramatic (THM) 4T60E
Type
..................................... 4-Speed Automatic
................................... Viscous Converter Clutch
Trade Name
(STS) .............. Turbohydramatic (THM) 4T80E
Type
..................................... 4-Speed Automatic
................................... Torque Converter Clutch
Fluid Required .............................. DEXRON IIEB
Axle Ratio ........................................... 2.97:l
Axle Ratio (STS) ..................................... 3.71:l
347

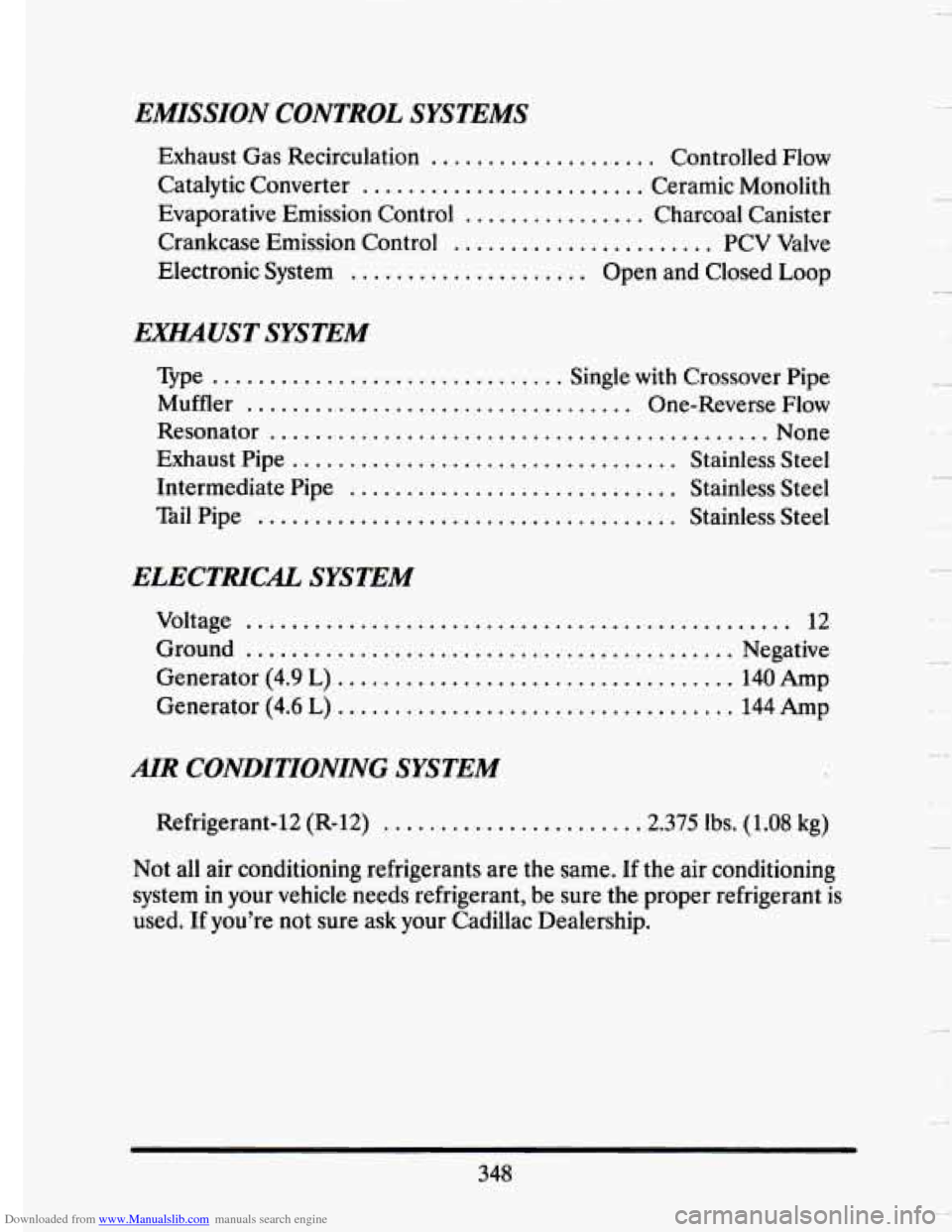

Downloaded from www.Manualslib.com manuals search engine EMISSION CONTROL SYSTEMS
Exhaust Gas Recirculation .................... Controlled Flow
Catalytic Converter
......................... Ceramic Monolith
Evaporative Emission Control
................ Charcoal Canister
Crankcase Emission Control
....................... PCV Valve
Electronic System
..................... Open and Closed Loop
EXUAUST SYSTEM
Type ............................... Single with Crossover Pipe
Muffler
.................................. One-Reverse Flow
Resonator
............................................ None
Exhaust Pipe .................................. Stainless Steel
Intermediate Pipe
............................. Stainless Steel
Tail Pipe
..................................... Stainless Steel
ELECTRICAL SYSTEM
Voltage ................................................ 12
Ground
........................................... Negative
Generator
(4.9 L) ................................... 140 Amp
Generator (4.6 L) ................................... 144 Amp
AIR CONDITIONING SYSTEM
3
Refrigerant-12 (R-12) ...................... .2.375 Ibs. (1.08 kg)
Not all air conditioning refrigerants are the same. If the air conditioning
system in your vehicle needs refrigerant, be sure the proper refrigerant is
used. If you’re not sure ask your Cadillac Dealership.
348

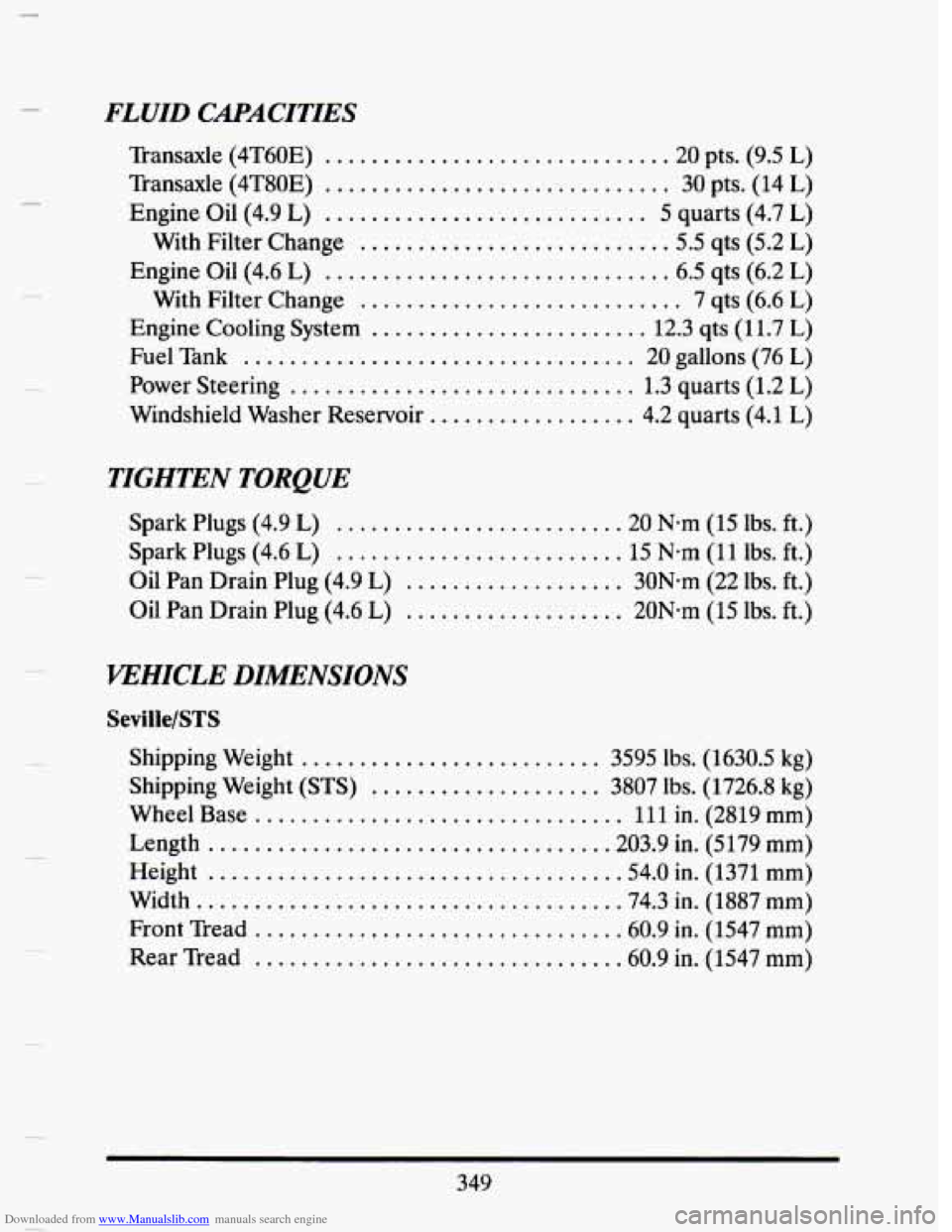

Downloaded from www.Manualslib.com manuals search engine FLUID CAPACITIES
Transaxle (4T6OE) .............................. 20 pts. (9.5 L)
Transaxle (4T80E)
.............................. 30 pts. (14 L)
Engine Oil (4.9 L)
............................ 5 quarts (4.7 L)
With Filter Change ........................... 5.5 qts (5.2 L)
Engine Oil (4.6 L)
.............................. 6.5 qts (6.2 L)
With Filter Change ............................ 7 qts (6.6 L)
Engine Cooling System
........................ 12.3 qts (1 1.7 L)
Fuel Tank .................................. 20 gallons (76 L)
Power Steering .............................. 1.3 quarts (1.2 L)
Windshield Washer Reservoir .................. 4.2 quarts (4.1 L)
TIGHTEN TORQUE
Spark Plugs (4.9 L) ........................ .20 Nqm (15 lbs. ft.)
Spark Plugs (4.6
L) ......................... 15 Nom (11 lbs. ft.)
Oil Pan Drain Plug (4.9 L)
................... 30N-m (22 Ibs. ft.)
Oil Pan Drain Plug (4.6 L) ................... 20N.m (15 lbs. ft.)
KEHICLE DIMENSIONS
Seville/STS
Shipping Weight .......................... 3595 lbs. (1630.5 kg)
Shipping Weight
(STS) .................... 3807 lbs. (1726.8 kg)
Wheel Base
................................ 111 in. (2819 mm)
Length .................................. .203.9 in. (5179 mm)
Height ................................... .54.0 in. (1371 mm)
Width.. .................................. .74.3 in. (1887 mm)
Front Tread ............................... .60.9 in. (1547 mm)
Rear Tread ............................... .60.9 in. (1547 mm)
349

Downloaded from www.Manualslib.com manuals search engine I

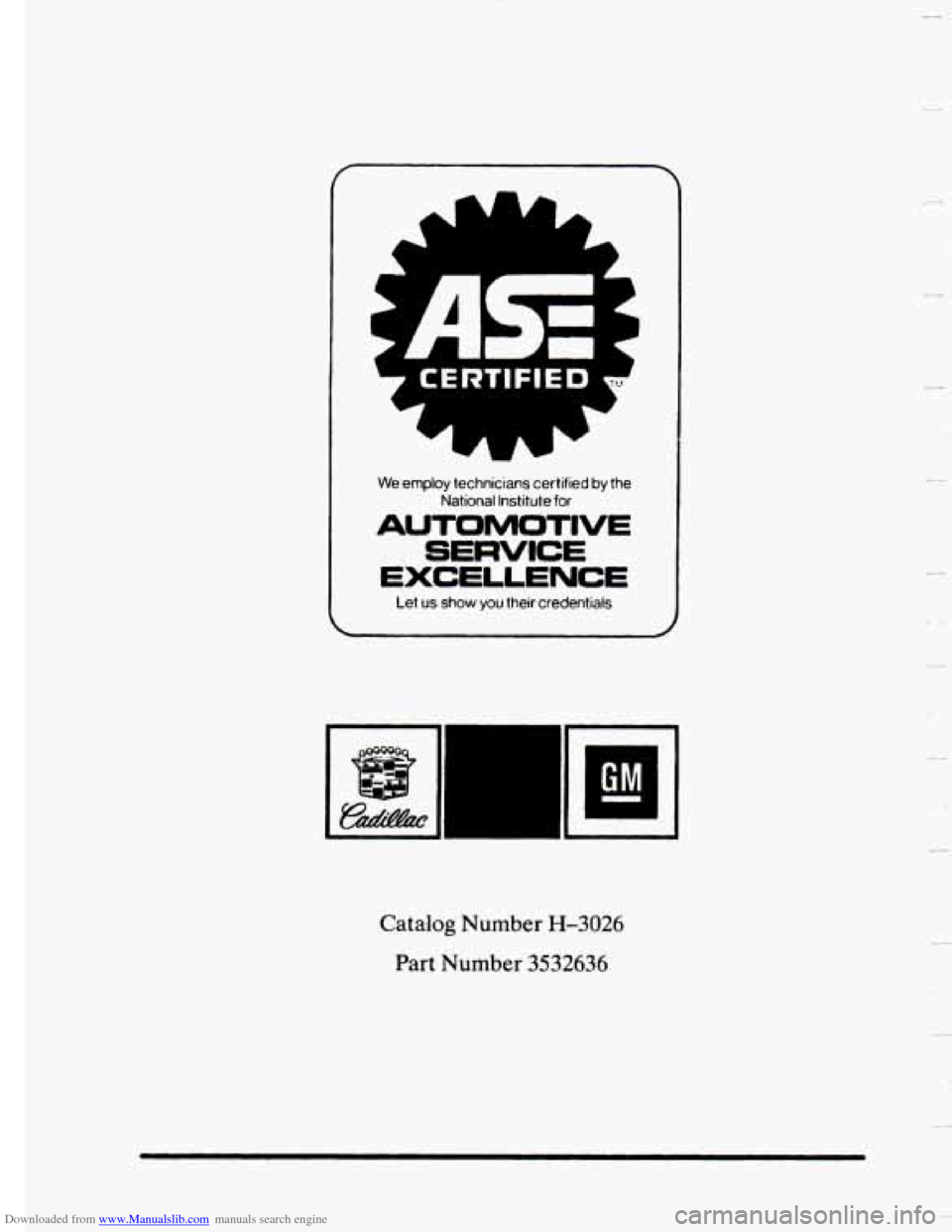

5 CERTiFiED
We employ technicians certified by the
National Institute for
AUTOMOTIVE
SERVICE
EXCELLENCE
Let us show you their credentials
Catalog Number H-3026
Part Number 3532636

Downloaded from www.Manualslib.com manuals search engine P
F
P
1
r
I
r
r
c

Downloaded from www.Manualslib.com manuals search engine P
i

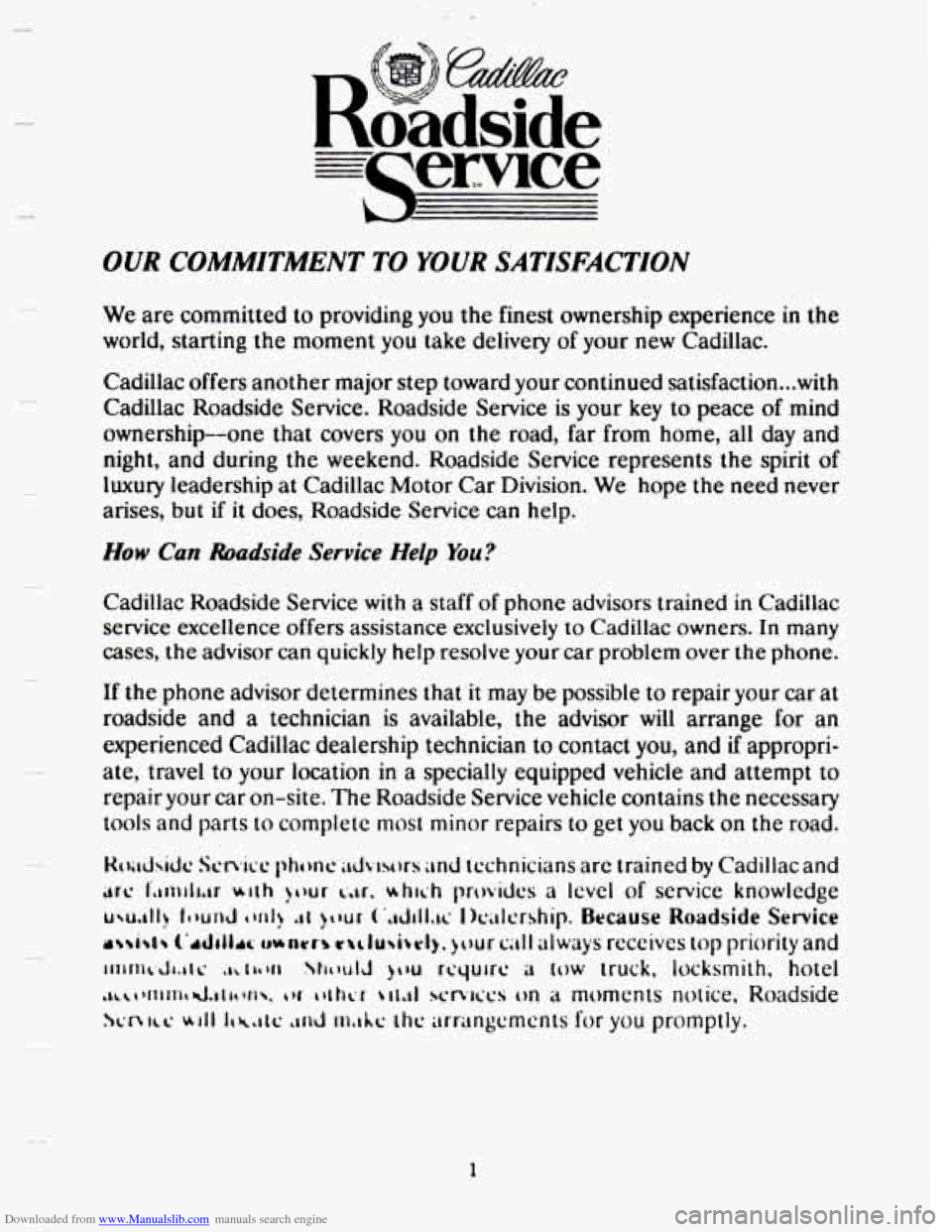

Downloaded from www.Manualslib.com manuals search engine OUR COMMITMENT TO YOUR SATISFACTION
