Downloaded from www.Manualslib.com manuals search engine Rear Door Security Lock
Your Cadillac is equipped with rear door security locks that help prevent
passengers from opening the rear doors
of your car from the inside. To
use this lock,
''4
.. ..
1. Move the lever on the door all the way up to the ENGAGED position.
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors
of your vehicle cannot be opened from the inside when
this feature is
in use.
When you want to open
a rear door when the security lock is on:
1. Unlock the door from the inside.
67

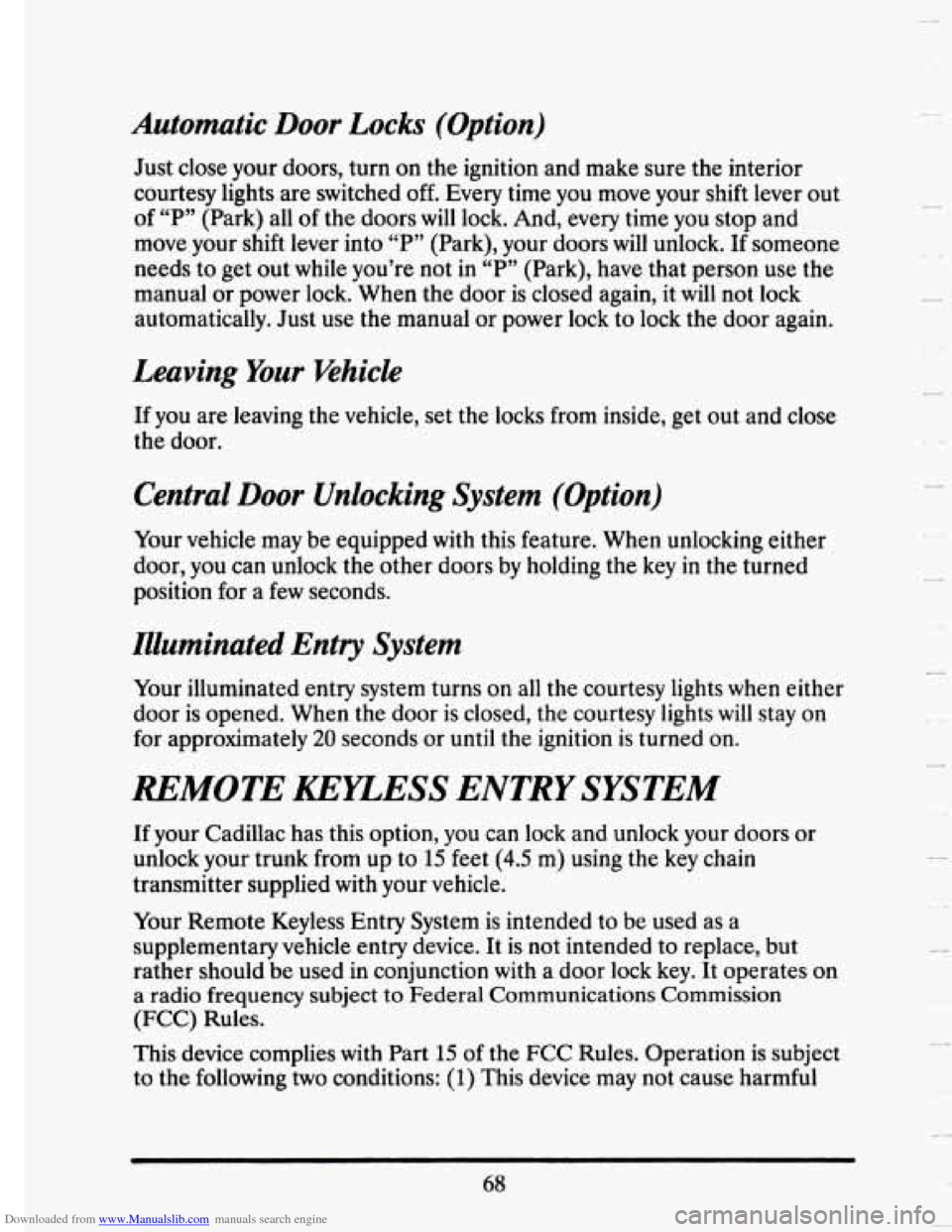

Downloaded from www.Manualslib.com manuals search engine Automatic Door Locks (Option)
Just close your doors, turn on the ignition and make sure the interior
courtesy lights are switched off. Every time you move your shift lever out
of “P” (Park) all of the doors will lock. And, every time you stop and
move your shift lever into
“P” (Park), your doors will unlock. If someone
needs to get out while you’re not in
“P” (Park), have that person use the
manual or power lock. When the door is closed again, it will not lock
automatically. Just use the manual or power lock to lock the door again.
Leaving Your Khicle
If you are leaving the vehicle, set the locks from inside, get out and close
the door.
Central Door Unlocking System (Option)
Your vehicle may be equipped with this feature. When unlocking either
door, you can unlock the other doors by holding the key in the turned
position for a
few seconds.
Illuminated Entry System
Your illuminated entry system turns on all the courtesy lights when either
door is opened. When the door is closed, the courtesy lights will stay on
for approximately
20 seconds or until the ignition is turned on.
Y
REMOTE KEKESS ENTRY SYSTEM
If your Cadillac has this option, you can lock and unlock your doors or
unlock your trunk from up to
15 feet (4.5 m) using the key chain
transmitter supplied with your vehicle.
Your Remote Keyless Entry System is intended to be used as a
supplementary vehicle entry device. It is
not intended to replace, but
rather should
be used in conjunction with a door lock key. It operates on
a radio frequency subject to Federal Communications Commission
(FCC) Rules.
This device complies with Part
15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
68
w

Downloaded from www.Manualslib.com manuals search engine r
r
r- I I
I
r
P
I i
c I
I 1
1
r
interference, and (2) This device must accept any interference recelvea,
including interference that may cause undesired operation.
: ..
Should interference to this system occur, try this:
Check to determine if battery replacement is necessary. See the
0 Check the distance. You may be too far from your vehicle. This
Check the location. Other vehicles or objects may be blocking the
See your Cadillac dealer or a qualified technician for service.
Changes
or modifications to this system by other than an authorized
service facility could void authorization to use this equipment.
.. . . .. :. ::< ., .. 7 >; <<. - ".
instructions on battery replacement.
product has a maximum range.
signal.
Operation
m
0 Press this symbol to
unlock the driver's
door. Press
it again
within
4 seconds to
unlock the other
doors. Pressing this
button
will also
disarm the Theft
Deterrent System
and turn on the
interior lights.
0 Press this symbol to
lock your doors.
This also arms the
Theft Deterrent
System.
r
I
69

Downloaded from www.Manualslib.com manuals search engine 0 Press this symbol to
open the trunk.
Press this button to
turn
on the interior
lights and
door lock
cylinder
ilumination.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another transmitter from
unlocking your vehicle.
If a transmitter is lost or stolen, a replacement
can be purchased through your dealer. Remember to bring the remaining
transmitter with you when you
go to your dealer. When the dealer
matches the replacement transmitter to your vehicle, the remaining
transmitter must also be matched. Once the new transmitter
is coded, the
lost transmitter
will not unlock your vehicle.
You can match a transmitter to as many different vehicles as you own,
provided they are equipped with exactlv the same model svstem. (General
Motors offers several different models
of these systems on their vehicles.)
Each vehicle can have only
2 transmitters matched to it.
See your dealer to match transmitters to another vehicle.
Battery Replacement
Under normal use, the batteries in your key chain transmitter should last
about
two years.
You can tell the batteries are weak
if the transmitter won’t work at the
normal range in any location.
If you have to get close to your vehicle
before the transmitter works, it’s probably time to change the batteries.
70
._
c

Downloaded from www.Manualslib.com manuals search engine 1. Use round end of
the door key, or a
quarter to rotate
cover
counterclockwise
1/16 of a turn.
71

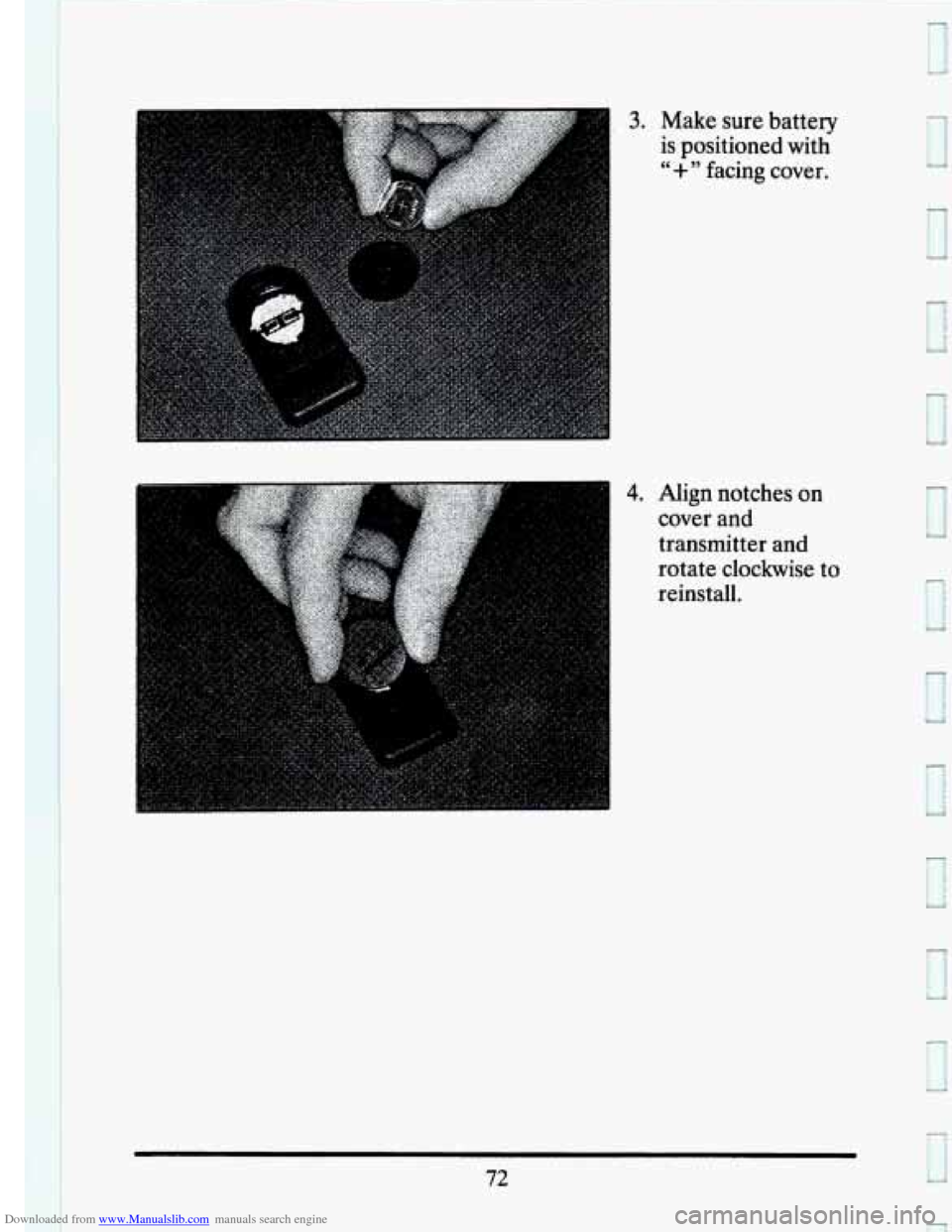

Downloaded from www.Manualslib.com manuals search engine 3. Make sure battery
is positioned
with
" + " facing cover.
4. Align notches on
cover and transmitter
and
rotate clockwise to
reinstall.
72
l-

Downloaded from www.Manualslib.com manuals search engine CENTER CONSOLE
Your vehicle is equipped with either the Mini Console or optional Full
Console.
The
mini console comes with a storage tray and a flip up arm rest door
with dual cup holder, that opens to a storage compartment.
The
full console includes a floor shift lever along with a flip up arm rest
door
with a dual cup holder, that opens to a storage compartment.
GLOW BOX
The glove box is directly in front of the front passenger seat. To unlock
the door, insert the oval key into the lock cylinder and turn
it to the left.
An additional quarter turn
will open the door. To lock the door, turn the
key to the right and remove the key. The key may be removed in the
locked or unlocked
position.
73

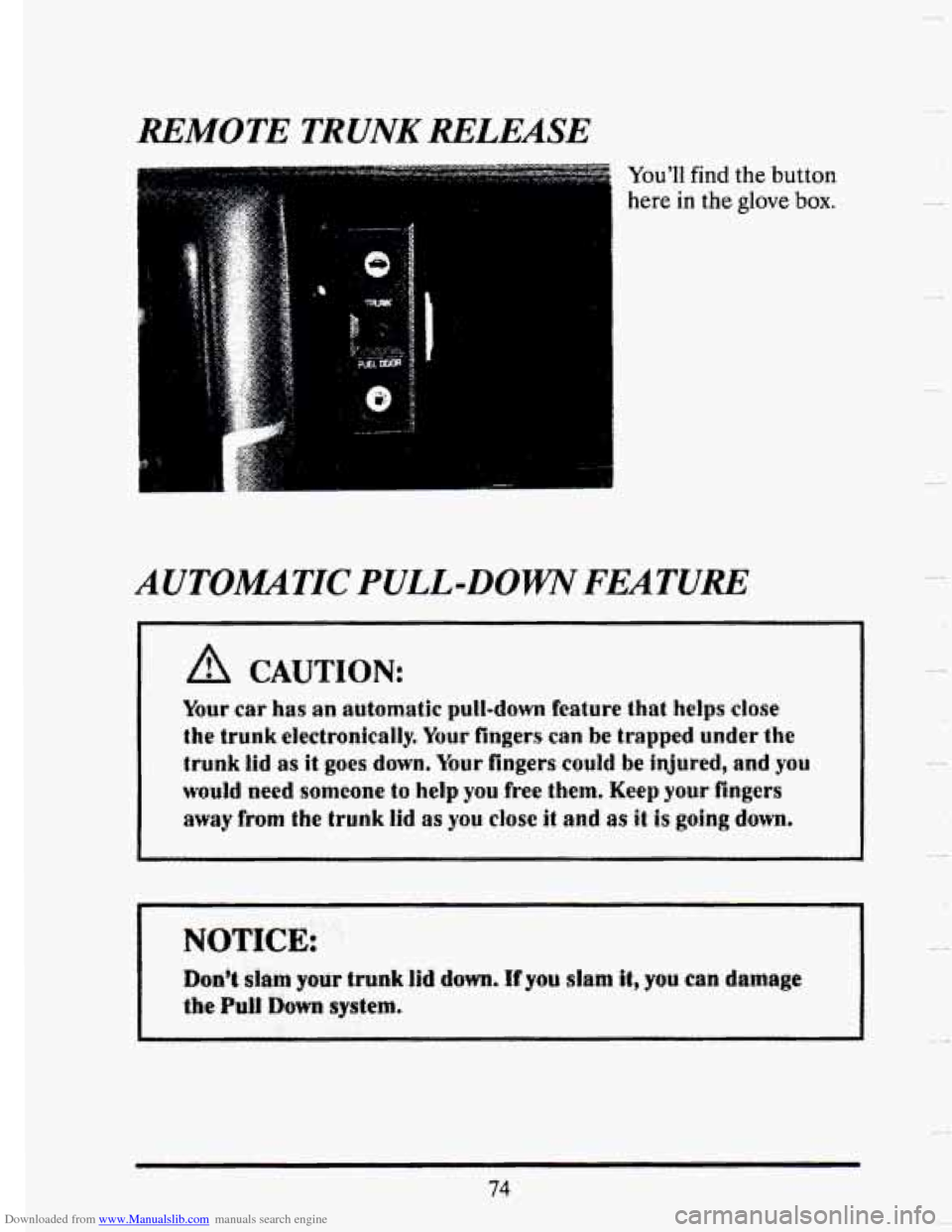

Downloaded from www.Manualslib.com manuals search engine REMOTE TRUNK RELEASE
. . . . . .. . -. . . . -.
You'll find the button
here in the glove box.
AUTOlMATIC PULL-DOWN FEATURE
A CAUTION:
Your car has an automatic pull-down feature that helps close
the
trunk electronically, Your fingers can be trapped under the
trunk Ifd as it goes down. Your fingers could be injured, and you
would need someone to help you free them. Keep your fingers
away Prom the trunk lid as you close it and as it is going down.
I
74
