1993 CADILLAC SEVILLE Owners Manual

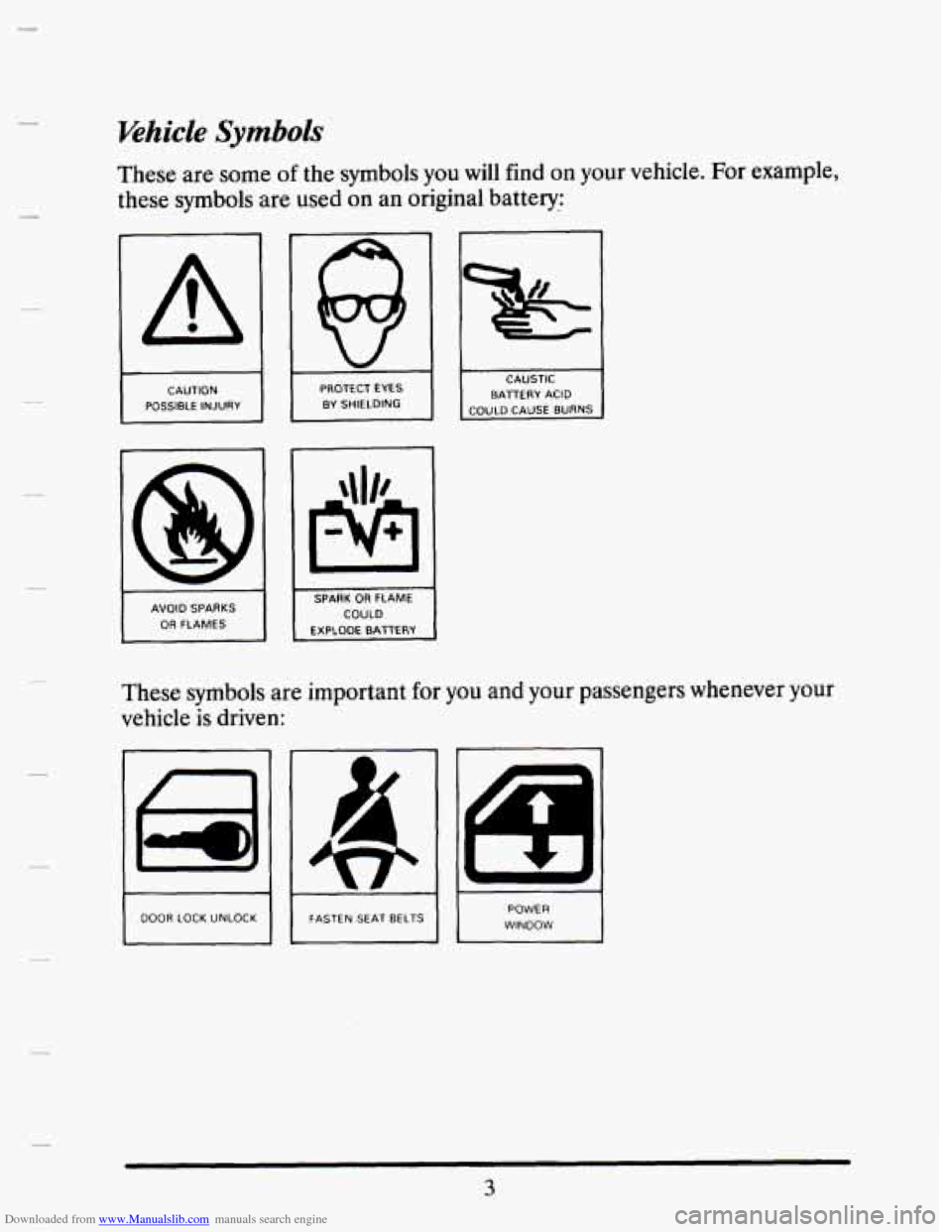

Downloaded from www.Manualslib.com manuals search engine Ehicle Symbols
These are some of the symbols you will find on your vehicle. For example,
these
symbols are used on an original battery:
A
CAUTION
POSSIBLE INJURY
PROTECT EYES BY SHIELDING
8
AVOID SPARKS OR FLAMES COULD BA'TTERY
ACID
I
DOOR LOCK UNLOCK 1 FASTEN SEAT BELTS POWER
WINDOW I
3

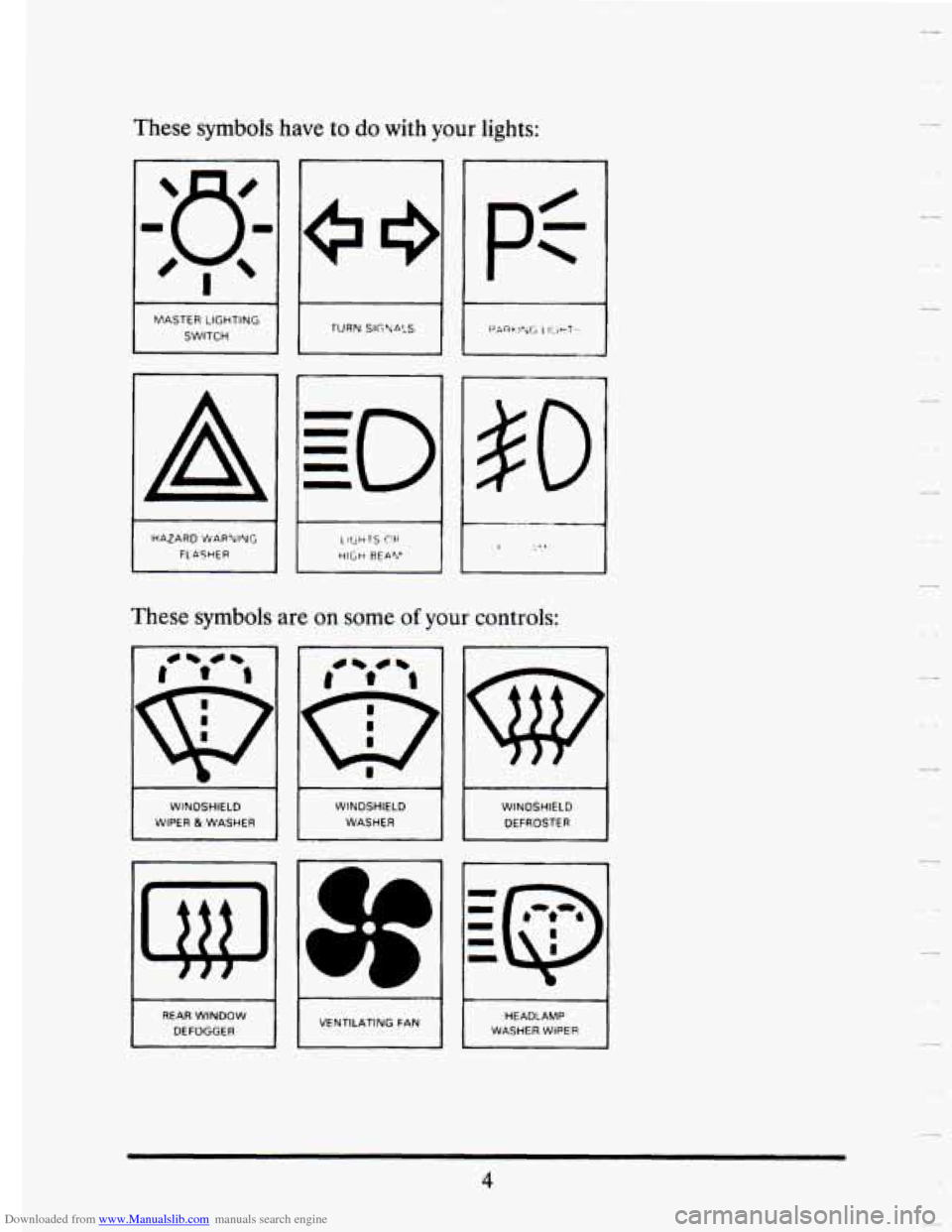

Downloaded from www.Manualslib.com manuals search engine These symbols have to do with your lights:
MASTER LIGHTING
SWITCH
A $0
HAZARD WARNIYG
FLASHER I
These symbols are on some of your controls:
Q
d- #b
WINDSHIELD
WIPER &WASHER
ww I
H
WINDSHIELD
DEFROSTER
WINDSHIELD WASHER I Y
u
I I
VENTILATING
FAN I
I
REAR WINDOW
DEFOGGER HEADLAMP
WASHER WIPER
4

Downloaded from www.Manualslib.com manuals search engine These symbols are used on warning and indicator lights:
I
I
BRAKE
I
ENGINE COOLANT
TEMPERATURE RADIATOR COOL ANT
CHAAGlNG
I FUEL ENGINE OIL PRESSURE I
~~
ANTILOCK BRAKE ENGINE OIL TEMPERATURE I
Here
are some other symbols you may see:
L
RAOIO SELECTOR AIR CONDITIONING I RADIO VOLUME
i !t-l
.- -- 1
5

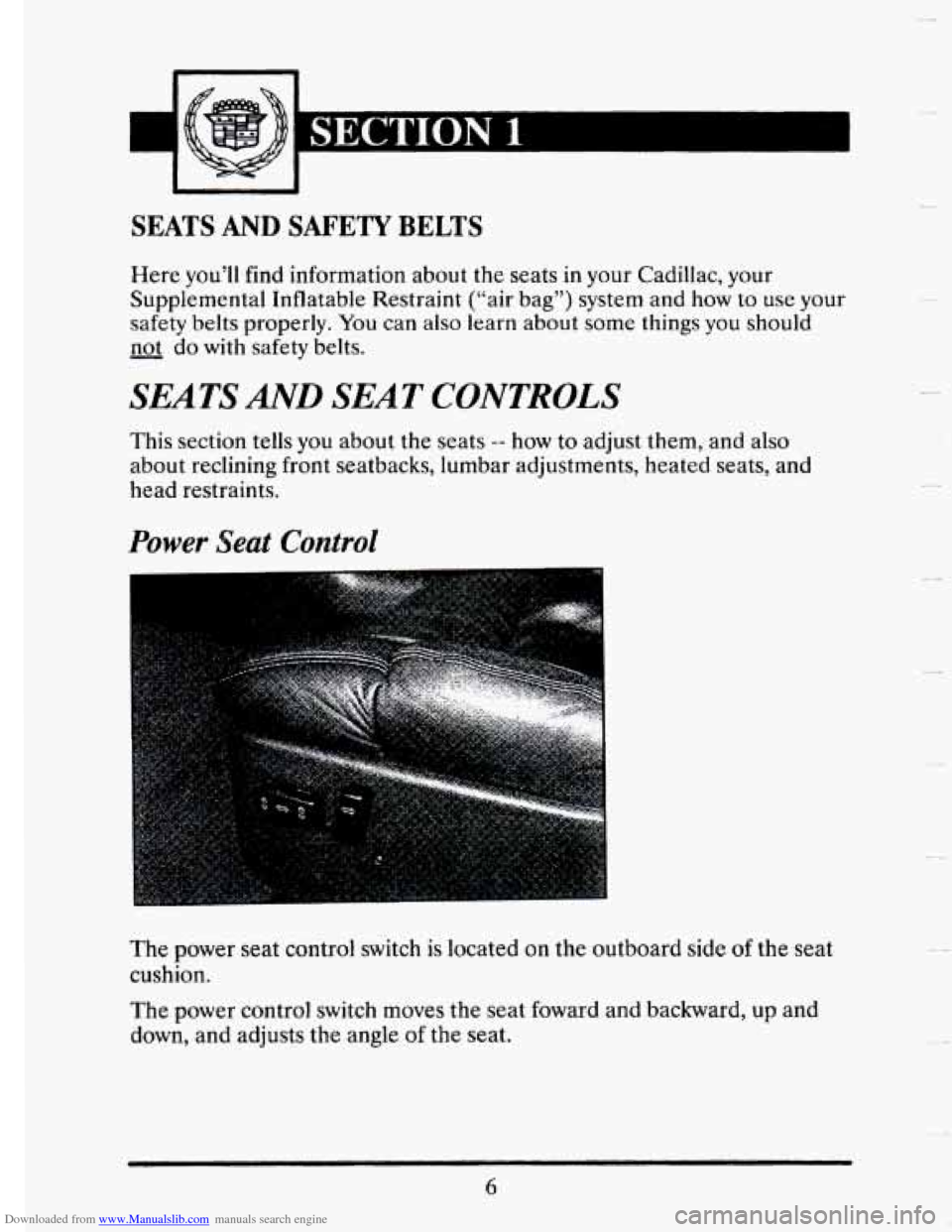

Downloaded from www.Manualslib.com manuals search engine SEATS AND SAFETY BELTS
Here you’ll find information about the seats in your Cadillac, your
Supplemental Inflatable Restraint (“air bag”) system and how
to use your
safety belts properly. You can also learn about some things you
should
- not do with safety belts.
SEATS AND SEAT CONTROLS
This section tells you about the seats -- how to adjust them, and also
about reclining front seatbacks, lumbar adjustments, heated seats, and
head restraints.
Power Seat Control
The power seat control switch is located on the outboard side of the seat
cushion.
The power control switch moves the seat foward and backward,
up and
down, and adjusts the angle
of the seat.
6

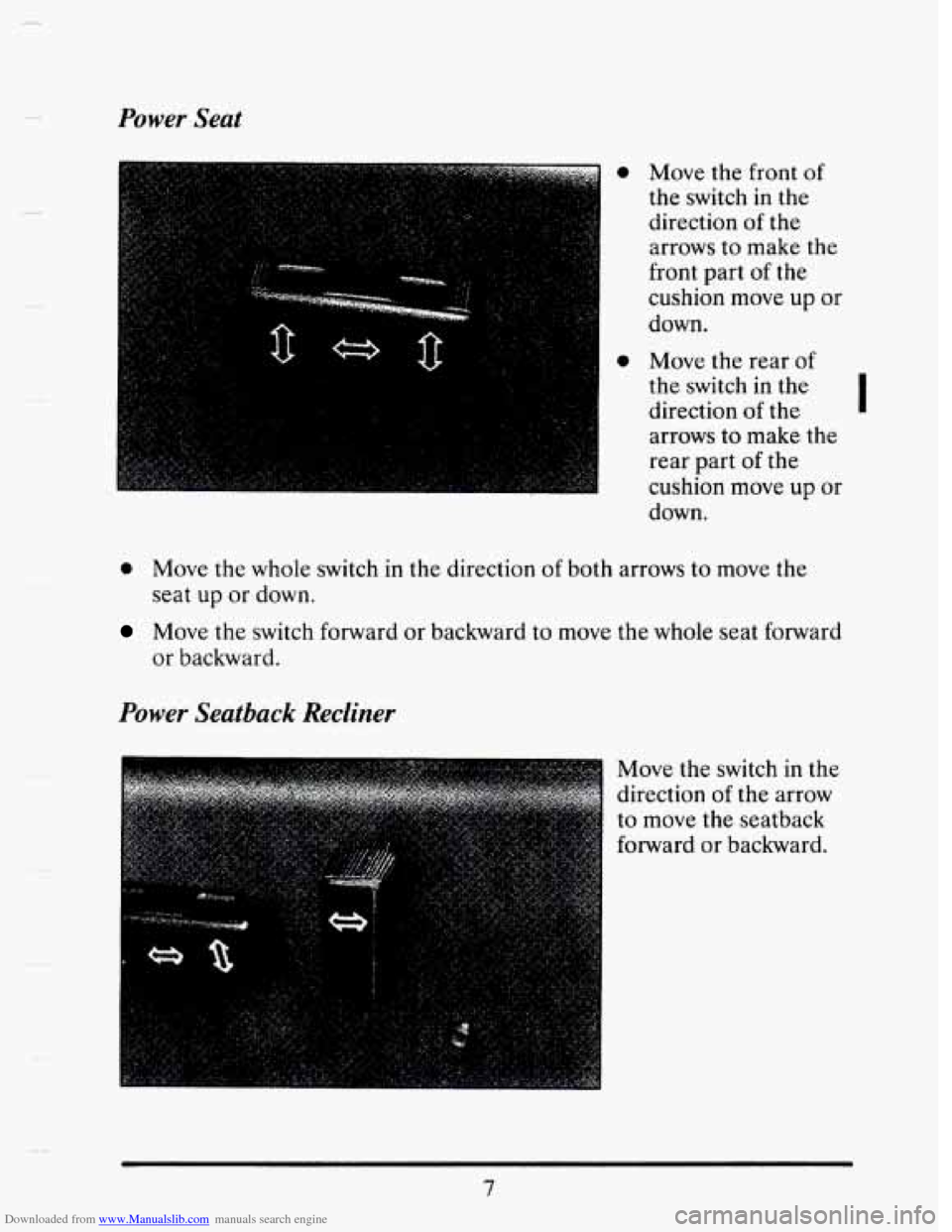

Downloaded from www.Manualslib.com manuals search engine Power Seat
0 Move the front of
the switch in the
direction
of the
arrows to make the
front part
of the
cushion move up
or
down.
0 Move the rear of
the switch in the
direction
of the I
arrows to make the
rear part
of the
cushion move up or
down.
0 Move the whole switch in the direction of both arrows to move the
seat
up or down.
or backward.
Move the switch forward or backward to move the whole seat forward
Power Seatback Recliner
Move the switch in the
direction
of the arrow
to move the seatback
forward
or backward.
7

Downloaded from www.Manualslib.com manuals search engine But don’t have a seatback reclined if your vehicle is moving.
A CAUTION:
Sitting in a reclined position when your vehicle is fn motion can
be dangerous. Even if you buckle up, your safety belts can’t do
their job when you’re redined like this.
r
The shoulder belt can’t do its job because it won’t be against
your body. Instead, it will be in front of you. In a crash you could
go into it, receiving neck or other injuries,
The lay belt can’t do its job either. In a crash the belt could go
up over pur abdomen. The belt forces would be there, not at
your pelvic bones. This could cause serious internal injuries.
For proper protection when the vehicle is in motion, have the
seatback upright. Then sit well back in the seat and wear your
safety belt properly.
8

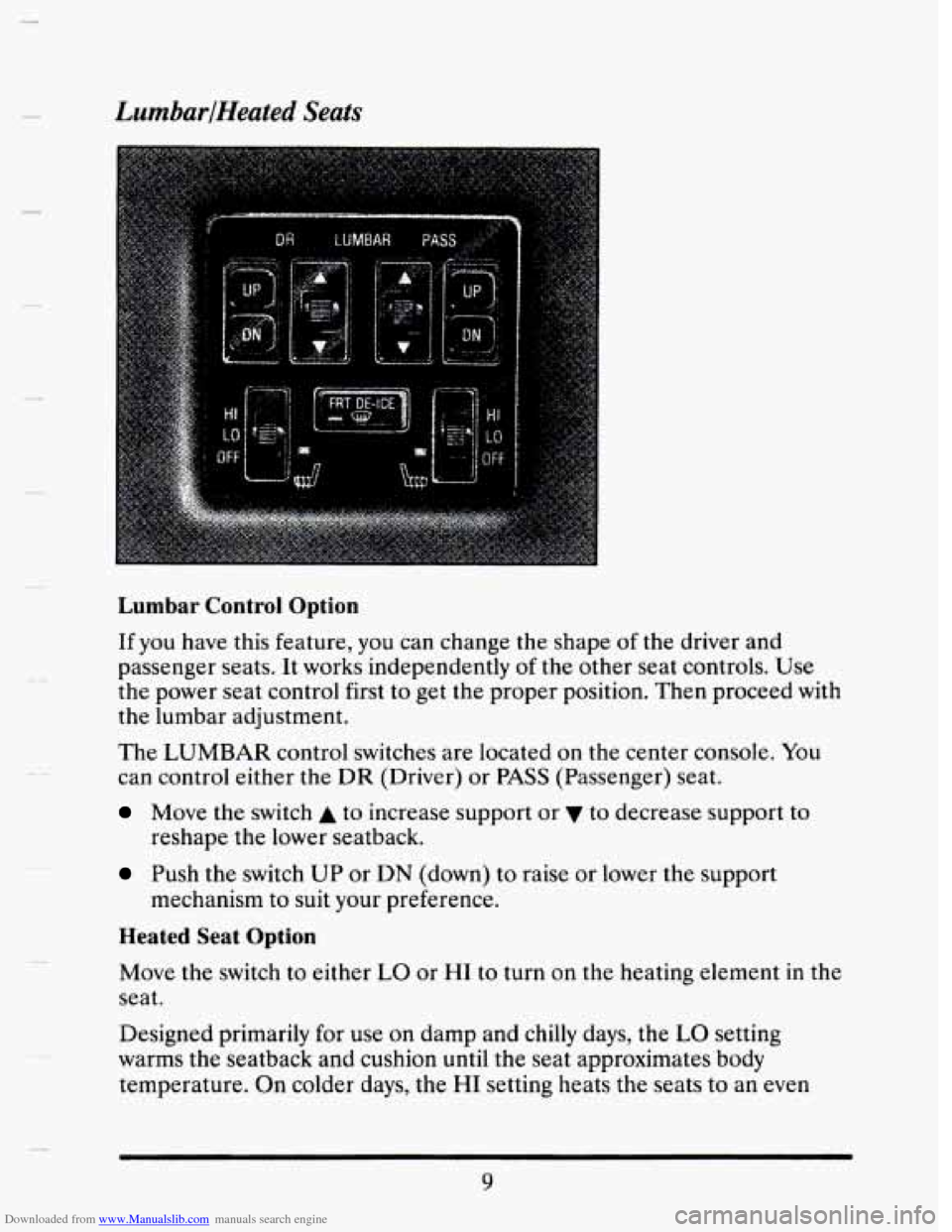

Downloaded from www.Manualslib.com manuals search engine LumbarlHeated Seats
Lumbar Control Option
If you have this feature, you can change the shape of the driver and
passenger seats. It works independently
of the other seat controls. Use
the power seat control first to get the proper position. Then proceed with
the lumbar adjustment.
The LUMBAR control switches are located on the center console. You
can control either the
DR (Driver) or PASS (Passenger) seat.
Move the switch A to increase support or to decrease support to
Push the switch UP or DN (down) to raise or lower the support
reshape the
lower seatback.
mechanism to suit your preference.
Heated Seat Option
Move the switch to either LO or HI to turn on the heating element in the
seat.
Designed primarily for use
on damp and chilly days, the LO setting
warms the seatback and cushion until the seat approximates body
temperature. On colder days, the
HI setting heats the seats to an even
9

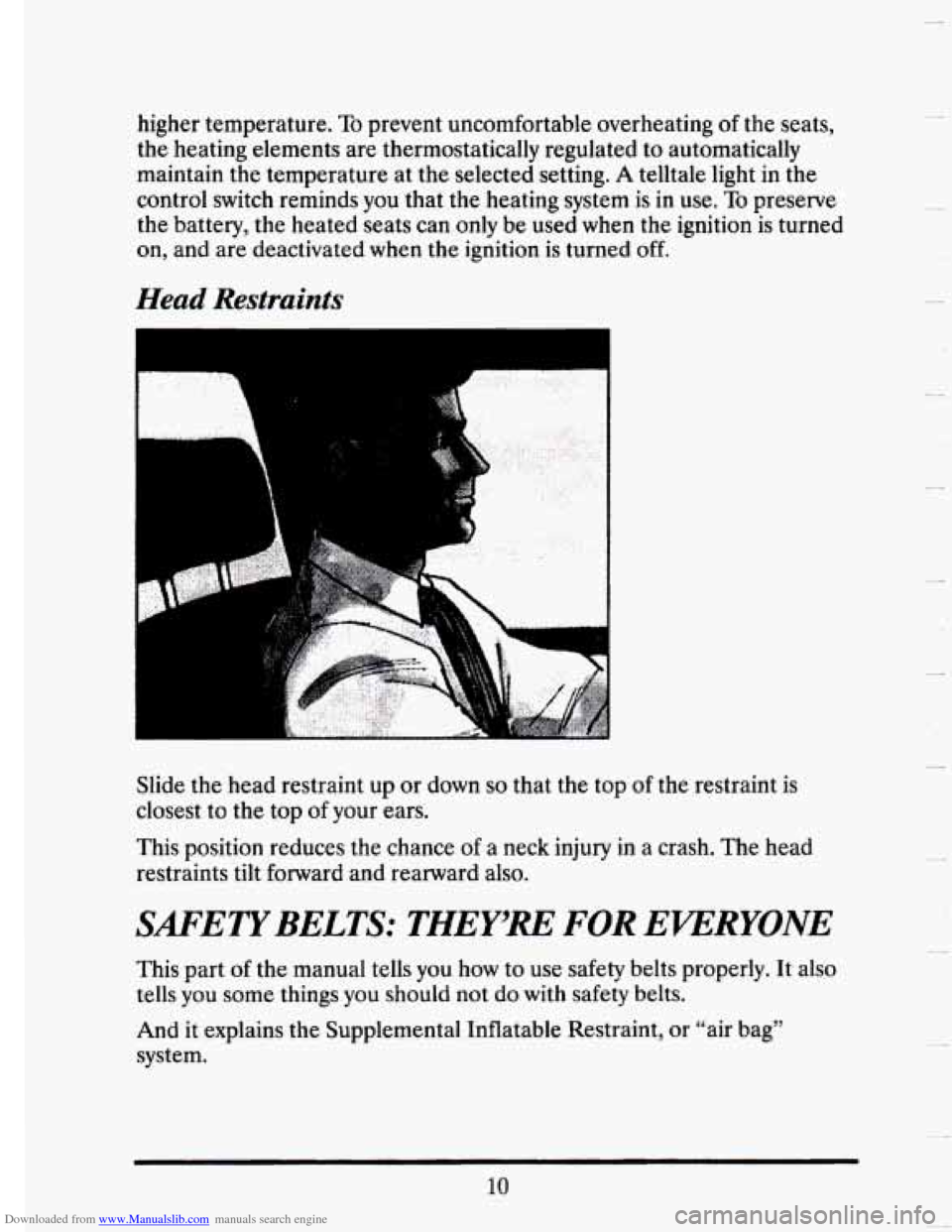

Downloaded from www.Manualslib.com manuals search engine higher temperature. To prevent uncomfortable overheating of the seats,
the heating elements are thermostatically regulated to automatica\
lly
maintain the temperature at the selected setting.
A telltale light in the
control switch reminds you that the heating system is in use. To preserve
the battery, the heated seats can only be used when
the ignition is turned
on, and are deactivated when the ignition is turned off.
Head Restraints
I
h
Slide the head restraint up or down so that the top of the restraint is
closest to the top of your ears.
This position reduces the chance
of a neck injury in a crash. The head
restraints tilt forward and rearward also.
SAFETYBELTS: THEY’RE FOR EKERYONE
This part of the manual tells you how to use safety belts properly. It also
tells you some things you should not do with safety
belts.
And it explains the Supplemental Inflatable Restraint, or “air bag”
system.
