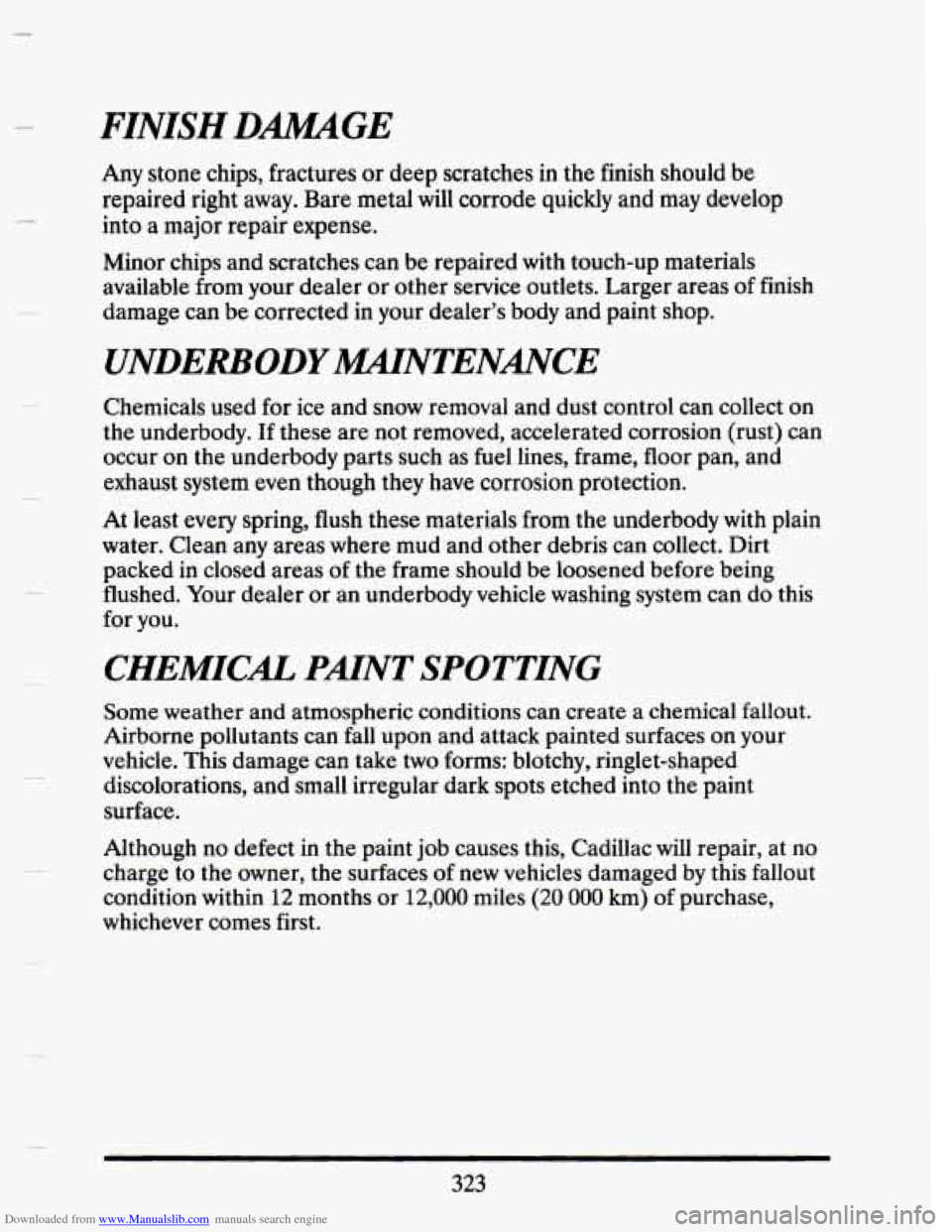

Any stone chips, fractures or deep scratches in the finish should be
repaired right away. Bare metal will corrode quickly and may develop
into
a major repair expense.
Minor chips and scratches can be repaired with touch-up materials
available from your dealer or other service outlets. Larger areas
of finish
damage can be corrected in your dealer’s body and paint shop.
UNDERBODY2MAINTENANCE
Chemicals used for ice and snow removal and dust control can collect on
the underbody. If these are not removed, accelerated corrosion (rust) can
occur
on the underbody parts such as fuel lines, frame, floor pan, and
exhaust system even though they have corrosion protection.
At least
every spring, flush these materials from the underbody with plain
water. Clean any areas where mud and other debris can collect. Dirt
packed
in closed areas of the frame should be loosened before being
flushed. Your dealer or an underbody vehicle washing system can do this
for you.
CHEMICAL PMNT SPOTTING
Some weather and atmospheric conditions can create a chemical fallout.
Airborne pollutants can fall upon and attack painted surfaces on your
vehicle. This damage can take
two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into the paint
surface.
Although no defect in the paint job causes this, Cadillac will repair, at no
charge
to the owner, the surfaces of new vehicles damaged by this fallout
condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever comes first.
323

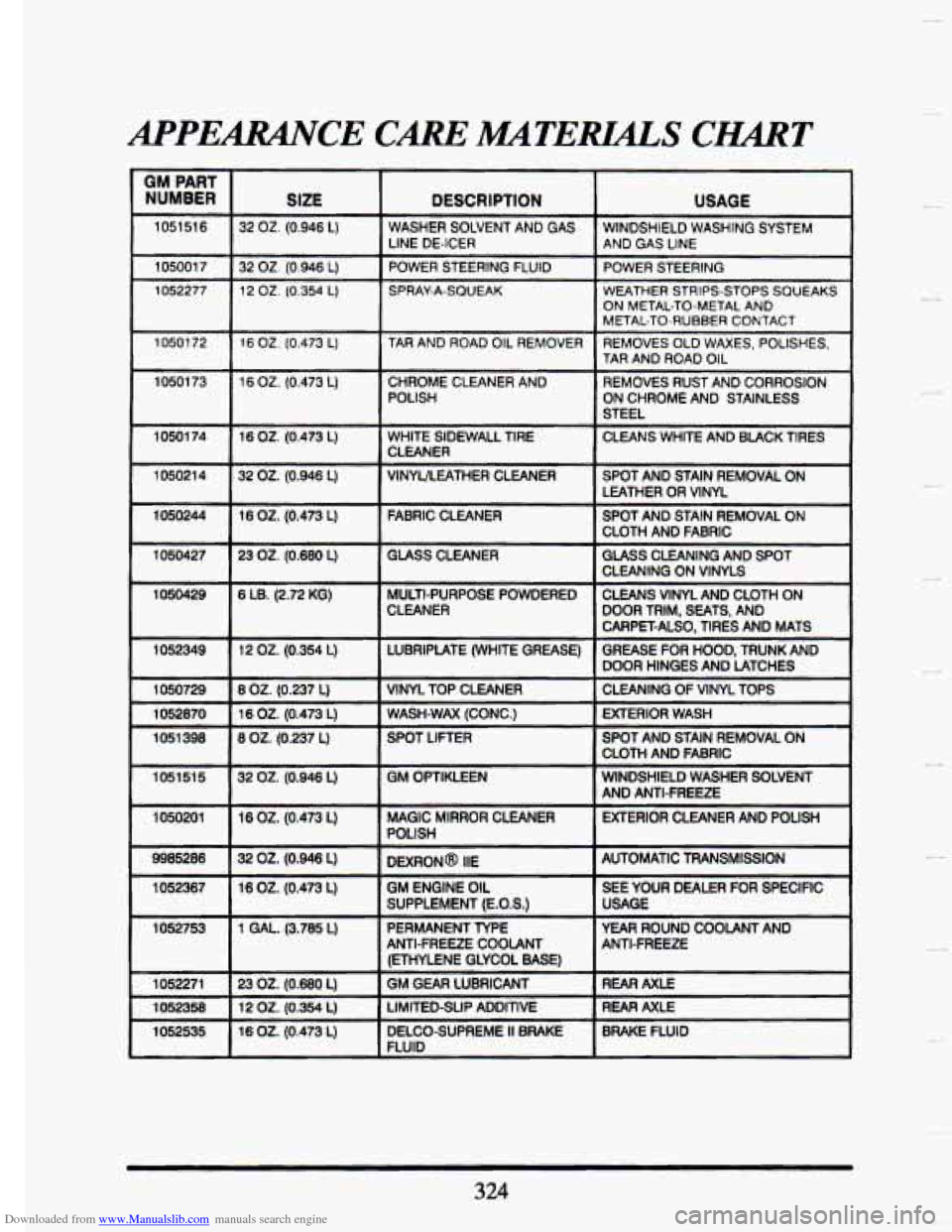

Downloaded from www.Manualslib.com manuals search engine MPERACE CAREIMATERL4LS ClYART
NUMBER
I 1050017 I 32 OZ. 10.946 Ll
1052277 12 02. (0.354 L)
10501 72 16 02. (0.473 L)
1050173 16 02. (0.473 L)
10501 74
32
OZ. (0.946 L) 1050214 16
OZ. (0.473 L)
1050244
6
LB. (2.72 KG) 1050429 23
02. (0.660 L) 1050427 16
OZ. (0.473 L)
1052349
8 OZ. (0.237 L) 1050729 12
02. (0.354 L)
+
1052870 16 OZ. (0.473 L)
1051
398 8 OZ. (0.237 L)
1 105151 5 I 32 02. (0.946 L)
+
1052367 16 02. (0.473 L)
1052753 1 GAL. (3.785 L)
1052271 I 23 02. (0.680 L)
1052358 I 12 OZ. 10.354 LI
I 1052535 I 16 OZ. (0.473 L)
DESCRIPTION
WASHER SOLVENT AND GAS
LINE DE-ICER
POWER STEERING FLUID SPRAY-A-SQUEAK
TAR AND ROAD OIL REMOVER
USAGE
WINDSHIELD WASHING SYSTEM AND GASCINE
POWER STEERING
WEATHER STRIPS-STOPS SQUEAKS ON METAL-TO-METAL AND METAL-TO-RUBBER CONTACT
REMOVES OLD WAXES, POLISHES,
I TAR AND ROAD OIL
CHROME CLEANER AND
I REMOVES RUST AND CORROSION
POLISH ON CHROMEAND STAINLESS I STEEL
WHITE SIDEWALL TIRE CLEANS WHITE AND BLACK TIRES
CLEANER
VINYULEATHER CLEANER
SPOT AND STAIN REMOVAL
ON FABRIC CLEANER SPOT AND STAIN REMOVAL
ON
. ___
LEATHER OR VINYL
CLOTH AND FABRIC
I
GLASS CLEANER I GLASS CLEANING AND SPOT I CLEANING ON VINYLS
MULTI-PURPOSE POWDERED
I CLEANS VINYL AND CLOTH ON
CLEANER
I DOOR TRIM, SEATS, AND
CARPET-ALSO. TIRES AND MATS
DOOR HINGES AND LATCHES
WASH-WAX (CONC.) EXTERIOR WASH
I CLOTH AND FABRIC
GM OPTIKLEEN
f WINDSHIELD WASHER SOLVENT
MAGIC MIRROR CLEANER
POLISH AND ANTI~FREEZE
EXTERIOR CLEANER AND POLISH
I
DEXRONQ HE I AUTOMATIC TRANSMISSION
GM ENGINE OIL
(ETHYLENE GLYCOL BASE) ANTI-FREEZE
ANTI-FREEZE COOLANT
YEAR ROUND COOLANT AND PERMANENT TYPE
USAGE
SUPPLEMENT (E.O.S.) SEE YOUR DEALER
FOR SPECIFIC
GM GEAR LUBRICANT
REAR AXLE
LIMITEDSLIP ADDITIVE I REAR AXLE
DELCO-SUPREME II BRAKE I BRAKE FLUID
324
I

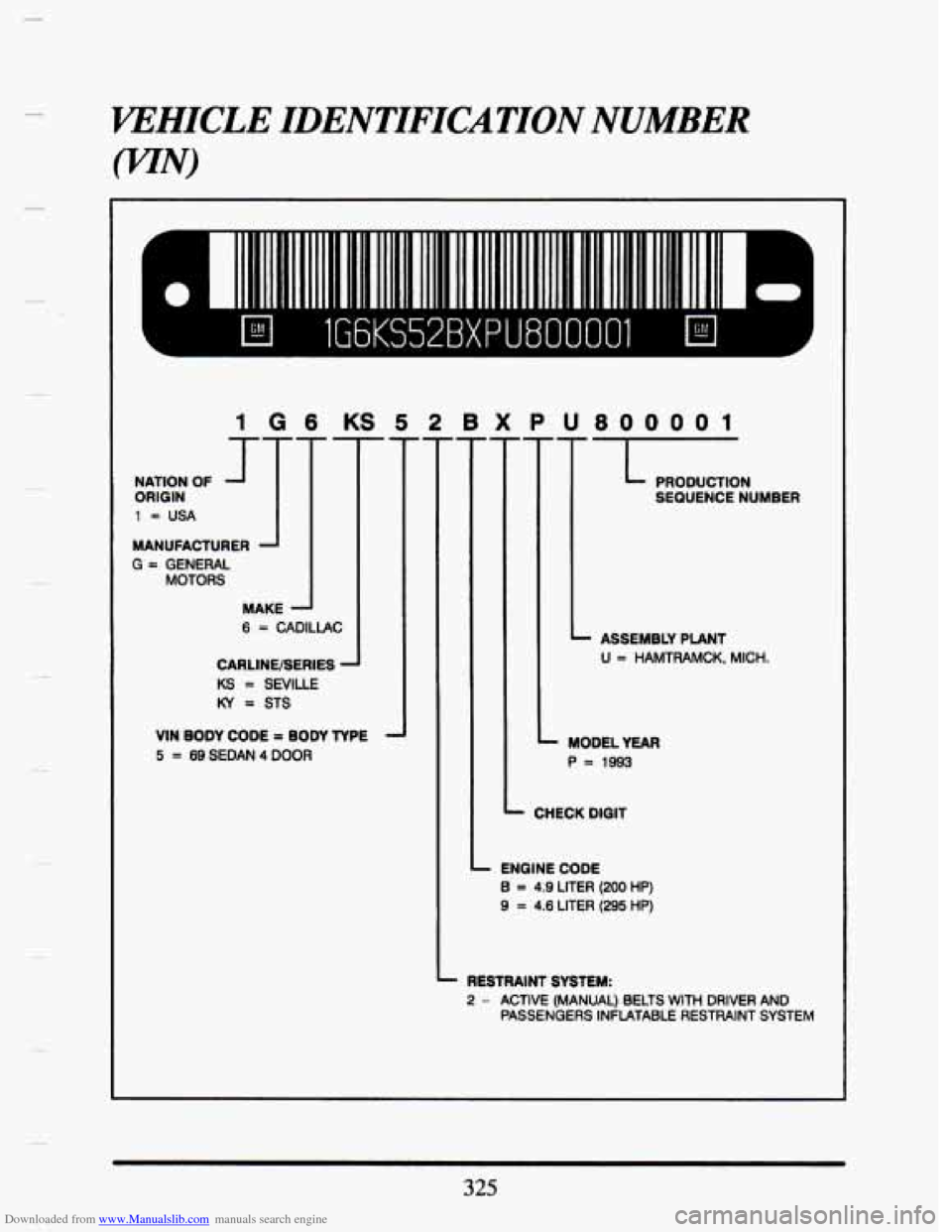

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION NUMBER
EI lG6KS52BXPU800001 EI
1G 6 KS 5 2 BX P U800001
G = GENERAL
MOTORS
6 = CADILLAC
CARLINE/SERIES
KS = SEVILLE
KY = STS
VIN BODY CODE
= BODY TYPE -
5 = 69 SEDAN 4 DOOR
PRODUCTION
SEQUENCE NUMBER
ASSEMBLY PLANT U
= HAMTRAMCK, MICH.
- MODELYEAR
P = 1993
- CHECK DIGIT
- ENGINE CODE
B
= 4.9 LITER (200 HP)
9 = 4.6 LITER (295 HP)
- RESTRAINT SYSTEM:
2 - ACTIVE (MANUAL) BELTS WITH DRIVER AND
PASSENGERS INFLATABLE RESTRAINT SYSTEM
325

Downloaded from www.Manualslib.com manuals search engine This is the legal identifier for your Cadillac. It appears on a plate in the
front corner
of the instrument panel, on the driver’s side. You can see it if
you look through the windshield from outside your vehicle. The VIN also
appears
on the Vehicle Certification and Service Parts labels and the
certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code for your GM engine.
This code will help
you identify your engine, specifications, and
replacement
parts in this section.
SERWCE PARTS IDENTIFICATION LABEL
You’ll find this label on the spare tire cover. It’s very helpful if you ever
need to order parts. On this label is:
Your VIN.
0 Its model designation.
0 A list of all production options and special equipment.
Be sure that this label
is not removed from the vehicle.
ADD-ON ELECTRlcAL EQUIPMENT
326

Downloaded from www.Manualslib.com manuals search engine Retained Accessory Power
When you stop your Cadiliac and turn the key to Off, you can use these
accessories for
10 more minutes:
Radio
Power Windows
Astroroof
Windshield Wipers
If
you open a door, everything will go off. And, after 10 minutes
everything will go
off, also.
If you want power for another
10 minutes, just turn the key to Run and
then back to Off.
FUSES AlvD CIRCUIT BREAKERS
The wiring circuits in your vehicle are protected from short circuits by a
combination of Mini Fuses, Circuit Breakers, and Maxi Fuses. This
greatly reduces the chance
of fires caused by electrical problems.
If
you have a problem on the road and don’t have a spare fuse, you can
“borrow”
one of the same value. Select a feature that you can get along
without that is the same value
you need -- like the radio or cigarette
lighter
-- and use its fuse. Be sure to use a fuse with the same amperage
rating number on it (ie.
lOA, 20A, etc.) Replace it as soon as you can.

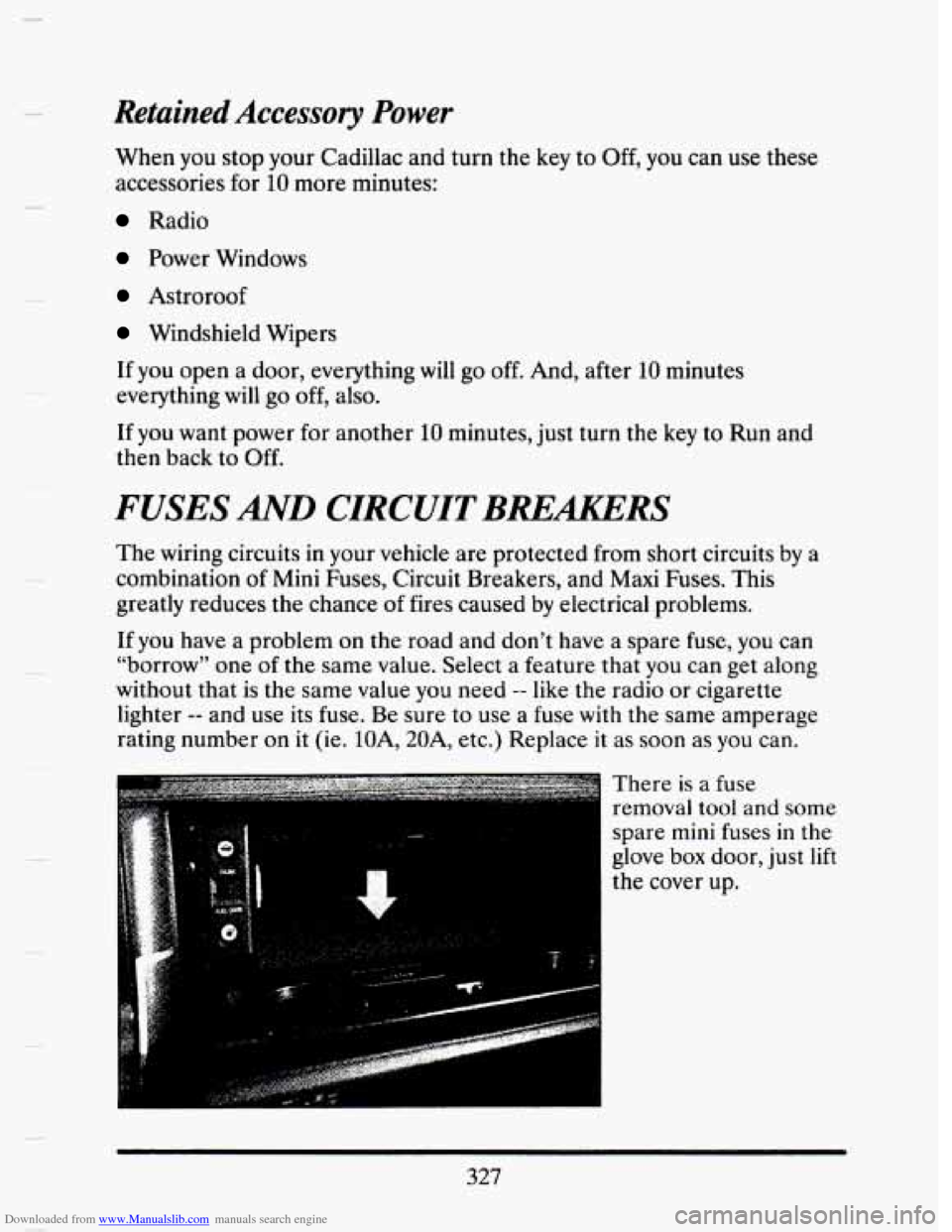

- There is a fuse
removal
tool and some
spare mini fuses in the
glove
box door, just lift
the cover up.
327

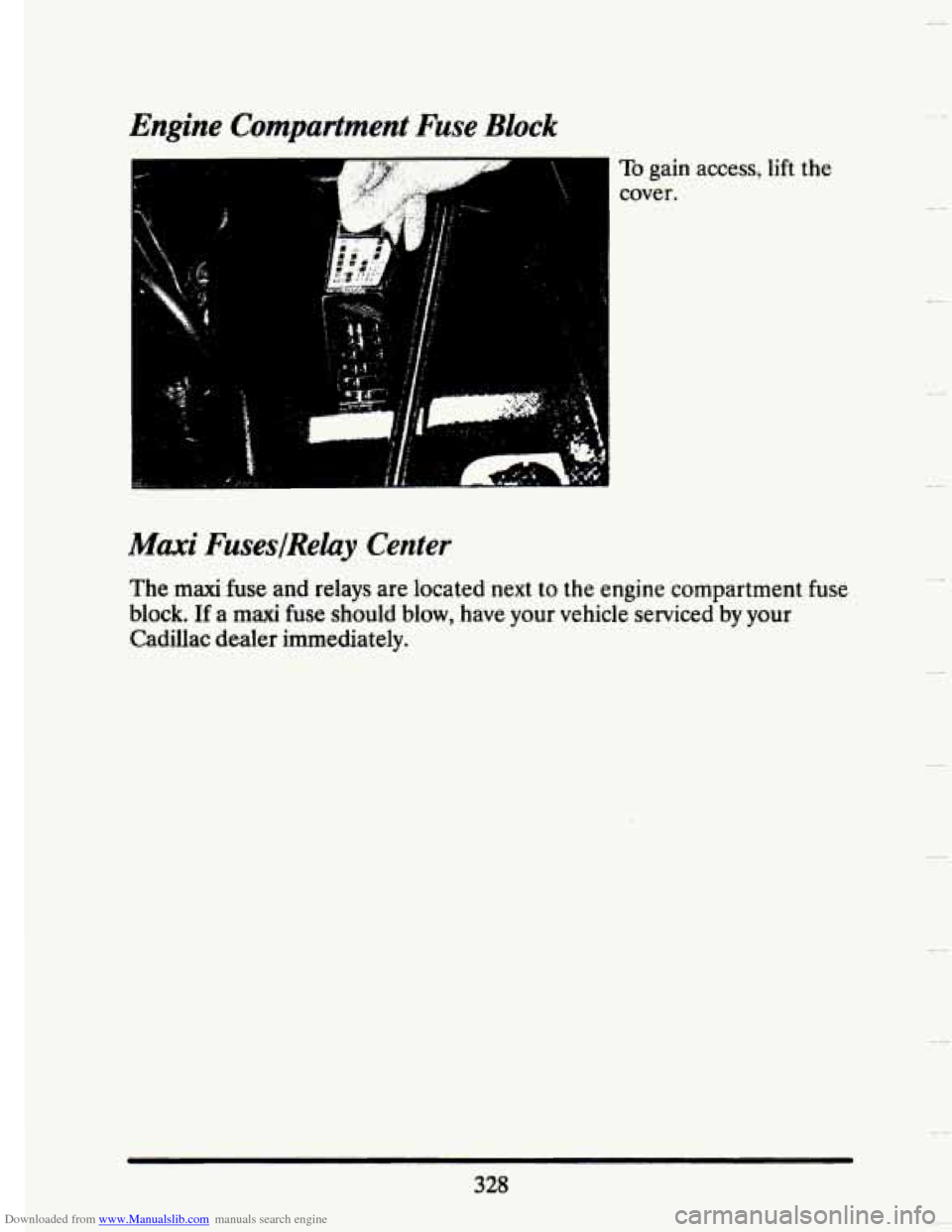

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Fuse Block
.-- I---- -
Maxi Fuses/Relay Center
To gain access, lift the
cover.
The
maxi fuse and relays are located next to the engine compartment fuse
block.
If a maxi fuse should blow, have your vehicle serviced by your
Cadillac dealer immediately.
328

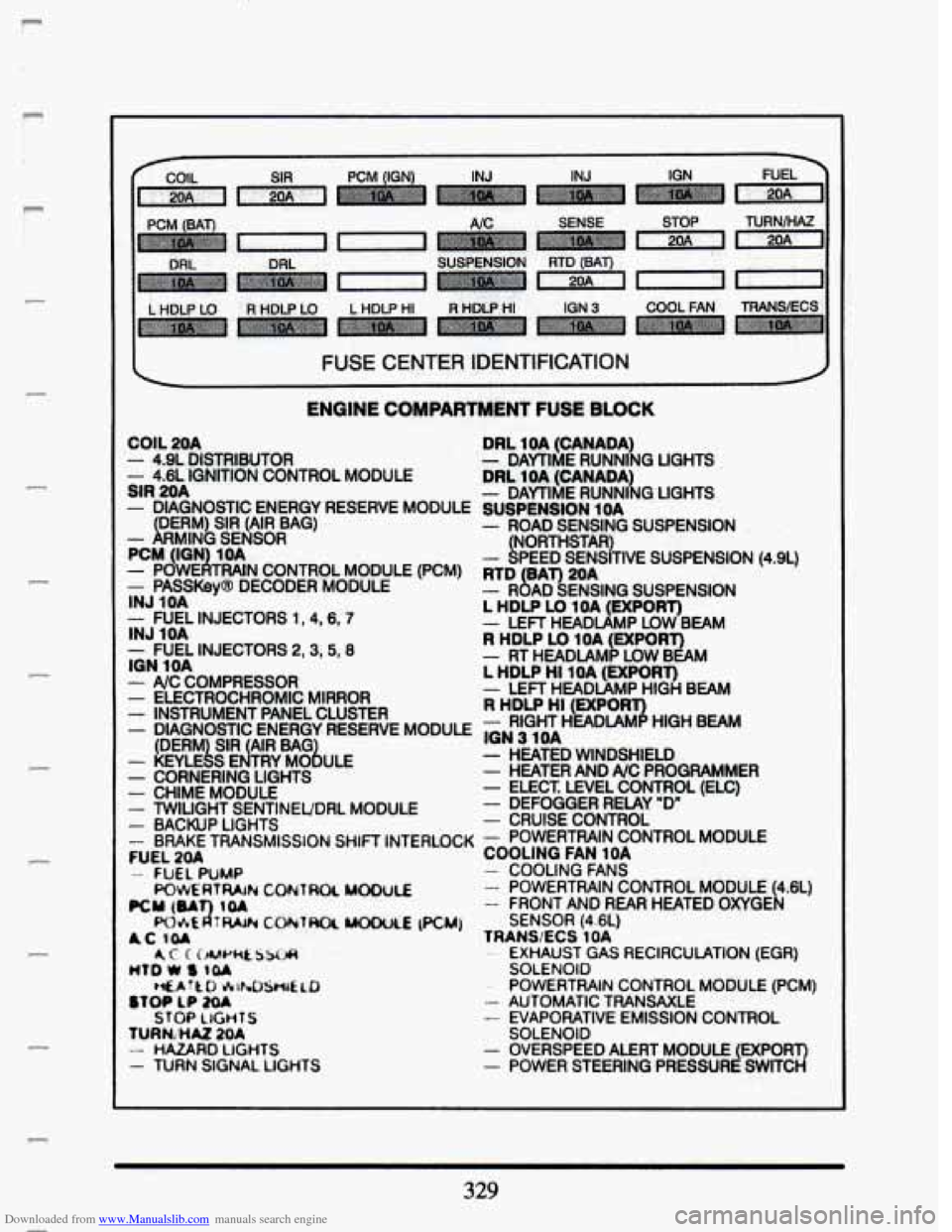

Downloaded from www.Manualslib.com manuals search engine c
P
___.__ HDIP Lo HDLP HI R H'C HI IGN 3 COOL FAN TRANSECS
i I
I FUSE CENTER IDENTIFICATION J
ENGINE COMPARTMENT FUSE BLOCK
COIL 20A - 4.9L DISTRIBUTOR - 4.6L IGNtTION CONTROL MODULE SIR 2OA
- DIAGNOSTIC ENERGY RESERVE - - - - - - -
LF4 DERM) SIR (AIR BAG) - MlNG SENSOR
PCM (IO 1.OA - POWE Y TRAIN CONTROL MODUL
INJ IOA - PASSKeyS DECODER MODULE MODULE
.E (PCM)
--FUEL INJECTORS 1,4,6,7 INJ 1OA - FUEL INJECTORS 2,3,5,8 ION 1OA - A/C COMPRESSOR - ELECTROCHROMIC MIRROR - INSTRUMENT PANEL CLUSTER - DIAGNOSTIC ENERGY RESERVE MODULE
- KEYLE &Pi S E TRY MO b ULE - CORNERING LIGHTS - CHIME MODULE - TWILIGHT SENTINEUDRL MODULE - BACKUP LIGHTS - BRAKE TRANSMISSION SHIFT INTERLOCK
- FUEL PUMP
(DERM SIR AIR BAG
FUEL
20A
PCU(&A IOA
AC IOI
MID W 8 101
$TOP LP ;Ku
fURNiHA2 20A
FQWERTWN CONTROL MOWlE
MI&€ a 7RAIFI CONTRO( uOMKE (PCM)
AC CCEUYellS3uA
HfArtO &NISH&AO
STOP LIGHTS
- HAZARD LIGHTS - TURN SIGNAL LIGHTS
DRL 1OA (CANADA)
DRL
10A (CANADA)
SUSPENSION 1OA
- DAYTIME RUNNING LIGHTS
- DAYTIME RUNNING LIGHTS
- ROAD SENSING SUSPENSION
- LNORTHSTW PEED SENSITIVE SUSPENSION (4.9L)
- R 6 AD SENSING SUSPENSION
- LEFT HEADIAMP LOW BEAM
- RT HEADLAMP LOW BEAM
- LEFT HEADIAMP HIGH BEAM
- RIGHT HEADIAMP HIGH BEAM
- HEATED WINDSHIELD - HEATER AND A/C PROGRAMMER
- ELECT. LEVEL CONTROL (ELC) - DEFOGGER RELAY "D"
- CRUISE CONTROL
- POWERTRAIN CONTROL MODULE
- COOLING FANS
- POWERTRAIN CONTROL MODULE 4.6L)
- FRONT AND REAR HEATED OXYGE L
RTD BAT) 20A
L HDLP LO 1OA (EXPORT)
R HDLP LO 1OA (EXPORT)
L HDLP HI 1OA (EXPORT)
R HDLP HI (EXPORT)
ION 3 1OA
COOLING FAN 1OA
SENSOR (4.6L) TRANSIECS 1 OA
SOLENOID -- EXHAUST GAS RECIRCULATION (EGR)
- POWERTRAIN CONTROL MODULE (PCM) - AUTOMATIC TRANSAXLE - EVAPORATIVE EMISSION CONTROL
- OVERSPEED ALERT MODULE (EXPOR
- POWER STEERING PRESSURE SWITC 3
SOLENOID
329
I
F

Downloaded from www.Manualslib.com manuals search engine I
e

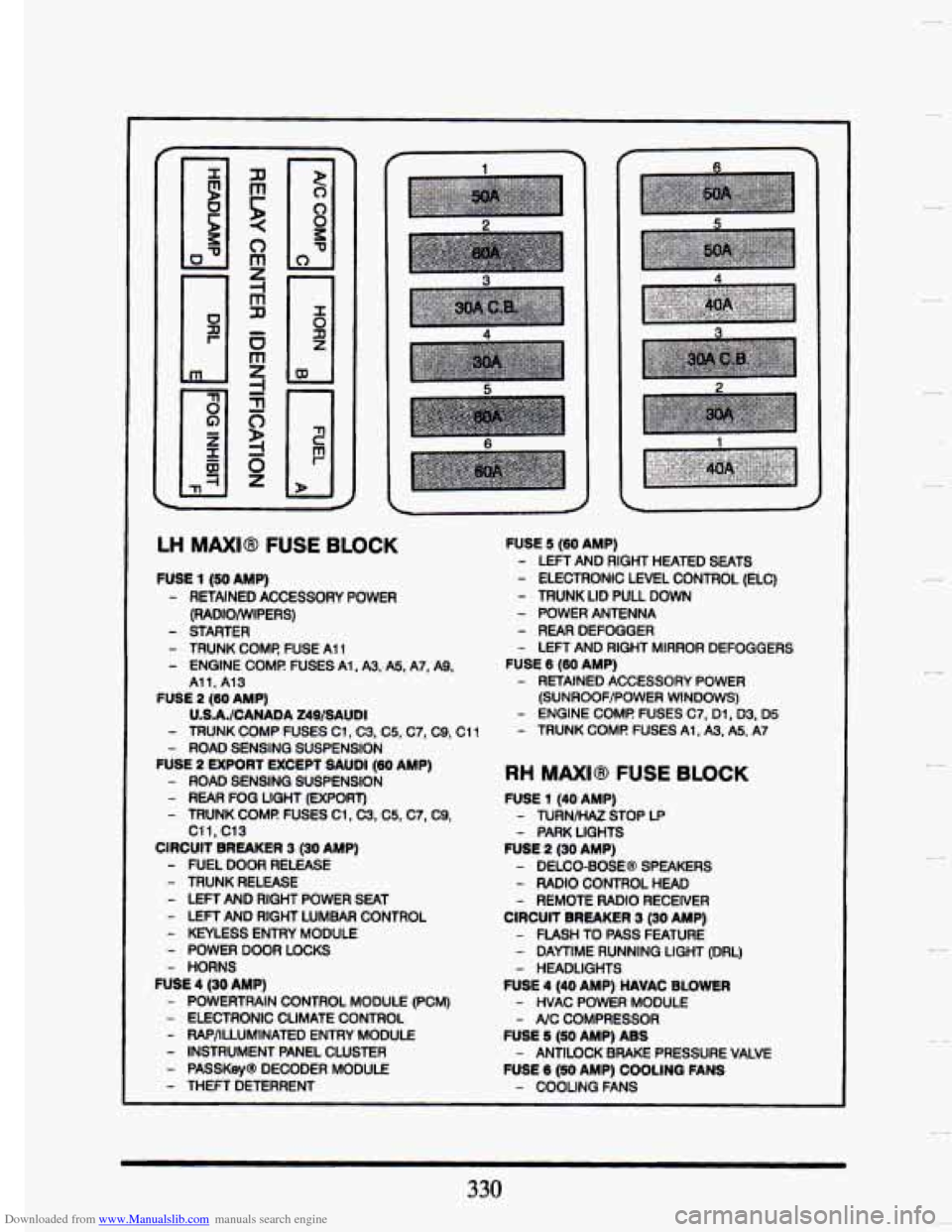

LH MAXI@ FUSE BLOCK
FUSE 1 (50 AMP)
- RETAINED ACCESSORY POWER (RADIOMIIPERS)
- STARTER
- TRUNK COMR FUSE AI 1
- ENGINE COME FUSES Al, A3, A5, A?, A9,
All,A13
FUSE 2 (60 AMP)
U.S.A./CANADA Z49lSAUDI
- TRUNK COMP FUSES C1, C3, C5, C7, C9, C11
- ROAD SENSING SUSPENSION FUSE 2 EXPORT EXCEPT SAUDI (Sa AMP)
- ROAD SENSING SUSPENSION
- REAR FOG LIGHT (EXPORT)
- TRUNK COMF! FUSES C1, C3, C5, C7, C9, Cll, C13
CIRCUIT BREAKER 3 (30 AMP)
- FUEL DOOR RELEASE
- TRUNK RELEASE
- LEFT AND RIGHT POWER SEAT
- LEFT AND RIGHT LUMBAR CONTROL
- KEYLESS ENTRY MODULE
- POWER DOOR LOCKS
- HORNS
FUSE 4 (30 AMP)
- POWERTRAIN CONTROL MODULE (PCM)
- ELECTRONIC CLIMATE CONTROL
- RAPtIUUMINATED ENTRY MODULE
- INSTRUMENT PANEL CLUSTER
- PASSWB DECODER MODULE
- THEFT DETERRENT
FUSE 5 (60 AMP)
- LEFT AND RIGHT HEATED SEATS
- ELECTRONIC LEVEL CONTROL (ELC)
- TRUNK LID PULL DOWN
- POWER ANTENNA
- REAR DEFOGGER
- LEFT AND RIGHT MIRROR DEFOGGERS
FUSE 6 (60 AMP)
- RETAINED ACCESSORY POWER
(SUNROOFtPOWER WINDOWS)
- ENGINE COW FUSES C7, Dl, 03, D5
- TRUNK COW FUSES Al, A3, A5, A7
RH MAXI@ FUSE BLOCK
FUSE 1 (40 AMP)
- TURN/HAZ STOP LP
- PARK LIGHTS
FUSE 2 (30 AMP)
- DELCO-BOSE@ SPEAKERS
- RADIO CONTROL HEAD
- REMOTE RADIO RECEIVER
CIRCUIT BREAKER 3 (30 AMP)
- FLASH TO PASS FEATURE
- DAYTIME RUNNING LIGHT (DRL)
- HEADLIGHTS
FUSE 4 (40 AMP) HAVAC BLOWER
- HVAC POWER MODULE
- A/C COMPRESSOR
FUSE 5 (SO AMP) ABS
FUSE
6 (50 AMP) COOLING FANS
- ANTILOCK BRAKE PRESSURE VALVE
- COOLING FANS
