5. Press the bulb housing lever, rotate the housing counterclockwise and
remove it. Push and rotate the bulb counterclockwise to remove bulb.
Once
you have replaced the burned out bulb, just reverse the steps to
reassemble the taillight.
WIPER BLADE REPUCEMENT
Position the windshield wipers OB the windt&ield in the “mid” wipe
position.
To do this, turn the- ignition ;by to Acc~ssory and turn the wipers
on. Then with the door open, turn the ignition key to
off.
Start with the driver side wiper blade assembly.
Using a small
:. sxewdriver or your
‘finger, gently lift the
1 :release lever up while
at the same time
Pulling the blade
P
299

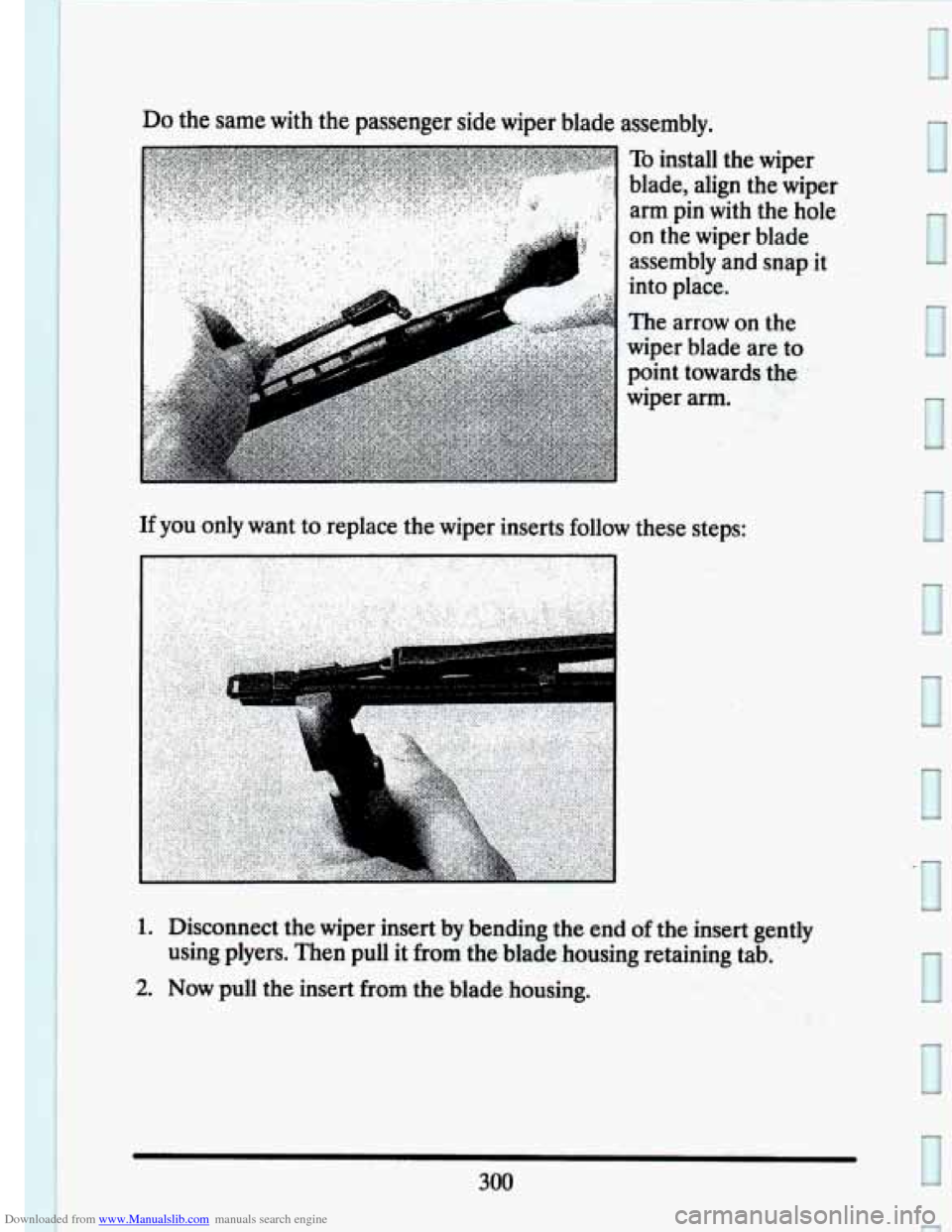

Downloaded from www.Manualslib.com manuals search engine Do the same with the passenger side wiper blade assembly.
If you only want to replace the wiper inserts follow these steps:
1. Disconnect the wiper insert by bending the end of the insert gently
using plyers. Then pull it
from the blade housing retaining tab.
2. Now pull the insert from the blade housing.
300
I
U
P

Downloaded from www.Manualslib.com manuals search engine F
P
P
P
c

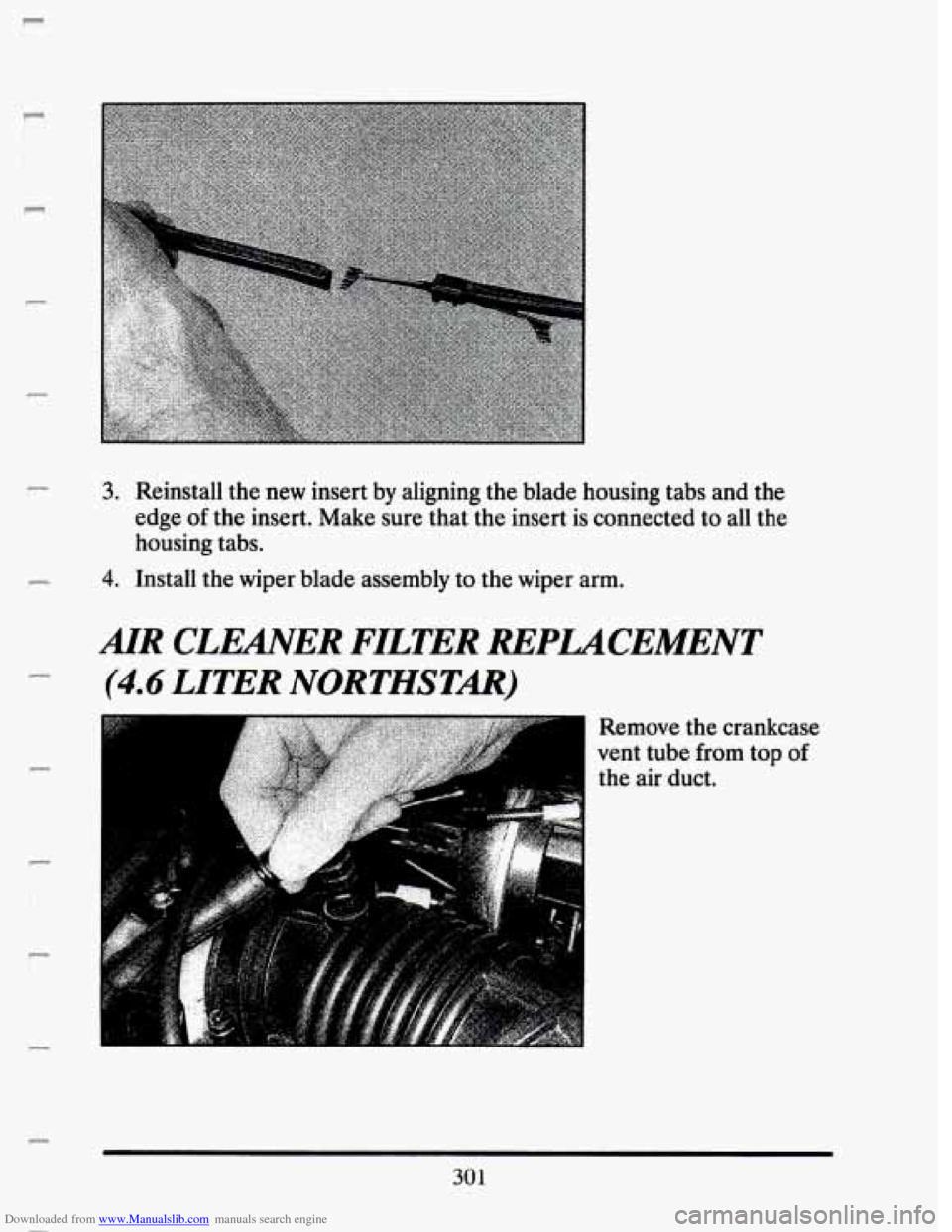

3. Reinstall the new insert by aligning the blade housing tabs and the
edge of the insert.
Make sure that the insert is connected to all the
housing tabs.
4. Install the wiper blade assembly to the wiper arm.
AIR CLEANER FILTER REPLACEMENT
(4.6 LITER NORTHSTAR)
Remove the crankcase
vent tube from top
of
the air duct.
P
301

Downloaded from www.Manualslib.com manuals search engine Loosen clamp at the
throttle body and
disconnect
air duct
from
the throttle body.
302

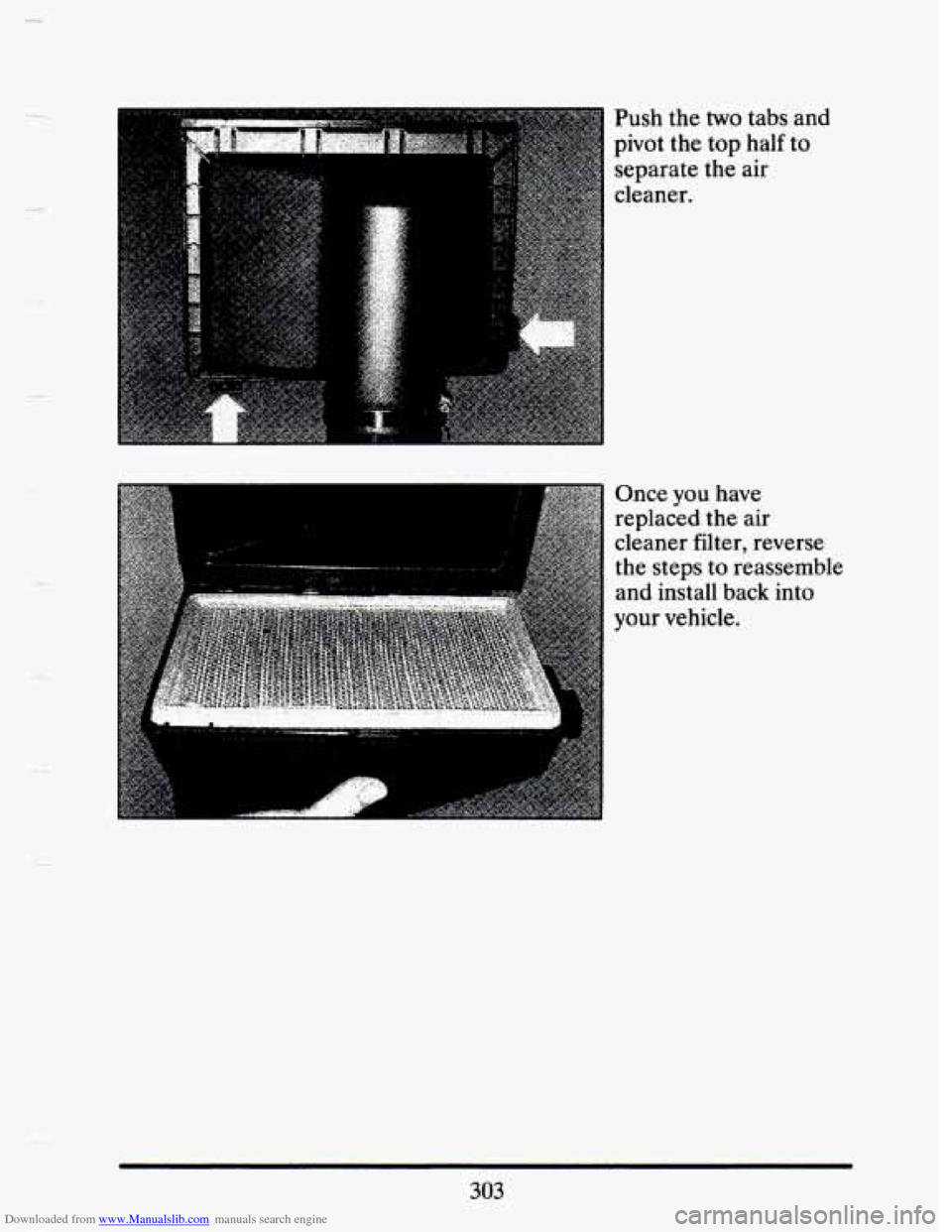

Downloaded from www.Manualslib.com manuals search engine Push the two tabs and
pivot the top half
to
separate the air
cleaner.
cleaner
filter, reverse
I
Once you nave
, replaced the air
the steps
to reassemble
and install back into
your vehicle.
303

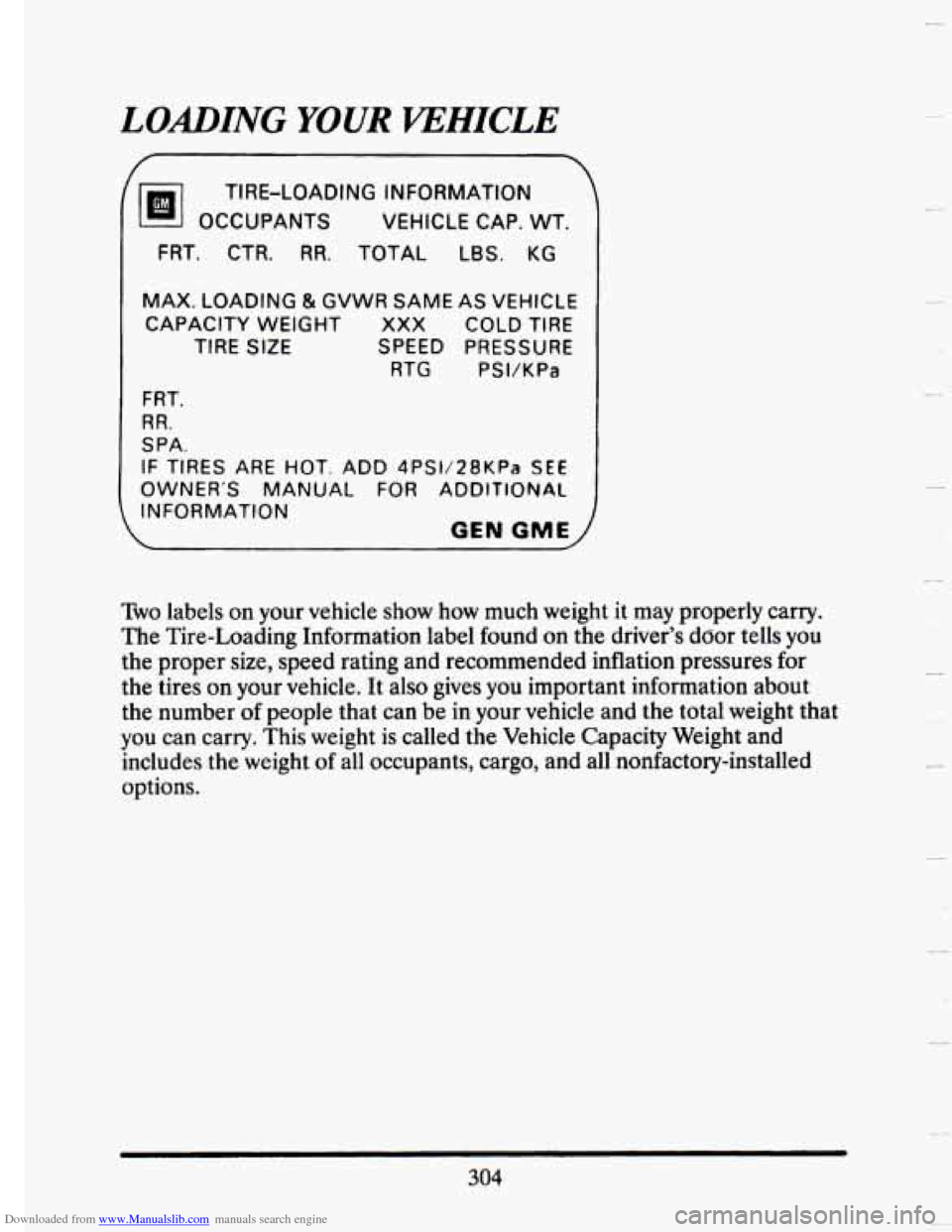

Downloaded from www.Manualslib.com manuals search engine LOplDING YOUR KEHICLE

TIRE-LOADING INFORMATION
‘m OCCUPANTS VEHICLE CAP. WT.
FRT. CTR. RR. TOTAL LBS. KG
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY WEIGHT
XXX COLD TIRE
TIRE SIZE SPEED PRESSURE
RTG PSVKPa
FRT.
RR.
SPA.
IF TtRES ARE
HOT. ADD 4PS1/28KPa SEE
OWNER’S MANUAL FOR ADDITIONAL
INFORMATION
GEN GME,
Two labels on your vehicle show how much weight it may properly carry.
The Tire-Loading Information label found on the driver’s ddor tells you
the proper
size, speed rating and recommended inflation pressures for
the tires on your vehicle.
It also gives you important information about
the number
of people that can be in your vehicle and the total weight that
you can carry. This weight
is called the Vehicle Capacity Weight and
includes the weight of
all occupants, cargo, and all nonfactory-installed
options.
304
.-
I

Downloaded from www.Manualslib.com manuals search engine MFD BY GENERAL MOTORS CORP
DATE GVWR GAWR FRT GAWR
RR
THIS VEHICLE CONFORMS TO ALL APPLI-
CABLE
U.S. FEDERAL MOTOR VEHICLE
TION STANDARDS IN EFFECT ON THE
DATE OF MANUFACTURE SHOWN ABOVE.
SAFETY, BUMPER,
AND THEFT PREVEN-
GEN GME
The other label is the Certification label, found on the rear edge of the
driver's door. It tells you the gross weight capacity
of your vehicle, called
the GVWR (Gross Vehicle Weight Rating). The GVWR includes the
weight
of the vehicle, all occupants, fuel and cargo. Never exceed the
GVWR for your vehicle, or the Gross Axle Weight Rating (GAWR) for
either the front or rear axle.
And,
if you do have a heavy load, you should spread it out. Don't carry
more than
176 lbs. (80 kg) in your trunk .
A CAUTION:
Do not load your vehicle any heavier than the GVWR or the
maximum front and rear
GAWRs. If you do, parts on your
vehicle can break, or it can change the way your vehicle handles.
These could cause you
to lose control. Also, overloading can
shorten the life
of your vehicle.

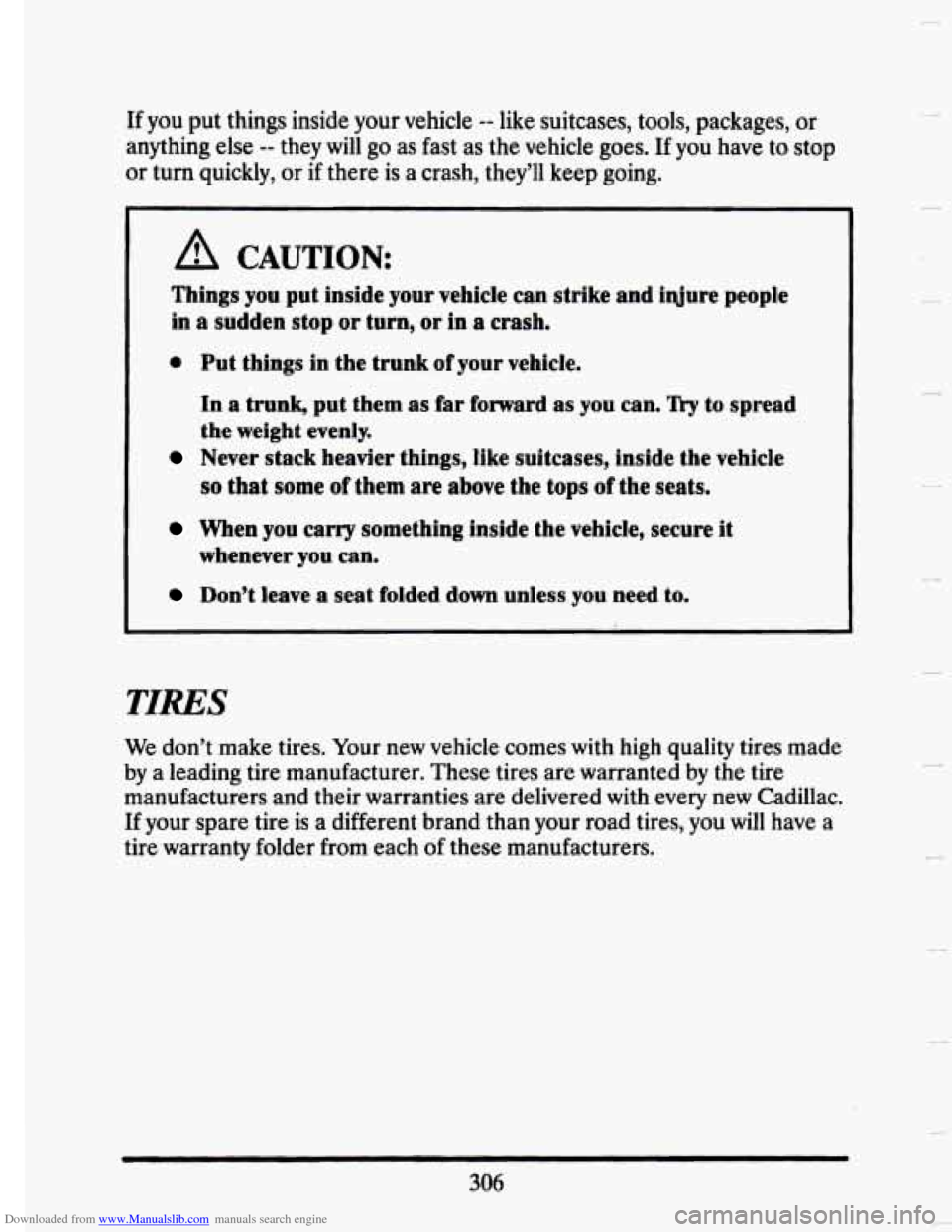

Downloaded from www.Manualslib.com manuals search engine If you put things inside your vehicle -- like suitcases, tools, packages, or
anything else
-- they will go as fast as the vehicle goes. If you have to stop
or turn quickly, or
if there is a crash, they’ll keep going.
A CAUTION:
Things you put inside your vehicle can strike and injure people
in
a sudden stop or turn, or in a crash.
0 Put things in the trunk of your vehicle,
In
a trunk, put them as far forward as you can. “ky to spread
the weight evenly.
so that some of them are above the tops of the seats.
Never stack heavier things, like suitcases, inside the vehicle
When you carry something inside the vehicle, secure it
whenever you can.
Don’t leave a seat folded down unless you need to.
TIRES
We don’t make tires. Your new vehicle comes with high quality tires made
by a leading tire manufacturer. These tires are warranted by the tire
manufacturers and their warranties are delivered with every new Cadillac.
If your spare tire is a different brand than your road tires, you will have a
tire warranty folder from each
of these manufacturers.
