1993 CADILLAC SEVILLE Owners Manual

Downloaded from www.Manualslib.com manuals search engine r ir
P
P
r
P I

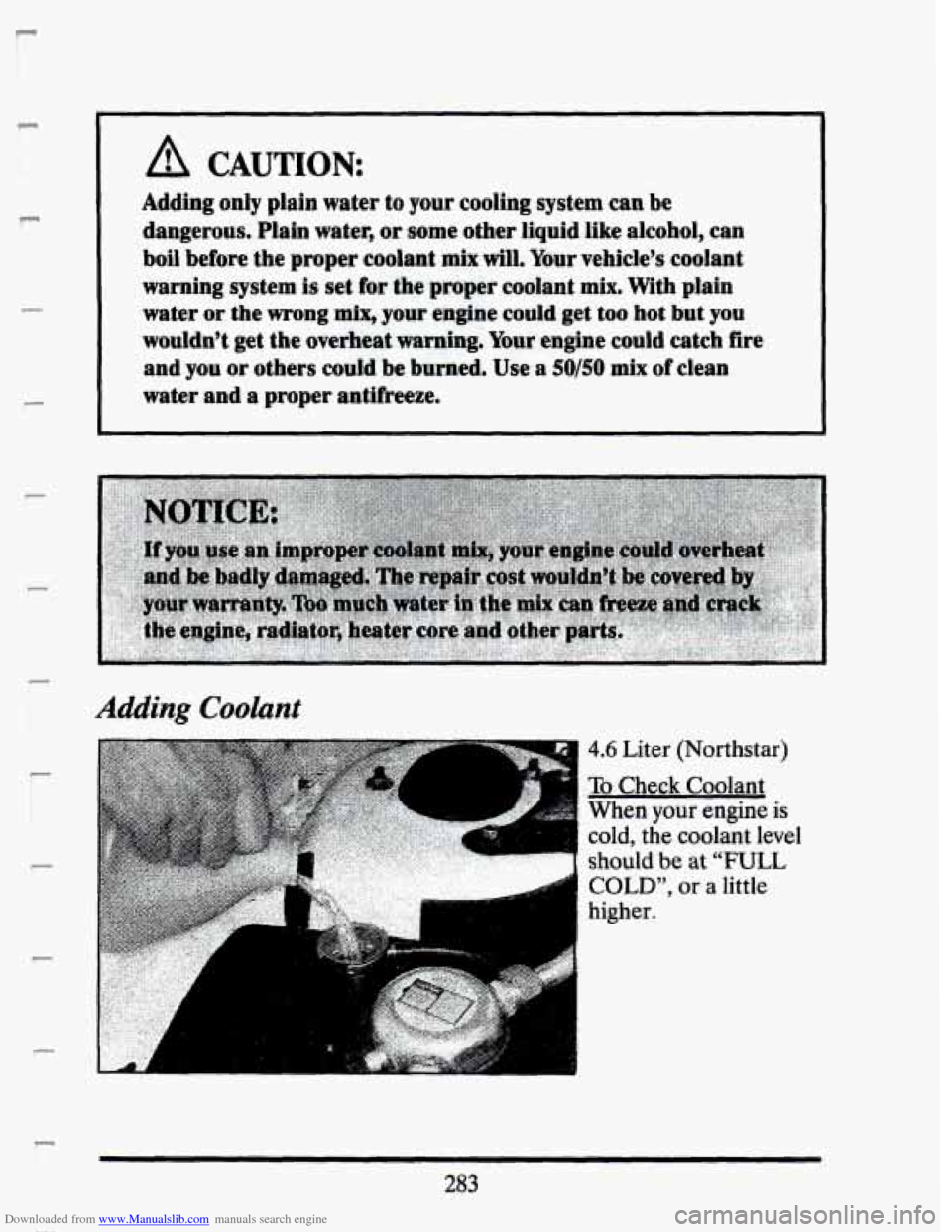

A CAUTION
Adding only plain water to your cooling system can be
dangerous. Plain water, or some other liquid like alcohol, can
boil before the proper coolant
mix will. Your vehicle’s coolant
warning system
is set for the proper coolant mix. With plain
water or the
wrong mix, your engine could get too hot but you
wouldn’t get the overheat warning. Your engine could catch fire
and you or others could be burned. Use a
50/50 mix of clean
water and a proper antifreeze.
Adding Coolant
I 4.6 Liter (Northstar)
TO Check Coolant
When.
your engine is
cold, the coolant level
should be at “FULL
COLD”, or a little
higher.
283
P

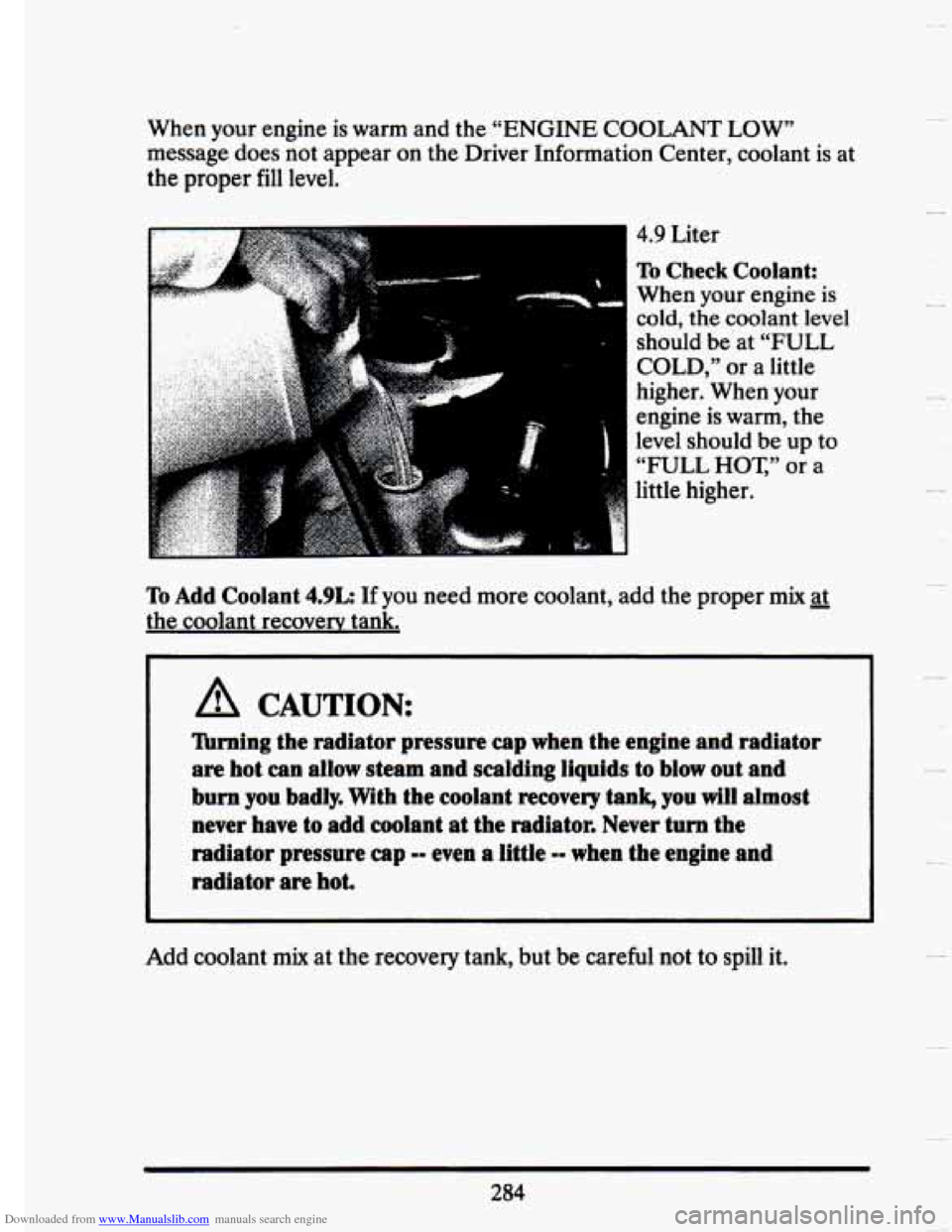

Downloaded from www.Manualslib.com manuals search engine When your engine is warm and the “ENGINE COOLANT LOW”
message does not appear on the Driver Information Center, coolant
is at
the proper fill level.
4.9 Liter
To Check Coolant:
When your engine is
cold, the coolant level
should be at
“FULL
COLD,” or a little
higher. When your
engine is warm,
the
level should be up to
“FULL
HOT,” or a
little higher.
To Add Coolant 4.9L If you need more coolant, add the proper mix at
the coolant recoverv tank.
A CAUTION
flrrning the radiator pressure cap when the engine and radiator
are hot can allow steam and scalding liquids to blow
out and
bum you badly. With the coolant recovery
tank, you will almost
never have to add coolant at the radiator. Never turn the
~ radiator pressure cap -- even a little -- when the engine and
radiator are hot.
Add coolant mix at the recovery tank, but be careful not to spill it.
284

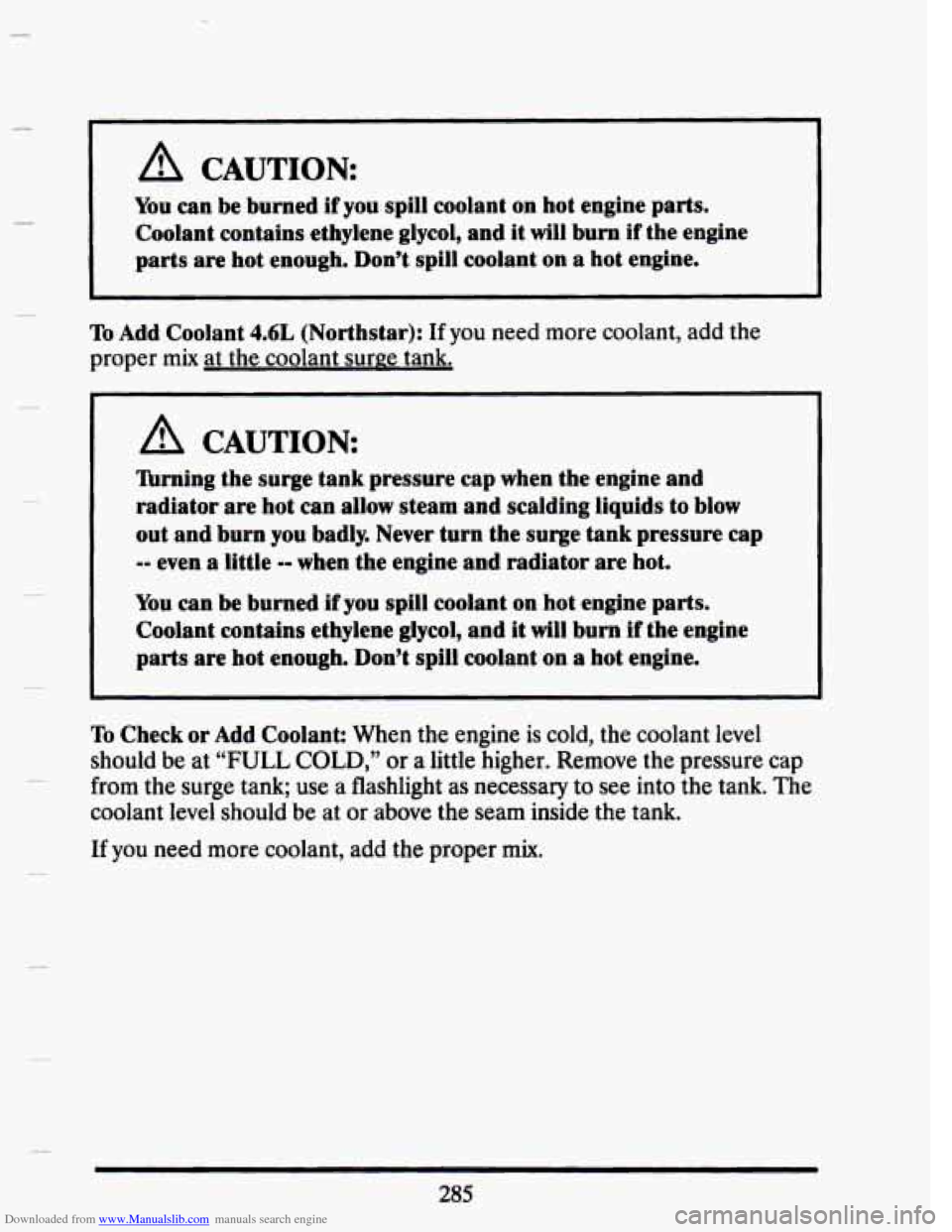

Downloaded from www.Manualslib.com manuals search engine I
A CAUTION:
You can be burned if you spill coolant on hot engine parts.
Coolant contains ethylene glycol, and it
will burn if the engine
parts are hot enough. Don’t
spill coolant on a hot engine.
To Add Coolant 4.6L (Northstar): If you need more coolant, add the
proper
mix at the coolant surPe tank.
A CAUTION:
lbrning the surge tank pressure cap when the engine and
radiator are hot
can allow steam and scalding liquids to blow
out and burn you badly. Never turn the surge tank pressure cap
-- even a little -- when the engine and radiator are hot.
You can be burned if you spill coolant on hot engine parts.
Coolant contains ethylene glycol, and it
will burn if the engine
parts are hot enough. Don’t spill coolant
on a hot engine.
To Check or Add Coolant: When the engine is cold, the coolant level
should be at
“FULL COLD,” or a little higher. Remove the pressure cap
from the surge tank;
use a flashlight as necessary to see into the tank. The
coolant Ievel should be at or above the seam inside the tank.
If you need more coolant, add the proper mix.

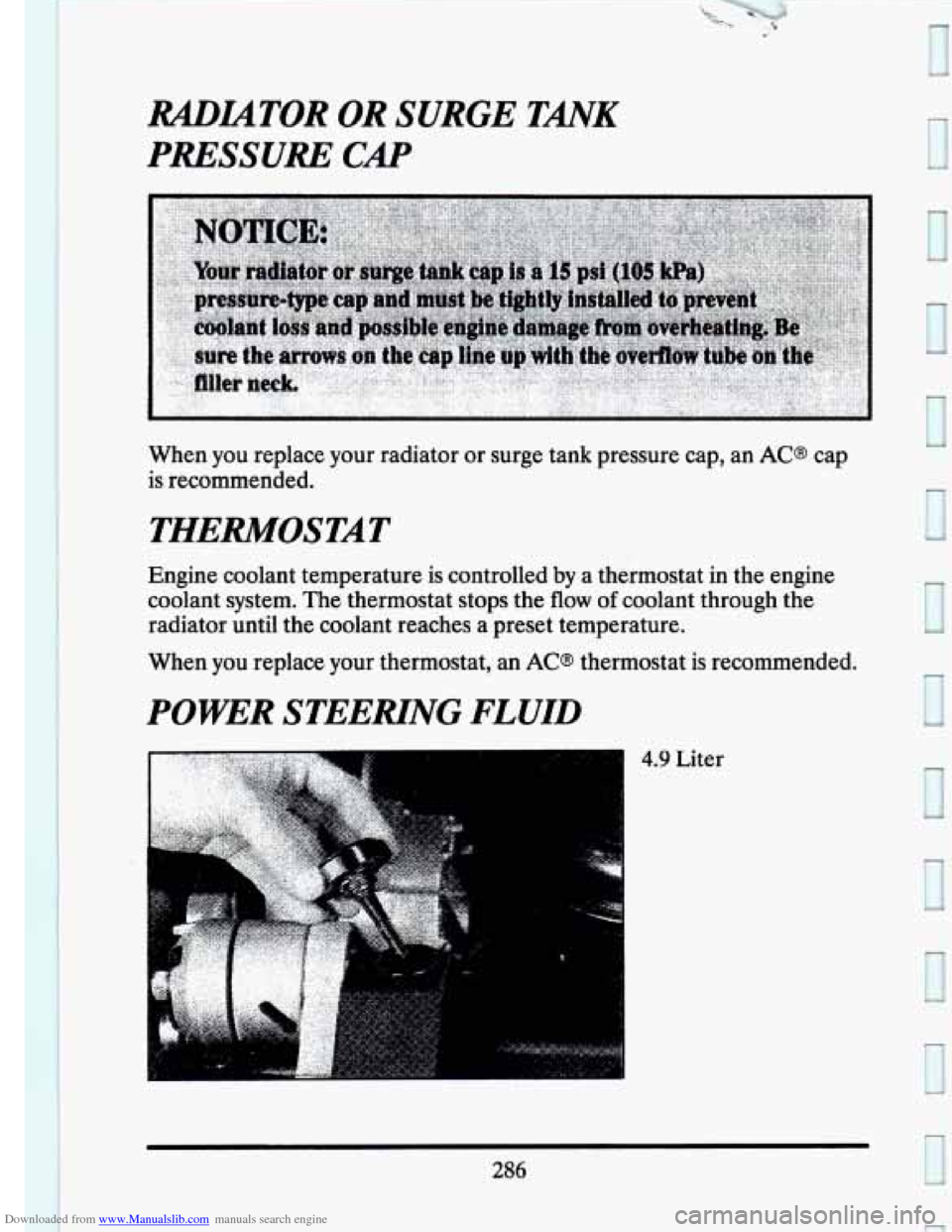

Downloaded from www.Manualslib.com manuals search engine MUTOR OR SURGE TANK
PRESSURE CAP
When you replace your radiator or surge tank pressure cap, an AC@ cap
is recommended.
THERMOSTAT
Engine coolant temperature is controlled by a thermostat in the engine
coolant system.
The thermostat stops the flow of coolant through the
radiator until the coolant reaches a preset temperature.
When you replace your thermostat, an
AC@ thermostat is recommended.
POWER STEERING FLUID
0
4.9 Liter
286

Downloaded from www.Manualslib.com manuals search engine P
L
r
r
c
P
P
c
P
I.
How To Check Power Steering Fluid:
4.6 Liter (Northstar)
Unscrew the cap and wipe the dipstick with a clean rag. Replace the cap
and completely tighten it. Then remove the cap again and look at the
fluid level
on the dipstick.
0
0
When the engine
compartment is
hot, the level
should
be at the
“HOT” mark.
When the engine
compartment is
cool, the
level
should be at the
“FULL COLD”
mark.
287
I

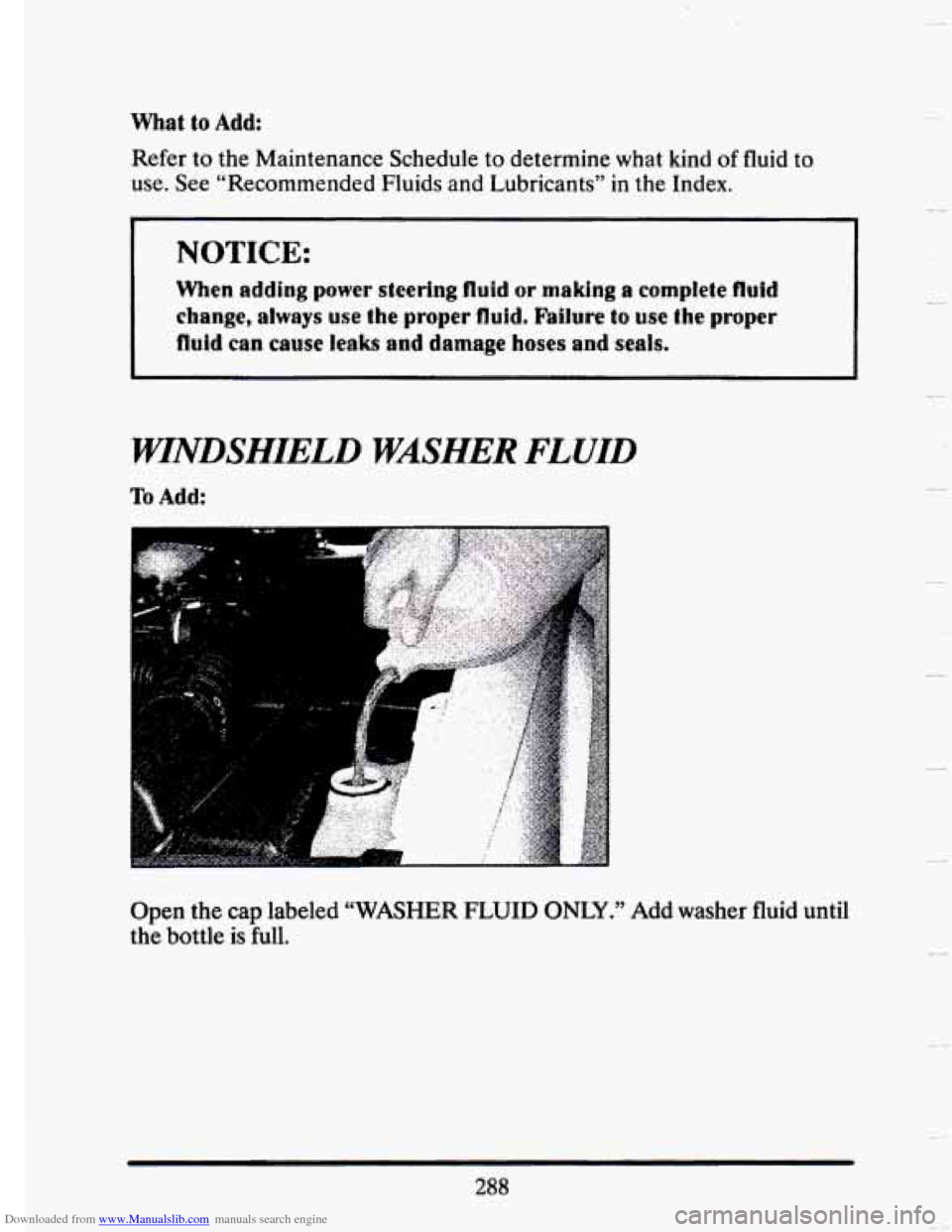

Downloaded from www.Manualslib.com manuals search engine What to Add:
Refer to the Maintenance Schedule to determine what kind of fluid to
use. See “Recommended Fluids and Lubricants” in the Index.
.~
NOTICE:
When adding power steering fluid or making a complete fluid
change, always use the proper fluid. Failure to use the proper
fluid can cause leaks and damage hoses and seals.
WNDSHIELD WASHER FLUID
To Add:
’L-
Open the cap labeled “WASHER FLUID ONLY.” Add washer fluid until
the bottle is full.
3
288
..

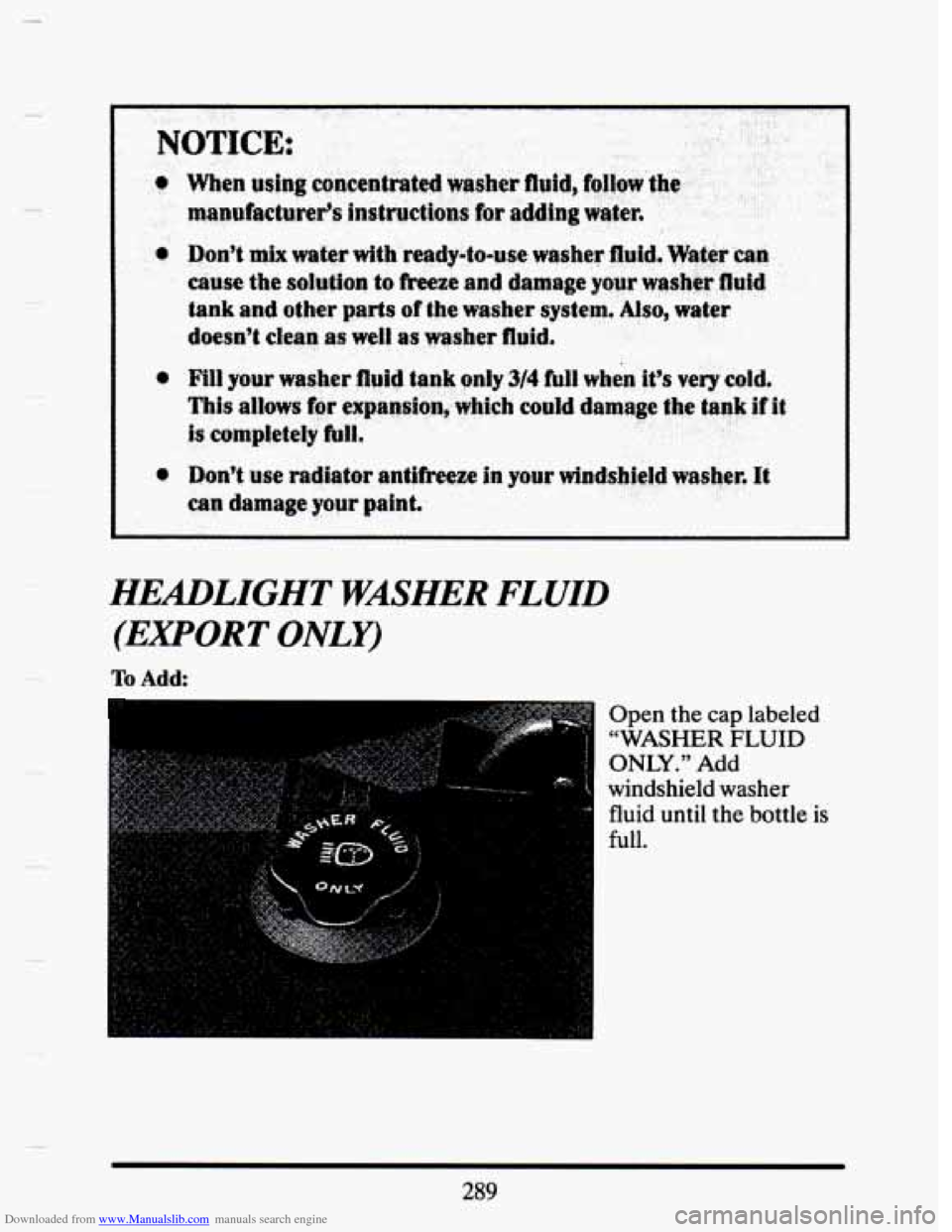

Downloaded from www.Manualslib.com manuals search engine HEADLIGHT WASHER FLUID
(EXPORT ONLY)
To Add:
Open the cap labeled
“WASHER
FLUID
ONLY.”
Add
windshield washer
fluid until the bottle is
full.
289

Downloaded from www.Manualslib.com manuals search engine NOTICE:
e When using eoncentrated washer fluid, follow the
manufacturer inStructfons for adding water.
Don't mix water with ready to use washer fluid. Water can
cause the solution to freeze and damage your washer fluid
tank and other parts of the washer system. Also, water
doesn't clean as well as washer fluid.
Fill your washer fluid tank only 3/4 full when it's very cold.
This allows for expansion, which could darnage the tank if it
is completely full.
Don't use radiator antifreeze in pout wlndshicld wuadwr. It
can damage your paint.
r
BW MSTER CYZINDER
Your brake master cylinder is here. It is filled with DOT-3 brake fluid.
290
