1993 CADILLAC SEVILLE Owners Manual

Downloaded from www.Manualslib.com manuals search engine C
-

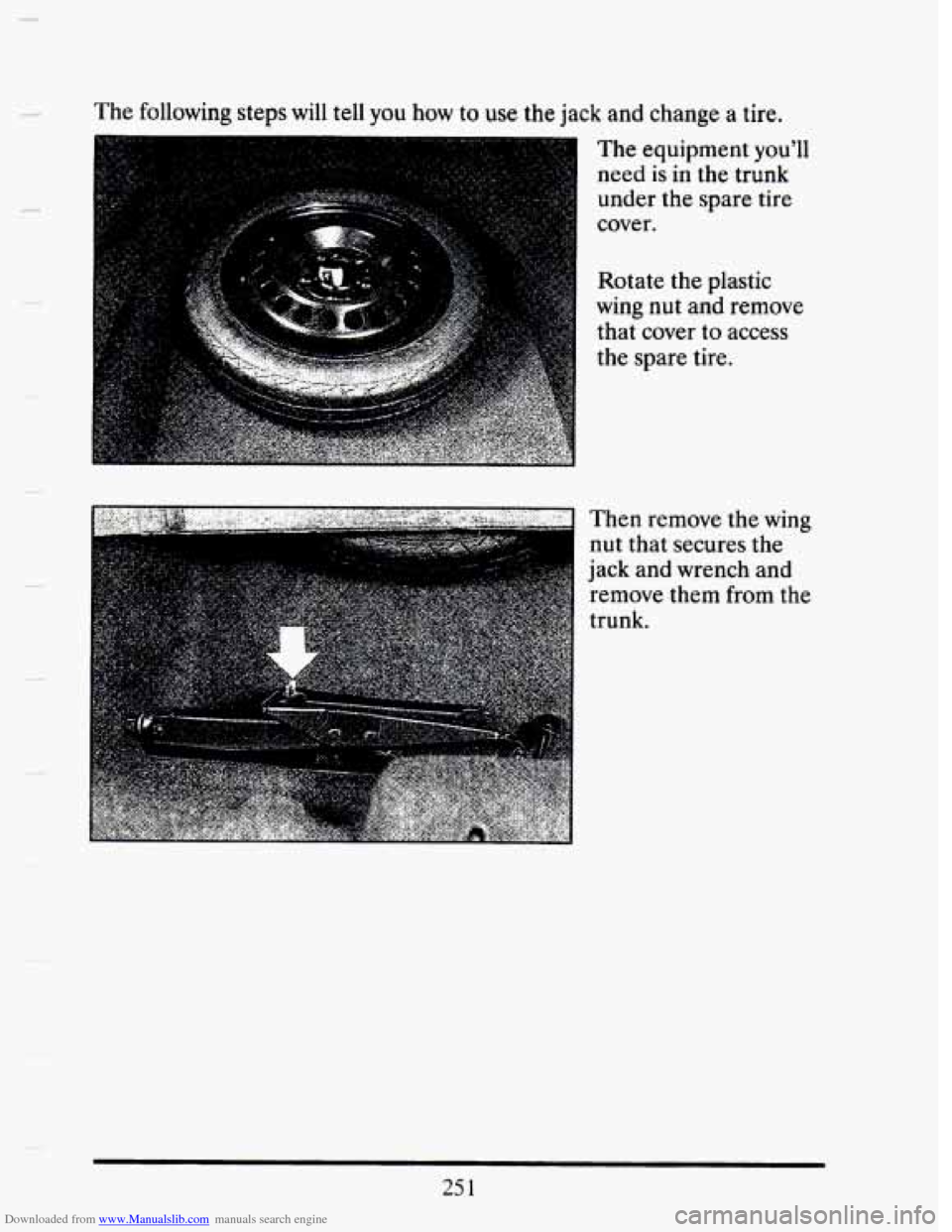

The following steps will tell you how to use the jack and change a tire.
The equipment you’ll
need
is in the trunk
under
the spare tire
cover.
Rotate the plastic
wing nut and remove
that cover to access
the spare tire.
Then remove the wing
nut that secures the
jack and wrench and
remove them from the
trunk.
25 1

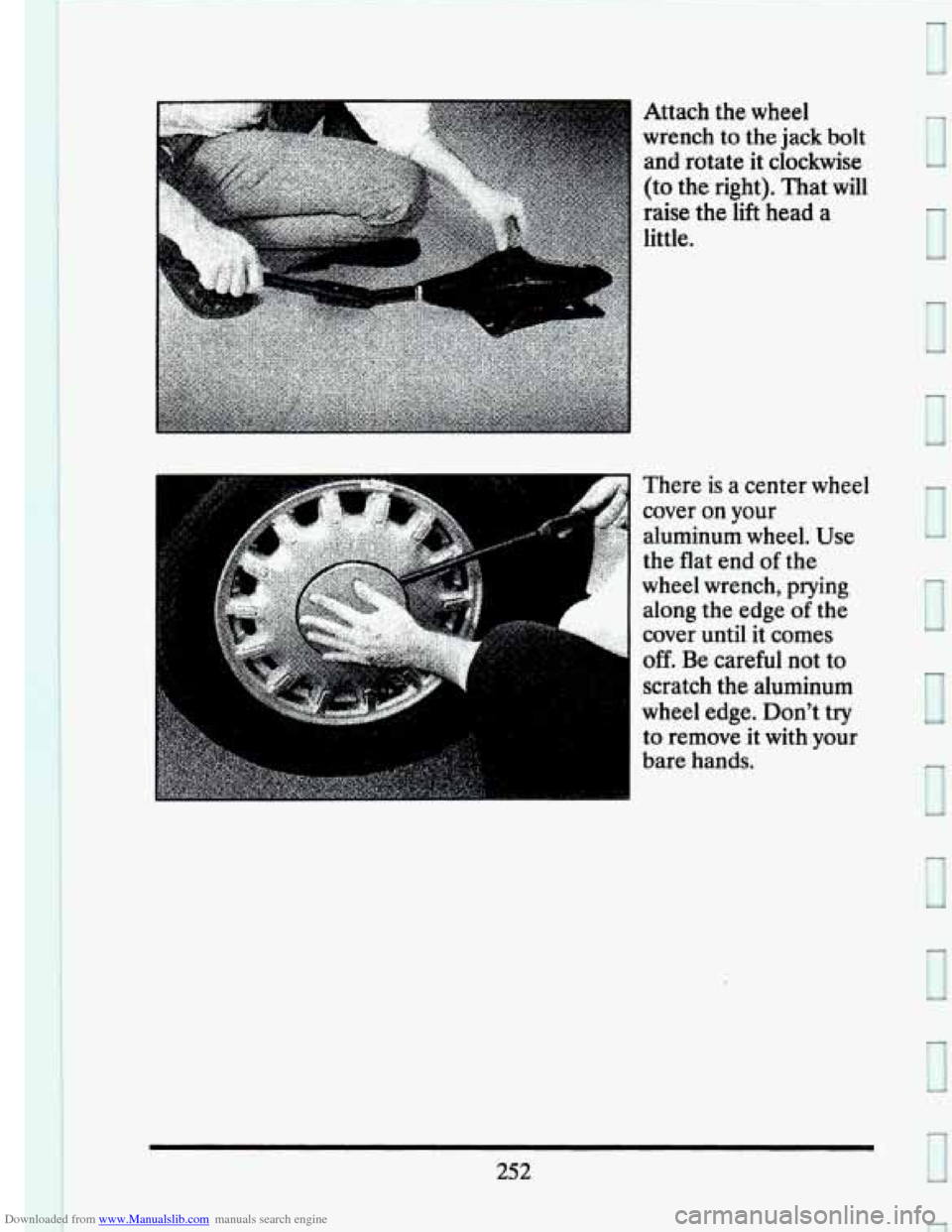

Downloaded from www.Manualslib.com manuals search engine Attach the wheel
wrench to the jack bolt
and rotate it clockwise
(to the right). That will
raise the lift head a
little.
There is a center
wheel
cover on your
aluminum wheel. Use
the flat end
of the
wheel wrench, prying along the edge
of the
cover until it comes
off. Be careful not to
scratch the aluminum
wheel edge. Don't try to remove it
with your
bare hands.
252

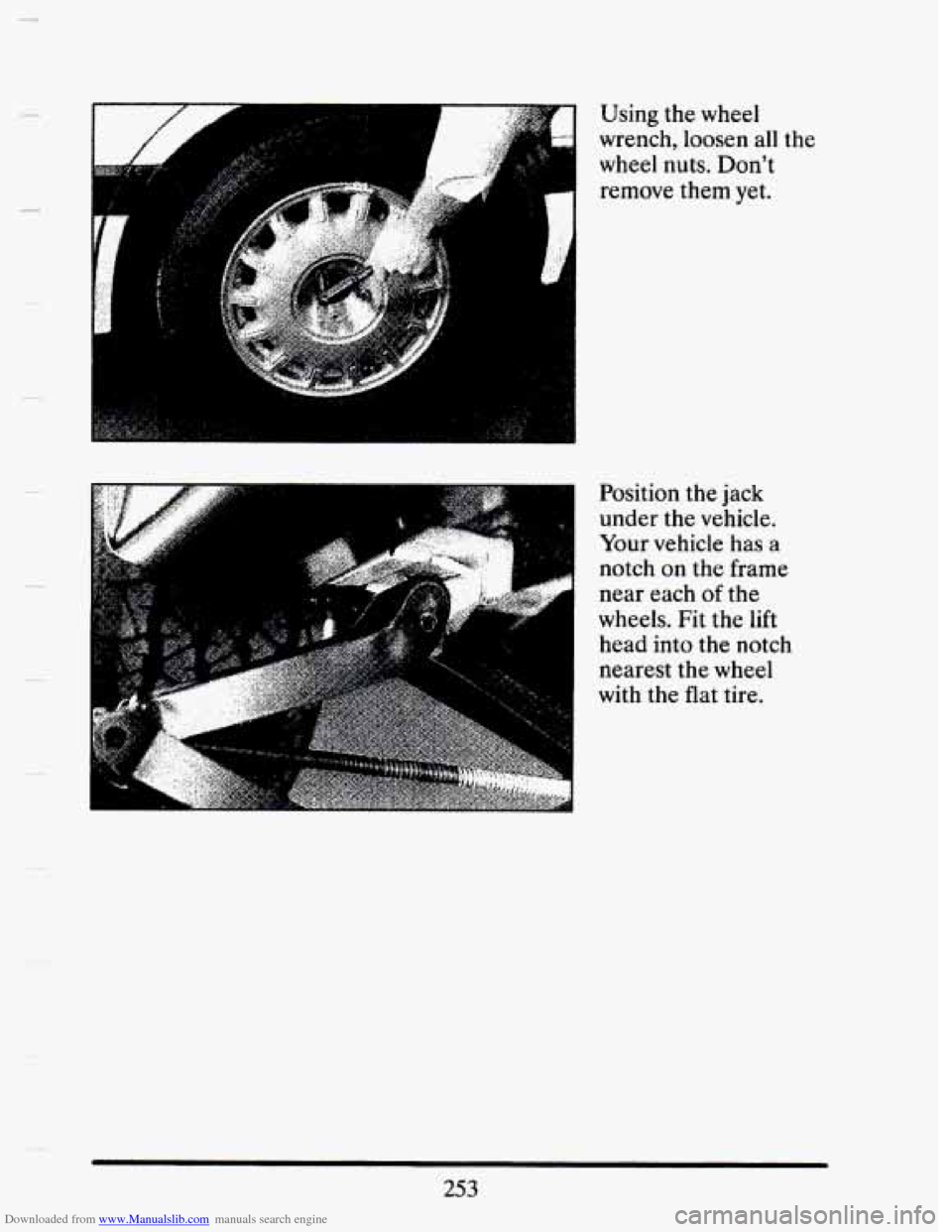

Downloaded from www.Manualslib.com manuals search engine Using the wheel
wrench, loosen all
wheel nuts. Don't
remove them yet. the
.. . Position
the jack
under the vehicle.
Your vehicle has a
notch on the frame
near each
of the
wheels. Fit the lift
head into the notch
nearest the wheel
with the flat
tire.
253

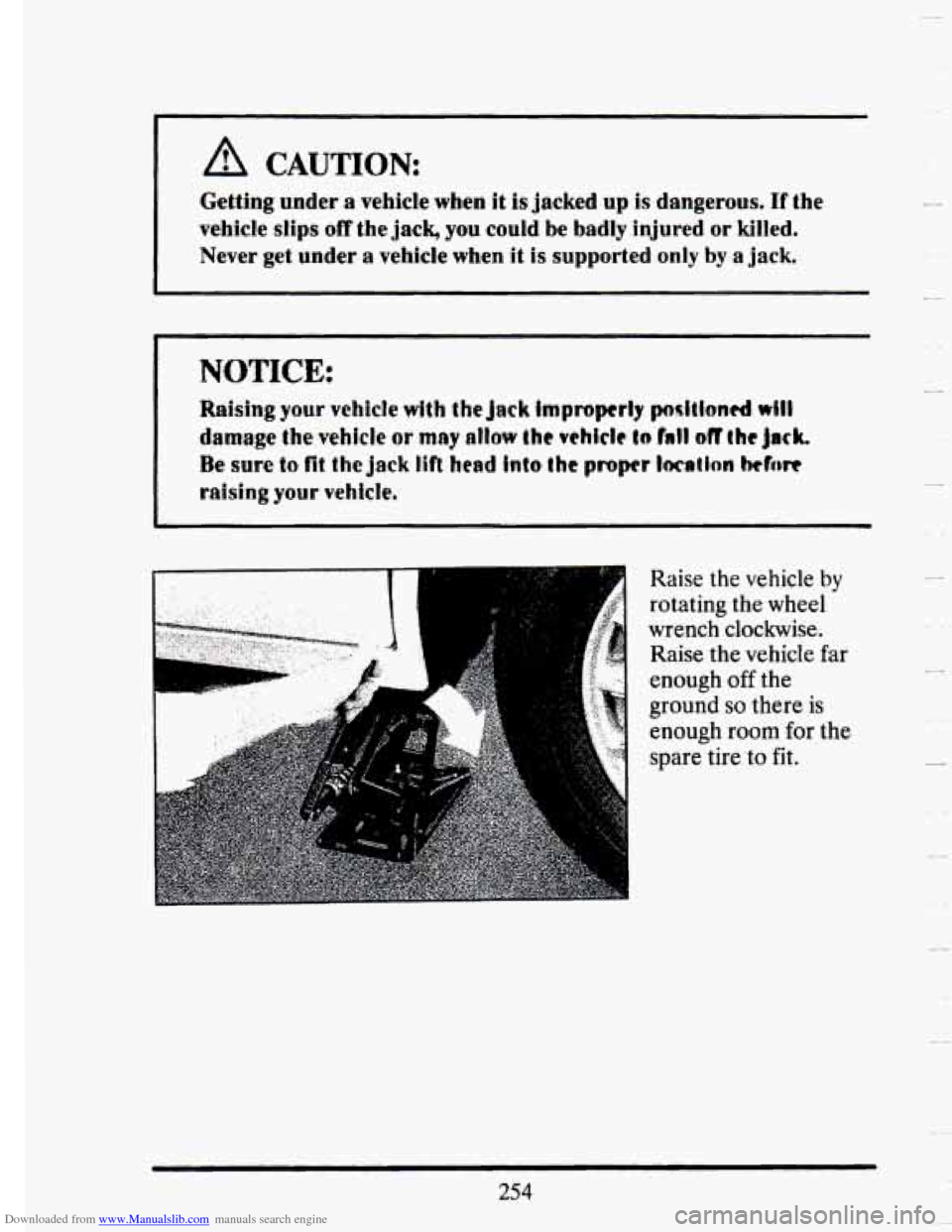

Downloaded from www.Manualslib.com manuals search engine I A CAUTION:
Getting under a vehicle when it is jacked up is dangerous. If the
vehicle
slips off the jack, you could be badly injured or killed.
Never get under
a vehicle when it is supported only by a jack.
NOTICE:
Raising your vehicle with the jack improperly positioned will
damage the vehicle or may allow the vehicle la Id1 OR the Jack.
Be sure to fit the jack lift head into the proper location btfntv
raising your vehicle,
Raise the vehicle by
rotating the wheel
wrench clockwise.
Raise the vehicle far
enough off the
ground
so there is
enough room
for the
spare tire
to fit.
254
-
. .*

Downloaded from www.Manualslib.com manuals search engine F
pl
P
P
P
F
c
Remove all the wheel
nuts and take
off the
flat tire.
A CAUTION: I
Rust or dirt on !he whd, or on the parts to which it is fastened,
can mahe the uhed nuts become loose after a time. The wheel
cuuld conw oll and c~use an accident. When you change a wheel,
remote un) rust or dirt from the places where the wheel
attaches
to the vehicle. In an emergency, you can use a cloth or a
paper towel to do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust or dirt off.
255

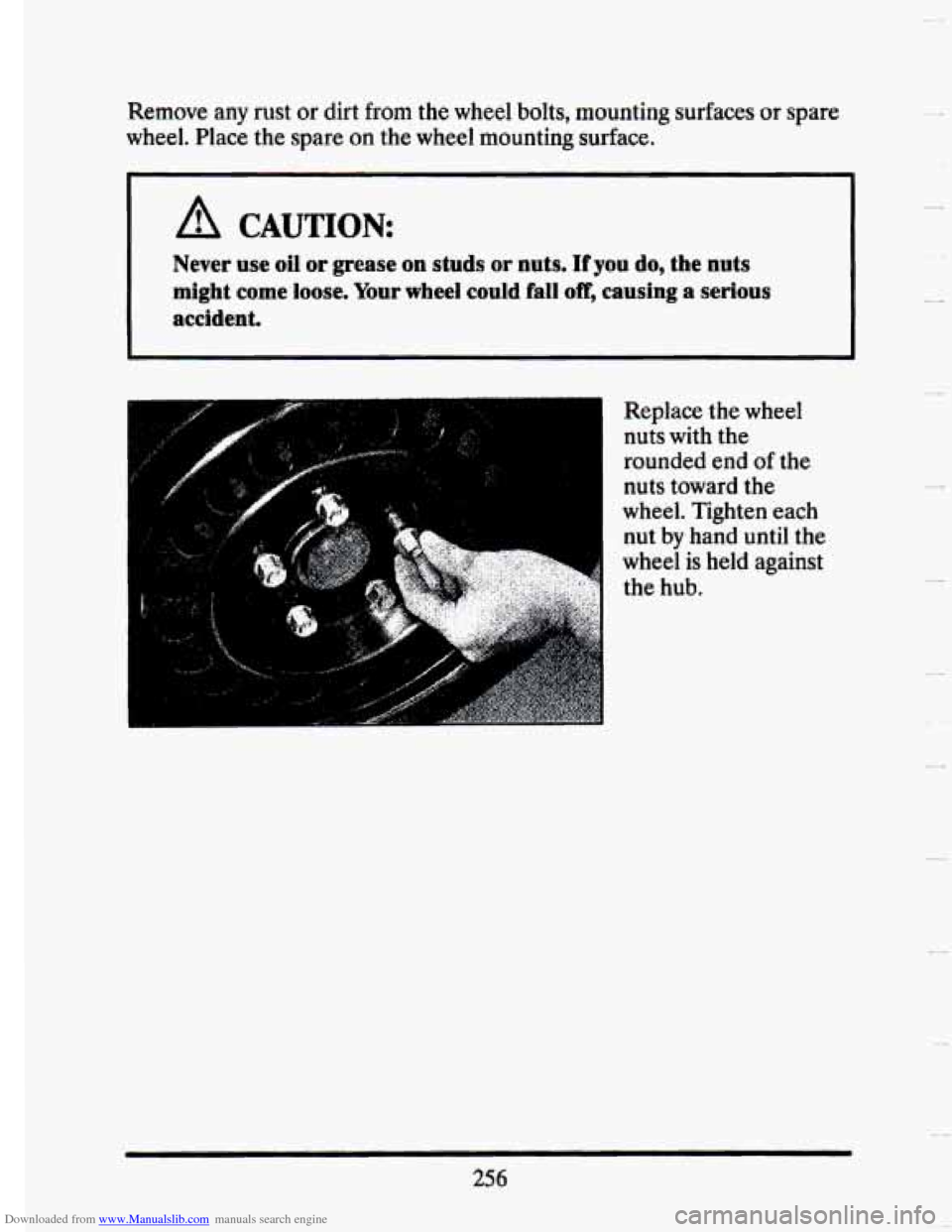

Downloaded from www.Manualslib.com manuals search engine Remove any rust or dirt from the wheel bolts, mounting surfaces or spare
wheel. Place the spare
on the wheel mounting surface.
A CAUTION
Never use oil or grease on studs or nuts. If you do, the nuts
might come loose. Your wheel could fall
off, causing a serious
accident.
Replace the wheel
nuts with the
rounded end
of the
nuts toward the
wheel. Tighten each
nut
by hand until the
256

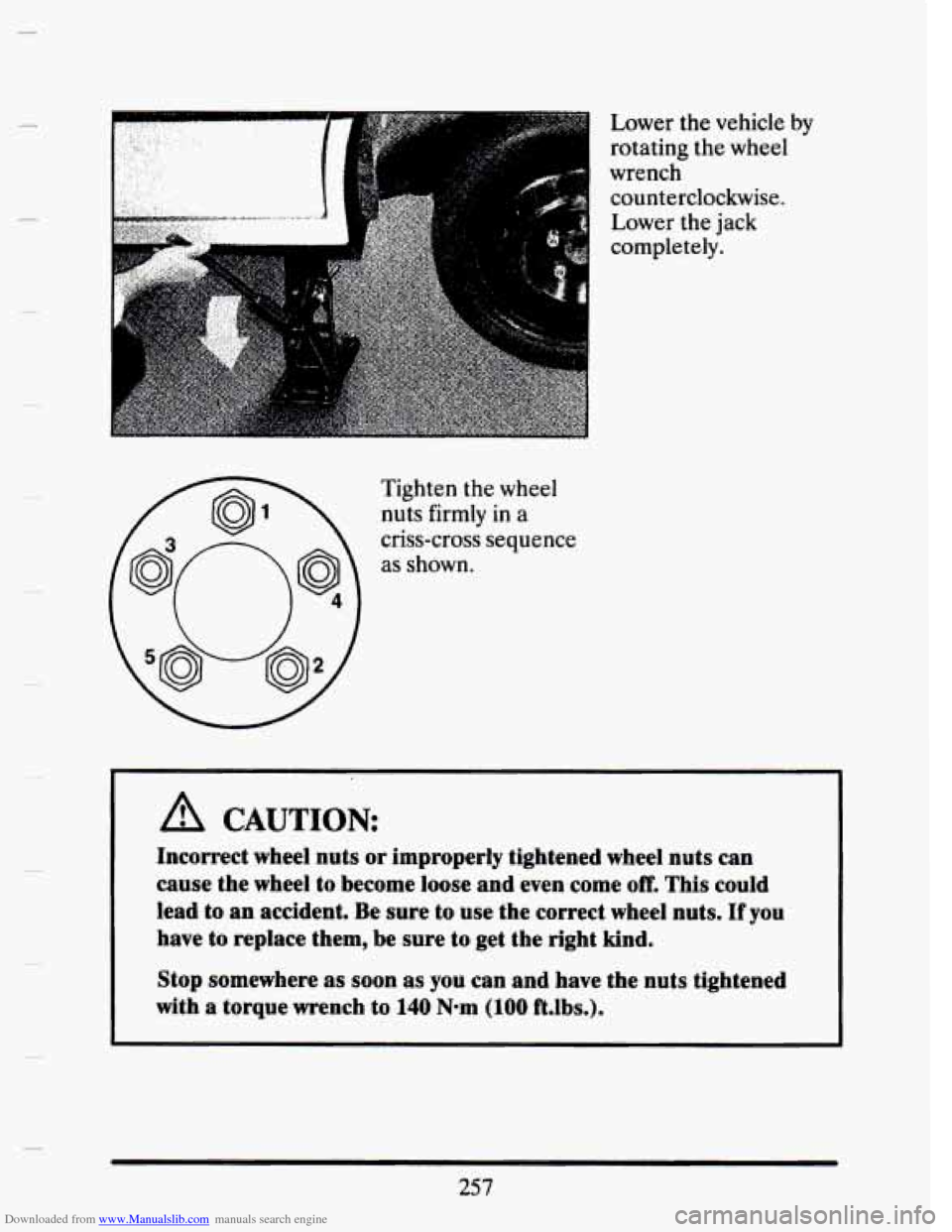

Downloaded from www.Manualslib.com manuals search engine Lower the vehicle by
rotating the wheel
wrench
counterclockwise.
Tighten the wheel nuts
firmly in a
criss-cross sequence as shown. Lower the jack
completely.
1 A CAUTION:
Incorrect wheel nuts or improperly tightened wheel nuts can
cause the wheel to become loose and even come
off. This could
lead to an accident. Be sure to use the correct wheel nuts.
If you
have to replace them, be sure to get the right kind.
Stop somewhere
as soon as you can and have the nuts tightened
with a torque wrench to 140 Nm (100 ft.lbs.).
257

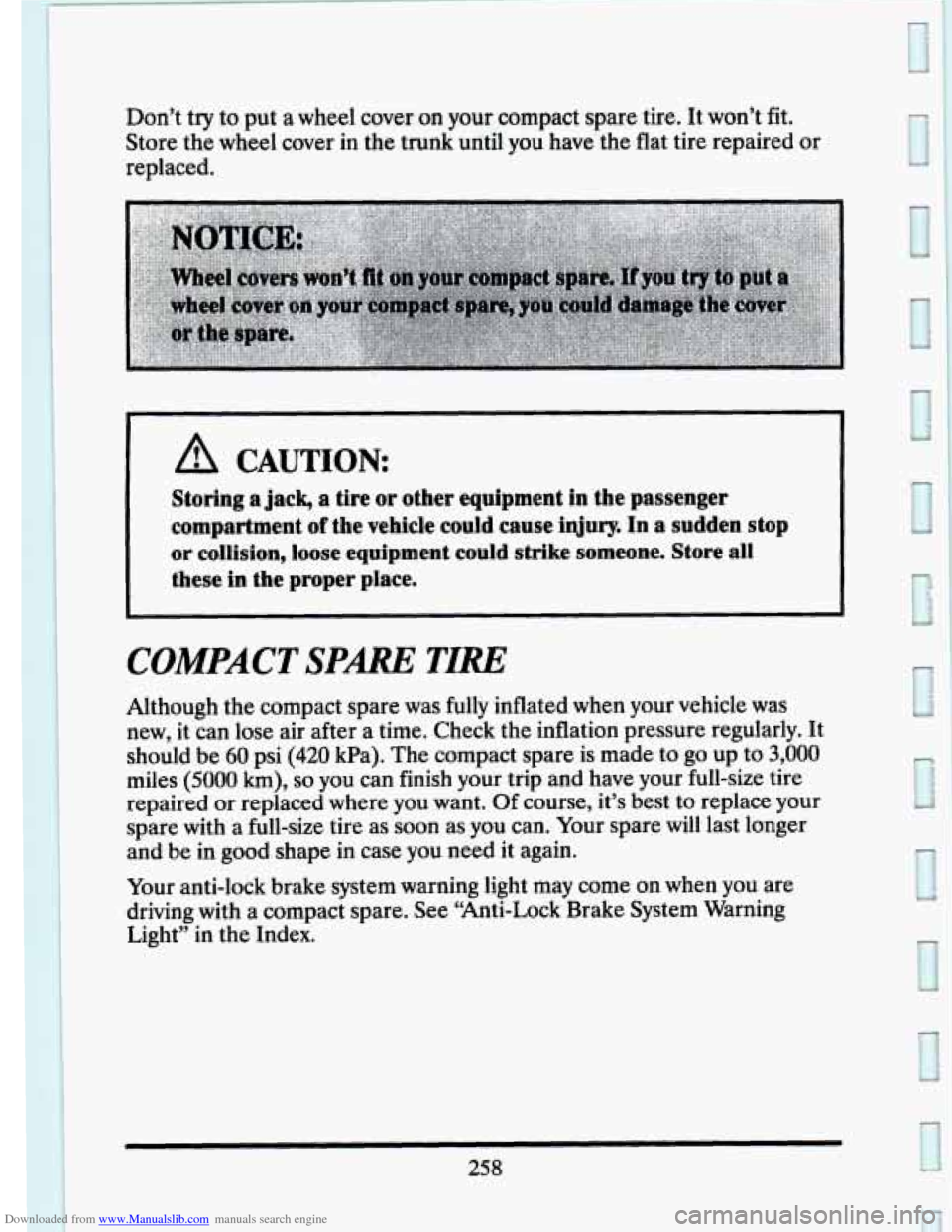

Downloaded from www.Manualslib.com manuals search engine A CAUTION:
Storing a jack, a tire or other equipment in the passenger
compartment
of the vehicle could cause injury. In a sudden stop
or collision, loose equipment could strike someone. Store all
these in the proper place.
COMPACT SPARE TIRE
Although the compact spare was fully inflated when your vehicle was
new, it can lose air after a time. Check the inflation pressure regularly. It
should be
60 psi (420 kPa). The compact spare is made to go up to 3,000
miles (5000 km), so you can finish your trip and have your full-size tire
repaired or replaced where you want. Of course, it’s best to replace your
spare with a full-size tire as
soon as you can. Your spare will last longer
and be
in good shape in case you need it again.
Your anti-lock brake system warning light may come on when you are
driving with a compact spare. See “Anti-Lock Brake System Warning
Light” in the Index.
