1993 CADILLAC SEVILLE Owners Manual

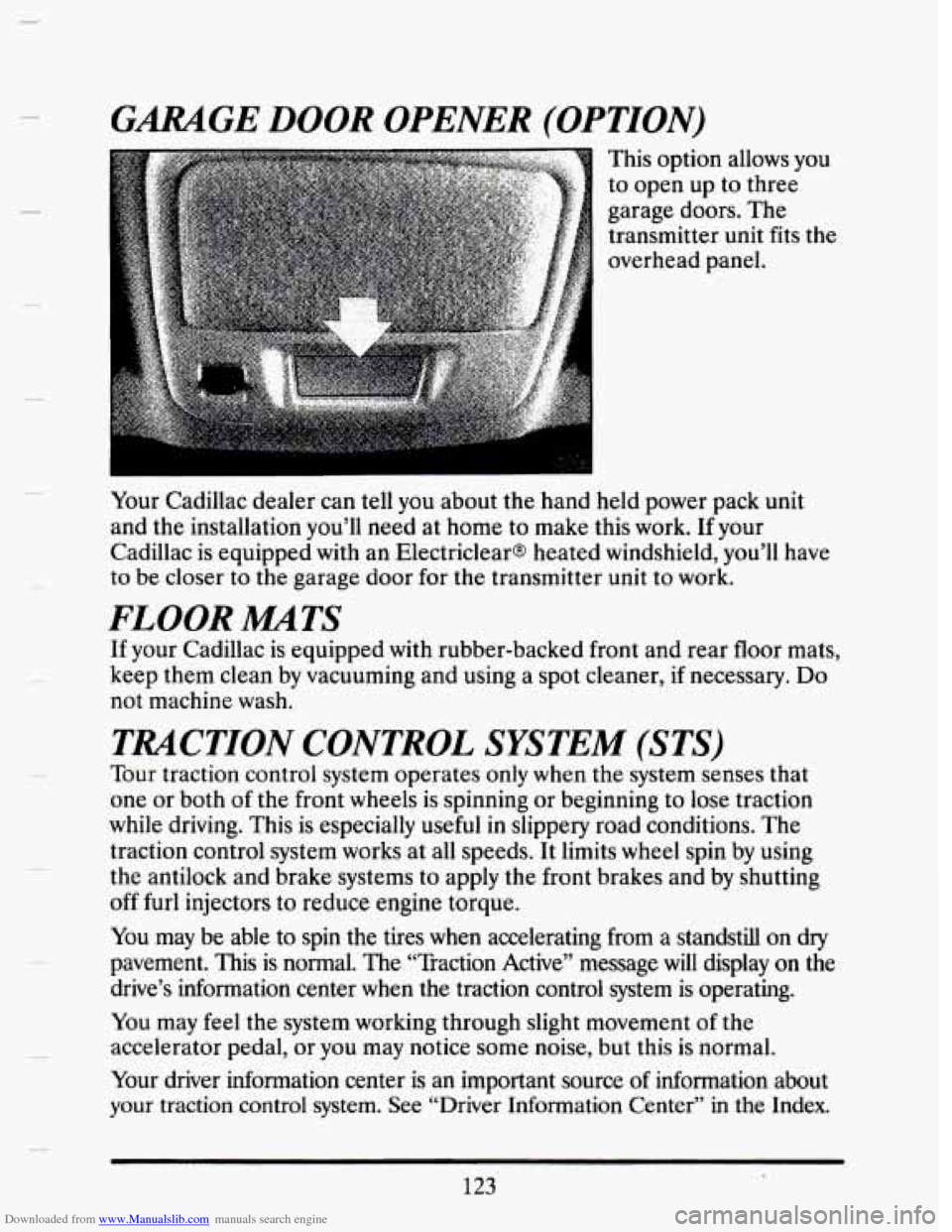

Downloaded from www.Manualslib.com manuals search engine GARAGE DOOR OPENER (OPTION)
This option allows you
to open up to three
garage doors. The
transmitter unit fits the
overhead panel.
Your Cadillac dealer can tell you about the hand held power pack unit
and the installation you’ll need at home to make this work. If your
Cadillac is equipped with an Electriclears heated windshield,
you’ll have
to be closer to the garage door for the transmitter unit to work.
FLOOR MATS
If your Cadillac is equipped with rubber-backed front and rear floor mats,
keep them clean by vacuuming and using a spot cleaner,
if necessary. Do
not machine wash.
TRACTION CONTROL SYSTEM (STS)
Tour traction control system operates only when the system senses that
one or both
of the front wheels is spinning or beginning to lose traction
while driving. This is especially useful
in slippery road conditions. The
traction control system works at all speeds. It limits wheel spin
by using
the antilock and brake systems
to apply the front brakes and by shutting
off furl injectors to reduce engine torque.
You may be able to spin the tires when accelerating from a standstill on
dry
pavement. This is normal. The “Traction Active” message will display on the
drive’s information center when the traction control system is operating.
You may feel the system working through slight movement
of the
accelerator pedal, or you may notice some noise, but this is normal.
Your driver information center is an important source
of information about
your traction control system. See “Driver Information Center” in the Index.
123

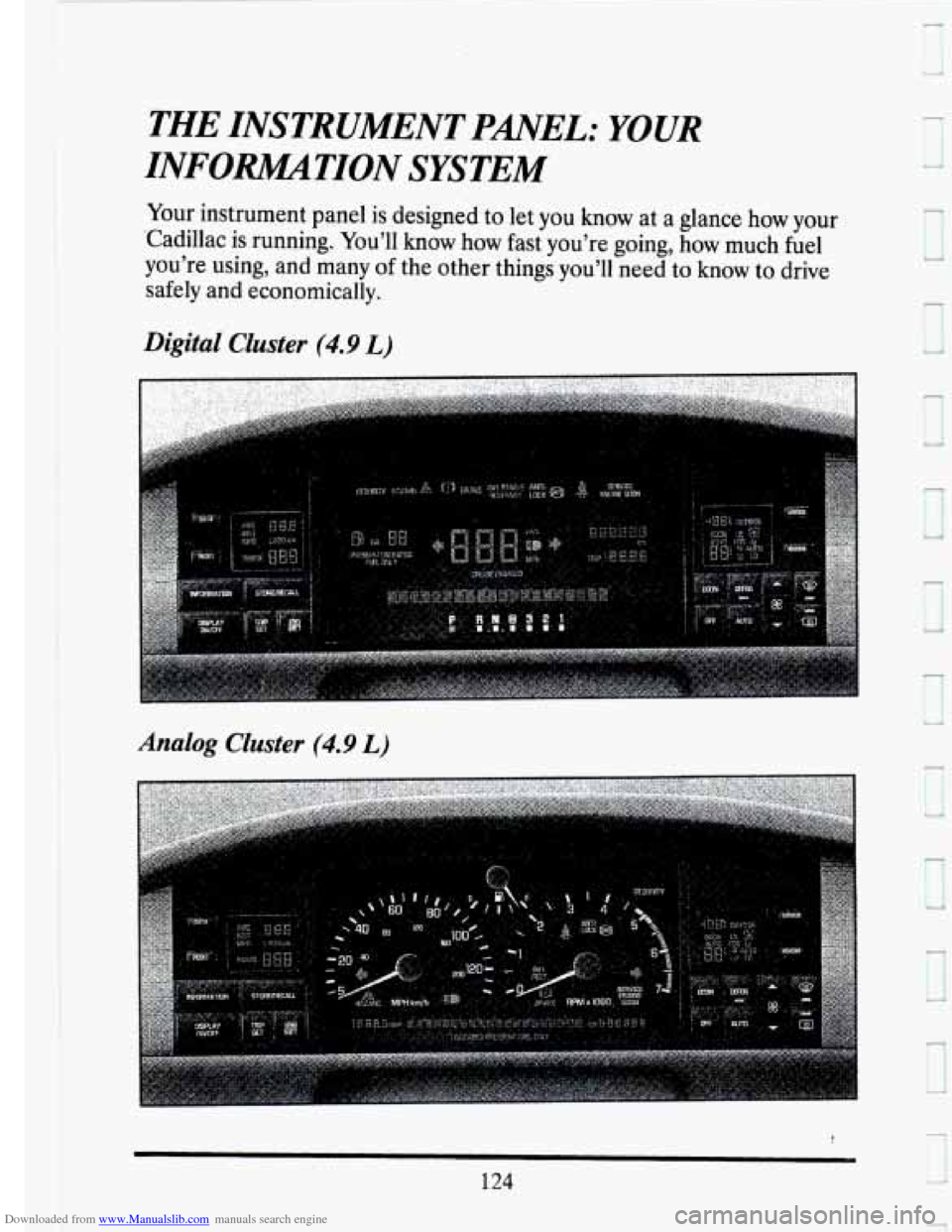

Downloaded from www.Manualslib.com manuals search engine THE INSTRUMENT PANEL: YOUR
INFOWTION SYSTEM
Your instrument panel is designed to let you know at a glance how your
'Cadillac is running. You'll
know how fast you're going, how much fuel
you're using, and many
of the other things you'll need to know to drive
safely and economically.
Analog Cluster (4.9 L)
3
124
u
U

Downloaded from www.Manualslib.com manuals search engine F

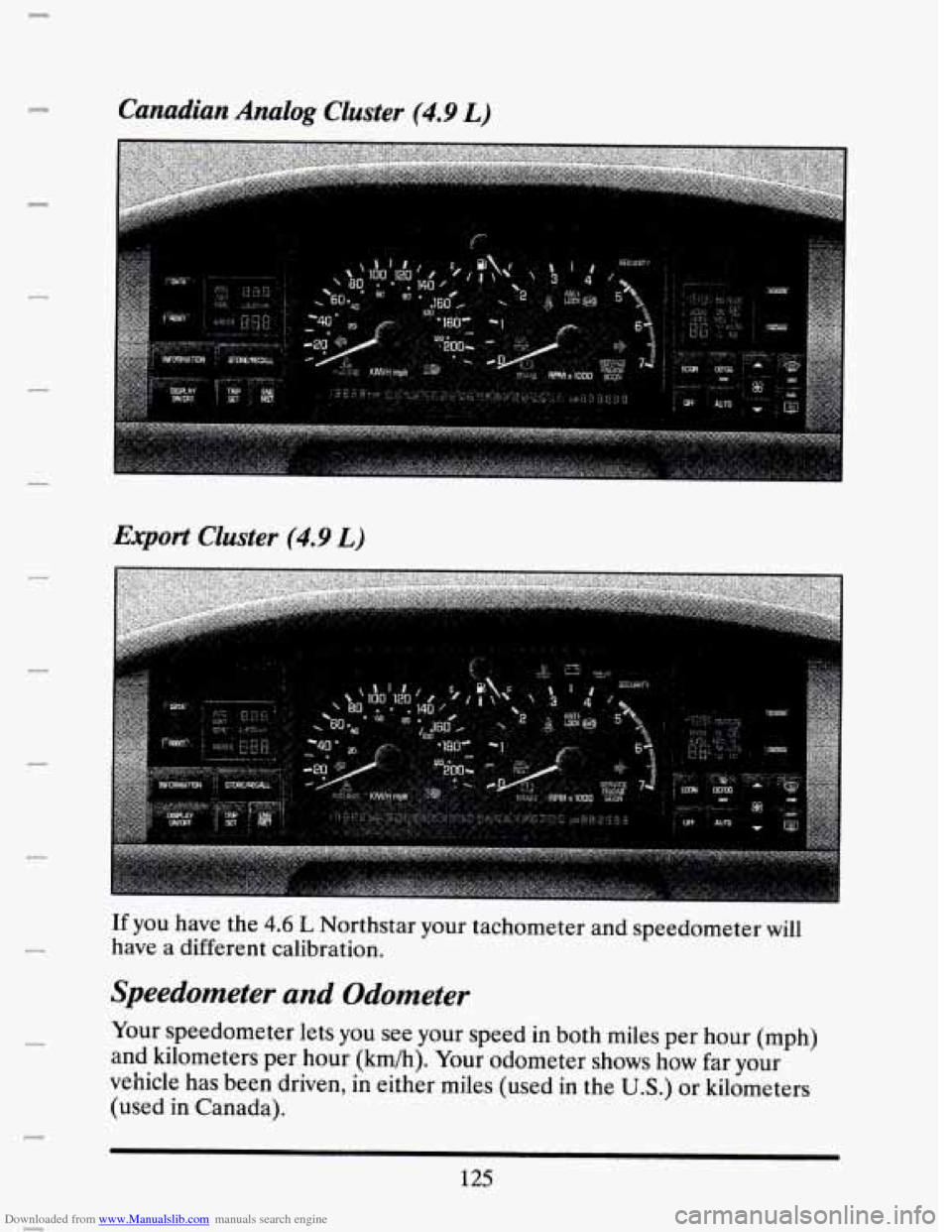

Eqort Cluster (4.9 L)
Speedometer and Odometer
Your speedometer lets you see your speed in both miles per hour (mph)
and kilometers per hour (km/h). Your odometer shows how far your
vehicle has been driven, in either miles (used in the
U.S.) or kilometers
(used in Canada).
c
125

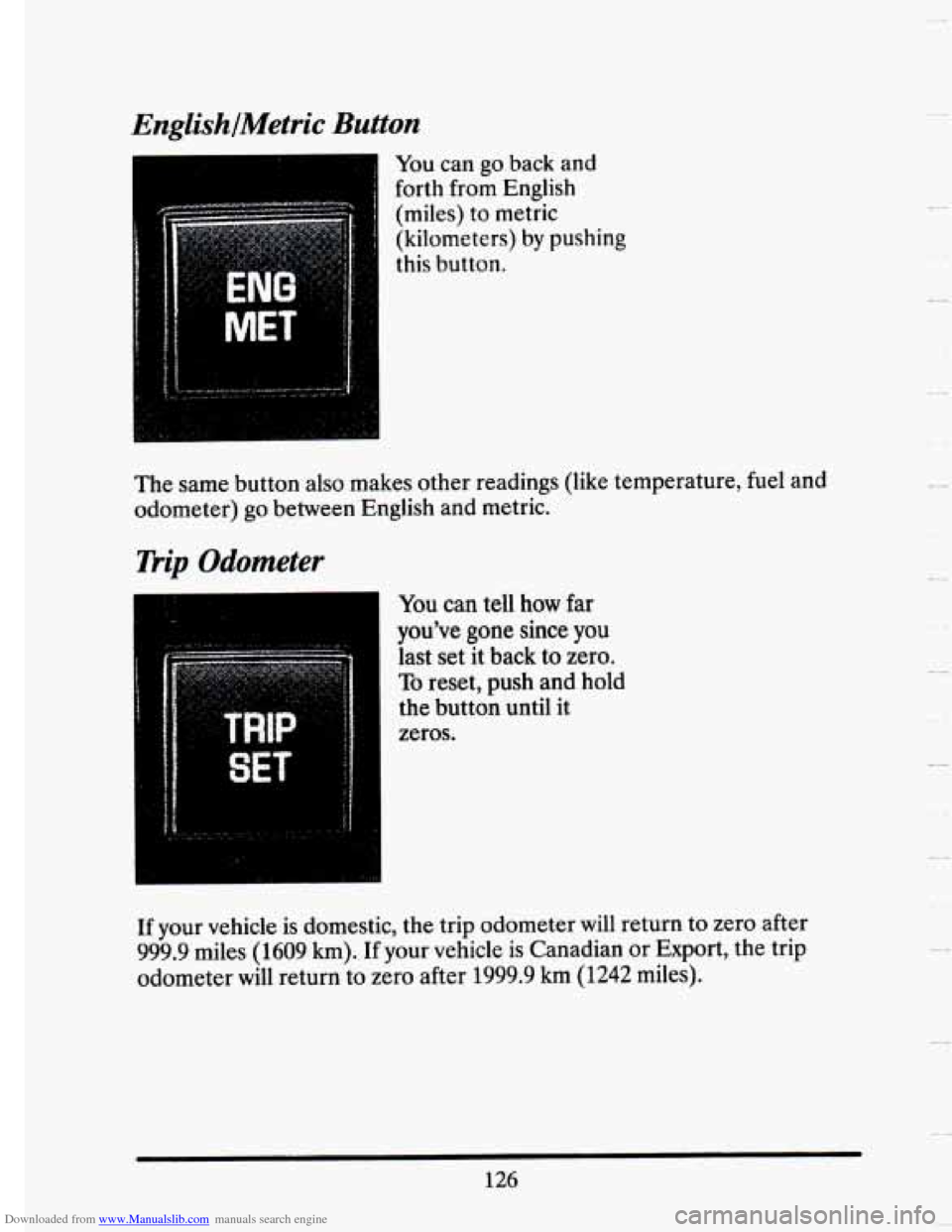

Downloaded from www.Manualslib.com manuals search engine EnglishlMetric Button
You can go back and
forth from English
(miles) to metric
(kilometers) by pushing
this button.
The same button also makes other readings (like temperature, fuel and
odometer) go between English and metric.
Trip Odometer
.. .. You can tell how far
you’ve gone since you
last set it back to zero.
To reset, push and hold
the button until it
zeros.
If your vehicle is domestic, the trip odometer will return to zero after
999.9 miles (1609 km). If your vehicle is Canadian or Export, the trip
odometer
will return to zero after 1999.9 km (1242 miles).
126

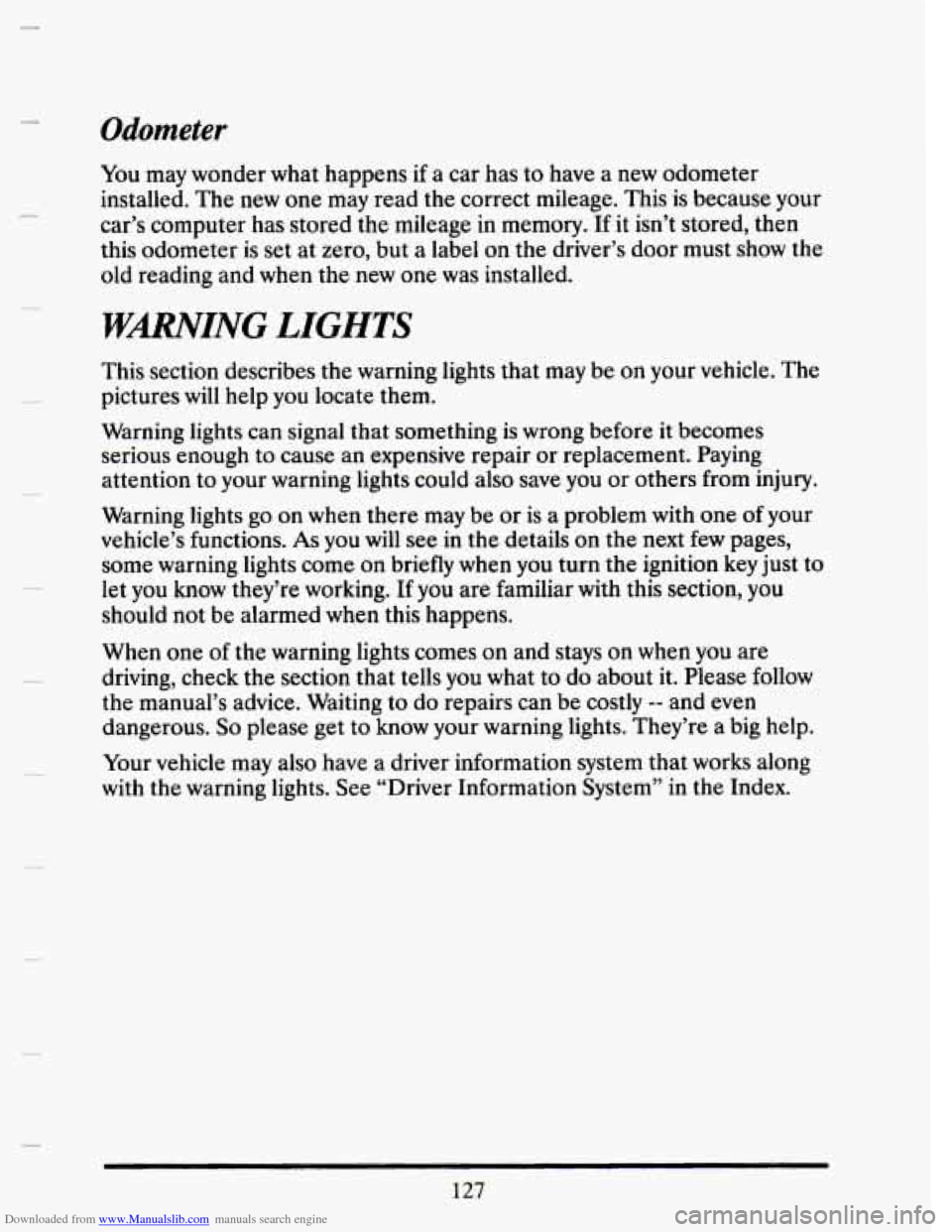

Downloaded from www.Manualslib.com manuals search engine Odometer
You may wonder what happens if a car has to have a new odometer
installed. The new one may read the correct mileage. This
is because your
car’s computer
has stored the mileage in memory. If it isn’t stored, then
this odometer
is set at zero, but a label on the driver’s door must show the
old reading and when the new one was installed.
WARNING LIGHTS
This section describes the warning lights that may De on your vehicle. The
pictures will help you locate them.
Warning lights can signal that something is wrong before
it becomes
serious enough
to cause an expensive repair or replacement. Paying
attention to your warning lights could also save you
or others from injury.
Warning lights go on when there may be or is a problem with one
of your
vehicle’s functions.
As you will see in the details on the next few pages,
some warning lights come on briefly when you turn the ignition key just to
let you
know they’re working. If you are familiar with this section, you
should not be alarmed when this happens.
When one
of the warning lights comes on and stays on when you are
driving, check the section that tells you what to do about it. Please follow
the manual’s advice. Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights. They’re a big help.
Your vehicle may also have a driver information system that works along
with.
. the ,. warning lights. See “Driver Information System” in the Index.

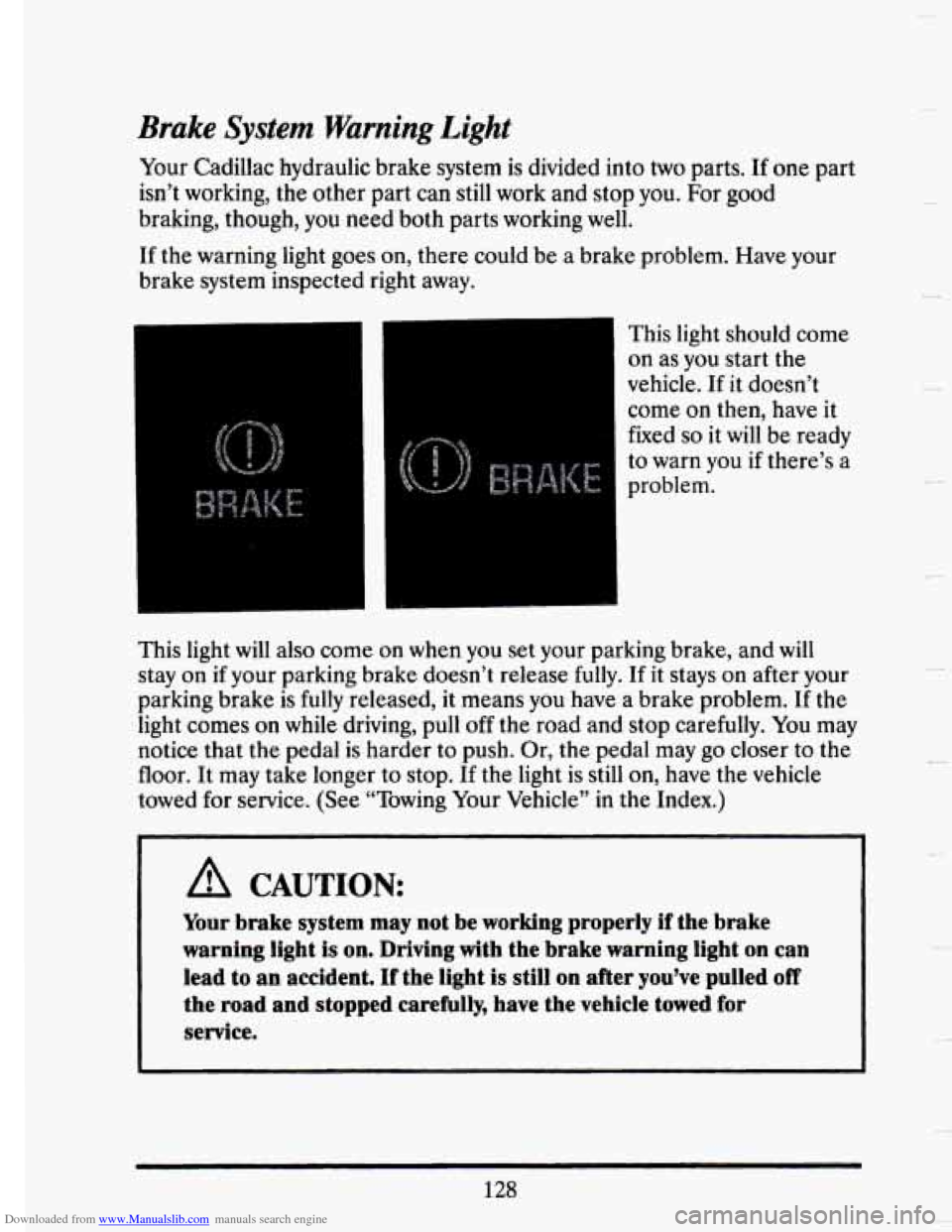

Downloaded from www.Manualslib.com manuals search engine Brake System Warning Light
Your Cadillac hydraulic brake system is divided into two parts. If one part
isn’t working, the other part can still work and stop
you. For good
braking, though, you need both parts working well.
If the warning light goes on, there could be a brake problem. Have your
brake system inspected right away.
This light should come
on as you start the
vehicle.
If it doesn’t
come
on then, have it
fixed
so it will be ready
to warn you if there’s a
problem.
This light
will also come on when you set your parking brake, and will
stay on if your parking brake doesn’t release fully. If it stays on after your
parking brake is fully released, it means you have a brake problem. If the
light comes
on while driving, pull off the road and stop carefully. You may
notice that the pedal is harder to push. Or, the pedal may go closer to the
floor. It may take longer to stop. If the light is still
on, have the vehicle
towed for service. (See “Towing Your Vehicle” in the Index.)
A CAUTION:
Your brake system may not be working properly if the brake
warning light is on. Driving with the brake warning light on can
lead to an accident. If the light
is still on after you’ve pulled off
the road and stopped carefully, have the vehicle towed for
service.
128
c

Downloaded from www.Manualslib.com manuals search engine F
P
!
r I
Anti-Lock Brake System Warnmg Light
With anti-lock, this light will go on when you start your engine and may
stay on for several seconds
or so. That’s normal. If the light doesn’t come
on, have it fixed
so it will be ready to warn you if there is a problem.
If the light stays on or comes on when you’re driving, stop as soon as
possible and turn the key
off. Then start the engine to reset the system. If
the light still stays
on, or comes on again while you’re driving, your
Cadillac needs service. Unless the regular brake system warning light
is
also on, you will still have brakes, but not anti-lock brakes. If the regular
brake system warning light is also on, see “Brake System Warning Light”
earlier in this part.
The anti-lock brake system warning light may also come
on when you are
driving with a compact spare tire. If this happens, the light means you
won’t have anti-lock
until you replace the compact spare with a full-size
tire. If the warning light stays on after you replace the compact spare with
;I full-six ticc, or if II corms on uguin when you’re driving, your Cadillac
llb*L~J yln lib’ I
129

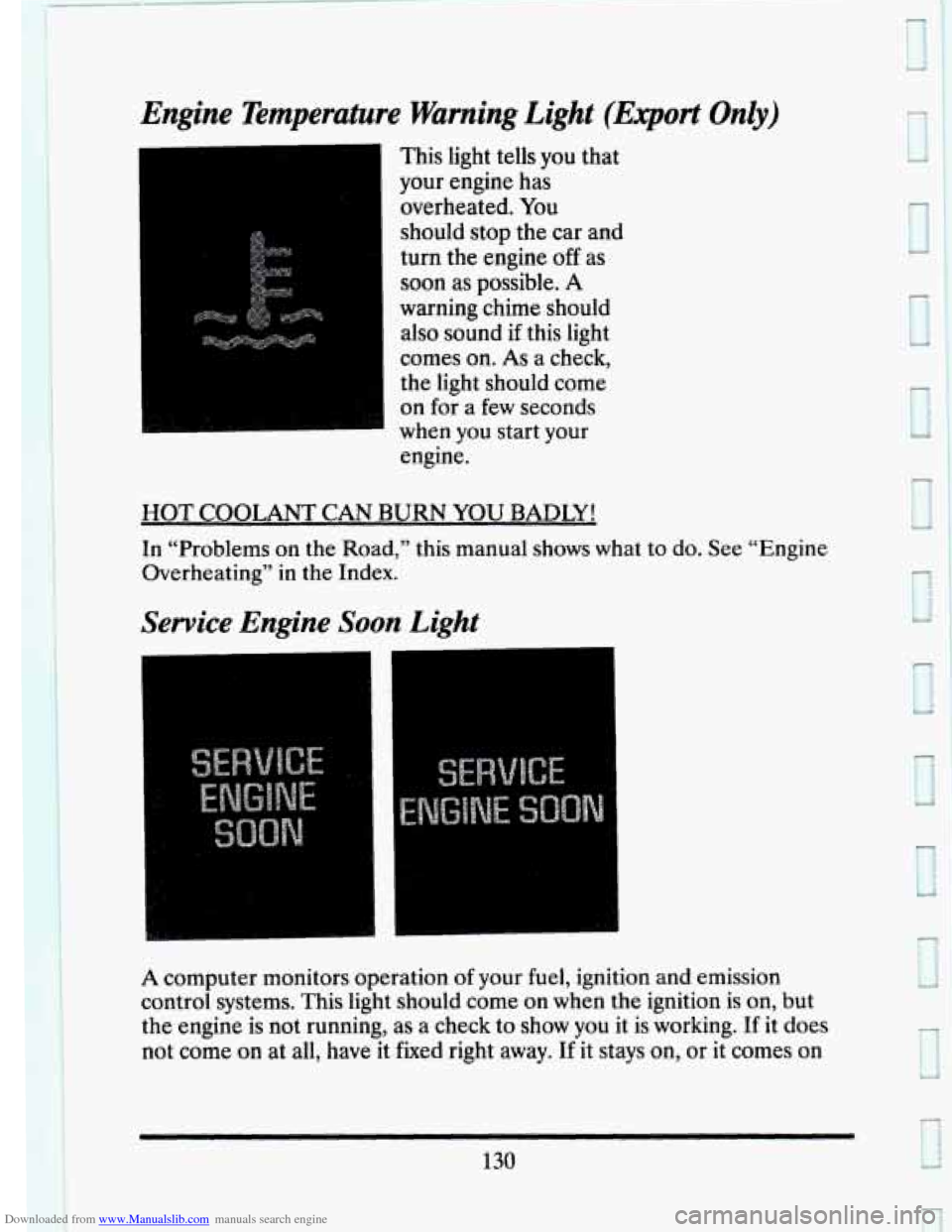

Downloaded from www.Manualslib.com manuals search engine Engine Temperature Warning Light (Export Only)
This light tells you that
your engine has
overheated. You
should stop the car and
turn the engine
off as
soon
as possible. A
warning chime should also sound if this light
comes on.
As a check,
the light should come
on for
a few seconds
when you start your
engine.
HOT COOLANT CAN BURN YOU BADLY!
In “Problems on the Road,” this manual shows what to do. See “Engine
Overheating”
in the Index.
Service Engine Soon Light
A computer monitors operation of your fuel, ignition and emission
control systems. This light should come on when the ignition is on, but
the engine is not running, as a check to show
you it is working. If it does
not come
on at all, have it fixed right away. If it stays on, or it comes on
130
