2023 HYUNDAI SANTA FE HYBRID Owners Manual

03
3-19
Seat Warmers (if equipped)
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers
OFF.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[Infants, children, elderly or disabled
persons, or hospital outpatients.

[ People with sensitive skin or who
burn easily.

[ Fatigued individuals.

[ Intoxicated individuals.

[ People taking medication that can
cause drowsiness or sleepiness.
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
NOTICE
To prevent damage to the seat warmers
and seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Do not place heavy or sharp objects
on seats equipped with seat
warmers.

[ Do not change the seat cover. It may
damage the seat warmer.
„Front seat
OTM030002
„Rear seat
OTM030078

Seats & Safety System3-20
While the engine is running, push either
of the switches to warm the driver's seat
or front passenger's seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.

[ Manual temperature control
Each time you push the switch, the
temperature setting of the seat is
changed as follows :

- Front seat
OFF
LOW ( )HIGH ( )
MEDIUM ( )
- Rear seat
OFF
Ÿ HIGH ( )
Ÿ LOW ( )

[ Automatic temperature control
The seat warmer starts to
automatically control the seat
temperature in order to prevent
low-temperature burns after being
manually turned ON.

- Front seat
OFF
Ÿ



¡
¢0,1
0,1
LOW ( )+,*+
0(',80
- Rear seat
OFF
Ÿ HIGH ( )
Ÿ LOW ( )30 MIN
If HIGH temperature is manually
selected again, the temperature will
be controlled automatically.
[
When pressing the switch for more
than 1.5 seconds with the seat warmer
operating, the seat warmer will turn
OFF.

[ The seat warmer defaults to the OFF
position whenever the ignition switch
is ON.

[ Auto Comfort Control (for driver’s
seat) (if equipped)
- The seat warmer automatically controls the seat temperature
depending on the ambient
temperature and the set climate
control temperature when the
engine is running. If the seat
warmer switch is pushed, the seat
warmer will have to be controlled
manually.
To use this function, it must be
activated from the Settings menu in
the AV/AVN system screen.
- The seat warmer defaults to the OFF position whenever the ignition
switch is ON. However, if the Auto
Comfort Control function is ON, the
driver’s seat warmer will turn on
and off depending on the ambient
temperature and the set climate
control temperature.
Information

[ With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending
on the seat temperature.

[ For more information, refer to
the user's manual provided in the
infotainment system and the quick
reference guide.

03
3-21
Air Ventilation Seat (if equipped)
OTM030003
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the switches in
the OFF position.
While the engine is running, push the
switch to cool the driver's seat or the
front passenger's seat (if equipped).
NOTICE
To prevent damage to the air ventilation
seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Avoid spilling liquids on the surface
of the front seats and seatbacks; this
may cause the air vent holes to block
and not work properly.

[ Do not place materials such as plastic
bags or newspapers under the seats.
They may block the air intake causing
malfunction of the air vent.

[ Do not change the seat covers. It may
damage the air ventilation seat.

[ If the air vents do not operate, restart
the vehicle. If there is no change,
have your vehicle inspected by an
authorized HYUNDAI dealer.

Seats & Safety System3-22

[ Each time you push the switch, the
airflow changes as follows:
OFF
LOW ( )HIGH ( )
MEDIUM ( )

[ When pressing the switch for
more than 1.5 seconds with the
air ventilation seat operating, the
operation will turn OFF.

[ The air ventilation seat defaults to the
OFF position whenever the ignition
switch is placed to the ON position.

[ Auto Comfort Control (for driver’s
seat) (if equipped)

- The air ventilation seat
automatically controls the seat
temperature depending on the
ambient temperature and the set
climate control temperature when
the engine is running. If the air
ventilation seat switch is pushed,
the air ventilation seat will have to
be controlled manually.
To use this function, it must be
activated from the Settings menu in
the AV/AVN system screen.

- The air ventilation seat defaults
to the OFF position whenever the
ignition switch is ON. However, if
the Auto Comfort Control function
is ON, the air ventilation seat will
turn on and off depending on the
ambient temperature and the set
climate control temperature.
Information
For more information, refer to the user's
manual provided in the infotainment
system and the quick reference guide.

03
3-23
This section describes how to use the
seat belts properly. It also describes
some of the things not to do when using
seat belts.
Seat Belt Safety Precautions
Always fasten your seat belt and make
sure all passengers have fastened their
seat belts before starting any trip. Air
bags are designed to supplement the
seat belt as an additional safety device,
not a replacement. Most countries
require all occupants of a vehicle to wear
seat belts.
WARNING
Seat belts must be used by ALL
passengers whenever the vehicle is
moving. Take the following precautions
when adjusting and wearing seat belts:

[Children under the age of 13 should
be properly restrained in the rear
seats.

[ Never allow children to ride in the
front passenger seat, unless the air
bag is deactivated. If a child is seated
in the front passenger seat, move the
seat as far back as possible. And the
child must always be restrained in
the seat properly.

[ NEVER allow an infant or child to be
carried on an occupant’s lap.

[ NEVER ride with the seatback
reclined when the vehicle is moving.

[ Do not allow children to share a seat
or seat belt.

[ Do not wear the shoulder belt under
your arm or behind your back.
[
NEVER wear a seat belt over fragile
objects. If there is a sudden stop or
impact, the seat belt can damage it.

[ Do not use the seat belt if it is
twisted. A twisted seat belt will not
protect you properly in an accident.

[ Do not use a seat belt if the webbing
or hardware is damaged.

[ Do not latch the seat belt into the
buckles of other seats.

[ NEVER unfasten the seat belt
while driving. This may cause loss
of vehicle control resulting in an
accident.

[ Make sure there is nothing in the
buckle interfering with the seat
belt latch mechanism, because any
materials in the buckle can cause the
seat belt no to be fastened securely.

[ No modifications or additions
should be made by the user which
will either prohibit the seat belt
adjusting devices from operating to
remove slack, or prohibit the seat
belt assembly from being adjusted to
remove slack.
WARNING
Damaged seat belts and seat belt
assemblies will not operate properly.
Always replace:

[Frayed, contaminated, or damaged
webbing.

[ Damaged hardware.

[ The entire seat belt assembly after it
has been worn in an accident, even
if damage to webbing or assembly is
not apparent.
SEAT BELTS

Seats & Safety System3-24
Seat Belt Warning Light
Driver’s seat belt warning
„Instrument cluster
OTM030004
As a reminder to the driver, the seat
belt warning light will illuminate for
approximately 6 seconds each time the
ignition is ON position regardless of belt
fastening. At this time, if the seat belt is
not fastened a warning chime will sound
for 6 seconds.
If you continue not to fasten the seat belt
and you drive over 6 mph (9 km/h), the
warning light will stay illuminated.
If you continue not to fasten the seat belt
and you drive over 12 mph (20 km/h),
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driving
under 12 mph (20 km/h), the seat belt
warning light will illuminate until the seat
belt is fastened.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
seat belt warning chime will sound for
approximately 100 seconds and the
corresponding warning light will blink.
Front passenger’s seat belt warning
As a reminder to the front passenger,
the front passenger’s seat belt warning
lights will illuminate for approximately 6
seconds each time you place the ignition
switch to the ON position regardless of
belt fastening.
If you continue not to fasten the seat belt
and you drive over 12 mph (20 km/h),
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driving
under 12 mph (20 km/h), the seat belt
warning light will illuminate until the seat
belt is fastened.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
seat belt warning chime will sound for
approximately 100 seconds and the
corresponding warning light will blink.
WARNING
Riding in an improper position
adversely affects the front passenger’s
seat belt warning system. It is important
for the driver to instruct the passenger
to properly be seated as instructed in
this manual.
Information

[ Although the front passenger seat is not
occupied, the seat belt warning light
will blink or illuminate for 6 seconds.

[ The front passenger’s seat belt warning
may operate when luggage is placed on
the front passenger seat.

03
3-25

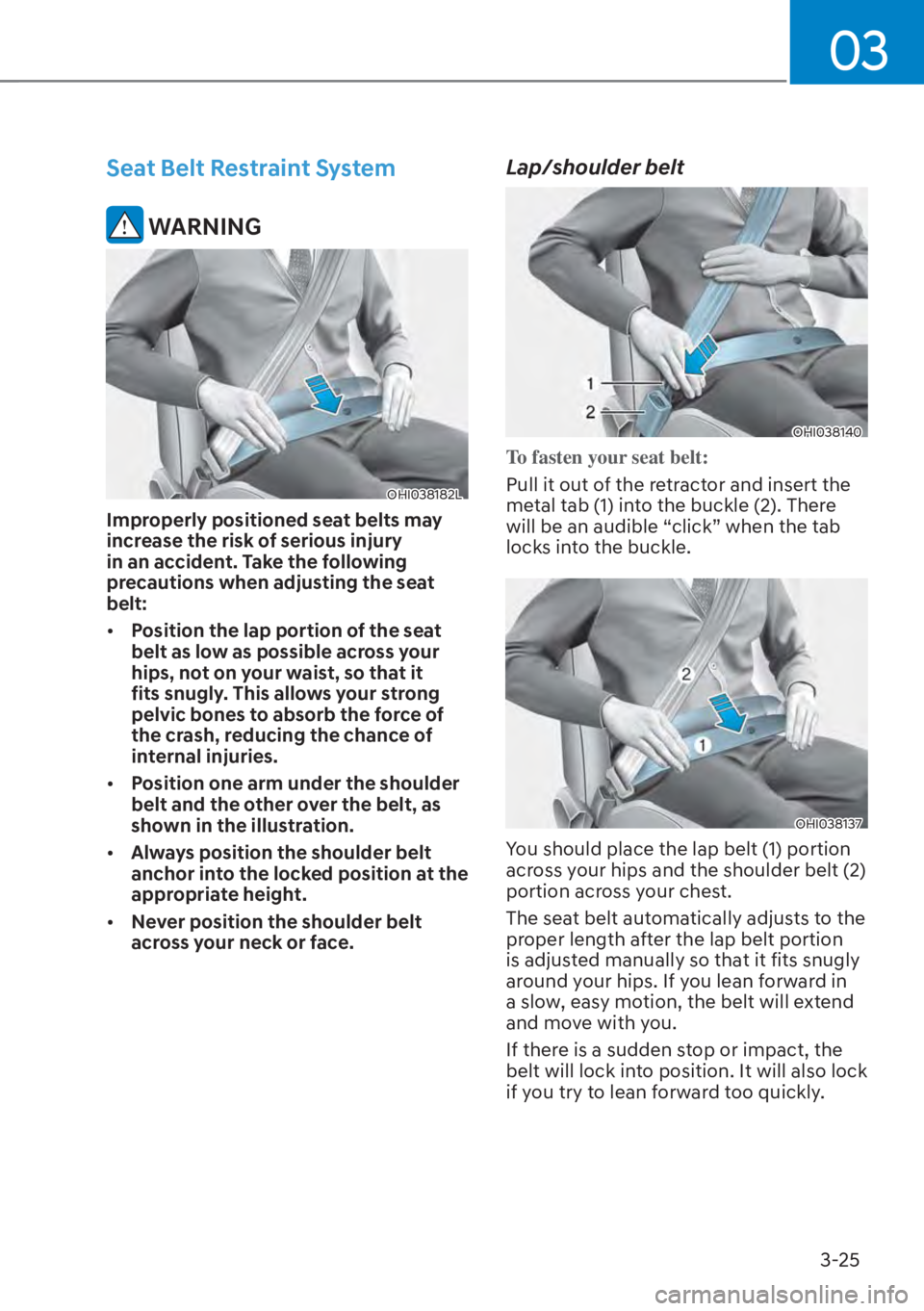

Seat Belt Restraint System
WARNING
OHI038182L
Improperly positioned seat belts may
increase the risk of serious injury
in an accident. Take the following
precautions when adjusting the seat
belt:

[Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it
fits snugly. This allows your strong
pelvic bones to absorb the force of
the crash, reducing the chance of
internal injuries.

[ Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.

[ Always position the shoulder belt
anchor into the locked position at the
appropriate height.

[ Never position the shoulder belt
across your neck or face.
Lap/shoulder belt
OHI038140
To fasten your seat belt:
Pull it out of the retractor and insert the
me

tal tab (1) into the buckle (2). There
will be an audible “click” when the tab
locks into the buckle.
OHI038137
You should place the lap belt (1) portion
across your hips and the shoulder belt (2)
portion across your chest.
The seat belt automatically adjusts to the
proper length after the lap belt portion
is adjusted manually so that it fits snugly
around your hips. If you lean forward in
a slow, easy motion, the belt will extend
and move with you.
If there is a sudden stop or impact, the
belt will lock into position. It will also lock
if you try to lean forward too quickly.

Seats & Safety System3-26

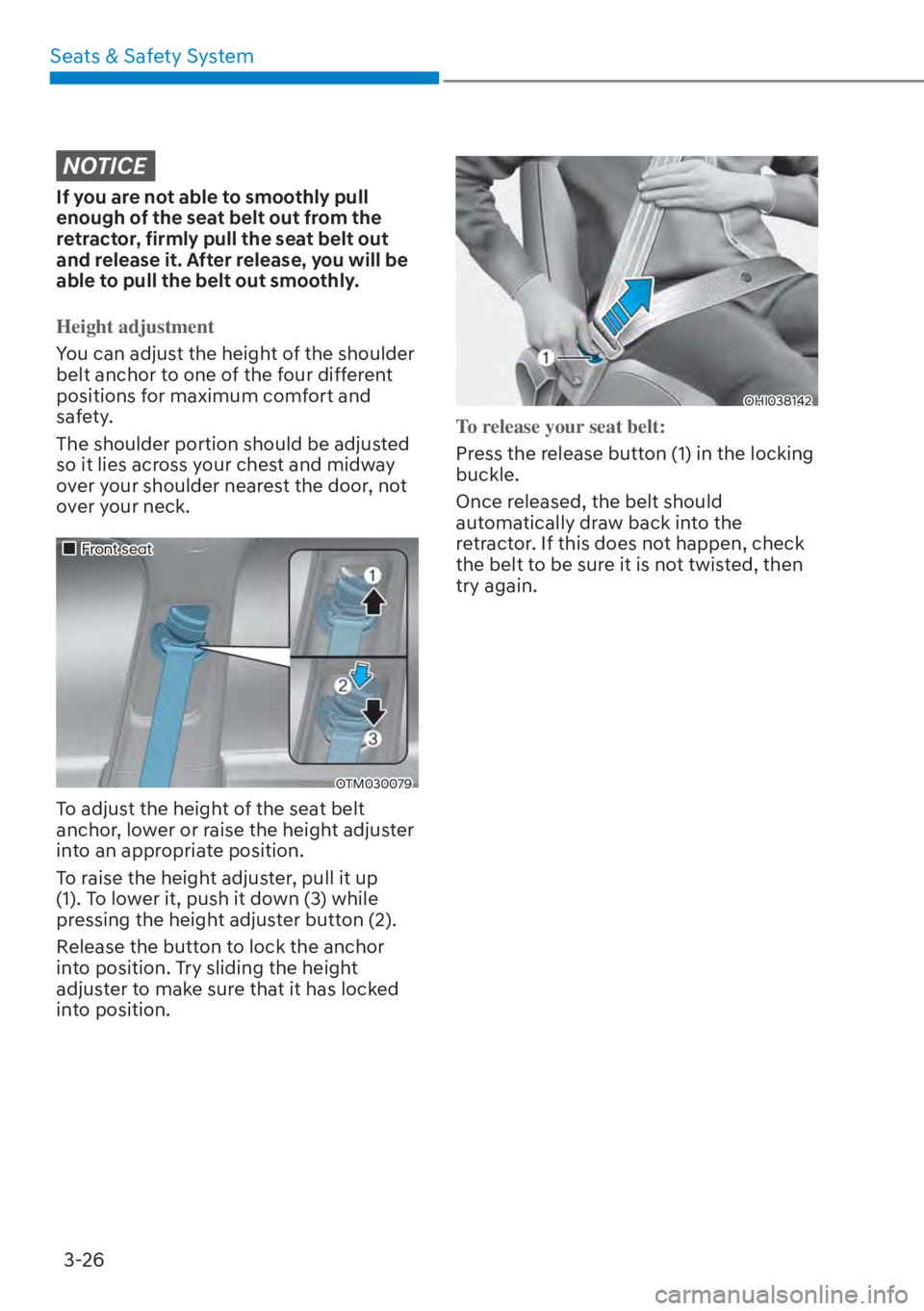

NOTICE
If you are not able to smoothly pull
enough of the seat belt out from the
retractor, firmly pull the seat belt out
and release it. After release, you will be
able to pull the belt out smoothly.
Height adjustment
You can adjust the height of the shoulder
belt anchor t
o one of the four different
positions for maximum comfort and
safety.
The shoulder portion should be adjusted
so it lies across your chest and midway
over your shoulder nearest the door, not
over your neck.
„Front seat
OTM030079
To adjust the height of the seat belt
anchor, lower or raise the height adjuster
into an appropriate position.
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button (2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has locked
into position.
OHI038142
To release your seat belt:
Press the release button (1) in the locking
buckle.
Once r

eleased, the belt should
automatically draw back into the
retractor. If this does not happen, check
the belt to be sure it is not twisted, then
try again.
