Driver assistance system7-106

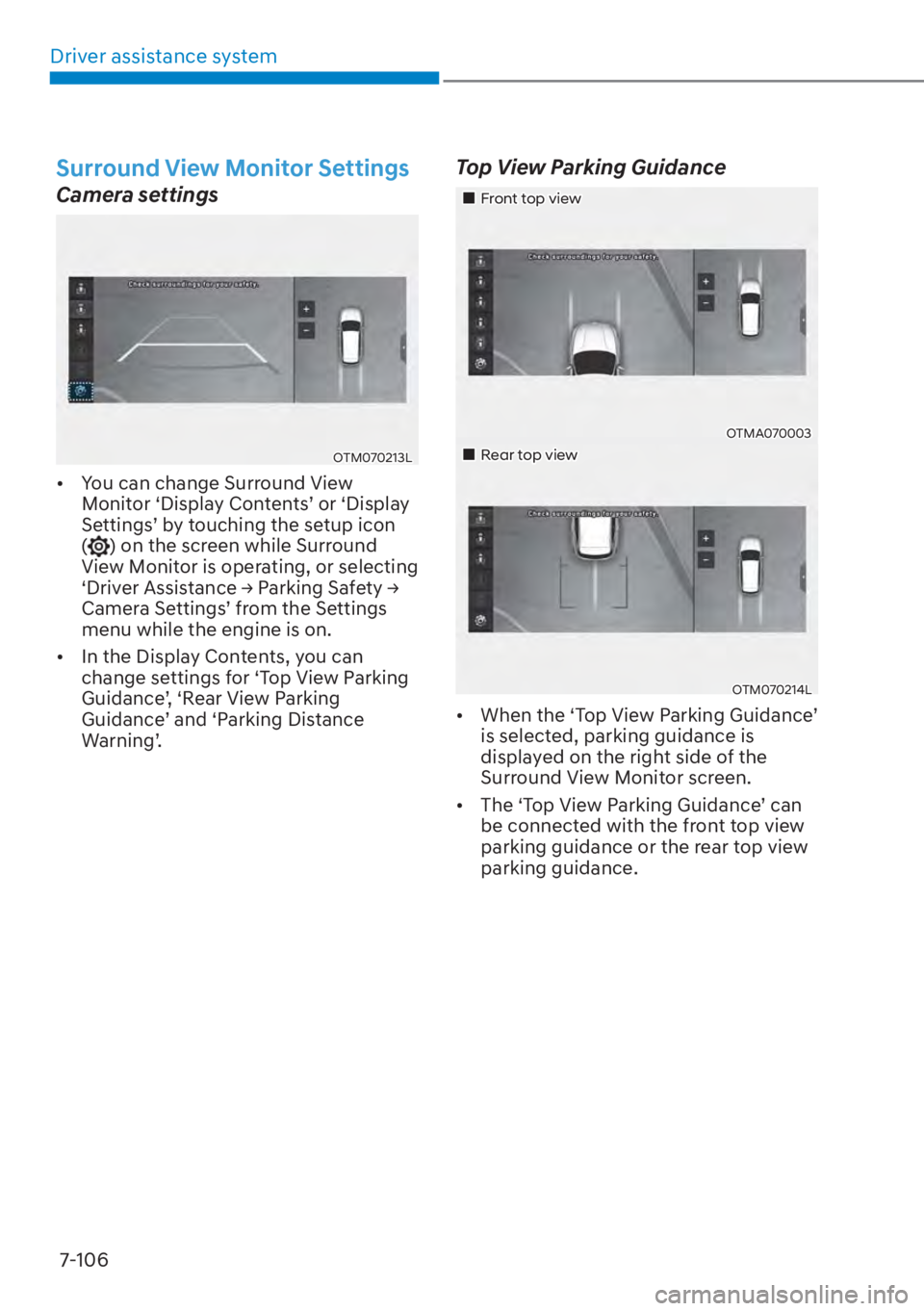

Surround View Monitor Settings
Camera settings
OTM070213L

[ You can change Surround View
0RQLWRU
S'LVSOD\&RQWHQWV
TRU
S'LVSOD\
6HWWLQJV
TE\WRXFKLQJWKHVHWXSLFRQ
(
) on the screen while Surround
View Monitor is operating, or selecting

S'ULYHU$VVLVWDQFH

07
7-107
Rear View Parking Guidance
OTM070216L

[When the ‘Rear View Parking
*XLGDQFH
TLVVHOHFWHGSDUNLQJ
guidance is displayed in the rear view.

[ The horizontal guideline of the Rear
View Parking Guidance shows the
distance of 1.6 ft (0.5 m), 3.3 ft (1 m)
and 7.6 ft (2.3 m) from the vehicle.
Parking Distance Warning
OTM070217L

[ :KHQWKH
S3DUNLQJGLVWDQFHZDUQLQJ
T
is selected, parking distance warning
is displayed on the right side of the
Surround View Monitor screen.

[ The image will be displayed only when
Parking Distance Warning is warning
the driver.
Surround View Monitor Auto On
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system7-108
Front view
The front image is displayed on the
screen when the gear is in N (Neutral)
orD (Drive) to assist in parking. The front
view has a top view/front view/side
view/3D view.
Operating conditions

[ When the gear is shift
ed from R
(Reverse) to N (Neutral) or D (Drive),
the last set mode of front view
function will be selected.

[ Front view function will operate when
the following conditions are satisfied:
- While the infotainment system screen is being displayed, press the
Parking/View button (1) briefly when
the gear is in D (Drive) or N (Neutral)
and vehicle speed is below 9 mph
(15 km/h).

[ Surround View Monitor Auto On
function will operate when the
following conditions are satisfied:
- :LWK
S'ULYHU$VVLVWDQFH

07
7-109
Surround View Monitor
Malfunction and Limitations
Surround View Monitor malfunction
When Surround View Monitor is not
working properly, or the screen flickers,
or the camera image does not display
normally, function is inspected by an
authorized HYUNDAI dealer.
Limitations of Surround View
Monitor

[When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur
the image.

[ The screen may be displayed
abnormally, and an icon will appear at
the top left side of the screen under
the following circumstances:
- The liftgate is opened

- The driver or front passenger door
is opened
- The side view mirror is folded
WARNING

[ ALWAYS look around your vehicle
to make sure there are no objects
or obstacles before moving the
vehicle. What you see on the screen
may differ from the actual vehicle’s
location.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Surround View Monitor is designed
to be used on a flat surface.
Therefore, if used on roads with
different heights such as curbs
and speed bumps, the image in the
screen may not look correct.

[ Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Surround
View Monitor may not operate
normally. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

Driver assistance system7-110
Rear Cross-Traffic Collision-Avoidance
Assist is designed to help detect vehicles
approaching from the left and right side
while your vehicle is reversing, and warn
the driver that a collision is imminent
with a warning message and an audible
warning. Also, braking is assisted to help
prevent a collision.
OJX1079108[A] : Rear Cross-Traffic Collision Warning operating range,
[B] : Rear Cross-Traffic Collision-Avoidance Assist operating range
CAUTION
The time of warning may vary
depending on vehicle speed of the
approaching vehicle.
Detecting sensor
OTMPH071007N[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
Information
For more details on the precautions of the
rear corner radar, refer to “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in this chapter.
5($5&5266

07

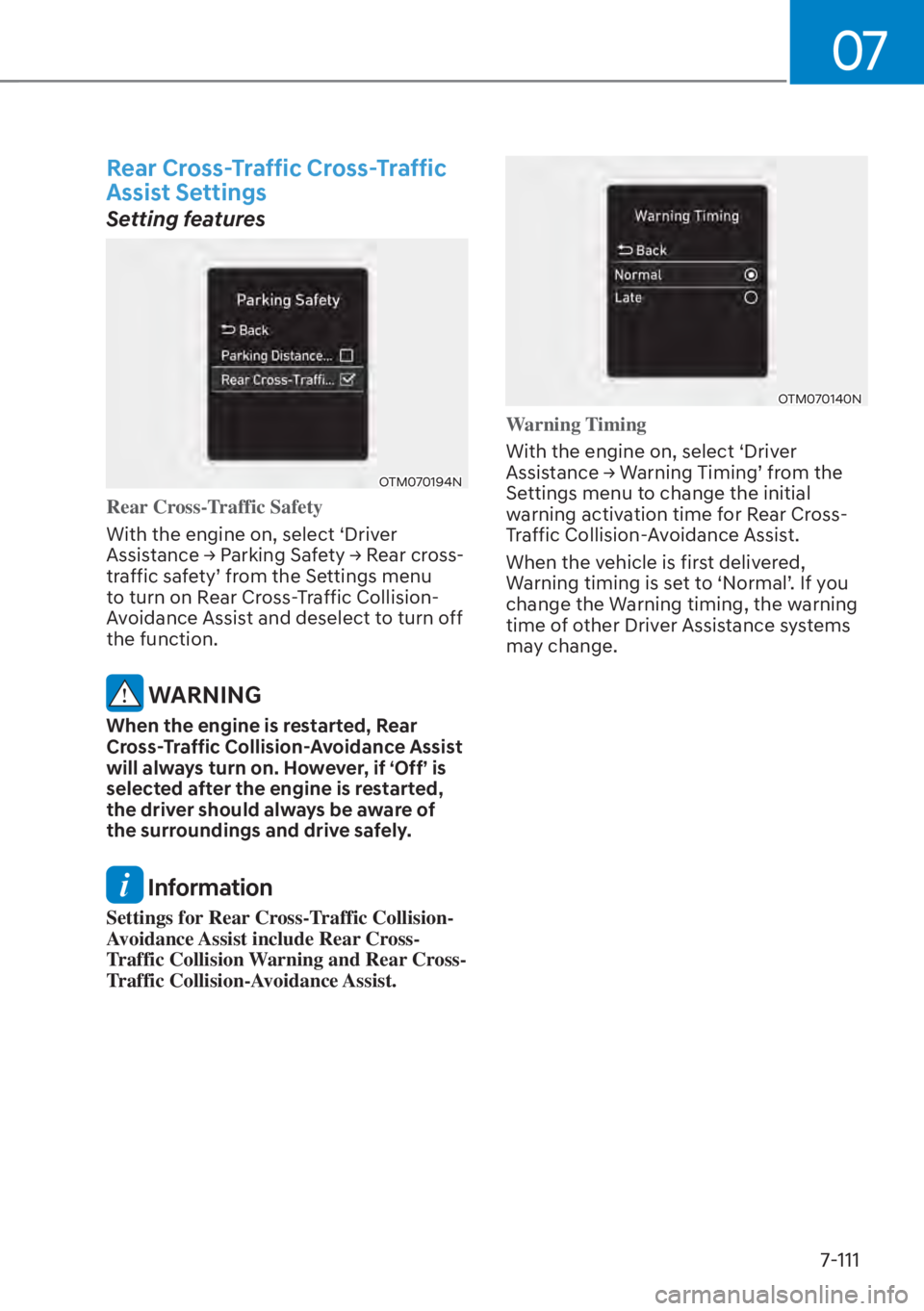

7-111
Rear Cross-Traffic Cross-Traffic
Assist Settings
Setting features
OTM070194N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
$VVLV
WDQFH

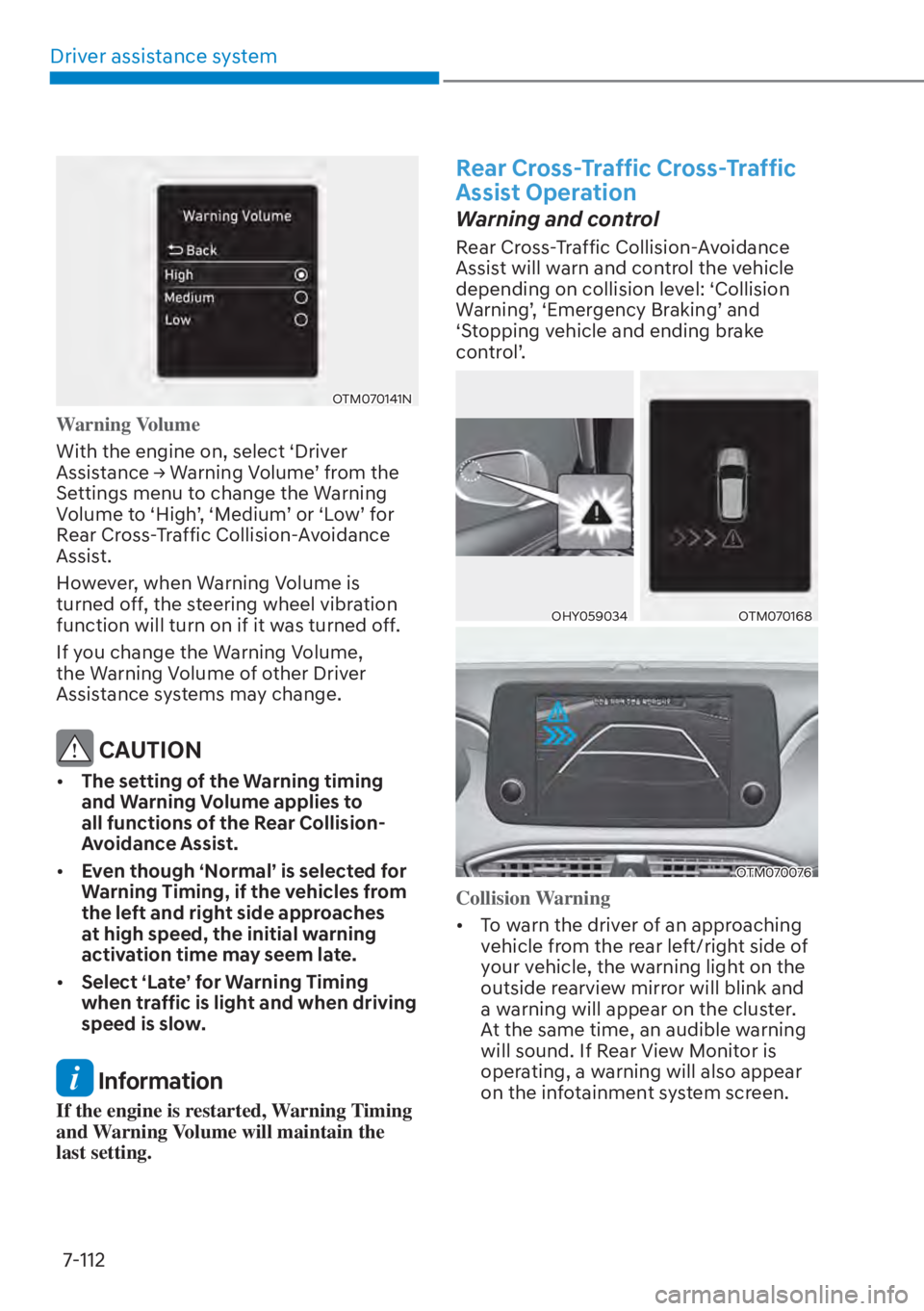

Driver assistance system7-112
OTM070141N
Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

07
7-113

[Rear Cross-Traffic Collision-Avoidance
Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 82 ft. (25 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).
OHY059034OTMPH071014N
OTM070076
Emergency Braking

[ T
o warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light on
the side view mirror will blink and,
the 'Emergency Braking' warning
message will appear on the cluster.
At the same time, an audible warning
will sound. If Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen.
