2023 HYUNDAI SANTA FE HYBRID Owners Manual

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
OTM010003[A] : Type A, [B] : Type B
1. Inside door handle ................................. 5-31
2. Power window switches ...................... 5-60
3. Power window lock switch ................. 5-62
/Electronic child safety lock button .... 5-33
4. Side view mirror folding button........... 5-56
5. Side view mirror control switch ........... 5-56
6. Central door lock switch ....................... 5-31
7. Instrument panel illumination control switch ...................................................... 4-5
8. Lane Safety button ................................7-30 9. Power Liftgate open/close button ....... 5-71
10. ESC (Electronic Stability Control) OFF
button .................................................... 6-29
11. EPB (Electronic Parking Brake) switch 6-20
12. Steering wheel ....................................... 5-41
13. Steering wheel tilt/telescopic switch.. 5-42
14. Fuse box ................................................ 9-44
15. Hood release lever ................................ 5-68
16. Seat .......................................................... 3-3
INTERIOR OVERVIEW

2-5
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-46
3. Engine Start/Stop button ....................... 6-5
4. Infotainment system ...... Infotainment manual
5. Hazard warning lamp switch ................. 8-2
6. Climate control system ........................ 5-98
7. Transmission shift button ......................6-11
8. Auto Hold button .................................. 6-24
9. Heated steering wheel button ............. 5-42
10. AWD lock button .................................. 6-3811. DBC (Downhill Brake Control) button . 6-34
12. Parking Safety button ...........................7-125
13. Parking/View button ............................ 7-101
14. Air ventilation seat button .................... 3-21
15. Seat warmer button .............................. 3-19
16. Passenger’s front air bag ..................... 3-46
17. Glove box ..............................................5-114
18. Wireless charging system pad ............. 5-121
19. Cup holder ............................................5-116
20. AC inverter ............................................5-119
21. USB charger ..........................................5-119
The actual shape may differ from the illustration.
OTMH010004
,167580(173$1(/29(59,(:

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects

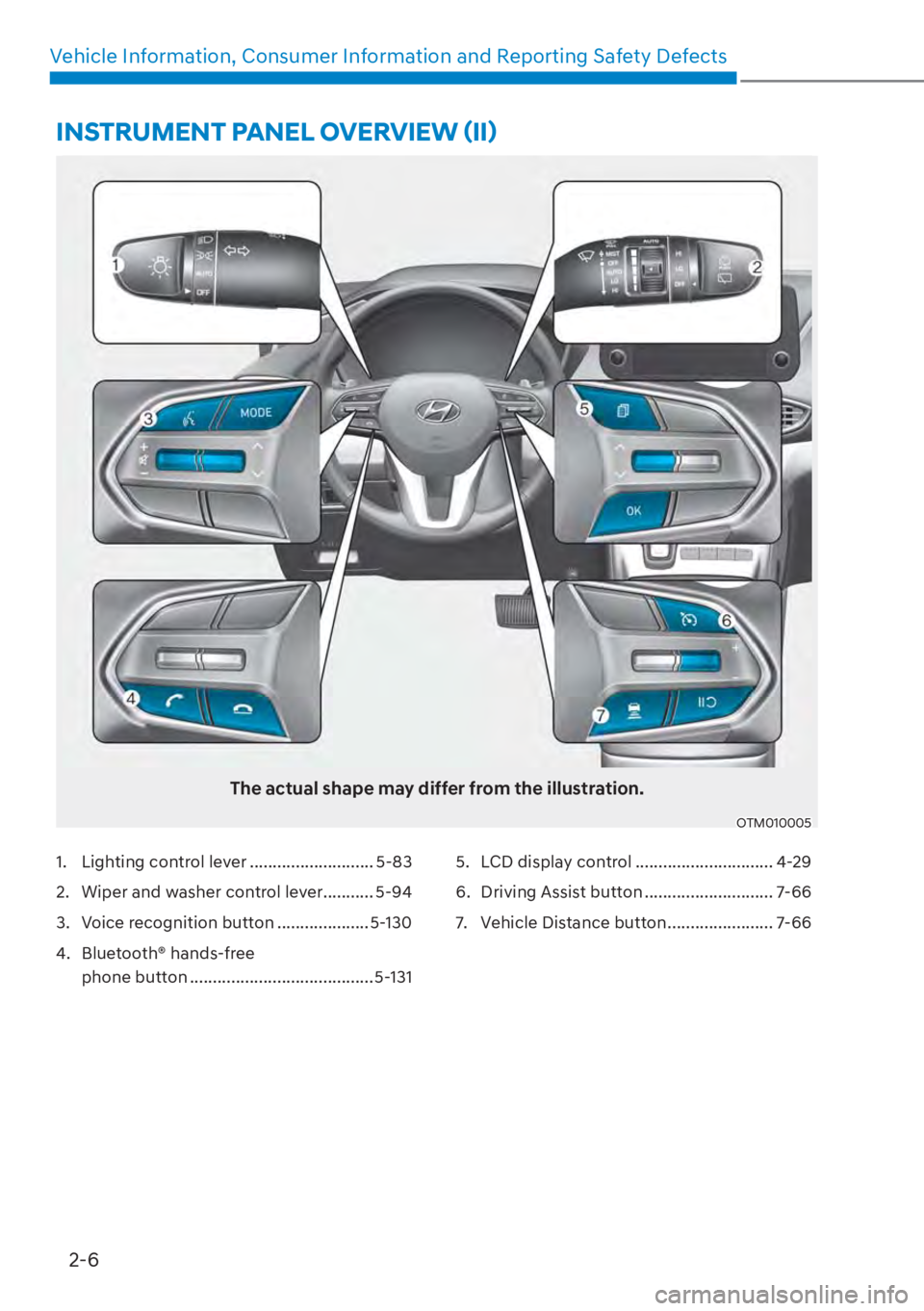

1. Lighting control lever ........................... 5-83
2. Wiper and washer control lever........... 5-94
3. Voice recognition button .................... 5-130
4. Bluetooth® hands-free
phone button ........................................ 5-131 5. LCD display control .............................. 4-29
6. Driving Assist button ............................ 7-66
7. Vehicle Distance button ....................... 7-66
,167580(173$1(/29(59,(:

2-7
02
„Smartstream G 1.6 T-GDi HEV
The actual engine compartment in the vehicle may differ from the illustration.
OTMH090001
1. ECU
2. Engine coolant reservoir .......................9-18
3. Engine coolant reservoir cap ................9-18
4. Inverter coolant reservoir......................9-18
5. Brake fluid reservoir ............................. 9-22
6. Air cleaner ............................................. 9-247. Engine oil filler cap ................................ 9-16
8. Engine oil dipstick ................................. 9-16
9. Windshield washer fluid reservoir ....... 9-23
10. Fuse box ................................................ 9-43
11. Inverter coolant reservoir cap .............. 9-19
ENGINE COMPARTMENT

Vehicle Information, Consumer Information and Reporting Safety Defects2-8
Items in. (mm)

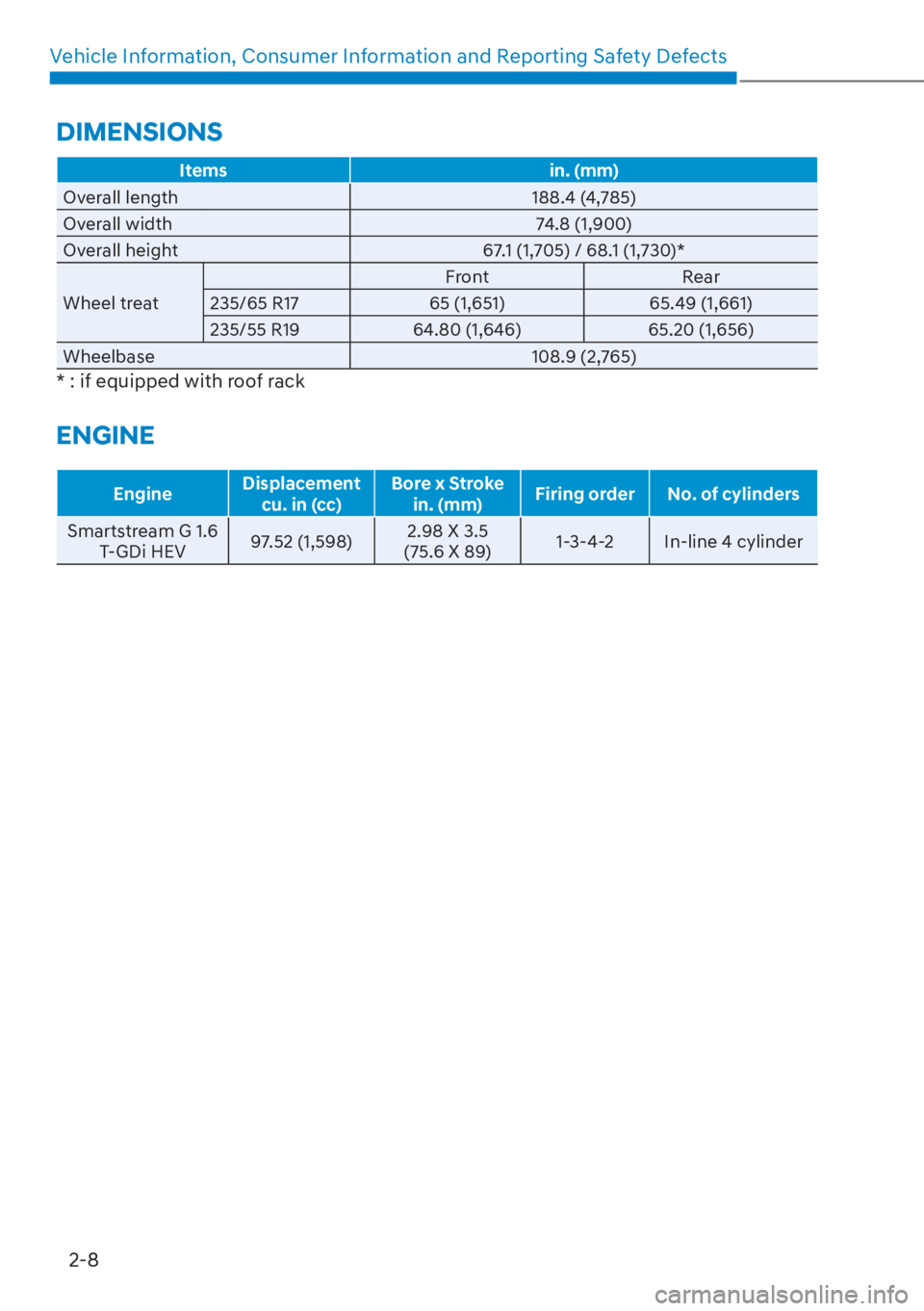

Overall length 188.4 (4,785)
O
verall width 74.8 (1,900)
Overall height 67.1 (1,705) / 68.1 (1,730)*
Wheel treat Front
Rear
235/65 R17 65 (1,651) 65.49 (1,661)
235/55 R19 64.80 (1,646) 65.20 (1,656)
Wheelbase 108.9 (2,765)
* : if equipped with roof rack
ENGINE
EngineDisplacement
cu. in (cc) Bore x Stroke
in. (mm) Firing order No. of cylinders
Smartstream G 1.6 T
-GDi HEV 97.52 (1,598) 2.98 X 3.5
(75.6 X 89) 1-3-4-2 In-line 4 cylinder
DIMENSIONS

02
2-9
Light bulbBulb type Wattage
Front T
ype A
Headlamp
High LED LED
Low LED LED
Daytime running lamp (DRL) /
position lamp LED LED
Turn signal lamp PY27W 27
Side marker lamp LED LED
Type B Headlamp
High LED LED
Low LED LED
Low beam assist LED LED
Daytime running lamp (DRL) /
position lamp LED LED
Turn signal lamp (Outside mirror) LED LED
Turn signal lamp (Outside mirror) LED LED
Rear Type A
Tail lamp W5W 5
Tail/Stop lamp P21/5W 5/21
Turn signal lamp P28/8W 28
Side marker lamp W5W 5
Type B Tail lamp LED LED
Stop lamp LED LED
Turn signal lamp LED LED
Side marker lamp LED LED
Reverse lamp W16W 16
License plate lamp W5W 5
High mounted stop lamp LED LED
Interior Map lamp
Type A W10W 10
Type B LED LED
Room lamp FESTOON 10
Personnal lamp LED LED
Glove box lamp W5W 5
Sunvisor lamp FESTOON 5
Luggage compartment lamp FESTOON 10
BULB WATTAGE

Vehicle Information, Consumer Information and Reporting Safety Defects2-10
Item Tire size Wheel
size Inflation pressure
psi (kPa) Wheel lug nut
torque
Kgf·m (N·m)
Normal load Maximum
load
Front Rear Front Rear
Full size tire 235/65 R17
7.0J X 17
35 (240) 37
(255) 40
(275) 11~13
(107~127)
235/55 R19 7.5J X 19
Compact spare tire T135/90
D17 4.0B x 17
60 (420)
NOTICE

[It is permissible to add 3 psi (20 kPa) to the standard tire pressure specification if
colder temperatures are expected soon. Tires typically lose 1 psi (7 kPa) for every
12°F(7°C) temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.

[ An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures
in advance. If necessary, inflate them to a proper level (Air inflation per altitude:
+2.4 psi/1 mile (+10 kPa/1 km)).

[ Must do not exceed maximum inflation pressure shown on equipped tire
sidewall.
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
TIRES AND WHEELS

02
2-11

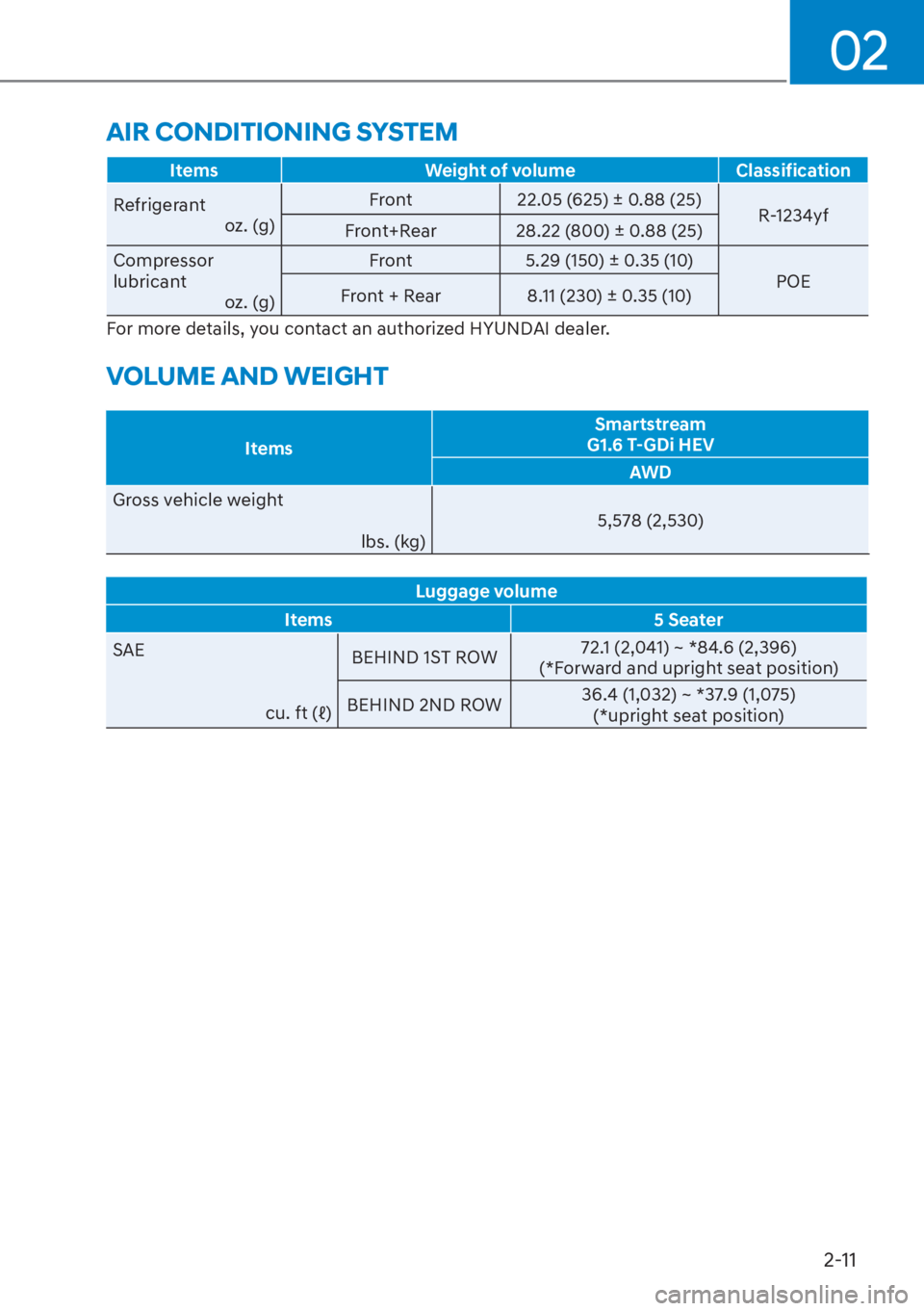

ItemsWeight of volume Classification
Refrigerant o
z. (g) Front
22.05 (625) ± 0.88 (25)
R-1234yf
Front+Rear 28.22 (800) ± 0.88 (25)
Compressor
lubricant oz. (g) Front
5.29 (150) ± 0.35 (10)
POE
Front + Rear 8.11 (230) ± 0.35 (10)
For more details, you contact an authorized HYUNDAI dealer.
VOLUME AND WEIGHT
Items Smartstream
G1.6 T-GDi HEV
AWD
Gross vehicle weight
lbs. (k
g)5,578 (2,530)
Luggage volume
Items 5 Seater
SAE
FXIW
bBEHIND 1S

T ROW72.1 (2,041) ~ *84.6 (2,396)
(*Forward and upright seat position)
BEHIND 2ND ROW 36.4 (1,032) ~ *37.9 (1,075)
(*upright seat position)
AIR CONDITIONING SYSTEM
