Driver assistance system7-138
Remote Smart Parking Assist uses
vehicle sensors to help the driver park
and exit parking spaces remotely from
outside the vehicle by controlling the
steering wheel, vehicle speed and
gearshifts.
Function DescriptionRemote
Oper
ation Remotely moving forward
or in reverse
OJX1079037

[Remote Operation function may be
operated from outside the vehicle
using the smart key.

[ When Remote Smart Parking Assist
operates, Parking Distance Warning
and Surround View Monitor will also
operate. For more details, refer to
“Parking Distance Warning (PDW)”
and “Surround View Monitor (SVM)”
sections in this chapter.
Detecting sensor
OTM070179
OTM070180[1] : Front ultrasonic sensors,
[2] : Front side ultrasonic sensors,
[3] : Rear side ultrasonic sensors,
[4] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
5(027(60$573$5.,1*$66,67

07
7-139
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensors:

[Never disassemble the detecting
sensor or sensor assembly, or apply
any impact on it.

[ If the detecting sensor have been
replaced or repaired, have your
vehicle inspected by an authorized
HYUNDAI dealer.

[ Remote Smart Parking Assist
may malfunction if the vehicle
bumper height or ultrasonic sensor
installation has been modified
or damaged. Any non-factory
installed equipment or accessories
may also interfere with the sensor
performance.

[ When the ultrasonic sensor is frozen
or stained with snow, dirt, or water,
the sensor may be not operate until
the stains are removed using a soft
cloth.

[ Do not push, scratch or strike the
ultrasonic sensor. Sensor damage
could occur.

[ Do not spray the ultrasonic sensors
or its surrounding area directly with
a high pressure washer.
Remote Smart Parking Assist
Settings
Settings features
OTMPH071017N
Warning Volume
With the Engine Start/Stop button in the
21SRVLWLRQVHOHFW
S'ULY

HU$VVLVWDQFH

Driver assistance system7-140

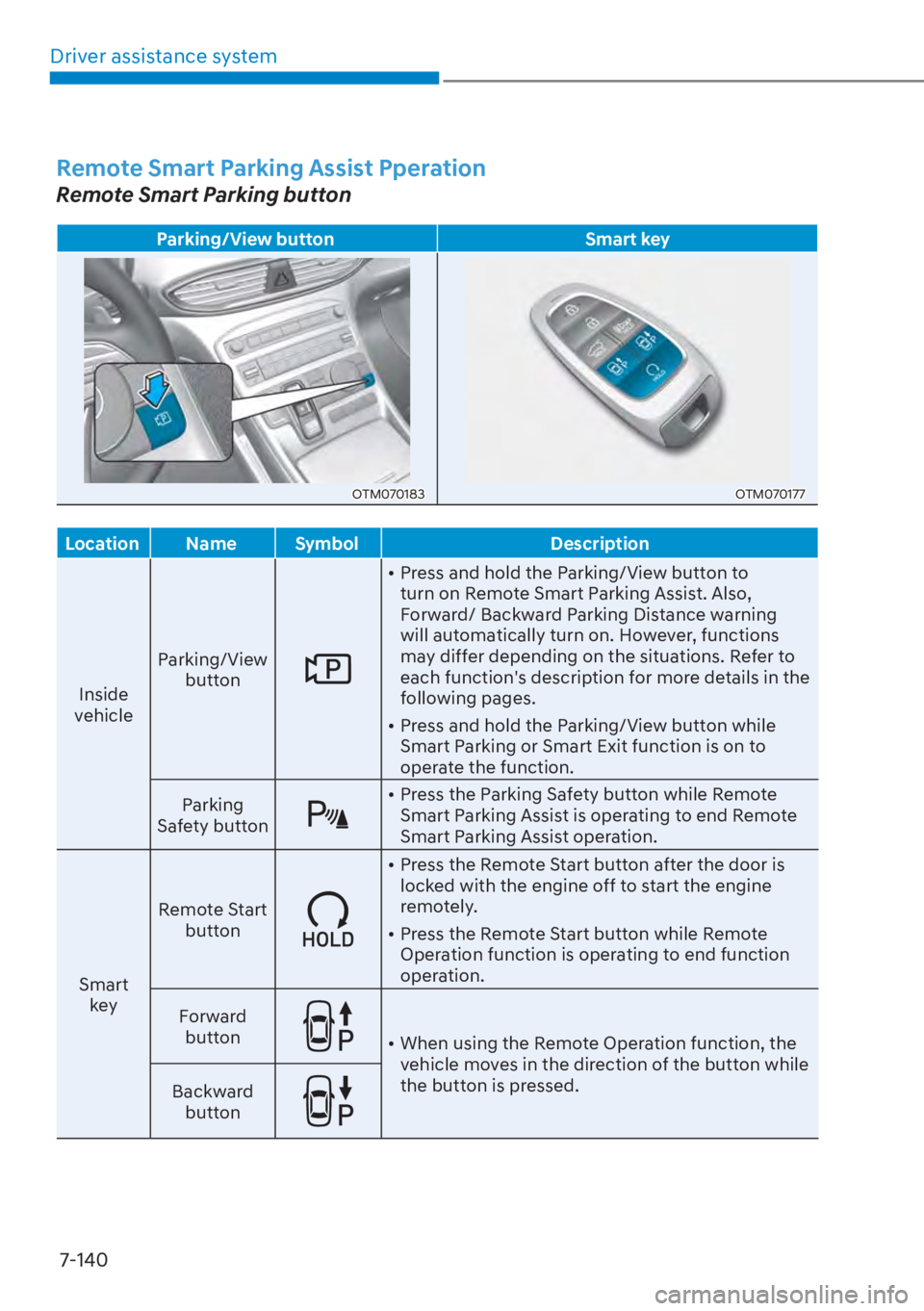

Remote Smart Parking Assist Pperation
Remote Smart Parking button
Parking/View button Smart key
OTM070183OTM070177
Location Name Symbol Description
Inside
v
ehicle Parking/View
button

[Press and hold the Parking/View button to
turn on Remote Smart Parking Assist. Also,
Forward/ Backward Parking Distance warning
will automatically turn on. However, functions
may differ depending on the situations. Refer to
each function's description for more details in the
following pages.

[ Press and hold the Parking/View button while
Smart Parking or Smart Exit function is on to
operate the function.
Parking
Safety button

[ Press the Parking Safety button while Remote
Smart Parking Assist is operating to end Remote
Smart Parking Assist operation.
Smart key Remote Start
button

[Press the Remote Start button after the door is
locked with the engine off to start the engine
remotely.

[ Press the Remote Start button while Remote
Operation function is operating to end function
operation.
Forward button

[ When using the Remote Operation function, the
vehicle moves in the direction of the button while
the button is pressed.
Backward
button

07
7-141

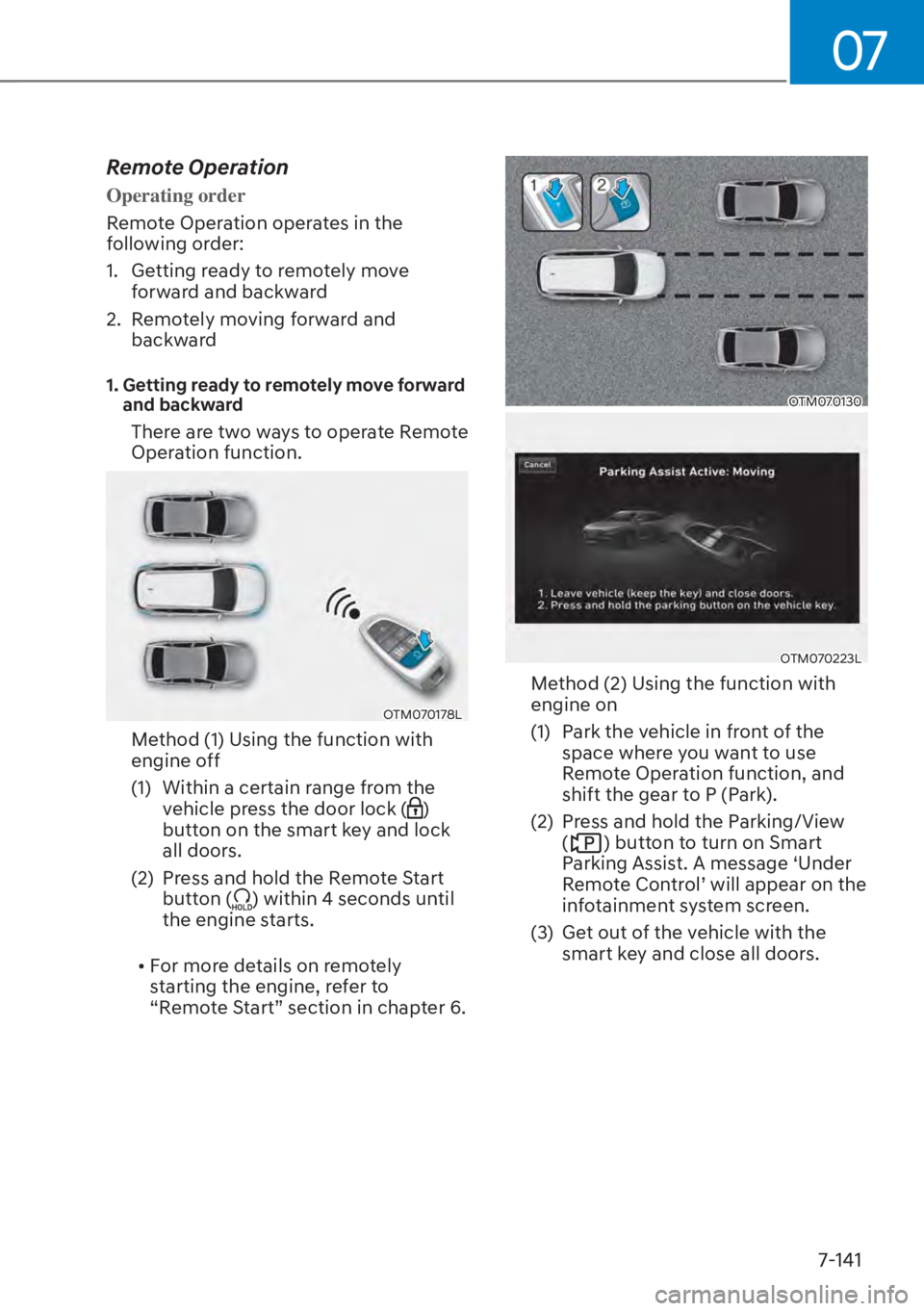

Remote Operation
Operating order
Remote Operation operates in the
f
ollowing order:
1. Getting ready to remotely move forward and backward
2. Remotely moving forward and backward
1. Getting ready to remotely move forward
and backward
There are two ways to operate Remote
Operation function.
OTM070178L
Method (1) Using the function with
engine off
(1) Within a certain range from the vehicle press the door lock (
)
button on the smart key and lock
all doors.
(2) Press and hold the Remote Start button (
) within 4 seconds until
the engine starts.

[ For more details on remotely
starting the engine, refer to
“Remote Start” section in chapter 6.
OTM070130
OTM070223L
Method (2) Using the function with
engine on
(1) Park the vehicle in front of the
space where you want to use
Remote Operation function, and
shift the gear to P (Park).
(2) Press and hold the Parking/View (
) button to turn on Smart
Parking Assist. A message ‘Under
5HPRWH&RQWURO
TZLOODSSHDURQWKH
infotainment system screen.
(3) Get out of the vehicle with the smart key and close all doors.

Driver assistance system7-142

[ 'Agree' must be selected on the
infotainment system screen and the
infotainment system has to operate
properly to use Remote Operation
function.

[ Method (2) can be used after
thevehicle has been driven above
3mph (5 km/h).

[ If the function is turned on again
after parallel parking is completed
by Remote Smart Parking Assist,
Remote Operation function can be
used with Method (2).
2. Remotely moving forward and in
reverse
OTM070084L
(1) Press and hold one of the Forward () or Reverse () button on the
smart key. Remote Smart Parking
Assist will automatically control
the steering wheel, vehicle speed
and gearshift. The vehicle will
move in the direction of the button
pressed.
(2) While Remote Operation function is operating, if the you do not hold
down the Forward (
) or Reverse
() button, the vehicle will stop
and system control will pause. The
function will start operating again
when the button is pressed and
held again.
(3) When the vehicle reaches the target location, release the smart
key Forward or Backward button. (4) When the driver gets in the vehicle
with the smart key, a message
will appear informing the driver
Remote Operation function is
complete on the infotainment
system screen and the engine will
remain on.
In addition, when the Remote Start
(
) button is pressed on the smart
key from outside the vehicle, a
message will appear informing the
driver Remote Operation function
is complete and the engine will
turn off.

[ Check that all smart keys are
outside the vehicle when using
Remote Operation function.

[ Remote Operation function will
operate only when the smart key is
within 13 ft. (4 m) from the vehicle. If
there is no vehicle movement even
when the Forward or Backward
button is pressed on the smart key,
check the distance to the vehicle
and press the button again.

[ The detecting range of the smart
key may vary depending on the
surroundings that are affected by
radio waves such as transmission
tower, broadcast station, etc.

[ When remotely moving forward
using method (1), it is recognized
as an exit situation, and the
vehicle moves 13 ft. (4 m) to
check for pedestrians, animals or
objects around the vehicle. After
confirmation, the steering wheel
is controlled according to the
condition ahead.

07
7-143

[When remotely moving forward
using method (2), it is recognized
as a parking situation, and will
immediately control the steering
wheel according to the condition
ahead to assist with entering the
parking space and aligning the
vehicle. However, performance
may reduce depending on the
pedestrians, animals, shape of
objects, location, etc., around the
vehicle.

[ For moving remotely in reverse,
both method (1) and (2) aligns the
steering wheel first, and then will
only move the vehicle straight.

[ When remotely moving forward or
in reverse is completed, the vehicle
will automatically shift to P (Park)
and engage EPB (Electronic Parking
Brake). CAUTION

[ When using Remote Operation
function, make sure that all
passengers have gotten out of the
vehicle.

[ If the vehicle’s battery is discharged
or Remote Smart Parking Assist
malfunctions when parked in a
narrow parking space, Remote
Operation function will not operate.
Always park your vehicle in a space
wide enough for you to get in or out
of your vehicle.

[ Please note that depending on the
parking space, you may not be able
to exit from the space you have
entered by using Remote Operation
function.

[ After parking, the surrounding may
change due to the movement of
surrounding vehicles. If this occurs,
Remote Operation function may not
operate.

[ Before leaving the vehicle, close
windows and sunroofs, and make
sure the engine is off before locking
the doors.

[ After parking, the surrounding may
change due to the movement of
surrounding vehicles. If this occurs,
Remote Operation function may not
operate.

Driver assistance system7-144
Remote Operation function
operation status
Operation status Smart key LED Hazard
warning light
Under
contr
ol Green LED
continuously
blinks
-
Pause Red LED
continuously
blinks Blinks
Off Red LED
illuminates for
4 seconds and
then turns off Blinks 3
times and
turns off
Complete Green LED
illuminates for
4 seconds and
then turns off Blinks 1
time and
turns off

à Operation status by the hazard
warning light may not be applicable
based on the regulation of your
country.

à If the smart key is not within the
operating range from the vehicle
(approximately 13 ft. (4 m)), the
smart key LED will not illuminate or
blink. Use the smart key within the
operating range.
How to turn off Remote Operation
function while operating

[Press the Parking/View () button
while the infotainment system screen
guides the driver using method 2.

[ Shift the gear except to P (Park)
while the infotainment system screen
guides the driver using method 2.

[ Press the Parking Safety (
) button
RUVHOHFW
S&DQFHO
TRQWKHLQIRWDLQPHQW
system screen.

[ Press the Remote Start (
) button
on the smart key while the vehicle is
being controlled by Remote Operation
function. Remote Operation function
will turn off. At this time, the engine
will turn off.

[ Get on the vehicle with the smart key.
Remote Operation function will turn
off. At this time, the engine will remain
on.
The function will pause in the
following conditions when:

[There is a pedestrian, animal or object
in the direction the vehicle is moving

[ The door or liftgate is open

[ The Forward (
) or Reverse ()
button is not continuously pressed

[ Simultaneously pressing multiple
buttons on a smart key

[ The smart key is not operated within
13 ft. (4 m) from the vehicle

[ Button of another smart key is pressed
in addition to the operating smart key

[ Blind-Spot Collision-Avoidance
Assist or Rear Cross-Traffic Collision-
Avoidance Assist operates while the
vehicle is being controlled in the
reverse direction.

07
7-145

[The vehicle moves 22 ft. (7 m) while
the smart key is pressed with Remote
Operation function (maximum travel
distance per button press)
When Remote Operation function is
paused, the vehicle will stop. If the
condition that made the function to
pause disappears, the function may
operate again.
The function will cancel in the
following conditions when:

[ The steering wheel is steered

[ The gear is shifted while the vehicle is
moving

[ Operating EPB while the vehicle is
moving

[ The engine hood is open

[ The brake pedal or accelerator pedal
is depressed when all the doors are
closed

[ The smart key is outside the vehicle
when the brake pedal is depressed
while the driver's door is open

[ Rapid acceleration occurs

[ Vehicle skid occurs

[ The wheel is stuck by an obstacle and
cannot move
[
Approximately 3 minutes and 50
seconds have past after Remote
Operation function has started to
operate

[ The slope of the road exceeds the
operational range

[ The function is paused for more than
1 minute

[ The total travel distance of the vehicle
has exceeded 45 ft. (14 m) after
Remote Operation function operation

[ The steering wheel, gearshift, braking,
and drive controls are not working
normally

[ There is a problem with the smart key
or the smart key battery is low

[ ABS, TCS or ESC system operates due
to slippery road conditions

[ The alarm of the Theft Alarm System
sounds
When Remote Operation function is
canceled, the vehicle will automatically
stop, shift the gear to P (Park) and
engage EPB (Electronic Parking Brake).
