2023 HYUNDAI SANTA FE HYBRID Owners Manual

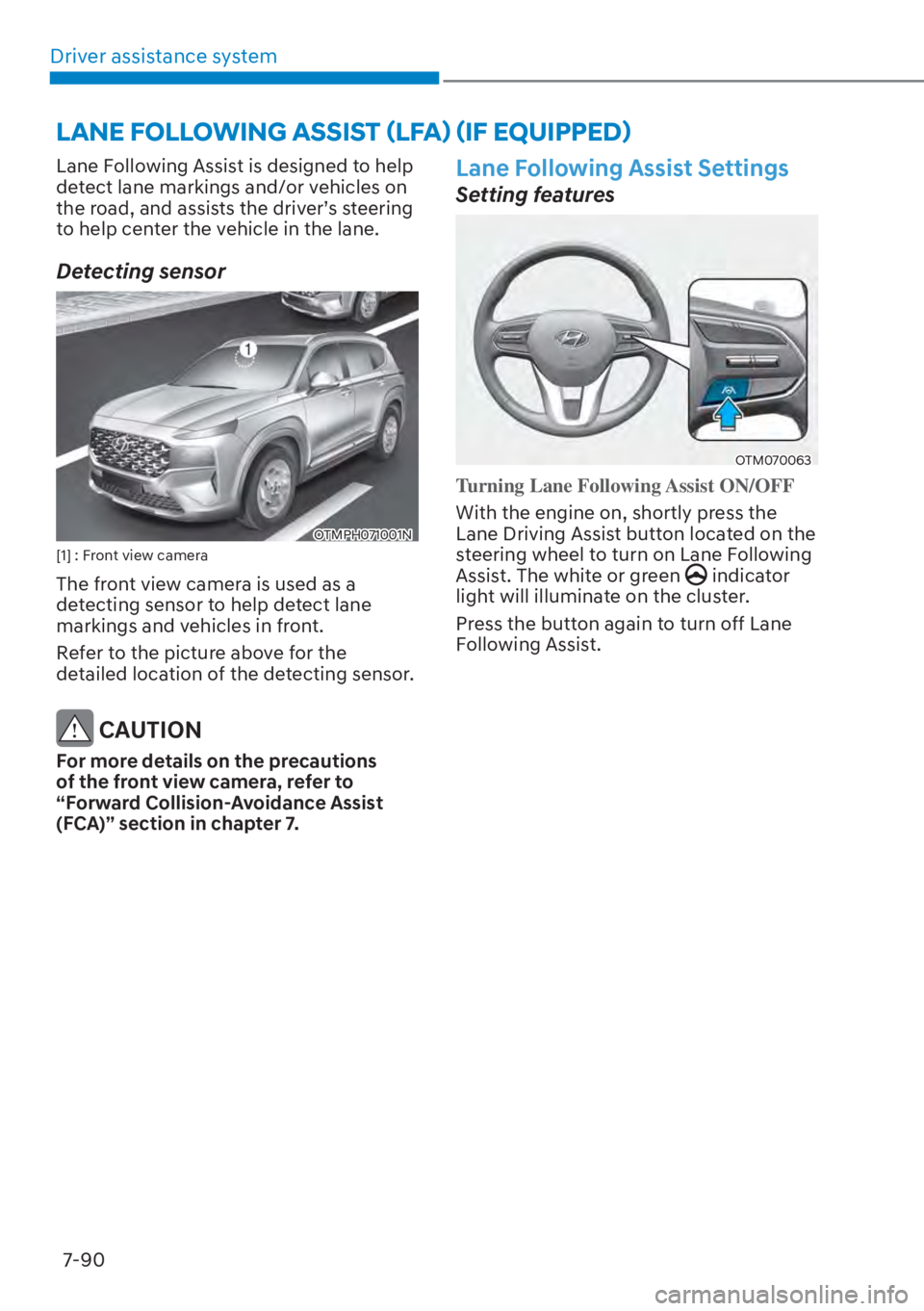

Driver assistance system7-90
/$1()2//2:,1*$66,67

07

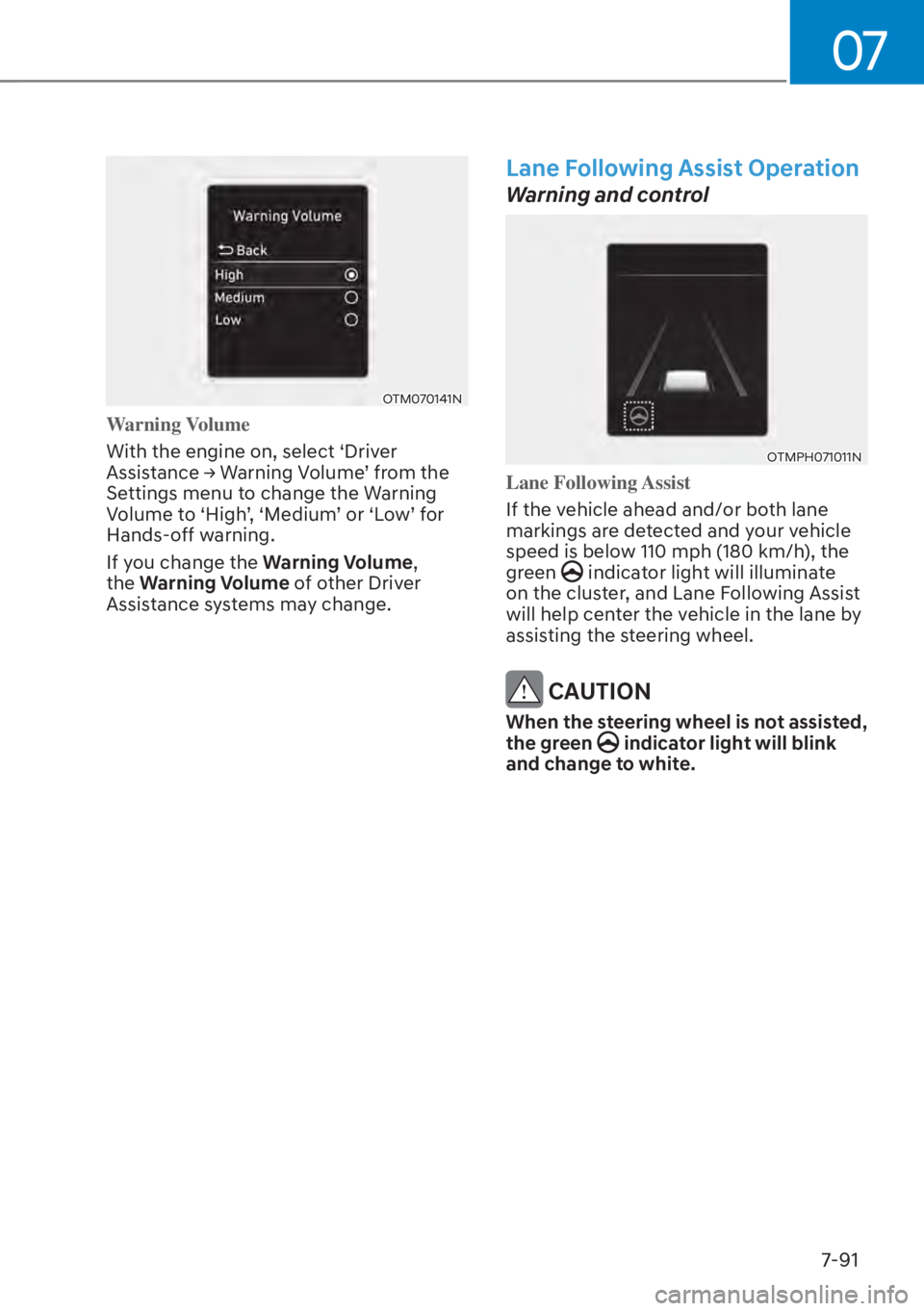

7-91
OTM070141N
Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

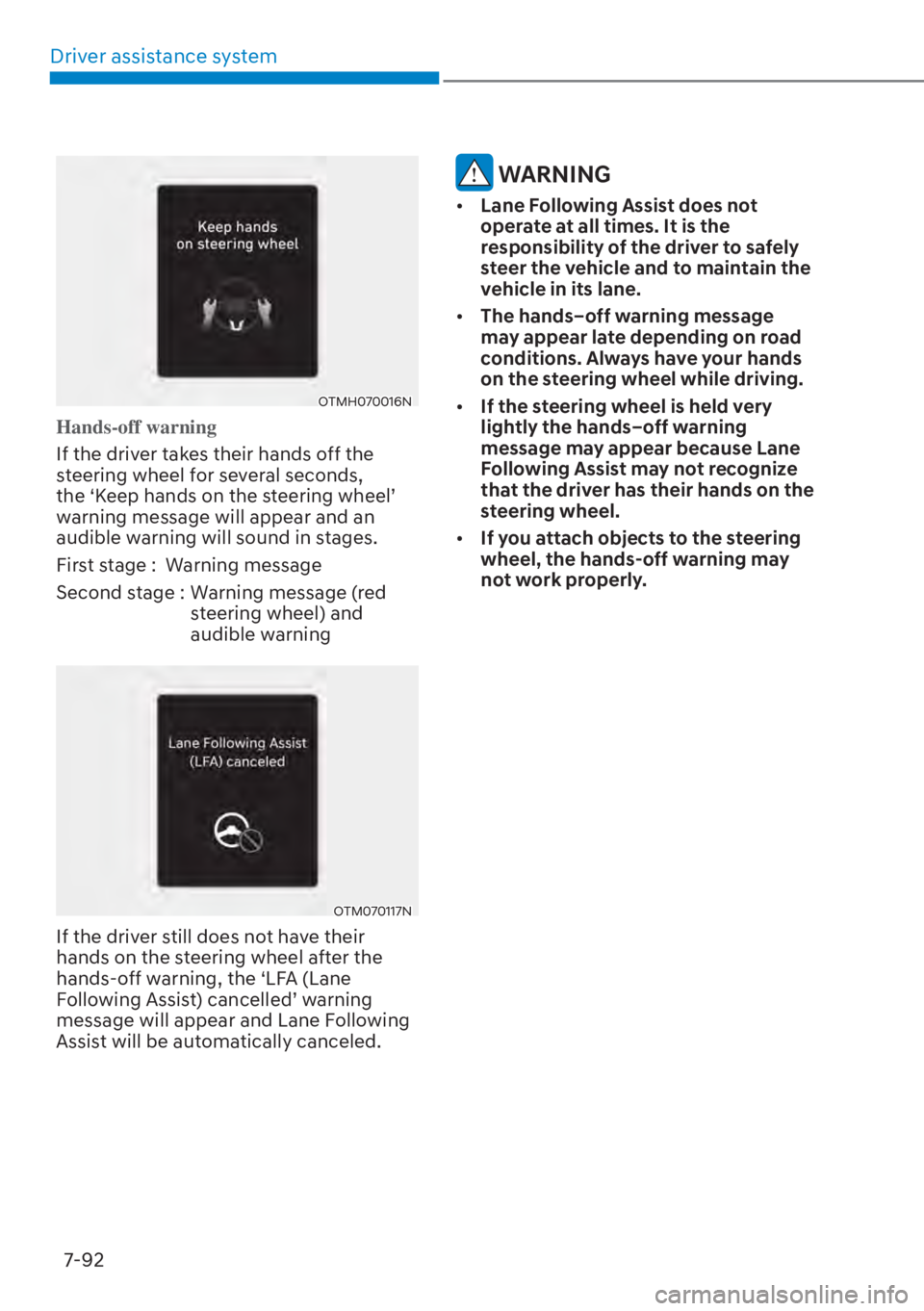

Driver assistance system7-92
OTMH070016N
Hands-off warning
If the driver takes their hands off the
s
teering wheel for several seconds,
WKH
S.HHSKDQGVRQWKHVWHHULQJZKHHO
T
warning message will appear and an
audible warning will sound in stages.
First stage : Warning message
Second stage : Warning message (red steering wheel) and
audible warning
OTM070117N
If the driver still does not have their
hands on the steering wheel after the
hands-off warning, the ‘LFA (Lane
)ROORZLQJ$VVLVWFDQFHOOHG
TZDUQLQJ
message will appear and Lane Following
Assist will be automatically canceled.
WARNING

[Lane Following Assist does not
operate at all times. It is the
responsibility of the driver to safely
steer the vehicle and to maintain the
vehicle in its lane.

[ The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[ If the steering wheel is held very
lightly the hands–off warning
message may appear because Lane
Following Assist may not recognize
that the driver has their hands on the
steering wheel.

[ If you attach objects to the steering
wheel, the hands-off warning may
not work properly.

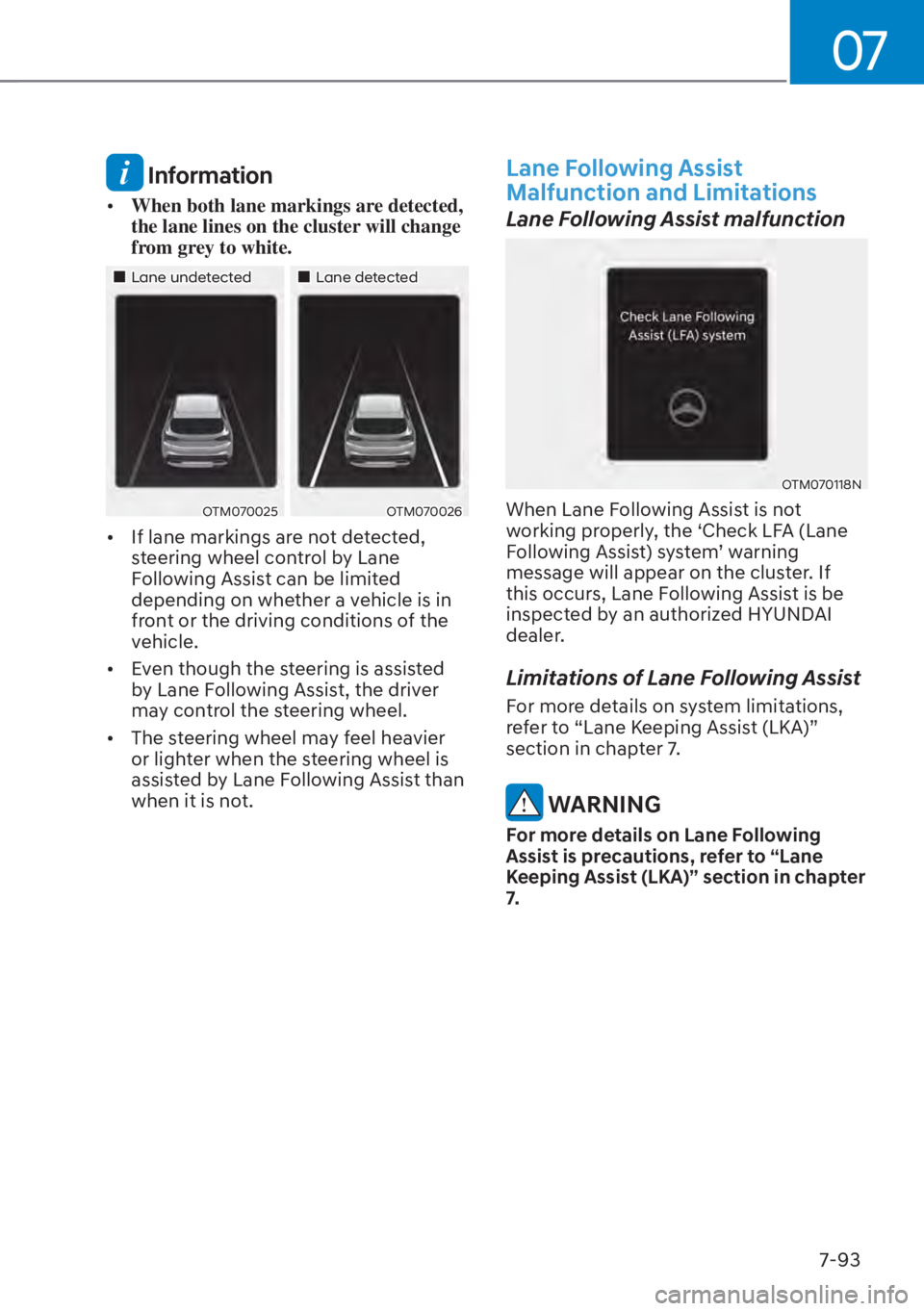

07
7-93
Information

[When both lane markings are detected,
the lane lines on the cluster will change
from grey to white.
„Lane undetected „Lane detected
OTM070025OTM070026

[If lane markings are not detected,
steering wheel control by Lane
Following Assist can be limited
depending on whether a vehicle is in
front or the driving conditions of the
vehicle.

[ Even though the steering is assisted
by Lane Following Assist, the driver
may control the steering wheel.

[ The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Following Assist than
when it is not.
Lane Following Assist
Malfunction and Limitations
Lane Following Assist malfunction
OTM070118N
When Lane Following Assist is not
working properly, the ‘Check LFA (Lane
)ROORZLQJ$VVLVWV\VWHP
TZDUQLQJ
message will appear on the cluster. If
this occurs, Lane Following Assist is be
inspected by an authorized HYUNDAI
dealer.
Limitations of Lane Following Assist
For more details on system limitations,
refer to “Lane Keeping Assist (LKA)”
section in chapter 7.
WARNING
For more details on Lane Following
Assist is precautions, refer to “Lane
Keeping Assist (LKA)” section in chapter
7.

Driver assistance system7-94
Basic function
Highway Driving Assist is designed to
help detect vehicles and lanes ahead,
and help maintain distance from the
vehicle ahead, maintain the set speed,
and help center the vehicle in the
lane while driving on the highway (or
motorway).
OADAS035
Information

[ The Highway Driving Assist is available
only on controlled access road of
certain highways.

à Controlled access road indicates
roads with limited entrances and
exits that allow uninterrupted high
speed traffic flow. Only passenger
cars and motorcycles are allowed on
controlled access roads.
Available highway (Controlled access road)
USA Select Interstate Highway
and U.S. (Federal) and State Highways
Canada Select Provincial and Territorial
Highways

[Additional highways may be expanded
by future navigation updates.
Detecting sensor
OTMPH071001N
OTM070022[1] : Front view camera,
[2] : Front radar
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
For more details on the precautions of
the detecting sensors, refer to “Forward
Collision-Avoidance Assist (FCA)”
section in this chapter.
+,*+:$<'5,9,1*$66,67

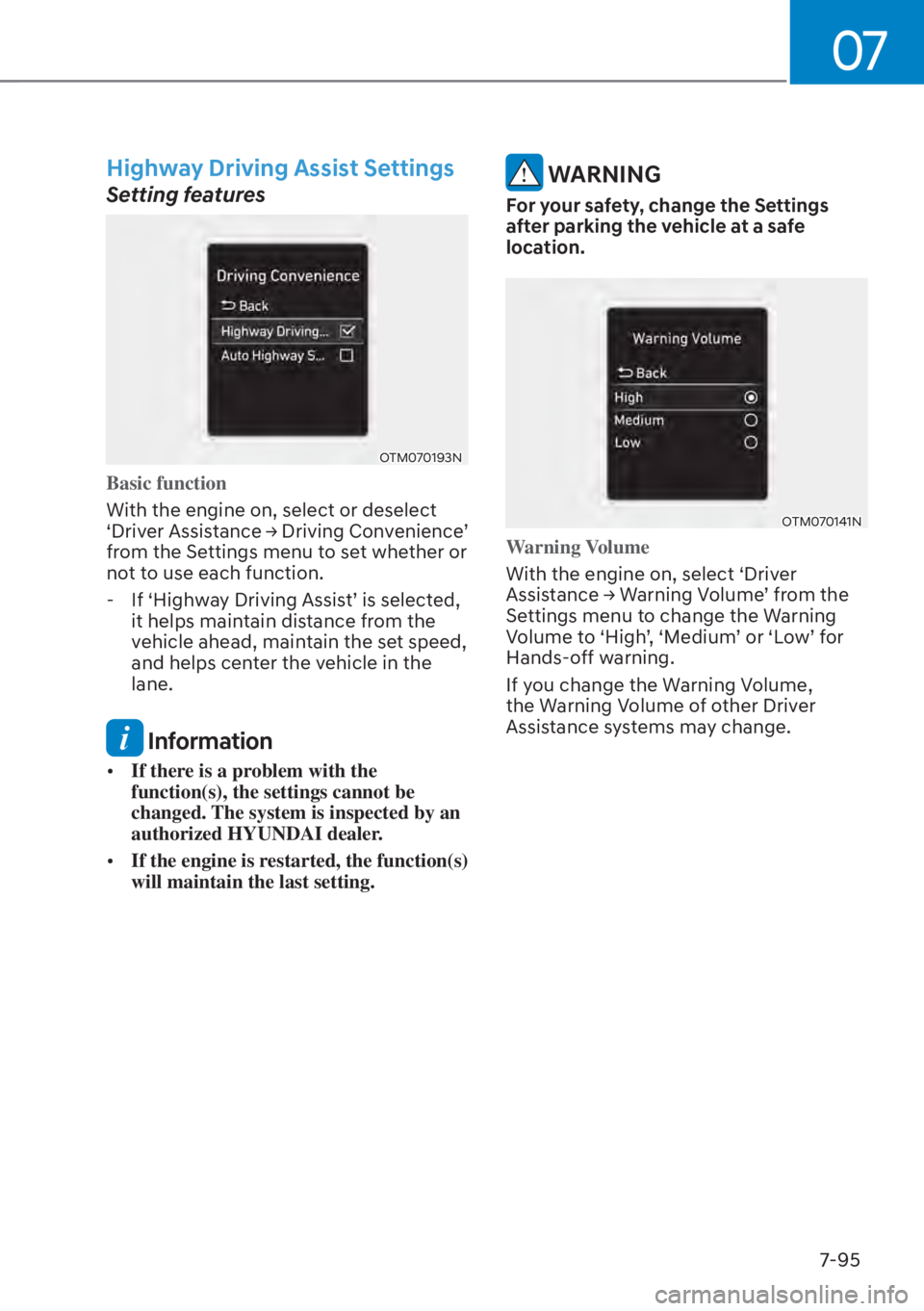

07
7-95
Highway Driving Assist Settings
Setting features
OTM070193N
Basic function
With the engine on, select or deselect

S'ULY
HU$VVLVWDQFH

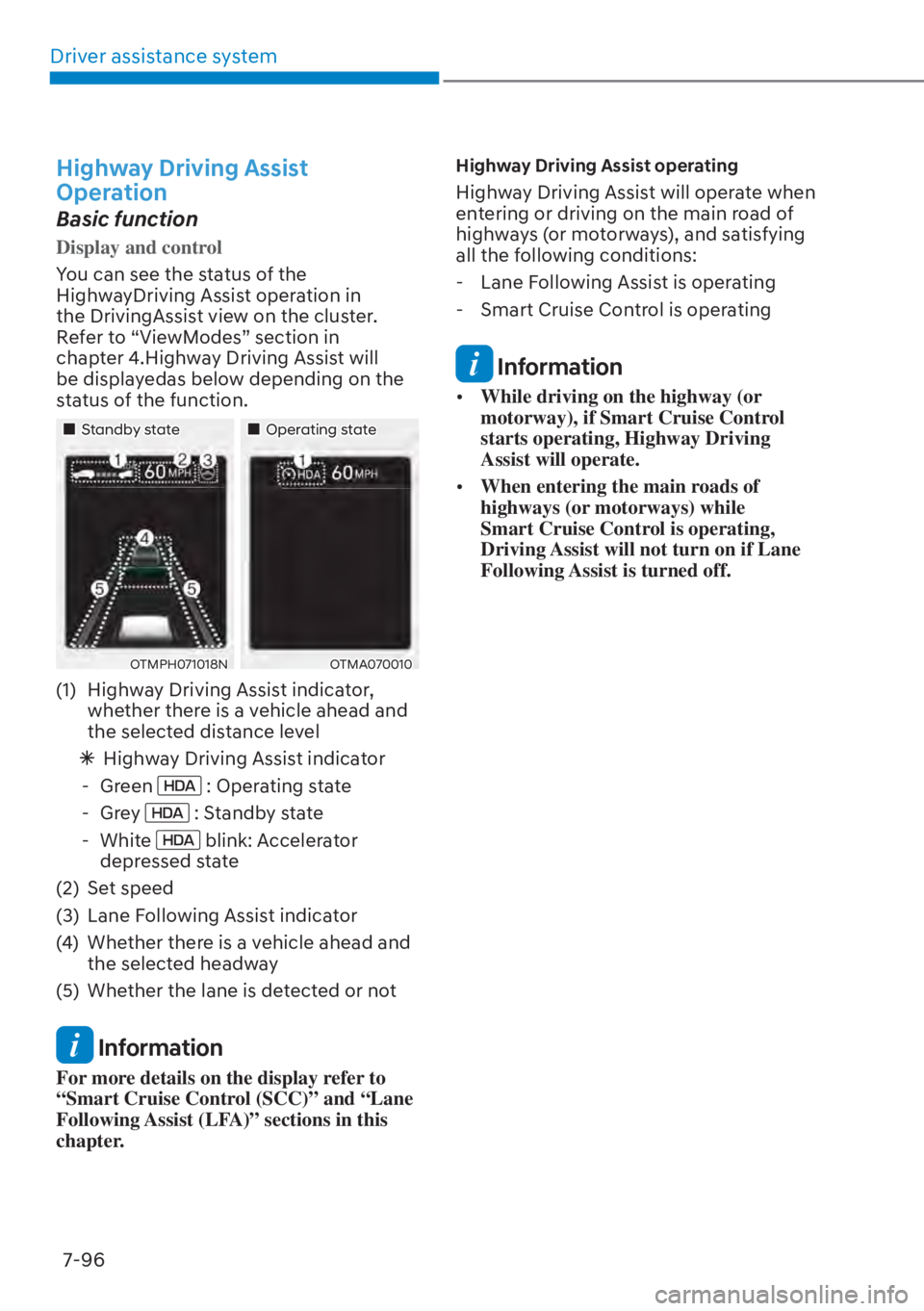

Driver assistance system7-96
Highway Driving Assist
Operation
Basic function
Display and control
You can see the status of the
Highw
ayDriving Assist operation in
the DrivingAssist view on the cluster.
Refer to “ViewModes” section in
chapter 4.Highway Driving Assist will
be displayedas below depending on the
status of the function.
„Standby state „Operating state
OTMPH071018NOTMA070010
(1) Highway Driving Assist indicator,
whether there is a vehicle ahead and
the selected distance level

à Highway Driving Assist indicator
- Green
: Operating state

-Grey
: Standby state
- White blink: Accelerator
depressed state
(2) Set speed
(3) Lane Following Assist indicator
(4) Whether there is a vehicle ahead and the selected headway
(5) Whether the lane is detected or not
Information
For more details on the display refer to
“Smart Cruise Control (SCC)” and “Lane
Following Assist (LFA)” sections in this
chapter.
Highway Driving Assist operating
Highway Driving Assist will operate when
entering or driving on the main road of
highways (or motorways), and satisfying
all the following conditions:
- Lane Following Assist is operating
- Smart Cruise Control is operating
Information

[ While driving on the highway (or
motorway), if Smart Cruise Control
starts operating, Highway Driving
Assist will operate.

[ When entering the main roads of
highways (or motorways) while
Smart Cruise Control is operating,
Driving Assist will not turn on if Lane
Following Assist is turned off.

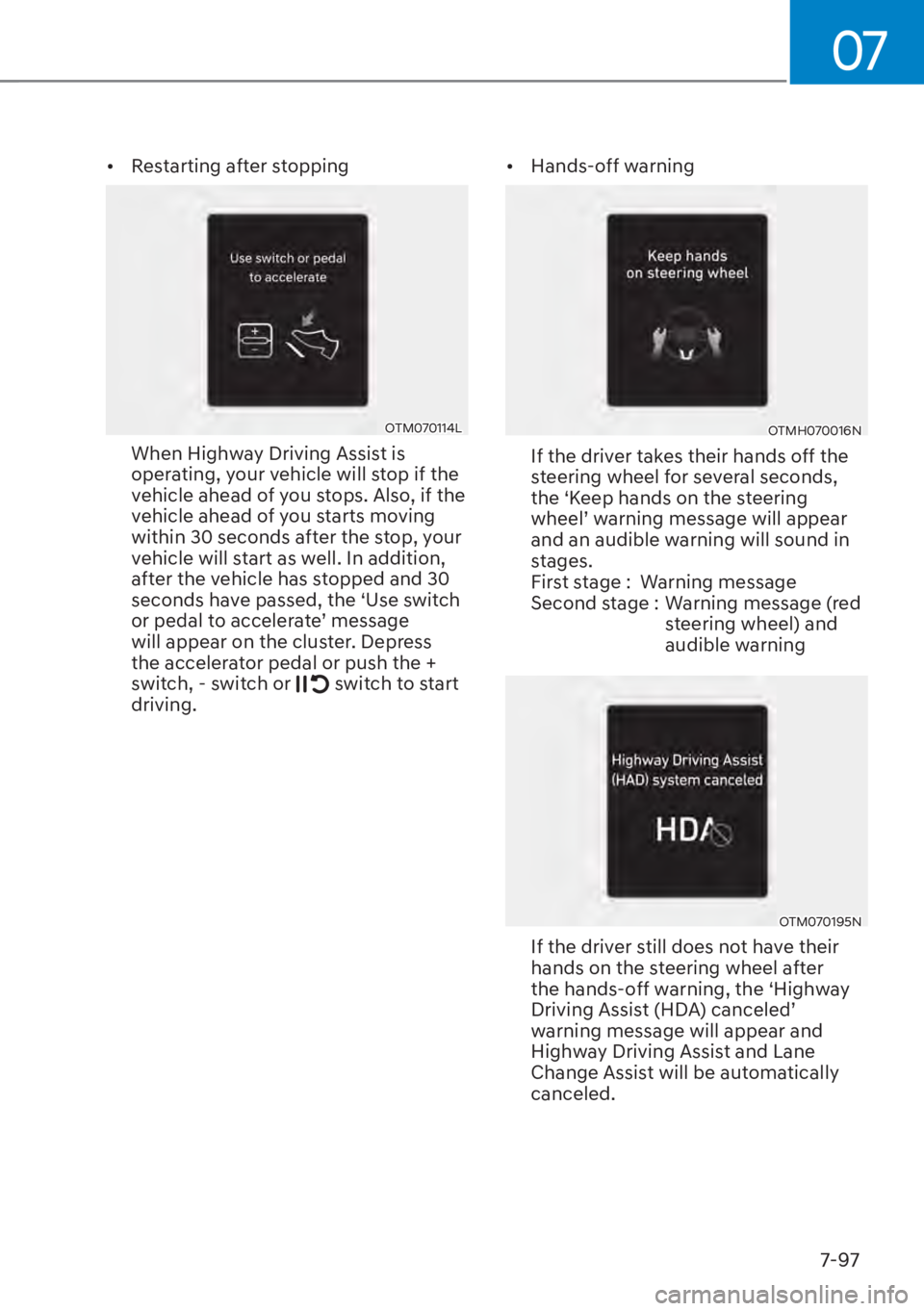

07
7-97

[Restarting after stopping
OTM070114L
When Highway Driving Assist is
operating, your vehicle will stop if the
vehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving
within 30 seconds after the stop, your
vehicle will start as well. In addition,
after the vehicle has stopped and 30
seconds have passed, the ‘Use switch
RUSHGDOWRDFFHOHUDWH
TPHVVDJH
will appear on the cluster. Depress
the accelerator pedal or push the +
switch, - switch or
switch to start
driving.
[
Hands-off warning
OTMH070016N
If the driver takes their hands off the
steering wheel for several seconds,
the ‘Keep hands on the steering
ZKHHO
TZDUQLQJPHVVDJHZLOODSSHDU
and an audible warning will sound in
stages.
First stage : Warning message
Second stage : Warning message (red
steering wheel) and
audible warning
OTM070195N
If the driver still does not have their
hands on the steering wheel after
the hands-off warning, the ‘Highway
'ULYLQJ$VVLVW+'$FDQFHOHG
T
warning message will appear and
Highway Driving Assist and Lane
Change Assist will be automatically
canceled.
