2023 HYUNDAI SANTA FE HYBRID Owners Manual

04
4-33
Engine coolant temperature
OTMH040007
This engine coolant temperature gauge
display shows the temperature of the
engine coolant when the engine is
running.
NOTICE
When the gauge indicator gets out of
the normal range, toward the "H(Hot)"
position, it indicates overheating of the
engine. It may damage the engine.
Do not continue driving with the
overheated engine.
For more details, refer to "If the Engine
Overheats" section in the chapter 8.
User settings mode
OTM040060L
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. Eco vehicle
3. Head-Up Display4. Cluster
5. Lights
6. Door
7. Convenience
8. Units
The information provided may differ
depending on which functions are
applicable to your vehicle.
Shift to P to edit settings
This warning message appears if you try
t
o adjust the User Settings while driving.
For your safety, change the User Settings
after parking the vehicle, applying the
parking brake and pressing the P (Park)
button.
Quick guide help
This mode provides quick guides for the
s
ystems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details, about each system,
refer to this Owner’s Manual.
Information
When the infotainment system is applied,
only the User’s Setting mode on the
infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.

Instrument Cluster4-34
1. Driver Assistance
Items Explanation
SCC reaction T
o adjust the sensitivity of Smart Cruise Control.

[ Fast/Normal/Slow
For more details, refer to ''Smart Cruise Control (SCC)'' in
chapter 7.
Driving Convenience
[
Lane Following Assist
To activate or deactivate Lane Following Assist.
For more details, refer to "Lane Following Assist (LFA)'' in
chapter 7.

[ Highway Driving Assist
To activate or deactivate Highway Driving Assist.
For more details, refer to ''Highway Driving Assist (HDA)'' in
chapter 7.

[ Auto Highway Speed Control
To activate or deactivate Auto Highway Speed Control.
For more details, refer to ''Navigation-based Smart Cruise
Control (NSCC)'' in chapter 7.

[ Speed Limit Warning
To activate or deactivate Intelligent Speed Limit Warning.
For more details, refer to "Intelligent Speed Limit Warning
(ISLW)" in chapter 7.
Warning Timing To adjust the warning timing of the driver assistance system.

[
Normal / Late
Warning Volume To adjust the warning volume of the driver assistance system.

[
High / Medium / Low / Off
Driver Attention Warning
[
Leading Vehicle Departure Alert
To activate or deactivate Leading Vehicle Departure Alert
function.

[ Inattentive driving warning
To alert the driver's inattentive driving.
For more details, refer to "Driver Attention Warning (DAW)"
in chapter 7.

04
4-35

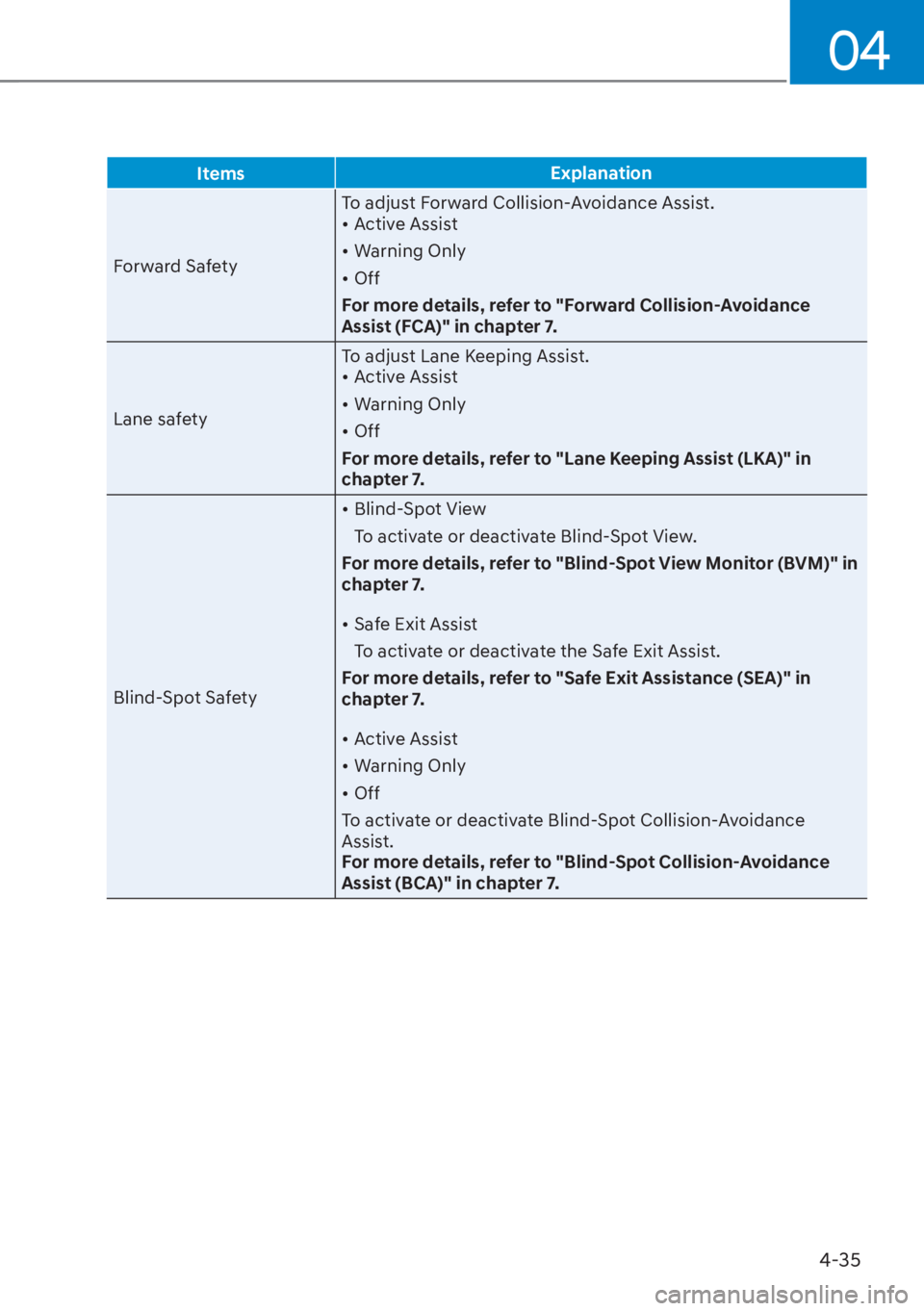

ItemsExplanation
Forward Safety T
o adjust Forward Collision-Avoidance Assist.

[ Active Assist

[ Warning Only

[ Off
For more details, refer to "Forward Collision-Avoidance
Assist (FCA)" in chapter 7.
Lane safety To adjust Lane Keeping Assist.

[
Active Assist

[ Warning Only

[ Off
For more details, refer to "Lane Keeping Assist (LKA)" in
chapter 7.
Blind-Spot Safety
[
Blind-Spot View
To activate or deactivate Blind-Spot View.
For more details, refer to "Blind-Spot View Monitor (BVM)" in
chapter 7.

[ Safe Exit Assist
To activate or deactivate the Safe Exit Assist.
For more details, refer to "Safe Exit Assistance (SEA)" in
chapter 7.

[ Active Assist

[ Warning Only

[ Off
To activate or deactivate Blind-Spot Collision-Avoidance
Assist.
For more details, refer to "Blind-Spot Collision-Avoidance
Assist (BCA)" in chapter 7.

Instrument Cluster4-36
Items Explanation
Parking Safety
[
Surr
ound View Monitor Auto On
To activate or deactivate the Surround View Monitor Auto On.
For more details, refer to "Surround View Monitor (SVM)" in
chapter 7.

[ Parking Distance Warning Auto On
To activate or deactivate the Parking Distance Warning Auto
On.
For more details, refer to "Forward/Reverse Parking Distance
Warning (PDW)" in chapter 7.

[ Rear cross-traffic safety
To activate or deactivate Reverse Parking Collision-
Avoidance Assist.
For more details, refer to "Rear Cross-Traffic Collision-
Avoidance Assist (RCCA)" in chapter 7.

[ Rear Active Assist/Rear Warning Only/Off
To adjust Reverse Parking Collision-Avoidance Assist.
For more details, refer to "Reverse Parking Collision-
Avoidance Assist (PCA)" in chapter 7.
2. ECO vehicle
Items Explanation
Coasting guide
[
E
nable coasting guide : on/off
To inform driver when taking foot off from accelerator pedal by
getting information from Navigation system.

[ Sound
To adjust the sound of coasting guide.
Start coasting
[
Early/Normal/Late
To select options when Coasting Pop-up is displayed.

04
4-37

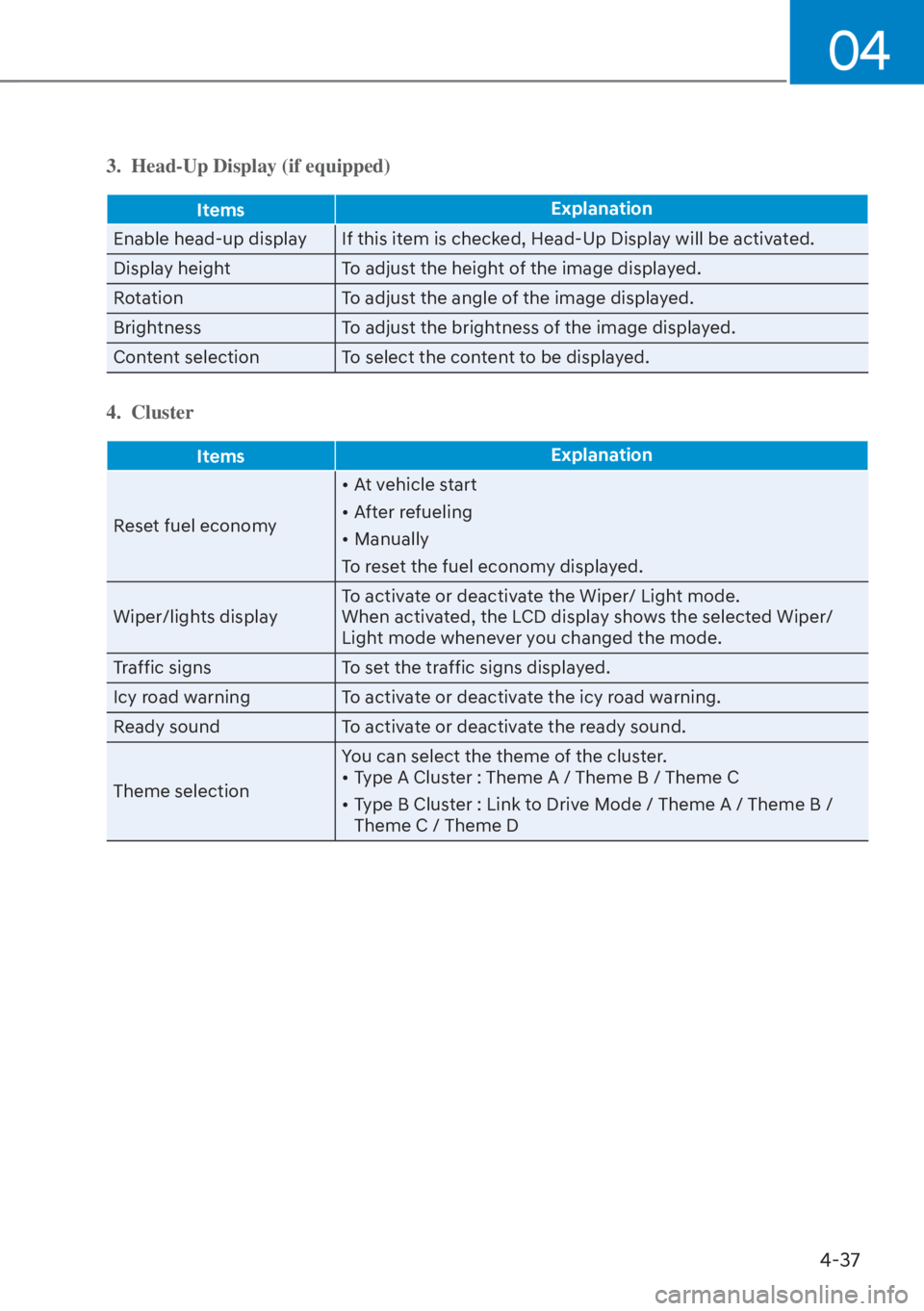

3. Head-Up Display (if equipped)
ItemsExplanation
Enable head-up display If this item is checked, Head-Up Display will be activated.
Displa
y height To adjust the height of the image displayed.
Rotation To adjust the angle of the image displayed.
Brightness To adjust the brightness of the image displayed.
Content selection To select the content to be displayed.
4. Cluster
Items Explanation
Reset fuel economy
[
A
t vehicle start

[ After refueling

[ Manually
To reset the fuel economy displayed.
Wiper/lights display To activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/
Light mode whenever you changed the mode.
Traffic signs To set the traffic signs displayed.
Icy road warning To activate or deactivate the icy road warning.
Ready sound To activate or deactivate the ready sound.
Theme selection You can select the theme of the cluster.

[
Type A Cluster : Theme A / Theme B / Theme C

[ Type B Cluster : Link to Drive Mode / Theme A / Theme B /
Theme C / Theme D

Instrument Cluster4-38
5. Lights
Items Explanation
Illumination T
o adjust the illumination level.

[ Level 1~20
One touch turn signal
[
Off : The one touch turn signal function will be deactivated.

[ 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7
times when the turn signal lever is moved slightly.
For more details, refer to ''Lighting'' in chapter 5.
Ambient light brightness
(If equipped)
[
Off

[ Level 1/2/3/4
Ambient light color
(If equipped)
[
Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/
Orchid Green/Freesia Yellow/ Sunrise Red/Aurora Purple/
Lightening Violet
Headlight delay To activate or deactivate the headlamp delay function.
For more details, refer to ''Lighting'' in chapter 5.
High Beam Assist To activate or deactivate High Beam Assist.
For more details, refer to ''High Beam Assist (HBA)'' in
chapter 5.

04
4-39
6. Door
ItemsExplanation
Automatically lock
[
E
nable on Shift : All doors will be automatically locked if
the shift button is shifted from the P (Park) position to the R
(Reverse), N (Neutral), or D (Drive) position. (only when the
vehicle is in ready mode)

[ Enable on Speed : All doors will be automatically locked
when the vehicle speed exceeds 9.3 mph (15 km/h).

[ Off : The auto door lock operation will be deactivated.
Automatically unlock
[
On Shift to P: All doors will be automatically unlocked if the
shift button is shifted to the P (Park) position. (only when the
vehicle is in ready mode)

[ On key out/On vehicle off : All doors will be automatically
unlocked when the ignition key is removed from the ignition
switch or the Engine Start/Stop button is set to the OFF
position.

[ Off : The auto door unlock operation will be canceled.
Power liftgate If this item is checked, the power liftgate function will be
activated.
For more details, refer to ''Power liftgate' in chapter 5.
Power liftgate opening
speed To adjust the power liftgate speed.

[
Fast/Normal
For more details, refer to ''Power liftgate' in chapter 5.
Smart liftgate To activate or deactivate the smart liftgate.
For more details, refer to ''Smart liftgate' in chapter 5.
7. Convenience
Items
Explanation
Seat easy access
[
Off : The sea
t easy access function is deactivated.

[ Normal/Extended : When you turn off the engine, the driver's
seat will automatically move rearward short (Normal) or
long (Extended) for you to enter or exit the vehicle more
comfortably.
For more details, refer to ''Driver Position Memory System'' in
chapter 5.
Rear occupant alert To activate or deactivate the Rear Occupant Alert.
For more details, refer to ''Rear Occupant Alert (ROA)
system'' in chapter 5.

Instrument Cluster4-40

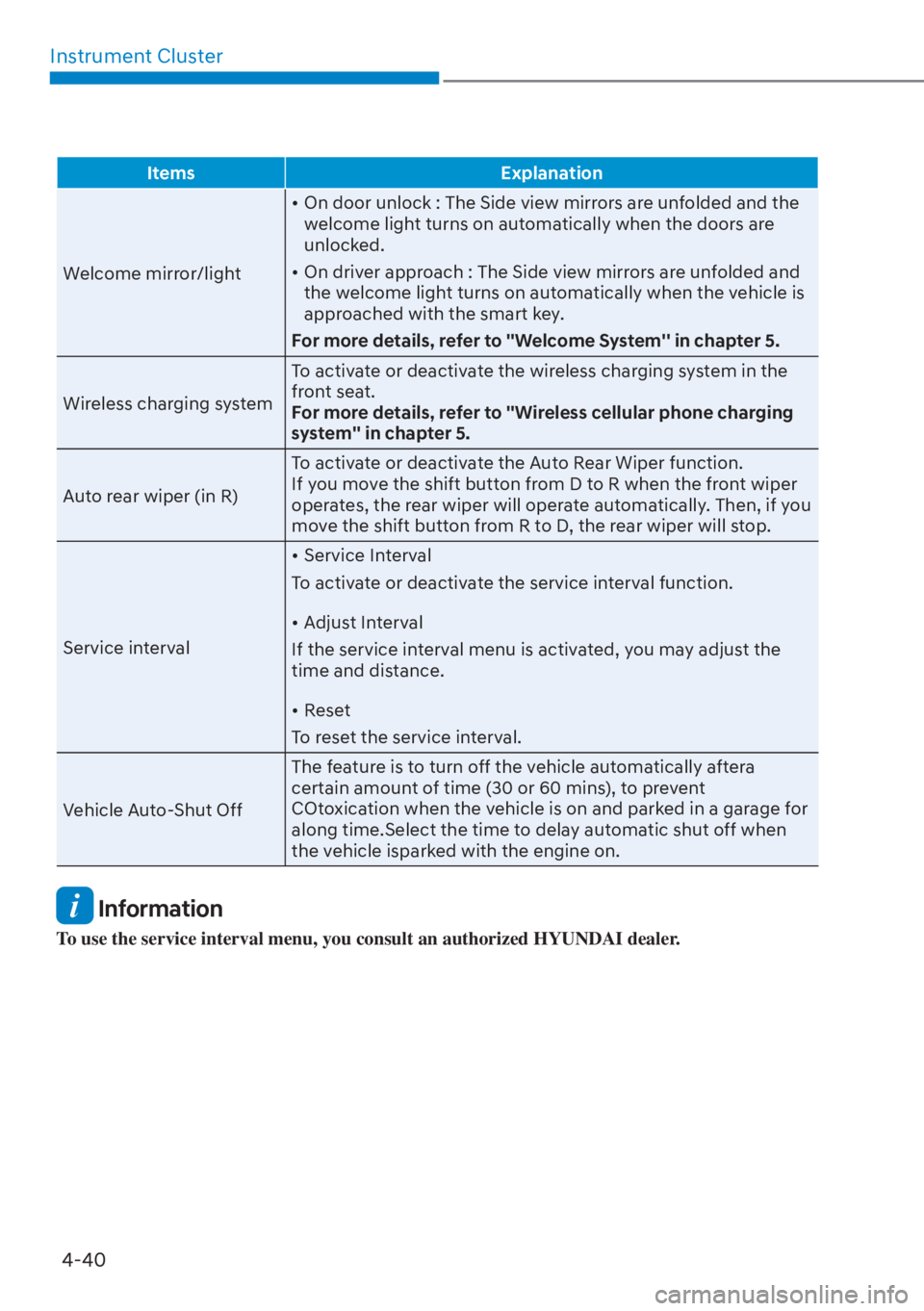

Items Explanation
Welcome mirror/light
[
On door unlock : The Side vie
w mirrors are unfolded and the
welcome light turns on automatically when the doors are
unlocked.

[ On driver approach : The Side view mirrors are unfolded and
the welcome light turns on automatically when the vehicle is
approached with the smart key.
For more details, refer to ''Welcome System'' in chapter 5.
Wireless charging system To activate or deactivate the wireless charging system in the
front seat.
For more details, refer to ''Wireless cellular phone charging
system'' in chapter 5.
Auto rear wiper (in R) To activate or deactivate the Auto Rear Wiper function.
If you move the shift button from D to R when the front wiper
operates, the rear wiper will operate automatically. Then, if you
move the shift button from R to D, the rear wiper will stop.
Service interval
[
Service Interval
To activate or deactivate the service interval function.

[ Adjust Interval
If the service interval menu is activated, you may adjust the
time and distance.

[ Reset
To reset the service interval.
Vehicle Auto-Shut Off The feature is to turn off the vehicle automatically aftera
certain amount of time (30 or 60 mins), to prevent
COtoxication when the vehicle is on and parked in a garage for
along time.Select the time to delay automatic shut off when
the vehicle isparked with the engine on.
Information
To use the service interval menu, you consult an authorized HYUNDAI deale\
