2023 HYUNDAI SANTA FE HYBRID Owners Manual

Driver assistance system7-98
Smart Cruise Control standby
When Smart Cruise Control is
temporarily canceled while Highway
Driving Assist is operating, Highway
Driving Assist will be in the standby state.
At this time, Lane Following Assist will
operate normally.
Highway Driving Assist
Malfunction and Limitations
Highway Driving Assist malfunction
OTM070120N
When Highway Driving Assist or Highway
Lane Change function is not working
properly, the 'Check HDA (Motorway
Driving Assist) system' warning message
will appear, and the
warning light
will illuminate on the cluster. Function
is inspected by an authorized HYUNDAI
dealer.
WARNING

[ The driver is responsible for
controlling the vehicle for safe
driving.

[ Always have your hands on the
steering wheel while driving.

[ Highway Driving Assist is a
supplemental system that assists
the driver in driving the vehicle
and is not a complete autonomous
driving system. Always check road
conditions, and if necessary, take
appropriate actions to drive safely.

[ Always have your eyes on the road,
and it is the responsibility of the
driver to avoid violating traffic laws.
The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[ Highway Driving Assist may not
be able to recognize all traffic
situations. Highway Driving Assist
may not detect possible collisions
due to limitations of the function.
Always be aware of the limitations
of Highway Driving Assist. Obstacles
such as vehicles, motorcycles,
bicycles, pedestrians, unspecified
objects, structures, etc., that may
collide with the vehicle may not be
detected.

[ Highway Driving Assist will turn off
automatically under the following
situations:
- Driving on roads that Highway
Driving Assist does not operate,
such as a rest area, intersection,
junction, etc.
- The navigation does not operate
properly such as when the
navigation is being updated or
restarted

07
7-99

[Highway Driving Assist may
inadvertently operate or turn off
depending on road conditions
(navigation information) and
surroundings.

[ Lane Following Assist function may
be temporarily disabled when the
front view camera cannot detect
lanes properly or the hands-off
warning is on.

[ You may not hear the warning sound
of Highway Driving Assist if the
surrounding is noisy.

[ If the vehicle is driven at high speed
above a certain speed at a curve,
your vehicle may drive to one side or
may depart from the driving lane.

[ When you are towing a trailer or
another vehicle, Highway Driving
Assist is turned off due to safety
reasons.

[ The hands–off warning message
may appear early or late depending
on how the steering wheel is held or
road conditions. Always have your
hands on the steering wheel while
driving.

[ For your safety, please read the
owner's manual before using the
Highway Driving Assist.

[ Highway Driving Assist will not
operate when the engine is started,
or when the detecting sensors or
navigation is being initialized.Limitations of Highway Driving
Assist
Highway Driving Assist may not operate
normally, or may not operate under the
following circumstances:

[The map information and the
actual road is different because the
navigation is not updated

[ The map information and the actual
road is different because of real-time
GPS data or map information error

[ The infotainment system is overloaded
by simultaneously performing
functions such as route search, video
playback, voice recognition, etc.

[ GPS signals are blocked in areas such
as a tunnel

[ The driver goes off course or the
route to the destination is changed or
canceled by resetting the navigation

[ The vehicle enters a service station or
rest area

[ Android Auto or Car Play is operating

[ The navigation cannot detect the
current vehicle position (for example,
elevated roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way)

[ White single dotted lane line or
roadedge cannot be detected

[ The road is temporarily controlled due
to construction, etc.

[ There is no structure, such as a
medium strip, guardrails, etc., on the
road

[ There is a changeable lane in the
direction of lane change
For more details on the limitations of
the front view camera, front radar, front
corner radar and rear corner radar, refer
to “Forward Collision-Avoidance Assist
(FCA)” section in this chapter.

Driver assistance system7-100

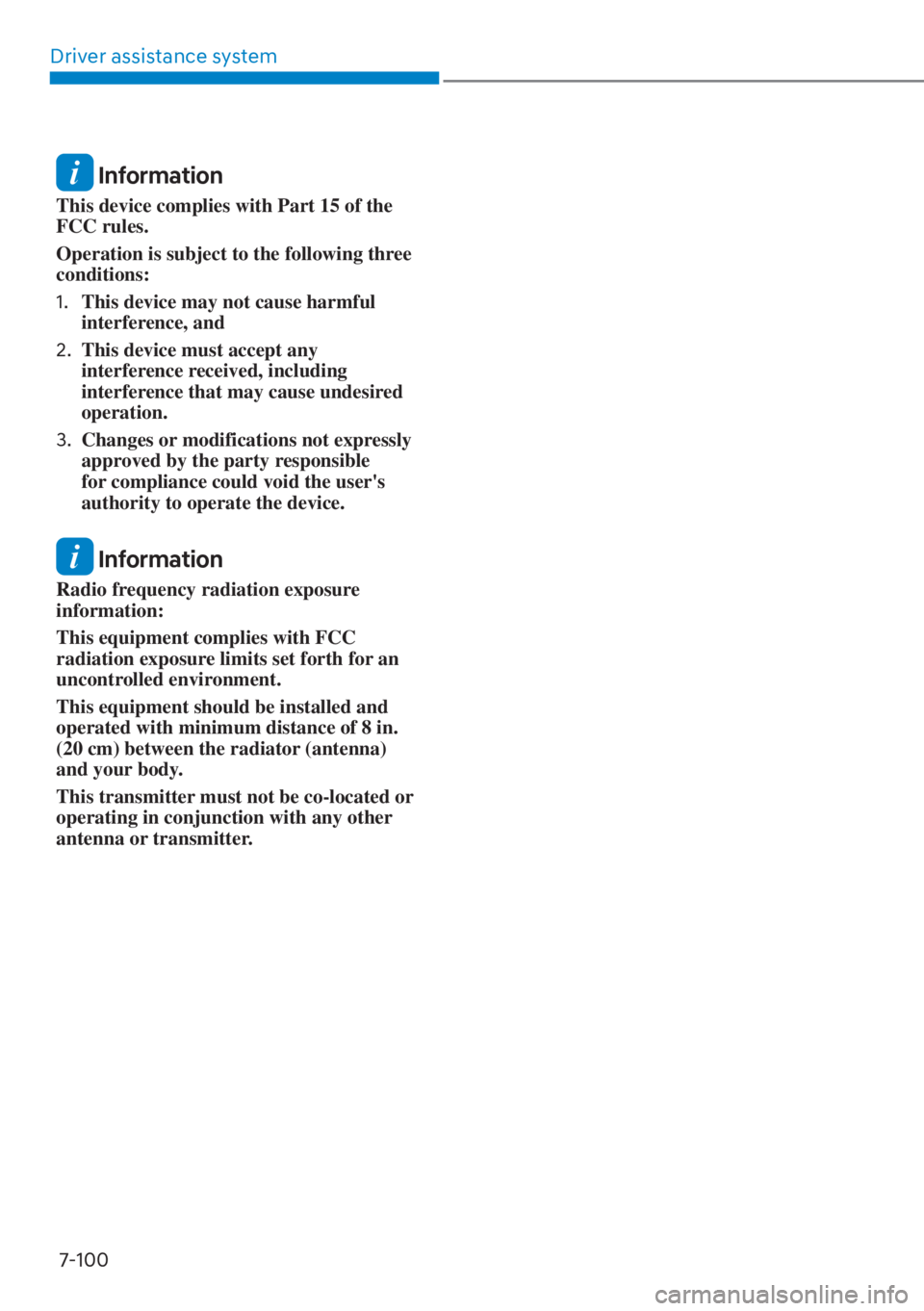

Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

07
7-101
OTMPH071013N
OTM070071
Rear View Monitor will show the area
behind the vehicle to assist you when
parking or backing up.
Detecting sensor
OTMPH071012N[1] : Rear view camera
Refer to the picture above for the
detailed location of the detecting sensor.
5($59,(:021,725

Driver assistance system7-102

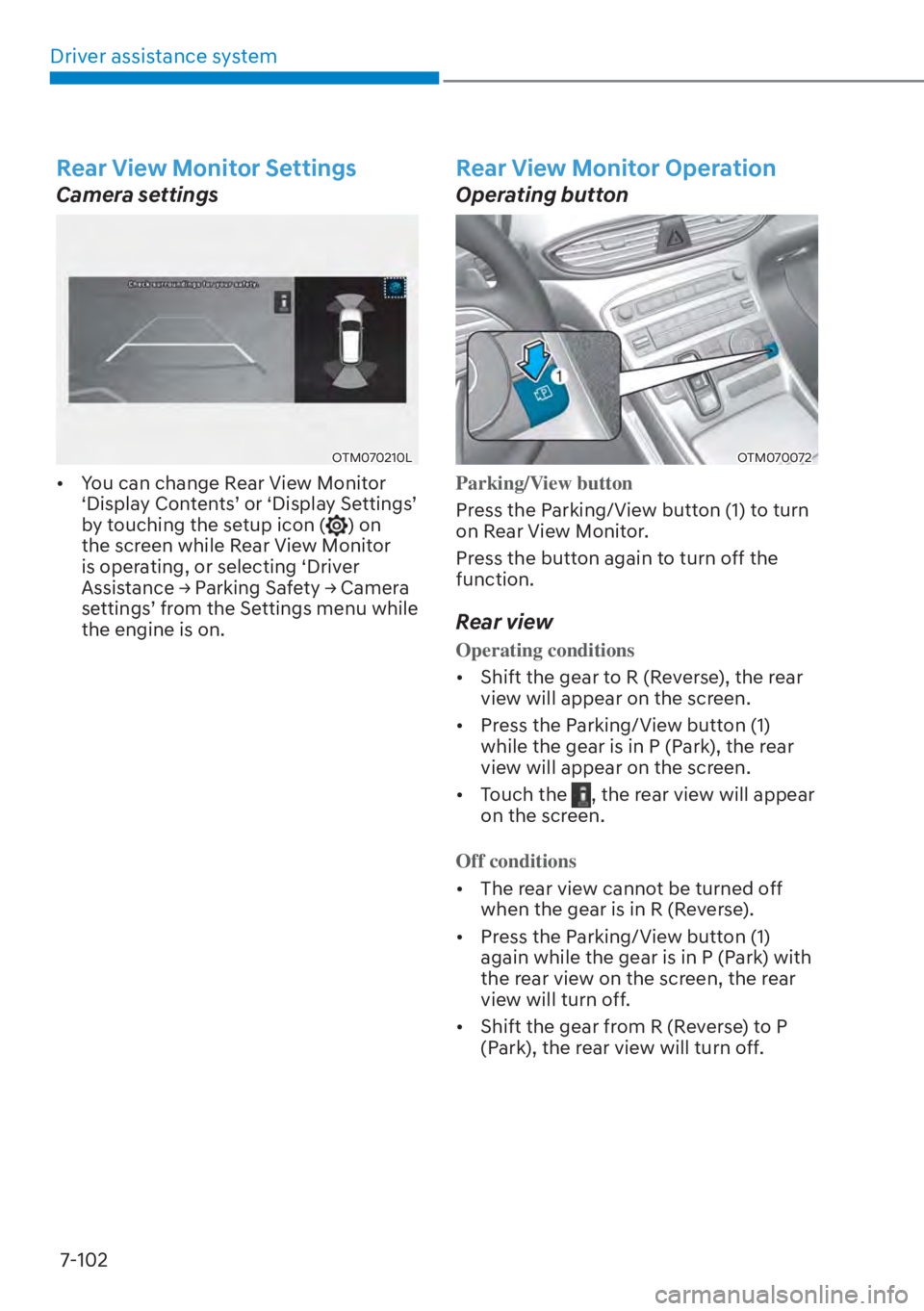

Rear View Monitor Settings
Camera settings
OTM070210L

[ You can change Rear View Monitor

S'LVSOD\&RQWHQWV
TRU
S'LVSOD\6HWWLQJV
T
by touching the setup icon (
) on
the screen while Rear View Monitor
is operating, or selecting ‘Driver
$VVLVWDQFH

07
7-103
Extended rear view function
The rear view will maintain showing on
the screen to help you when parking.
Operating conditions
Shift the gear from R (Reverse) to N
(N
eutral) or D (Drive), the rear view will
appear on the screen.
Off conditions

[ When v
ehicle speed is above 6 mph
(10 km/h), the rear view will turn off.

[ Shift the gear to P (Park), the rear view
will turn off.

[ Press the Parking/View button (1), the
rear view will turn off.
Rear top view
OTM070212L
When you touch the icon, the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.

Driver assistance system7-104
Rear View Monitor Malfunction
and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display normally,
function is inspected by an authorized
HYUNDAI dealer.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING

[ The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
normally. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

07
7-105

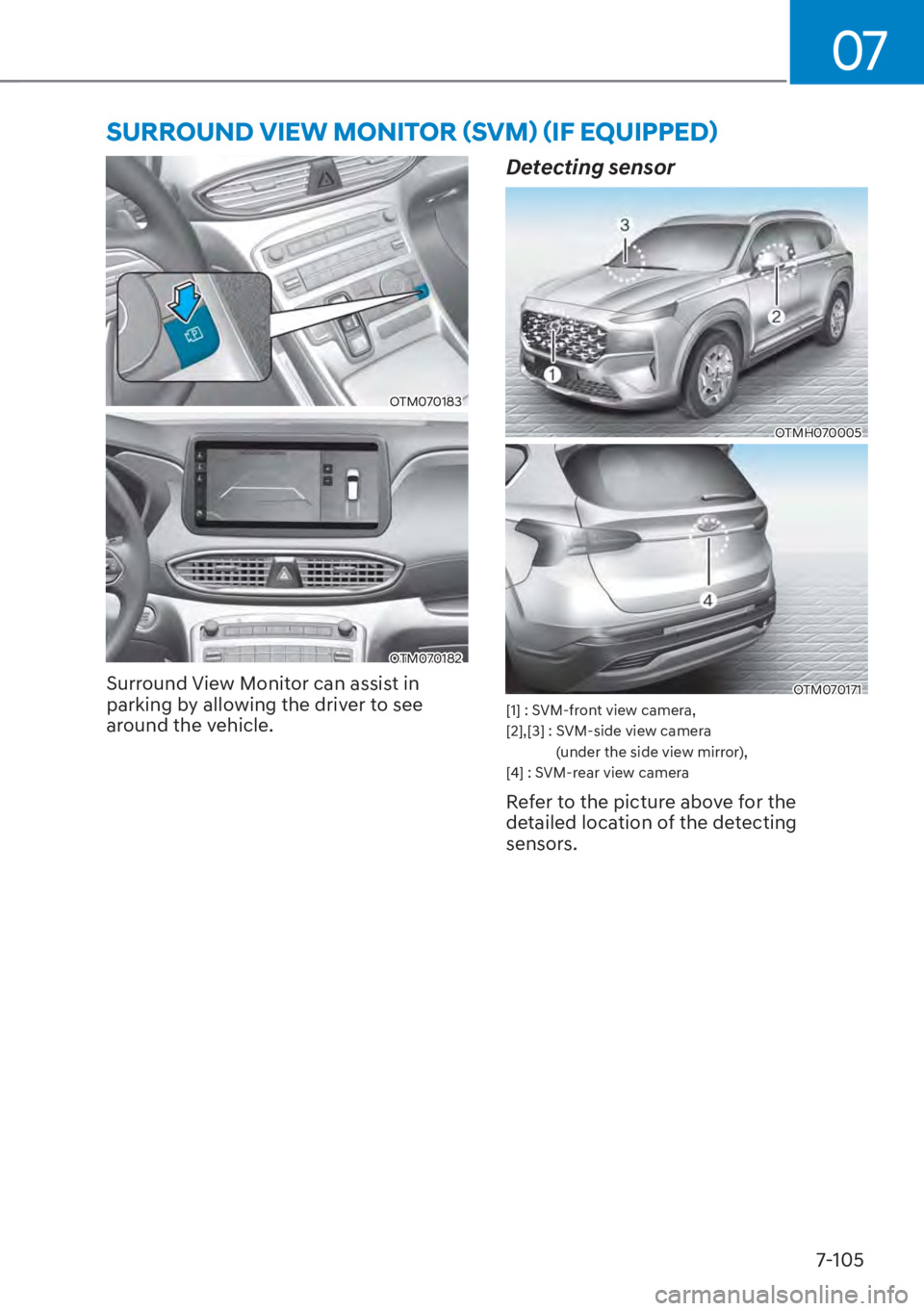

6855281'9,(:021,725
