Instrument Cluster4-40
Items Explanation
Welcome mirror/light
[
On door unlock : The Side vie
w mirrors are unfolded and the
welcome light turns on automatically when the doors are
unlocked.

[ On driver approach : The Side view mirrors are unfolded and
the welcome light turns on automatically when the vehicle is
approached with the smart key.
For more details, refer to ''Welcome System'' in chapter 5.
Wireless charging system To activate or deactivate the wireless charging system in the
front seat.
For more details, refer to ''Wireless cellular phone charging
system'' in chapter 5.
Auto rear wiper (in R) To activate or deactivate the Auto Rear Wiper function.
If you move the shift button from D to R when the front wiper
operates, the rear wiper will operate automatically. Then, if you
move the shift button from R to D, the rear wiper will stop.
Service interval
[
Service Interval
To activate or deactivate the service interval function.

[ Adjust Interval
If the service interval menu is activated, you may adjust the
time and distance.

[ Reset
To reset the service interval.
Vehicle Auto-Shut Off The feature is to turn off the vehicle automatically aftera
certain amount of time (30 or 60 mins), to prevent
COtoxication when the vehicle is on and parked in a garage for
along time.Select the time to delay automatic shut off when
the vehicle isparked with the engine on.
Information
To use the service interval menu, you consult an authorized HYUNDAI deale\
r.

5
Accessing Your Vehicle ........................................................................\
............. 5-4Remote Key ........................................................................\
...........................................5-4
Smart Key ........................................................................\
..............................................5-7
Immobilizer System ........................................................................\
............................5-13
Hyundai Digital Key ........................................................................\
............................ 5-14
Door Locks ........................................................................\
............................... 5-30Operating Door Locks from Outside the Vehicle .....................................................5-30
Operating Door Locks from Inside the Vehicle .........................................................5-31
Auto Door Lock/Unlock Features ........................................................................\
...... 5-33
Electronic Child Safety Lock ........................................................................\
.............. 5-33
Theft-alarm System ........................................................................\
................ 5-35
Rear Occupant Alert (ROA) .....................................................................\
....... 5-36
System Setting........................................................................\
....................................5-36
System Operation ........................................................................\
...............................5-36
System Precautions ........................................................................\
............................ 5-37
Integrated Memory System......................................................................\
...... 5-38Storing Memory Positions ........................................................................\
.................5-38
Recalling Memory Positions ........................................................................\
..............5-39
Resetting the System ........................................................................\
.........................5-39
Easy Access Function ........................................................................\
........................ 5-40
Steering Wheel ........................................................................\
......................... 5-41Electric Power Steering (EPS) ........................................................................\
............ 5-41
Tilt / Telescopic Steering ........................................................................\
...................5-42
Heated Steering Wheel ........................................................................\
......................5-42
Horn........................................................................\
.....................................................5-43
Mirrors ......................................................................\
....................................... 5-44Inside Rearview Mirror ........................................................................\
...................... 5-44
Side View Mirrors ........................................................................\
............................... 5-55
Reverse Parking Aid .............................................................\
...................................... 5-57
Windows ......................................................................\
.................................... 5-59Power Windows ........................................................................\
................................. 5-60
Panoramic Sunroof ........................................................................\
................. 5-63Power Sunshade ........................................................................\
................................ 5-64
Tilt Open/Close........................................................................\
.................................. 5-64
Slide Open/Close .......................................................\
................................................5-65
Resetting the Sunroof ........................................................................\
....................... 5-66
Sunroof Open Warning ........................................................................\
...................... 5-67
5. Convenience Features

Convenience Features5-4
Remote Key (if equipped)
OPDE046001
Your HYUNDAI uses a remote key, which
you can use to lock or unlock the driver
and passenger door or the rear liftgate.
1. Door Lock
2. Door Unlock
3. Liftgate Unlock
Locking
To lock :
1. Close all doors, engine hood and liftgate.
2. Press the Door Lock button (1) on the remote key.
3. The doors will lock. The hazard warning lights will blink. Also, the
outside rearview mirror will fold, if

S&RQYHQLHQFH

05
5-39
Recalling Memory Positions
1. Shift to P (Park) while the Engine Start/Stop button is in the ON
position.
2. Press the desired memory button (1 or 2). The system will beep once, and
then the driver’s seat position, side
view mirror position, steering wheel
position, instrument panel illumination
intensity and head-up display height/
brightness will automatically adjust to
the stored positions.
3. ‘Driver 1 (or 2) settings applied’ will appear on the cluster LCD display.
Information

[If you press the SET button or the
corresponding button which the
setting is being recalled, the setting will
temporarily deactivate. If you press the
other buttons, the setting of the pressed
button will activate.
For example, if you press the SET
button or number 1 button with the
number 1 setting in operation, the
setting will temporarily deactivate. If
you press the number 2 button, the
number 2 setting will activate.

[ If you adjust the seat, rearview mirror,
steering wheel, instrument panel
illumination or head-up display while
recalling the stored positions, the pre-
set settings will become ineffective.
Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s
door with the Engine Start/Stop
button in the ON position and the
vehicle shifted to P (Park).
2. Adjust the driver’s seat and seatback to the foremost position.
3. Press the SET button and push forward the driver’s seat movement
switch over 2 seconds simultaneously.

Convenience Features5-44
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
head restraint which could interfere
with your vision through the rear
window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror (if
equipped)
OTM050018[A] : Day, [B] : Night
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlamps of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
0,55256

05
5-45
Electric Chromic Mirror (ECM)
(if equipped)
OTM050019[A] : Indicator
Some vehicles come equipped with an
electrochromic mirror that helps control
glare while driving at night or under low
light driving conditions.
When the engine is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror. The
sensor detects the light level around the
vehicle, and automatically adjusts to
control the headlamp glare from vehicles
behind you.
Whenever the the gear is shifted to R
(Reverse), the mirror will automatically
go to the brightest setting in order to
improve the driver’s view behind the
vehicle.
Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature
will automatically detect and reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
OTMA050002
(1) HomeLink Channel 1
(2) HomeLink Channel 2
(3) HomeLink Channel 3
(4) Garage Door Opener Status Indicator: Closing or Closed
(5) HomeLink Operation Indicator
(6) Garage Door Opener Status Indicator: Opening or Opened
(7) HomeLink User Interface Indicator

05
5-55
Side View Mirrors
OTM048015
Your vehicle is equipped with both left-
hand and right-hand Side view mirrors.
The mirrors can be adjusted remotely
with the mirror adjustment control
switch. The Side view mirrors can be
folded to help prevent damage when
going through an automatic car wash or
when passing through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
Make sure to adjust the Side view mirrors
to your desired position before you begin
driving.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE

[Do not scrape ice off the mirror face;
this may damage the surface of the
glass.

[ If the mirror is jammed with ice, do
not adjust the mirror by force. Use
an approved de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

[ Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.

Convenience Features5-56

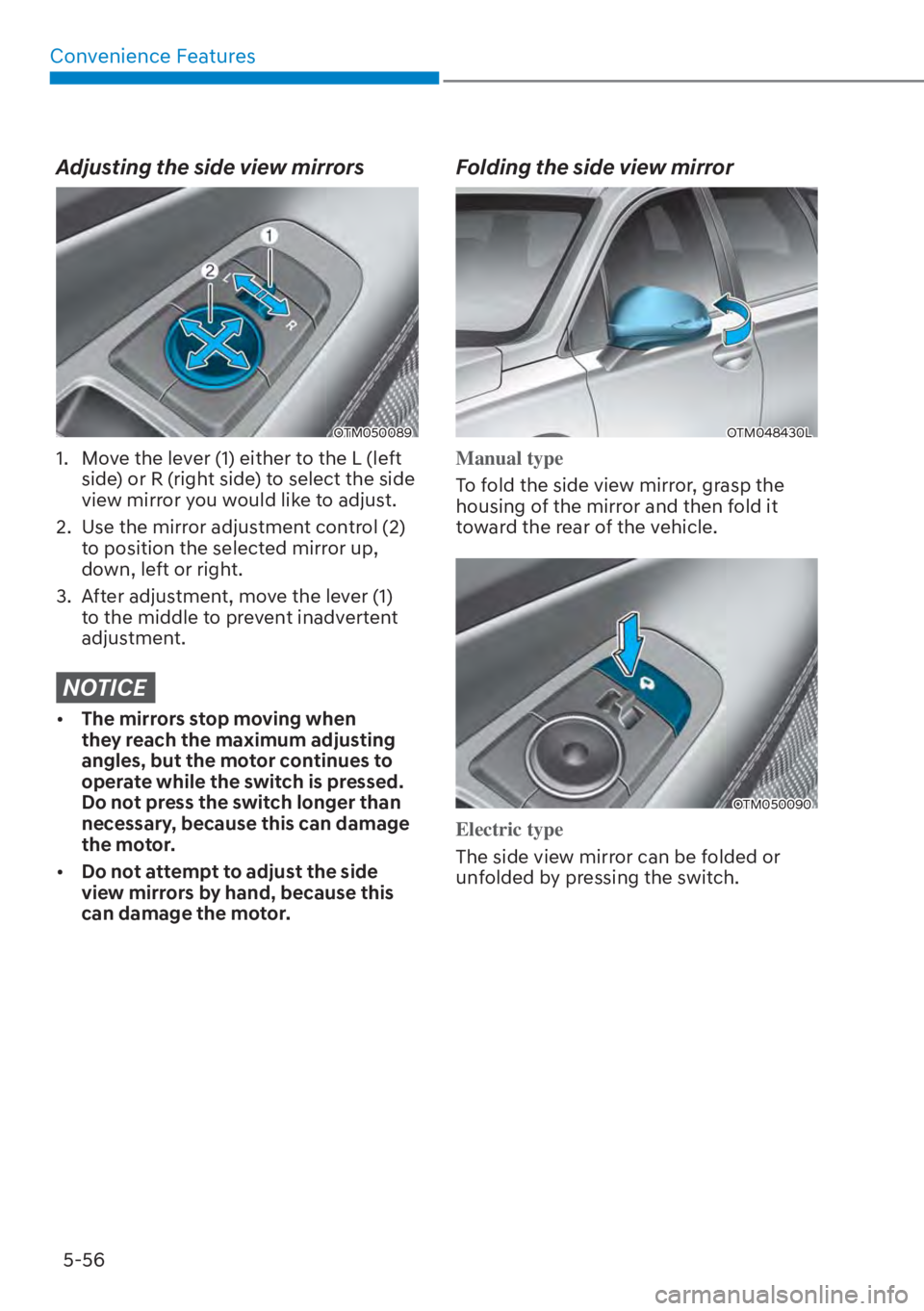

Adjusting the side view mirrors
OTM050089
1. Move the lever (1) either to the L (left side) or R (right side) to select the side
view mirror you would like to adjust.
2. Use the mirror adjustment control (2) to position the selected mirror up,
down, left or right.
3. After adjustment, move the lever (1) to the middle to prevent inadvertent
adjustment.
NOTICE

[The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.

[ Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
Folding the side view mirror
OTM048430L
Manual type
To fold the side view mirror, grasp the
housing o

f the mirror and then fold it
toward the rear of the vehicle.
OTM050090
Electric type
The side view mirror can be folded or
unf
olded by pressing the switch.
