2023 HYUNDAI SANTA FE HYBRID Owners Manual

Driver assistance system7-10

[ There is a group of pedestrians or a
large crowd in front

[ The pedestrian is wearing clothing
that easily blends into the
background, making it difficult to
detect

[ The pedestrian is difficult to
distinguish from the similar shaped
structure in the surroundings

[ You are driving by a pedestrian,
traffic sign, structure, etc., near the
intersection

[ Driving in a parking lot

[ Driving through a tollgate,
construction area, unpaved road,
partial paved road, uneven road,
speed bumps, etc.

[ Driving on an incline road, curved
road, etc.

[ Driving through a roadside with trees
or streetlights

[ The adverse road conditions cause
excessive vehicle vibrations while
driving

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[ Driving through a narrow road where
trees or grass or overgrown

[ There is interference by
electromagnetic waves such as
driving in an area with strong radio
waves or electrical noise WARNING

[Driving on a curved road
OADAS003OADAS002
Forward Collision-Avoidance Assist
may not detect other vehicles
or pedestrians in front of you on
curved roads adversely affecting the
performance of the sensors. This may
result in no warning or braking assist
when necessary.
When driving on a curve, you must
maintain a safe braking distance,
and if necessary, steer the vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.

07
7-11
OADAS006OADAS005
Forward Collision-Avoidance Assist
may detect a vehicle or pedestrian
in the next lane or outside the lane
when driving on a curved road.
If this occurs, Forward Collsion-
Avoidance Assist may unnecessarily
warn the driver and control the
brake. Always check the traffic
conditions around the vehicle.
[
Driving on sloped roadOADAS009
OADAS007
Forward Collision-Avoidance Assist
may not detect other vehicles or
pedestrians in front of you while
driving uphill or downhill adversely
affecting the performance of the
sensors.
This may result in unnecessary
warning or braking assist, or no
warning or braking assist when
necessary.
Also, vehicle speed may rapidly
decrease when a vehicle or
pedestrian ahead is suddenly
detected.
Always have your eyes on the road
while driving uphill or downhill and
if necessary, steer the vehicle and
depress the brake pedal to reduce
your driving speed in order to
maintain a safe distance.

Driver assistance system7-12

[ Changing lanes
OADAS032[A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot
be detected by the sensor until it
is in the sensor's detection range.
Forward Collision-Avoidance Assist
may not immediately detect the
vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance,
and if necessary, steer the vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
OADAS033[A] : Your vehicle,
[B] : Lane changing vehicle,
[C] : Same lane vehicle
When a vehicle in front of you
merges out of the lane, Forward
Collision-Avoidance Assist may not
immediately detect the vehicle that
is now in front of you.
In this case, you must maintain a safe
braking distance, and if necessary,
steer the vehicle and depress the
brake pedal to reduce your driving
speed in order to maintain a safe
distance.

07
7-13

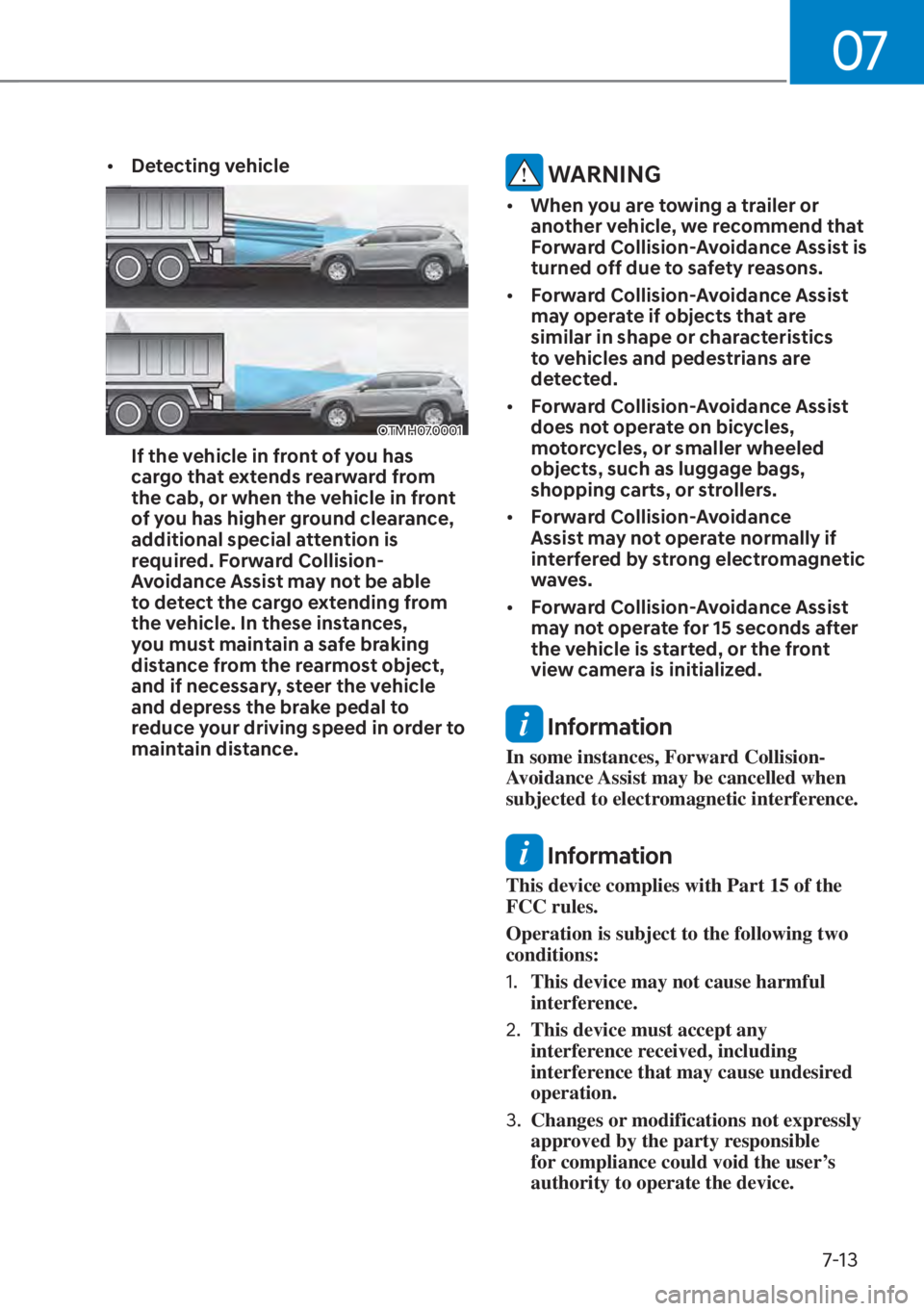

[Detecting vehicle
OTMH070001
If the vehicle in front of you has
cargo that extends rearward from
the cab, or when the vehicle in front
of you has higher ground clearance,
additional special attention is
required. Forward Collision-
Avoidance Assist may not be able
to detect the cargo extending from
the vehicle. In these instances,
you must maintain a safe braking
distance from the rearmost object,
and if necessary, steer the vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain distance.
WARNING

[When you are towing a trailer or
another vehicle, we recommend that
Forward Collision-Avoidance Assist is
turned off due to safety reasons.

[ Forward Collision-Avoidance Assist
may operate if objects that are
similar in shape or characteristics
to vehicles and pedestrians are
detected.

[ Forward Collision-Avoidance Assist
does not operate on bicycles,
motorcycles, or smaller wheeled
objects, such as luggage bags,
shopping carts, or strollers.

[ Forward Collision-Avoidance
Assist may not operate normally if
interfered by strong electromagnetic
waves.

[ Forward Collision-Avoidance Assist
may not operate for 15 seconds after
the vehicle is started, or the front
view camera is initialized.
Information
In some instances, Forward Collision-
Avoidance Assist may be cancelled when
subjected to electromagnetic interference.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.

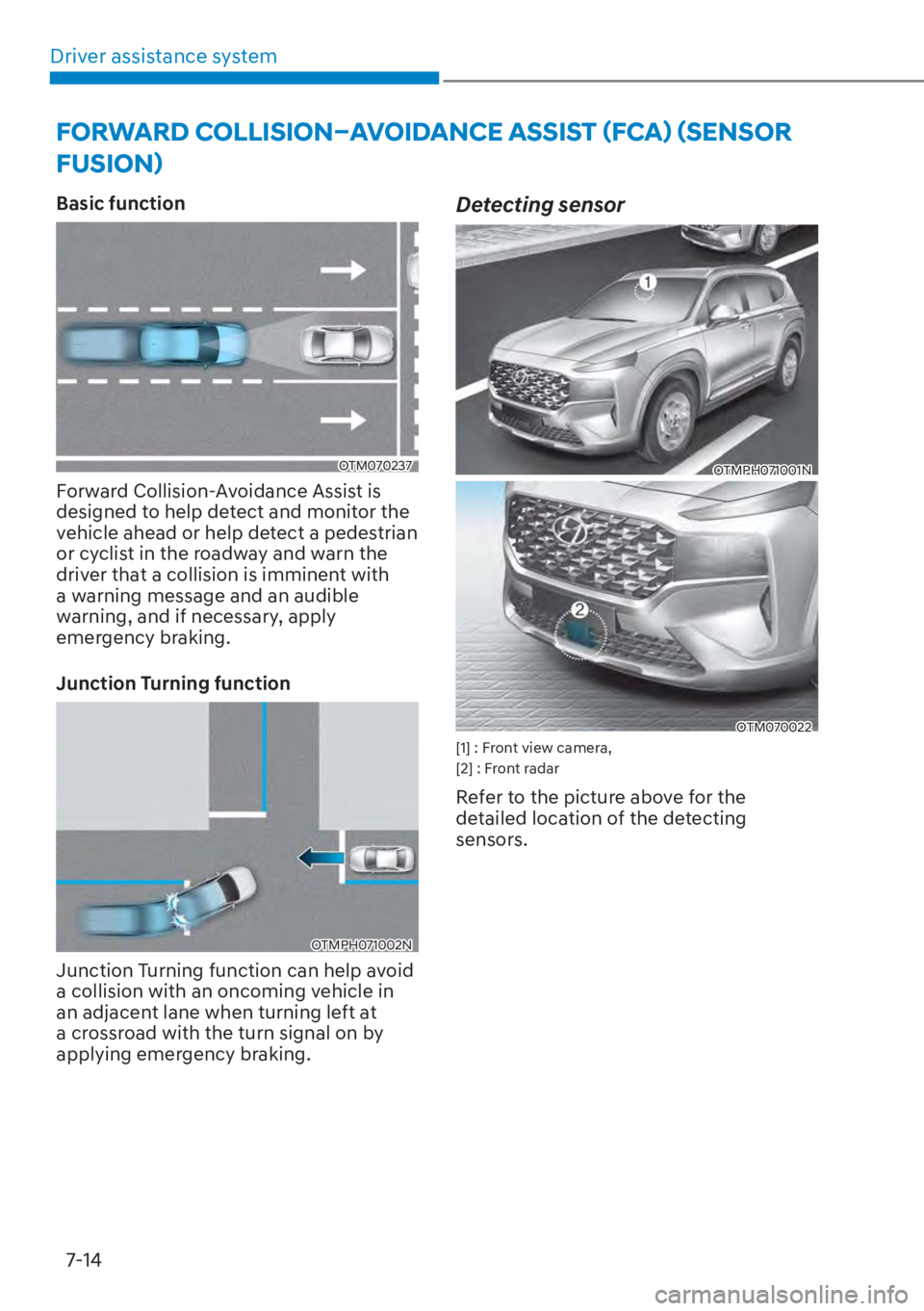

Driver assistance system7-14
)25:$5'&2//,6,21

07
7-15
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the detecting
sensor or sensor assembly, or apply
any impact on it.

[ If the detecting sensors have been
replaced or repaired, you have your
vehicle inspected by an authorized
HYUNDAI dealer.

[ Never install any accessories or
stickers on the front windshield, or
tint the front windshield.

[ Pay extreme caution to keep the
front view camera dry.

[ Never place any reflective objects
(for example, white paper, mirror)
over the dashboard. Any light
reflection may prevent Forward
Collision-Avoidance Assist from
functioning properly.

[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard, near the
front radar cover.

[ Always keep the front radar and
cover clean and free of dirt and
debris.
Use only a soft cloth to wash the
vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.
[
If unnecessary force has been
applied to the radar or around the
radar, Forward Collision-Avoidance
Assist may not properly operate even
though a warning message does not
appear on the cluster. The vehicle is
inspected by an authorized HYUNDAI
dealer.

[ Use only genuine parts to repair or
replace a damaged front radar cover.
Do not apply paint to the front radar
cover.

Driver assistance system7-16

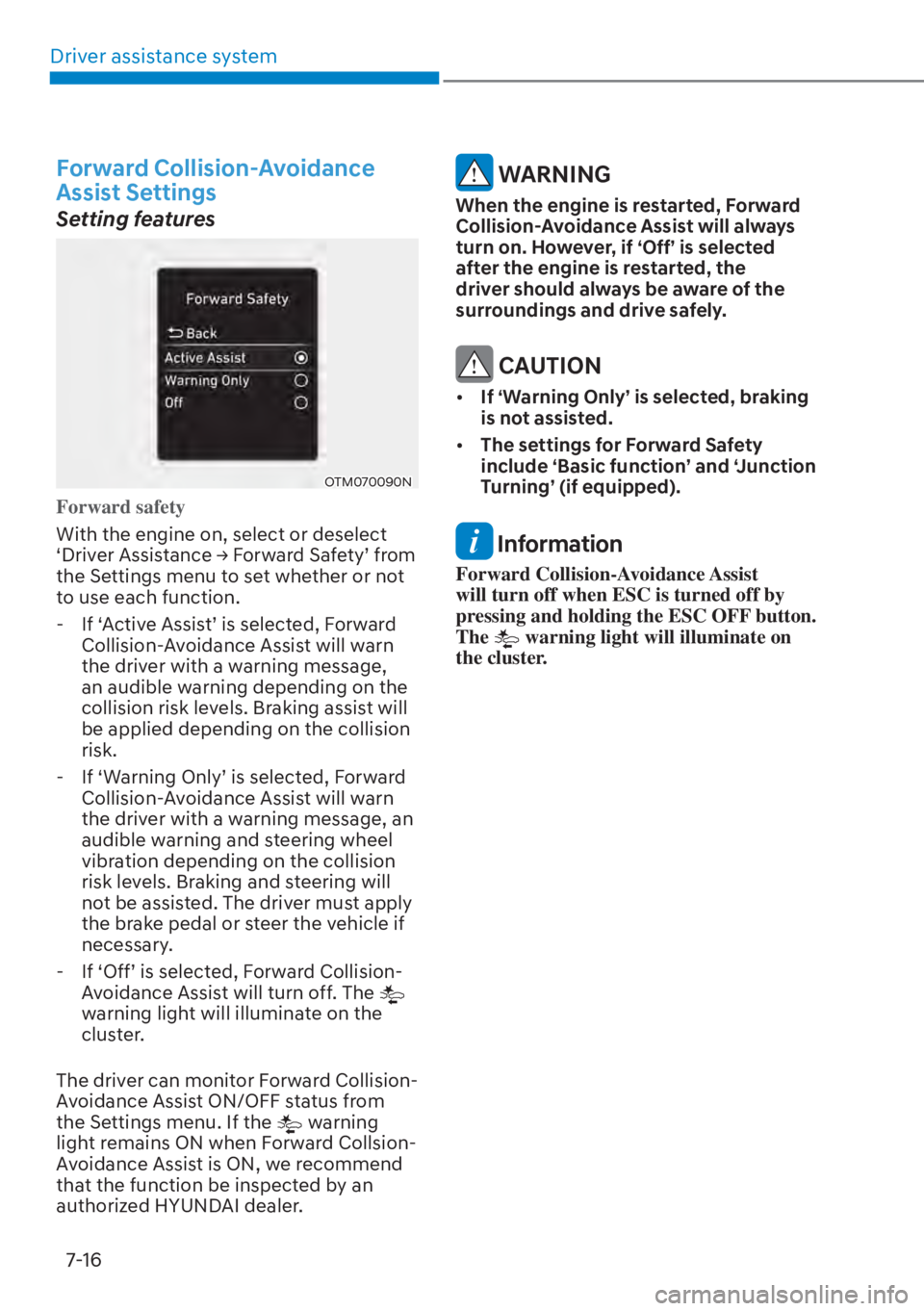

Forward Collision-Avoidance
Assist Settings
Setting features
OTM070090N
Forward safety
With the engine on, select or deselect

S'ULY
HU$VVLVWDQFH

07
7-17
OTM070140N

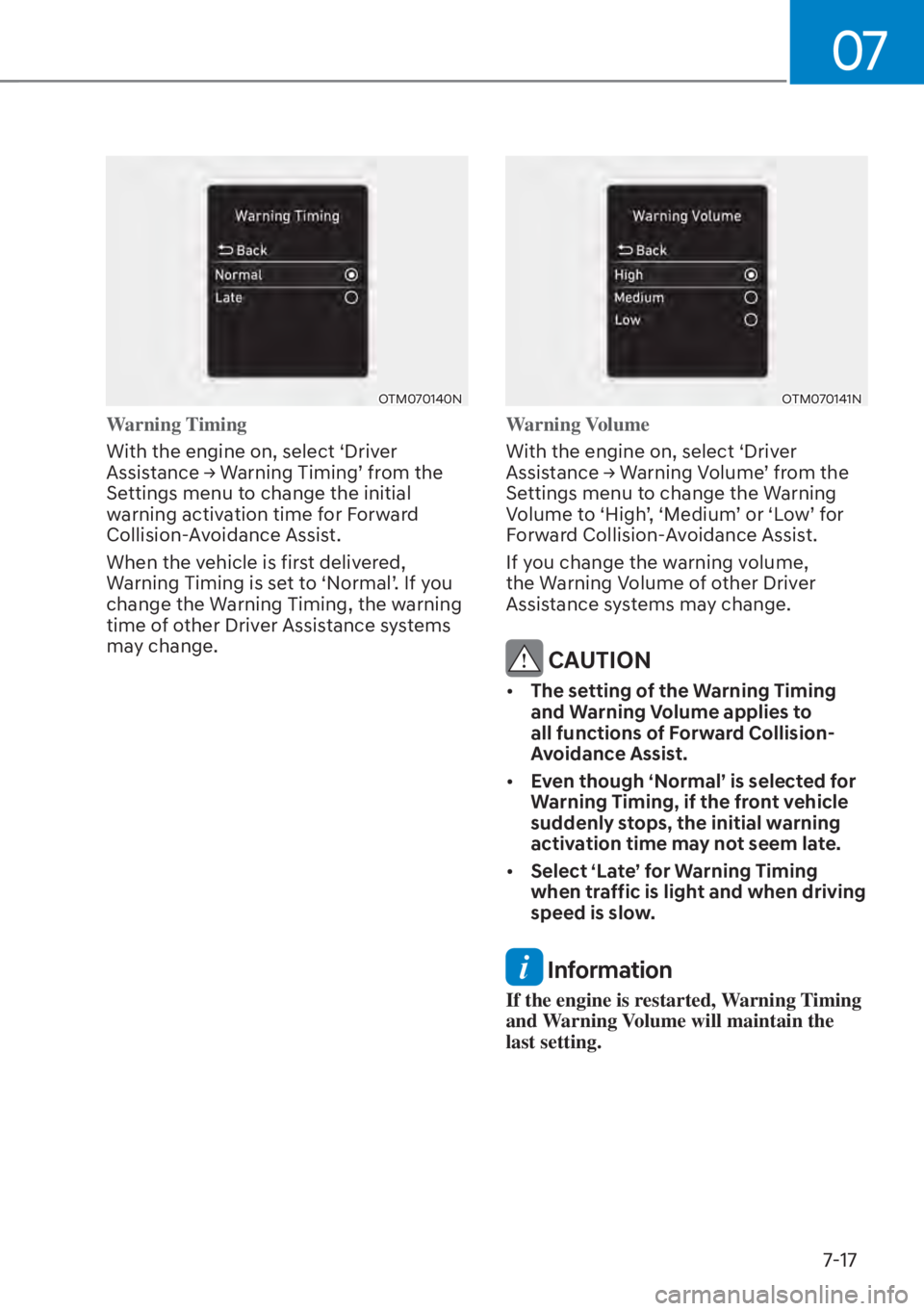

Warning Timing
With the engine on, select ‘Driver
$VVLV
WDQFH
