Driver assistance system7-18

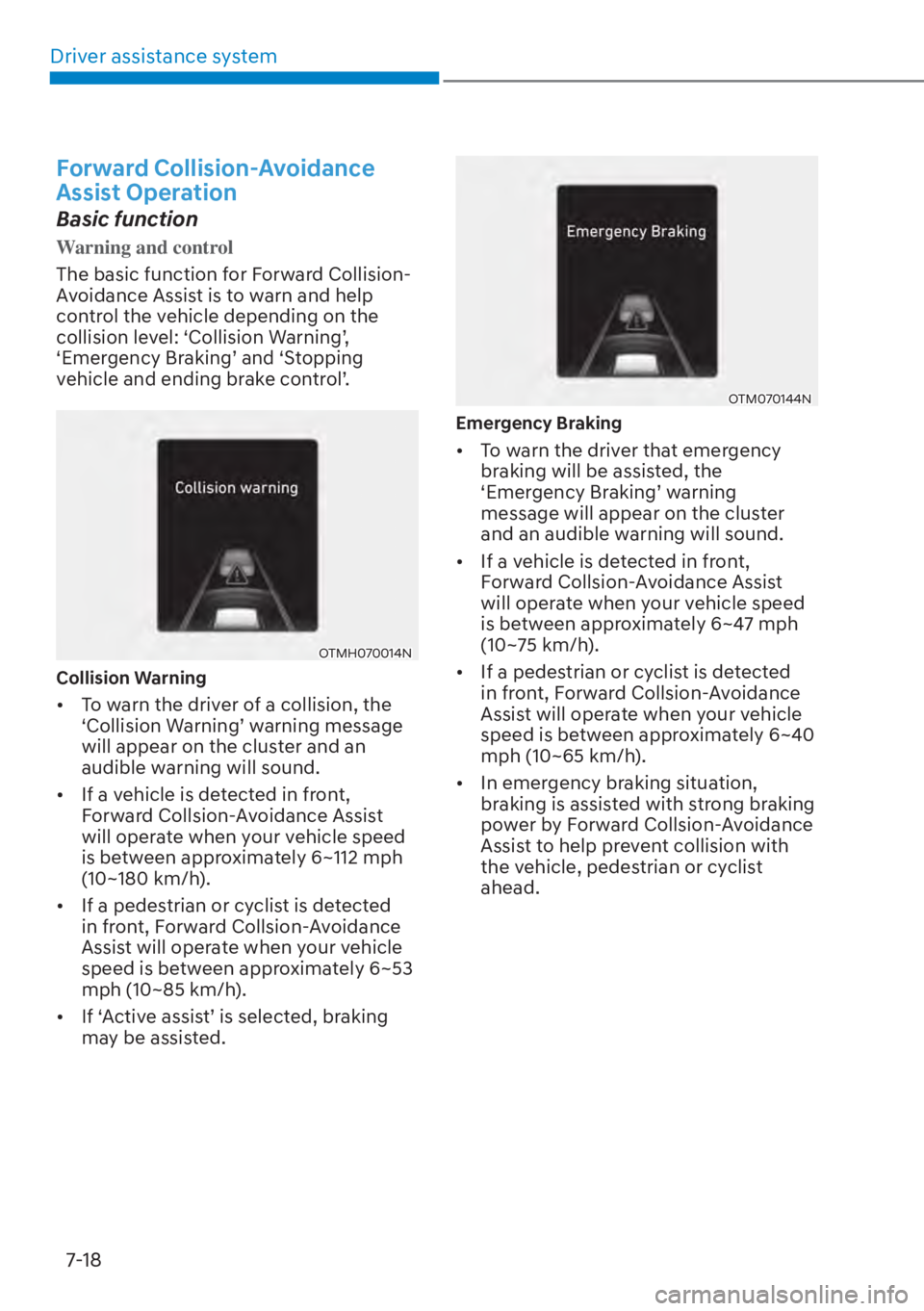

Forward Collision-Avoidance
Assist Operation
Basic function
Warning and control
The basic function for Forward Collision-
A
voidance Assist is to warn and help
control the vehicle depending on the
FROOLVLRQOHYHO
S&ROOLVLRQ:DUQLQJ
T

S(PHUJHQF\%UDNLQJ
TDQG
S6WRSSLQJ
YHKLFOHDQGHQGLQJEUDNHFRQWURO
T
OTMH070014N
Collision Warning

[ To warn the driver of a collision, the

S&ROOLVLRQ:DUQLQJ
TZDUQLQJPHVVDJH
will appear on the cluster and an
audible warning will sound.

[ If a vehicle is detected in front,
Forward Collsion-Avoidance Assist
will operate when your vehicle speed
is between approximately 6~112 mph
(10~180 km/h).

[ If a pedestrian or cyclist is detected
in front, Forward Collsion-Avoidance
Assist will operate when your vehicle
speed is between approximately 6~53
mph (10~85 km/h).

[ ,I
S$FWLYHDVVLVW
TLVVHOHFWHGEUDNLQJ may be assisted.
OTM070144N
Emergency Braking

[To warn the driver that emergency
braking will be assisted, the

S(PHUJHQF\%UDNLQJ
TZDUQLQJ
message will appear on the cluster
and an audible warning will sound.

[ If a vehicle is detected in front,
Forward Collsion-Avoidance Assist
will operate when your vehicle speed
is between approximately 6~47 mph
(10~75 km/h).

[ If a pedestrian or cyclist is detected
in front, Forward Collsion-Avoidance
Assist will operate when your vehicle
speed is between approximately 6~40
mph (10~65 km/h).

[ In emergency braking situation,
braking is assisted with strong braking
power by Forward Collsion-Avoidance
Assist to help prevent collision with
the vehicle, pedestrian or cyclist
ahead.

07
7-19
OTM070059L
Stopping vehicle and ending brake control

[When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

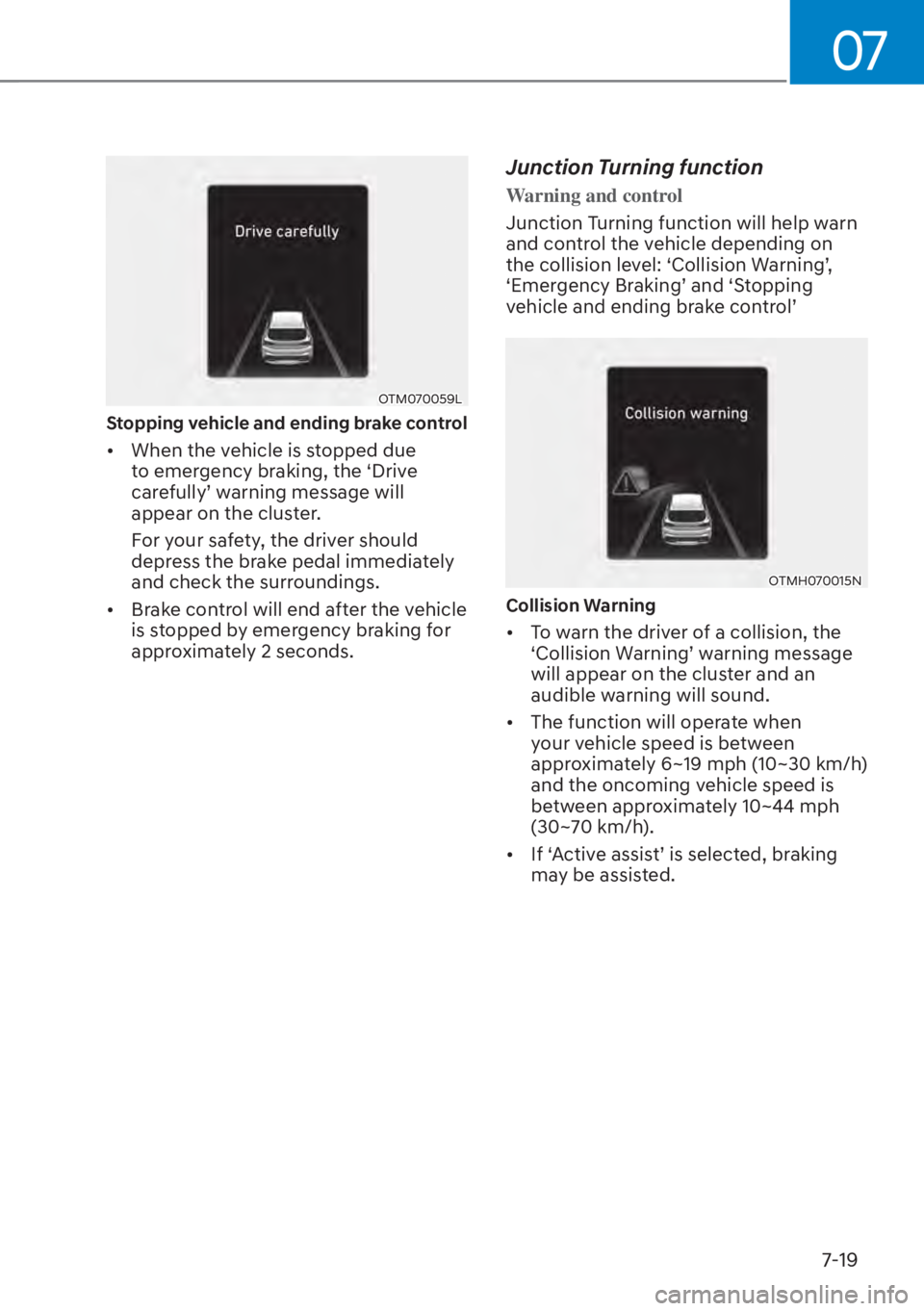

Junction Turning function
Warning and control
Junction Turning function will help warn
and contr

ol the vehicle depending on
WKHFROOLVLRQOHYHO
S&ROOLVLRQ:DUQLQJ
T

S(PHUJHQF\%UDNLQJ
TDQG
S6WRSSLQJ
YHKLFOHDQGHQGLQJEUDNHFRQWURO
T
OTMH070015N
Collision Warning

[ To warn the driver of a collision, the

S&ROOLVLRQ:DUQLQJ
TZDUQLQJPHVVDJH
will appear on the cluster and an
audible warning will sound.

[ The function will operate when
your vehicle speed is between
approximately 6~19 mph (10~30 km/h)
and the oncoming vehicle speed is
between approximately 10~44 mph
(30~70 km/h).

[ ,I
S$FWLYHDVVLVW
TLVVHOHFWHGEUDNLQJ may be assisted.

Driver assistance system7-20

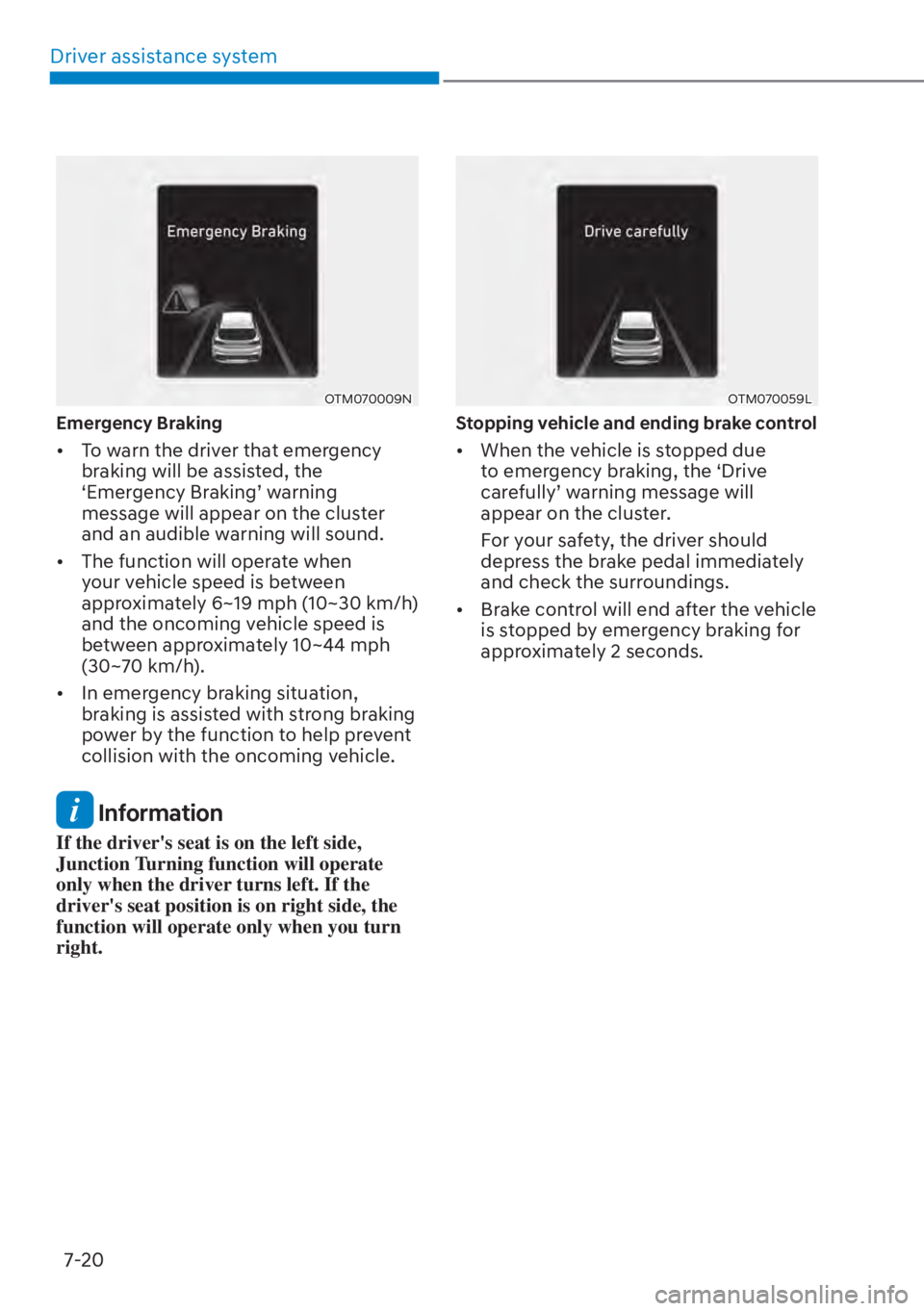

OTM070009N
Emergency Braking

[ To warn the driver that emergency
braking will be assisted, the

S(PHUJHQF\%UDNLQJ
TZDUQLQJ
message will appear on the cluster
and an audible warning will sound.

[ The function will operate when
your vehicle speed is between
approximately 6~19 mph (10~30 km/h)
and the oncoming vehicle speed is
between approximately 10~44 mph
(30~70 km/h).

[ In emergency braking situation,
braking is assisted with strong braking
power by the function to help prevent
collision with the oncoming vehicle.
Information
If the driver's seat is on the left side,
Junction Turning function will operate
only when the driver turns left. If the
driver's seat position is on right side, the
function will operate only when you turn
right.
OTM070059L
Stopping vehicle and ending brake control

[When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

07
7-21
WARNING

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[ With ‘Active assist’ or ‘Warning Only’
selected, when ESC is turned off by
pressing and holding the ESC OFF
button, Forward Collision-Avoidance
Assist will turn off automatically.
In this case, Forward Collsion-
Avoidance Assist cannot be set
from the Settings menu and the

warning light will illuminate on the
cluster which is normal. If ESC is
turned on by pressing the ESC OFF
button, Forward Collision-Avoidance
Assist will maintain the last setting.

[ Forward Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.

[ The driver is fully responsible for
controlling the vehicle. Do not
solely depend on Forward Collision-
Avoidance Assist. Rather, maintain
a safe braking distance, and if
necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.

[ Never deliberately operate Forward
Collision-Avoidance Assist on people,
animal, objects, etc. It may cause
serious injury or death.

[ Forward Collision-Avoidance
Assist may not operate if the driver
depresses the brake pedal to avoid
collision.
[
Depending on the road and driving
conditions, Forward Collision-
Avoidance Assist may warn the driver
late or may not warn the driver.

[ During Forward Collision-Avoidance
Assist operation, the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.

[ If any other system’s warning
message is displayed or audible
warning is generated, Forward
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.

[ You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[ Forward Collision-Avoidance
Assist may turn off or may not
operate properly or may operate
unnecessarily depending on the road
conditions and the surroundings.
WARNING

[Even if there is a problem with
Forward Collision-Avoidance
Assist, the vehicle’s basic braking
performance will operate properly.

[ During emergency braking, braking
control by Forward Collsion-
Avoidance Assist will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.

Driver assistance system7-22
CAUTION

[ Depending on the condition of the
vehicle, pedestrian and cyclist in
front and the surroundings, the
speed range to operate Forward
Collision-Avoidance Assist may
reduce. Forward Collision-Avoidance
Assist may only warn the driver, or it
may not operate.

[ Forward Collision-Avoidance Assist
will operate under certain conditions
by judging the risk level based on
the condition of the oncoming
vehicle, driving direction, speed and
surroundings.
Information
In a situation where collision is imminent,
braking may be assisted by Forward
Collision-Avoidance Assist when braking
is insufficient by the driver.
Forward Collision-Avoidance
Assist Malfunction and
Limitations
Forward Collision-Avoidance Assist
malfunction

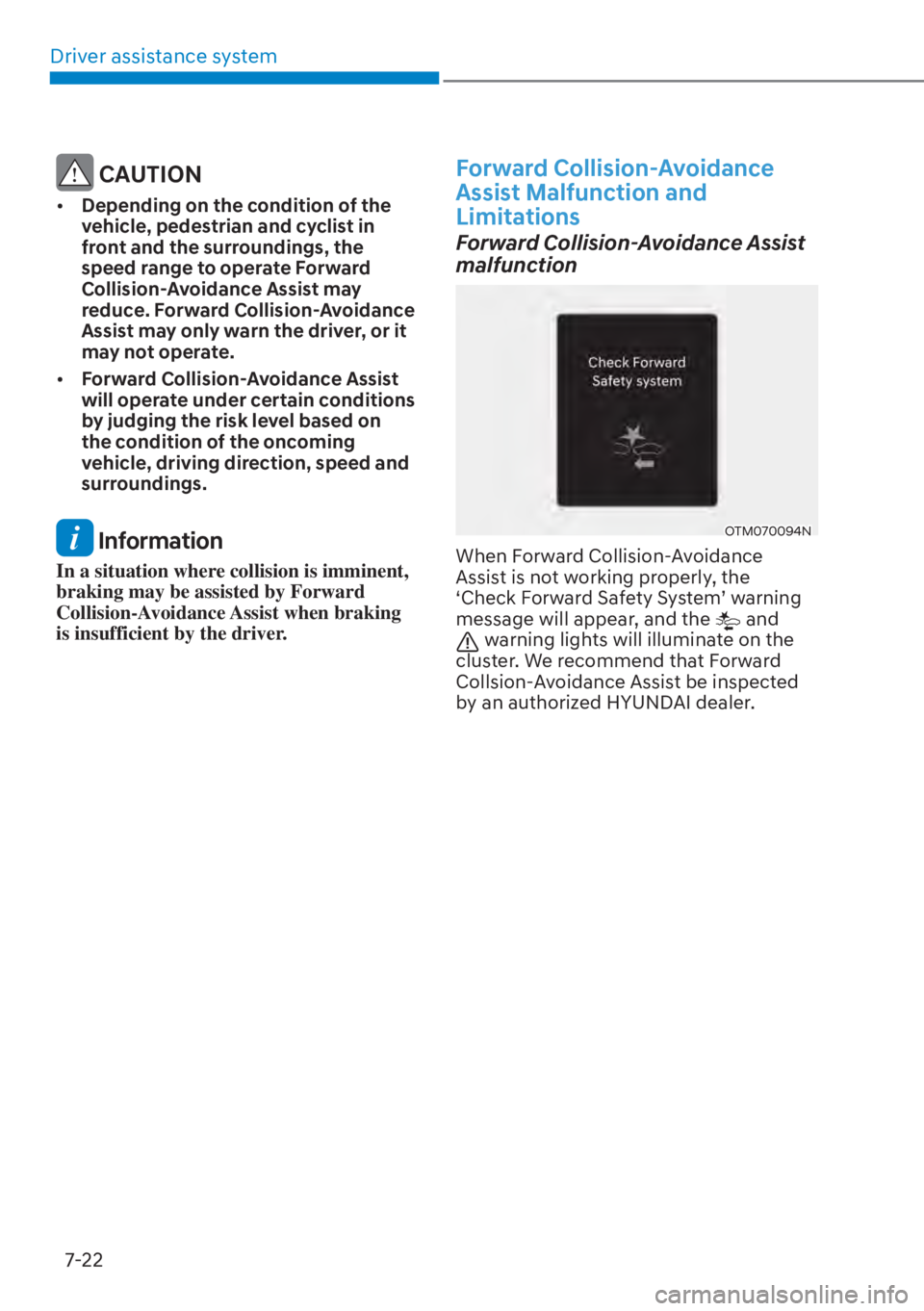

OTM070094N
When Forward Collision-Avoidance
Assist is not working properly, the

S&KHFN)RUZDUG6DIHW\6\VWHP
TZDUQLQJ
message will appear, and the
and warning lights will illuminate on the
cluster. We recommend that Forward
Collsion-Avoidance Assist be inspected
by an authorized HYUNDAI dealer.

07
7-23
Forward Collision-Avoidance Assist
disabled
OTM070095N
When the front windshield where the
front view camera is located, front radar
Cover, or sensor is covered with foreign
material, such as snow or rain, it can
reduce the detecting performance and
temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety System
GLVDEOHG&DPHUDREVFXUHG
TRUWKH
‘Forward safety systems disabled. Radar
EORFNHG
TZDUQLQJPHVVDJHDQGWKH

and warning lights will illuminate on
the cluster.
Forward Collsion-Avoidance Assist will
operate normally when when such snow,
rain or foreign material is removed.
If Forward Collsion-Avoidance Assist
does not operate normally after
obstruction (snow, rain, or foreign
material) is removed, we recommend
that the function be inspected by an
authorized HYUNDAI dealer.
WARNING

[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[ Forward Collision-Avoidance Assist
may not properly operate in an area
(for example, open terrain), where
any substance are not detected after
turning ON the engine.
Limitations of Forward Collsion-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate normally, or the function
may operate unexpectedly under the
following circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[ The temperature around the front
view camera is high or low

[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[ Moisture is not removed or frozen on
the windshield

[ Washer fluid is continuously sprayed,
or the wiper is on

[ Driving in heavy rain or snow, or thick
fog

[ The field of view of the front view
camera is obstructed by sun glare

[ Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road

[ An object is placed on the dashboard

Driver assistance system7-24

[ Your vehicle is being towed

[ The surrounding is very bright

[ The surrounding is very dark, such as
in a tunnel, etc.

[ The brightness changes suddenly, for
example when entering or exiting a
tunnel

[ The brightness outside is low, and the
headlamps are not on or are not bright

[ Driving through steam, smoke or
shadow

[ Only part of the vehicle, pedestrian or
cyclist is detected

[ The vehicle in front is a bus, heavy
truck, truck with an unusually shaped
luggage, trailer, etc.

[ The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[ The brightness outside is low, and the
tail lamps are not on or are not bright

[ The rear of the front vehicle is small
or the vehicle does not look normal,
such as when the vehicle is tilted,
overturned, or the side of the vehicle
is visible, etc.

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV low or high

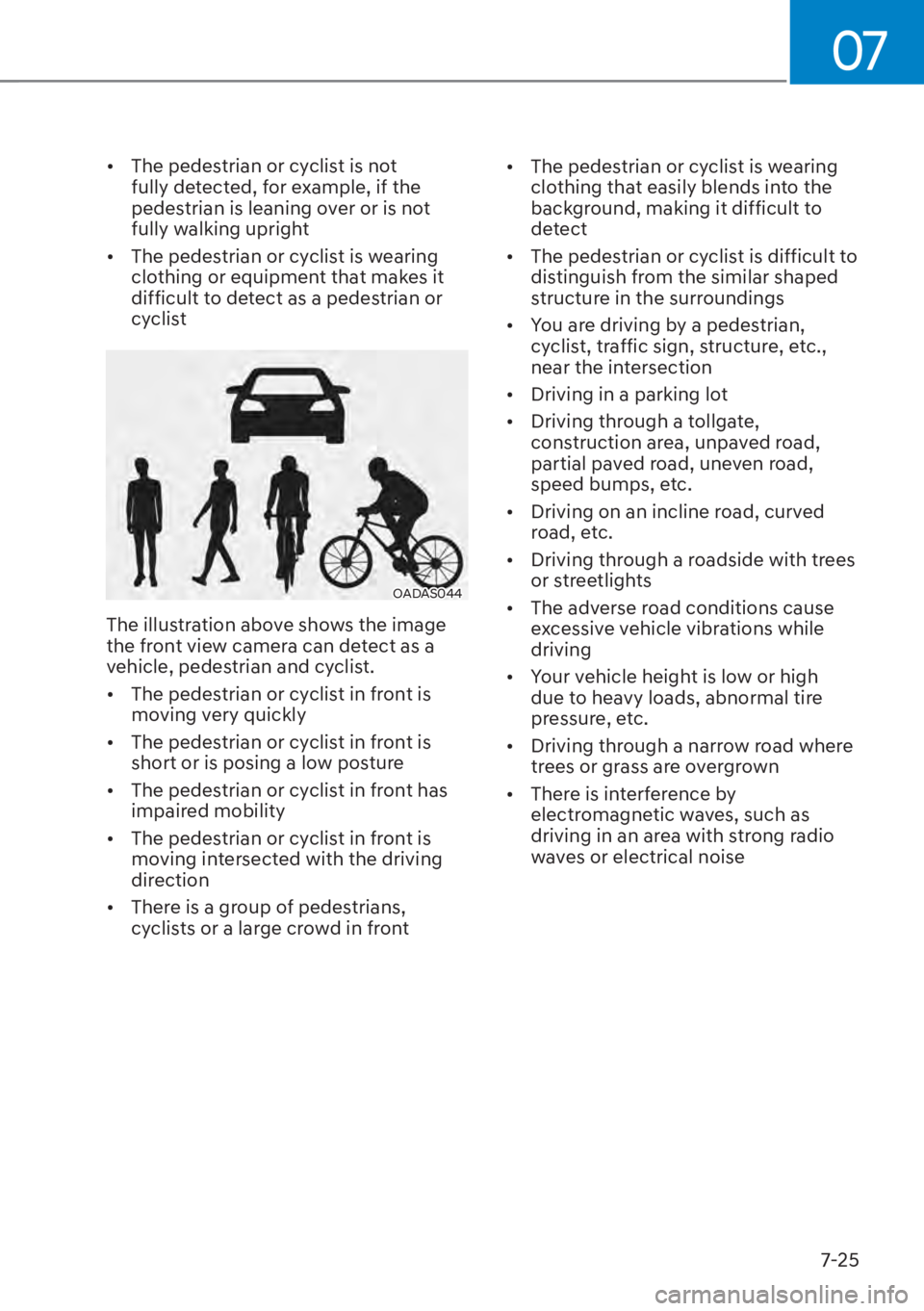

[ A vehicle, pedestrian or cyclist
suddenly cuts in front

[ The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[ The temperature around the front
radar is high or low
[
Driving through a tunnel or iron bridge

[ Driving in large areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[ Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[ A material is near that reflects very
well on the front radar, such as a
guardrail, nearby vehicle, etc.

[ The cyclist in front is on a bicycle
made of material that does not reflect
on the front radar

[ The vehicle in front is detected late

[ The vehicle in front is suddenly
blocked by an obstacle

[ The vehicle in front suddenly changes
lane or suddenly reduces speed

[ The vehicle in front is bent out of
shape

[ 7KHIURQWYHKLFOH
TVVSHHGLVIDVWRU slow

[ The vehicle in front steers in the
opposite direction of your vehicle to
avoid a collision

[ With a vehicle in front, your vehicle
changes lane at low speed

[ The vehicle in front is covered with
snow

[ You are departing or returning to the
lane

[ Unstable driving

[ You are on a roundabout and the
vehicle in front is not detected

[ You are continuously driving in a circle

[ The vehicle in front has an unusual
shape

[ The vehicle in front is driving uphill or
downhill

07
7-25

[The pedestrian or cyclist is not
fully detected, for example, if the
pedestrian is leaning over or is not
fully walking upright

[ The pedestrian or cyclist is wearing
clothing or equipment that makes it
difficult to detect as a pedestrian or
cyclist
OADAS044
The illustration above shows the image
the front view camera can detect as a
vehicle, pedestrian and cyclist.

[The pedestrian or cyclist in front is
moving very quickly

[ The pedestrian or cyclist in front is
short or is posing a low posture

[ The pedestrian or cyclist in front has
impaired mobility

[ The pedestrian or cyclist in front is
moving intersected with the driving
direction

[ There is a group of pedestrians,
cyclists or a large crowd in front
[
The pedestrian or cyclist is wearing
clothing that easily blends into the
background, making it difficult to
detect

[ The pedestrian or cyclist is difficult to
distinguish from the similar shaped
structure in the surroundings

[ You are driving by a pedestrian,
cyclist, traffic sign, structure, etc.,
near the intersection

[ Driving in a parking lot

[ Driving through a tollgate,
construction area, unpaved road,
partial paved road, uneven road,
speed bumps, etc.

[ Driving on an incline road, curved
road, etc.

[ Driving through a roadside with trees
or streetlights

[ The adverse road conditions cause
excessive vehicle vibrations while
driving

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[ Driving through a narrow road where
trees or grass are overgrown

[ There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise
