2023 HYUNDAI SANTA FE HYBRID Owners Manual

04
4-41
8. Units
ItemsExplanation
Speed unit T
o select the speed unit. (km/h, MPH)
Temperature unit To select the temperature unit. (°C,°F)
Fuel economy unit To select the fuel economy unit. (km/L, L/100km, MPG)
Tire pressure unit To select the tire pressure unit. (psi, kPa, bar)

Instrument Cluster4-42
Trip Computer (Type A)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Since refueling

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[,QVWDQW)XHO(FRQRP\
Drive Info

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[,QVWDQW)XHO(FRQRP\
Accumulated Info

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[,QVWDQW)XHO(FRQRP\
Energy flow
Digital Speedometer

v Type A

v Type B
OTM040050
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

à For 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.

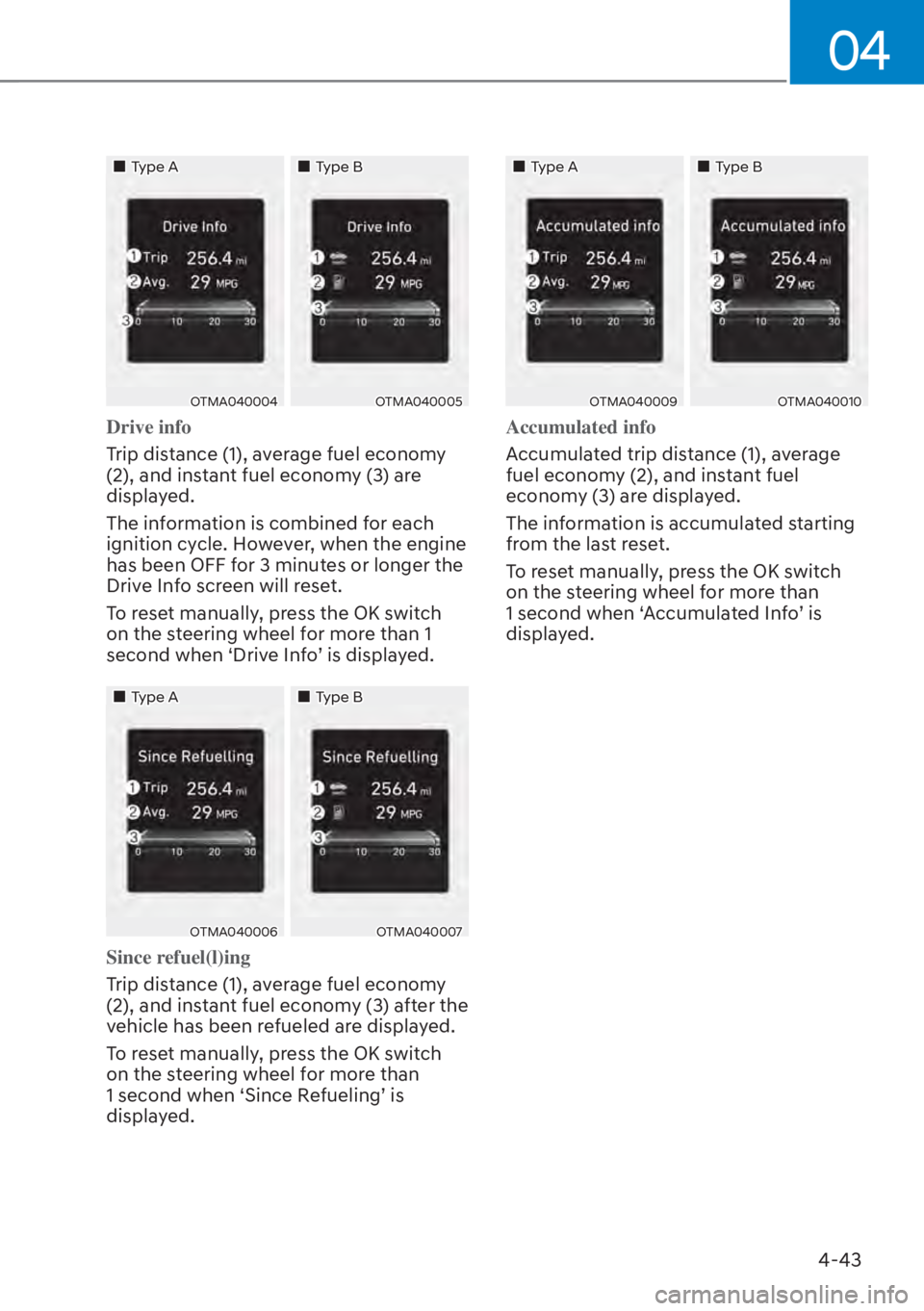

04
4-43
„Type A„Type B
OTMA040004OTMA040005
Drive info
Trip distance (1), average fuel economy
(2), and ins

tant fuel economy (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A „Type B
OTMA040006OTMA040007
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and ins

tant fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
„Type A „Type B
OTMA040009OTMA040010
Accumulated info
Accumulated trip distance (1), average
fuel econom

y (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.

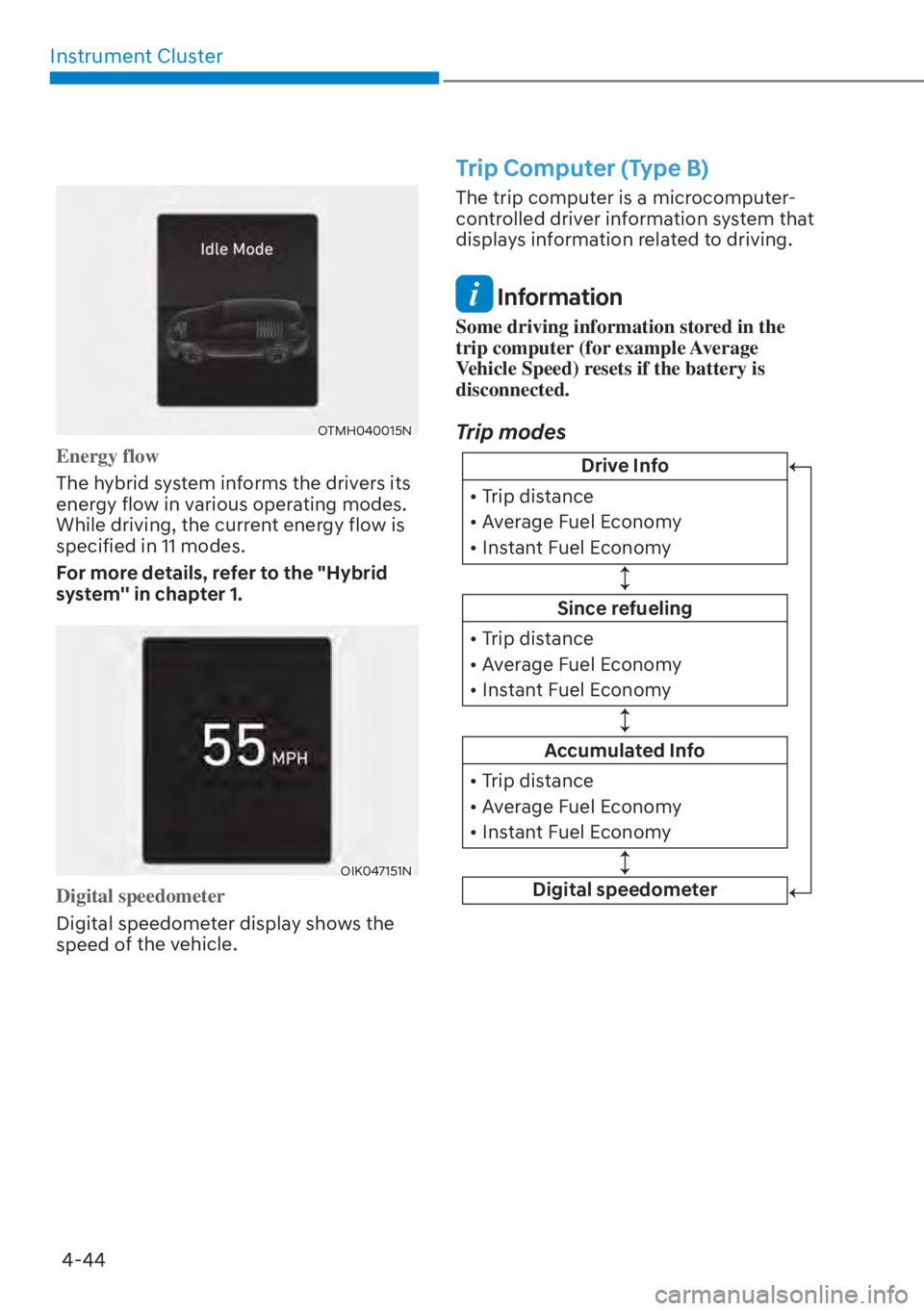

Instrument Cluster4-44
OTMH040015N
Energy flow
The hybrid system informs the drivers its
ener
gy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OIK047151N
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.
Trip Computer (Type B)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Since refueling
Drive Info

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[,QVWDQW)XHO(FRQRP\

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[,QVWDQW)XHO(FRQRP\

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[,QVWDQW)XHO(FRQRP\
Accumulated Info
Digital speedometer

04
4-45

v Type A

v Type B
OTM040050
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

à For 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.
„Type A „Type B
OTMA040012OTMA040013
Drive info
Trip distance (1), average fuel economy
(2), and t

otal driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A „Type B
OTMA040014OTMA040015
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and t

otal driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.

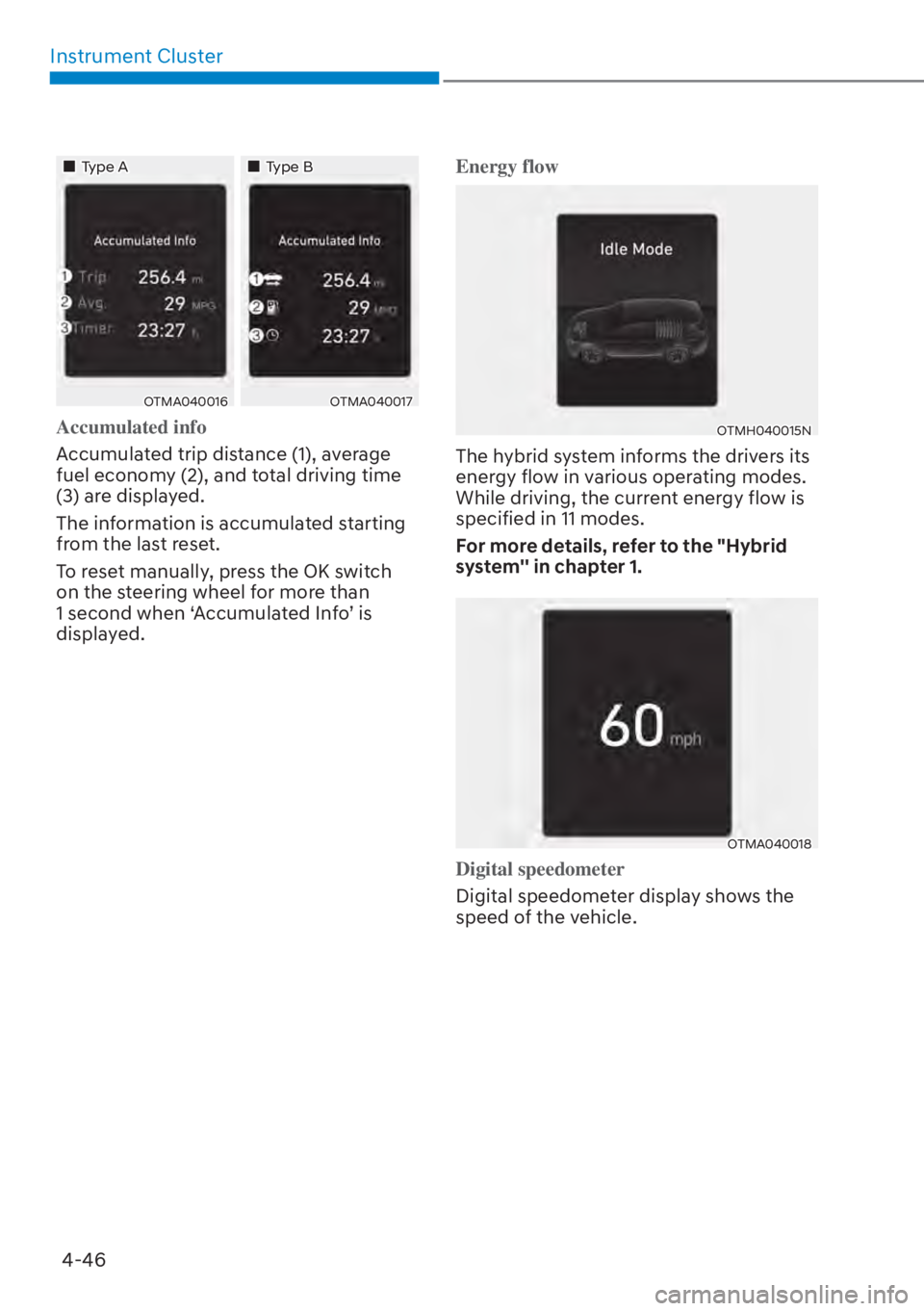

Instrument Cluster4-46
„Type A „Type B
OTMA040016OTMA040017
Accumulated info
Accumulated trip distance (1), average
fuel econom

y (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed. Energy flow
OTMH040015N
The hybrid system informs the drivers its
energy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OTMA040018
Digital speedometer
Digital speedometer display shows the
speed o

f the vehicle.

5
Accessing Your Vehicle ........................................................................\
............. 5-4Remote Key ........................................................................\
...........................................5-4
Smart Key ........................................................................\
..............................................5-7
Immobilizer System ........................................................................\
............................5-13
Hyundai Digital Key ........................................................................\
............................ 5-14
Door Locks ........................................................................\
............................... 5-30Operating Door Locks from Outside the Vehicle .....................................................5-30
Operating Door Locks from Inside the Vehicle .........................................................5-31
Auto Door Lock/Unlock Features ........................................................................\
...... 5-33
Electronic Child Safety Lock ........................................................................\
.............. 5-33
Theft-alarm System ........................................................................\
................ 5-35
Rear Occupant Alert (ROA) .....................................................................\
....... 5-36
System Setting........................................................................\
....................................5-36
System Operation ........................................................................\
...............................5-36
System Precautions ........................................................................\
............................ 5-37
Integrated Memory System......................................................................\
...... 5-38Storing Memory Positions ........................................................................\
.................5-38
Recalling Memory Positions ........................................................................\
..............5-39
Resetting the System ........................................................................\
.........................5-39
Easy Access Function ........................................................................\
........................ 5-40
Steering Wheel ........................................................................\
......................... 5-41Electric Power Steering (EPS) ........................................................................\
............ 5-41
Tilt / Telescopic Steering ........................................................................\
...................5-42
Heated Steering Wheel ........................................................................\
......................5-42
Horn........................................................................\
.....................................................5-43
Mirrors ......................................................................\
....................................... 5-44Inside Rearview Mirror ........................................................................\
...................... 5-44
Side View Mirrors ........................................................................\
............................... 5-55
Reverse Parking Aid .............................................................\
...................................... 5-57
Windows ......................................................................\
.................................... 5-59Power Windows ........................................................................\
................................. 5-60
Panoramic Sunroof ........................................................................\
................. 5-63Power Sunshade ........................................................................\
................................ 5-64
Tilt Open/Close........................................................................\
.................................. 5-64
Slide Open/Close .......................................................\
................................................5-65
Resetting the Sunroof ........................................................................\
....................... 5-66
Sunroof Open Warning ........................................................................\
...................... 5-67

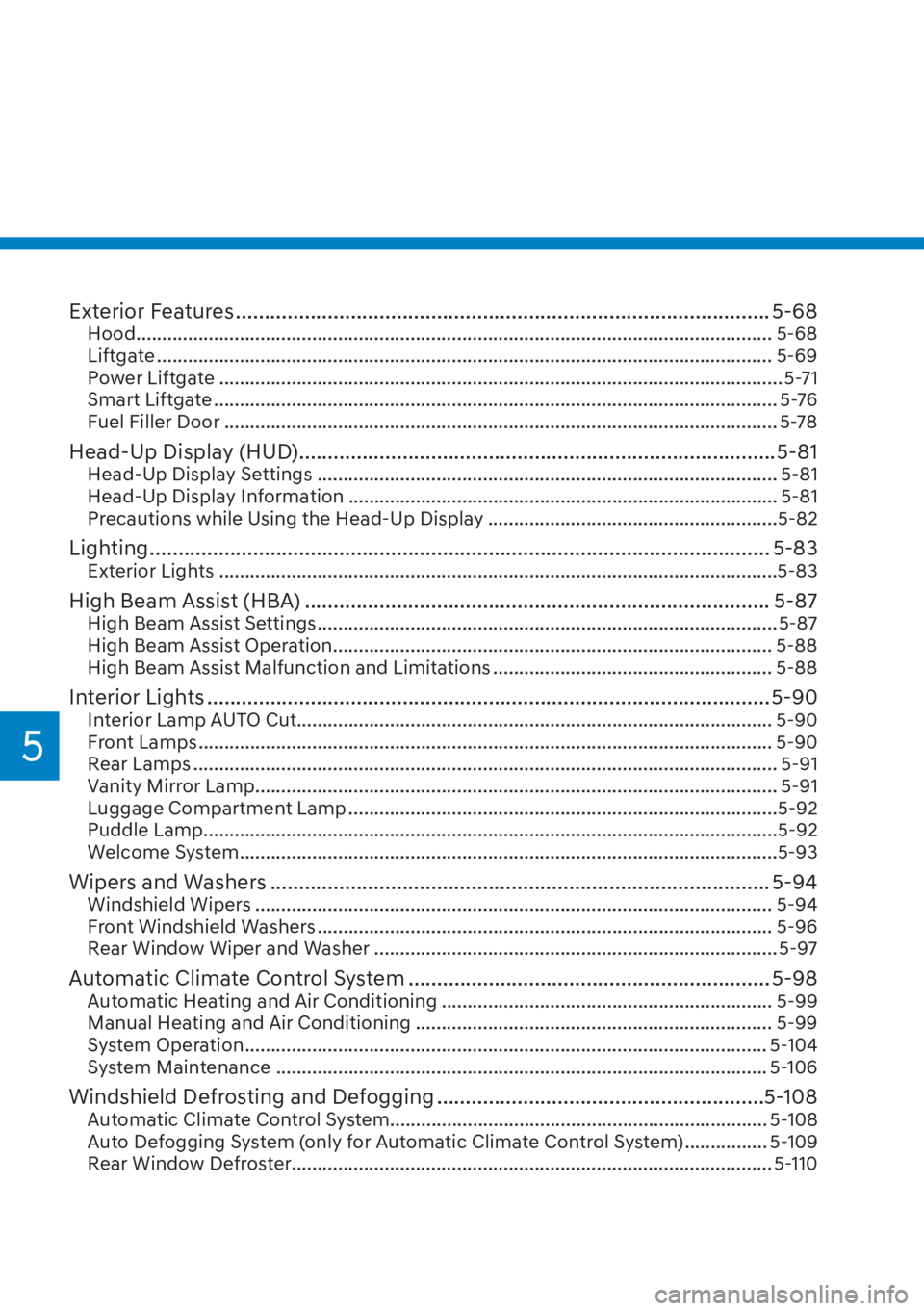

5. Convenience Features

5
Exterior Features ........................................................................\
..................... 5-68Hood ....................................................................\
....................................................... 5-68
Liftgate ......................................................................\
................................................. 5-69
Power Liftgate ........................................................................\
..................................... 5-71
Smart Liftgate ........................................................................\
..................................... 5-76
Fuel Filler Door ........................................................................\
................................... 5-78
Head-Up Display (HUD)......................................................................\
.............5-81Head-Up Display Settings ........................................................................\
................. 5-81
Head-Up Display Information ........................................................................\
........... 5-81
Precautions while Using the Head-Up Display ........................................................5-82
Lighting ...............................................................\
............................................. 5-83Exterior Lights ........................................................................\
....................................5-83
High Beam Assist (HBA) ........................................................................\
......... 5-87High Beam Assist Settings ........................................................................\
................. 5-87
High Beam Assist Operation ........................................................................\
............. 5-88
High Beam Assist Malfunction and Limitations ...................................................... 5-88
Interior Lights ........................................................................\
.......................... 5-90Interior Lamp AUTO Cut........................................................................\
.................... 5-90
Front Lamps ........................................................................\
....................................... 5-90
Rear Lamps ........................................................................\
......................................... 5-91
Vanity Mirror Lamp ........................................................................\
............................. 5-91
Luggage Compartment Lamp ........................................................................\
...........5-92
Puddle Lamp ........................................................................\
.......................................5-92
Welcome System ........................................................................\
................................5-93
Wipers and Washers ........................................................................\
............... 5-94Windshield Wipers ........................................................................\
............................ 5-94
Front Windshield Washers ........................................................................\
................ 5-96
Rear Window Wiper and Washer ........................................................................\
...... 5-97
Automatic Climate Control System ............................................................... 5-98Automatic Heating and Air Conditioning ................................................................ 5-99
Manual Heating and Air Conditioning ..................................................................... 5-99
System Operation ........................................................................\
............................. 5-104
System Maintenance ........................................................................\
....................... 5-106
Windshield Defrosting and Defogging .........................................................5-108Automatic Climate Control System......................................................................\
... 5-108
Auto Defogging System (only for Automatic Climate Control System) ................ 5-109
Rear Window Defroster........................................................................\
..................... 5-110
