2023 HYUNDAI SANTA FE HYBRID Owners Manual

Driver assistance system7-66

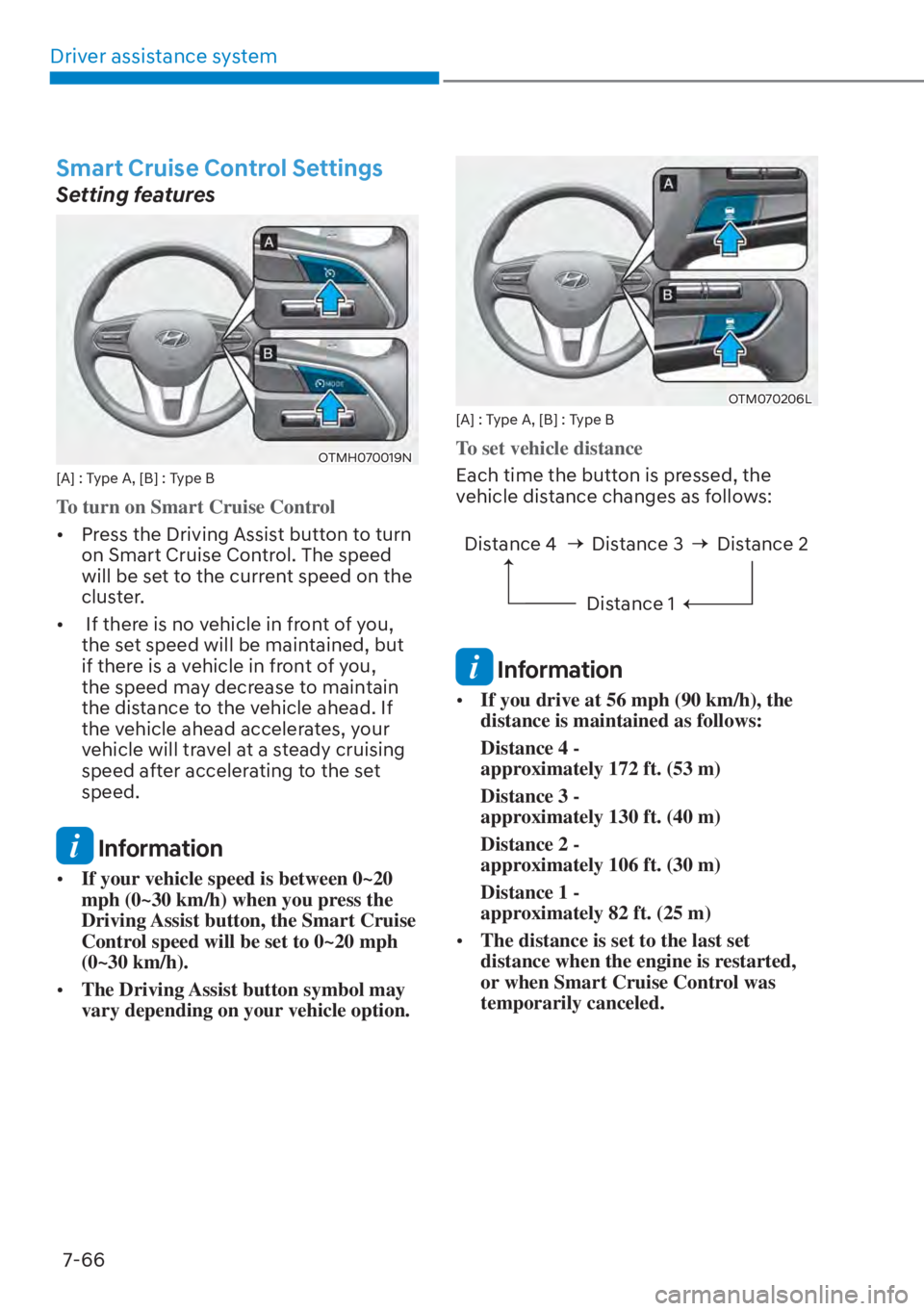

Smart Cruise Control Settings
Setting features
OTMH070019N[A] : Type A, [B] : Type B
To turn on Smart Cruise Control

[ Pr
ess the Driving Assist button to turn
on Smart Cruise Control. The speed
will be set to the current speed on the
cluster.

[ If there is no vehicle in front of you,
the set speed will be maintained, but
if there is a vehicle in front of you,
the speed may decrease to maintain
the distance to the vehicle ahead. If
the vehicle ahead accelerates, your
vehicle will travel at a steady cruising
speed after accelerating to the set
speed.
Information

[If your vehicle speed is between 0~20
mph (0~30 km/h) when you press the
Driving Assist button, the Smart Cruise
Control speed will be set to 0~20 mph
(0~30 km/h).

[ The Driving Assist button symbol may
vary depending on your vehicle option.
OTM070206L[A] : Type A, [B] : Type B
To set vehicle distance
Each time the button is pressed, the
v

ehicle distance changes as follows:
Distance 4 Distance 3
Dis
tance 1Distance 2
Information

[If you drive at 56 mph (90 km/h), the
distance is maintained as follows:
Distance 4 -
approximately 172 ft. (53 m)
Distance 3 -
approximately 130 ft. (40 m)
Distance 2 -
approximately 106 ft. (30 m)
Distance 1 -
approximately 82 ft. (25 m)

[ The distance is set to the last set
distance when the engine is restarted,
or when Smart Cruise Control was
temporarily canceled.

07
7-67

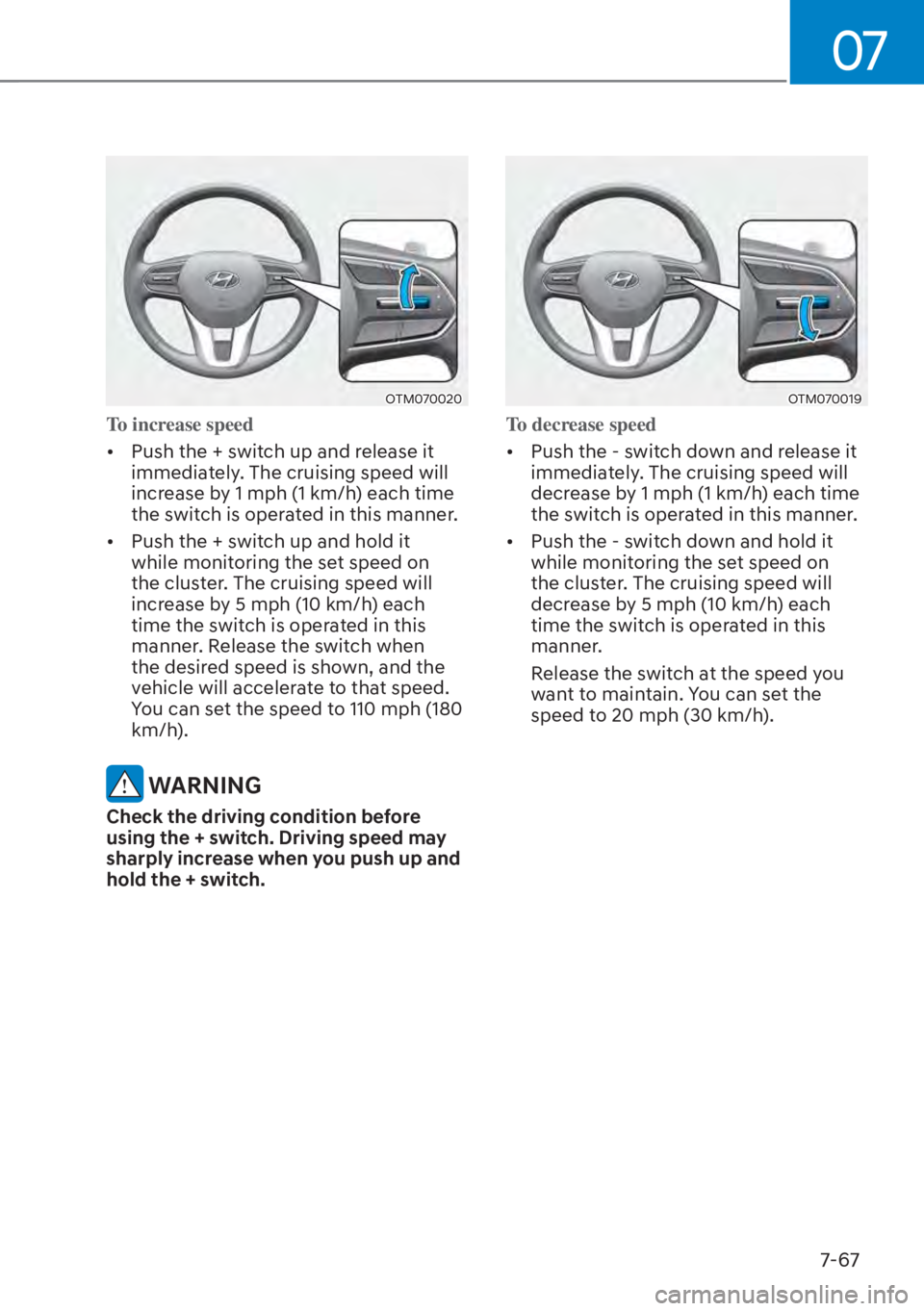

OTM070020
To increase speed

[Push the + s
witch up and release it
immediately. The cruising speed will
increase by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the + switch up and hold it
while monitoring the set speed on
the cluster. The cruising speed will
increase by 5 mph (10 km/h) each
time the switch is operated in this
manner. Release the switch when
the desired speed is shown, and the
vehicle will accelerate to that speed.
You can set the speed to 110 mph (180
km/h).
WARNING
Check the driving condition before
using the + switch. Driving speed may
sharply increase when you push up and
hold the + switch.
OTM070019
To decrease speed

[Push the - s
witch down and release it
immediately. The cruising speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the - switch down and hold it
while monitoring the set speed on
the cluster. The cruising speed will
decrease by 5 mph (10 km/h) each
time the switch is operated in this
manner.
Release the switch at the speed you
want to maintain. You can set the
speed to 20 mph (30 km/h).

Driver assistance system7-68
OTM070207L[A] : Type A, [B] : Type B
To temporarily cancel Smart Cruise
Control
Press the
switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.
OTM070208L[A] : Type A, [B] : Type B
To resume Smart Cruise Control
To resume Smart Cruise Control after the
function w
as canceled, push the +, - or
switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
switch, vehicle speed
will resume to the preset speed.
WARNING
Check the driving condition before
using the switch. Driving speed
may sharply increase or decrease when
you press the
switch.
OTMH070019N[A] : Type A, [B] : Type B
To turn off the system
Press the Driving Assist button to turn
Smart Cruise Con
trol system off.

07
7-69

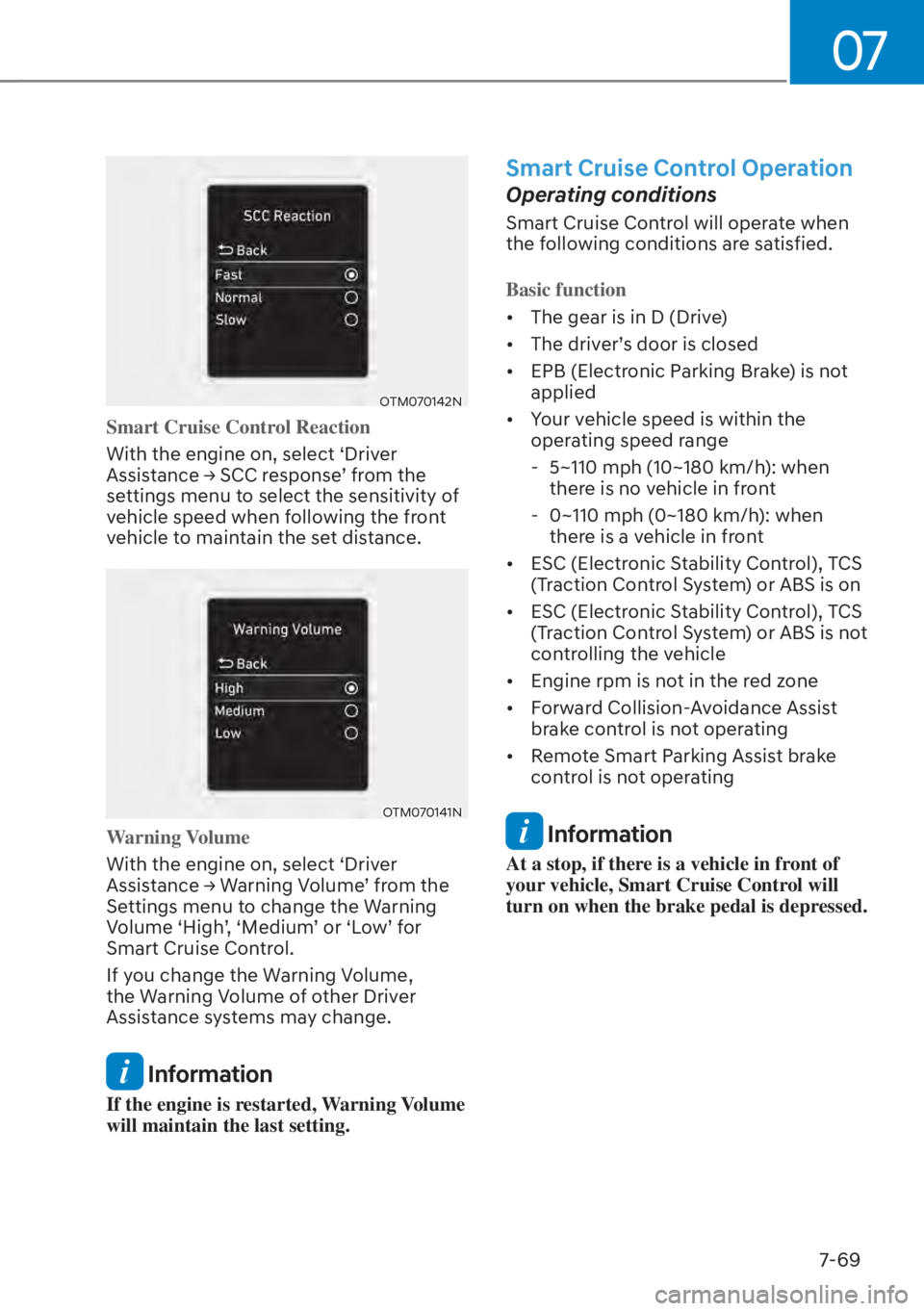

OTM070142N
Smart Cruise Control Reaction
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver assistance system7-70

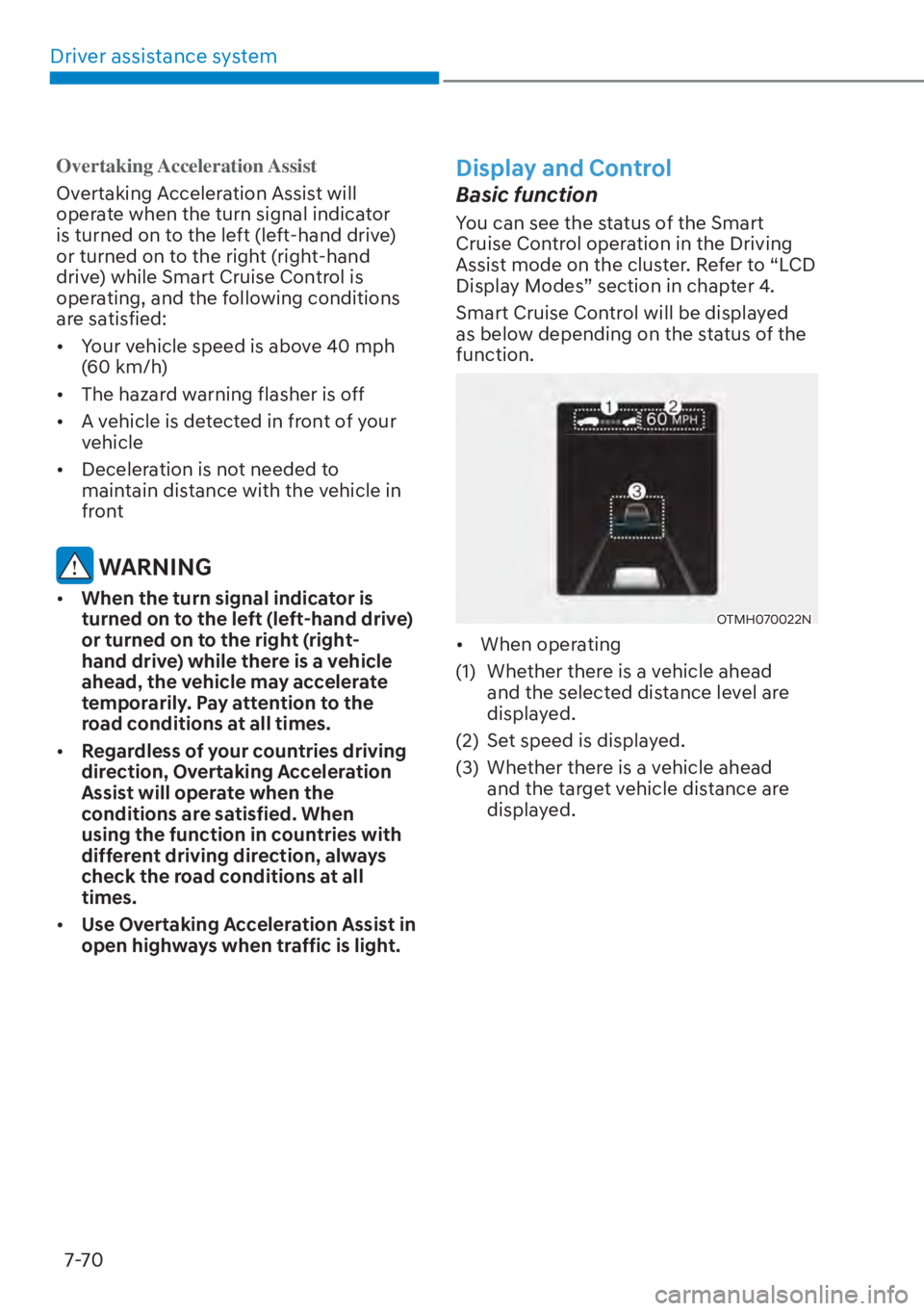

Overtaking Acceleration Assist
Overtaking Acceleration Assist will
oper
ate when the turn signal indicator
is turned on to the left (left-hand drive)
or turned on to the right (right-hand
drive) while Smart Cruise Control is
operating, and the following conditions
are satisfied:

[ Your vehicle speed is above 40 mph
(60 km/h)

[ The hazard warning flasher is off

[ A vehicle is detected in front of your
vehicle

[ Deceleration is not needed to
maintain distance with the vehicle in
front
WARNING

[When the turn signal indicator is
turned on to the left (left-hand drive)
or turned on to the right (right-
hand drive) while there is a vehicle
ahead, the vehicle may accelerate
temporarily. Pay attention to the
road conditions at all times.

[ Regardless of your countries driving
direction, Overtaking Acceleration
Assist will operate when the
conditions are satisfied. When
using the function in countries with
different driving direction, always
check the road conditions at all
times.

[ Use Overtaking Acceleration Assist in
open highways when traffic is light.
Display and Control
Basic function
You can see the status of the Smart
Cruise Control operation in the Driving
Assist mode on the cluster. Refer to “LCD
Display Modes” section in chapter 4.
Smart Cruise Control will be displayed
as below depending on the status of the
function.
OTMH070022N

[When operating
(1) Whether there is a vehicle ahead and the selected distance level are
displayed.
(2) Set speed is displayed.
(3) Whether there is a vehicle ahead and the target vehicle distance are
displayed.

07
7-71

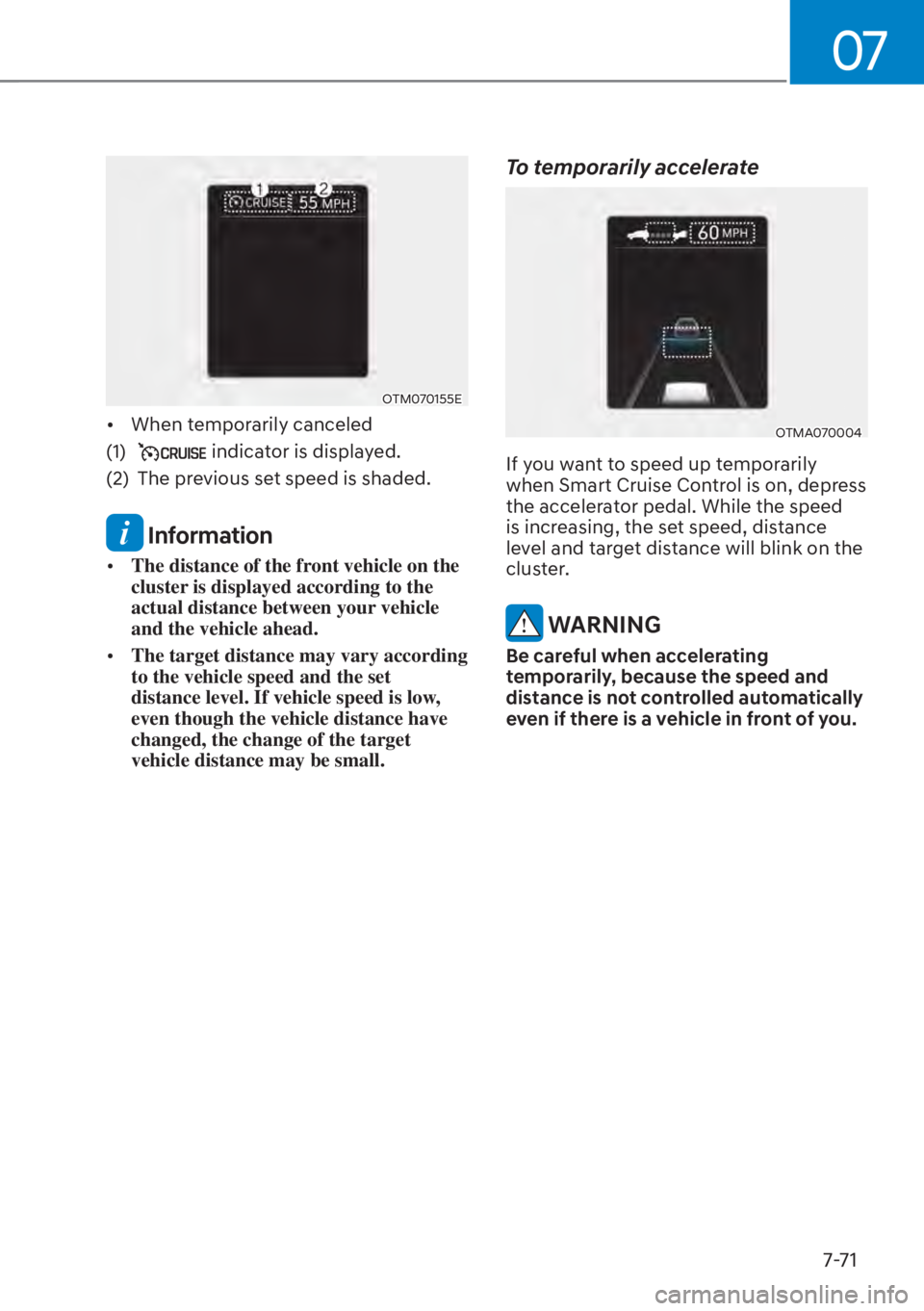

OTM070155E

[When temporarily canceled
(1)
indicator is displayed.
(2) The previous set speed is shaded.
Information

[ The distance of the front vehicle on the
cluster is displayed according to the
actual distance between your vehicle
and the vehicle ahead.

[ The target distance may vary according
to the vehicle speed and the set
distance level. If vehicle speed is low,
even though the vehicle distance have
changed, the change of the target
vehicle distance may be small.
To temporarily accelerate
OTMA070004
If you want to speed up temporarily
when Smart Cruise Control is on, depress
the accelerator pedal. While the speed
is increasing, the set speed, distance
level and target distance will blink on the
cluster.
WARNING
Be careful when accelerating
temporarily, because the speed and
distance is not controlled automatically
even if there is a vehicle in front of you.

Driver assistance system7-72

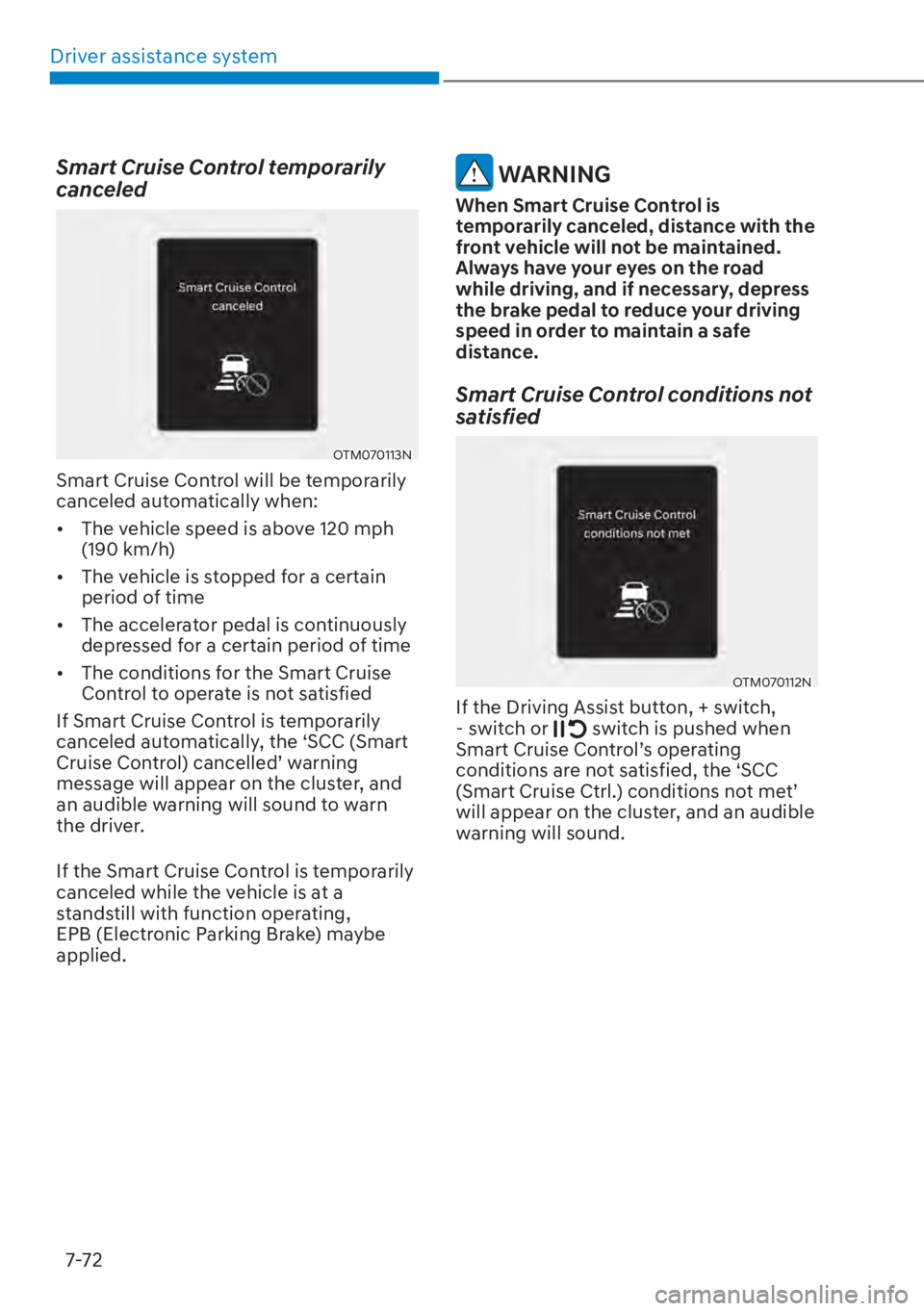

Smart Cruise Control temporarily
canceled
OTM070113N
Smart Cruise Control will be temporarily
canceled automatically when:

[ The vehicle speed is above 120 mph
(190 km/h)

[ The vehicle is stopped for a certain
period of time

[ The accelerator pedal is continuously
depressed for a certain period of time

[ The conditions for the Smart Cruise
Control to operate is not satisfied
If Smart Cruise Control is temporarily
canceled automatically, the ‘SCC (Smart
&UXLVH&RQWUROFDQFHOOHG
TZDUQLQJ
message will appear on the cluster, and
an audible warning will sound to warn
the driver.
If the Smart Cruise Control is temporarily
canceled while the vehicle is at a
standstill with function operating,
EPB (Electronic Parking Brake) maybe
applied.
WARNING
When Smart Cruise Control is
temporarily canceled, distance with the
front vehicle will not be maintained.
Always have your eyes on the road
while driving, and if necessary, depress
the brake pedal to reduce your driving
speed in order to maintain a safe
distance.
Smart Cruise Control conditions not
satisfied
OTM070112N
If the Driving Assist button, + switch,
- switch or switch is pushed when
6PDUW&UXLVH&RQWURO
TVRSHUDWLQJ
conditions are not satisfied, the ‘SCC
6PDUW&UXLVH&WUOFRQGLWLRQVQRWPHW
T
will appear on the cluster, and an audible
warning will sound.

07
7-73

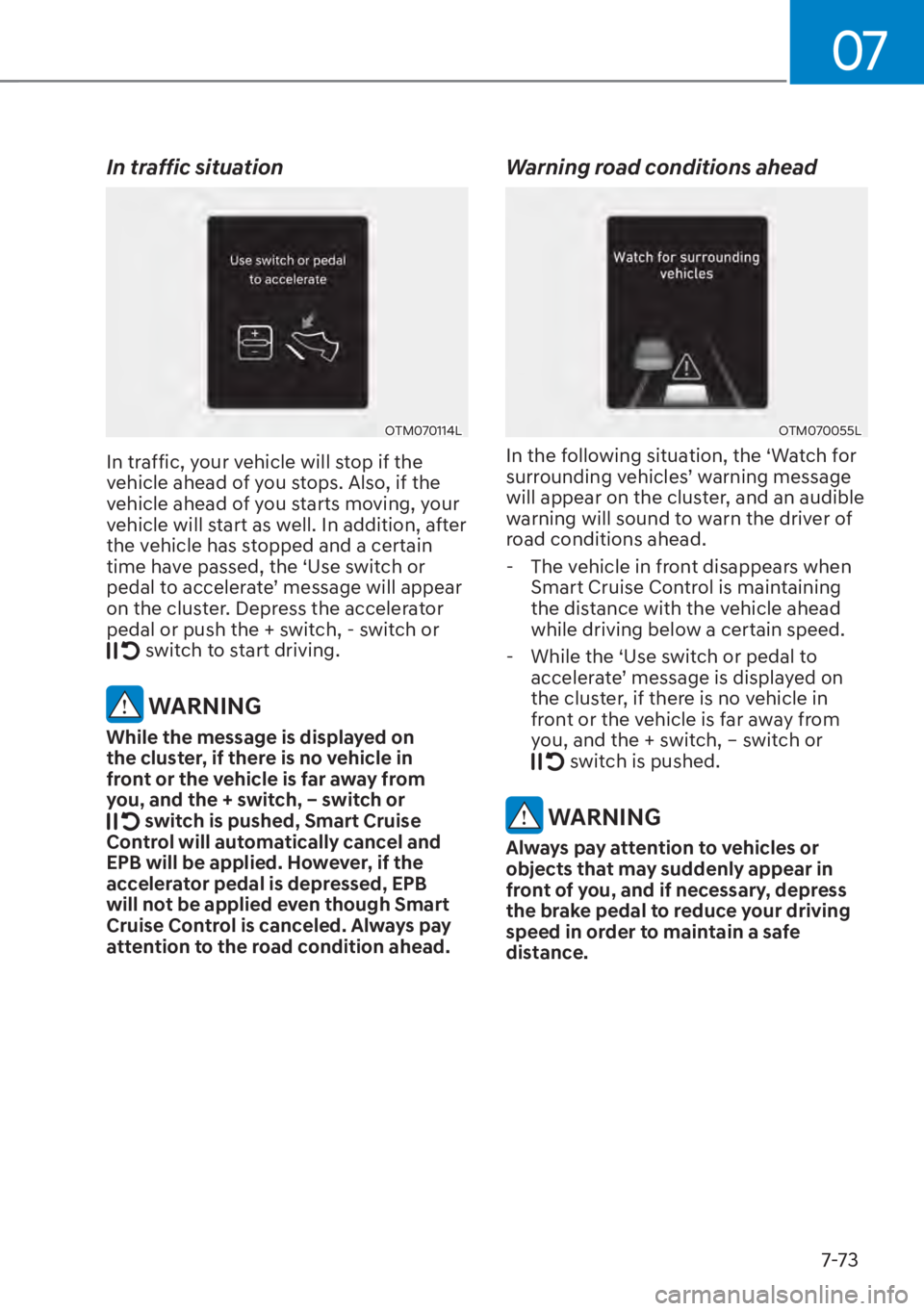

In traffic situation
OTM070114L
In traffic, your vehicle will stop if the
vehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving, your
vehicle will start as well. In addition, after
the vehicle has stopped and a certain
time have passed, the ‘Use switch or
SHGDOWRDFFHOHUDWH
TPHVVDJHZLOODSSHDU
on the cluster. Depress the accelerator
pedal or push the + switch, - switch or
switch to start driving.
WARNING
While the message is displayed on
the cluster, if there is no vehicle in
front or the vehicle is far away from
you, and the + switch, – switch or
switch is pushed, Smart Cruise
Control will automatically cancel and
EPB will be applied. However, if the
accelerator pedal is depressed, EPB
will not be applied even though Smart
Cruise Control is canceled. Always pay
attention to the road condition ahead.
Warning road conditions ahead
OTM070055L
In the following situation, the ‘Watch for
VXUURXQGLQJYHKLFOHV
TZDUQLQJPHVVDJH
will appear on the cluster, and an audible
warning will sound to warn the driver of
road conditions ahead.

- The vehicle in front disappears when
Smart Cruise Control is maintaining
the distance with the vehicle ahead
while driving below a certain speed.
- While the ‘Use switch or pedal to DFFHOHUDWH
TPHVVDJHLVGLVSOD\HGRQ
the cluster, if there is no vehicle in
front or the vehicle is far away from
you, and the + switch, – switch or
switch is pushed.
WARNING
Always pay attention to vehicles or
objects that may suddenly appear in
front of you, and if necessary, depress
the brake pedal to reduce your driving
speed in order to maintain a safe
distance.
