2023 HYUNDAI SANTA FE HYBRID Owners Manual

4
4. Instrument Cluster
Instrument Cluster ........................................................................\
.................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Instrument panel illumination ........................................................................\
...........4-5
Gauges and Meters ........................................................................\
..............................4-5 Speedometer .....................................................................\
........................................4-5
Power gauge ........................................................................\
..................................... 4-6
Fuel gauge ........................................................................\
......................................... 4-6
Hybrid battery SOC (State of Charge) gauge ........................................................... 4-7
Outside temperature gauge ........................................................................\
.............. 4-7

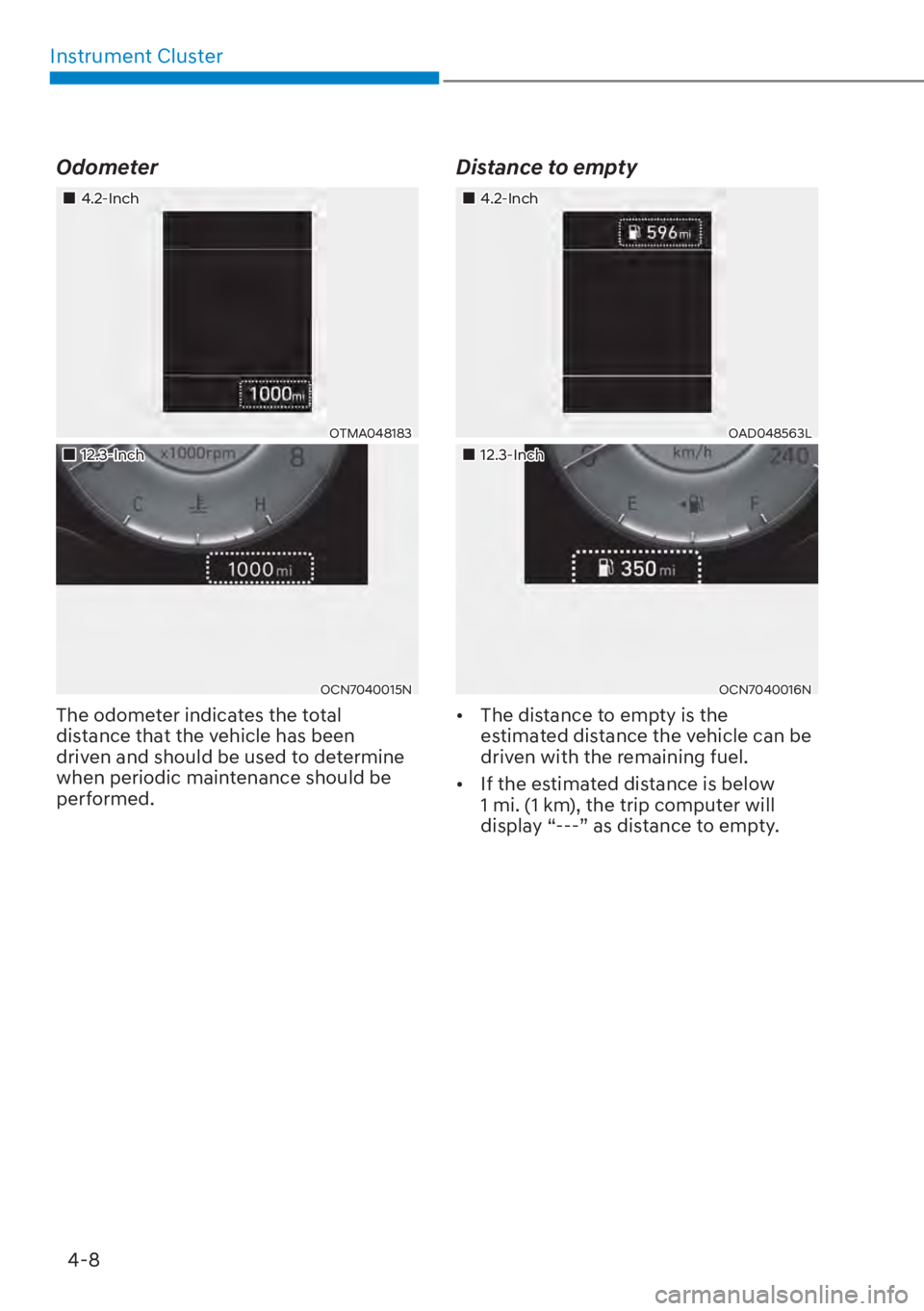

Odometer .....................................................................\
............................................. 4-8
Distance to empty ........................................................................\
............................ 4-8
Fuel economy (for 12.3-inch cluster) ....................................................................... 4-9
Transmission Shift Indicator ........................................................................\
............... 4-9 Automatic transmission shift indicator ................................................................... 4-9
Warning and Indicator Lights ........................................................................\
............ 4-10 Seat belt warning light ........................................................................\
.................... 4-10
Air bag warning light ........................................................................\
....................... 4-10
Parking brake & Brake fluid warning light .............................................................. 4-10
Regenerative brake warning light ........................................................................\
.... 4-11
Anti-lock Brake System (ABS) warning light ........................................................... 4-11
Electronic Brake Force Distribution (EBD) system warning light ......................... 4-12
Electric Power Steering (EPS) warning light .......................................................... 4-12
Malfunction Indicator Lamp (MIL) ........................................................................\
.. 4-13
Electronic Parking Brake (EPB) warning light ........................................................ 4-13
AUTO HOLD indicator light ........................................................................\
............. 4-13
Charging system warning light ........................................................................\
....... 4-14
Engine oil pressure warning light ........................................................................\
... 4-14
Low fuel level warning light ........................................................................\
............ 4-15
Service warning light ........................................................................\
....................... 4-15
Exhaust system (GPF) warning light ....................................................................... 4-15
Overspeed warning light ........................................................................\
................. 4-15
Master warning light ........................................................................\
........................ 4-16
Low tire pressure warning light ......................................................................\
........ 4-16
Forward Safety warning light ........................................................................\
...........4-17
Lane Safety indicator light ........................................................................\
...............4-17
All wheel Drive (AWD)warning light.......................................................................\
..4-17
All wheel Drive (AWD) LOCK indicator light ............................................................4-17
LED headlight warning light ........................................................................\
............ 4-18
Icy road warning light ........................................................................\
...................... 4-18
Ready indicator ........................................................................\
................................ 4-19
EV mode indicator ........................................................................\
........................... 4-19
Electronic Stability Control (ESC) indicator light ................................................... 4-19

4
Electronic Stability Control (ESC) OFF indicator light ........................................... 4-19
Immobilizer indicator light (with smart key) ..........................................................4-20
Immobilizer indicator light (with smart key) ..........................................................4-20
Downhill Brake Control (DBC) indicator light .........................................................4-21
Turn signal indicator light ........................................................................\
.................4-21
High beam indicator light ........................................................................\
................4-21
Low beam indicator light ........................................................................\
................ 4-22
Light ON indicator light ........................................................................\
................... 4-22
High Beam Assist indicator light ........................................................................\
..... 4-22
Cruise indicator light ........................................................................\
....................... 4-22
Speed Limiter indicator light........................................................................\
........... 4-22
SPORT Mode indicator light ........................................................................\
............ 4-22
ECO Mode indicator light ........................................................................\
................ 4-22
SMART Mode indicator light ........................................................................\
........... 4-22
LCD Display Messages ........................................................................\
....................... 4-23 Shift to P ........................................................................\
........................................... 4-23
Low key battery ........................................................................\
................................ 4-23
Press START button while turning wheel ............................................................... 4-23
Check steering wheel lock system ........................................................................\
. 4-23
Press brake pedal to start engine ........................................................................\
... 4-23
Key not in vehicle ........................................................................\
............................. 4-23
Key not detected ........................................................................\
.............................. 4-23
Press START button again ........................................................................\
............... 4-23
Press START button with key ........................................................................\
........... 4-24
Check BRAKE SWITCH fuse ........................................................................\
............ 4-24
12V battery discharging due to additional electrical devices ............................... 4-24
Door, Hood, Liftgate open indicator ....................................................................... 4-24
Sunroof open indicator ........................................................................\
.................... 4-25
Low pressure ........................................................................\
.................................... 4-25
Wiper/Lights display ........................................................................\
........................ 4-25
Low washer fluid ........................................................................\
.............................. 4-25
Low fuel ........................................................................\
............................................ 4-25
Engine has overheated ........................................................................\
....................4-26
Check exhaust system ........................................................................\
.....................4-26
Check headlight ........................................................................\
...............................4-26
Check turn signal ........................................................................\
.............................4-26
Check brake light ........................................................................\
.............................4-26
Check headlamp LED ........................................................................\
......................4-26
Check Active Air Flap system ........................................................................\
..........4-26
Ready to start driving ........................................................................\
......................4-26
Check regenerative brakes......................................................................\
................4-26
Stop vehicle and check brakes ........................................................................\
....... 4-27

4
4. Instrument Cluster
Check Hybrid system ........................................................................\
....................... 4-27
Stop safely and check Hybrid system .................................................................... 4-27
Check Hybrid system. Do not start engine ............................................................ 4-27
Stop safely and check power supply ...................................................................... 4-27
Check virtual engine sound system........................................................................\
4-27
Refill inverter coolant ........................................................................\
...................... 4-27
Park with engine On to charge battery .................................................................. 4-27
Start engine to avoid battery discharge ................................................................. 4-27
Check regenerative brakes......................................................................\
................4-28
Check virtual engine sound system........................................................................\
4-28
LCD Display ........................................................................\
............................. 4-29LCD Display Control ........................................................................\
...........................4-29
View Modes ........................................................................\
....................................... 4-30Driving Assist mode ........................................................................\
......................... 4-31
Trip computer mode ........................................................................\
........................ 4-31
Turn By Turn (TBT) mode ........................................................................\
................. 4-31
Master warning group ........................................................................\
..................... 4-32
User settings mode ........................................................................\
..........................4-33
Trip Computer (Type A) ........................................................................\
......................4-42 Trip modes ........................................................................\
........................................4-42
Trip Computer (Type B) ........................................................................\
..................... 4-44 Trip modes ........................................................................\
....................................... 4-44

4-4
Instrument Cluster
„4.2 inch
„12.3 inch
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to “Gauges and meters” section in this chapter.
OTMPH041004N/OTMH040010N
1. Power gauge
2. Speedometer
3. Battery SOC (State of Charge) gauge 4. Fuel gauge
5. Warning and indicator lights
6. LCD display (including Trip computer)
INSTRUMENT CLUSTER

04
4-5
Instrument Cluster Control
Instrument panel illumination
You can adjust the brightness of the
instrument panel illumination form the
User Settings Mode on the LCD display
ZKHQWKHLJQLWLRQVZLWFKLVRQ
S/LJKWV

Instrument Cluster4-6
Power gauge
„4.2-Inch „12.3-Inch
OTMH041003NOTMH040004E
The power gauge indicates whether the
current driving condition is fuel efficient
or not.

[CHARGE : Shows that the energy
made by the vehicle is being
converted to electrical energy.
(Regenerated energy)

[ ECO : Shows that the vehicle is being
driven in an Eco-friendly manner.

[ POWER : Shows that the vehicle is
exceeding the Eco-friendly range.
Information
Accordance to the power gauge area the
“EV” indicator comes on or off.
- “EV” indicator ON : Vehicle is driven
using the electric motor or the gasoline
engine is stopped.
- “EV” indicator OFF : Vehicle is driven
using the gasoline engine.
Fuel gauge
„4.2-Inch „12.3-Inch
OTM040011OTM040012L
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
Information

[The fuel tank capacity is given in
chapter 2.

[ The fuel gauge is supplemented by
a low fuel warning light, which will
illuminate when the fuel tank is nearly
empty.

[ On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than
usual due to the movement of fuel in
the tank.
WARNING
Running out of fuel can expose vehicle
occupants to danger.
You must stop and obtain additional
fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the “0
or E (Empty)” level.
NOTICE
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire damaging
the catalytic converter.

04
4-7
Hybrid battery SOC (State of Charge)
gauge
„4.2-Inch„12.3-Inch
OTMH040005NOCN7H040003
This gauge indicates the remaining
hybrid battery power. If the SOC is near
the “0 or L (Low)” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL)
(
) turn on when the SOC gauge is
near the “0 or L (Low)” level, the vehicle
be checked by an authorized HYUNDAI
dealer.
NOTICE
Never try to start the vehicle if the fuel
tank is empty. In this condition, the
engine cannot charge the high voltage
battery of the hybrid system. If you
try to start the vehicle when the fuel
is empty, the high voltage battery will
become discharged and be damaged.
Outside temperature gauge
„4.2-Inch
OTMA048112
„12.3-Inch
OTMA040008
This gauge indicates the current outside
air temperatures by 1°F (1°C).
Note that the temperature indicated
on the LCD display may not change
as quickly as the outside temperature
(there may be a slight delay before the
temperature changes.)
You can change the temperature unit
from the Settings menu in the Cluster.
Select:
- 6HWXS

Instrument Cluster4-8
Odometer
„4.2-Inch
OTMA048183
„12.3-Inch
OCN7040015N
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.
Distance to empty
„4.2-Inch
OAD048563L
„12.3-Inch
OCN7040016N

[ The distance to empty is the
estimated distance the vehicle can be
driven with the remaining fuel.

[ If the estimated distance is below
1 mi. (1 km), the trip computer will
display “---” as distance to empty.
