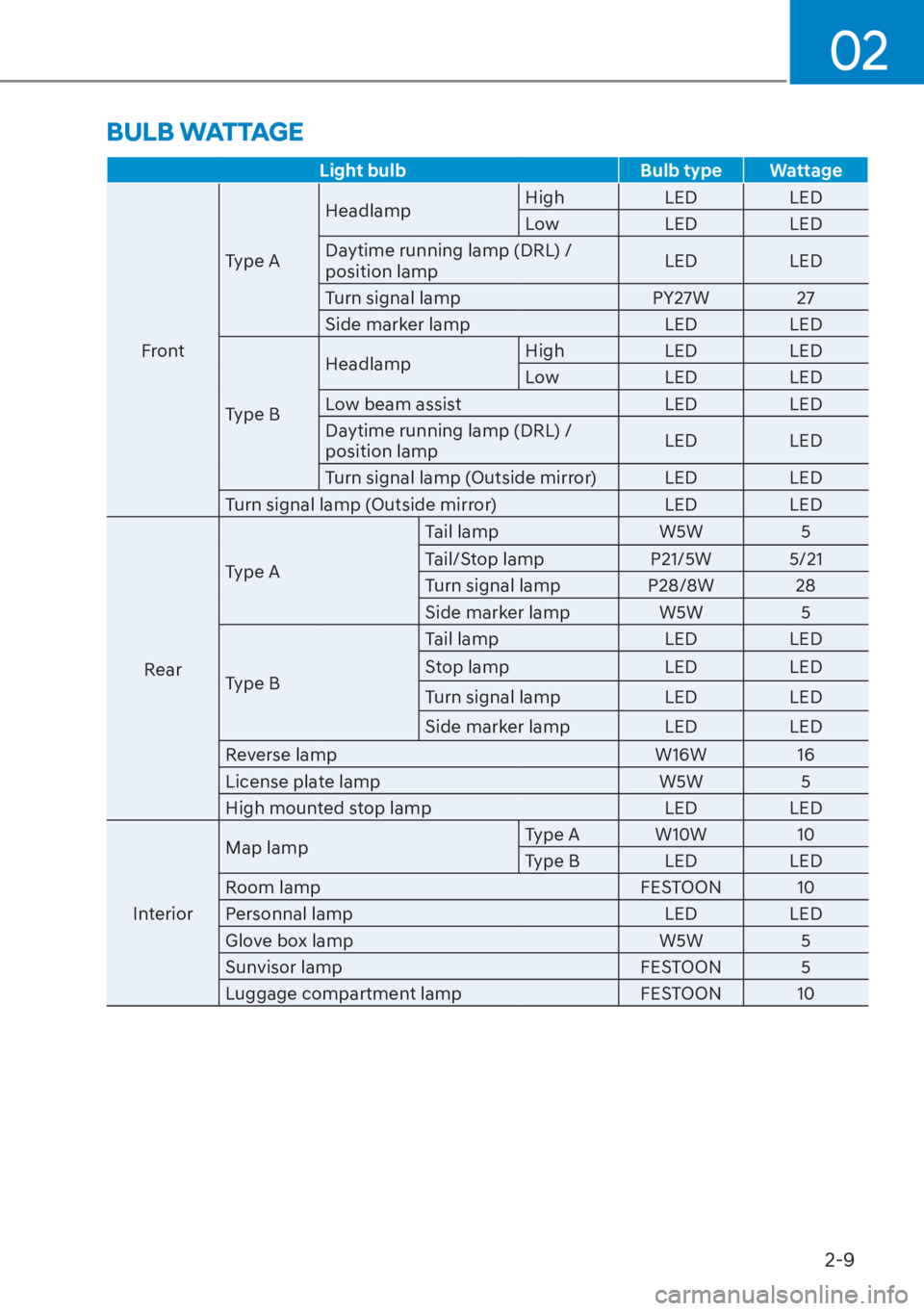

2023 HYUNDAI SANTA FE HYBRID headlamp

02
2-9
Light bulbBulb type Wattage
Front T
ype A
Headlamp
High LED LED
Low LED LED
Daytime running lamp (DRL) /
position lamp LED LED
Turn signal lamp PY27W 27
Side marker lamp LED LED
Type B Headlamp
High LED LED
Low LED LED
Low beam assist LED LED
Daytime running lamp (DRL) /
position lamp LED LED
Turn signal lamp (Outside mirror) LED LED
Turn signal lamp (Outside mirror) LED LED
Rear Type A
Tail lamp W5W 5
Tail/Stop lamp P21/5W 5/21
Turn signal lamp P28/8W 28
Side marker lamp W5W 5
Type B Tail lamp LED LED
Stop lamp LED LED
Turn signal lamp LED LED
Side marker lamp LED LED
Reverse lamp W16W 16
License plate lamp W5W 5
High mounted stop lamp LED LED
Interior Map lamp
Type A W10W 10
Type B LED LED
Room lamp FESTOON 10
Personnal lamp LED LED
Glove box lamp W5W 5
Sunvisor lamp FESTOON 5
Luggage compartment lamp FESTOON 10
BULB WATTAGE

4
Electronic Stability Control (ESC) OFF indicator light ........................................... 4-19
Immobilizer indicator light (with smart key) ..........................................................4-20
Immobilizer indicator light (with smart key) ..........................................................4-20
Downhill Brake Control (DBC) indicator light .........................................................4-21
Turn signal indicator light ........................................................................\
.................4-21
High beam indicator light ........................................................................\
................4-21
Low beam indicator light ........................................................................\
................ 4-22
Light ON indicator light ........................................................................\
................... 4-22
High Beam Assist indicator light ........................................................................\
..... 4-22
Cruise indicator light ........................................................................\
....................... 4-22
Speed Limiter indicator light........................................................................\
........... 4-22
SPORT Mode indicator light ........................................................................\
............ 4-22
ECO Mode indicator light ........................................................................\
................ 4-22
SMART Mode indicator light ........................................................................\
........... 4-22
LCD Display Messages ........................................................................\
....................... 4-23 Shift to P ........................................................................\
........................................... 4-23
Low key battery ........................................................................\
................................ 4-23
Press START button while turning wheel ............................................................... 4-23
Check steering wheel lock system ........................................................................\
. 4-23
Press brake pedal to start engine ........................................................................\
... 4-23
Key not in vehicle ........................................................................\
............................. 4-23
Key not detected ........................................................................\
.............................. 4-23
Press START button again ........................................................................\
............... 4-23
Press START button with key ........................................................................\
........... 4-24
Check BRAKE SWITCH fuse ........................................................................\
............ 4-24
12V battery discharging due to additional electrical devices ............................... 4-24
Door, Hood, Liftgate open indicator ....................................................................... 4-24
Sunroof open indicator ........................................................................\
.................... 4-25
Low pressure ........................................................................\
.................................... 4-25
Wiper/Lights display ........................................................................\
........................ 4-25
Low washer fluid ........................................................................\
.............................. 4-25
Low fuel ........................................................................\
............................................ 4-25
Engine has overheated ........................................................................\
....................4-26
Check exhaust system ........................................................................\
.....................4-26
Check headlight ........................................................................\
...............................4-26
Check turn signal ........................................................................\
.............................4-26
Check brake light ........................................................................\
.............................4-26
Check headlamp LED ........................................................................\
......................4-26
Check Active Air Flap system ........................................................................\
..........4-26
Ready to start driving ........................................................................\
......................4-26
Check regenerative brakes......................................................................\
................4-26
Stop vehicle and check brakes ........................................................................\
....... 4-27

Instrument Cluster4-16

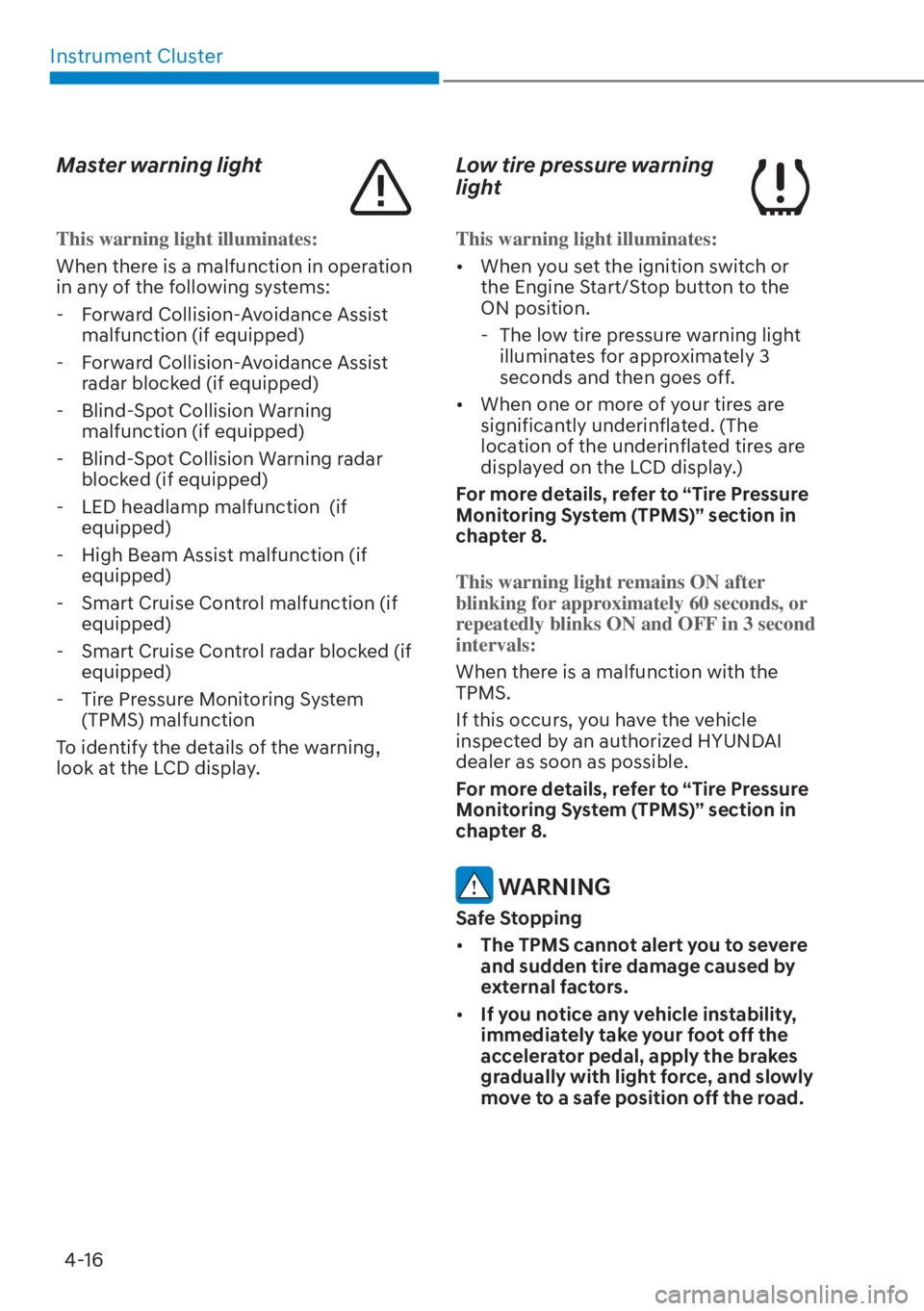

Master warning light
This warning light illuminates:
When there is a malfunction in operation
in an
y of the following systems:
- Forward Collision-Avoidance Assist malfunction (if equipped)
- Forward Collision-Avoidance Assist radar blocked (if equipped)
- Blind-Spot Collision Warning malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- LED headlamp malfunction (if equipped)
- High Beam Assist malfunction (if equipped)
- Smart Cruise Control malfunction (if equipped)
- Smart Cruise Control radar blocked (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction
To identify the details of the warning,
look at the LCD display.
Low tire pressure warning
light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The low tire pressure warning light illuminates for approximately 3
seconds and then goes off.

[ When one or more of your tires are
significantly underinflated. (The
location of the underinflated tires are
displayed on the LCD display.)
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains ON after
blinking for
approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occur

s, you have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping

[ The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.

[ If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

Instrument Cluster4-22
Low beam indicator light
This indicator light illuminates:
When the headlamps are on.
Light ON indicator light
This indicator light illuminates:
When the tail lights or headlights are on.
High Beam Assist indicator
light (if equipped)
This indicator light illuminates:

[ When the high-beam is on with the
light s

witch in the AUTO light position.
- White: When High Beam Assist is ready to operate.
- Green: When High Beam Assist is operating.

[ If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
system will switch the high beam to
low beam automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
Cruise indicator light
(if equipped)
This indicator light illuminates:
When the cruise control system is
enabled.
F

or more details, refer to "Cruise
Control System" in chapter 7.
Speed Limiter indicator light
(if equipped)
This indicator light illuminates when:
When the speed limiter is enabled.
F

or more details, refer to "Speed Limit
Control System" in chapter 7.
SPORT Mode indicator light
(if equipped)
This indicator light illuminates
When you select "SPORT" mode as drive
mode.
F

or more details, refer to "Drive Mode
Integrated Control System" in chapter
6.
ECO Mode indicator light (if
equipped)
This indicator light illuminates
When you select "ECO" mode as drive
mode.
F

or more details, refer to "Drive Mode
Integrated Control System" in chapter 6.
SMART Mode indicator light
(if equipped)
This indicator light illuminates:
When you select ''SMART" mode as drive
mode.
F

or more details, refer to "Drive Mode
Integrated Control System'' in chapter 6.

Instrument Cluster4-26
Engine has overheated
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check exhaust system (if equipped)
This message is displayed if there is
a problem with the GPF system. At
this time, the GPF warning light will
also blink. If this occurs, you have the
GPF system checked by an authorized
HYUNDAI dealer.
GPF : Gasoline Particulate Filter
Check headlight (if equipped)
This message is displayed if the
headlights are not operating properly. A
headlight bulb may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check brake light (if equipped)
This message is displayed if the stop
lamps are not operating properly. A lamp
may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
NOTICE
Do not drive the vehicle with low fuel.
Hybrid battery damage may occur
when the fuel tank is completely empty.
Check headlamp LED (if equipped)
This message is displayed if there is
a problem with the LED headlamp.
You have the vehicle inspected by an
authorized HYUNDAI dealer.
Check Active Air Flap system
This message is displayed in the
following situations: - There is a malfunction with the actuator flap
- There is a malfunction with the actuator air flap controller
- The air flap does not open
When all of the above conditions are
fixed, the warning will disappear.
Ready to start driving
This message is displayed when the
vehicle is ready to be driven.
Check regenerative brakes
This message is displayed when the brake
performance is low or the regenerative
brake does not work properly due to a
failure in the brake system.
If this occurs, it may take longer for the
brake pedal to operate and the braking
distance may become longer.

Instrument Cluster4-32

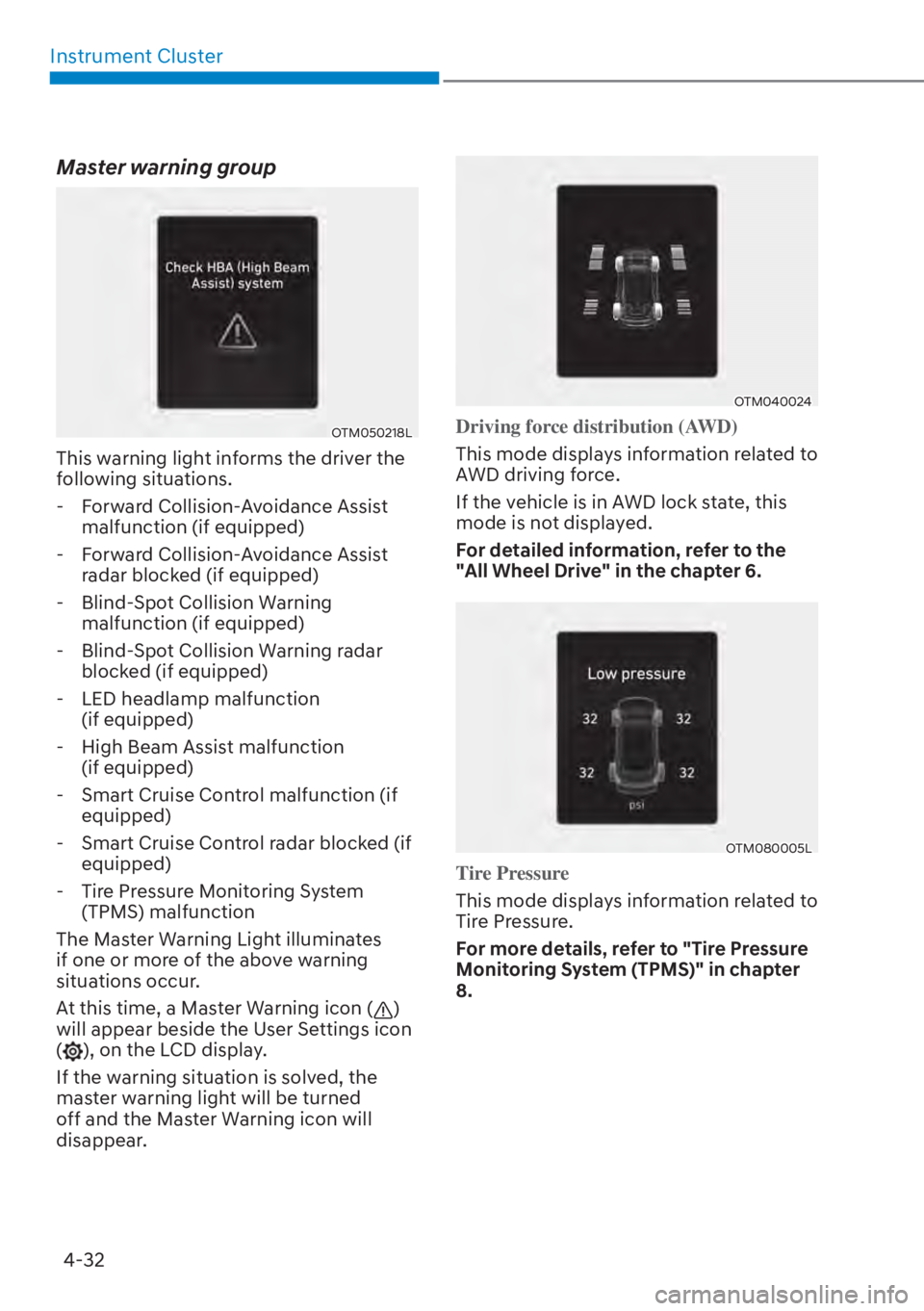

Master warning group
OTM050218L
This warning light informs the driver the
following situations. - Forward Collision-Avoidance Assist malfunction (if equipped)
- Forward Collision-Avoidance Assist radar blocked (if equipped)
- Blind-Spot Collision Warning malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- LED headlamp malfunction (if equipped)
- High Beam Assist malfunction (if equipped)
- Smart Cruise Control malfunction (if equipped)
- Smart Cruise Control radar blocked (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
will appear beside the User Settings icon
(
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
OTM040024
Driving force distribution (AWD)
This mode displays information related to
A
WD driving force.
If the vehicle is in AWD lock state, this
mode is not displayed.
For detailed information, refer to the
"All Wheel Drive" in the chapter 6.
OTM080005L
Tire Pressure
This mode displays information related to
Tir
e Pressure.
For more details, refer to "Tire Pressure
Monitoring System (TPMS)" in chapter
8.

Instrument Cluster4-38

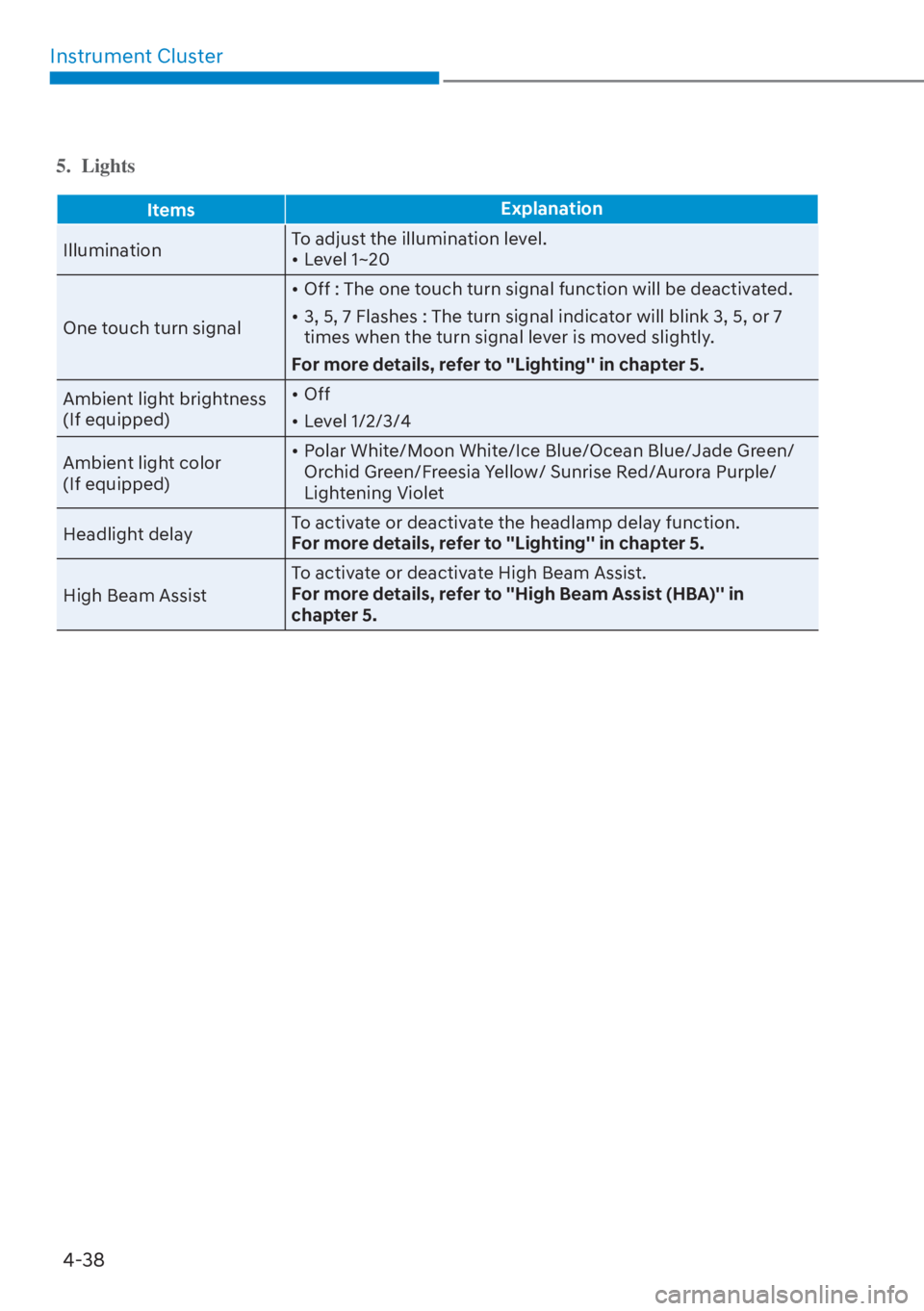

5. Lights
Items Explanation
Illumination T
o adjust the illumination level.

[ Level 1~20
One touch turn signal
[
Off : The one touch turn signal function will be deactivated.

[ 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7
times when the turn signal lever is moved slightly.
For more details, refer to ''Lighting'' in chapter 5.
Ambient light brightness
(If equipped)
[
Off

[ Level 1/2/3/4
Ambient light color
(If equipped)
[
Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/
Orchid Green/Freesia Yellow/ Sunrise Red/Aurora Purple/
Lightening Violet
Headlight delay To activate or deactivate the headlamp delay function.
For more details, refer to ''Lighting'' in chapter 5.
High Beam Assist To activate or deactivate High Beam Assist.
For more details, refer to ''High Beam Assist (HBA)'' in
chapter 5.

Convenience Features5-44
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
head restraint which could interfere
with your vision through the rear
window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror (if
equipped)
OTM050018[A] : Day, [B] : Night
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlamps of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
0,55256
