2023 HYUNDAI SANTA FE HYBRID Owners Manual

03
3-11
Seatback pocket
OTM030046
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.
Rear Seats
OTM030065
Forward and backward (2nd row seat)
To move the seat forward or backward:
1.
Pull the seat slide adjustment lever up
and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.

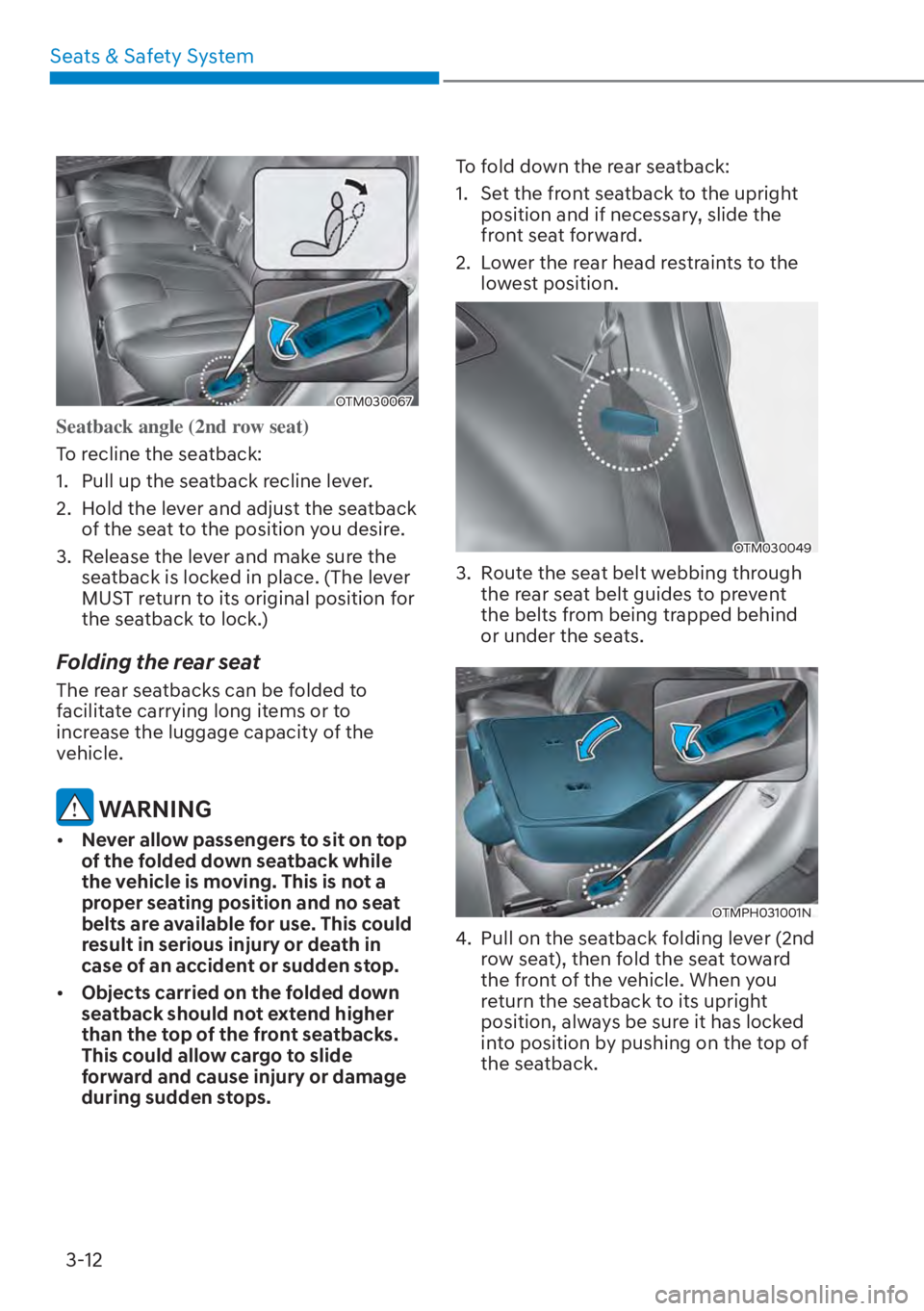

Seats & Safety System3-12
OTM030067
Seatback angle (2nd row seat)
To recline the seatback:
1.
Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback of the seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Folding the rear seat
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
WARNING

[Never allow passengers to sit on top
of the folded down seatback while
the vehicle is moving. This is not a
proper seating position and no seat
belts are available for use. This could
result in serious injury or death in
case of an accident or sudden stop.

[ Objects carried on the folded down
seatback should not extend higher
than the top of the front seatbacks.
This could allow cargo to slide
forward and cause injury or damage
during sudden stops. To fold down the rear seatback:
1. Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
2. Lower the rear head restraints to the lowest position.
OTM030049
3. Route the seat belt webbing through the rear seat belt guides to prevent
the belts from being trapped behind
or under the seats.
OTMPH031001N
4. Pull on the seatback folding lever (2nd row seat), then fold the seat toward
the front of the vehicle. When you
return the seatback to its upright
position, always be sure it has locked
into position by pushing on the top of
the seatback.

03

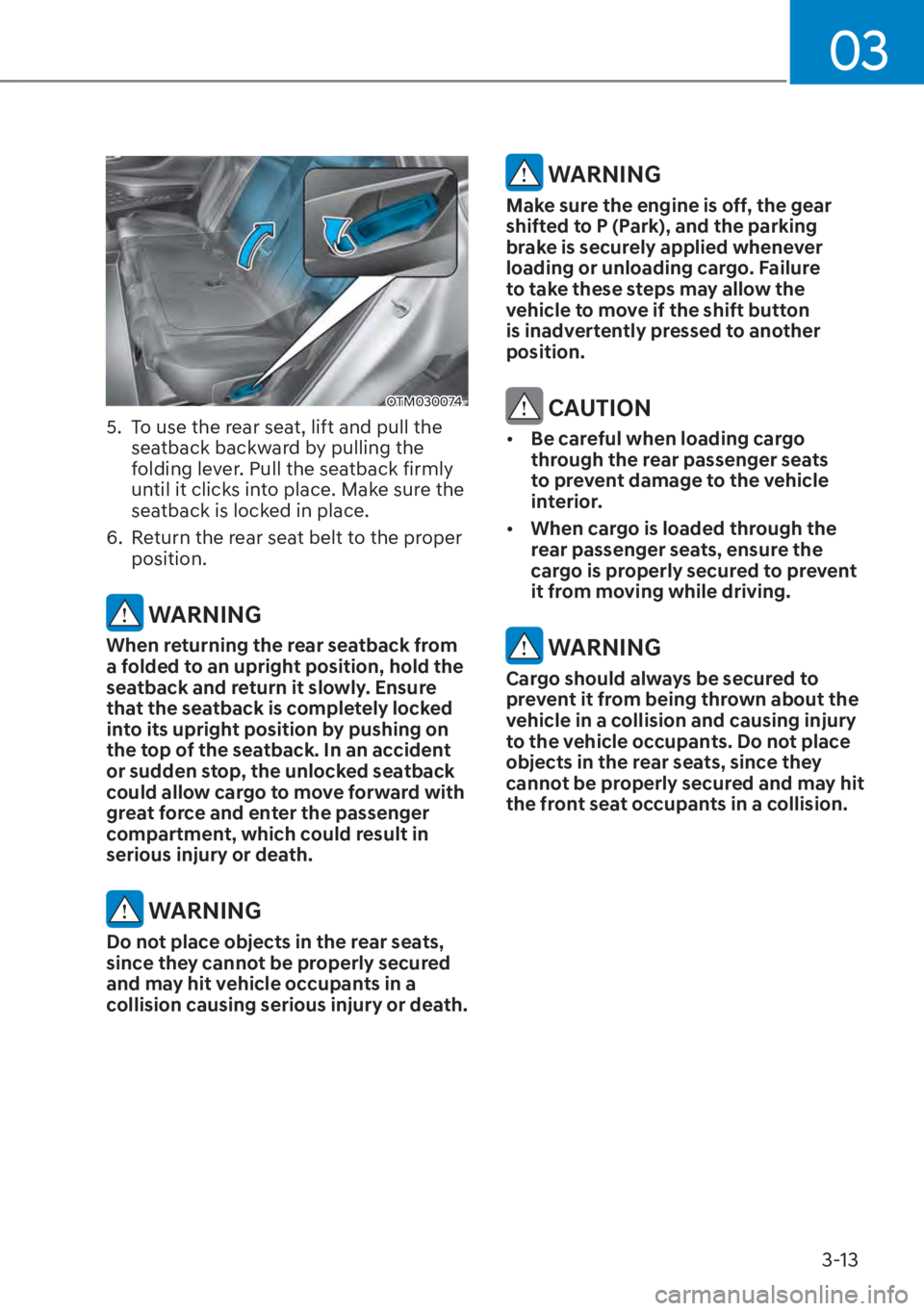

3-13
OTM030074
5. To use the rear seat, lift and pull the seatback backward by pulling the
folding lever. Pull the seatback firmly
until it clicks into place. Make sure the
seatback is locked in place.
6. Return the rear seat belt to the proper position.
WARNING
When returning the rear seatback from
a folded to an upright position, hold the
seatback and return it slowly. Ensure
that the seatback is completely locked
into its upright position by pushing on
the top of the seatback. In an accident
or sudden stop, the unlocked seatback
could allow cargo to move forward with
great force and enter the passenger
compartment, which could result in
serious injury or death.
WARNING
Do not place objects in the rear seats,
since they cannot be properly secured
and may hit vehicle occupants in a
collision causing serious injury or death.
WARNING
Make sure the engine is off, the gear
shifted to P (Park), and the parking
brake is securely applied whenever
loading or unloading cargo. Failure
to take these steps may allow the
vehicle to move if the shift button
is inadvertently pressed to another
position.
CAUTION

[Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.

[ When cargo is loaded through the
rear passenger seats, ensure the
cargo is properly secured to prevent
it from moving while driving.
WARNING
Cargo should always be secured to
prevent it from being thrown about the
vehicle in a collision and causing injury
to the vehicle occupants. Do not place
objects in the rear seats, since they
cannot be properly secured and may hit
the front seat occupants in a collision.

Seats & Safety System3-14

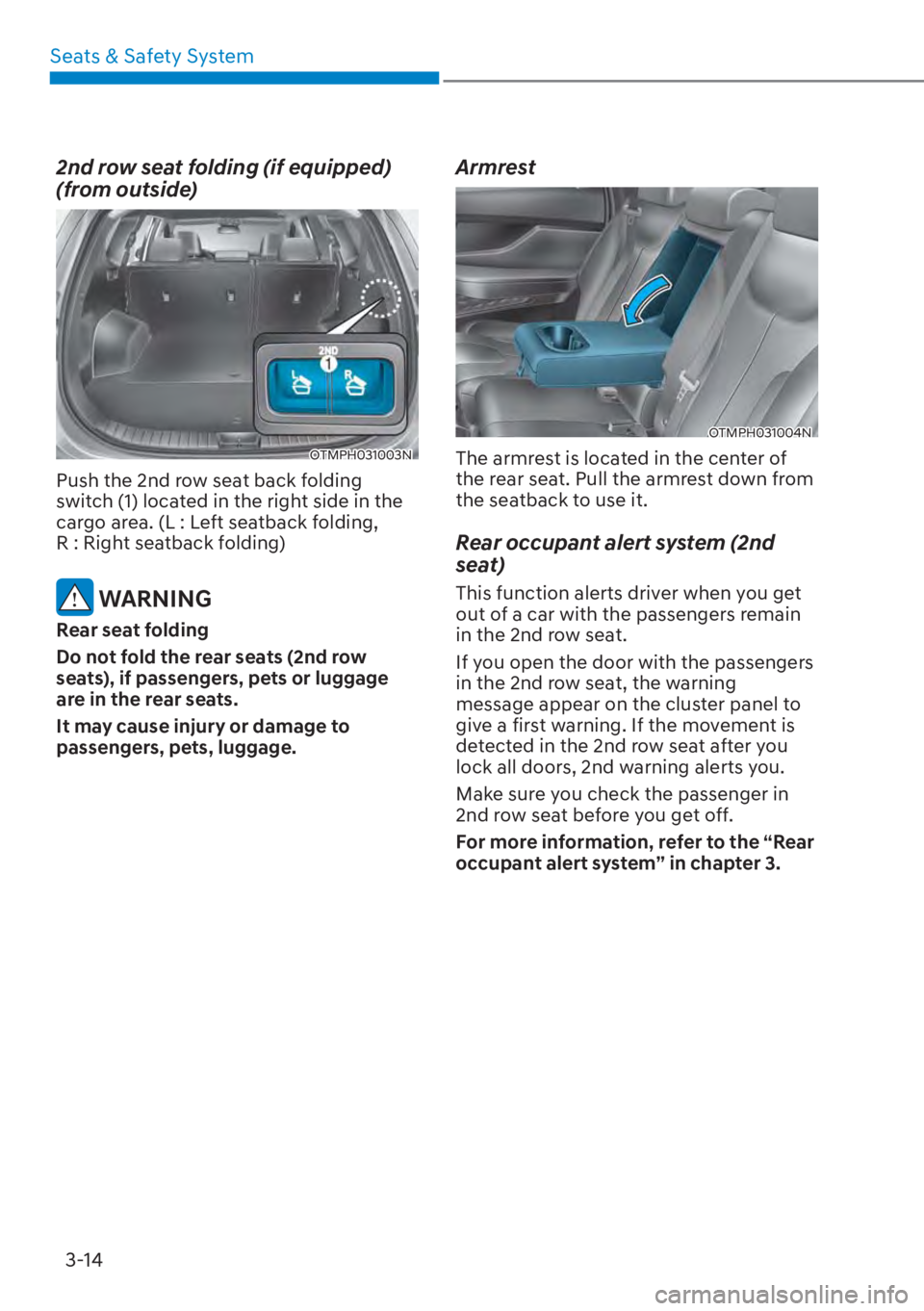

2nd row seat folding (if equipped)
(from outside)
OTMPH031003N
Push the 2nd row seat back folding
switch (1) located in the right side in the
cargo area. (L : Left seatback folding,
R : Right seatback folding)
WARNING
Rear seat folding
Do not fold the rear seats (2nd row
seats), if passengers, pets or luggage
are in the rear seats.
It may cause injury or damage to
passengers, pets, luggage.
Armrest
OTMPH031004N
The armrest is located in the center of
the rear seat. Pull the armrest down from
the seatback to use it.
Rear occupant alert system (2nd
seat)
This function alerts driver when you get
out of a car with the passengers remain
in the 2nd row seat.
If you open the door with the passengers
in the 2nd row seat, the warning
message appear on the cluster panel to
give a first warning. If the movement is
detected in the 2nd row seat after you
lock all doors, 2nd warning alerts you.
Make sure you check the passenger in
2nd row seat before you get off.
For more information, refer to the “Rear
occupant alert system” in chapter 3.

03
3-15

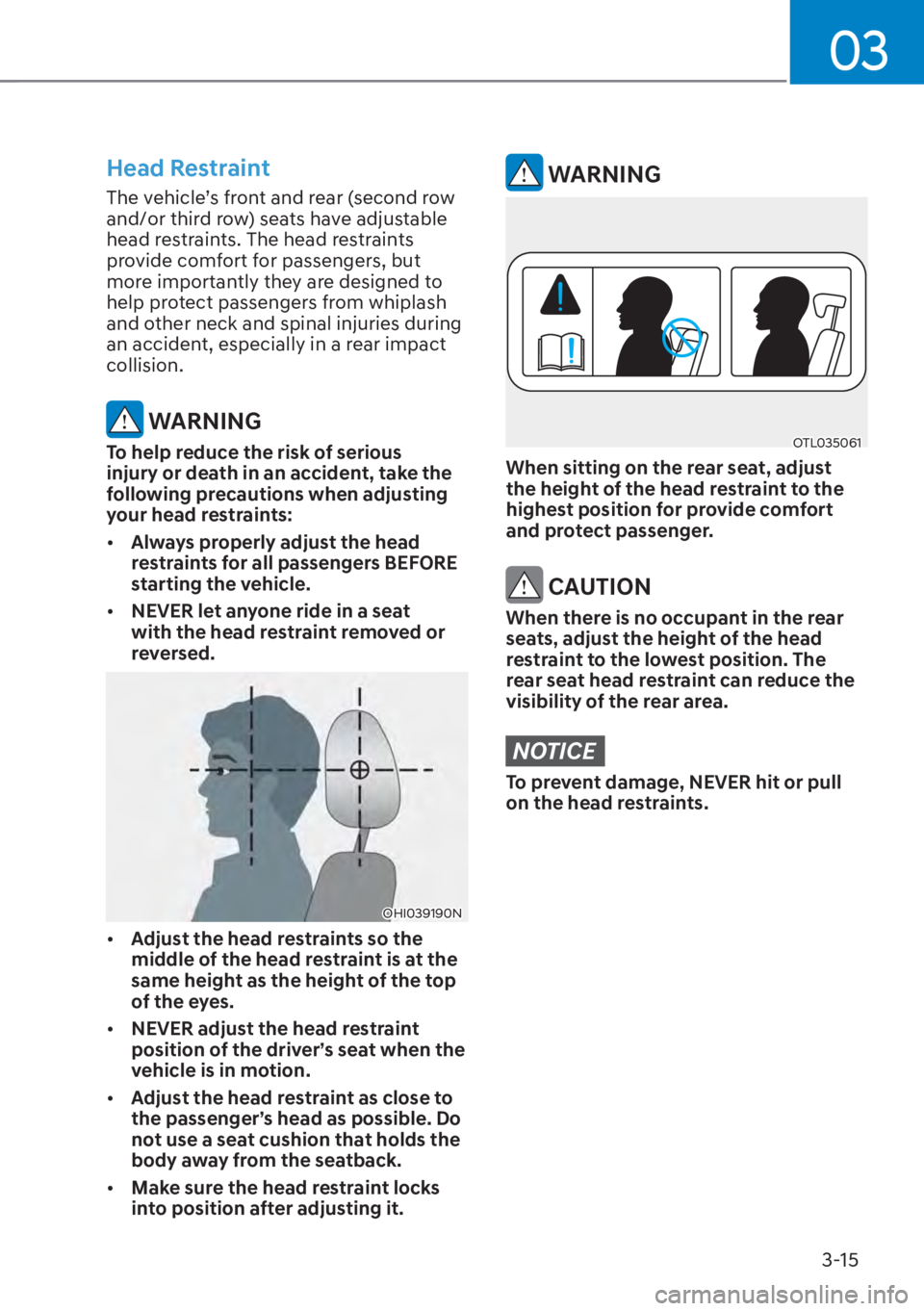

Head Restraint
The vehicle’s front and rear (second row
and/or third row) seats have adjustable
head restraints. The head restraints
provide comfort for passengers, but
more importantly they are designed to
help protect passengers from whiplash
and other neck and spinal injuries during
an accident, especially in a rear impact
collision.
WARNING
To help reduce the risk of serious
injury or death in an accident, take the
following precautions when adjusting
your head restraints:

[Always properly adjust the head
restraints for all passengers BEFORE
starting the vehicle.

[ NEVER let anyone ride in a seat
with the head restraint removed or
reversed.
OHI039190N

[Adjust the head restraints so the
middle of the head restraint is at the
same height as the height of the top
of the eyes.

[ NEVER adjust the head restraint
position of the driver’s seat when the
vehicle is in motion.

[ Adjust the head restraint as close to
the passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.

[ Make sure the head restraint locks
into position after adjusting it.
WARNING
OTL035061
When sitting on the rear seat, adjust
the height of the head restraint to the
highest position for provide comfort
and protect passenger.
CAUTION
When there is no occupant in the rear
seats, adjust the height of the head
restraint to the lowest position. The
rear seat head restraint can reduce the
visibility of the rear area.
NOTICE
To prevent damage, NEVER hit or pull
on the head restraints.

Seats & Safety System3-16

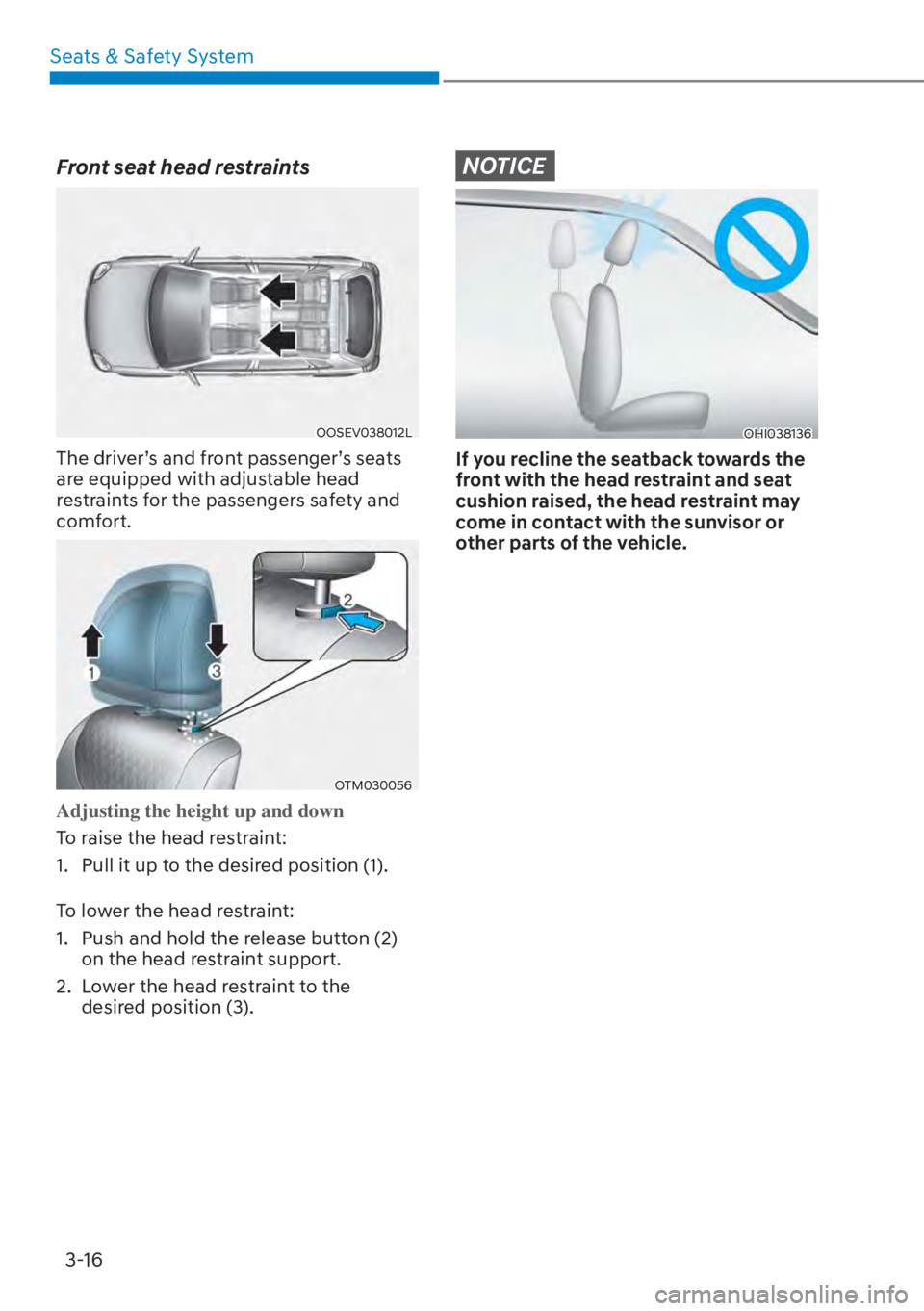

Front seat head restraints
OOSEV038012L
The driver’s and front passenger’s seats
are equipped with adjustable head
restraints for the passengers safety and
comfort.
OTM030056
Adjusting the height up and down
To raise the head restraint:
1.
Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2) on the head restraint support.
2. Lower the head restraint to the desired position (3).
NOTICE
OHI038136
If you recline the seatback towards the
front with the head restraint and seat
cushion raised, the head restraint may
come in contact with the sunvisor or
other parts of the vehicle.

03
3-17

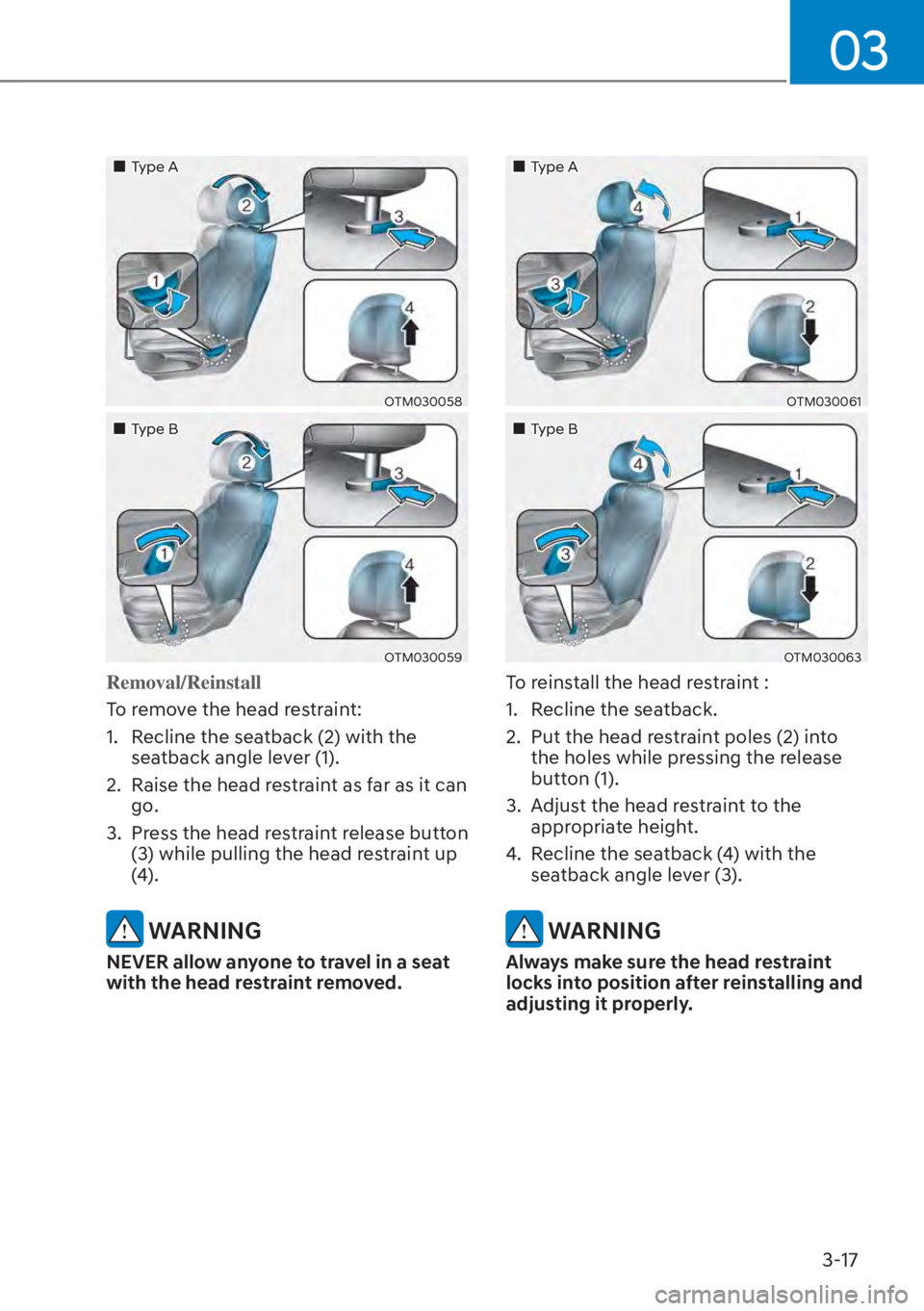

„Type A
OTM030058
„Type B
OTM030059
Removal/Reinstall
To remove the head restraint:
1.
Recline the seatback (2) with the
seatback angle lever (1).
2. Raise the head restraint as far as it can go.
3. Press the head restraint release button (3) while pulling the head restraint up
(4).
WARNING
NEVER allow anyone to travel in a seat
with the head restraint removed.
„Type A
OTM030061
„Type B
OTM030063
To reinstall the head restraint :
1. Recline the seatback.
2. Put the head restraint poles (2) into the holes while pressing the release
button (1).
3. Adjust the head restraint to the appropriate height.
4. Recline the seatback (4) with the seatback angle lever (3).
WARNING
Always make sure the head restraint
locks into position after reinstalling and
adjusting it properly.

Seats & Safety System3-18

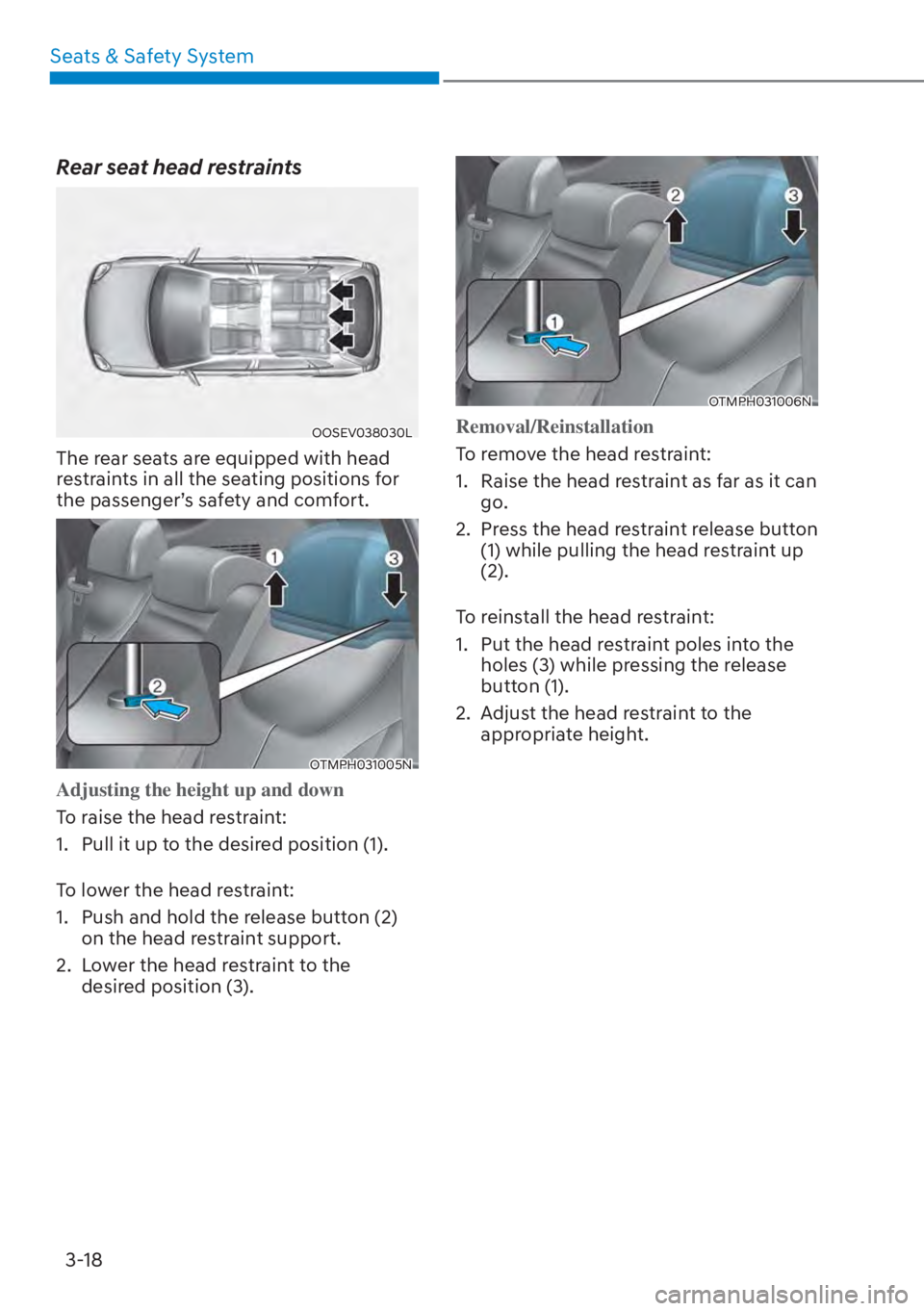

Rear seat head restraints
OOSEV038030L
The rear seats are equipped with head
restraints in all the seating positions for
the passenger’s safety and comfort.
OTMPH031005N
Adjusting the height up and down
To raise the head restraint:
1.
Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2) on the head restraint support.
2. Lower the head restraint to the desired position (3).
OTMPH031006N
Removal/Reinstallation
To remove the head restraint:
1.

Raise the head restraint as far as it can
go.
2. Press the head restraint release button (1) while pulling the head restraint up
(2).
To reinstall the head restraint:
1. Put the head restraint poles into the holes (3) while pressing the release
button (1).
2. Adjust the head restraint to the appropriate height.
