Foreword / Hybrid System Overview1-10
Starting the Vehicle
Vehicles with smart key system
1. Carry the smart key or leave it inside the vehicle.
2. Make sure the parking brake is firmly applied.
3. Make sure the shift button is in P (Park). With the shift button in N
(Neutral), you cannot start the vehicle.
4. Depress the brake pedal.
5. Press the Engine Start/Stop button. If the hybrid system starts, the “
”
indicator will come on.
Whether the engine is cold or warm, it
should be started without depressing
the accelerator.
After following the start procedures,
“
” indicator on the instrument
cluster will turn on. For more details,
please check chapter 6.
ECONOMICAL and SAFE OPERATION of
Hybrid system

[ Drive smoothly. Accelerate at a
moderate rate and maintain a steady
cruising speed. Do not make “jack-
rabbit” starts. Do not race between
stoplights.
Avoid heavy traffic whenever possible.
Always maintain a safe distance
from other vehicles so you can
avoid unnecessary braking. This also
reduces brake wear out.

[ The regenerative brake generates
energy when the vehicle decelerates.

[ When the hybrid battery power is
low, the hybrid system automatically
recharges the hybrid battery.

[ When the engine is running with the
shift button in N (Neutral), the hybrid
system cannot generate electricity.
The hybrid battery cannot recharge
with the shift button in N (Neutral).
Information
In the hybrid system, the engine
automatically runs and stops. When
the hybrid system operates, the “
”
indicator is illuminated.
In the following situation, the engine may
operate automatically.
- When the engine is ready to run
- When the hybrid battery is being
charged
- Depending on the temperature
condition of the hybrid battery
Special Features
Hybrid vehicles sound different than
gasoline engine vehicles. When the
hybrid system operates, you may
hear a sound from the hybrid battery
system under the floor. If you apply
the accelerator pedal rapidly, you may
hear an unconventional sound. When
you apply the brake pedal, you may
hear a sound from the regenerative
brake system. When the hybrid system
is turned off or on, you may hear a
sound in the engine compartment. If
you depress the brake pedal repeatedly
when the hybrid system is turned on,
you may hear a sound in the engine
compartment. None of these sounds
indicate a problem. These are normal
characteristics of hybrid vehicles.
If any of following occur, it’s a normal
condition if you hear a motor sound in
the engine compartment:
- After turning off the hybrid system, the brake pedal is released.
- When the hybrid system is turned off, the brake pedal is applied.
- When the driver door is opened.
DRIVING THE HYBRID VEHICLE

01
1-13
Warning and Indicator Lights
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven. -
ON : Normal driving is possible.
- OFF : Normal driving is not possible, or a problem has occurred.
- Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. If this occurs, you have your
vehicle inspected by an authorized
HYUNDAI dealer.
EV mode indicator
This indicator illuminates:
When the vehicle is driven by the electric
mo
tor.
- “EV” indicator ON : Vehicle is driven using the electric motor or the
gasoline engine is stopped.
- “EV” indicator OFF : Vehicle is driven using the gasoline engine.
Service warning light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The service warning light illuminates
for approximately 3 seconds and
then turns off when all checks have
been performed.

[ When there is a problem with the
hybrid vehicle control system or
hardware.
When the warning light illuminates
while driving, or does not go OFF after
starting the vehicle, you have the vehicle
inspected by an authorized HYUNDAI
dealer.

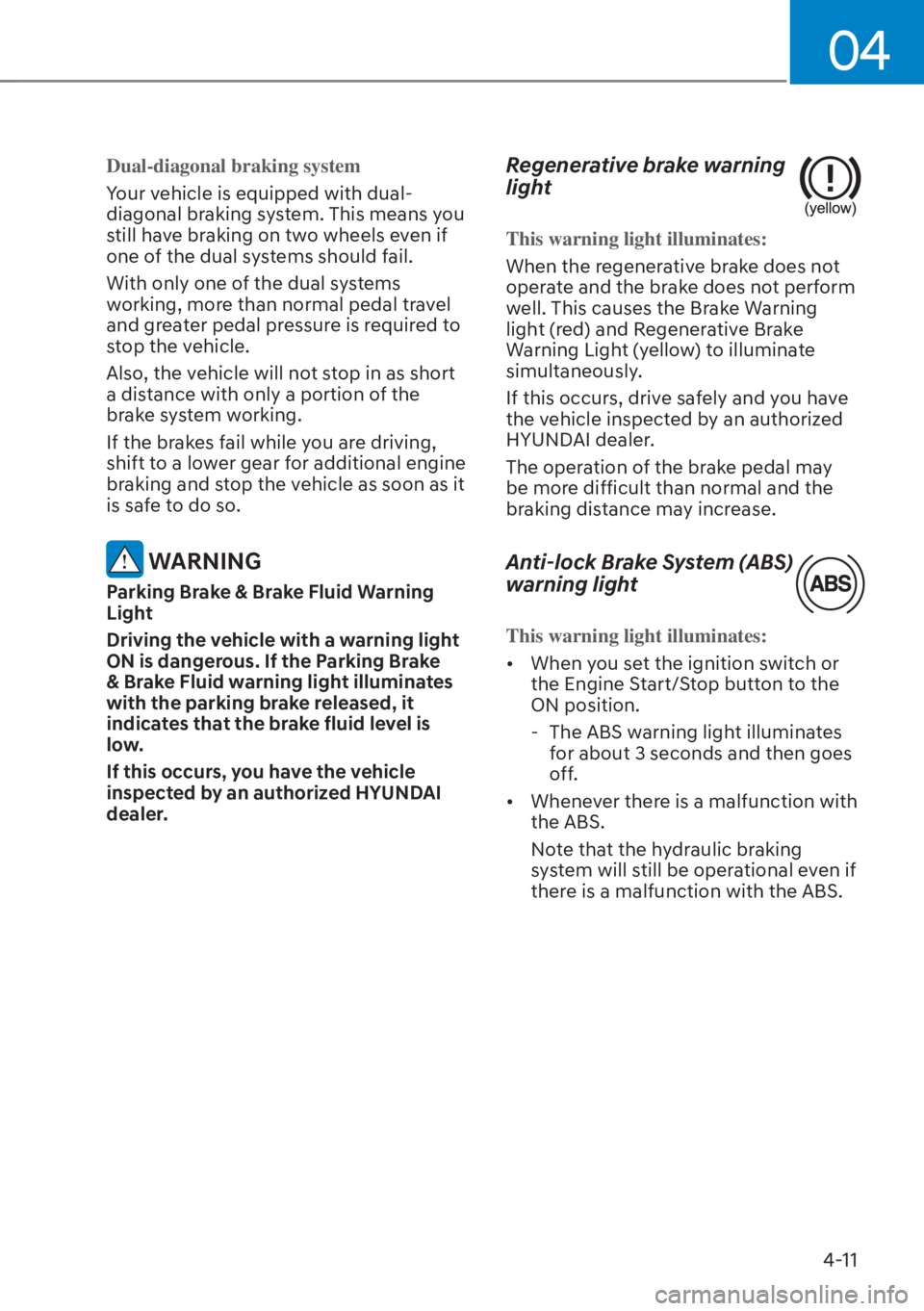

Regenerative brake warning
light
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and have
your vehicle inspected by an authorized
HYUNDAI dealer. The operation of the
brake pedal may be more difficult than
normal and the braking distance may
increase.

4

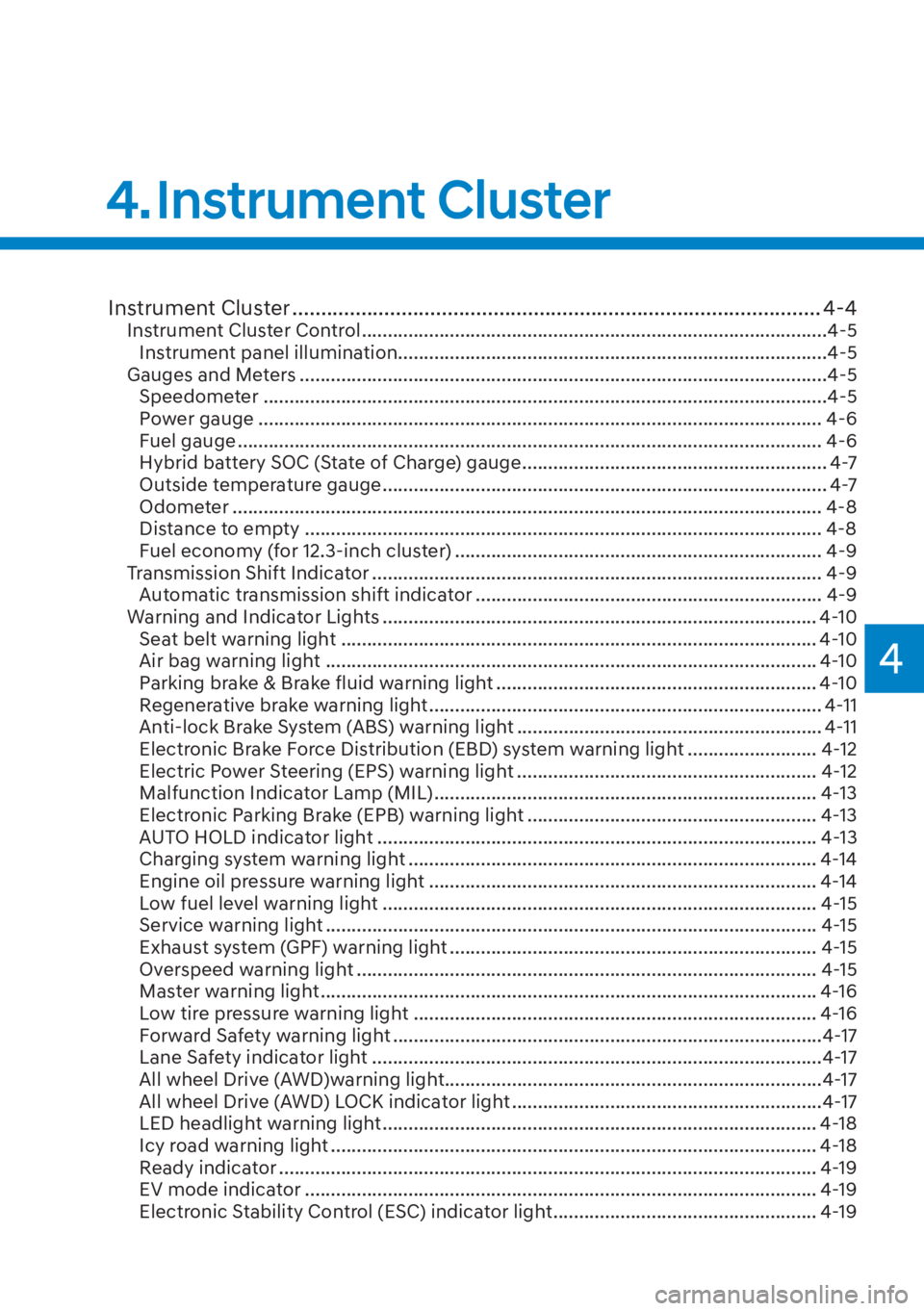

4. Instrument Cluster
Instrument Cluster ........................................................................\
.................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Instrument panel illumination ........................................................................\
...........4-5
Gauges and Meters ........................................................................\
..............................4-5 Speedometer .....................................................................\
........................................4-5
Power gauge ........................................................................\
..................................... 4-6
Fuel gauge ........................................................................\
......................................... 4-6
Hybrid battery SOC (State of Charge) gauge ........................................................... 4-7
Outside temperature gauge ........................................................................\
.............. 4-7
Odometer .....................................................................\
............................................. 4-8
Distance to empty ........................................................................\
............................ 4-8
Fuel economy (for 12.3-inch cluster) ....................................................................... 4-9
Transmission Shift Indicator ........................................................................\
............... 4-9 Automatic transmission shift indicator ................................................................... 4-9

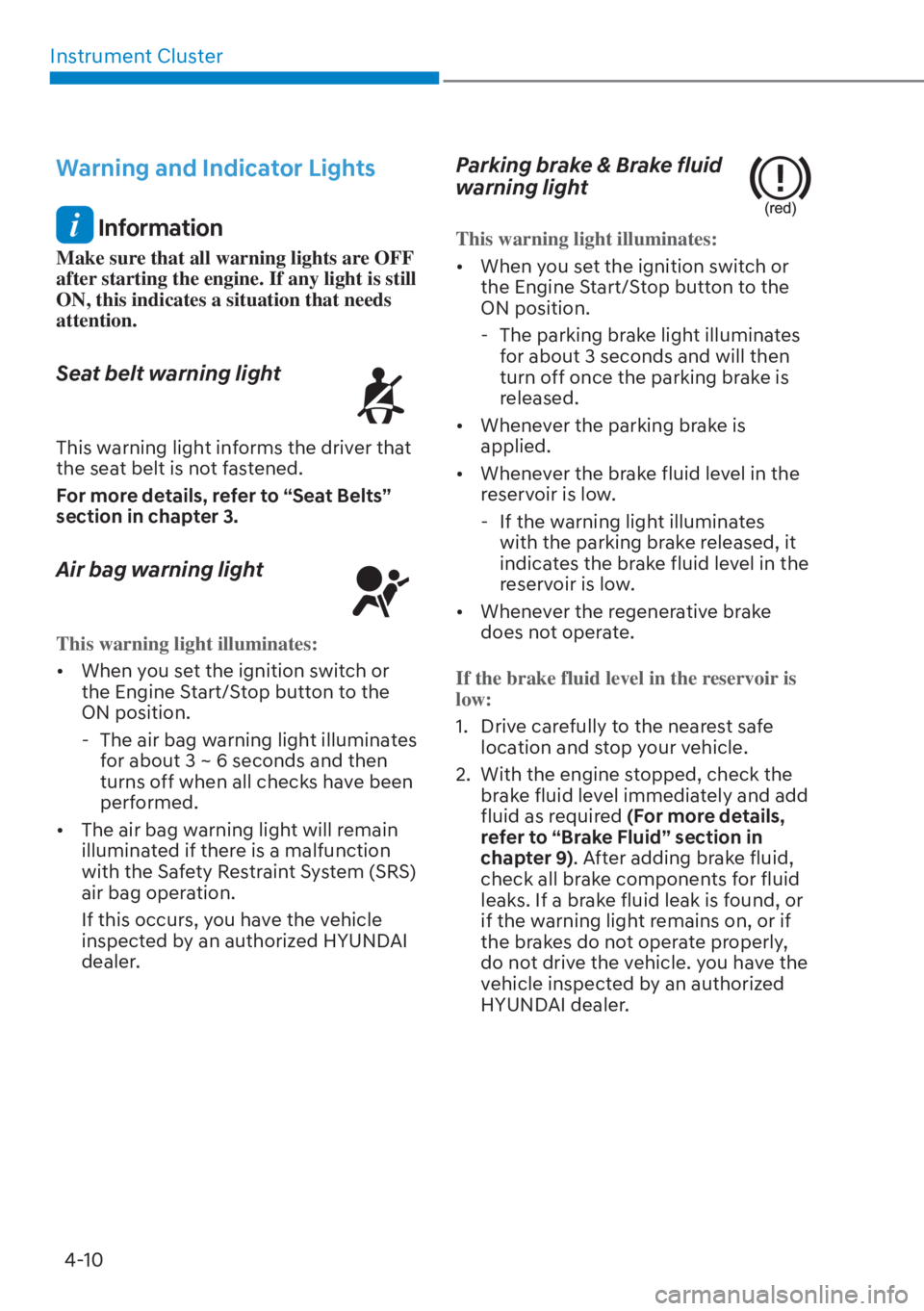

Warning and Indicator Lights ........................................................................\
............ 4-10 Seat belt warning light ........................................................................\
.................... 4-10
Air bag warning light ........................................................................\
....................... 4-10
Parking brake & Brake fluid warning light .............................................................. 4-10
Regenerative brake warning light ........................................................................\
.... 4-11
Anti-lock Brake System (ABS) warning light ........................................................... 4-11

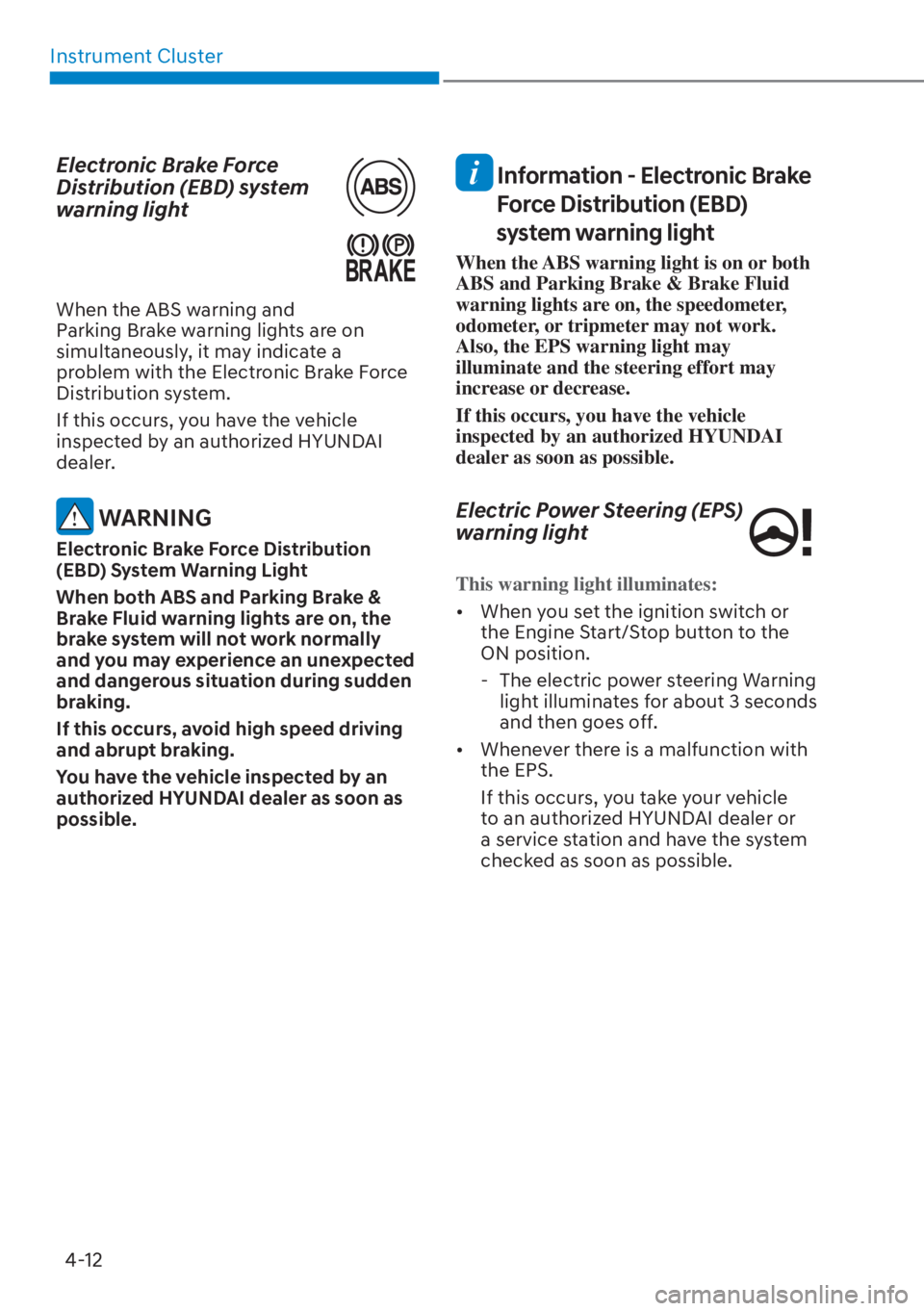

Electronic Brake Force Distribution (EBD) system warning light ......................... 4-12
Electric Power Steering (EPS) warning light .......................................................... 4-12

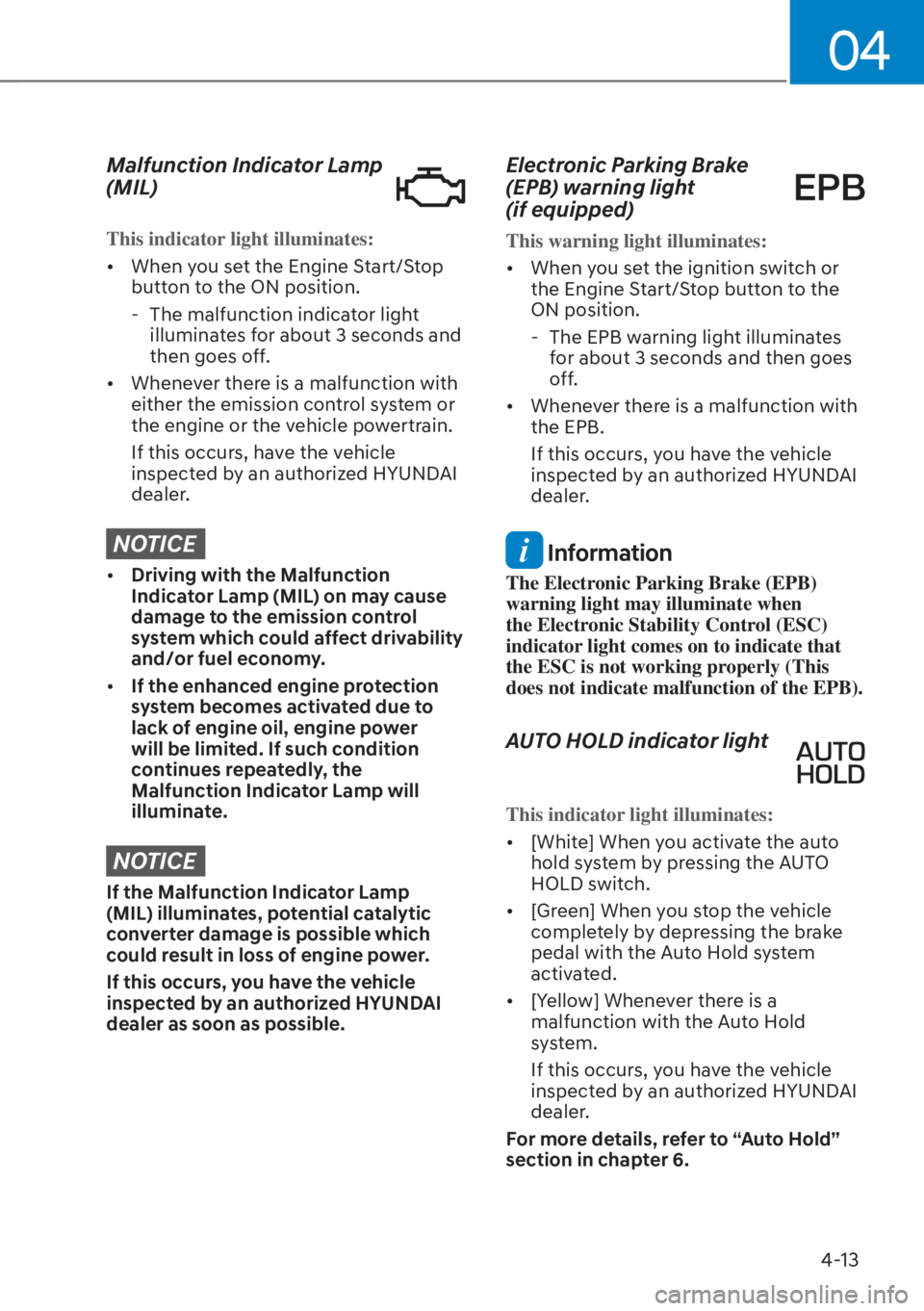

Malfunction Indicator Lamp (MIL) ........................................................................\
.. 4-13
Electronic Parking Brake (EPB) warning light ........................................................ 4-13
AUTO HOLD indicator light ........................................................................\
............. 4-13
Charging system warning light ........................................................................\
....... 4-14
Engine oil pressure warning light ........................................................................\
... 4-14
Low fuel level warning light ........................................................................\
............ 4-15
Service warning light ........................................................................\
....................... 4-15
Exhaust system (GPF) warning light ....................................................................... 4-15
Overspeed warning light ........................................................................\
................. 4-15
Master warning light ........................................................................\
........................ 4-16
Low tire pressure warning light ......................................................................\
........ 4-16
Forward Safety warning light ........................................................................\
...........4-17
Lane Safety indicator light ........................................................................\
...............4-17
All wheel Drive (AWD)warning light.......................................................................\
..4-17
All wheel Drive (AWD) LOCK indicator light ............................................................4-17
LED headlight warning light ........................................................................\
............ 4-18
Icy road warning light ........................................................................\
...................... 4-18
Ready indicator ........................................................................\
................................ 4-19
EV mode indicator ........................................................................\
........................... 4-19
Electronic Stability Control (ESC) indicator light ................................................... 4-19

4

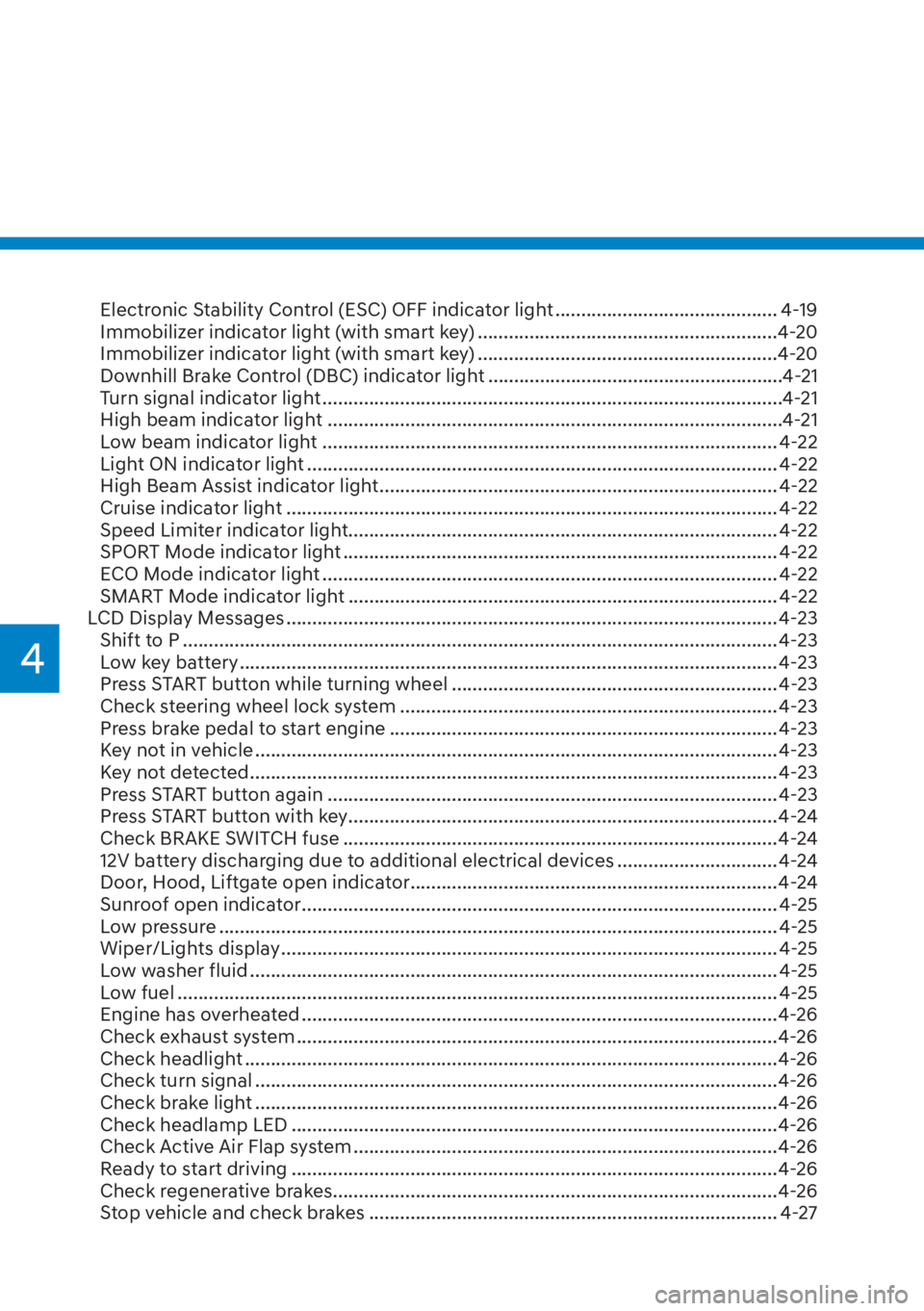

Electronic Stability Control (ESC) OFF indicator light ........................................... 4-19
Immobilizer indicator light (with smart key) ..........................................................4-20
Immobilizer indicator light (with smart key) ..........................................................4-20
Downhill Brake Control (DBC) indicator light .........................................................4-21
Turn signal indicator light ........................................................................\
.................4-21
High beam indicator light ........................................................................\
................4-21
Low beam indicator light ........................................................................\
................ 4-22
Light ON indicator light ........................................................................\
................... 4-22
High Beam Assist indicator light ........................................................................\
..... 4-22
Cruise indicator light ........................................................................\
....................... 4-22
Speed Limiter indicator light........................................................................\
........... 4-22
SPORT Mode indicator light ........................................................................\
............ 4-22
ECO Mode indicator light ........................................................................\
................ 4-22
SMART Mode indicator light ........................................................................\
........... 4-22
LCD Display Messages ........................................................................\
....................... 4-23 Shift to P ........................................................................\
........................................... 4-23
Low key battery ........................................................................\
................................ 4-23
Press START button while turning wheel ............................................................... 4-23
Check steering wheel lock system ........................................................................\
. 4-23
Press brake pedal to start engine ........................................................................\
... 4-23
Key not in vehicle ........................................................................\
............................. 4-23
Key not detected ........................................................................\
.............................. 4-23
Press START button again ........................................................................\
............... 4-23
Press START button with key ........................................................................\
........... 4-24
Check BRAKE SWITCH fuse ........................................................................\
............ 4-24
12V battery discharging due to additional electrical devices ............................... 4-24
Door, Hood, Liftgate open indicator ....................................................................... 4-24
Sunroof open indicator ........................................................................\
.................... 4-25
Low pressure ........................................................................\
.................................... 4-25
Wiper/Lights display ........................................................................\
........................ 4-25
Low washer fluid ........................................................................\
.............................. 4-25
Low fuel ........................................................................\
............................................ 4-25
Engine has overheated ........................................................................\
....................4-26
Check exhaust system ........................................................................\
.....................4-26
Check headlight ........................................................................\
...............................4-26
Check turn signal ........................................................................\
.............................4-26
Check brake light ........................................................................\
.............................4-26
Check headlamp LED ........................................................................\
......................4-26
Check Active Air Flap system ........................................................................\
..........4-26
Ready to start driving ........................................................................\
......................4-26
Check regenerative brakes......................................................................\
................4-26
Stop vehicle and check brakes ........................................................................\
....... 4-27

Instrument Cluster4-10
Warning and Indicator Lights
Information
Make sure that all warning lights are OFF
after starting the engine. If any light is still
ON, this indicates a situation that needs
attention.
Seat belt warning light
This warning light informs the driver that
the seat belt is not fastened.
For more details, refer to “Seat Belts”
section in chapter 3.
Air bag warning light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The air bag warning light illuminates
for about 3 ~ 6 seconds and then
turns off when all checks have been
performed.

[ The air bag warning light will remain
illuminated if there is a malfunction
with the Safety Restraint System (SRS)
air bag operation.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Parking brake & Brake fluid
warning light
This warning light illuminates:

[When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The parking brake light illuminates
for about 3 seconds and will then
turn off once the parking brake is
released.

[ Whenever the parking brake is
applied.

[ Whenever the brake fluid level in the
reservoir is low.
- If the warning light illuminates with the parking brake released, it
indicates the brake fluid level in the
reservoir is low.

[ Whenever the regenerative brake
does not operate.
If the brake fluid level in the reservoir is
low:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. With the engine stopped, check the brake fluid level immediately and add
fluid as required (For more details,
refer to “Brake Fluid” section in
chapter 9). After adding brake fluid,
check all brake components for fluid
leaks. If a brake fluid leak is found, or
if the warning light remains on, or if
the brakes do not operate properly,
do not drive the vehicle. you have the
vehicle inspected by an authorized
HYUNDAI dealer.

04
4-11
Dual-diagonal braking system
Your vehicle is equipped with dual-
diagonal br
aking system. This means you
still have braking on two wheels even if
one of the dual systems should fail.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal pressure is required to
stop the vehicle.
Also, the vehicle will not stop in as short
a distance with only a portion of the
brake system working.
If the brakes fail while you are driving,
shift to a lower gear for additional engine
braking and stop the vehicle as soon as it
is safe to do so.
WARNING
Parking Brake & Brake Fluid Warning
Light
Driving the vehicle with a warning light
ON is dangerous. If the Parking Brake
& Brake Fluid warning light illuminates
with the parking brake released, it
indicates that the brake fluid level is
low.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Regenerative brake warning
light
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and you have
the vehicle inspected by an authorized
HYUNDAI dealer.
The operation of the brake pedal may
be more difficult than normal and the
braking distance may increase.
Anti-lock Brake System (ABS)
warning light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The ABS warning light illuminates for about 3 seconds and then goes
off.

[ Whenever there is a malfunction with
the ABS.
Note that the hydraulic braking
system will still be operational even if
there is a malfunction with the ABS.

Instrument Cluster4-12
Electronic Brake Force
Distribution (EBD) system
warning light
When the ABS warning and
Parking Brake warning lights are on
simultaneously, it may indicate a
problem with the Electronic Brake Force
Distribution system.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING
Electronic Brake Force Distribution
(EBD) System Warning Light
When both ABS and Parking Brake &
Brake Fluid warning lights are on, the
brake system will not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking.
If this occurs, avoid high speed driving
and abrupt braking.
You have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
Information - Electronic Brake Force Distribution (EBD)
system warning light
When the ABS warning light is on or both
ABS and Parking Brake & Brake Fluid
warning lights are on, the speedometer,
odometer, or tripmeter may not work.
Also, the EPS warning light may
illuminate and the steering effort may
increase or decrease.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
Electric Power Steering (EPS)
warning light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The electric power steering Warning light illuminates for about 3 seconds
and then goes off.

[ Whenever there is a malfunction with
the EPS.
If this occurs, you take your vehicle
to an authorized HYUNDAI dealer or
a service station and have the system
checked as soon as possible.

04
4-13
Malfunction Indicator Lamp
(MIL)
This indicator light illuminates:

[When y
ou set the Engine Start/Stop
button to the ON position.

- The malfunction indicator light
illuminates for about 3 seconds and
then goes off.

[ Whenever there is a malfunction with
either the emission control system or
the engine or the vehicle powertrain.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE

[Driving with the Malfunction
Indicator Lamp (MIL) on may cause
damage to the emission control
system which could affect drivability
and/or fuel economy.

[ If the enhanced engine protection
system becomes activated due to
lack of engine oil, engine power
will be limited. If such condition
continues repeatedly, the
Malfunction Indicator Lamp will
illuminate.
NOTICE
If the Malfunction Indicator Lamp
(MIL) illuminates, potential catalytic
converter damage is possible which
could result in loss of engine power.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
Electronic Parking Brake
(EPB) warning light
(if equipped)
This warning light illuminates:

[When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The EPB warning light illuminates for about 3 seconds and then goes
off.

[ Whenever there is a malfunction with
the EPB.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Information
The Electronic Parking Brake (EPB)
warning light may illuminate when
the Electronic Stability Control (ESC)
indicator light comes on to indicate that
the ESC is not working properly (This
does not indicate malfunction of the EPB).
AUTO HOLD indicator light
This indicator light illuminates:

[[Whit
e] When you activate the auto
hold system by pressing the AUTO
HOLD switch.

[ [Green] When you stop the vehicle
completely by depressing the brake
pedal with the Auto Hold system
activated.

[ [Yellow] Whenever there is a
malfunction with the Auto Hold
system.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
For more details, refer to “Auto Hold”
section in chapter 6.
