2017 TOYOTA GT86 Owners Manual (in English)

49
1-2. Opening, closing and locking the doors and trunk
1
Before driving
86_EE (OM18071E)

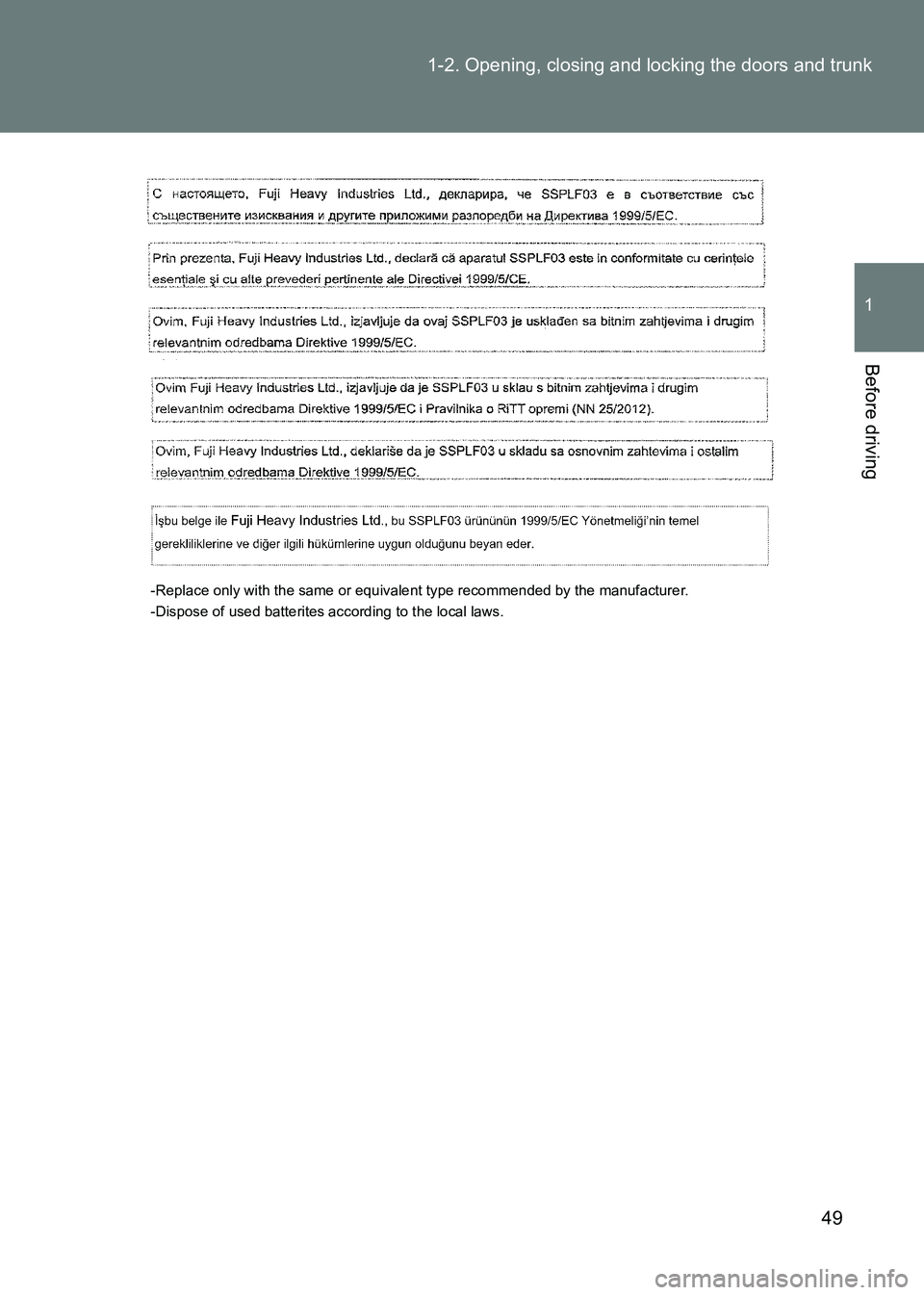

-Replace only with the same or equivalent type recommended by the manufacturer.
-Dispose of used batterites according to the local laws.

50
1-2. Opening, closing and locking the doors and trunk
86_EE (OM18071E)

51
1-2. Opening, closing and locking the doors and trunk
1
Before driving
86_EE (OM18071E)
WARNING
■
Caution regarding interferen ce with electronic devices
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. ( →P. 37)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of the emitted radio
waves. Then, consult your doctor to see if you should disable the entry
function.
● User of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details for disabling the entry function.

52
1-2. Opening, closing and locking the doors and trunk
86_EE (OM18071E)

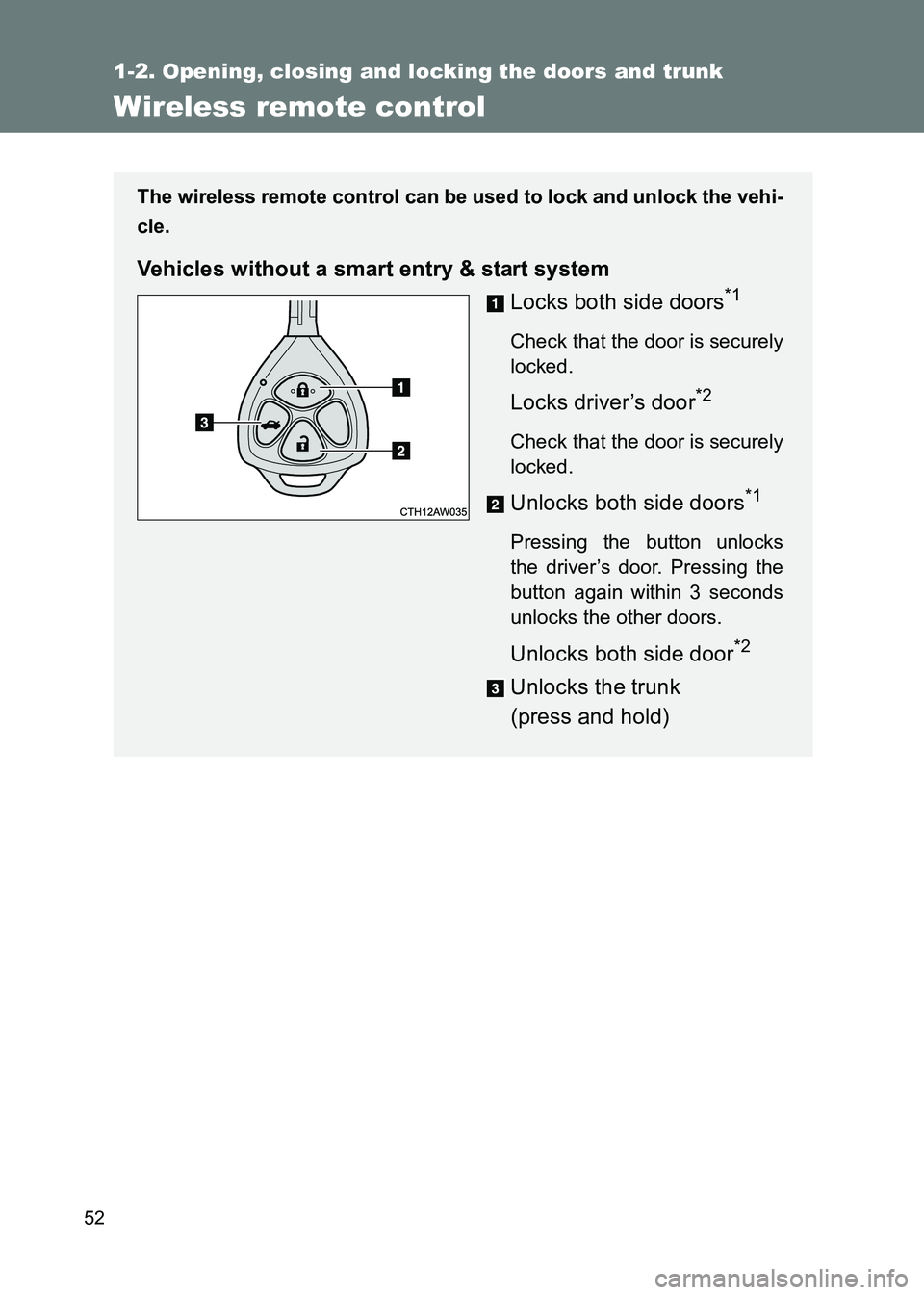

Wireless remote control
The wireless remote control can be used to lock and unlock the vehi-
cle.
Vehicles without a smart entry & start system
Locks both side doors
*1
Check that the door is securely
locked.
Locks driver’s door*2
Check that the door is securely
locked.
Unlocks both side doors*1
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Unlocks both side door*2
Unlocks the trunk
(press and hold)

53
1-2. Opening, closing and locking the doors and trunk
1
Before driving
86_EE (OM18071E)

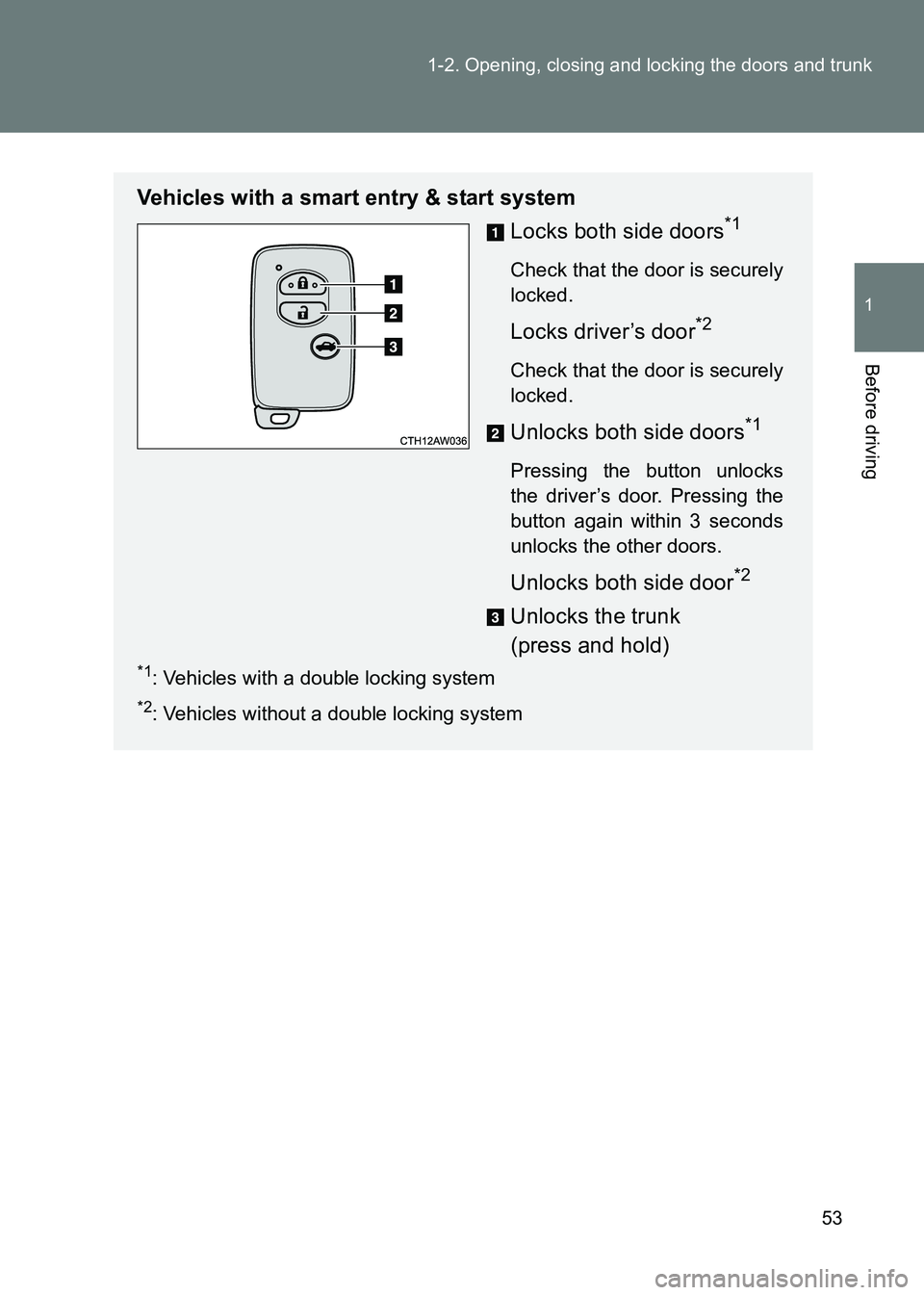

Vehicles with a smart entry & start system
Locks both side doors
*1
Check that the door is securely
locked.
Locks driver’s door*2
Check that the door is securely
locked.
Unlocks both side doors*1
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Unlocks both side door*2
Unlocks the trunk
(press and hold)
*1: Vehicles with a double locking system
*2: Vehicles without a double locking system

54
1-2. Opening, closing and locking the doors and trunk
86_EE (OM18071E)
■
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
■ Door lock buzzer (vehicles with a smart entry & start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■ Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Conditions affecting operation
Vehicles without a smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations:
●When the wireless key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, cellular phone or other wireless commu-
nication devices
● When the wireless key is in contact with, or is covered by a metallic
object
● When other wireless key (that emit radio waves) is being used nearby
● If window tint with a metallic content or metallic objects are attached to
the rear window
Vehicles with a smart entry & start system
→ P. 4 1

55
1-2. Opening, closing and locking the doors and trunk
1
Before driving
86_EE (OM18071E)
■

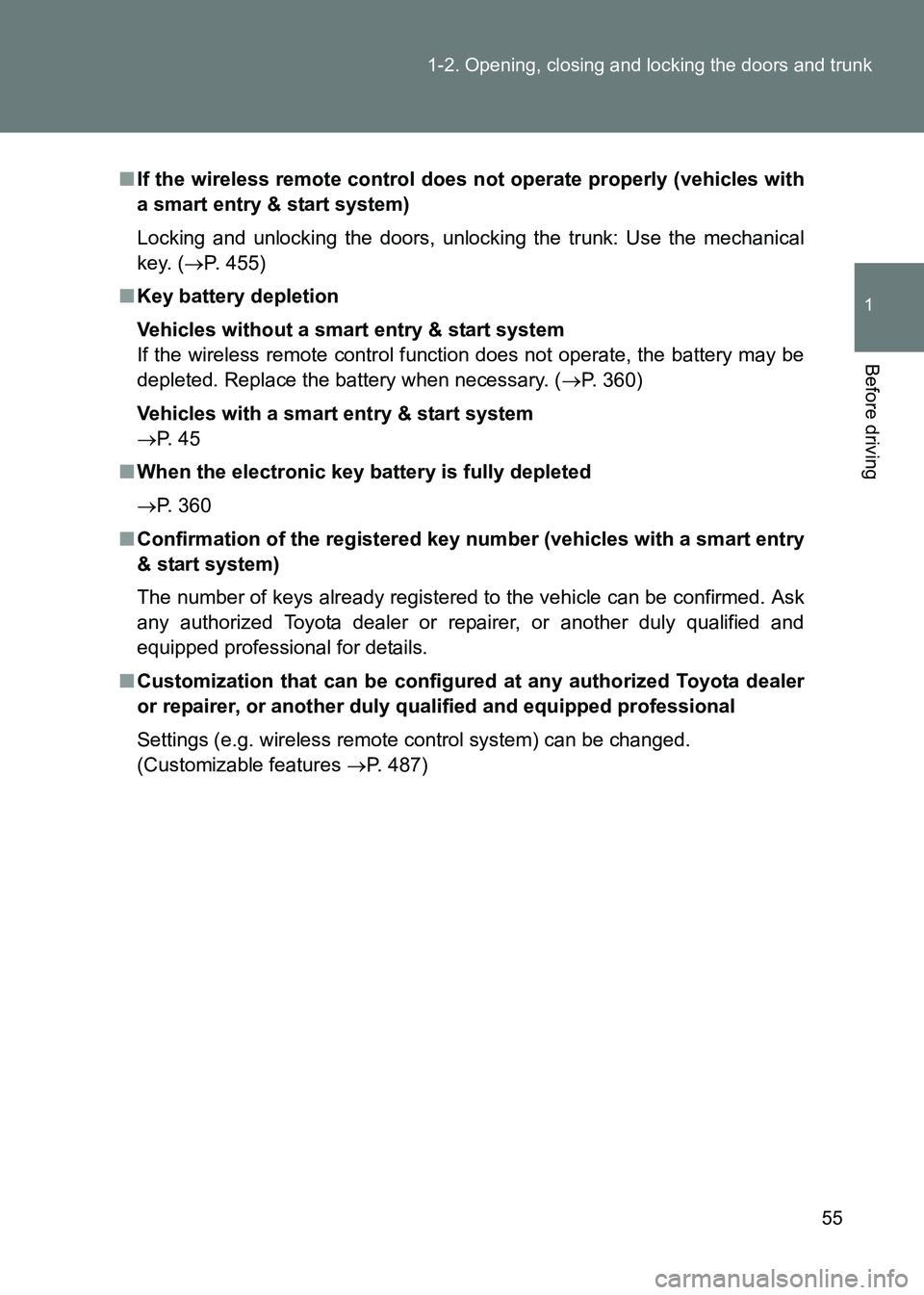

If the wireless remote control does not operate properly (vehicles with
a smart entry & start system)
Locking and unlocking the doors, unlocking the trunk: Use the mechanical
key. ( →P. 455)
■ Key battery depletion
Vehicles without a smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( →P. 360)
Vehicles with a smart entry & start system
→ P. 4 5
■ When the electronic key battery is fully depleted
→ P. 360
■ Confirmation of the registered key number (vehicles with a smart entry
& start system)
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional for details.
■ Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. wireless remote control system) can be changed.
(Customizable features →P. 487)

56
1-2. Opening, closing and locking the doors and trunk
86_EE (OM18071E)
■

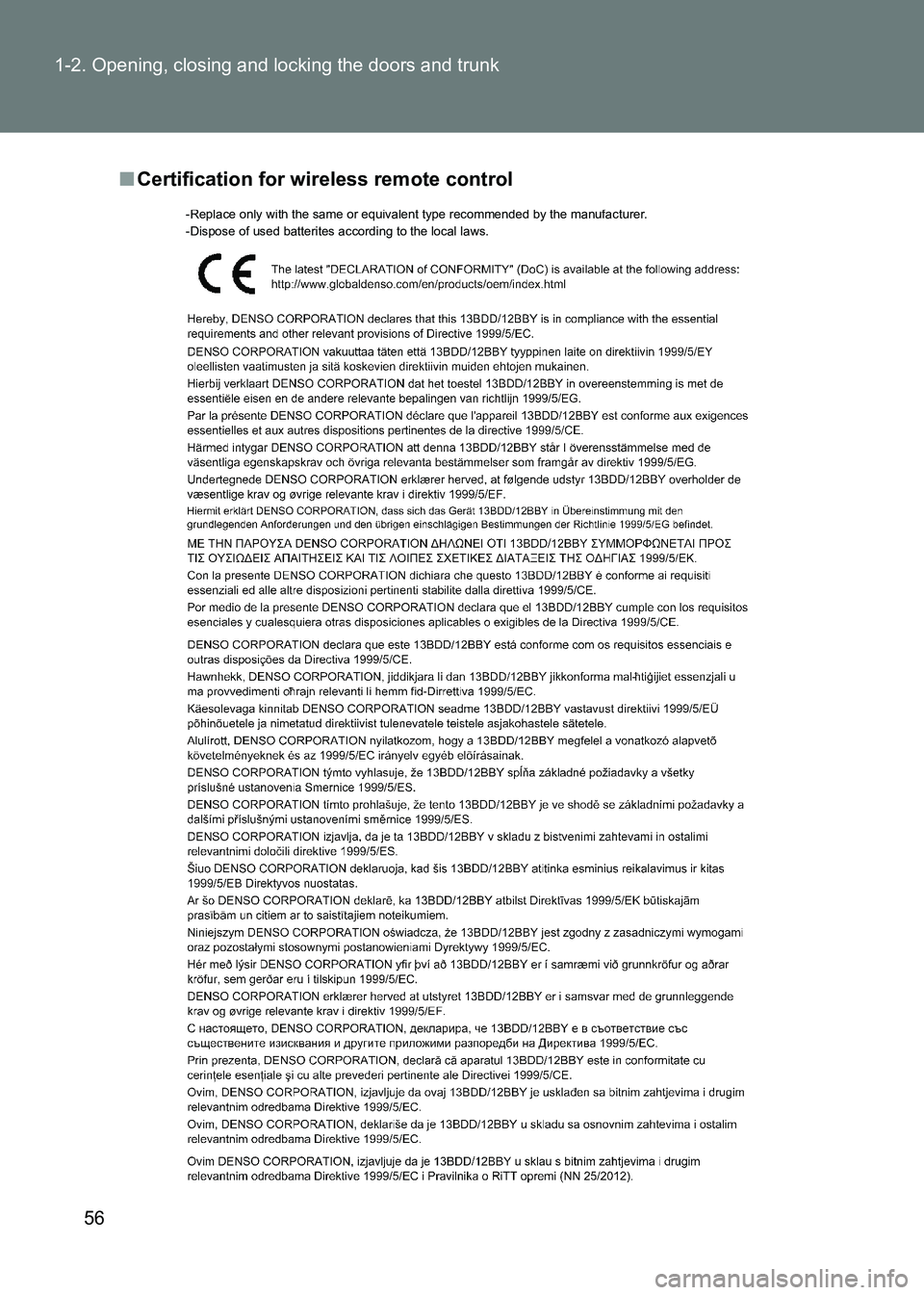

Certification for wireless remote control
-Replace only with the same or equivalent type recommended by the manufacturer.
-Dispose of used batterites according to the local laws.
