2017 TOYOTA GT86 Owners Manual (in English)

377
4-3. Do-it-yourself maintenance
4
Maintenance and care
86_EE (OM18071E)
■

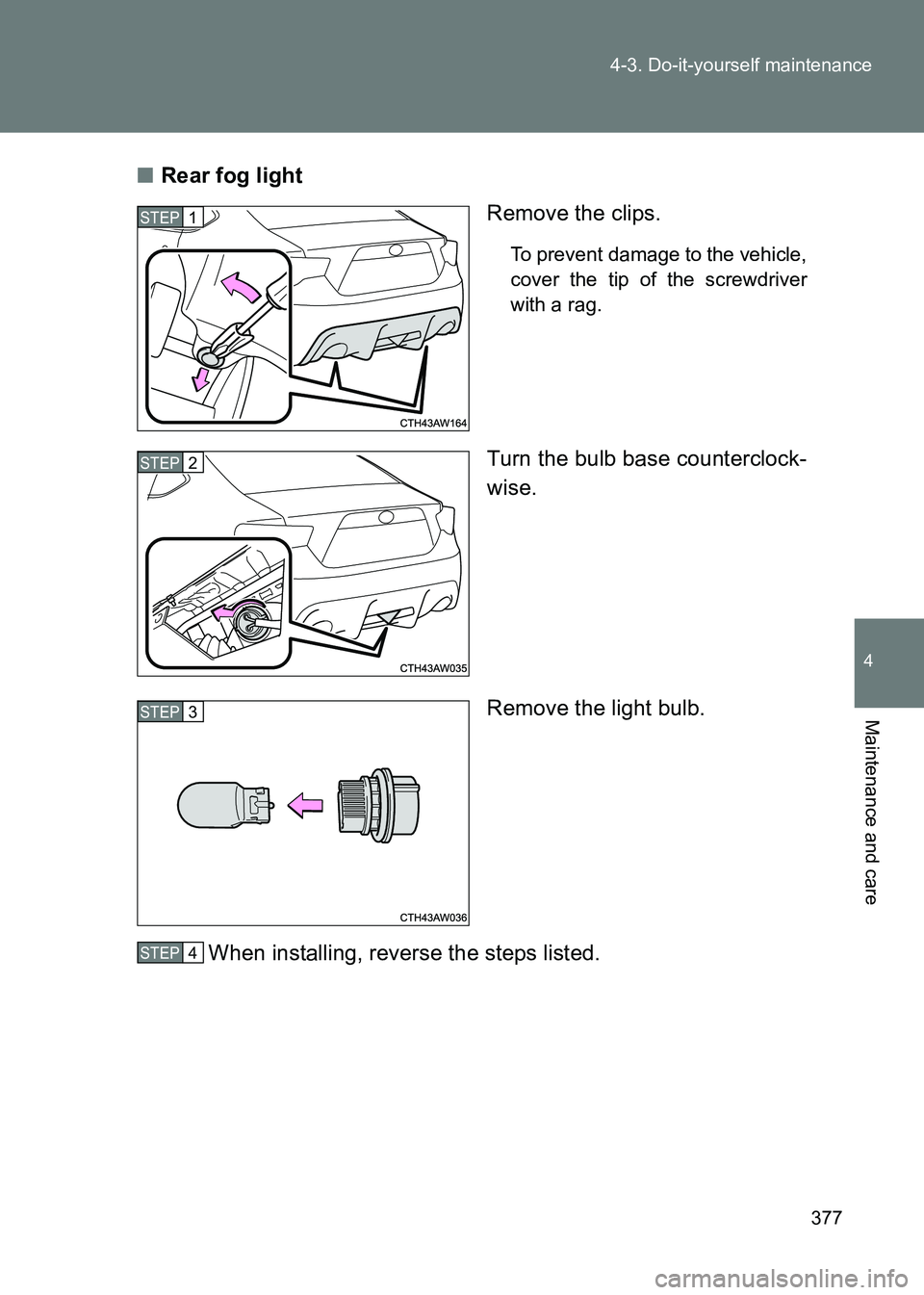

Rear fog light
Remove the clips.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

378
4-3. Do-it-yourself maintenance
86_EE (OM18071E)
■

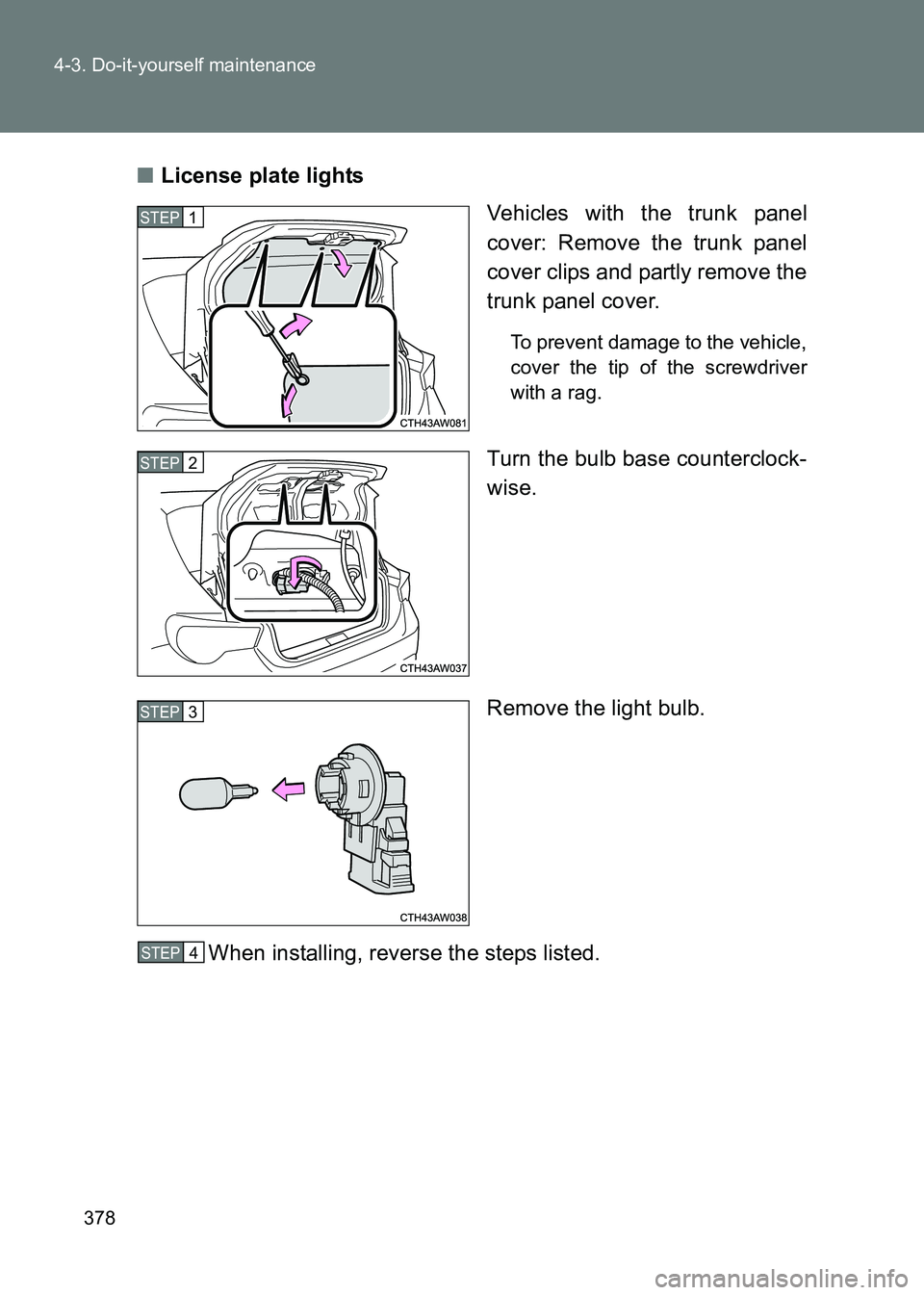

License plate lights
Vehicles with the trunk panel
cover: Remove the trunk panel
cover clips and partly remove the
trunk panel cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

379
4-3. Do-it-yourself maintenance
4
Maintenance and care
86_EE (OM18071E)
■

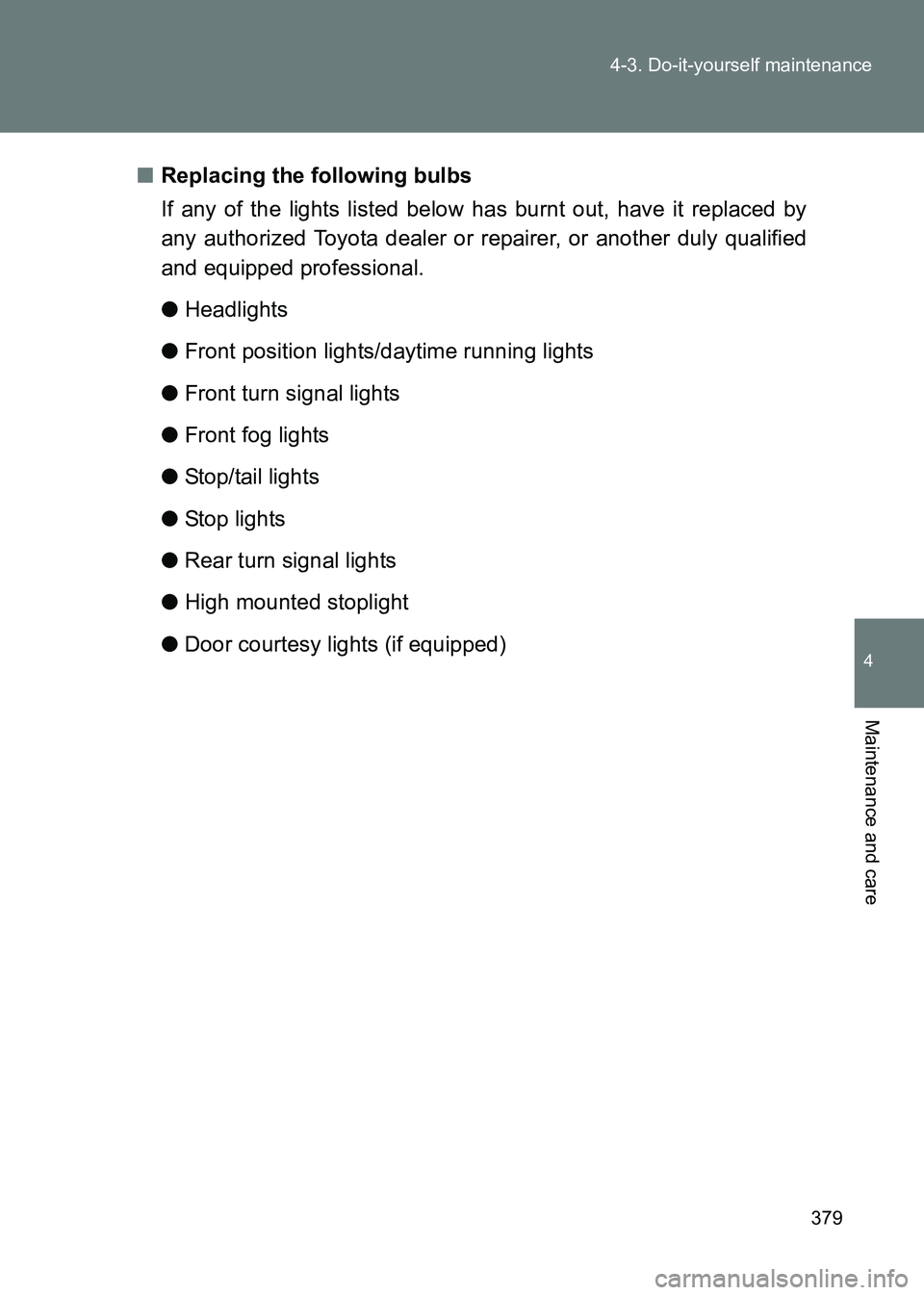

Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
●Headlights
● Front position lights/daytime running lights
● Front turn signal lights
● Front fog lights
● Stop/tail lights
● Stop lights
● Rear turn signal lights
● High mounted stoplight
● Door courtesy lights (if equipped)

380
4-3. Do-it-yourself maintenance
86_EE (OM18071E)
■
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional for more information in
the following situations:
●Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The headlights, front position lights/daytime running lights, front turn signal
lights, front fog lights, stop/tail lights, stop lights, rear turn signal lights and
high mounted stoplight consist of a number of LEDs. If any of the LEDs burn
out, take your vehicle to any authoriz ed Toyota dealer or repairer, or another
duly qualified and equipped professional to have the light replaced.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
■ Removing and installing the luggage trim cover and trunk panel cover
clip
Removing
Installing

381
4-3. Do-it-yourself maintenance
4
Maintenance and care
86_EE (OM18071E)

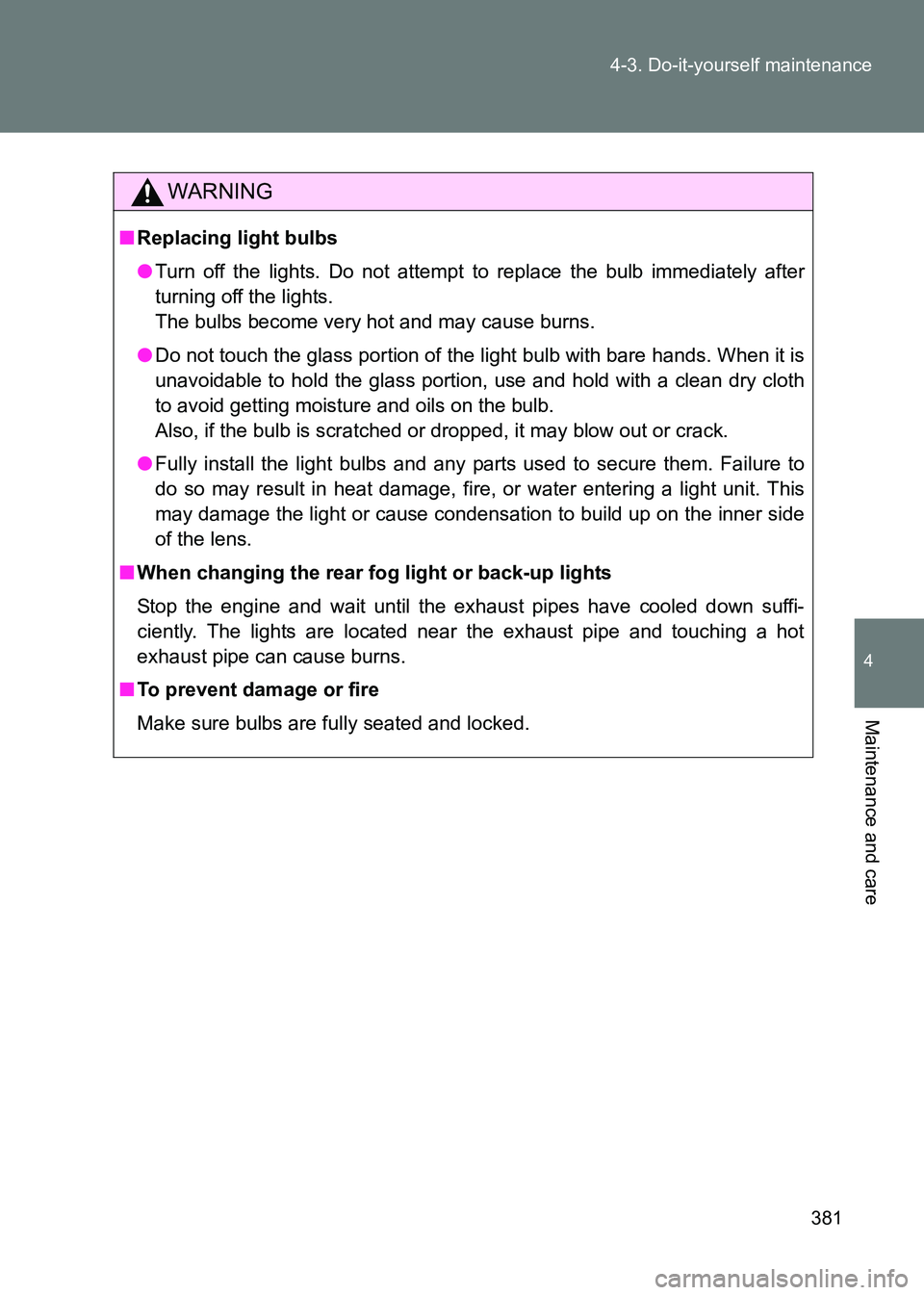

WARNING
■
Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of t he light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install the light bulbs and any parts used to secure them. Failure to
do so may result in heat damage, fire, or water entering a light unit. This
may damage the light or cause condensation to build up on the inner side
of the lens.
■ When changing the rear fog light or back-up lights
Stop the engine and wait until the exhaust pipes have cooled down suffi-
ciently. The lights are located near the exhaust pipe and touching a hot
exhaust pipe can cause burns.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

382
4-3. Do-it-yourself maintenance
86_EE (OM18071E)

5When trouble arises
383
86_EE (OM18071E)
5-1. Essential informationEmergency flashers .......... 384
If your vehicle needs to be towed ..................... 385
If you think something is wrong .............................. 393
Fuel pump shut off system ............................ 394
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds... ......................... 395
If a warning message is displayed ........................ 404
If you have a flat tire (vehicles with
an emergency tire
puncture repair kit).......... 422
If you have a flat tire (vehicles with a spare
tire)
.................................. 438
If the engine will not start ................................ 450 If the shift lever cannot be
shifted from P ................. 453
If you lose your keys ......... 454
If the electronic key does not operate properly
................ 455
If the battery is discharged ...................... 459
If your vehicle overheats ........................ 464
If the vehicle becomes stuck ............................... 467
If your vehicle has to be stopped in an
emergency
........................ 469

384
86_EE (OM18071E)
5-1. Essential information

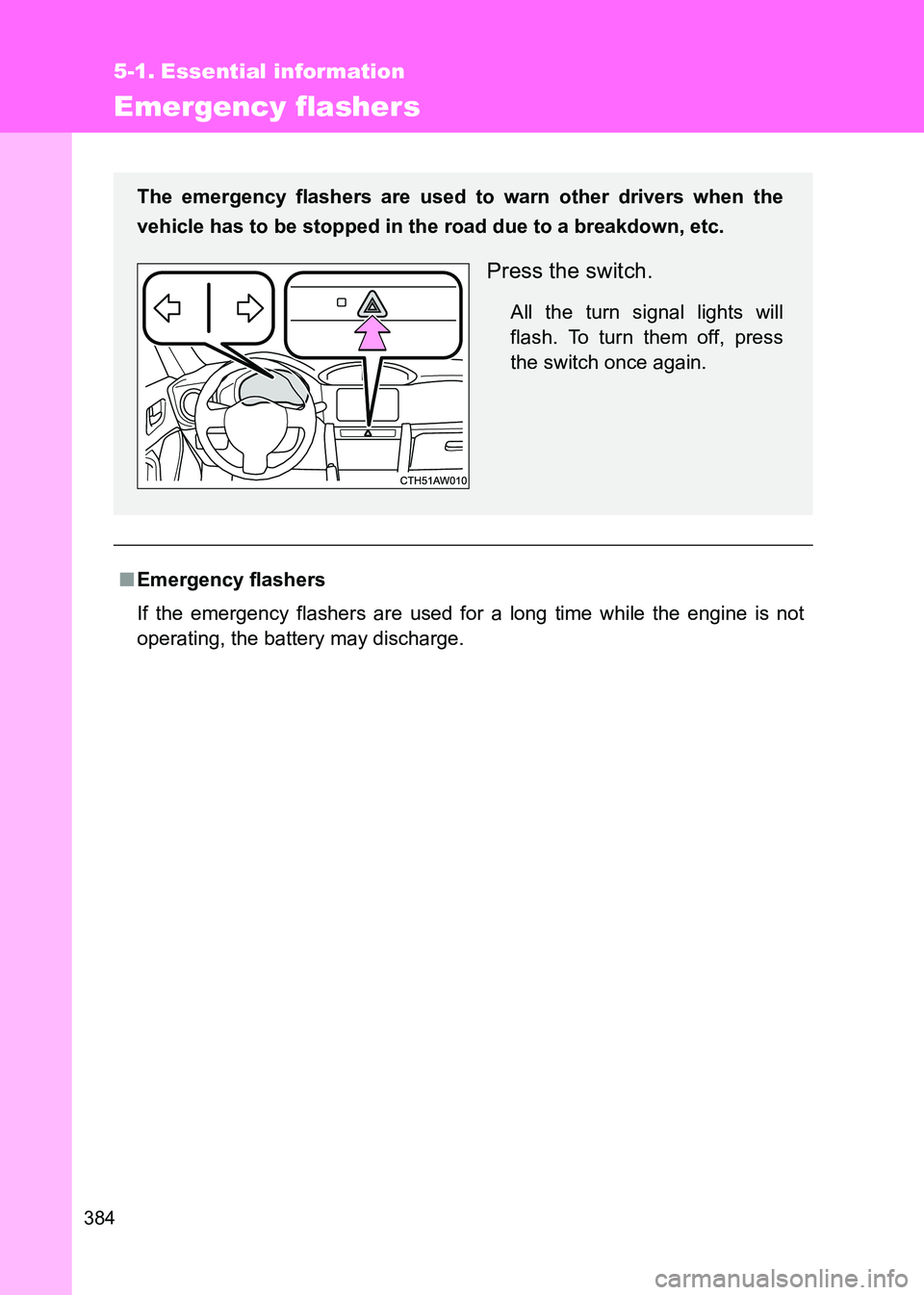

Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge. The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash. To turn them off, press
the switch once again.
