2017 TOYOTA GT86 Owners Manual (in English)

193
2-1. Driving procedures
2
When driving
86_EE (OM18071E)

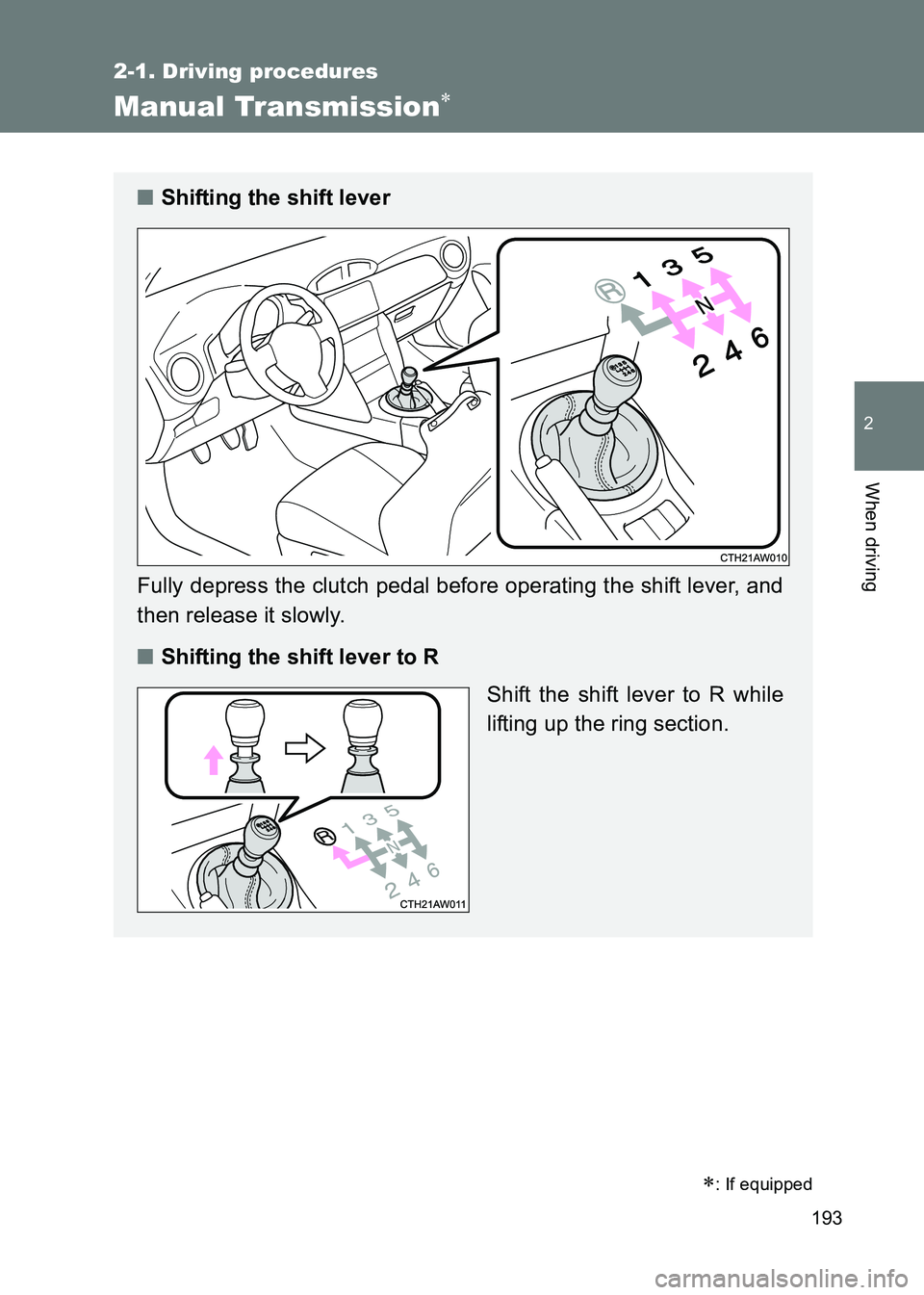

Manual Transmission∗
∗: If equipped
■Shifting the shift lever
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
■ Shifting the shift lever to R
Shift the shift lever to R while
lifting up the ring section.

194
2-1. Driving procedures
86_EE (OM18071E)

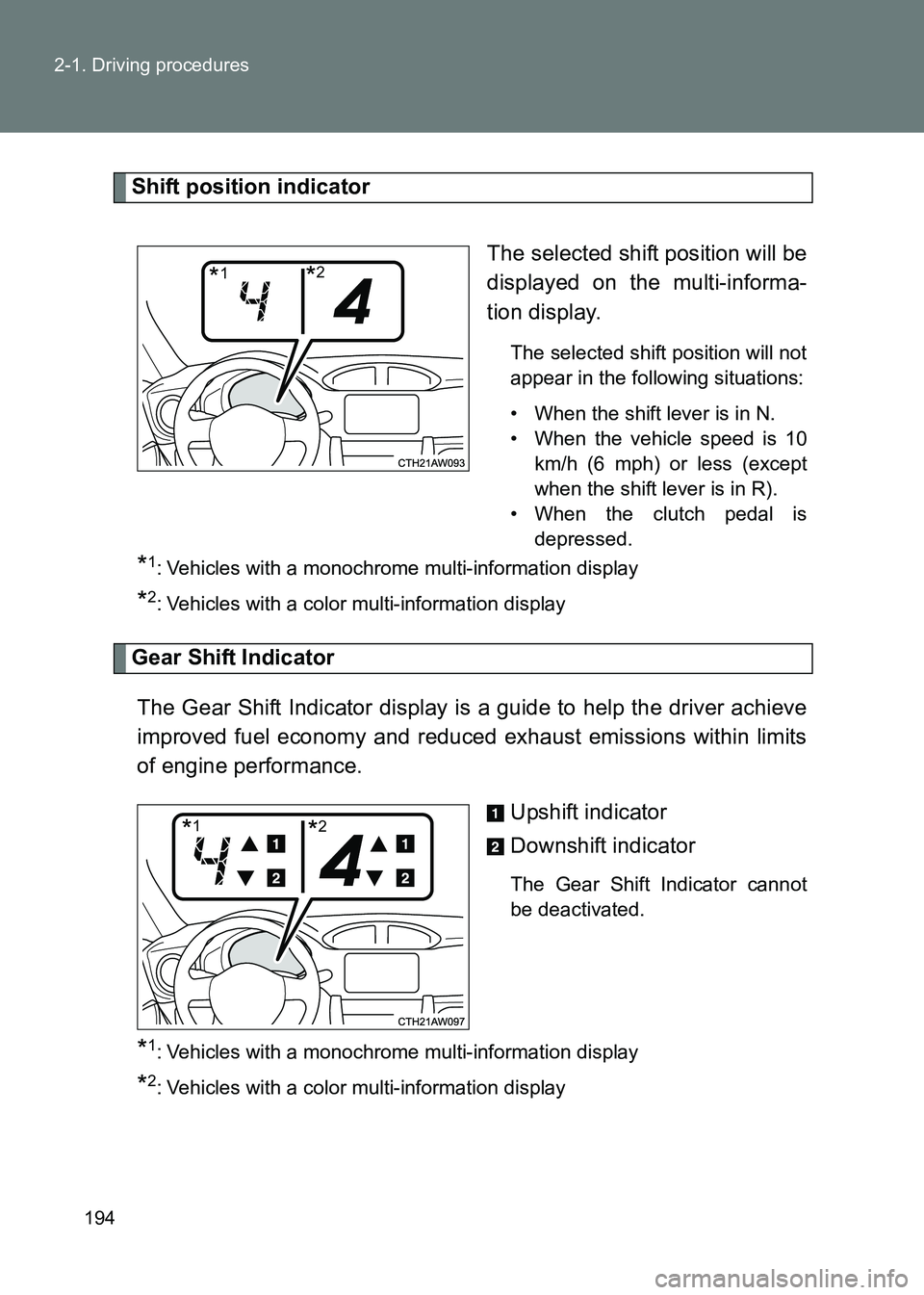

Shift position indicator
The selected shift position will be
displayed on the multi-informa-
tion display.
The selected shift position will not
appear in the following situations:
• When the shift lever is in N.
• When the vehicle speed is 10km/h (6 mph) or less (except
when the shift lever is in R).
• When the clutch pedal is depressed.
*1: Vehicles with a monochrome multi-information display
*2: Vehicles with a color multi-information display
Gear Shift Indicator
The Gear Shift Indicator display is a guide to help the driver achieve
improved fuel economy and reduced exhaust emissions within limits
of engine performance. Upshift indicator
Downshift indicator
The Gear Shift Indicator cannot
be deactivated.
*1: Vehicles with a monochrome multi-information display
*2: Vehicles with a color multi-information display
*1*2
*1*2

195
2-1. Driving procedures
2
When driving
86_EE (OM18071E)
■

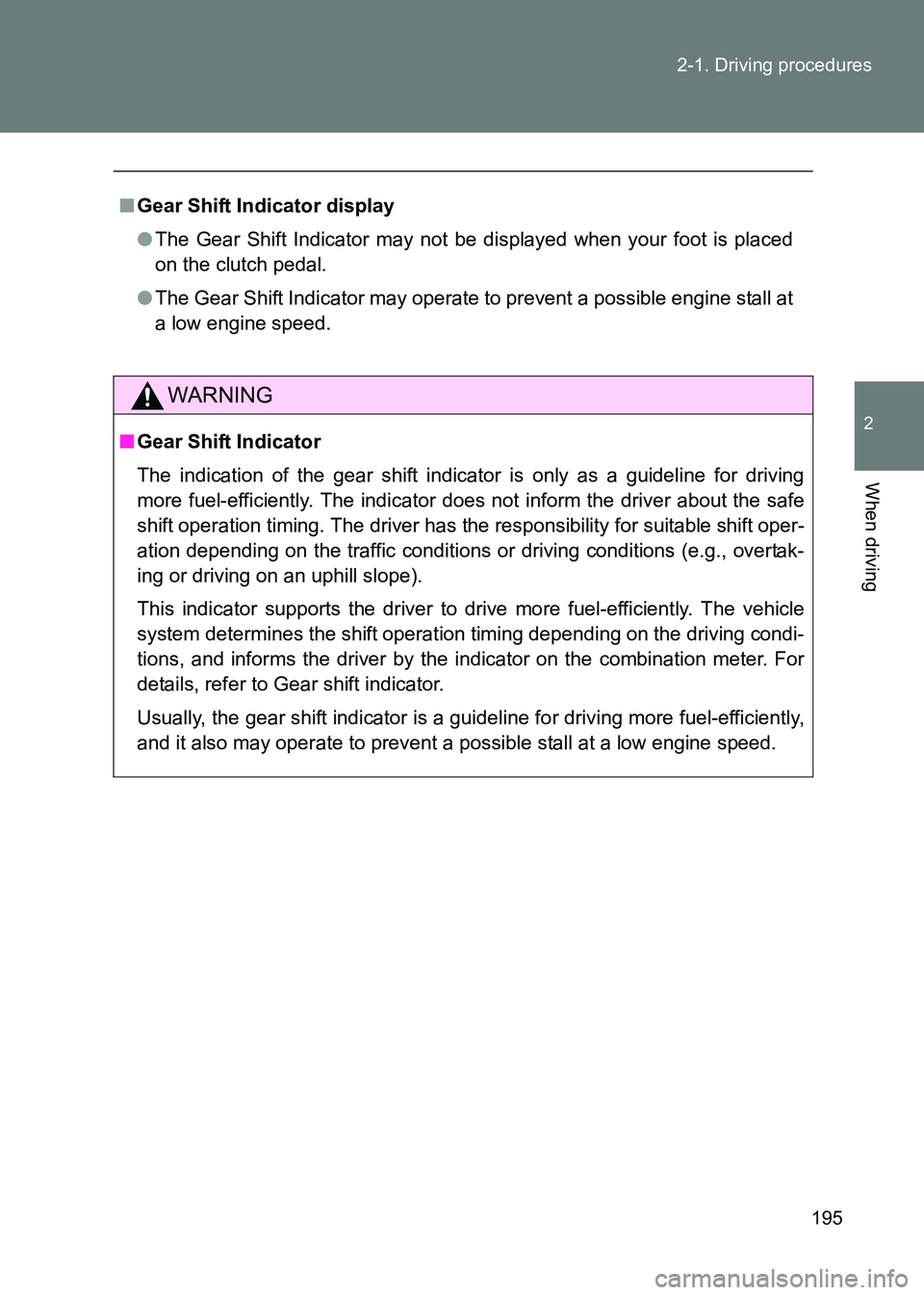

Gear Shift Indicator display
●The Gear Shift Indicator may not be displayed when your foot is placed
on the clutch pedal.
● The Gear Shift Indicator may operate to prevent a possible engine stall at
a low engine speed.
WARNING
■Gear Shift Indicator
The indication of the gear shift indica tor is only as a guideline for driving
more fuel-efficiently. The indicator does not inform the driver about the safe
shift operation timing. The driver has t he responsibility for suitable shift oper-
ation depending on the traffic conditions or driving conditions (e.g., overtak-
ing or driving on an uphill slope).
This indicator supports the driver to dr ive more fuel-efficiently. The vehicle
system determines the shift operation timing depending on the driving condi-
tions, and informs the driver by the indicator on the combination meter. For
details, refer to Gear shift indicator.
Usually, the gear shift indicator is a guidel ine for driving more fuel-efficiently,
and it also may operate to prevent a possible stall at a low engine speed.

196
2-1. Driving procedures
86_EE (OM18071E)

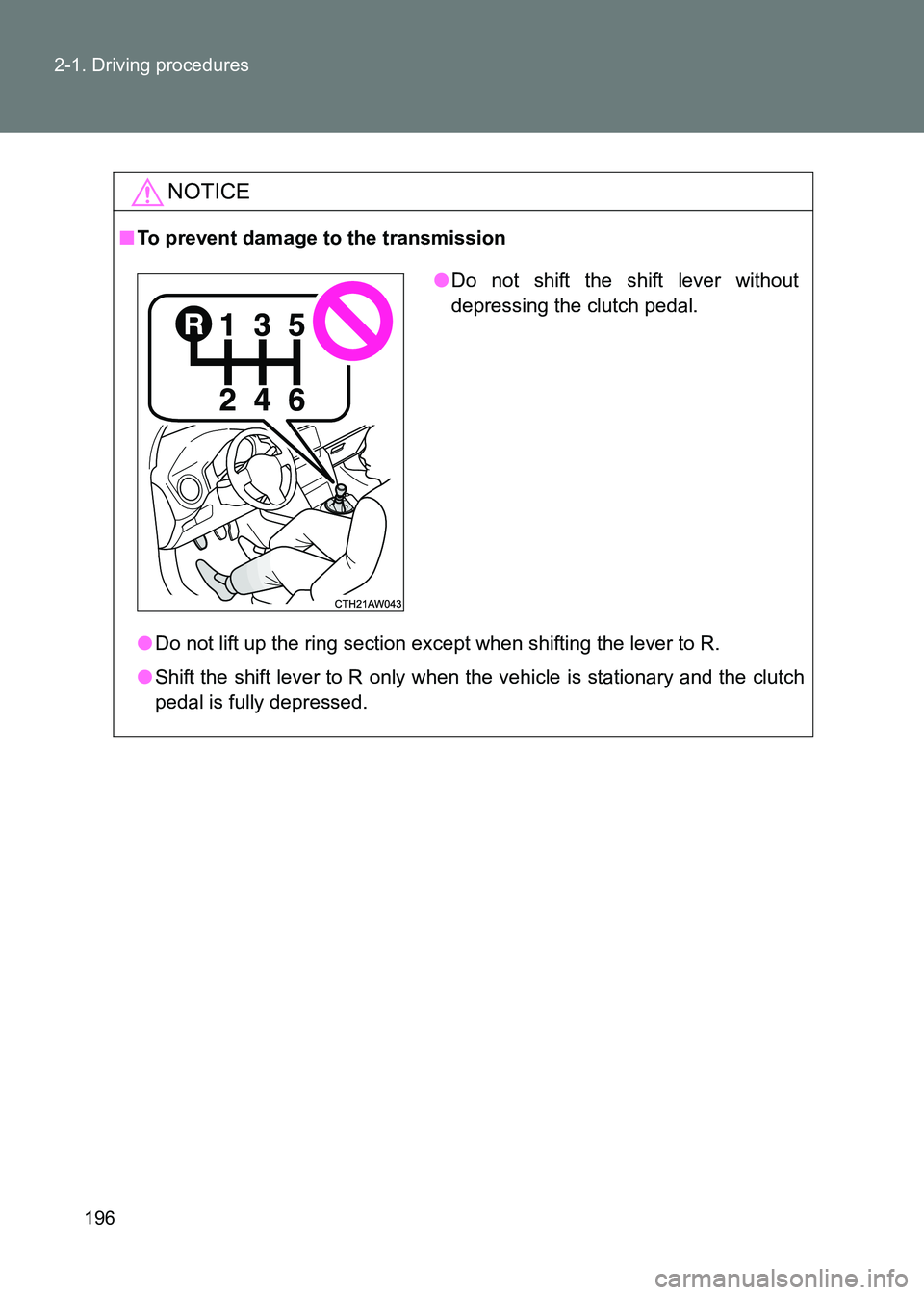

NOTICE
■
To prevent damage to the transmission
●Do not lift up the ring section except when shifting the lever to R.
● Shift the shift lever to R only when the vehicle is stationary and the clutch
pedal is fully depressed.
●Do not shift the shift lever without
depressing the clutch pedal.

197
2-1. Driving procedures
2
When driving
86_EE (OM18071E)

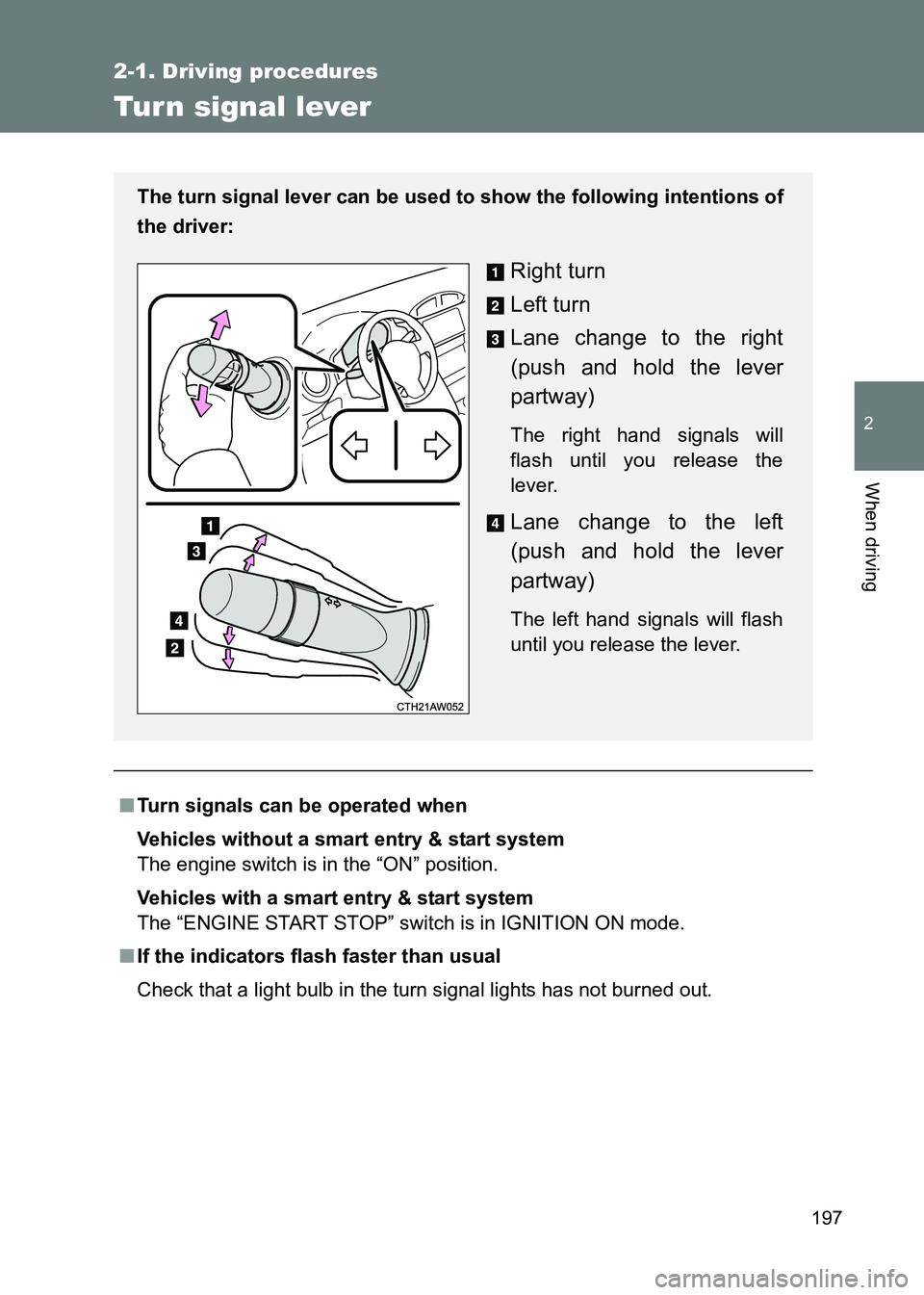

Tur n signal lever
■Turn signals can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If the indicators flash faster than usual
Check that a light bulb in the turn signal lights has not burned out. The turn signal lever can be used to show the following intentions of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.

198
2-1. Driving procedures
86_EE (OM18071E)

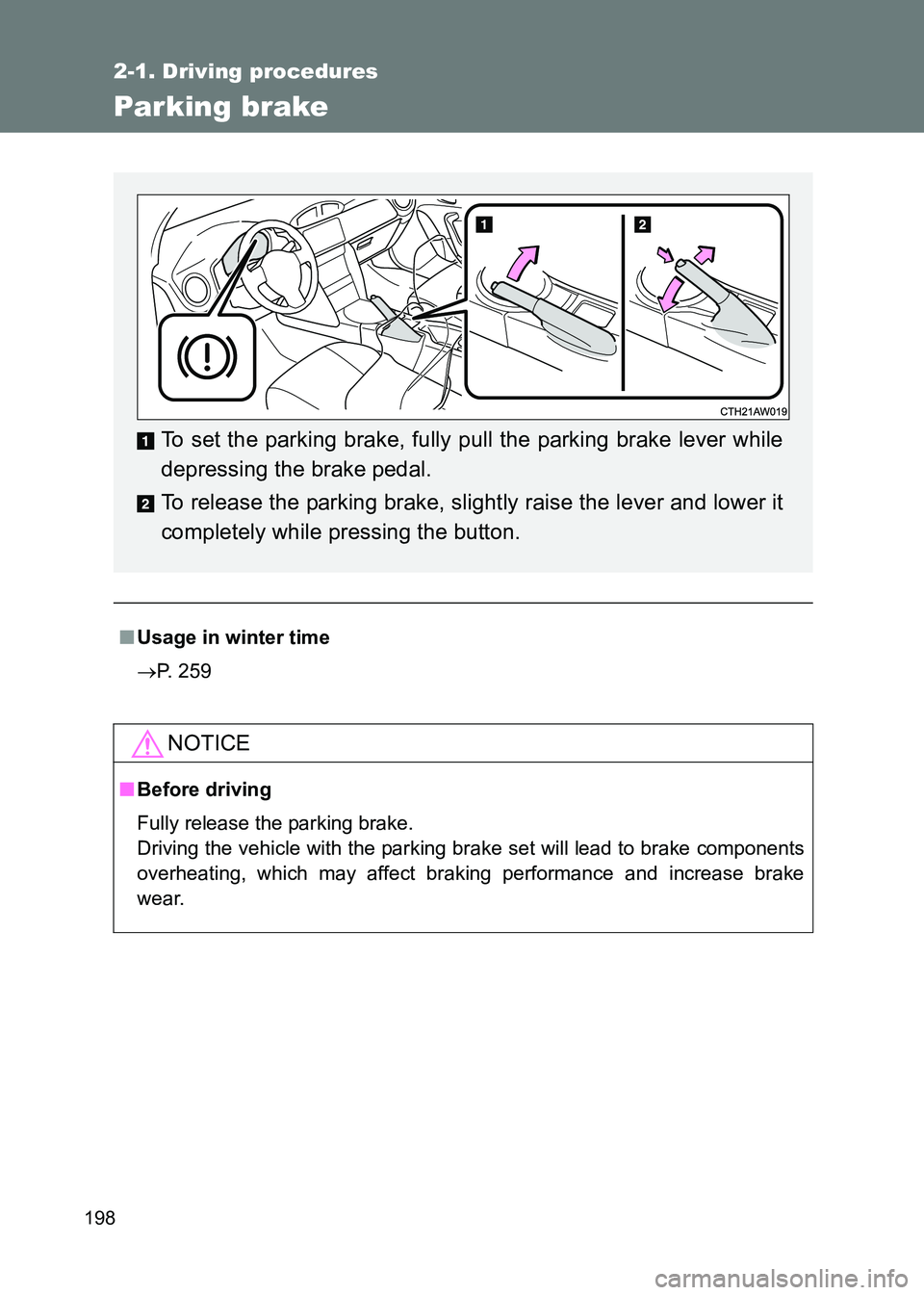

Parking brake
■Usage in winter time
→ P. 259
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake, fully pull the parking brake lever while
depressing the brake pedal.
To release the parking brake, slightly raise the lever and lower it
completely while pressing the button.

199
2-1. Driving procedures
2
When driving
86_EE (OM18071E)
Horn
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(→ P. 8 0 )
To sound the horn, press on or
close to the mark.

200
86_EE (OM18071E)
2-2. Instrument cluster

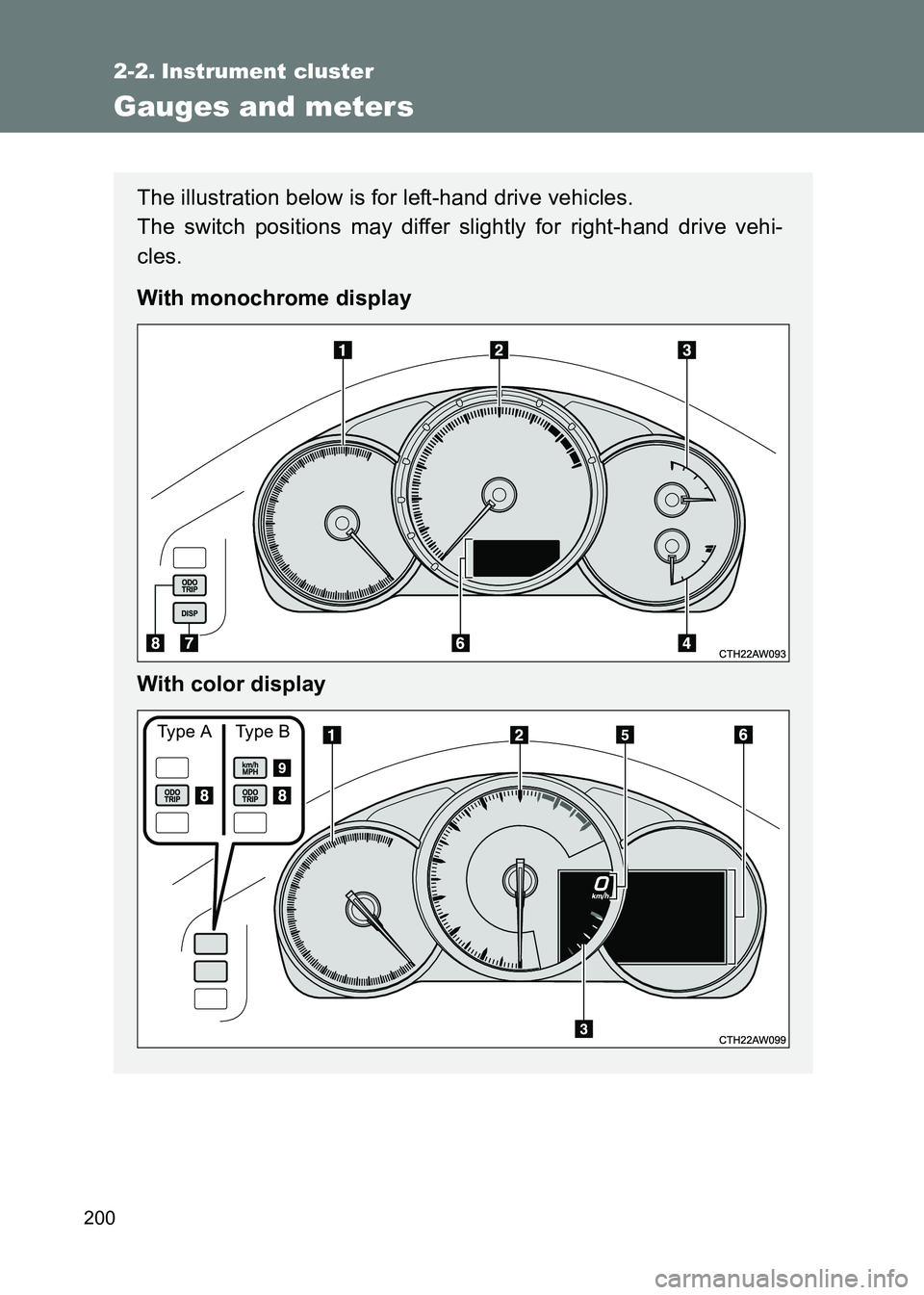

Gauges and meters
The illustration below is for left-hand drive vehicles.
The switch positions may differ slightly for right-hand drive vehi-
cles.
With monochrome display
With color display
Type A Type B
