2017 TOYOTA GT86 Owners Manual (in English)

86_EE (OM18071E)
17
A
Anti-glare inside rear view mirror
P. 81
Interior light P. 287
Sun visors* P. 293
Vanity mirrors P. 294
*: NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or
SERIOUS INJURY to the CHILD can occur. ( →P. 153)

86_EE (OM18071E)
18

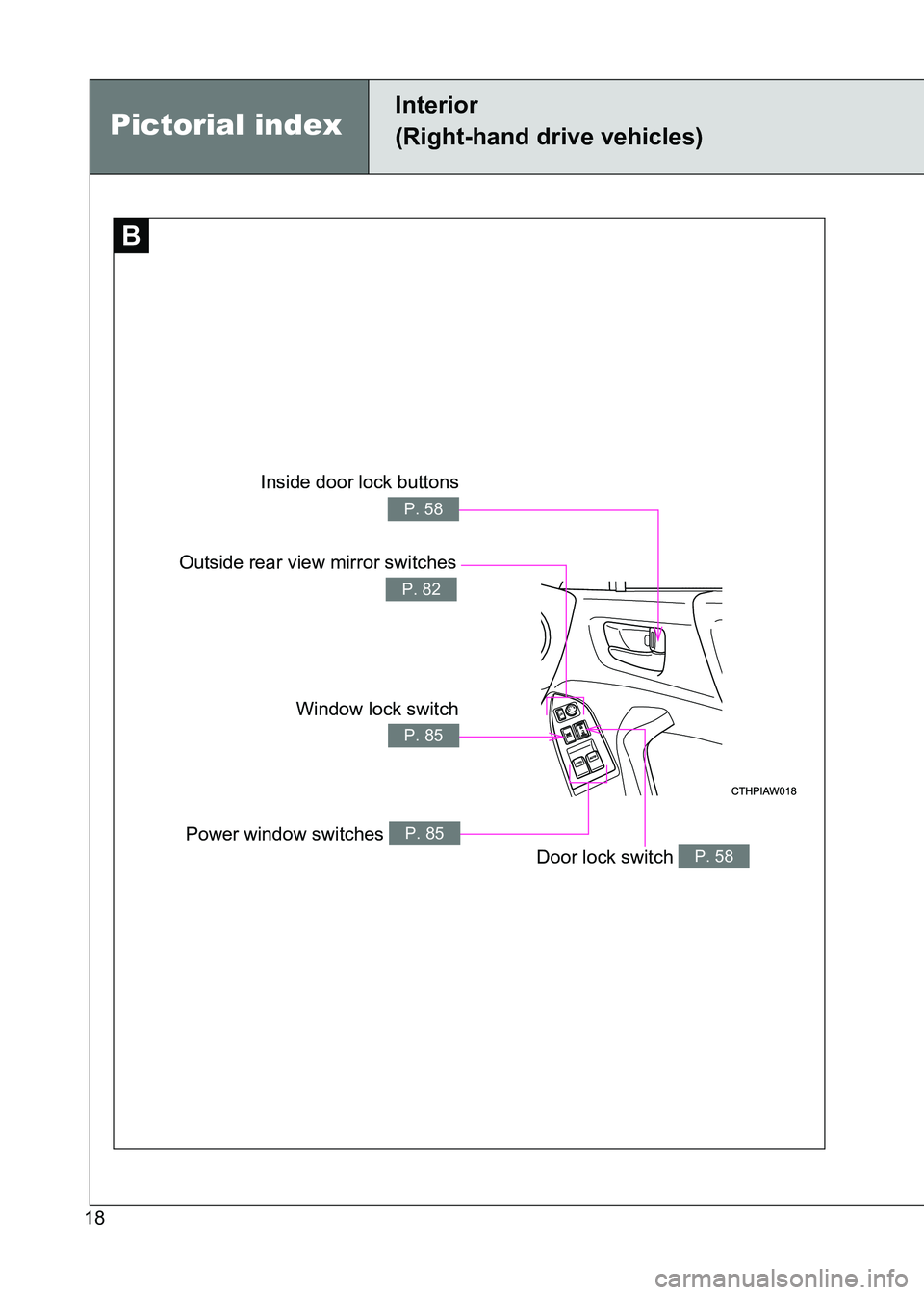

B
Inside door lock buttons
P. 58
Outside rear view mirror switches
P. 82
Window lock switch
P. 85
Power window switches P. 85
Door lock switch P. 58
Pictorial index
Interior
(Right-hand drive vehicles)

86_EE (OM18071E)
19
C
Shift lock override button ∗ P. 453
Shift lever P. 186, 193
Parking brake lever P. 198
VSC/TRC off switch P. 247
Seat heater switches ∗ P. 299
Driving pattern selector switch ∗ P. 188
“TRACK” switch P. 248
Power outlet P. 297
∗: If equipped

86_EE (OM18071E)
20
Tilt and telescopic steering
lock release lever
P. 80
Gauges and meters
Multi-information display P. 200
P. 210, 215
Clock P. 295
Windshield wiper and
washer switch/
headlight cleaners switch
P. 238
Emergency flasher switch
P. 384
Floor mat P. 301
Hood lock release lever P. 324
Fuel filler door opener P. 89
Engine (ignition) switch (vehicles with a
smart entry & start system)
P. 174
SRS driver knee airbag P. 106
Headlight switch
Turn signal lever
Fog light switch P. 231
P. 197
P. 237
AUX/USB port
P. 284
Pictorial index
Instrument panel
(Right-hand drive vehicles)

86_EE (OM18071E)
21

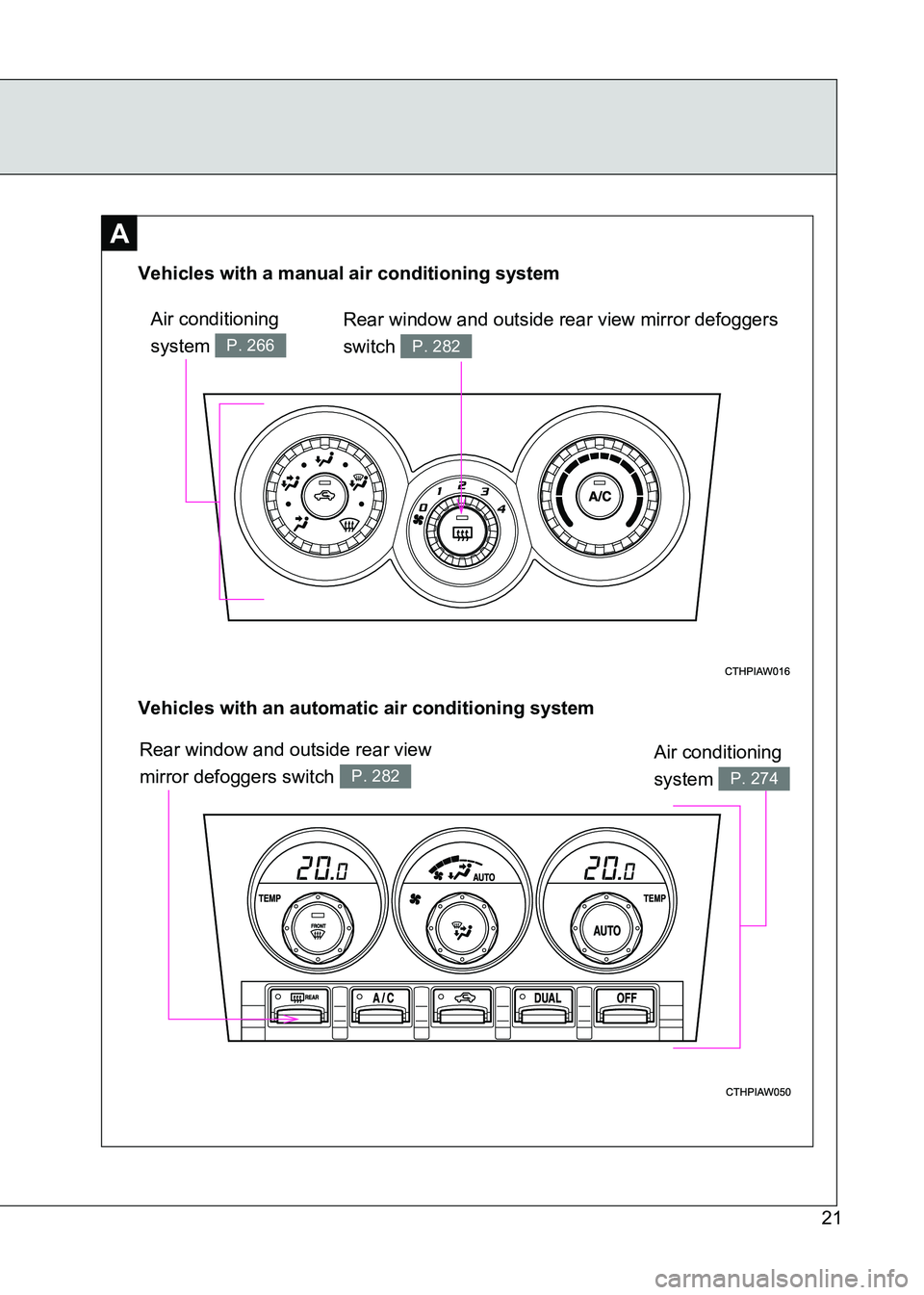

A
Rear window and outside rear view mirror defoggers
switch
P. 282
Vehicles with an automatic air conditioning system Vehicles with a manual air conditioning systemAir conditioning
system
P. 266
Air conditioning
system
P. 274
Rear window and outside rear view
mirror defoggers switch
P. 282

86_EE (OM18071E)
22
Pictorial index
Instrument panel
(Right-hand drive vehicles)
BB
Paddle shift switches ∗ P. 189, 191
Engine (ignition) switch (vehicles
without a smart entry & start
system)
P. 183
Cruise control switch ∗
P. 241
Meter control switches ∗ P. 216
Horn
SRS driver airbag P. 199
P. 106
Audio remote control
switches
∗ P. 285

86_EE (OM18071E)
23

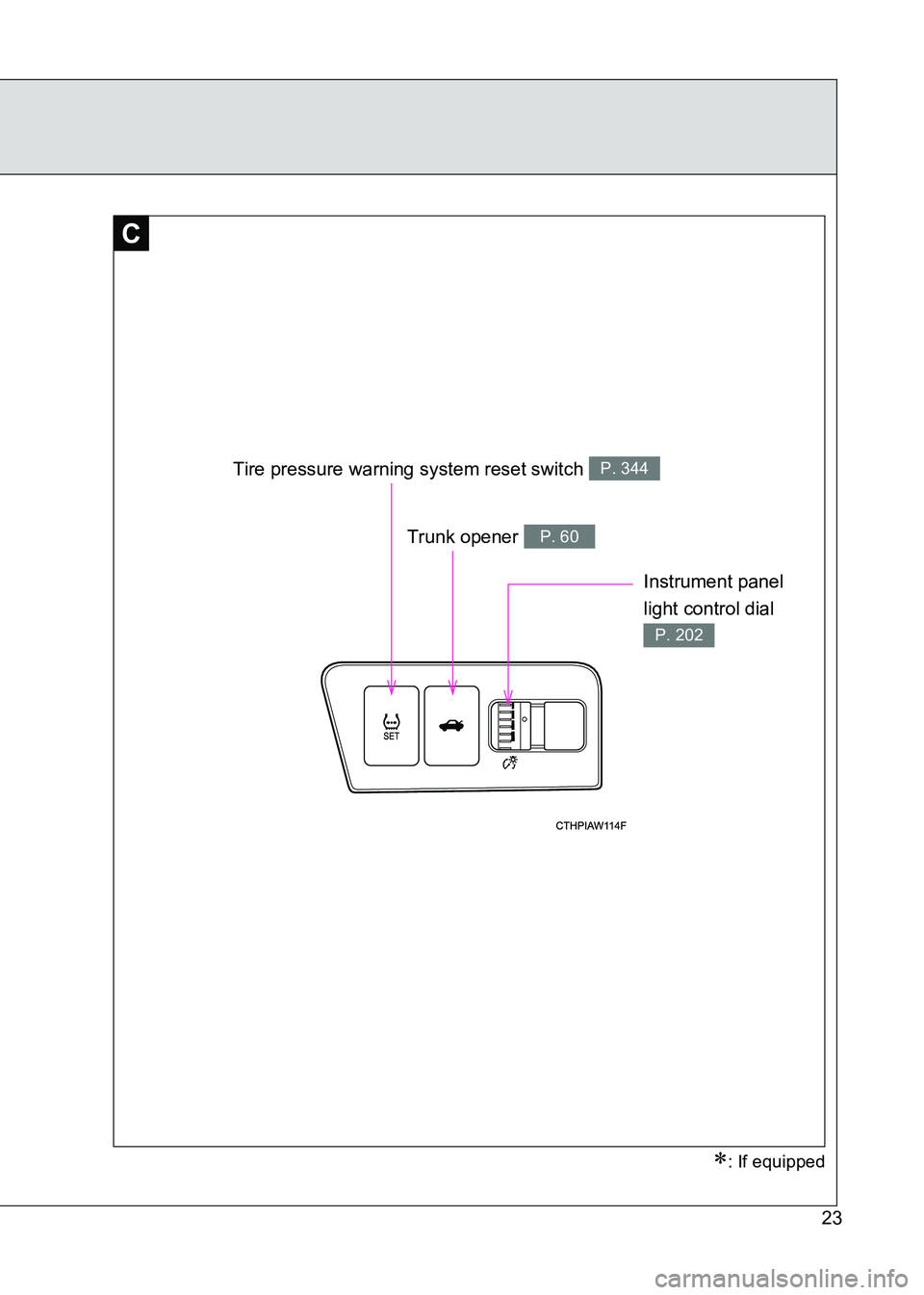

C
Instrument panel
light control dial
P. 202
Trunk opener P. 60
∗: If equipped
Tire pressure warning system reset switch P. 344

86_EE (OM18071E)
24

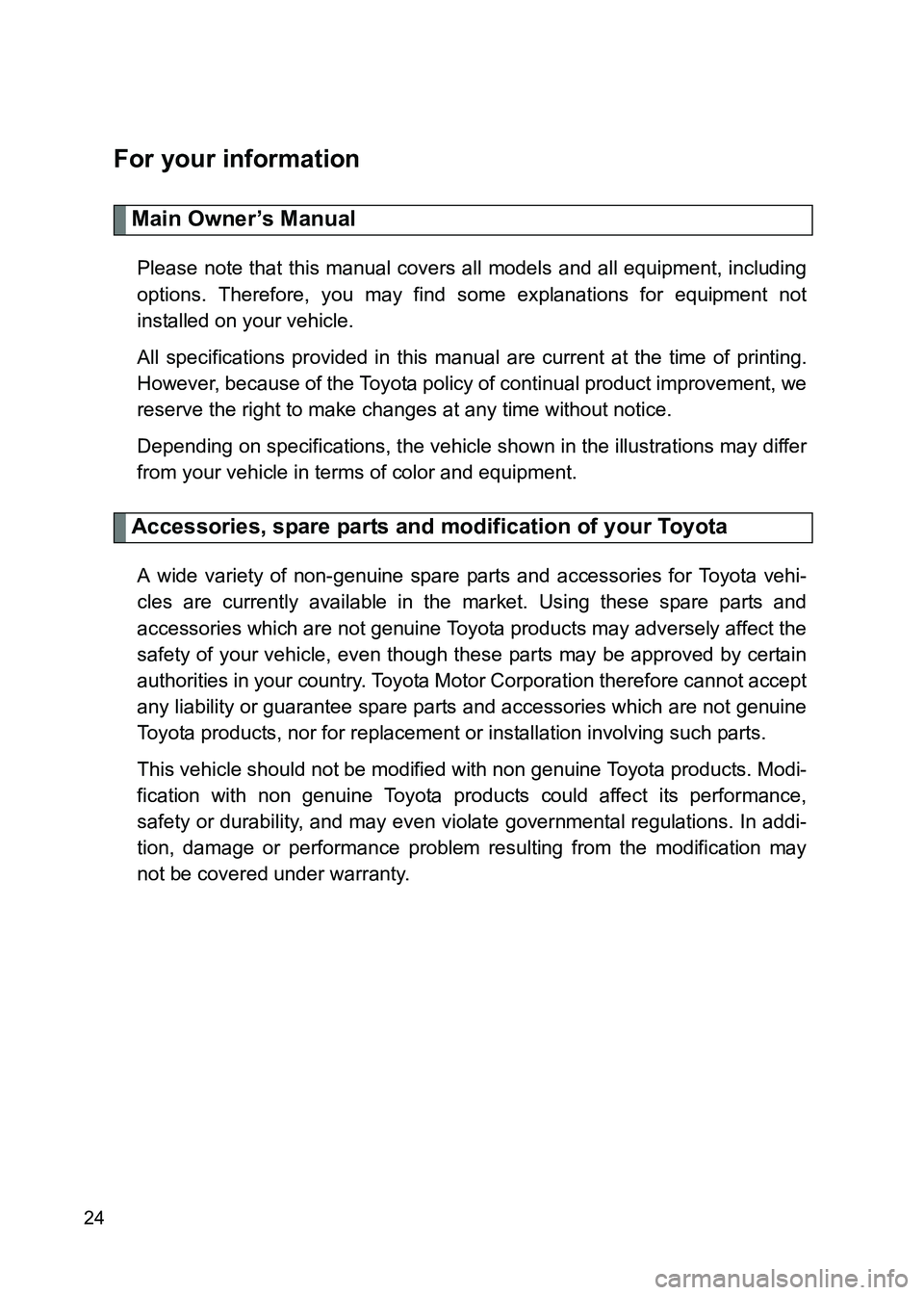

For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of color and equipment.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota vehi-
cles are currently available in the market. Using these spare parts and
accessories which are not genuine Toyota products may adversely affect the
safety of your vehicle, even though these parts may be approved by certain
authorities in your country. Toyota Motor Corporation therefore cannot accept
any liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts.
This vehicle should not be modified with non genuine Toyota products. Modi-
fication with non genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In addi-
tion, damage or performance problem resulting from the modification may
not be covered under warranty.
