2017 TOYOTA GT86 Owners Manual (in English)

81
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
86_EE (OM18071E)

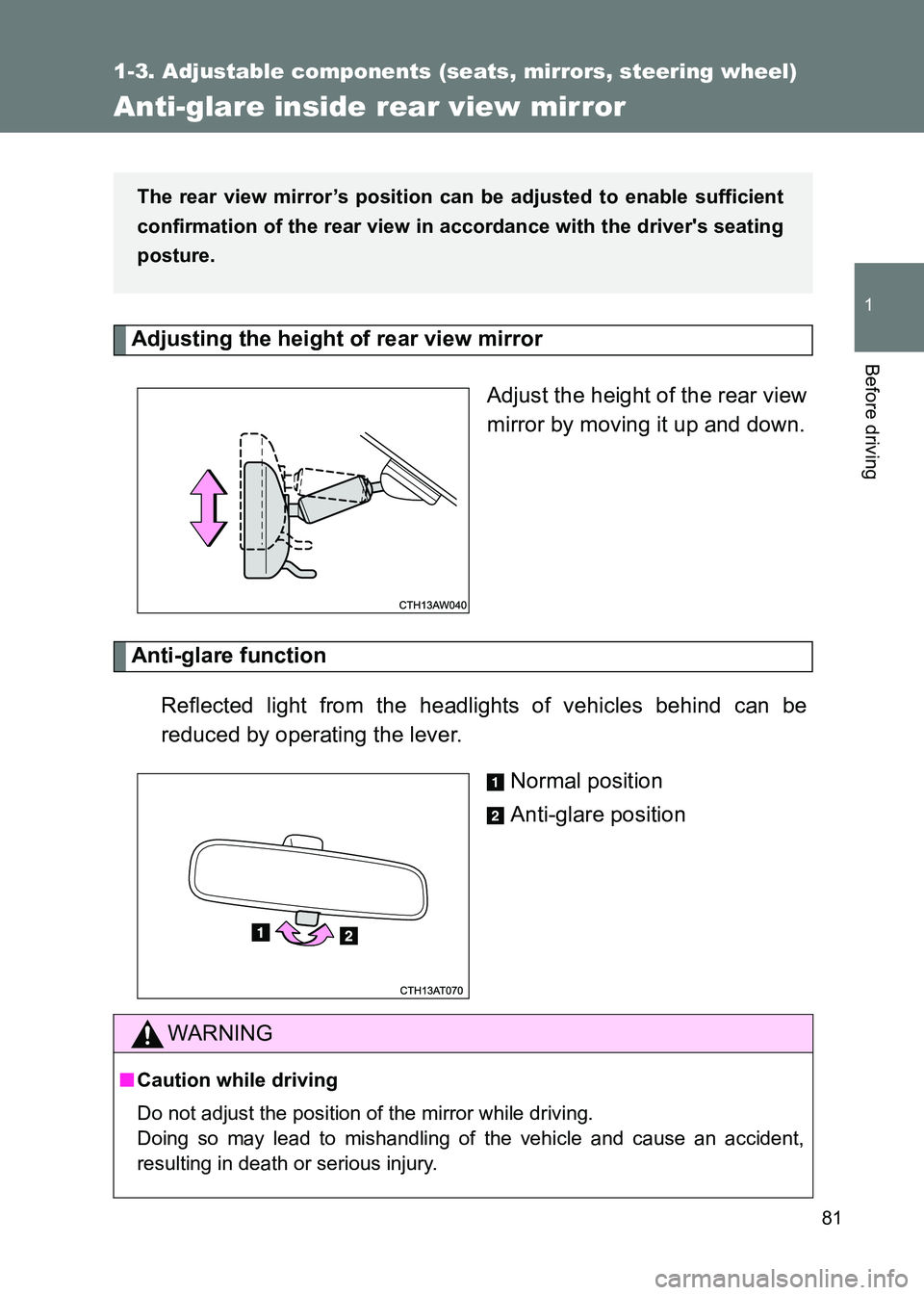

Anti-glare inside rear view mirror
Adjusting the height of rear view mirror Adjust the height of the rear view
mirror by moving it up and down.
Anti-glare functionReflected light from the headlights of vehicles behind can be
reduced by operating the lever. Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view in accordance with the driver's seating
posture.
WARNING
■ Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

82
1-3. Adjustable components (seats, mirrors, steering wheel)
86_EE (OM18071E)

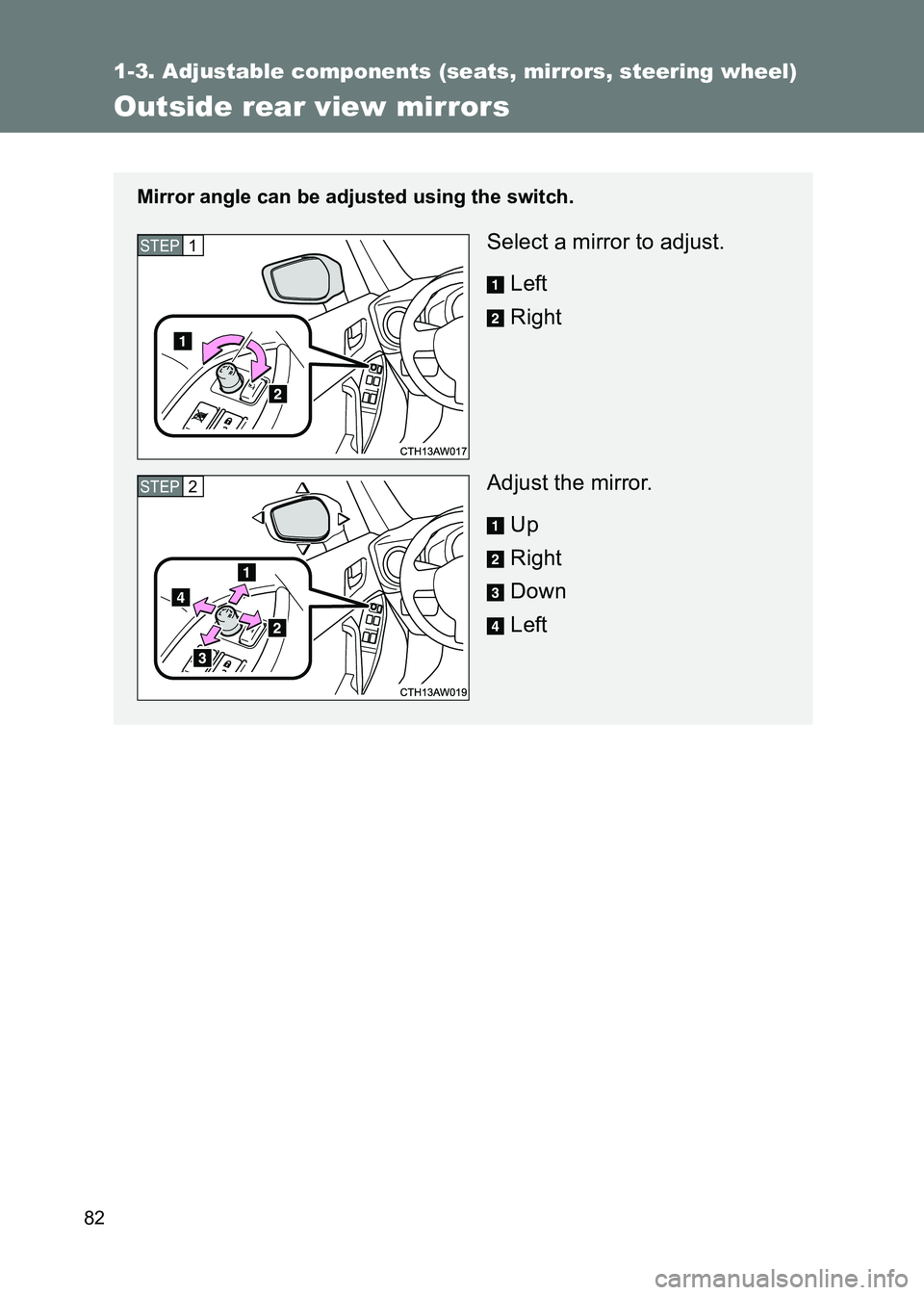

Outside rear view mirrors
Mirror angle can be adjusted using the switch.
Select a mirror to adjust.Left
Right
Adjust the mirror. Up
Right
Down
LeftSTEP 1
STEP 2

83
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
86_EE (OM18071E)
Folding the mirrors
Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.
■The mirrors can be adjusted when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■ When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to turn on the outside rear view mirror
defoggers. ( →P. 282)

84
1-3. Adjustable components (seats, mirrors, steering wheel)
86_EE (OM18071E)
WARNING
■
When driving the vehicle
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.

85
1
Before driving
86_EE (OM18071E)
1-4. Opening and closing the windows

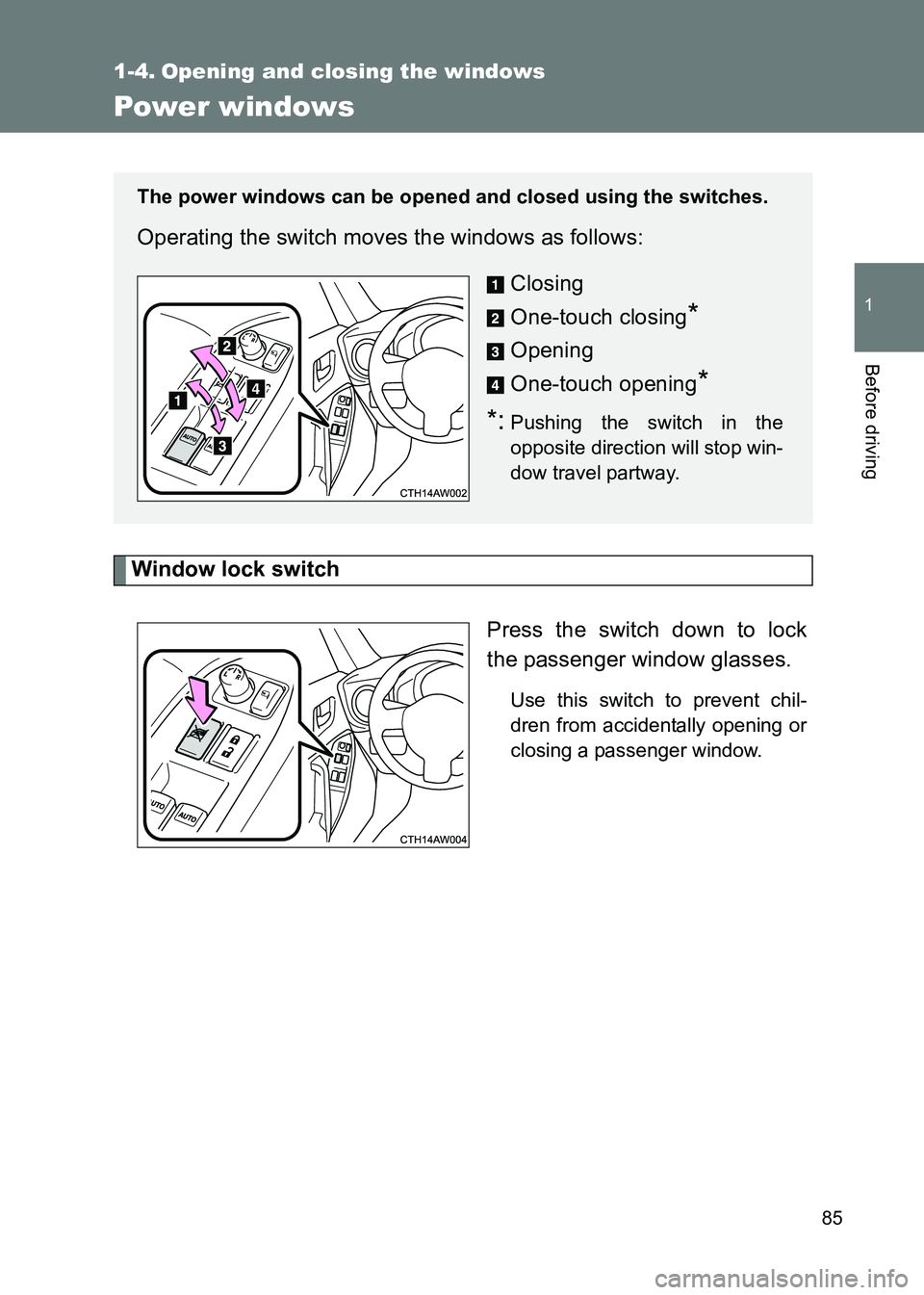

Power windows
Window lock switchPress the switch down to lock
the passenger window glasses.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows: Closing
One-touch closing
*
Opening
One-touch opening
*
*:Pushing the switch in the
opposite direction will stop win-
dow travel partway.

86
1-4. Opening and closing the windows
86_EE (OM18071E)
■

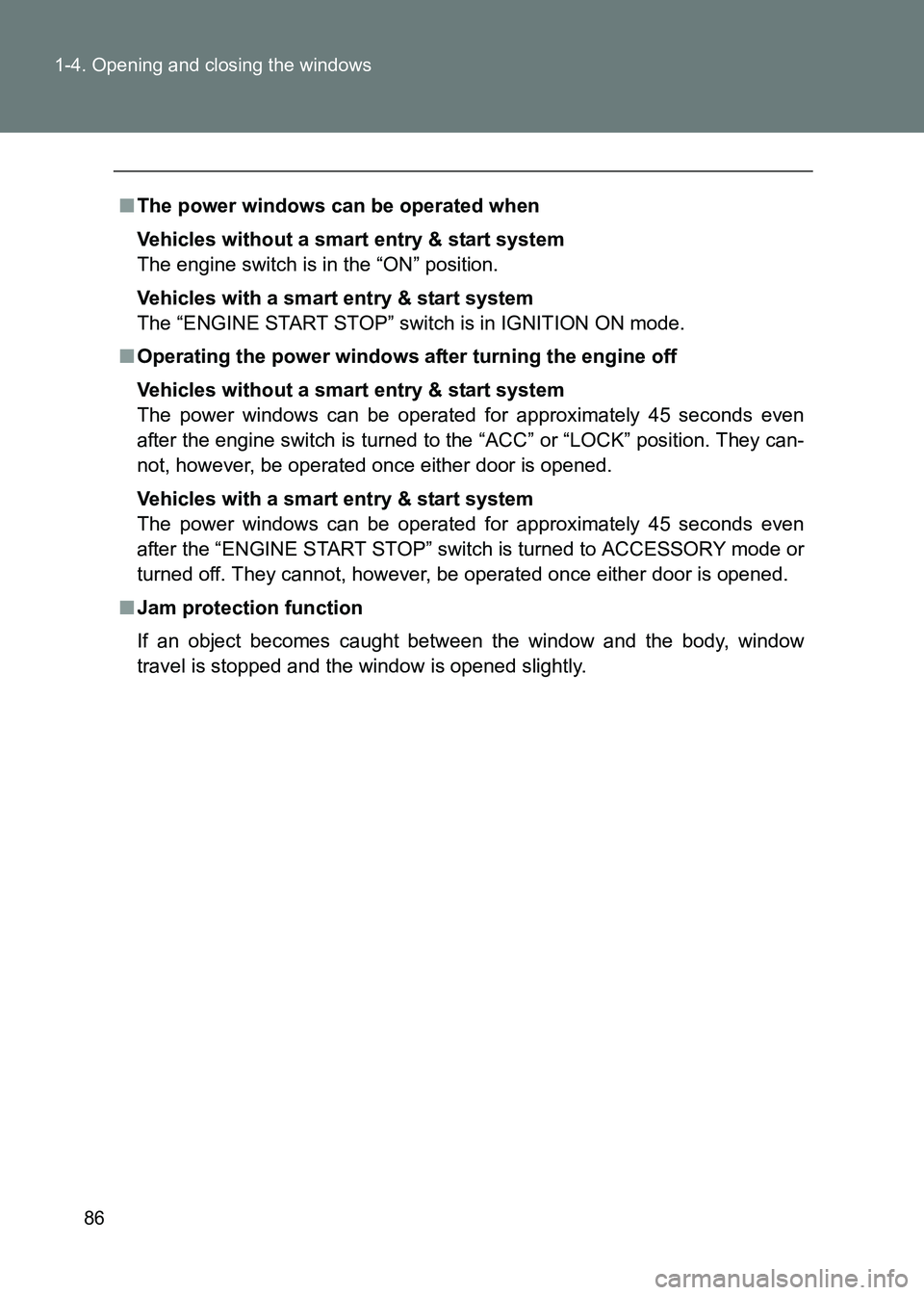

The power windows can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Operating the power windows after turning the engine off
Vehicles without a smart entry & start system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either door is opened.
Vehicles with a smart entry & start system
The power windows can be operated for approximately 45 seconds even
after the “ENGINE START STOP” switch is turned to ACCESSORY mode or
turned off. They cannot, however, be operated once either door is opened.
■ Jam protection function
If an object becomes caught between the window and the body, window
travel is stopped and the window is opened slightly.

87
1-4. Opening and closing the windows
1
Before driving
86_EE (OM18071E)
■

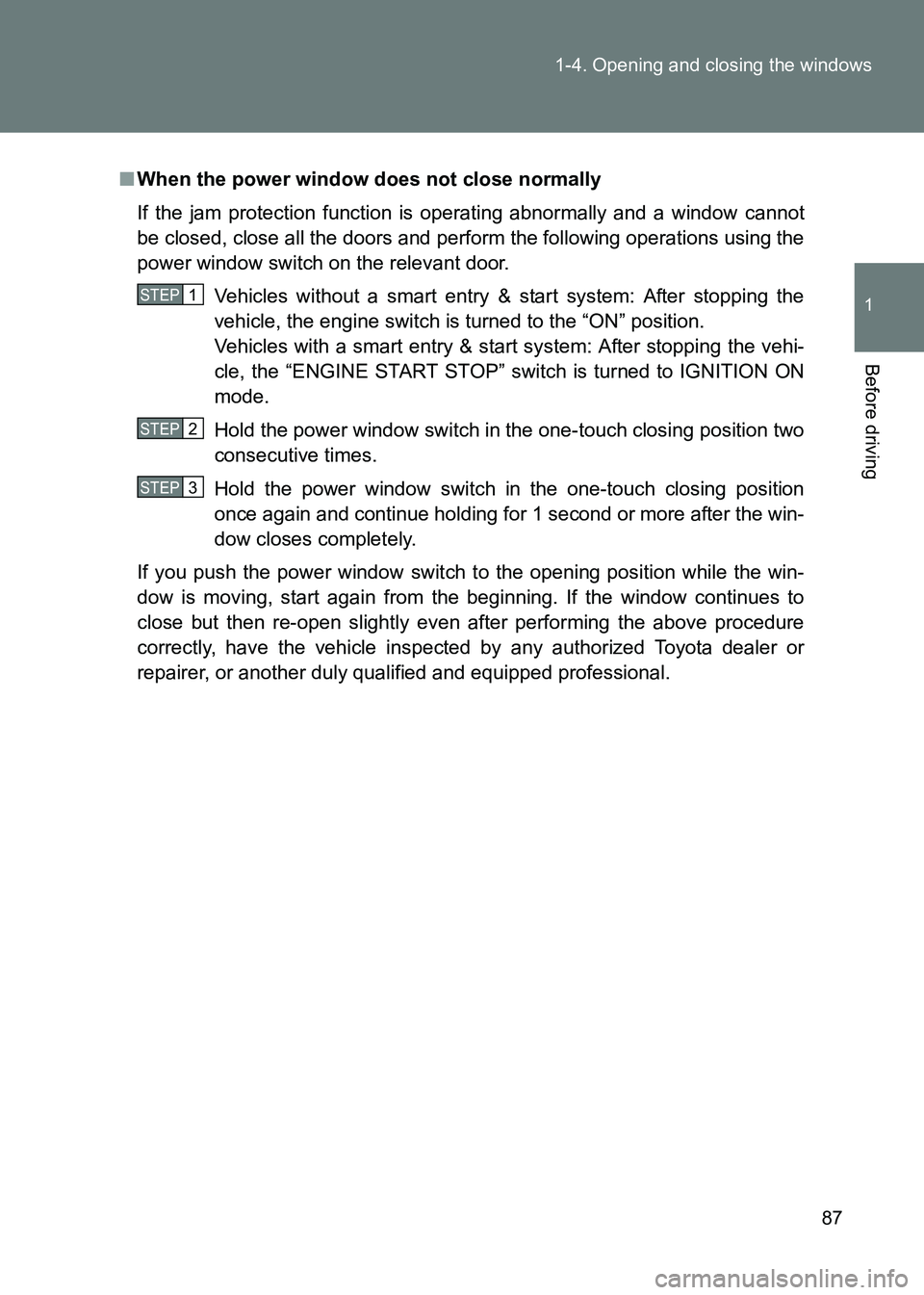

When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, close all the doors and perform the following operations using the
power window switch on the relevant door.
Vehicles without a smart entry & start system: After stopping the
vehicle, the engine switch is turned to the “ON” position.
Vehicles with a smart entry & st art system: After stopping the vehi-
cle, the “ENGINE START STOP” switch is turned to IGNITION ON
mode.
Hold the power window switch in the one-touch closing position two
consecutive times.
Hold the power window switch in the one-touch closing position
once again and continue holding for 1 second or more after the win-
dow closes completely.
If you push the power window switch to the opening position while the win-
dow is moving, start again from the beginning. If the window continues to
close but then re-open slightly even after performing the above procedure
correctly, have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
STEP 1
STEP 2
STEP 3

88
1-4. Opening and closing the windows
86_EE (OM18071E)
WARNING
■
Closing the windows
Observe the following precautions.
Failure to do so may result in death or serious injury.
●The driver is responsible for all t he power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( →P. 85)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engi ne switch (vehicles without a smart
entry & start system) or the “ENGINE START STOP” switch (vehicles with
a smart entry & start system) off, carry the key and exit the vehicle along
with the child. There may be accidental operation, due to mischief, etc.,
that may possibly lead to an accident.
■ Jam protection function
●Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.
