2-2. Instrument cluster
2
When driving
86_EE (OM18071E)
Analog Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge (if equipped)
Displays the engine coolant temperature.
Digital Speedometer (if equipped)
Displays the vehicle speed.
Multi-information display, odometer and trip meter
→
P. 210, 215
“DISP” switch (if equipped)
→P. 213
“ODO/TRIP” switch
→P. 212, 216
“km/h MPH” switch (if equipped)
Each time the switch is pressed, the display inside the meter changes
between km/h and MPH.

202
2-2. Instrument cluster
86_EE (OM18071E)

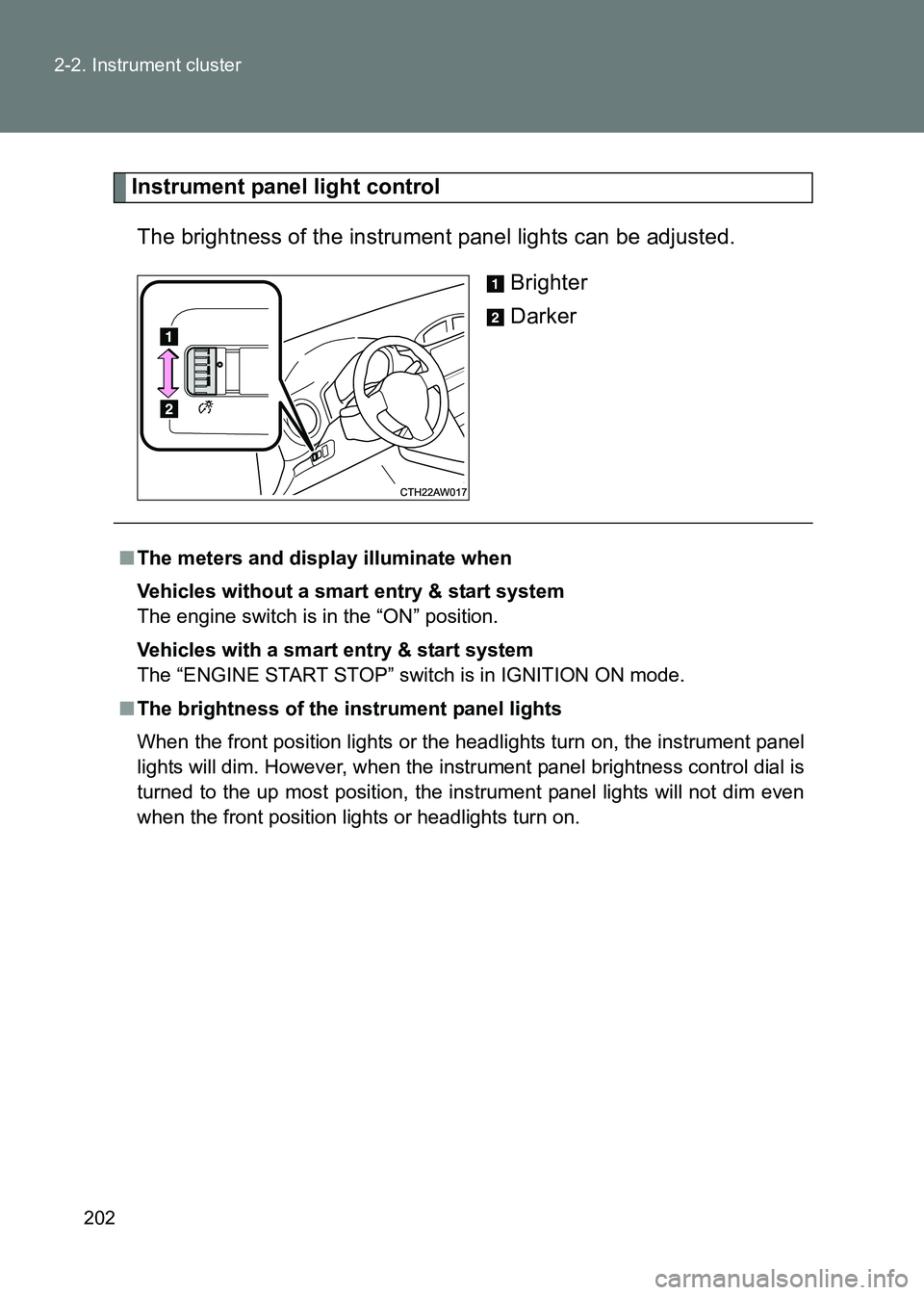

Instrument panel light control
The brightness of the instrument panel lights can be adjusted. Brighter
Darker
■The meters and display illuminate when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ The brightness of the instrument panel lights
When the front position lights or the headlights turn on, the instrument panel
lights will dim. However, when the instrument panel brightness control dial is
turned to the up most position, the instrument panel lights will not dim even
when the front position lights or headlights turn on.

203
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)

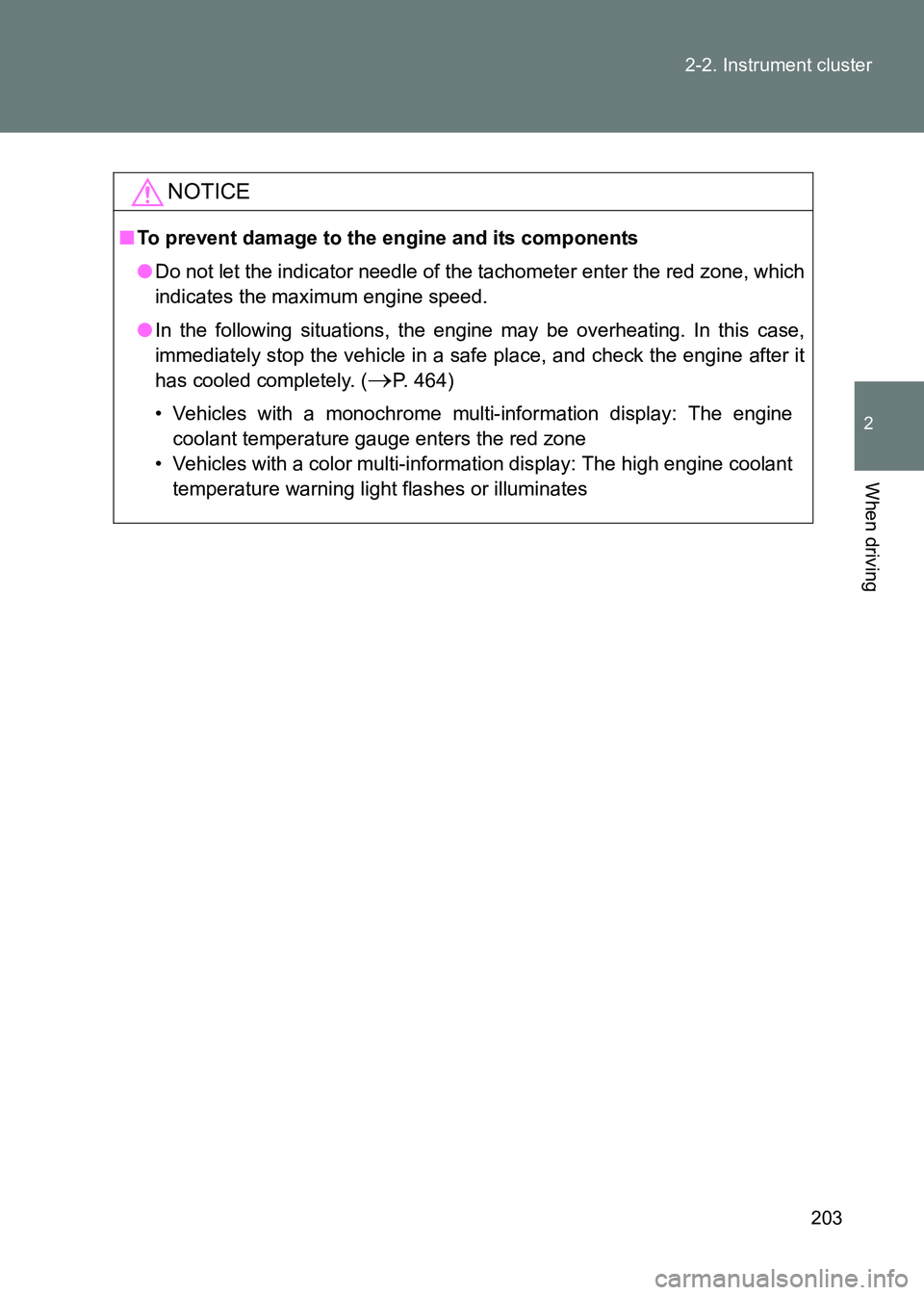

NOTICE
■
To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● In the following situations, the engine may be overheating. In this case,
immediately stop the vehicle in a safe place, and check the engine after it
has cooled completely. (
→P. 464)
• Vehicles with a monochrome multi-information display: The engine coolant temperature gauge enters the red zone
• Vehicles with a color multi-inform ation display: The high engine coolant
temperature warning light flashes or illuminates

204
2-2. Instrument cluster
86_EE (OM18071E)

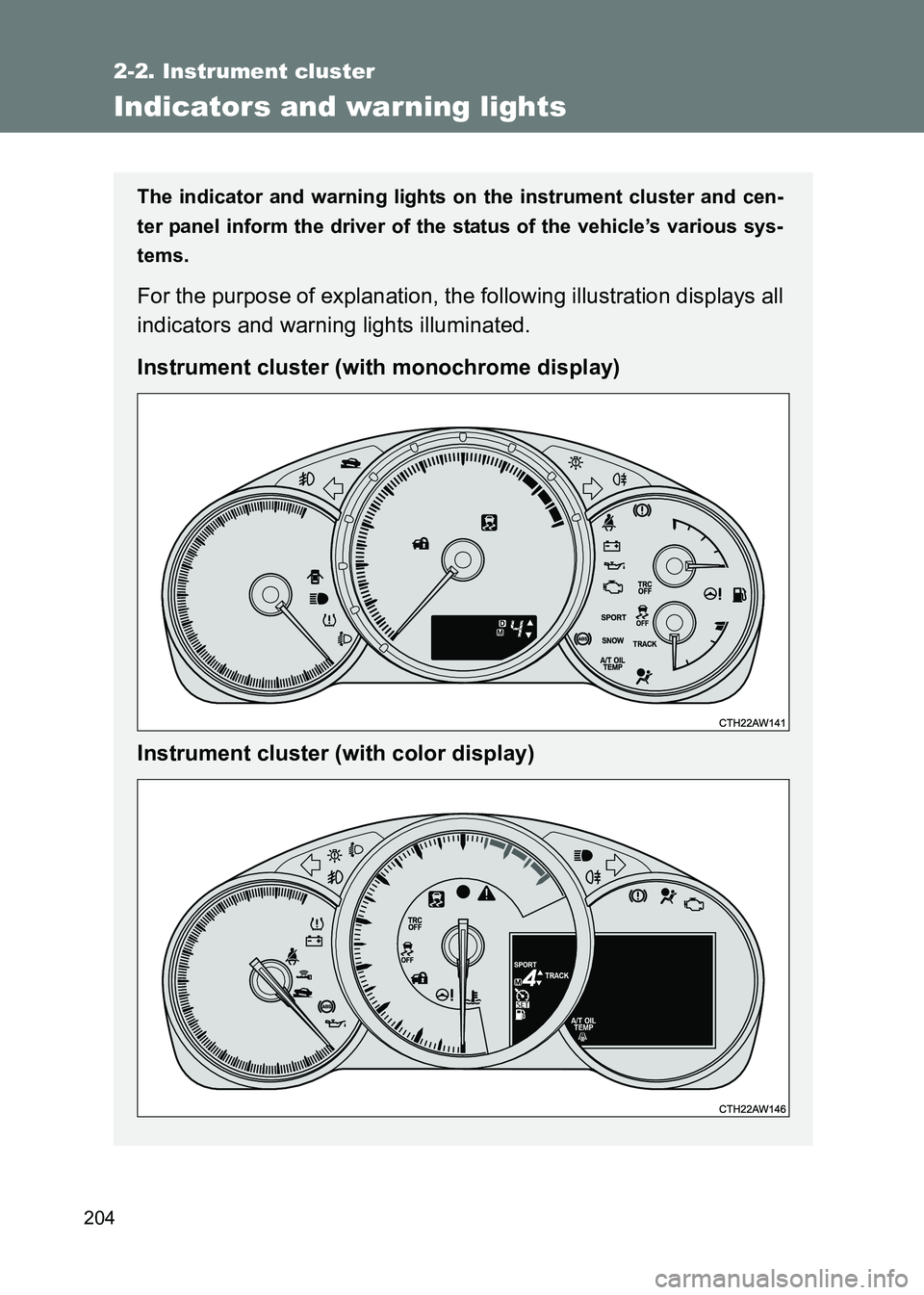

Indicators and war ning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster (with monochrome display)
Instrument cluster (with color display)

205
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)

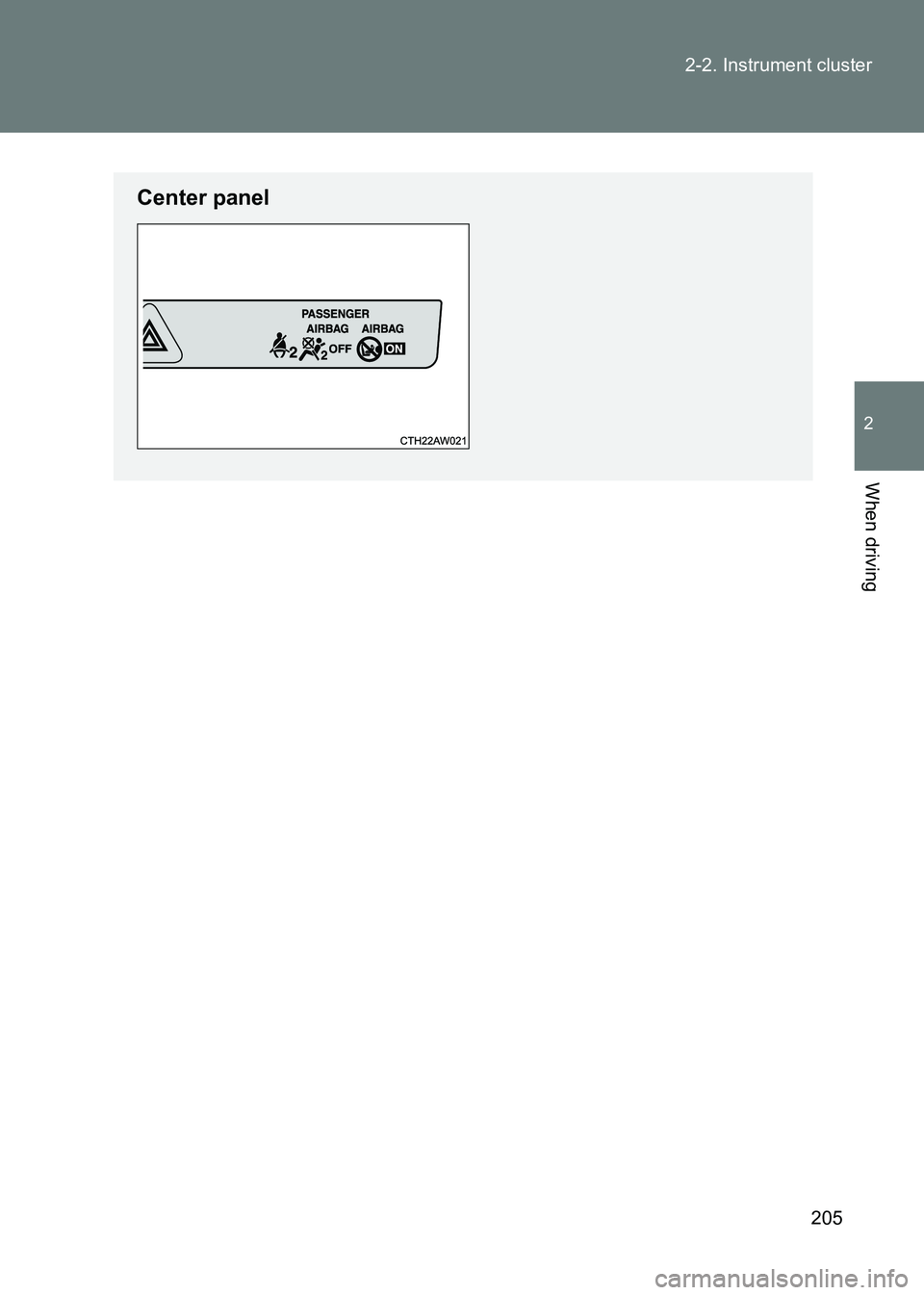

Center panel

206
2-2. Instrument cluster
86_EE (OM18071E)
■

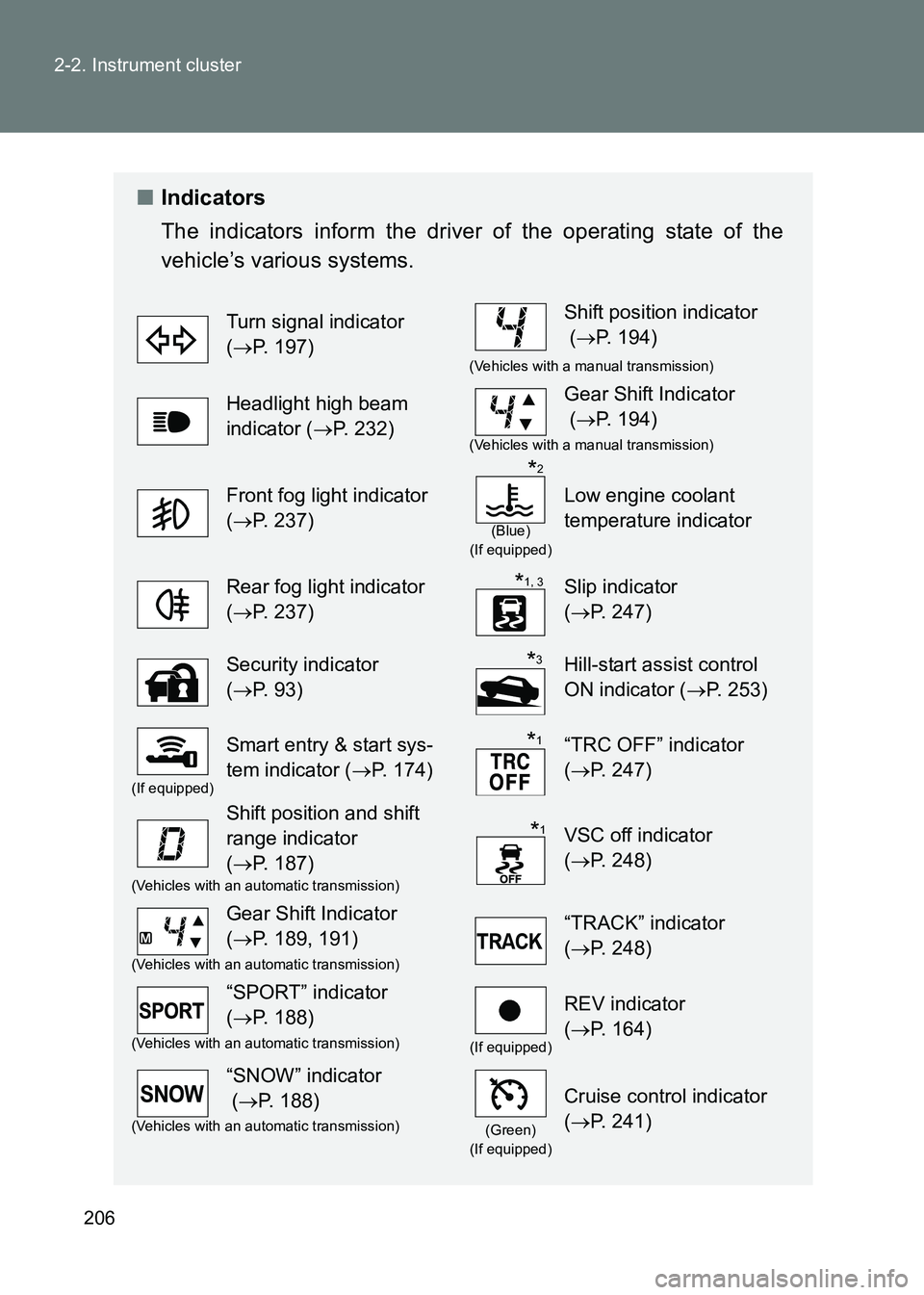

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(→ P. 197)Shift position indicator
(→ P. 194)
(Vehicles with a manual transmission)
Headlight high beam
indicator ( →P. 232)Gear Shift Indicator
(→ P. 194)
(Vehicles with a manual transmission)
Front fog light indicator
(→ P. 237)
(Blue)
(If equipped)
Low engine coolant
temperature indicator
Rear fog light indicator
( → P. 237)Slip indicator
(→ P. 247)
Security indicator
(→ P. 9 3 )Hill-start assist control
ON indicator ( →P. 253)
(If equipped)
Smart entry & start sys-
tem indicator ( →P. 174)“TRC OFF” indicator
(→ P. 247)
Shift position and shift
range indicator
(→ P. 187)
VSC off indicator
(→ P. 248)
(Vehicles with an automatic transmission)
Gear Shift Indicator
(→ P. 189, 191)“TRACK” indicator
(→ P. 248)
(Vehicles with an automatic transmission)
“SPORT” indicator
(→ P. 188)
(If equipped)
REV indicator
(→ P. 164)
(Vehicles with an automatic transmission)
“SNOW” indicator
(→ P. 188)
(Green)
(If equipped)
Cruise control indicator
( → P. 241)
(Vehicles with an automatic transmission)
*2
*1, 3
*3
*1
*1

207
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)

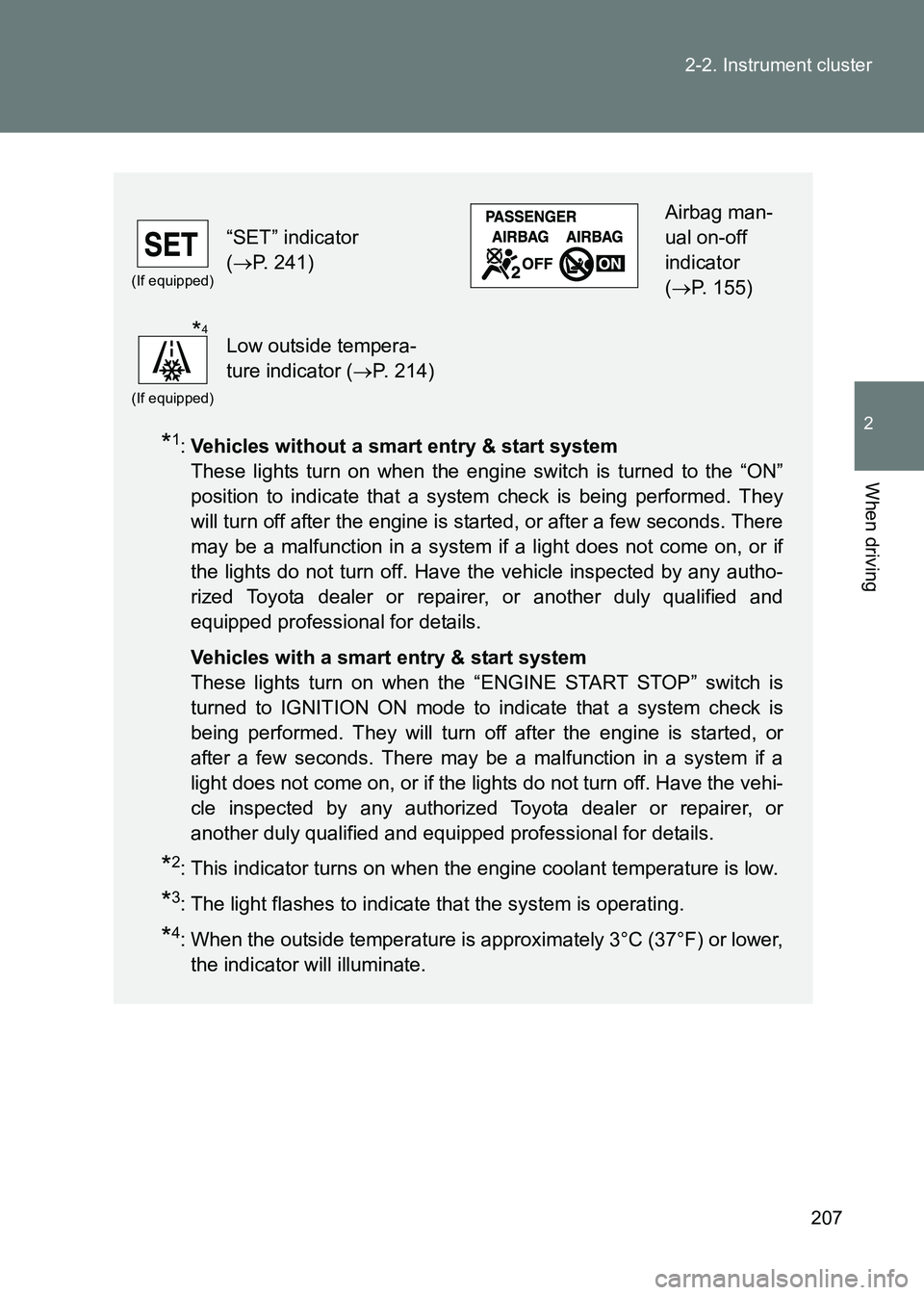

*1:
Vehicles without a smart entry & start system
These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Vehicles with a smart entry & start system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for details.
*2: This indicator turns on when the engine coolant temperature is low.
*3: The light flashes to indicate that the system is operating.
*4: When the outside temperature is approximately 3°C (37°F) or lower, the indicator will illuminate.
(If equipped)
“SET” indicator
(→ P. 241)
Airbag man-
ual on-off
indicator
(→ P. 155)
(If equipped)
Low outside tempera-
ture indicator ( →P. 214)*4

208
2-2. Instrument cluster
86_EE (OM18071E)
■
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( →P. 395, 404)
*1:Vehicles without a smart entry & start system
These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Vehicles with a smart entry & start system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for details.
*2: The light flashes in yellow to indicate a malfunction. The light flashes quickly in green to indicate that the steering lock has not
been released.
*3: The light comes on in yellow to indicate a malfunction.
(Red)(If equipped)(If equipped)(Yellow)
(If equipped)(Yellow)(If equipped)
(for driver)(for the
front pas- senger)
(If equipped)(If equipped)
*1*1*1*1*1*1*1
*1*1*2*3*1*1
*1*1*4*1
