2017 TOYOTA GT86 Owners Manual (in English)

281
3-1. Using the air conditioning system and defogger
3
Interior features
86_EE (OM18071E)
■
Ventilation and air conditioning odors
●To let fresh air in, set the air condi tioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditi oning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immediately after the air conditioning system is started in automatic
mode.
■ Air conditioning filter
→ P. 357
WARNING
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

282
3-1. Using the air conditioning system and defogger
86_EE (OM18071E)

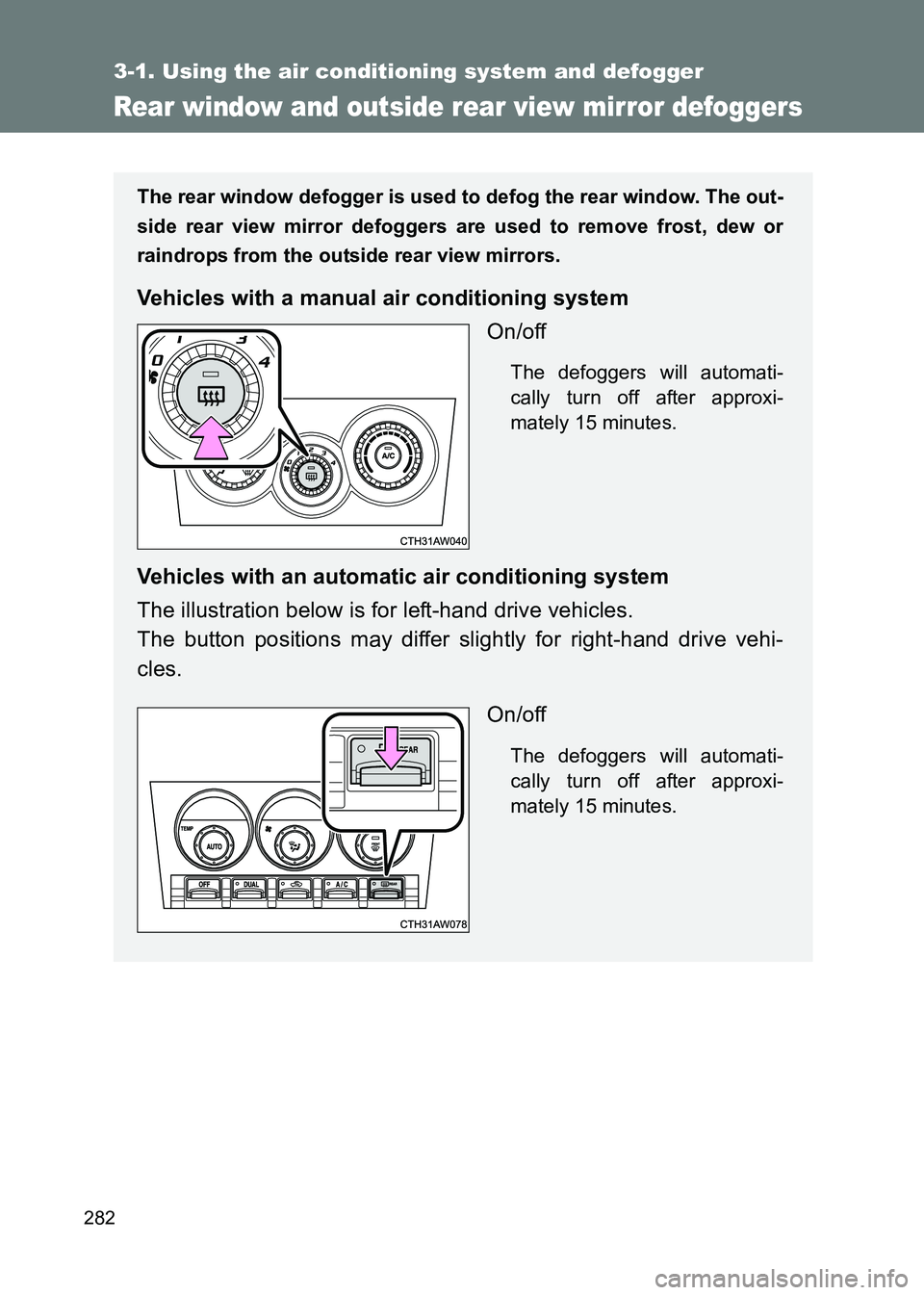

Rear window and outside rear view mirror defoggers
The rear window defogger is used to defog the rear window. The out-
side rear view mirror defoggers are used to remove frost, dew or
raindrops from the outside rear view mirrors.
Vehicles with a manual air conditioning systemOn/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.
Vehicles with an automatic air conditioning system
The illustration below is for left-hand drive vehicles.
The button positions may differ slightly for right-hand drive vehi-
cles.
On/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.

283
3-1. Using the air conditioning system and defogger
3
Interior features
86_EE (OM18071E)
■
The defoggers can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ The outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
■ When continuous operation is set ( vehicles with an automatic air con-
ditioning system)
During continuous operation, the defogger stops operating for 2 minutes
after every 15 minutes of continual operation. Even during the 2 minutes that
operation stops, the operating light remains illuminated. The rear window
defogger will continue to operate in this cycle until it is turned off.
■ Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualifi ed and equipped professional (vehi-
cles with an automatic air conditioning system)
The rear window defogger can be set to 15-minute operation or continuous
operation. (Customizable features →P. 487)
WARNING
■When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
NOTICE
■To prevent battery discharge
Do not leave the rear window defogger on longer than necessary when the
engine is stopped.

284
86_EE (OM18071E)
3-2. Using the audio system

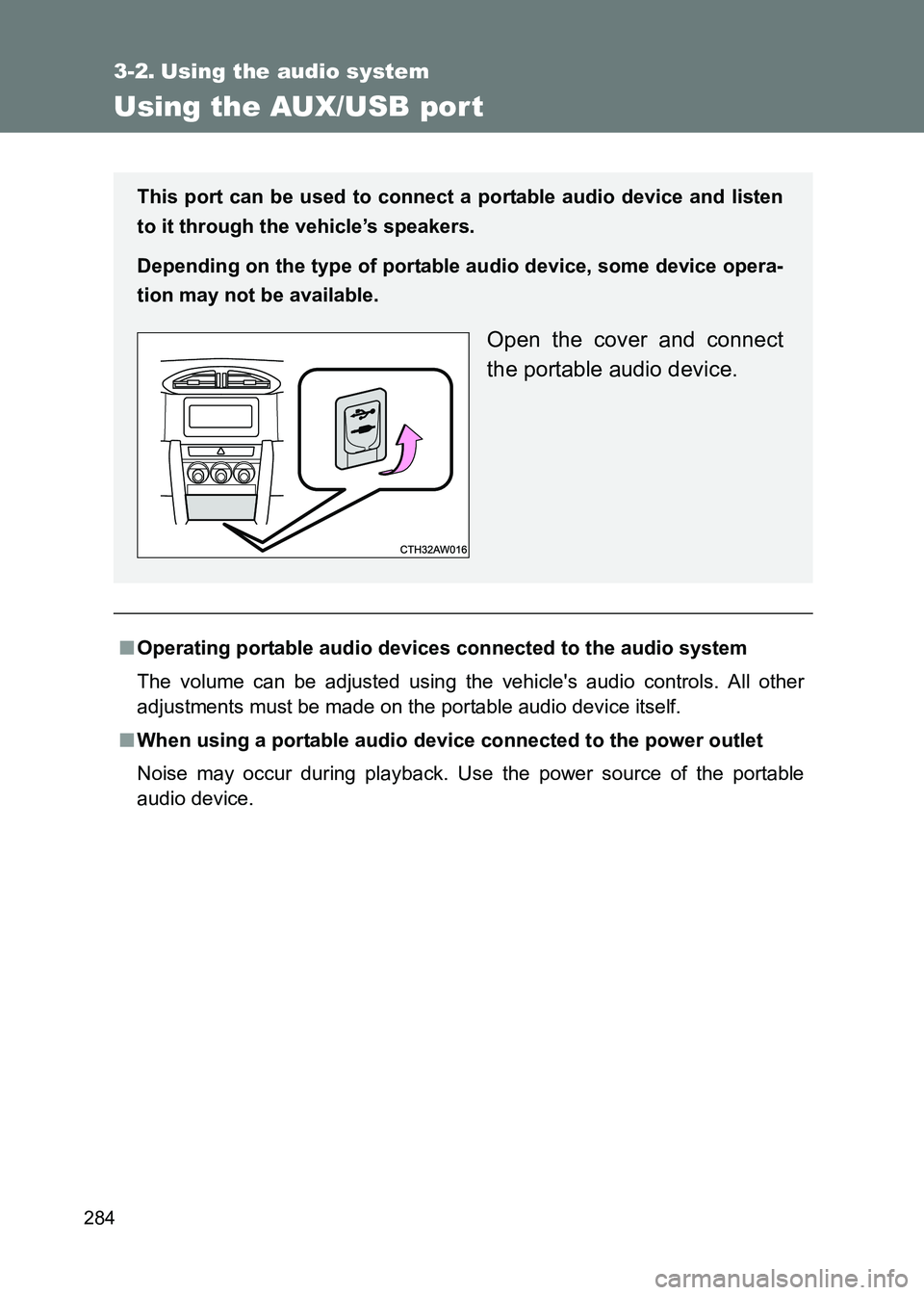

Using the AUX/USB por t
■Operating portable audio devi ces connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio device itself.
■ When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device. This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Depending on the type of portable audio device, some device opera-
tion may not be available.
Open the cover and connect
the portable audio device.

285
3-2. Using the audio system
3
Interior features
86_EE (OM18071E)
Steering wheel audio switches∗
WARNING
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
Some audio features can be cont rolled using the switches on the
steering wheel.
Operation may differ depending on the type of audio system or navi-
gation system. For details, refer to the manual provided with the
audio system or navigation system.
∗: If equipped

286
86_EE (OM18071E)
3-3. Using the interior lights

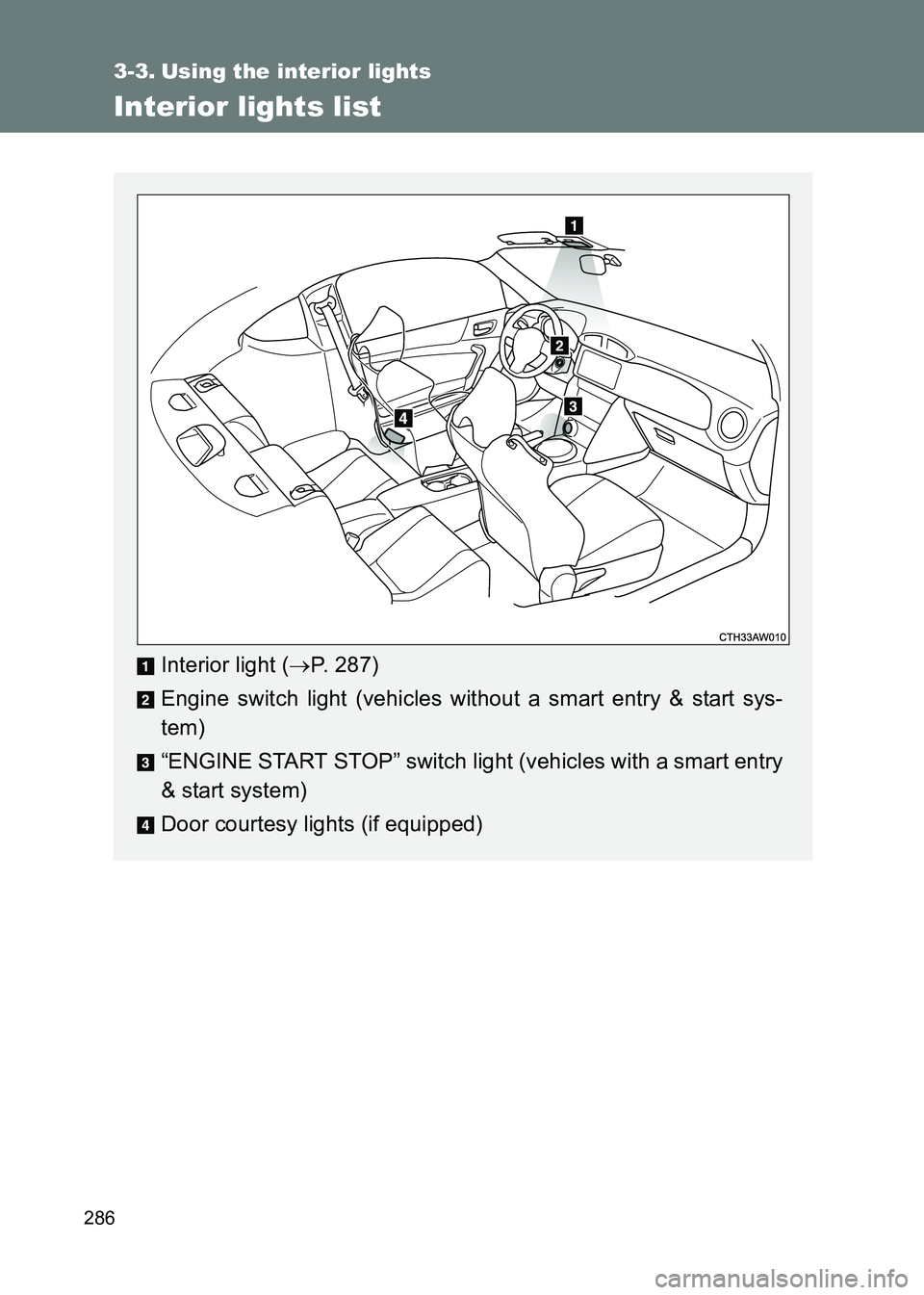

Interior lights list
Interior light (→P. 287)
Engine switch light (vehicles without a smart entry & start sys-
tem)
“ENGINE START STOP” switch light (vehicles with a smart entry
& start system)
Door courtesy lights (if equipped)

287
3-3. Using the interior lights
3
Interior features
86_EE (OM18071E)
Interior light
Turns the light off
Turns the door position on
Turns the light on
■Illuminated entry system
Vehicles without a smart entry & start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
Vehicles with a smart entry & start system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
■ To prevent battery discharge
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
●Interior light (when the switch is in the
“DOOR” position)
● Engine switch light (vehicles without a smart entry & start system)
● “ENGINE START STOP” switch light (vehicles with a smart entry & start
system)
● Door courtesy lights (if equipped)
■ Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features
→P. 487)
Interior light

288
86_EE (OM18071E)
3-4. Using the storage features
List of storage features
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove box
Bottle holders
Cup holders/console tray
